◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50953 - NKR(SOUTH AFRICA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#44158) — 85 parça

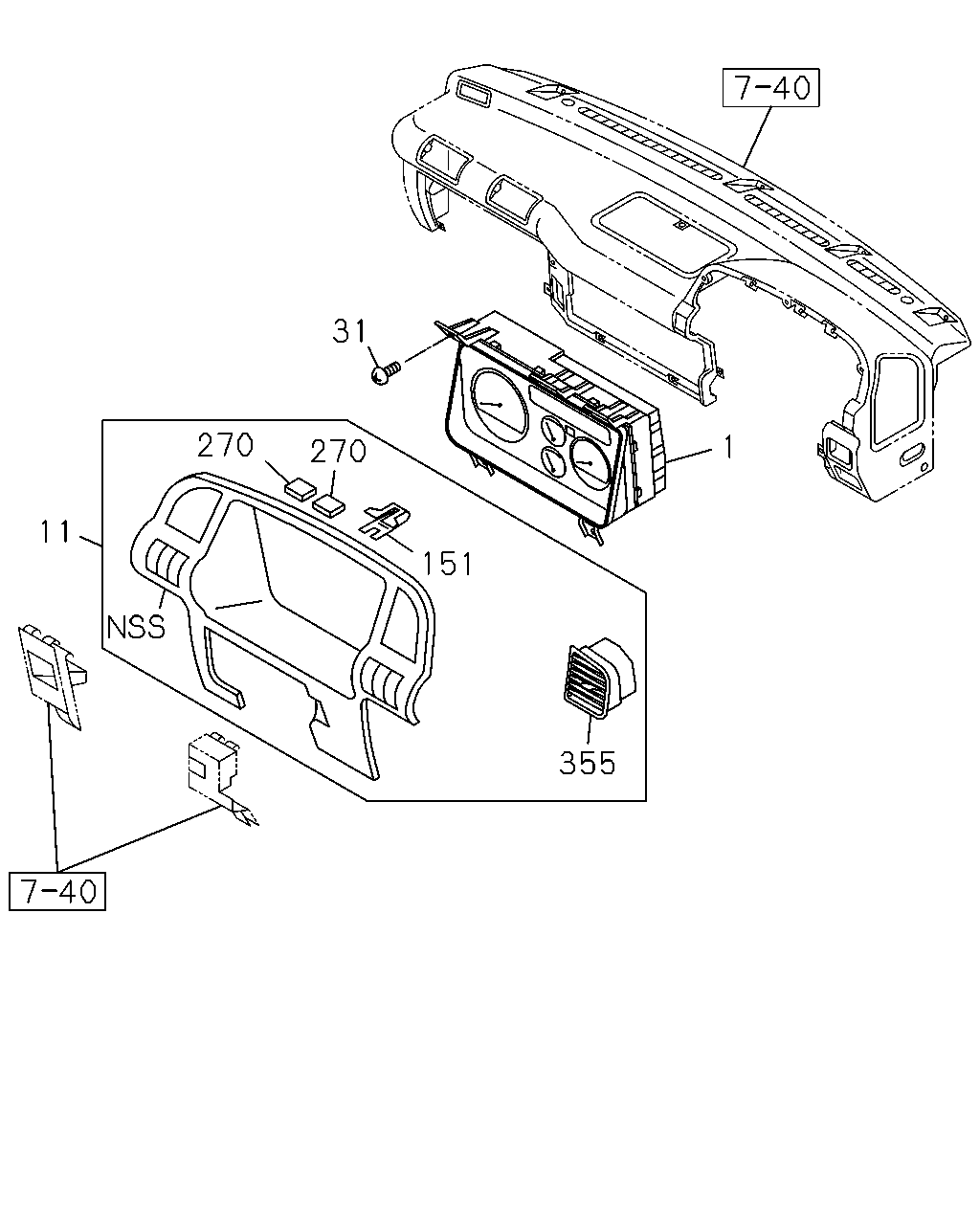

çizim 12739
31 270 1 270 11 151 355
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER
4JB1 ENG(RLF) TACHOMETER<U16> SOU 		8-97249-243-0 01 1 0303-0511
1 METER COMPL; CLUSTER
4HF1 ENG(RLS) EXC. TACHOMETER<U16> 		8-97385-418-0 01 1 0512-
1 METER COMPL; CLUSTER
4JB1 ENG(RLF) EXC. TACHOMETER<U16> SOU 		8-97249-242-0 01 1 0303-0511
1 METER COMPL; CLUSTER
4HF1 ENG(RLS) TACHOMETER<U16> 		8-97385-419-0 01 1 0512-
11 CLUSTER ASM; METER
BLACK SOU 		8-97195-964-2 01 1 0303-
31 SCREW; METER,INST PANEL
M6X19.5 W/LK&PL WASHER SOU 		8-94279-201-0 05 1 0303-
151 CLIP; METER CLUSTER
SOU 		8-97217-066-0 07 1 0303-
270 CUSHION; METER CLUSTER
15X30 T=5 SOU 		8-94270-366-2 01 1 0401-
270 CUSHION; METER CLUSTER
6X30 T=2 SOU 		8-94270-378-1 02 1 0303-
355 GRILLE; VENT
BLACK SOU 		8-97195-966-1 01 1 0303-
355 GRILLE; VENT
BLACK SOU 		8-97195-967-1 01 1 0303-

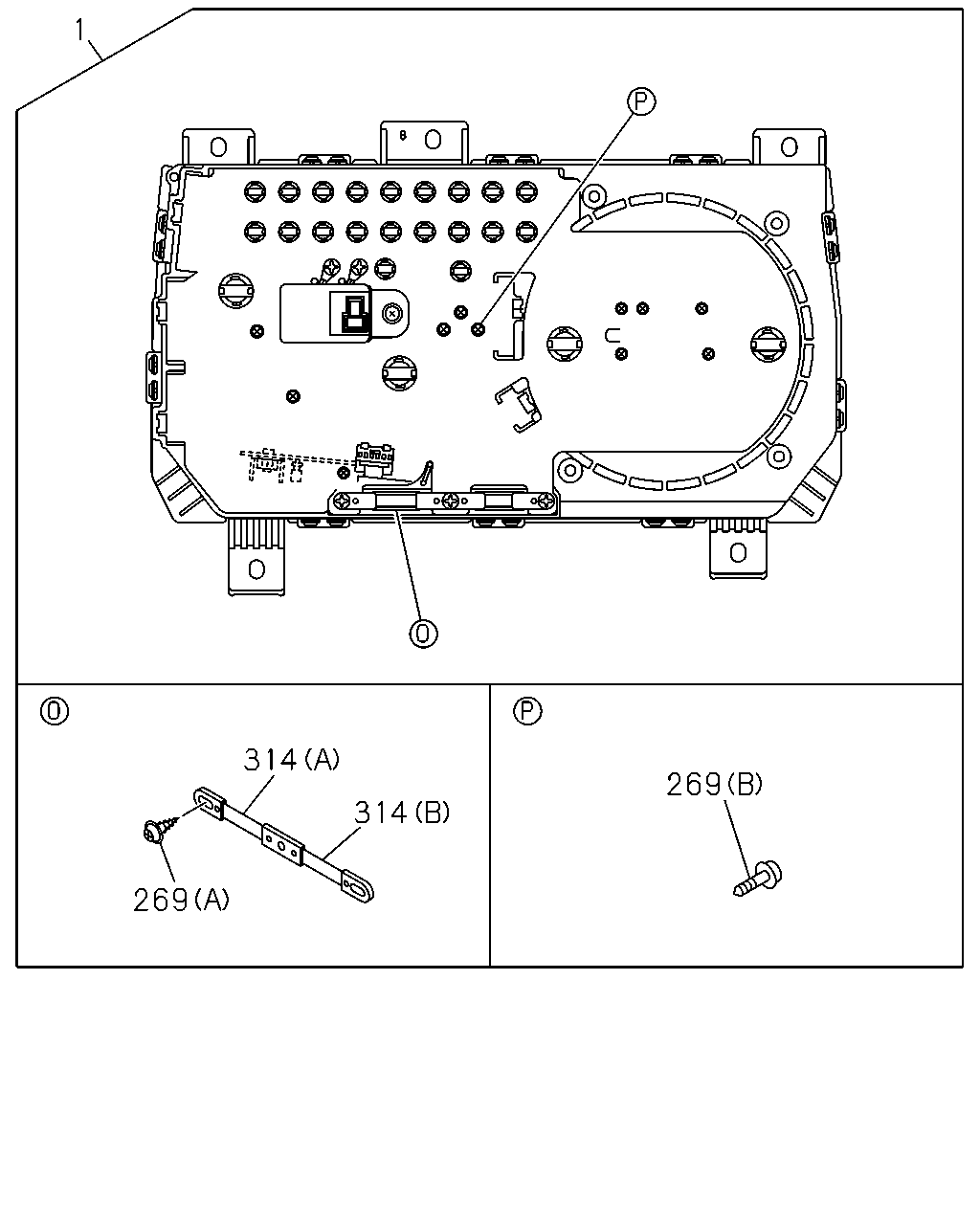

çizim 52108
1 314 269 314 269
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER
4JB1 ENG(RLF) TACHOMETER<U16> SOU 		8-97249-243-0 01 1 0303-0511
1 METER COMPL; CLUSTER
4HF1 ENG(RLS) EXC. TACHOMETER<U16> 		8-97385-418-0 01 1 0512-
1 METER COMPL; CLUSTER
4JB1 ENG(RLF) EXC. TACHOMETER<U16> SOU 		8-97249-242-0 01 1 0303-0511
1 METER COMPL; CLUSTER
4HF1 ENG(RLS) TACHOMETER<U16> 		8-97385-419-0 01 1 0512-
269 SCREW; METER CLUSTER
4HF1 ENG(RLS) (D) SOU 		8-97185-523-0 01 1 0512-
269 SCREW; METER CLUSTER
4JB1 ENG(RLF) TACHOMETER<U16> (B) SOU 		8-97185-524-0 08 1 0303-0511
269 SCREW; METER CLUSTER
4HF1 ENG(RLS) TACHOMETER<U16> (B) SOU 		8-97185-524-0 08 1 0512-
269 SCREW; METER CLUSTER
4JB1 ENG(RLF) (C) SOU 		8-97185-525-0 06 1 0303-0511
269 SCREW; METER CLUSTER
4HF1 ENG(RLS) (C) SOU 		8-97185-525-0 06 1 0512-
269 SCREW; METER CLUSTER
4JB1 ENG(RLF) (A) SOU 		8-97185-528-0 02 1 0303-0511
269 SCREW; METER CLUSTER
4HF1 ENG(RLS) (A) SOU 		8-97185-528-0 05 1 0512-
269 SCREW; METER CLUSTER
4JB1 ENG(RLF) EXC. TACHOMETER<U16> (B) SOU 		8-97185-524-0 07 1 0303-0511
269 SCREW; METER CLUSTER
4HF1 ENG(RLS) EXC. TACHOMETER<U16> (B) SOU 		8-97185-524-0 07 1 0512-
314 RESISTOR; COMB METER,CLUSTER METER
4HF1 ENG(RLS) (A) SOU 		8-97185-515-0 01 1 0512-
314 RESISTOR; COMB METER,CLUSTER METER
4HF1 ENG(RLS) (B) SOU 		8-97185-516-0 01 1 0512-

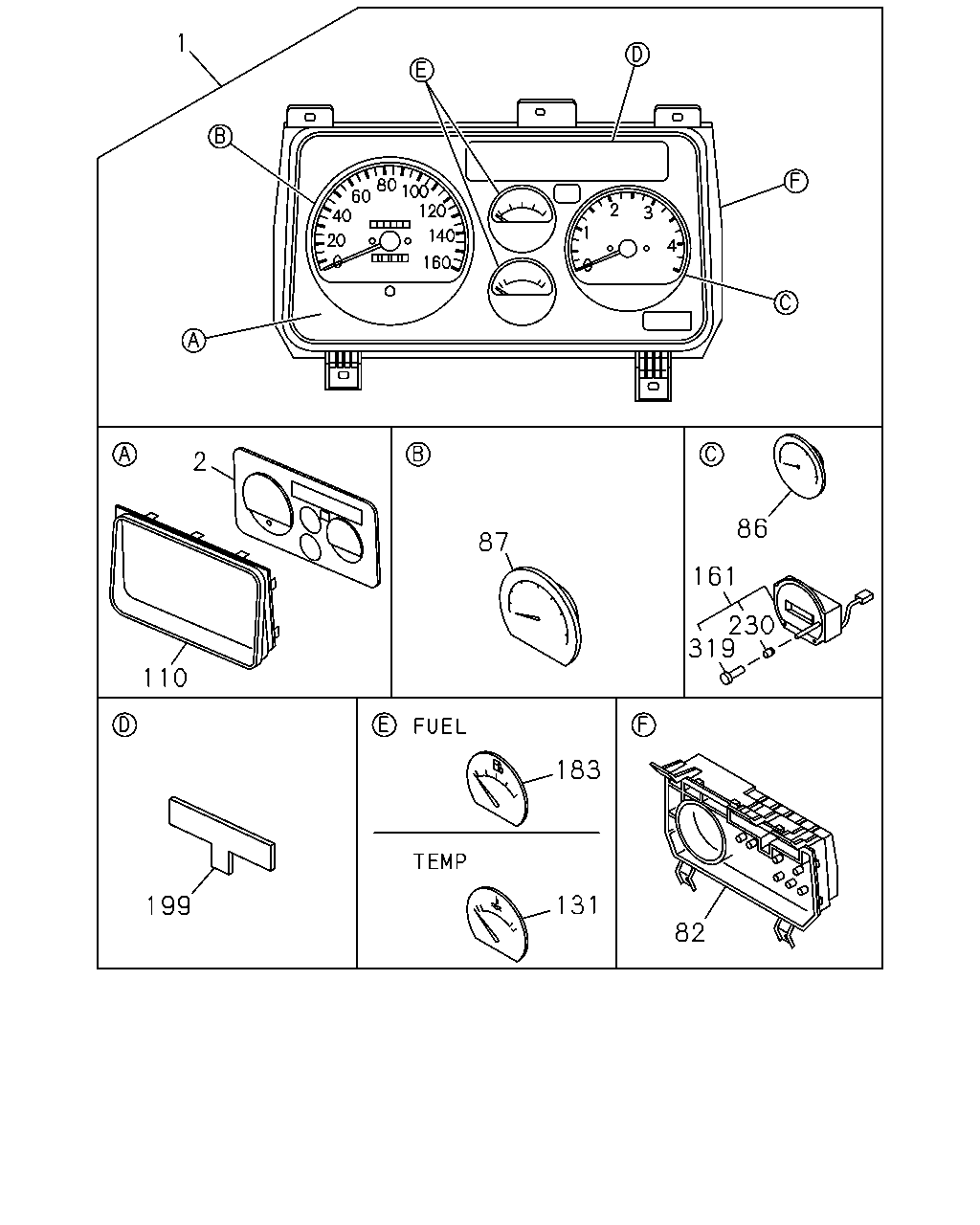

çizim 52158
1 2 86 87 161 230 319 110 183 131 199 82
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER
4JB1 ENG(RLF) TACHOMETER<U16> SOU 		8-97249-243-0 01 1 0303-0511
1 METER COMPL; CLUSTER
4HF1 ENG(RLS) EXC. TACHOMETER<U16> 		8-97385-418-0 01 1 0512-
1 METER COMPL; CLUSTER
4JB1 ENG(RLF) EXC. TACHOMETER<U16> SOU 		8-97249-242-0 01 1 0303-0511
1 METER COMPL; CLUSTER
4HF1 ENG(RLS) TACHOMETER<U16> 		8-97385-419-0 01 1 0512-
2 PANEL; CLUSTER
4JB1 ENG(RLF) SOU 		8-97185-443-0 01 1 0303-0511
2 PANEL; CLUSTER
4HF1 ENG(RLS) SOU 		8-97185-443-0 01 1 0512-
82 CASE ASM; CLUSTER METER
4JB1 ENG(RLF) SOU 		8-97185-448-0 01 1 0303-0511
82 CASE ASM; CLUSTER METER
4HF1 ENG(RLS) SOU 		8-97185-448-0 01 1 0512-
86 TACHOMETER; CLUSTER METER
4JB1 ENG(RLF) TACHOMETER<U16> SOU 		8-97185-467-0 01 1 0303-0511
86 TACHOMETER; CLUSTER METER
4HF1 ENG(RLS) TACHOMETER<U16> 		8-98002-112-0 01 1 0512-
87 SPEEDOMETER
4JB1 ENG(RLF) SOU 		8-97185-456-0 01 1 0303-0511
87 SPEEDOMETER
4HF1 ENG(RLS) 		8-98002-107-0 01 1 0512-
110 GLASS; CLUSTER METER
4JB1 ENG(RLF) TACHOMETER<U16> SOU 		8-97185-452-0 01 1 0303-0511
110 GLASS; CLUSTER METER
4HF1 ENG(RLS) TACHOMETER<U16> SOU 		8-97185-452-0 01 1 0512-
110 GLASS; CLUSTER METER
4JB1 ENG(RLF) EXC. TACHOMETER<U16> SOU 		8-97185-451-0 01 1 0303-0511
110 GLASS; CLUSTER METER
4HF1 ENG(RLS) EXC. TACHOMETER<U16> SOU 		8-97185-451-0 01 1 0512-
131 GAUGE; TEMP,CLUSTER METER
4JB1 ENG(RLF) SOU 		8-97185-476-0 01 1 0303-0511
131 GAUGE; TEMP,CLUSTER METER
4HF1 ENG(RLS) 		8-98002-121-0 01 1 0512-
161 CLOCK; CLUSTER METER
4JB1 ENG(RLF) EXC. TACHOMETER<U16> SOU 		8-97185-462-0 01 1 0303-0511
161 CLOCK; CLUSTER METER
4HF1 ENG(RLS) EXC. TACHOMETER<U16> 		8-98002-110-0 01 1 0512-
183 GAUGE; FUEL
4JB1 ENG(RLF) SOU 		8-97185-473-0 01 1 0303-0511
183 GAUGE; FUEL
4HF1 ENG(RLS) 		8-98002-118-0 01 1 0512-
199 LENS; WARNING LAMP
4JB1 ENG(RLF) SOU 		8-97210-305-0 01 1 0303-0511
199 LENS; WARNING LAMP
4HF1 ENG(RLS) 		8-98002-124-0 01 1 0512-
230 KNOB; DIGITAL CLOCK,SUB METER
4JB1 ENG(RLF) EXC. TACHOMETER<U16> SOU 		8-97185-644-0 01 1 0303-0511
230 KNOB; DIGITAL CLOCK,SUB METER
4HF1 ENG(RLS) EXC. TACHOMETER<U16> SOU 		8-97185-644-0 01 1 0512-
319 SCREW; KNOB,CLUSTER METER
4JB1 ENG(RLF) EXC. TACHOMETER<U16> SOU 		8-97185-522-0 01 1 0303-0511
319 SCREW; KNOB,CLUSTER METER
4HF1 ENG(RLS) EXC. TACHOMETER<U16> SOU 		8-97185-522-0 01 1 0512-

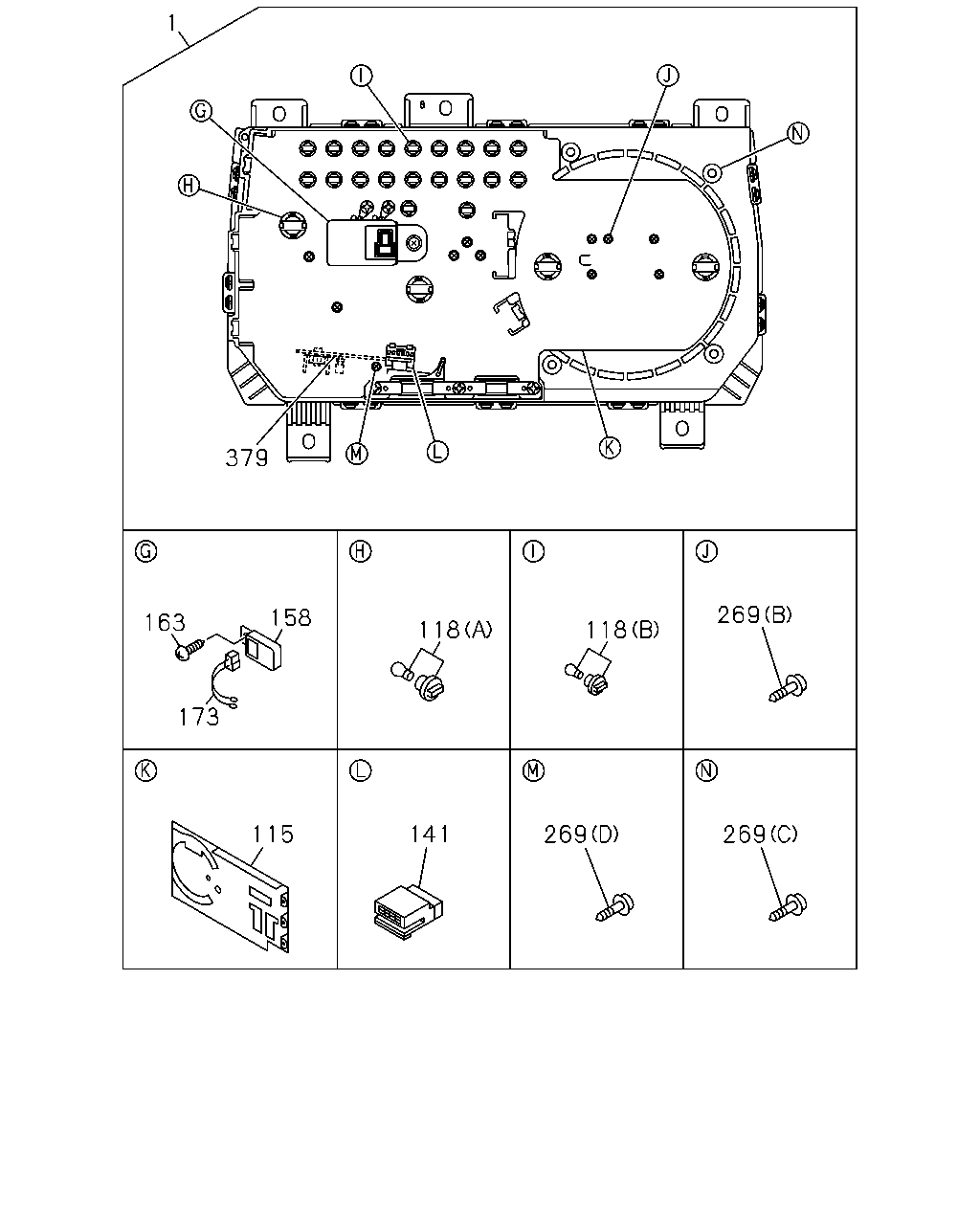

çizim 52841
1 379 269 158 163 118 118 173 115 269 269 141
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER
4JB1 ENG(RLF) TACHOMETER<U16> SOU 		8-97249-243-0 01 1 0303-0511
1 METER COMPL; CLUSTER
4HF1 ENG(RLS) EXC. TACHOMETER<U16> 		8-97385-418-0 01 1 0512-
1 METER COMPL; CLUSTER
4JB1 ENG(RLF) EXC. TACHOMETER<U16> SOU 		8-97249-242-0 01 1 0303-0511
1 METER COMPL; CLUSTER
4HF1 ENG(RLS) TACHOMETER<U16> 		8-97385-419-0 01 1 0512-
115 CIRCUIT; PRINTED,CLUSTER METER
4JB1 ENG(RLF) TACHOMETER<U16> SOU 		8-97210-309-0 01 1 0303-0511
115 CIRCUIT; PRINTED,CLUSTER METER
4HF1 ENG(RLS) EXC. TACHOMETER<U16> 		8-97374-740-0 01 1 0512-
115 CIRCUIT; PRINTED,CLUSTER METER
4JB1 ENG(RLF) EXC. TACHOMETER<U16> SOU 		8-97210-308-0 01 1 0303-0511
115 CIRCUIT; PRINTED,CLUSTER METER
4HF1 ENG(RLS) TACHOMETER<U16> 		8-97374-741-0 01 1 0512-
118 BULB; CLUSTER METER
4JB1 ENG(RLF) (A) 12V SOCKET COLOR BLACK SOU 		8-97185-535-0 04 1 0303-0511
118 BULB; CLUSTER METER
4HF1 ENG(RLS) (A) 24V SOCKET COLOR DARK BROWN SOU 		8-97185-538-0 04 1 0512-
118 BULB; CLUSTER METER
4JB1 ENG(RLF) (B) 12V SOCKET COLOR BLACK SOU 		8-97185-536-0 11 1 0303-0511
118 BULB; CLUSTER METER
4HF1 ENG(RLS) (B) 24V SOCKET COLOR REDDISH BROWN SOU 		8-97185-540-0 02 1 0512-
118 BULB; CLUSTER METER
4JB1 ENG(RLF) (B) 12V SOCKET COLOR BLUE SOU 		8-97185-537-0 02 1 0303-0511
118 BULB; CLUSTER METER
4HF1 ENG(RLS) (B) 24V SOCKET COLOR DARK BROWN SOU 		8-97185-539-0 09 1 0512-
141 CONNECTOR; CLUSTER METER
4HF1 ENG(RLS) SOU 		8-97185-513-0 01 1 0512-
158 BUZZER; VAC WARNING
4JB1 ENG(RLF) 12V SOU 		8-97185-520-0 01 1 0303-0511
158 BUZZER; VAC WARNING
4HF1 ENG(RLS) SOU 		8-97185-519-0 01 1 0512-
163 SCREW; BUZZER
4JB1 ENG(RLF) SOU 		8-97185-527-0 01 1 0303-0511
163 SCREW; BUZZER
4HF1 ENG(RLS) SOU 		8-97185-527-0 01 1 0512-
173 WIRE; REED
4JB1 ENG(RLF) SOU 		8-97185-643-0 01 1 0303-0511
173 WIRE; REED
4HF1 ENG(RLS) SOU 		8-97185-643-0 01 1 0512-
269 SCREW; METER CLUSTER
4HF1 ENG(RLS) (D) SOU 		8-97185-523-0 01 1 0512-
269 SCREW; METER CLUSTER
4JB1 ENG(RLF) TACHOMETER<U16> (B) SOU 		8-97185-524-0 08 1 0303-0511
269 SCREW; METER CLUSTER
4HF1 ENG(RLS) TACHOMETER<U16> (B) SOU 		8-97185-524-0 08 1 0512-
269 SCREW; METER CLUSTER
4JB1 ENG(RLF) (C) SOU 		8-97185-525-0 06 1 0303-0511
269 SCREW; METER CLUSTER
4HF1 ENG(RLS) (C) SOU 		8-97185-525-0 06 1 0512-
269 SCREW; METER CLUSTER
4JB1 ENG(RLF) (A) SOU 		8-97185-528-0 02 1 0303-0511
269 SCREW; METER CLUSTER
4HF1 ENG(RLS) (A) SOU 		8-97185-528-0 05 1 0512-
269 SCREW; METER CLUSTER
4JB1 ENG(RLF) EXC. TACHOMETER<U16> (B) SOU 		8-97185-524-0 07 1 0303-0511
269 SCREW; METER CLUSTER
4HF1 ENG(RLS) EXC. TACHOMETER<U16> (B) SOU 		8-97185-524-0 07 1 0512-
379 CIRCUIT; DROP
4HF1 ENG(RLS) SOU 		8-97185-512-0 01 1 0512-
