◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50953 - NKR(SOUTH AFRICA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#44156) — 142 parça

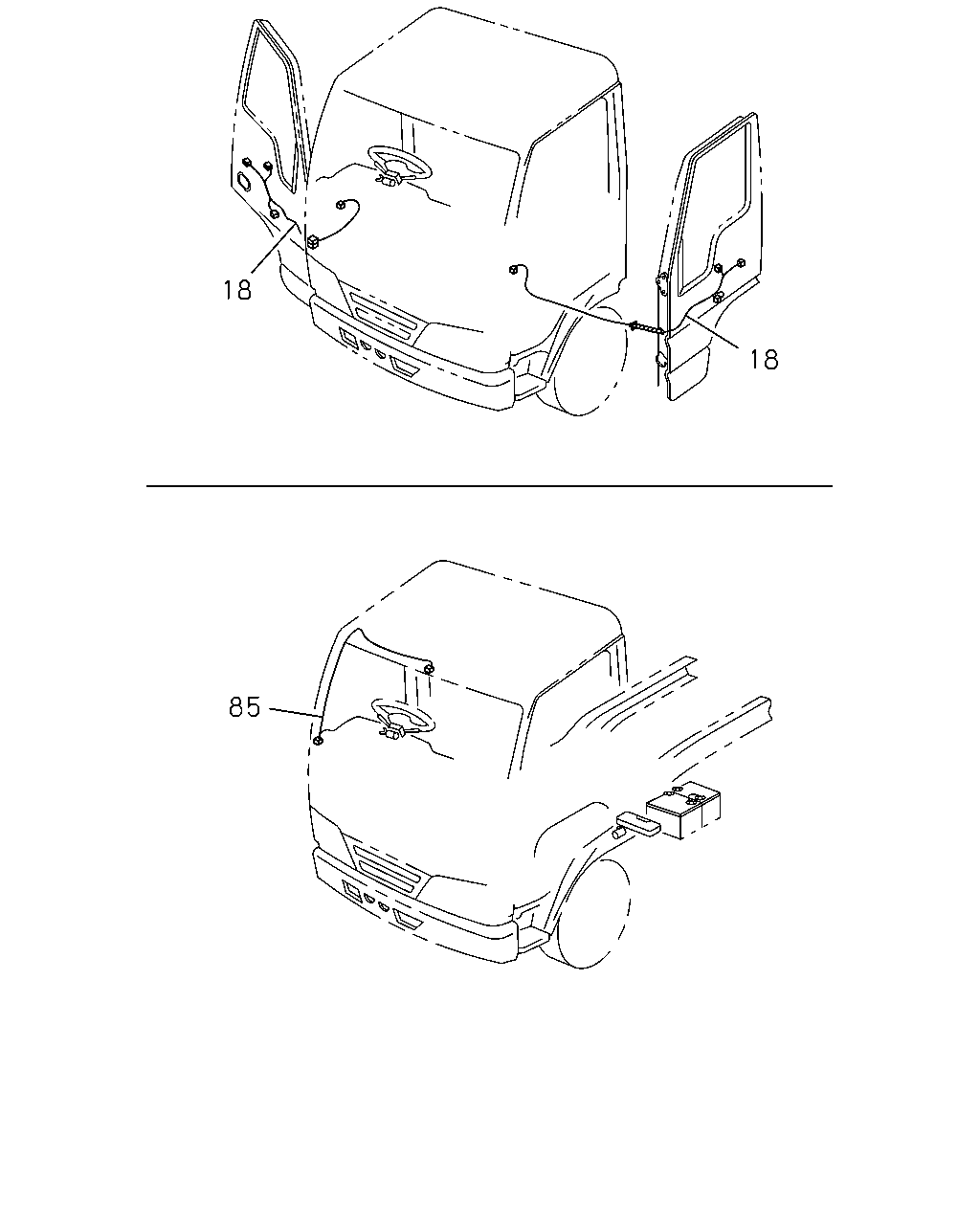

çizim 13080
18 18 85
BalonParca AdiParca NoAdetTipApplied Date
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> 		8-97105-571-1 01 1 0303-
18 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,RADIO AM W/AMPLIFIER(RS2) 		8-97105-571-1 01 1 0303-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> 		8-97226-671-1 01 1 0303-
18 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,RADIO AM W/AMPLIFIER(RS2) 		8-97226-671-1 01 1 0303-
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97185-142-1 01 1 0303-
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97226-669-0 01 1 0303-
85 HARNESS; ROOM LAMP 8-97364-158-0 01 1 0303-

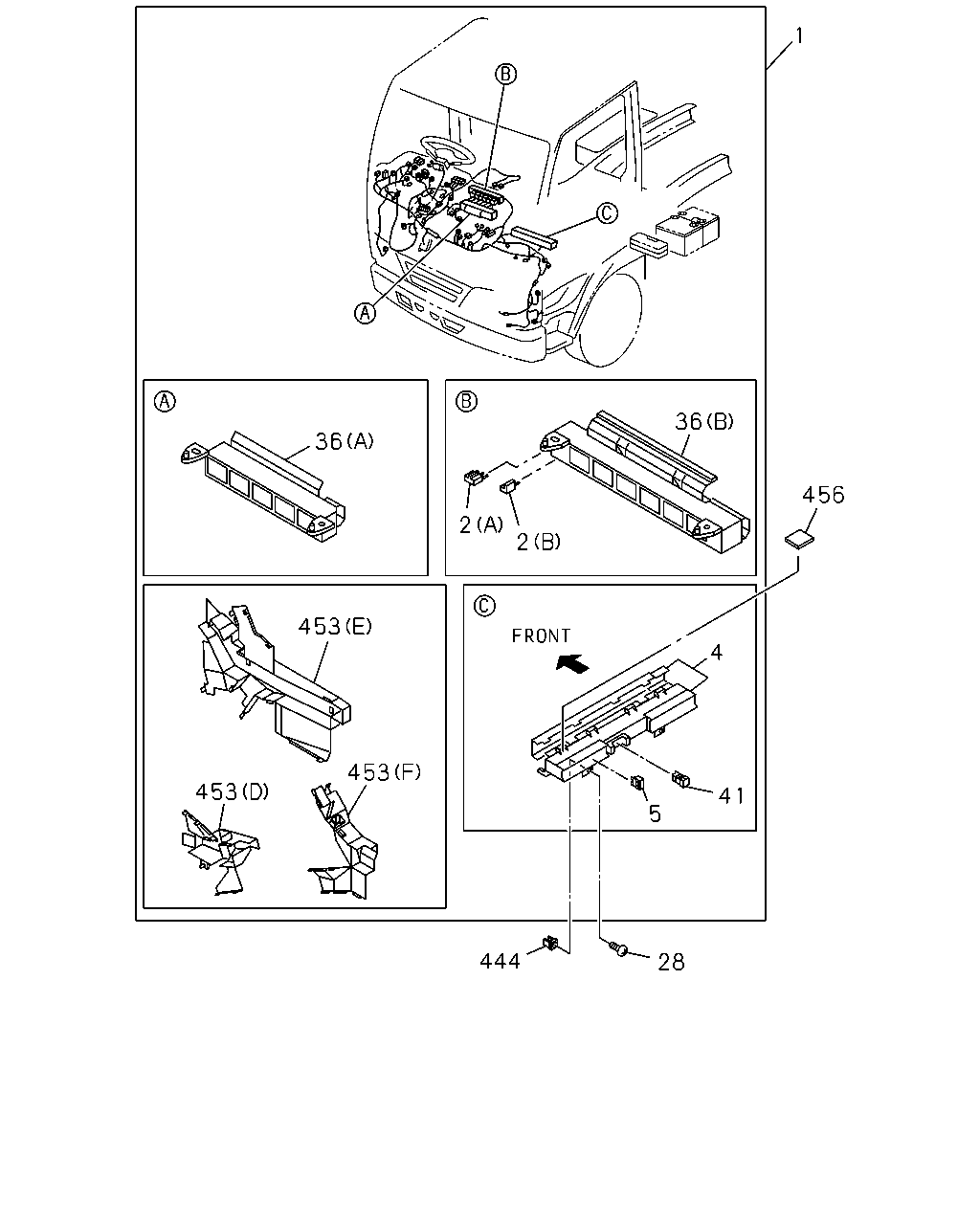

çizim 52908
1 36 456 2 2 36 453 453 453 444 28 5 41 4
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
4JB1 ENG(RLF) 		8-97309-082-2 01 1 0303-0511
1 HARNESS; CAB
4HF1 ENG(RLS) 		8-97383-605-2 01 1 0512-
2 DIODE; CABLE HARNESS
4JB1 ENG(RLF) (B) BLACK 2P-1.5A SOU 		8-94422-639-1 01 1 0303-0511
2 DIODE; CABLE HARNESS
4HF1 ENG(RLS) (B) BLACK 2P-1.5A SOU 		8-94422-639-1 01 1 0512-
2 DIODE; CABLE HARNESS
4JB1 ENG(RLF) (A) BLACK 3P-1.5A SOU 		8-94422-640-1 01 1 0303-0511
2 DIODE; CABLE HARNESS
4HF1 ENG(RLS) (A) BLACK 3P-1.5A SOU 		8-94422-640-1 01 1 0512-
4 BOX ASM; FUSE,HARNESS
4JB1 ENG(RLF) SOU 		8-97214-415-0 01 1 0303-0511
4 BOX ASM; FUSE,HARNESS
4HF1 ENG(RLS) 		8-97187-921-1 01 1 0512-
5 FUSE; FACIA HARNESS
4JB1 ENG(RLF) 10A RED SOU 		5-82516-002-0 11 1 0303-0405
5 FUSE; FACIA HARNESS
4JB1 ENG(RLF) 10A RED SOU 		5-82516-002-0 10 1 0406-0511
5 FUSE; FACIA HARNESS
4HF1 ENG(RLS) 10A MINI RED SOU 		8-97062-022-0 12 1 0512-
5 FUSE; FACIA HARNESS
4JB1 ENG(RLF) 15A BLUE SOU 		5-82516-003-0 09 1 0303-0511
5 FUSE; FACIA HARNESS
4HF1 ENG(RLS) 15A MINI BLUE SOU 		8-97062-023-0 07 1 0512-
5 FUSE; FACIA HARNESS
4JB1 ENG(RLF) 25A CLEAR SOU 		5-82516-005-0 03 1 0303-0511
5 FUSE; FACIA HARNESS
4HF1 ENG(RLS) 20A MINI YELLOW SOU 		8-97062-024-0 02 1 0512-
28 SCREW; FUSE BOX
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0303-0604
28 SCREW; FUSE BOX
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-0612
28 SCREW; FUSE BOX
M5X16 TAPPING 		0-72180-516-0 02 1 0701-
36 BOX; RELAY
4JB1 ENG(RLF) (B) SOU 		8-97087-639-1 01 1 0303-0511
36 BOX; RELAY
4HF1 ENG(RLS) (B) 		8-97187-918-1 01 1 0512-
36 BOX; RELAY
4JB1 ENG(RLF) (A) 		8-97087-640-1 01 1 0303-0511
41 PULLER; FUSE
4JB1 ENG(RLF) L=25.3 B=11.5 SOU 		8-94121-482-0 01 1 0303-0511
41 PULLER; FUSE
4HF1 ENG(RLS) SOU 		8-97103-388-0 01 1 0512-
444 GROMMET; SCREW,FUSE BOX
D=8X8 L=7.5 M5 SOU 		8-94279-078-0 02 1 0303-
453 PROTECTOR; HARNESS
4HF1 ENG(RLS) (G) 		8-94417-716-0 01 1 0512-
453 PROTECTOR; HARNESS
4HF1 ENG(RLS) (H) 		8-94482-169-0 01 1 0512-
453 PROTECTOR; HARNESS
4JB1 ENG(RLF) (A) 		8-94452-553-0 01 1 0303-0511
453 PROTECTOR; HARNESS
4JB1 ENG(RLF) (A) 		8-94452-553-0 01 1 0303-0511
453 PROTECTOR; HARNESS
4HF1 ENG(RLS) (A) 		8-94452-553-0 01 1 0512-
453 PROTECTOR; HARNESS
4JB1 ENG(RLF) (C) 		8-97093-668-1 01 1 0303-0511
453 PROTECTOR; HARNESS
4HF1 ENG(RLS) (C) 		8-97093-668-1 01 1 0512-
453 PROTECTOR; HARNESS
4JB1 ENG(RLF) (B) 		8-97120-589-0 01 1 0303-0511
453 PROTECTOR; HARNESS
4HF1 ENG(RLS) (B) 		8-97120-589-0 01 1 0512-
453 PROTECTOR; HARNESS
4JB1 ENG(RLF) (E) 		8-97259-730-2 01 1 0303-0511
453 PROTECTOR; HARNESS
4HF1 ENG(RLS) (E) 		8-97259-730-3 01 1 0512-
453 PROTECTOR; HARNESS
4JB1 ENG(RLF) (D) 		8-97259-731-2 01 1 0303-0511
453 PROTECTOR; HARNESS
4HF1 ENG(RLS) (D) 		8-97259-731-2 01 1 0512-
453 PROTECTOR; HARNESS
4JB1 ENG(RLF) (F) 		8-97262-956-3 01 1 0303-0511
453 PROTECTOR; HARNESS
4HF1 ENG(RLS) (F) 		8-97262-956-3 01 1 0512-
456 CUSHION; FUSE BOX
15X30 T=5 SOU 		8-94270-366-2 01 1 0303-

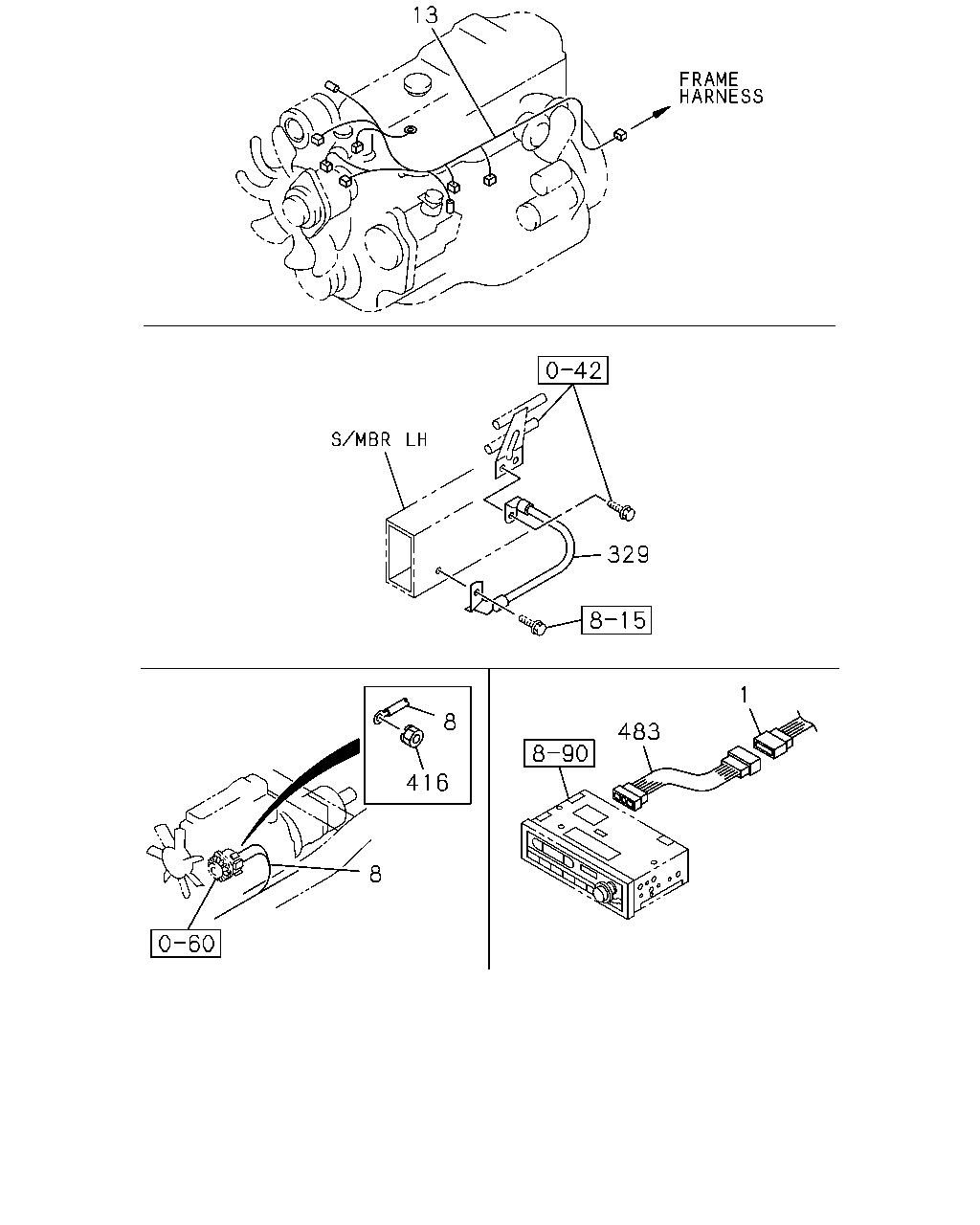

çizim 53455
13 329 1 483 8 416 8
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
4JB1 ENG(RLF) 		8-97309-082-2 01 1 0303-0511
1 HARNESS; CAB
4HF1 ENG(RLS) 		8-97383-605-2 01 1 0512-
8 HARNESS; FRAME,FRT
4JB1 ENG(RLF) 		8-97350-731-1 01 1 0303-0511
8 HARNESS; FRAME,FRT
4HF1 ENG(RLS) 		8-98010-554-0 01 1 0512-
13 HARNESS; ENG
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 		8-97173-694-1 01 1 0303-0511
13 HARNESS; ENG
4HF1 ENG(RLS) 		8-97356-988-0 01 1 0512-
329 CABLE; ENG TO FRAME
4JB1 ENG(RLF) 		8-97260-486-1 01 1 0303-0511
329 CABLE; ENG TO FRAME
4HF1 ENG(RLS) 		8-97177-383-0 01 1 0512-
416 NUT; TERMINAL
4HF1 ENG(RLS) M6 W/LK WASHER 		8-94424-179-0 01 1 0512-
483 HARNESS; EXT,RADIO
RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> 		8-97372-297-0 01 1 0308-0310
483 HARNESS; EXT,RADIO
RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> 		8-97373-419-0 01 1 0311-0511
483 HARNESS; EXT,RADIO
RADIO AM W/AMPLIFIER(RS2) 		8-97373-419-0 01 1 0512-

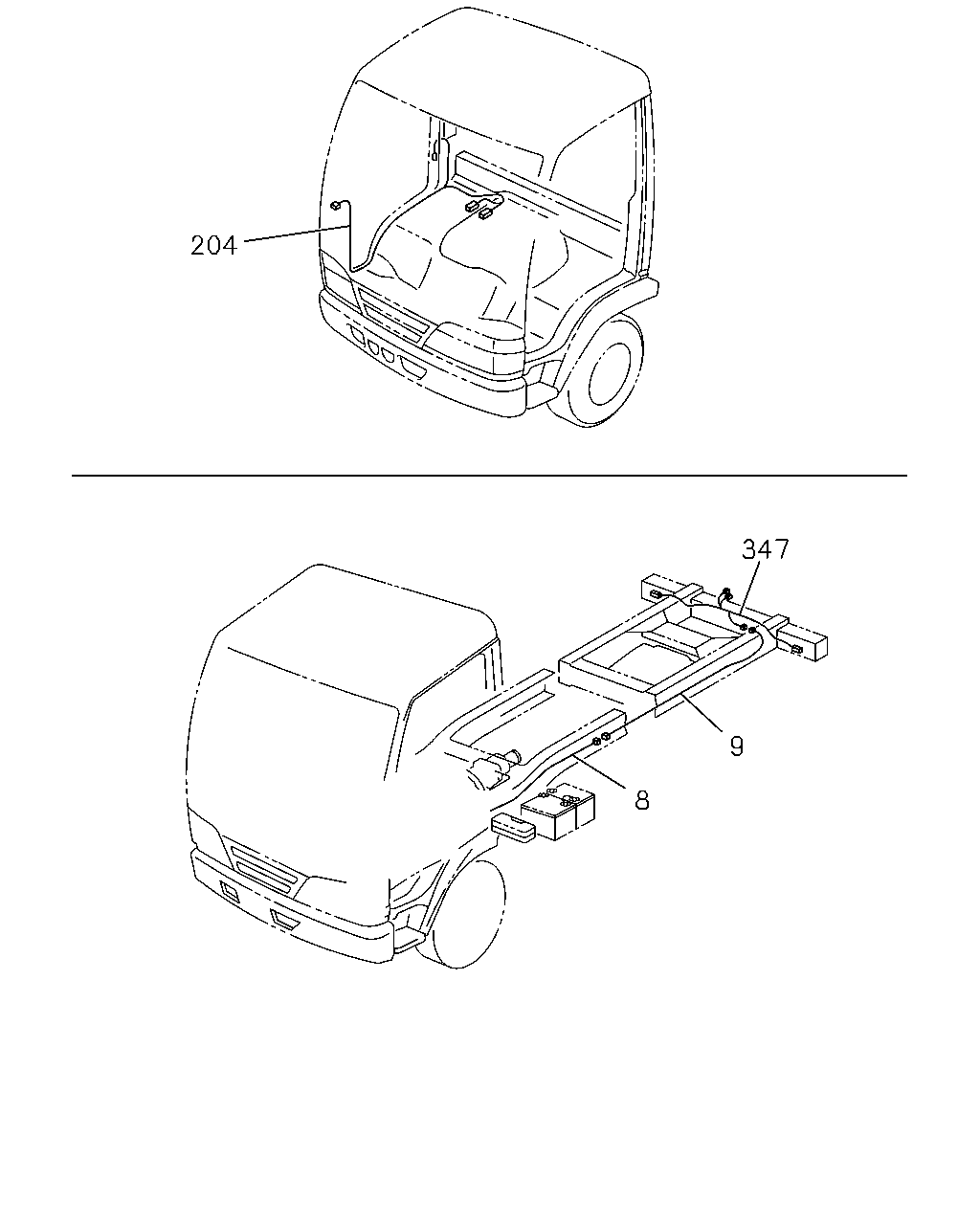

çizim 54347
204 347 9 8
BalonParca AdiParca NoAdetTipApplied Date
8 HARNESS; FRAME,FRT
4JB1 ENG(RLF) 		8-97350-731-1 01 1 0303-0511
8 HARNESS; FRAME,FRT
4HF1 ENG(RLS) 		8-98010-554-0 01 1 0512-
9 HARNESS; FRAME,RR 8-97381-164-1 01 1 0512-
204 HARNESS; CABLE,FLOOR 8-97364-140-0 01 1 0303-
347 HARNESS; CABLE,RR BODY 8-97364-151-0 01 1 0303-

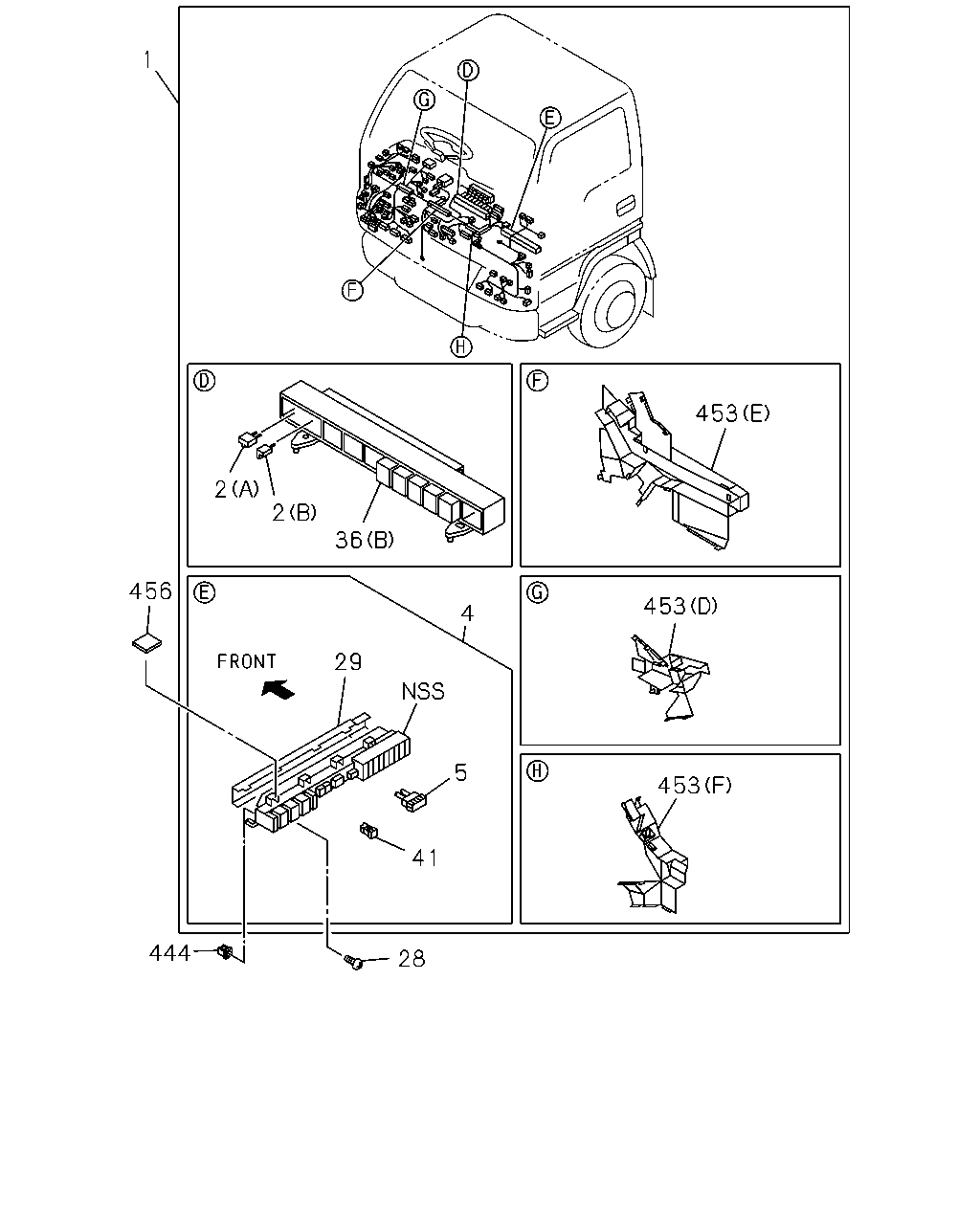

çizim 54442
1 2 2 36 453 453 453 4 29 456 5 41 28 444
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
4JB1 ENG(RLF) 		8-97309-082-2 01 1 0303-0511
1 HARNESS; CAB
4HF1 ENG(RLS) 		8-97383-605-2 01 1 0512-
2 DIODE; CABLE HARNESS
4JB1 ENG(RLF) (B) BLACK 2P-1.5A SOU 		8-94422-639-1 01 1 0303-0511
2 DIODE; CABLE HARNESS
4HF1 ENG(RLS) (B) BLACK 2P-1.5A SOU 		8-94422-639-1 01 1 0512-
2 DIODE; CABLE HARNESS
4JB1 ENG(RLF) (A) BLACK 3P-1.5A SOU 		8-94422-640-1 01 1 0303-0511
2 DIODE; CABLE HARNESS
4HF1 ENG(RLS) (A) BLACK 3P-1.5A SOU 		8-94422-640-1 01 1 0512-
4 BOX ASM; FUSE,HARNESS
4JB1 ENG(RLF) SOU 		8-97214-415-0 01 1 0303-0511
4 BOX ASM; FUSE,HARNESS
4HF1 ENG(RLS) 		8-97187-921-1 01 1 0512-
5 FUSE; FACIA HARNESS
4JB1 ENG(RLF) 10A RED SOU 		5-82516-002-0 11 1 0303-0405
5 FUSE; FACIA HARNESS
4JB1 ENG(RLF) 10A RED SOU 		5-82516-002-0 10 1 0406-0511
5 FUSE; FACIA HARNESS
4HF1 ENG(RLS) 10A MINI RED SOU 		8-97062-022-0 12 1 0512-
5 FUSE; FACIA HARNESS
4JB1 ENG(RLF) 15A BLUE SOU 		5-82516-003-0 09 1 0303-0511
5 FUSE; FACIA HARNESS
4HF1 ENG(RLS) 15A MINI BLUE SOU 		8-97062-023-0 07 1 0512-
5 FUSE; FACIA HARNESS
4JB1 ENG(RLF) 25A CLEAR SOU 		5-82516-005-0 03 1 0303-0511
5 FUSE; FACIA HARNESS
4HF1 ENG(RLS) 20A MINI YELLOW SOU 		8-97062-024-0 02 1 0512-
28 SCREW; FUSE BOX
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0303-0604
28 SCREW; FUSE BOX
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-0612
28 SCREW; FUSE BOX
M5X16 TAPPING 		0-72180-516-0 02 1 0701-
29 COVER; FUSE BOX
4HF1 ENG(RLS) SOU 		8-97074-955-0 01 1 0512-
36 BOX; RELAY
4JB1 ENG(RLF) (B) SOU 		8-97087-639-1 01 1 0303-0511
36 BOX; RELAY
4HF1 ENG(RLS) (B) 		8-97187-918-1 01 1 0512-
36 BOX; RELAY
4JB1 ENG(RLF) (A) 		8-97087-640-1 01 1 0303-0511
41 PULLER; FUSE
4JB1 ENG(RLF) L=25.3 B=11.5 SOU 		8-94121-482-0 01 1 0303-0511
41 PULLER; FUSE
4HF1 ENG(RLS) SOU 		8-97103-388-0 01 1 0512-
444 GROMMET; SCREW,FUSE BOX
D=8X8 L=7.5 M5 SOU 		8-94279-078-0 02 1 0303-
453 PROTECTOR; HARNESS
4HF1 ENG(RLS) (G) 		8-94417-716-0 01 1 0512-
453 PROTECTOR; HARNESS
4HF1 ENG(RLS) (H) 		8-94482-169-0 01 1 0512-
453 PROTECTOR; HARNESS
4JB1 ENG(RLF) (A) 		8-94452-553-0 01 1 0303-0511
453 PROTECTOR; HARNESS
4JB1 ENG(RLF) (A) 		8-94452-553-0 01 1 0303-0511
453 PROTECTOR; HARNESS
4HF1 ENG(RLS) (A) 		8-94452-553-0 01 1 0512-
453 PROTECTOR; HARNESS
4JB1 ENG(RLF) (C) 		8-97093-668-1 01 1 0303-0511
453 PROTECTOR; HARNESS
4HF1 ENG(RLS) (C) 		8-97093-668-1 01 1 0512-
453 PROTECTOR; HARNESS
4JB1 ENG(RLF) (B) 		8-97120-589-0 01 1 0303-0511
453 PROTECTOR; HARNESS
4HF1 ENG(RLS) (B) 		8-97120-589-0 01 1 0512-
453 PROTECTOR; HARNESS
4JB1 ENG(RLF) (E) 		8-97259-730-2 01 1 0303-0511
453 PROTECTOR; HARNESS
4HF1 ENG(RLS) (E) 		8-97259-730-3 01 1 0512-
453 PROTECTOR; HARNESS
4JB1 ENG(RLF) (D) 		8-97259-731-2 01 1 0303-0511
453 PROTECTOR; HARNESS
4HF1 ENG(RLS) (D) 		8-97259-731-2 01 1 0512-
453 PROTECTOR; HARNESS
4JB1 ENG(RLF) (F) 		8-97262-956-3 01 1 0303-0511
453 PROTECTOR; HARNESS
4HF1 ENG(RLS) (F) 		8-97262-956-3 01 1 0512-
456 CUSHION; FUSE BOX
15X30 T=5 SOU 		8-94270-366-2 01 1 0303-

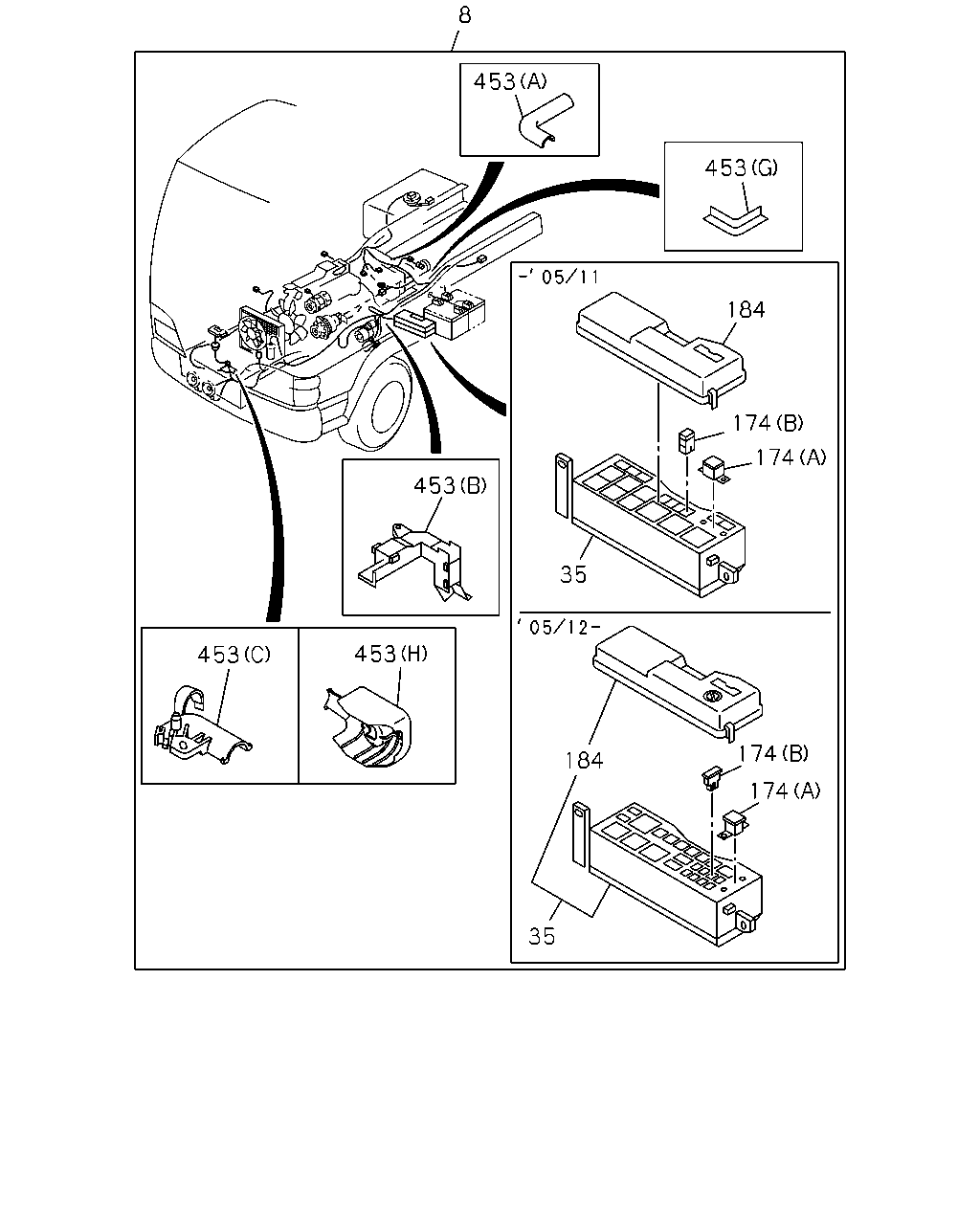

çizim 54443
8 184 174 174 35 453 453 453 184 35 174 174
BalonParca AdiParca NoAdetTipApplied Date
8 HARNESS; FRAME,FRT
4JB1 ENG(RLF) 		8-97350-731-1 01 1 0303-0511
8 HARNESS; FRAME,FRT
4HF1 ENG(RLS) 		8-98010-554-0 01 1 0512-
35 BOX; RELAY & FUSE
4JB1 ENG(RLF) SOU 		8-97063-150-1 01 1 0303-0511
35 BOX; RELAY & FUSE
4HF1 ENG(RLS) 		8-97377-739-0 01 1 0512-
174 FUSE; SLOW BLOW
4HF1 ENG(RLS) (B) 40A GREEN SOU 		8-97183-644-0 01 1 0512-
174 FUSE; SLOW BLOW
4JB1 ENG(RLF) (A) 80A BLACK SOU 		8-94388-305-1 01 1 0303-0511
174 FUSE; SLOW BLOW
4HF1 ENG(RLS) (A) 100A BLUE SOU 		8-94388-306-0 01 1 0512-
174 FUSE; SLOW BLOW
4JB1 ENG(RLF) (B) 50A RED SOU 		8-94468-663-0 01 1 0303-0511
174 FUSE; SLOW BLOW
4HF1 ENG(RLS) (B) 60A YELLOW SOU 		8-97219-407-0 02 1 0512-
174 FUSE; SLOW BLOW
4JB1 ENG(RLF) (B) 60A YELLOW SOU 		8-94468-664-0 01 1 0303-0511
174 FUSE; SLOW BLOW
4HF1 ENG(RLS) (B) 30A PINK SOU 		8-97183-643-0 01 1 0512-
184 COVER; RELAY & FUSE BOX
4JB1 ENG(RLF) SOU 		8-97063-152-1 01 1 0303-0511
184 COVER; RELAY & FUSE BOX
4HF1 ENG(RLS) 		8-97377-741-0 01 1 0512-
453 PROTECTOR; HARNESS
4HF1 ENG(RLS) (G) 		8-94417-716-0 01 1 0512-
453 PROTECTOR; HARNESS
4HF1 ENG(RLS) (H) 		8-94482-169-0 01 1 0512-
453 PROTECTOR; HARNESS
4JB1 ENG(RLF) (A) 		8-94452-553-0 01 1 0303-0511
453 PROTECTOR; HARNESS
4JB1 ENG(RLF) (A) 		8-94452-553-0 01 1 0303-0511
453 PROTECTOR; HARNESS
4HF1 ENG(RLS) (A) 		8-94452-553-0 01 1 0512-
453 PROTECTOR; HARNESS
4JB1 ENG(RLF) (C) 		8-97093-668-1 01 1 0303-0511
453 PROTECTOR; HARNESS
4HF1 ENG(RLS) (C) 		8-97093-668-1 01 1 0512-
453 PROTECTOR; HARNESS
4JB1 ENG(RLF) (B) 		8-97120-589-0 01 1 0303-0511
453 PROTECTOR; HARNESS
4HF1 ENG(RLS) (B) 		8-97120-589-0 01 1 0512-
453 PROTECTOR; HARNESS
4JB1 ENG(RLF) (E) 		8-97259-730-2 01 1 0303-0511
453 PROTECTOR; HARNESS
4HF1 ENG(RLS) (E) 		8-97259-730-3 01 1 0512-
453 PROTECTOR; HARNESS
4JB1 ENG(RLF) (D) 		8-97259-731-2 01 1 0303-0511
453 PROTECTOR; HARNESS
4HF1 ENG(RLS) (D) 		8-97259-731-2 01 1 0512-
453 PROTECTOR; HARNESS
4JB1 ENG(RLF) (F) 		8-97262-956-3 01 1 0303-0511
453 PROTECTOR; HARNESS
4HF1 ENG(RLS) (F) 		8-97262-956-3 01 1 0512-

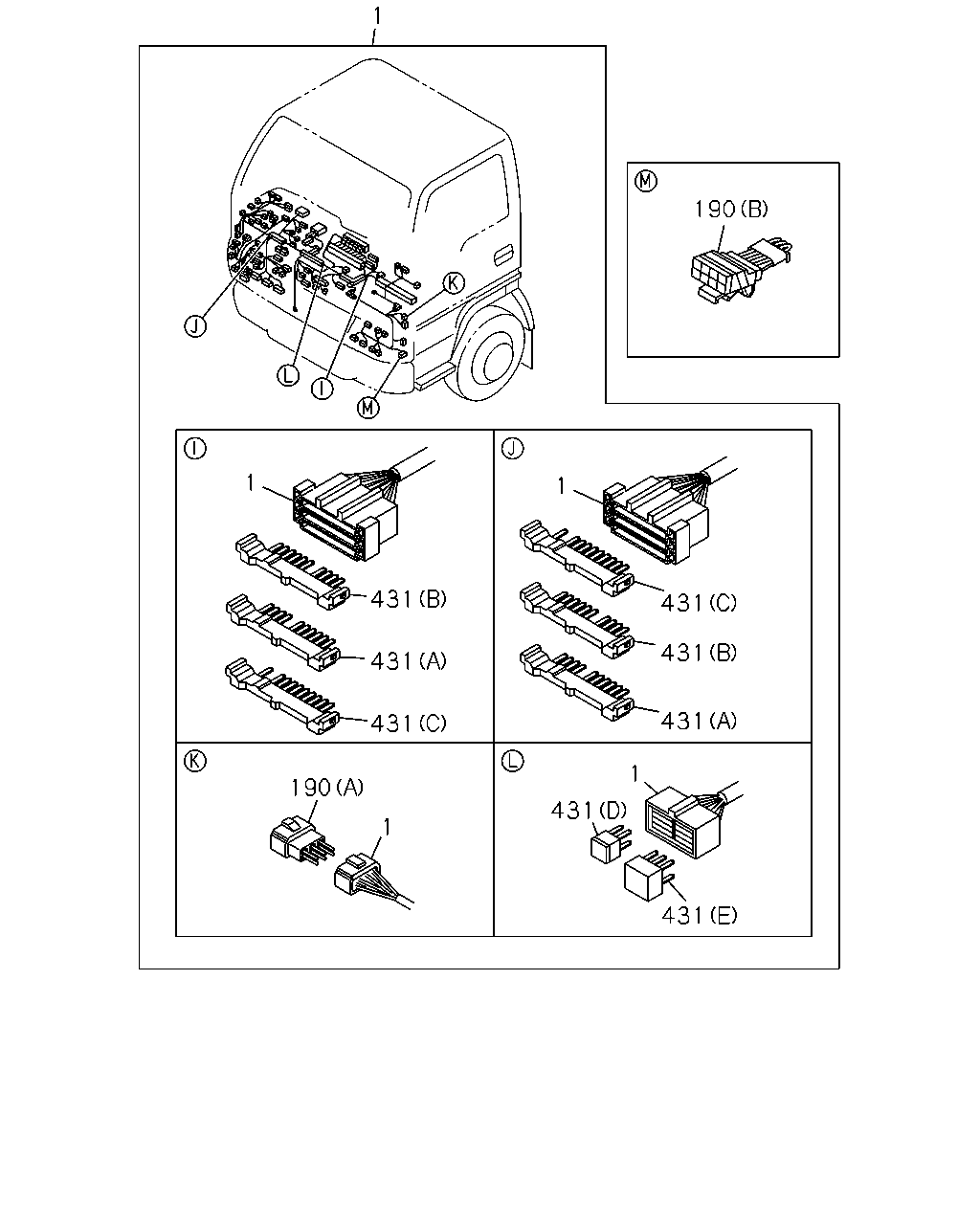

çizim 55848
1 190 1 431 431 431 1 431 431 1 190 431 431 431 1
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
4JB1 ENG(RLF) 		8-97309-082-2 01 1 0303-0511
1 HARNESS; CAB
4HF1 ENG(RLS) 		8-97383-605-2 01 1 0512-
190 CONNECTOR; SHORT CIRCUIT
EXC. INTERMITTENT WIPER<C13> (B) 		8-98036-238-0 01 1 0607-
190 CONNECTOR; SHORT CIRCUIT
4HF1 ENG(RLS) (A) SOU 		5-82690-411-0 01 1 0512-
431 CONNECTOR; JOINT
4HF1 ENG(RLS) (A) BLUE 10P 		1-82699-598-0 02 1 0512-
431 CONNECTOR; JOINT
4HF1 ENG(RLS) (B) GREEN 10P 		1-82699-599-0 02 1 0512-
431 CONNECTOR; JOINT
4HF1 ENG(RLS) (C) BROWN 10P SOU 		1-82699-601-0 02 1 0512-
431 CONNECTOR; JOINT
4HF1 ENG(RLS) (D) 4P 		8-97077-939-0 01 1 0512-
431 CONNECTOR; JOINT
4HF1 ENG(RLS) (E) 6P 		8-97077-941-0 01 1 0512-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
