8-03 — LAMP; REAR AND REAR SIDE (#44155) — 55 parça

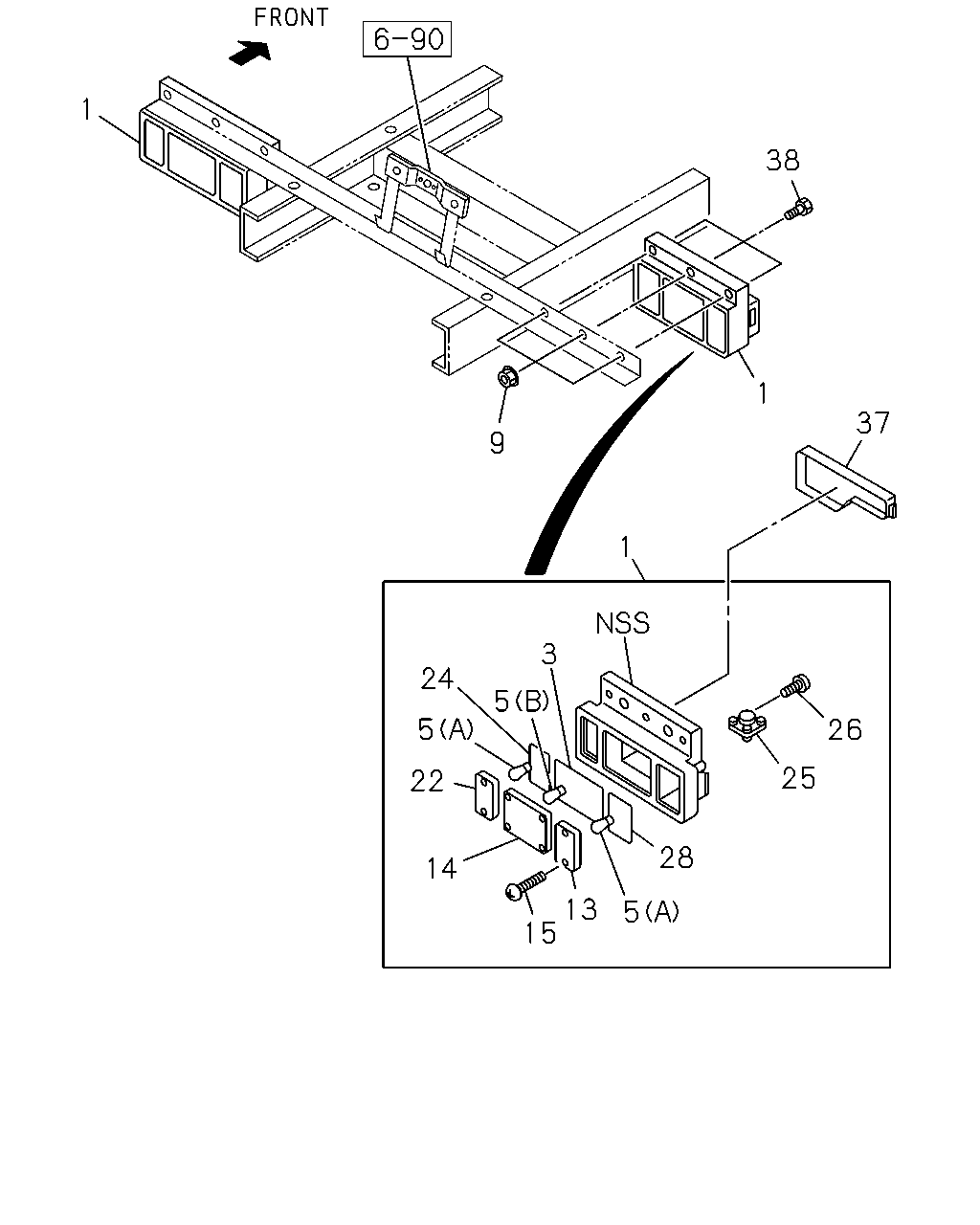

çizim 52832
1 38 9 1 37 1 3 5 24 5 22 14 15 13 5 28 25 26
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; RR COMB
BACK BUZZER<YM9> 		8-97213-353-0 01 1 0303-0511
1 LAMP ASM; RR COMB
BACK BUZZER<YM9> 		8-97213-370-0 01 1 0512-0806
1 LAMP ASM; RR COMB
BACK BUZZER<YM9> 		8-98120-440-0 01 1 0807-
1 LAMP ASM; RR COMB 8-97213-352-0 01 1 0303-0511
1 LAMP ASM; RR COMB 8-97213-369-0 01 1 0512-0806
1 LAMP ASM; RR COMB 8-98034-325-0 01 1 0807-
1 LAMP ASM; RR COMB
EXC. BACK BUZZER<YM9> 		8-97213-351-0 01 1 0303-0511
1 LAMP ASM; RR COMB
EXC. BACK BUZZER<YM9> 		8-97213-368-0 01 1 0512-0806
1 LAMP ASM; RR COMB
EXC. BACK BUZZER<YM9> 		8-98034-324-0 01 1 0807-
3 GASKET; RR COMB LAMP 8-94257-505-0 01 1 0303-
3 GASKET; RR COMB LAMP 8-94257-505-0 01 1 0303-
5 BULB; RR COMB LAMP
EXC. BACK BUZZER<YM9> (A) 24V 21W 		1-82194-108-0 02 1 0807-
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-108-0 02 1 0807-
5 BULB; RR COMB LAMP
EXC. BACK BUZZER<YM9> (B) 24V 21/5W 		1-82194-109-0 01 1 0807-
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-109-0 01 1 0807-
5 BULB; RR COMB LAMP
(A) 12V 21W SOU 		8-94124-074-0 02 1 0303-0511
5 BULB; RR COMB LAMP
(A) 12V 21W SOU 		8-94124-074-0 02 1 0303-0511
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-036-0 02 1 0512-0806
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-036-0 02 1 0512-0806
5 BULB; RR COMB LAMP
BACK BUZZER<YM9> (A) 24V 21W 		1-82194-036-0 02 1 0807-
5 BULB; RR COMB LAMP
(B) 12V 21/5W SOU 		8-94125-959-0 01 1 0303-0511
5 BULB; RR COMB LAMP
(B) 12V 21/5W SOU 		8-94125-959-0 01 1 0303-0511
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-038-0 01 1 0512-0806
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-038-0 01 1 0512-0806
5 BULB; RR COMB LAMP
BACK BUZZER<YM9> (B) 24V 21/5W 		1-82194-038-0 01 1 0807-
9 NUT; LAMP,RR COMB
M6 FLANGE 		5-09440-004-0 06 1 0303-
13 LENS; TURN SIGNAL 8-94174-638-0 01 1 0303-
13 LENS; TURN SIGNAL 8-94174-639-0 01 1 0303-
14 LENS; TAIL & STOP,RR COMB LAMP 8-94178-624-0 01 1 0303-
14 LENS; TAIL & STOP,RR COMB LAMP 8-94178-625-0 01 1 0303-
15 SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0303-
15 SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0303-
22 LENS; BACKUP,RR COMB LAMP 8-94257-512-1 01 1 0303-
22 LENS; BACKUP,RR COMB LAMP 8-94257-512-1 01 1 0303-
24 GASKET; BACK,LAMP 8-94257-506-0 01 1 0303-
24 GASKET; BACK,LAMP 8-94257-506-0 01 1 0303-
25 HORN ASM; BACK
BACK BUZZER<YM9> 		8-94257-518-0 01 1 0303-
26 SCREW; BACK HORN
BACK BUZZER<YM9> M4X12 TAPPING 		9-07076-412-0 02 1 0303-
26 SCREW; BACK HORN
M4X14 TAPPING 		9-07076-414-0 01 1 0303-
26 SCREW; BACK HORN
EXC. BACK BUZZER<YM9> M4X12 TAPPING 		9-07076-412-0 01 1 0303-
28 GASKET; TURN,LAMP 8-94257-507-0 01 1 0303-
28 GASKET; TURN,LAMP 8-94257-507-0 01 1 0303-
37 COVER; RR COMB LAMP 8-94128-858-4 01 1 0303-
37 COVER; RR COMB LAMP 8-94129-274-4 01 1 0303-
38 BOLT; LAMP,RR COMB
M6X20 SOU 		8-94402-623-0 06 1 0303-

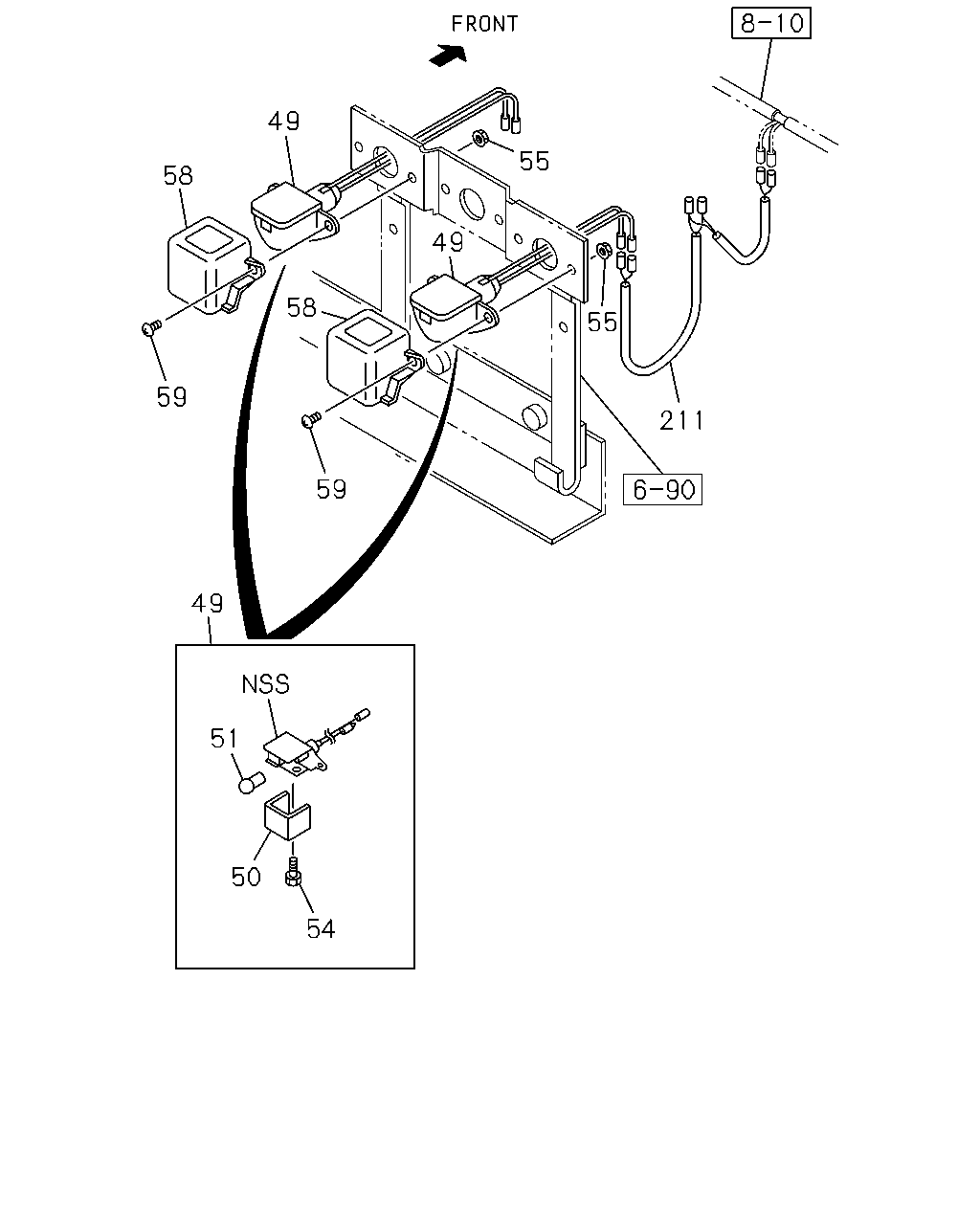

çizim 55461
55 49 58 59 58 49 55 211 59 49 51 50 54
BalonParca AdiParca NoAdetTipApplied Date
49 LAMP; LICENSE PLATE
12V 5W 		8-97105-382-0 02 1 0303-0511
49 LAMP; LICENSE PLATE
24V 5W 		8-97105-380-0 02 1 0512-
50 LENS; LICENSE PLATE LAMP 8-97108-212-0 02 1 0303-
51 BULB; LICENSE PLATE LAMP
12V 5W 		8-94124-075-0 02 1 0303-0511
51 BULB; LICENSE PLATE LAMP
24V 5W 		1-82194-039-0 02 1 0512-
54 SCREW; LICENSE PLATE LAMP
M4X8 		8-94419-312-0 02 1 0303-
55 NUT; LICENSE PLATE LAMP
M5 FLANGE 		8-94153-039-0 04 1 0303-
58 COVER; LICENSE PLATE LAMP 8-97076-590-1 02 1 0303-
59 SCREW; TAP,LICENSE LAMP BODY
M5X20 		9-93490-520-0 04 1 0303-
211 HARNESS; EXT 5-82129-004-1 01 1 0303-
