◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50953 - NKR(SOUTH AFRICA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#44154) — 147 parça

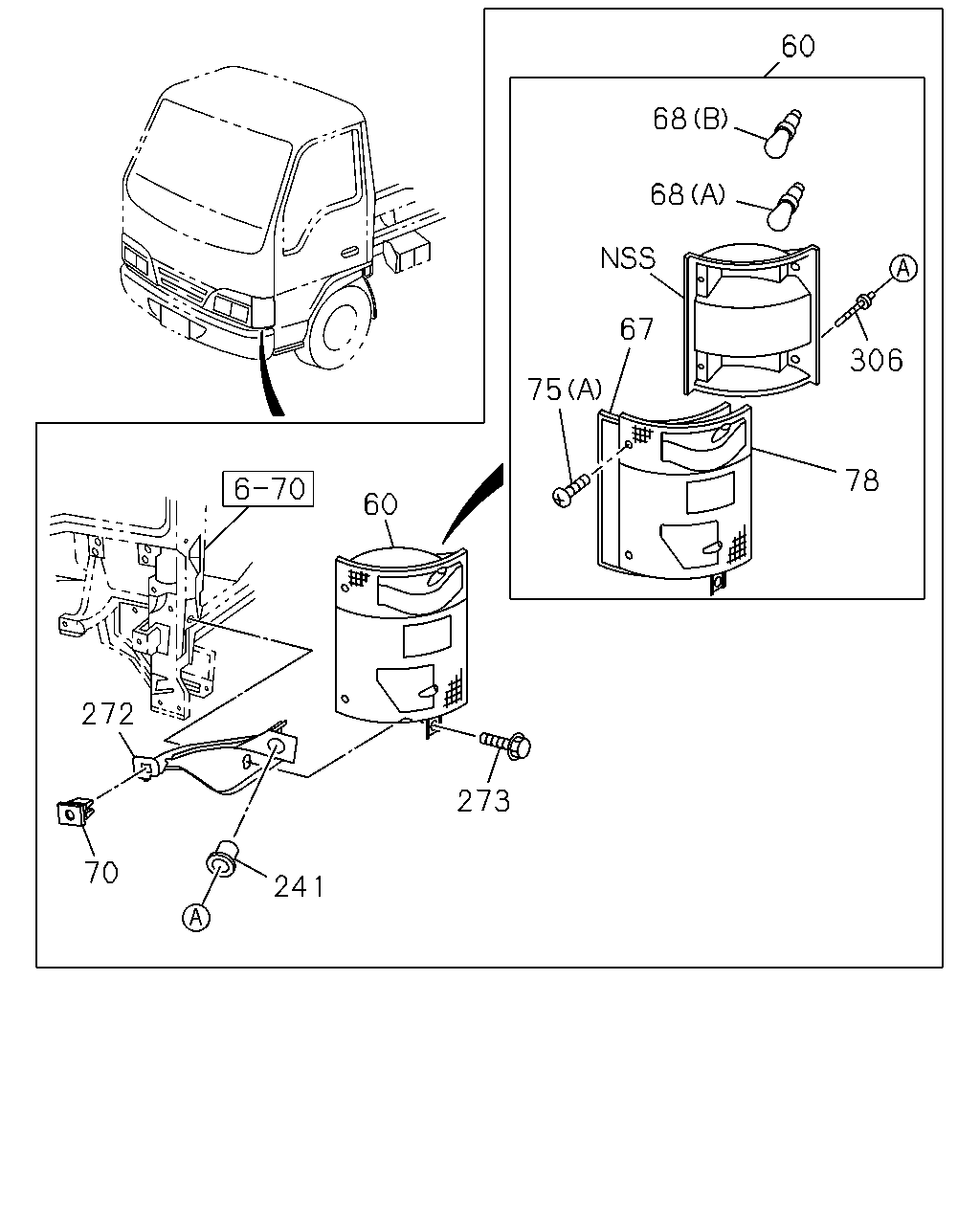

çizim 13079
60 68 68 67 75 306 78 60 273 241 70 272
BalonParca AdiParca NoAdetTipApplied Date
60 LAMP ASM; FRT COMB
SOU 		8-97855-110-2 01 1 0303-0511
60 LAMP ASM; FRT COMB 8-98010-883-0 01 1 0512-0701
60 LAMP ASM; FRT COMB 8-98053-940-0 01 1 0702-
60 LAMP ASM; FRT COMB
SOU 		8-97855-111-2 01 1 0303-0511
60 LAMP ASM; FRT COMB 8-98010-884-0 01 1 0512-0701
60 LAMP ASM; FRT COMB 8-98053-941-0 01 1 0702-
67 GASKET; FRT COMB LAMP
SOU 		8-97855-121-0 02 1 0303-0511
67 GASKET; FRT COMB LAMP 8-97378-948-0 02 1 0512-
68 BULB; FRT COMB LAMP
(B) 12V 21W SOU 		8-94124-074-0 02 1 0303-0511
68 BULB; FRT COMB LAMP
(C) 24V 21/5W 		8-94125-957-0 02 1 0512-
68 BULB; FRT COMB LAMP
(A) 12V 10W SOU 		8-94126-494-0 02 1 0303-0511
68 BULB; FRT COMB LAMP
(D) 24V 21W AMBER 		8-97323-806-0 02 1 0512-
70 GROMMET; SCREW,FRT COMB LAMP
SOU 		8-97030-792-0 04 1 0303-0511
70 GROMMET; SCREW,FRT COMB LAMP
SOU 		1-09983-081-0 02 1 0512-
75 SCREW; FRT COMB LAMP
(B) M4X12 		8-97378-944-0 14 1 0512-
75 SCREW; FRT COMB LAMP
(A) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0303-0511
75 SCREW; FRT COMB LAMP
(C) M6X16 TAPPING 		8-97374-995-0 02 1 0512-
78 LENS ASM; FRT COMB
SOU 		8-97855-130-0 01 1 0303-0511
78 LENS ASM; FRT COMB
SOU 		8-97855-133-0 01 1 0303-0511
241 GROMMET; FRT LAMP
SOU 		8-94452-095-0 04 1 0303-0511
241 GROMMET; FRT LAMP 8-97380-030-0 02 1 0512-
272 BRACKET; FRT COMB LAMP
SOU 		8-97853-236-2 01 1 0303-0511
272 BRACKET; FRT COMB LAMP
SOU 		8-97853-237-2 01 1 0303-0511
273 BOLT; BRKT
M6X19.5 W/LK&PL WASHER SOU 		8-94279-201-0 02 1 0303-0511
306 PIVOT; FRT COMB LAMP
SOU 		8-97219-053-0 04 1 0303-0511

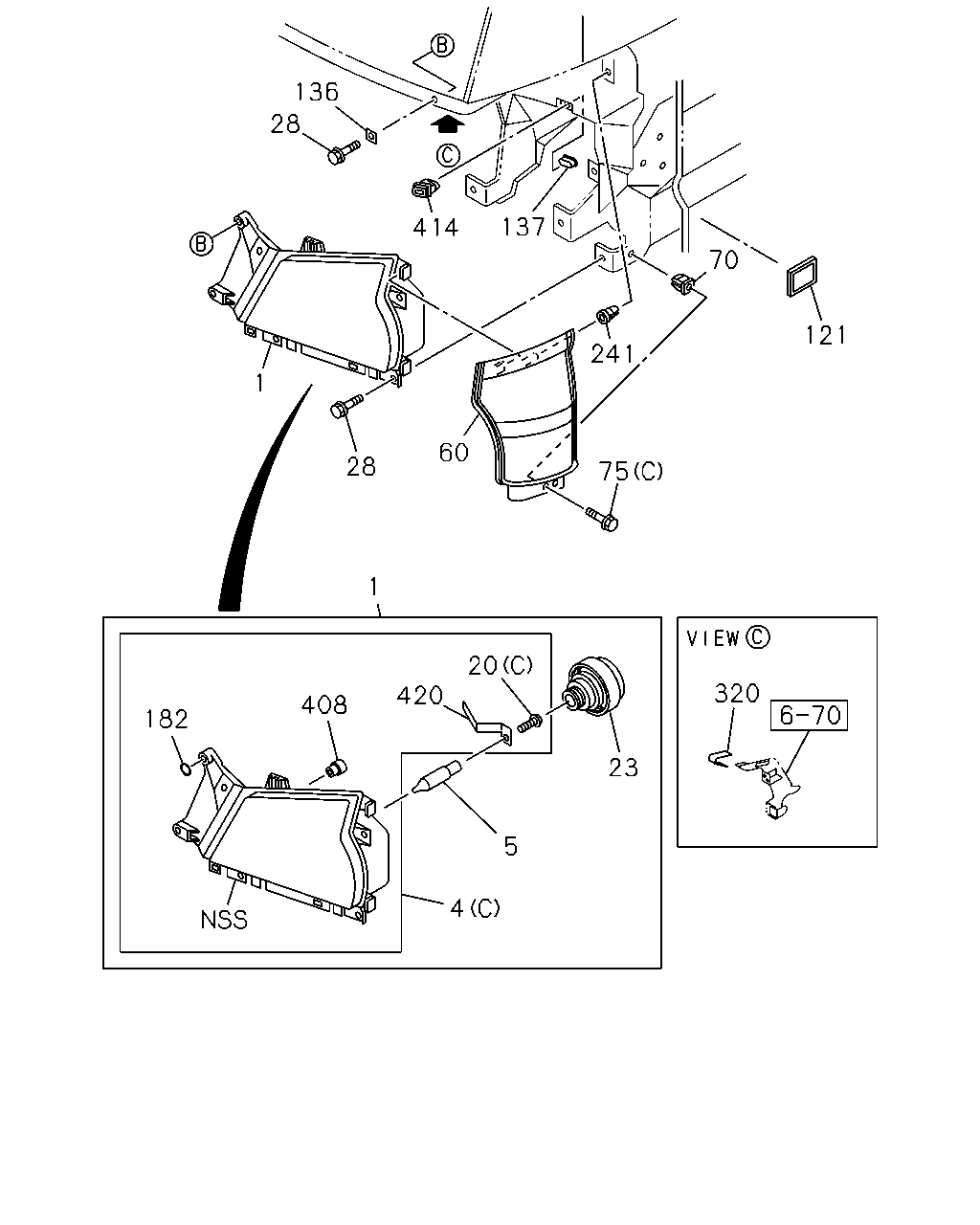

çizim 54306
136 28 414 137 241 70 121 75 60 28 1 1 20 420 408 182 4 5 23 320
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD
12V 45/40W SOU 		8-97855-106-4 01 1 0303-0511
1 LAMP ASM; HEAD
24V 75/70W 		8-97372-528-5 01 1 0512-
1 LAMP ASM; HEAD
12V 45/40W SOU 		8-97855-107-4 01 1 0303-0511
1 LAMP ASM; HEAD
24V 75/70W 		8-97372-529-5 01 1 0512-
4 HEADLAMP UNIT
(A) 12V 45/50W SOU 		8-94101-731-0 02 1 0303-0511
4 HEADLAMP UNIT
(C) 		8-98009-818-0 01 1 0512-
4 HEADLAMP UNIT
(B) 12V 45W SOU 		8-94101-739-0 02 1 0303-0511
4 HEADLAMP UNIT
(C) 		8-98009-819-0 01 1 0512-
5 BULB; HEADLAMP
12V 45/50W SOU 		5-82193-001-0 04 1 0303-0511
5 BULB; HEADLAMP
24V 75/70W 		1-82194-063-0 02 1 0512-
20 SCREW; HEADLAMP
(A) M4X8 SOU 		8-94165-886-0 08 1 0303-0511
20 SCREW; HEADLAMP
(C) 		8-97378-871-0 02 1 0512-
20 SCREW; HEADLAMP
(B) SOU 		8-97228-675-0 08 1 0303-0511
23 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 0512-
28 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER SOU 		8-94279-203-0 08 1 0303-0607
28 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-98031-842-0 08 1 0608-
60 LAMP ASM; FRT COMB
SOU 		8-97855-110-2 01 1 0303-0511
60 LAMP ASM; FRT COMB 8-98010-883-0 01 1 0512-0701
60 LAMP ASM; FRT COMB 8-98053-940-0 01 1 0702-
60 LAMP ASM; FRT COMB
SOU 		8-97855-111-2 01 1 0303-0511
60 LAMP ASM; FRT COMB 8-98010-884-0 01 1 0512-0701
60 LAMP ASM; FRT COMB 8-98053-941-0 01 1 0702-
70 GROMMET; SCREW,FRT COMB LAMP
SOU 		8-97030-792-0 04 1 0303-0511
70 GROMMET; SCREW,FRT COMB LAMP
SOU 		1-09983-081-0 02 1 0512-
75 SCREW; FRT COMB LAMP
(B) M4X12 		8-97378-944-0 14 1 0512-
75 SCREW; FRT COMB LAMP
(A) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0303-0511
75 SCREW; FRT COMB LAMP
(C) M6X16 TAPPING 		8-97374-995-0 02 1 0512-
121 REFLECTOR; REFLEX 8-98013-990-0 02 1 0512-
136 SEAL; HEADLAMP
25X25 SOU 		8-94272-533-0 02 1 0512-
137 GROMMET; HEADLAMP 8-97581-666-0 02 1 0512-
182 GASKET; HEADLAMP 8-97378-869-0 02 1 0512-
241 GROMMET; FRT LAMP
SOU 		8-94452-095-0 04 1 0303-0511
241 GROMMET; FRT LAMP 8-97380-030-0 02 1 0512-
320 SEALER; HEADLAMP BRKT
SOU 		8-97850-499-1 01 1 0303-
408 CAP; BREATHER,HEADLAMP 8-97378-874-0 02 1 0512-
414 PIN; HEADLAMP,RIM 8-97581-667-0 02 1 0512-
420 SPRING; BULB,HEADLAMP 8-97378-875-0 02 1 0512-

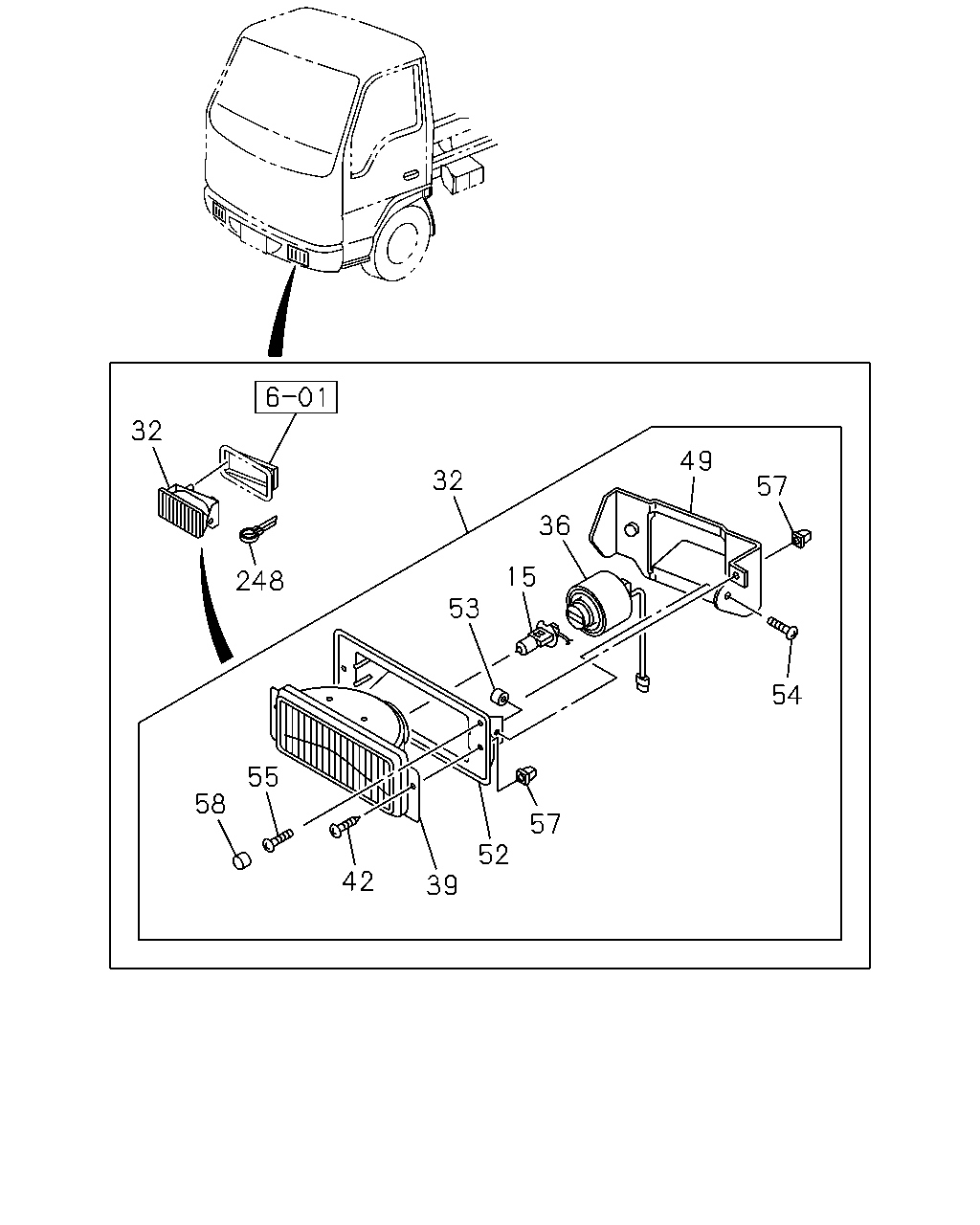

çizim 54448
32 248 32 53 15 36 49 57 54 57 52 39 42 55 58
BalonParca AdiParca NoAdetTipApplied Date
15 BULB; FOG LAMP
FOG LAMP<T96> 12V 55W 		8-97093-859-0 02 1 0303-0511
15 BULB; FOG LAMP
FOG LAMP<T96> 24V 55W 		8-97093-860-0 02 1 0512-0612
15 BULB; FOG LAMP
FOG LAMP<T96> 24V 55W 		1-82194-095-0 02 1 0701-
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-97248-539-0 01 1 0303-0511
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-97248-541-0 01 1 0512-0612
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98054-095-0 01 1 0701-
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-97248-540-0 01 1 0303-0511
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-97248-542-0 01 1 0512-0612
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98054-096-0 01 1 0701-
36 CORD; FOG LAMP
FOG LAMP<T96> 		8-97095-518-0 02 1 0303-
39 UNIT; FOG LAMP
FOG LAMP<T96> 		8-97104-060-0 01 1 0303-0511
39 UNIT; FOG LAMP
FOG LAMP<T96> 		8-97104-061-0 01 1 0512-0612
39 UNIT; FOG LAMP
FOG LAMP<T96> 		8-98063-680-0 01 1 0701-
39 UNIT; FOG LAMP
FOG LAMP<T96> 		8-97119-300-0 01 1 0303-0511
39 UNIT; FOG LAMP
FOG LAMP<T96> 		8-97119-301-0 01 1 0512-0612
39 UNIT; FOG LAMP
FOG LAMP<T96> 		8-98063-681-0 01 1 0701-
42 SCREW; LENS,FOG LAMP
FOG LAMP<T96> 		8-97104-089-0 04 1 0303-
49 BRACKET; LAMP
FOG LAMP<T96> 		8-97104-090-0 01 1 0303-
49 BRACKET; LAMP
FOG LAMP<T96> 		8-97104-091-0 01 1 0303-
52 RING; MTG,FOG LAMP
FOG LAMP<T96> 		8-97104-062-0 02 1 0303-
53 NUT; MTG RING,FOG LAMP
FOG LAMP<T96> 		8-94379-802-0 04 1 0303-
54 BOLT; MTG RING,FOG LAMP
FOG LAMP<T96> M5X12 		8-94379-803-0 04 1 0303-
55 SCREW; ADJ,FOG LAMP
FOG LAMP<T96> 		8-97104-087-0 02 1 0303-
57 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP<T96> 		8-94379-806-0 06 1 0303-
58 HOLDER; FOG LAMP
FOG LAMP<T96> 		8-97104-088-0 02 1 0303-
248 CLIP; HARNESS
FOG LAMP<T96> ID=20 SOU 		5-09700-321-0 02 1 0303-
çizim 54456
60 93 75 67 76 75 68 68 419 315 75
BalonParca AdiParca NoAdetTipApplied Date
60 LAMP ASM; FRT COMB
SOU 		8-97855-110-2 01 1 0303-0511
60 LAMP ASM; FRT COMB 8-98010-883-0 01 1 0512-0701
60 LAMP ASM; FRT COMB 8-98053-940-0 01 1 0702-
60 LAMP ASM; FRT COMB
SOU 		8-97855-111-2 01 1 0303-0511
60 LAMP ASM; FRT COMB 8-98010-884-0 01 1 0512-0701
60 LAMP ASM; FRT COMB 8-98053-941-0 01 1 0702-
67 GASKET; FRT COMB LAMP
SOU 		8-97855-121-0 02 1 0303-0511
67 GASKET; FRT COMB LAMP 8-97378-948-0 02 1 0512-
68 BULB; FRT COMB LAMP
(B) 12V 21W SOU 		8-94124-074-0 02 1 0303-0511
68 BULB; FRT COMB LAMP
(C) 24V 21/5W 		8-94125-957-0 02 1 0512-
68 BULB; FRT COMB LAMP
(A) 12V 10W SOU 		8-94126-494-0 02 1 0303-0511
68 BULB; FRT COMB LAMP
(D) 24V 21W AMBER 		8-97323-806-0 02 1 0512-
75 SCREW; FRT COMB LAMP
(B) M4X12 		8-97378-944-0 14 1 0512-
75 SCREW; FRT COMB LAMP
(A) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0303-0511
75 SCREW; FRT COMB LAMP
(C) M6X16 TAPPING 		8-97374-995-0 02 1 0512-
76 LENS; FRT COMB LAMP 8-97378-961-0 01 1 0512-
76 LENS; FRT COMB LAMP 8-97378-962-0 01 1 0512-
93 BRACKET; SIDE COMB LAMP 8-97378-943-0 01 1 0512-
93 BRACKET; SIDE COMB LAMP 8-97378-945-0 01 1 0512-
315 HARNESS; FRT COMB LAMP 8-98010-917-0 02 1 0512-
419 LENS; INNER,FRT COMB LAMP 8-97378-946-0 01 1 0512-
419 LENS; INNER,FRT COMB LAMP 8-97378-947-0 01 1 0512-

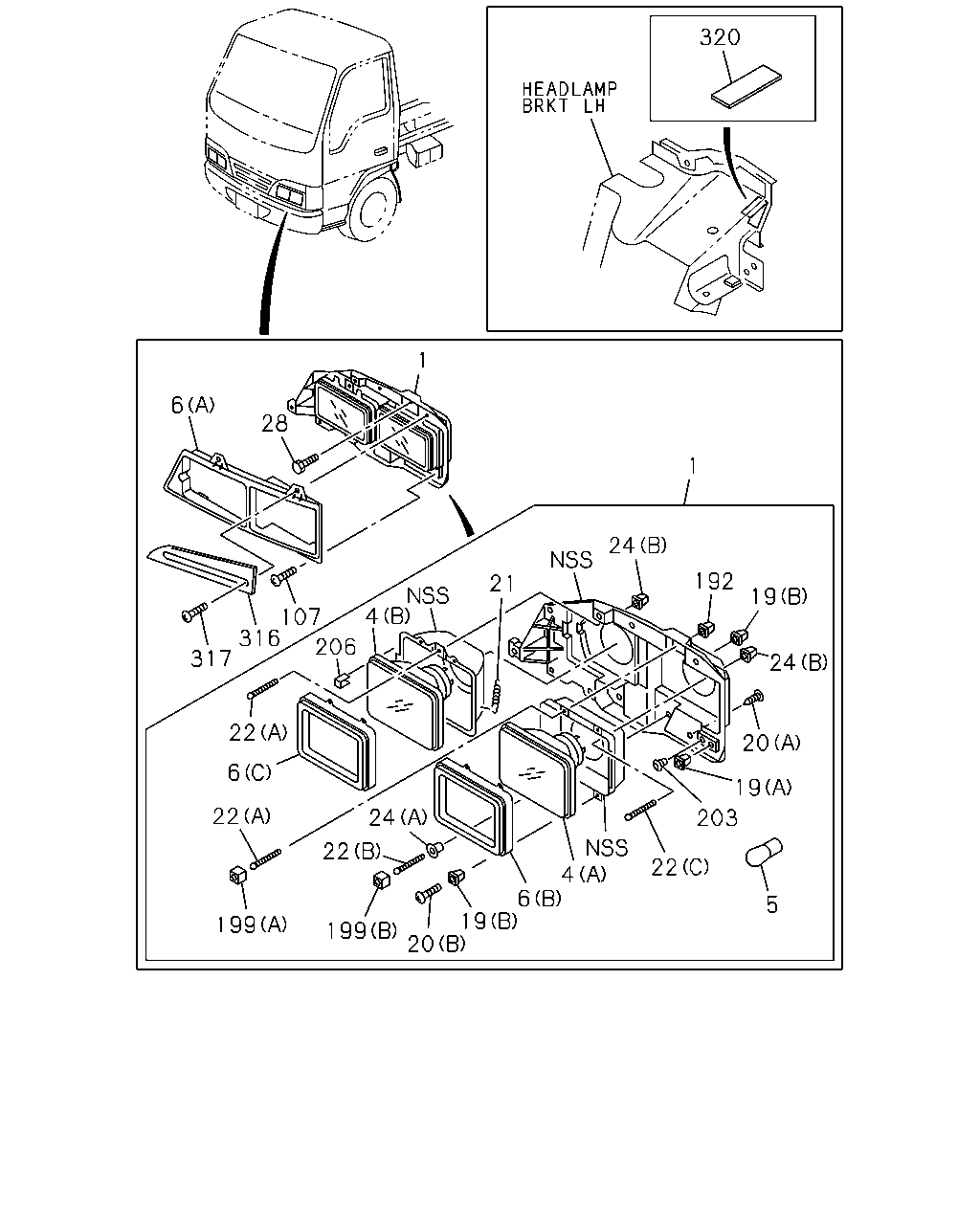

çizim 55462
320 1 28 6 107 316 317 22 6 22 199 24 22 199 20 19 6 4 22 5 203 19 20 24 19 192 1 24 21 4 206
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD
12V 45/40W SOU 		8-97855-106-4 01 1 0303-0511
1 LAMP ASM; HEAD
24V 75/70W 		8-97372-528-5 01 1 0512-
1 LAMP ASM; HEAD
12V 45/40W SOU 		8-97855-107-4 01 1 0303-0511
1 LAMP ASM; HEAD
24V 75/70W 		8-97372-529-5 01 1 0512-
4 HEADLAMP UNIT
(A) 12V 45/50W SOU 		8-94101-731-0 02 1 0303-0511
4 HEADLAMP UNIT
(C) 		8-98009-818-0 01 1 0512-
4 HEADLAMP UNIT
(B) 12V 45W SOU 		8-94101-739-0 02 1 0303-0511
4 HEADLAMP UNIT
(C) 		8-98009-819-0 01 1 0512-
5 BULB; HEADLAMP
12V 45/50W SOU 		5-82193-001-0 04 1 0303-0511
5 BULB; HEADLAMP
24V 75/70W 		1-82194-063-0 02 1 0512-
6 RIM; HEADLAMP
(C) SOU 		1-82114-016-0 02 1 0303-0511
6 RIM; HEADLAMP
(A) 		8-97581-088-0 01 1 0303-0511
6 RIM; HEADLAMP
(A) 		8-97581-089-0 01 1 0303-0511
6 RIM; HEADLAMP
(B) SOU 		8-97855-211-0 02 1 0303-0511
19 NUT; HEADLAMP
(A) SOU 		8-97044-618-0 08 1 0303-0511
19 NUT; HEADLAMP
(B) SOU 		8-97044-623-0 08 1 0303-0511
20 SCREW; HEADLAMP
(A) M4X8 SOU 		8-94165-886-0 08 1 0303-0511
20 SCREW; HEADLAMP
(C) 		8-97378-871-0 02 1 0512-
20 SCREW; HEADLAMP
(B) SOU 		8-97228-675-0 08 1 0303-0511
21 SPRING; ADJ HEADLAMP
SOU 		1-82119-021-0 02 1 0303-0511
22 SCREW; ADJ,HEADLAMP
(A) SOU 		8-97855-205-0 04 1 0303-0511
22 SCREW; ADJ,HEADLAMP
(B) SOU 		8-97855-206-0 02 1 0303-0511
22 SCREW; ADJ,HEADLAMP
(C) SOU 		8-97855-207-0 02 1 0303-0511
24 MOUNTING; ADJ SCREW HD LAMP
(B) SOU 		8-94387-097-0 06 1 0303-0511
24 MOUNTING; ADJ SCREW HD LAMP
(A) SOU 		8-97855-208-0 02 1 0303-0511
28 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER SOU 		8-94279-203-0 08 1 0303-0607
28 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-98031-842-0 08 1 0608-
107 SCREW; RIM,HEADLAMP
M4X20 TAPPING SOU 		8-97326-998-0 04 1 0303-0511
192 PIVOT; HEADLAMP
SOU 		8-94381-595-0 02 1 0303-0511
199 BUSHING
(A) SOU 		8-94381-605-0 04 1 0303-0511
199 BUSHING
(B) SOU 		8-97855-212-0 02 1 0303-0511
203 FASTENER; HEADLAMP
SOU 		8-94382-231-0 04 1 0303-0511
206 HOLDER; HEADLAMP
SOU 		8-97868-156-0 02 1 0303-0511
316 ORNAMENT; HEAD LAMP 8-97867-863-0 01 1 0303-0511
316 ORNAMENT; HEAD LAMP 8-97867-864-0 01 1 0303-0511
317 SCREW; ORNAMENT
M4X20 TAPPING SOU 		8-97326-998-0 04 1 0303-0511
320 SEALER; HEADLAMP BRKT
SOU 		8-97850-499-1 01 1 0303-
