◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50953 - NKR(SOUTH AFRICA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#44153) — 39 parça
çizim 13007
177 161 166 165 166
BalonParca AdiParca NoAdetTipApplied Date
161 REINFORCEMENT; SEAT BELT ANCHOR 8-97850-462-3 01 1 0303-
165 HOOK; SEAT BELT ANCHOR 8-97869-415-0 01 1 0303-
166 BOLT; SEAT BELT ANCHOR
M8X25 FLANGE 		0-28680-825-0 04 1 0303-0512
166 BOLT; SEAT BELT ANCHOR
M8X25 FLANGE SOU 		0-28650-825-0 04 1 0601-
177 NUT
M8 W/LK WASHER 		8-94327-073-0 01 1 0303-0805
177 NUT
M8 FLANGE 		8-97581-234-0 01 1 0806-

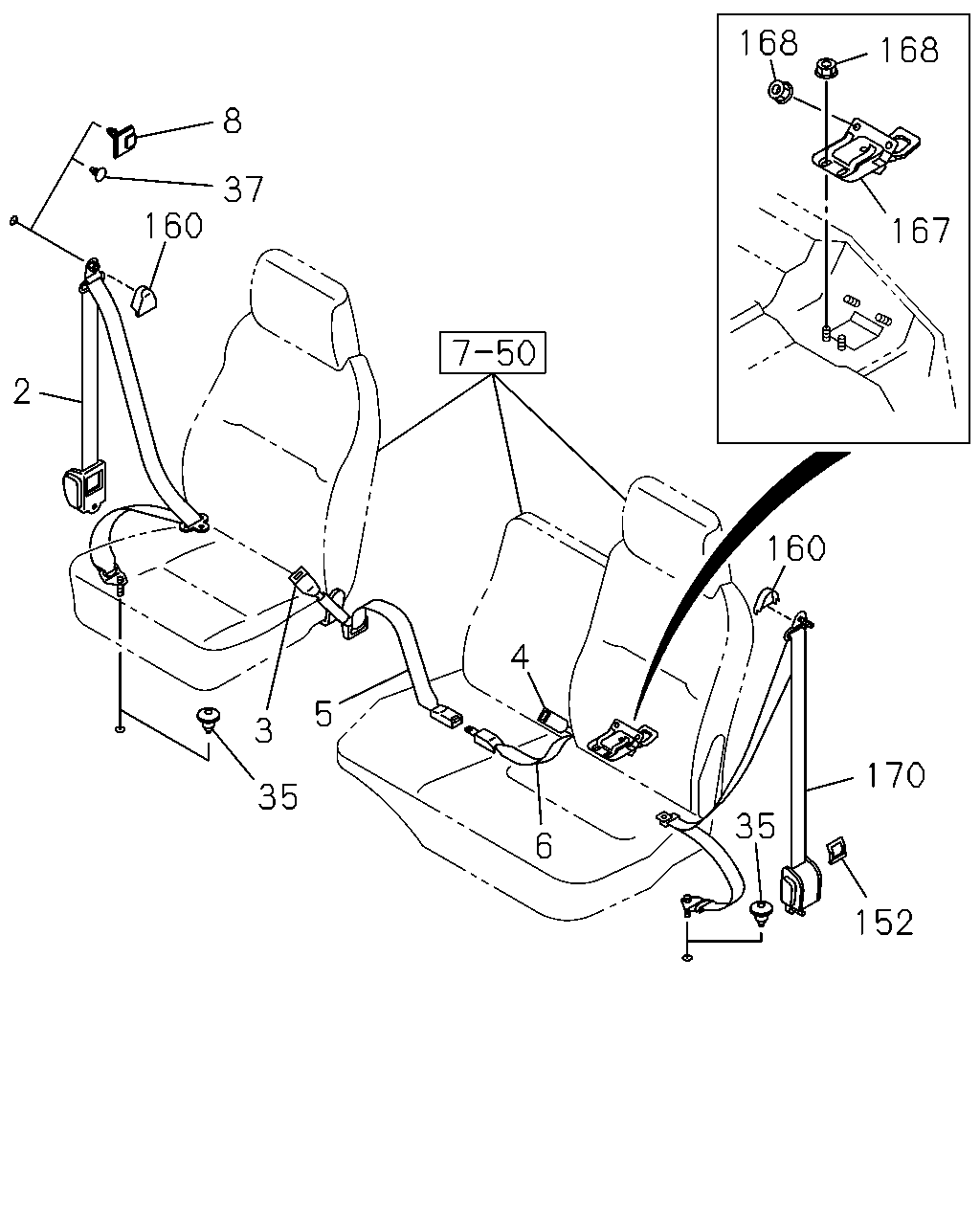

çizim 54272
168 168 167 160 170 152 35 6 4 5 3 35 2 160 37 8
BalonParca AdiParca NoAdetTipApplied Date
2 BELT; SEAT,TONGUE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> DARK GRAY 		8-97394-511-0 01 1 0303-0511
2 BELT; SEAT,TONGUE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> GRAY 		8-97400-353-1 01 1 0512-
2 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97392-992-0 01 1 0303-0511
2 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97397-380-2 01 1 0512-
3 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELTFRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97394-701-0 01 1 0303-0511
3 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELTFRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY 		8-97400-350-0 01 1 0512-
3 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELTFRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97394-509-0 01 1 0303-0511
3 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELTFRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY 		8-97400-349-0 01 1 0512-
4 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELTFRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97326-220-0 01 1 0303-0511
4 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELTFRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY 		8-97396-952-0 01 1 0512-
4 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELTFRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97394-516-0 01 1 0303-0511
4 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELTFRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY 		8-97400-354-0 01 1 0512-
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97326-221-0 01 1 0303-0409
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97401-281-0 01 1 0410-0503
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97401-501-0 01 1 0504-0511
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY 		8-97401-516-0 01 1 0512-0512
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY 		8-97404-304-0 01 1 0601-
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97326-224-0 01 1 0303-0511
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY 		8-97400-451-1 01 1 0512-
8 HOOK; SEAT BELT
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> SOU 		8-94276-268-1 02 1 0303-
35 GROMMET; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>, SEATBELT FRT 3 POINT W/RETRACTOR<A49> OD=22 SOU 		9-61168-535-0 03 1 0303-
37 PLUG; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>, SEATBELT FRT 3 POINT W/RETRACTOR<A49> L=18.5 SOU 		8-94279-726-0 02 1 0303-0503
37 PLUG; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>, SEATBELT FRT 3 POINT W/RETRACTOR<A49> L=18.5 SOU 		8-94279-726-0 02 1 0505-
152 PROTECTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SOU 		8-97287-563-0 02 1 0303-
160 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY SOU 		8-97854-897-0 02 1 0303-0511
160 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97396-954-0 02 1 0512-
167 PLATE; ANCHOR 8-97869-412-2 01 1 0303-
168 NUT; ANCHOR PLATE
M8 FLANGE SOU 		5-09440-005-0 04 1 0303-0712
168 NUT; ANCHOR PLATE
M8 FLANGE SOU 		0-91180-108-0 04 1 0801-
170 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> DARK GRAY 		8-97394-511-0 01 1 0303-0511
170 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> GRAY 		8-97400-353-1 01 1 0512-
170 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97392-992-0 01 1 0303-0511
170 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97397-380-2 01 1 0512-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
