7-43 — SUN VISOR AND ASSIST GRIP (#44151) — 66 parça

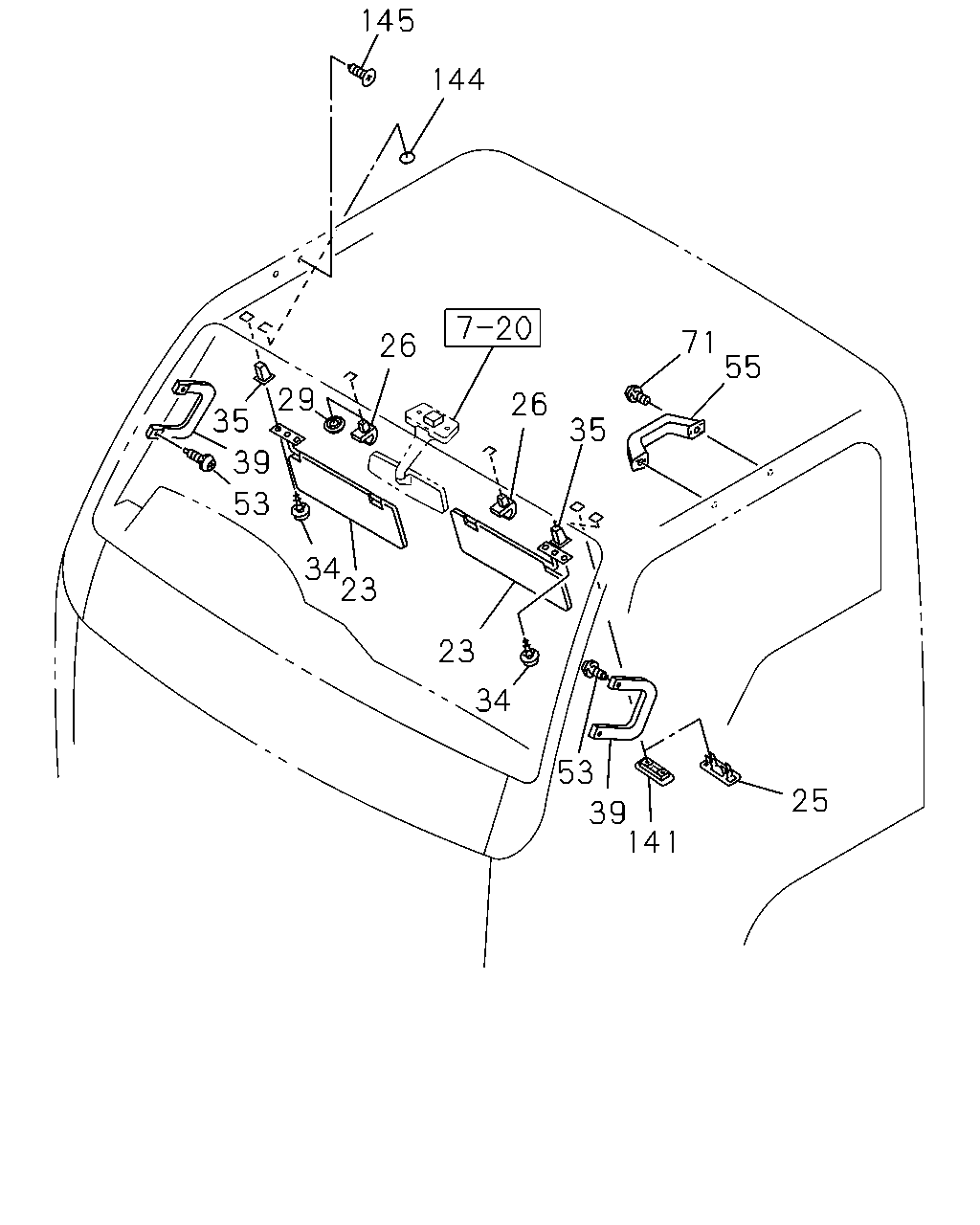

145 144 26 29 35 39 53 34 23 23 34 53 39 141 25 55 71 35 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
23	SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97997-503-1	01	1	0303-0509
23	SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97404-400-0	01	1	0510-
23	SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97997-505-1	01	1	0303-0509
23	SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97404-398-0	01	1	0510-
23	SUN VISOR TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97997-947-1	01	1	0303-0509
23	SUN VISOR TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97404-452-0	01	1	0510-
23	SUN VISOR EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97997-946-1	01	1	0303-0509
23	SUN VISOR EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97404-450-0	01	1	0510-
25	COVER; HOLE,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> LIGHT GRAY SOU	8-97859-846-3	01	1	0303-0610
25	COVER; HOLE,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> DARK GRAY	8-97406-201-3	01	1	0611-
26	HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97867-184-2	02	1	0303-0610
26	HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> DARK GRAY	8-97406-198-2	02	1	0611-
26	HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-94351-982-0	02	1	0303-0610
26	HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> DARK GRAY	8-97405-171-0	02	1	0611-
26	HOLDER; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY	8-97867-184-2	01	1	0303-0610
26	HOLDER; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> DARK GRAY	8-97406-198-2	01	1	0611-
26	HOLDER; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-94351-982-0	01	1	0303-0610
26	HOLDER; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> DARK GRAY	8-97405-171-0	01	1	0611-
29	HOLDER; GROMMET,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> OD=15.0 SOU	8-94279-040-0	01	1	0303-
34	SCREW; SUN VISOR SUNVISOR PASSENGER SIDE<D20> M5X20 SOU	5-09981-059-0	04	1	0303-0612
34	SCREW; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> M5X20 SOU	5-09981-059-0	04	1	0303-0612
34	SCREW; SUN VISOR SUNVISOR PASSENGER SIDE<D20> M5X20 TAPPING	0-72180-520-0	04	1	0701-0706
34	SCREW; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> M5X20 TAPPING	0-72180-520-0	04	1	0701-0706
34	SCREW; SUN VISOR SUNVISOR PASSENGER SIDE<D20> M5X18 TAPPING	0-72180-518-0	04	1	0707-
34	SCREW; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> M5X18 TAPPING	0-72180-518-0	04	1	0707-
34	SCREW; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> M5X20 SOU	5-09981-059-0	02	1	0303-0612
34	SCREW; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> M5X20 TAPPING	0-72180-520-0	02	1	0701-0706
34	SCREW; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> M5X18 TAPPING	0-72180-518-0	02	1	0707-
35	GROMMET; SCREW,SUN VISOR SUNVISOR PASSENGER SIDE<D20>	8-94279-039-0	04	1	0303-
35	GROMMET; SCREW,SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20>	8-94279-039-0	04	1	0303-
35	GROMMET; SCREW,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ>	8-94279-039-0	02	1	0303-
39	HANDLE; ASSIST,A-POST DARK GRAY SOU	8-97867-209-0	02	1	0303-0511
39	HANDLE; ASSIST,A-POST GRAY	8-97582-194-1	02	1	0512-0702
39	HANDLE; ASSIST,A-POST GRAY	8-97409-477-0	02	1	0703-
53	SCREW; ASSIST HANDLE M6X34 W/LK&PL WASHER SOU	8-94279-411-0	04	1	0303-0612
53	SCREW; ASSIST HANDLE M6X28	8-98004-344-0	04	1	0701-
55	GRIP; ASSIST,CAB SIDE UPR ASSIST GRIP PASSENGER<EG5> DARK GRAY SOU	8-97098-476-2	01	1	0303-0511
55	GRIP; ASSIST,CAB SIDE UPR ASSIST GRIP PASSENGER<EG5> GRAY	8-97582-294-2	01	1	0512-0610
55	GRIP; ASSIST,CAB SIDE UPR ASSIST GRIP PASSENGER<EG5> DARK GRAY	8-97405-285-2	01	1	0611-
71	SCREW ASSIST GRIP PASSENGER<EG5> M6X30 W/LK WASHER SOU	5-09981-064-0	02	1	0303-0612
71	SCREW ASSIST GRIP PASSENGER<EG5> M6X28	8-98004-344-0	02	1	0701-
141	COVER; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY SOU	8-97859-845-1	01	1	0303-
144	SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 WHITE	8-97856-832-2	04	1	0303-0610
144	SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 WHITE	8-98059-421-0	04	1	0611-
144	SEAL; LOCATION HOLE BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 BLACK	5-76777-036-0	04	1	0303-
145	PLUG; HOLE EXC. TRAY ROOF HEAD<7EJ> OD=12 L=14.8 SOU	8-94279-921-0	04	1	0303-

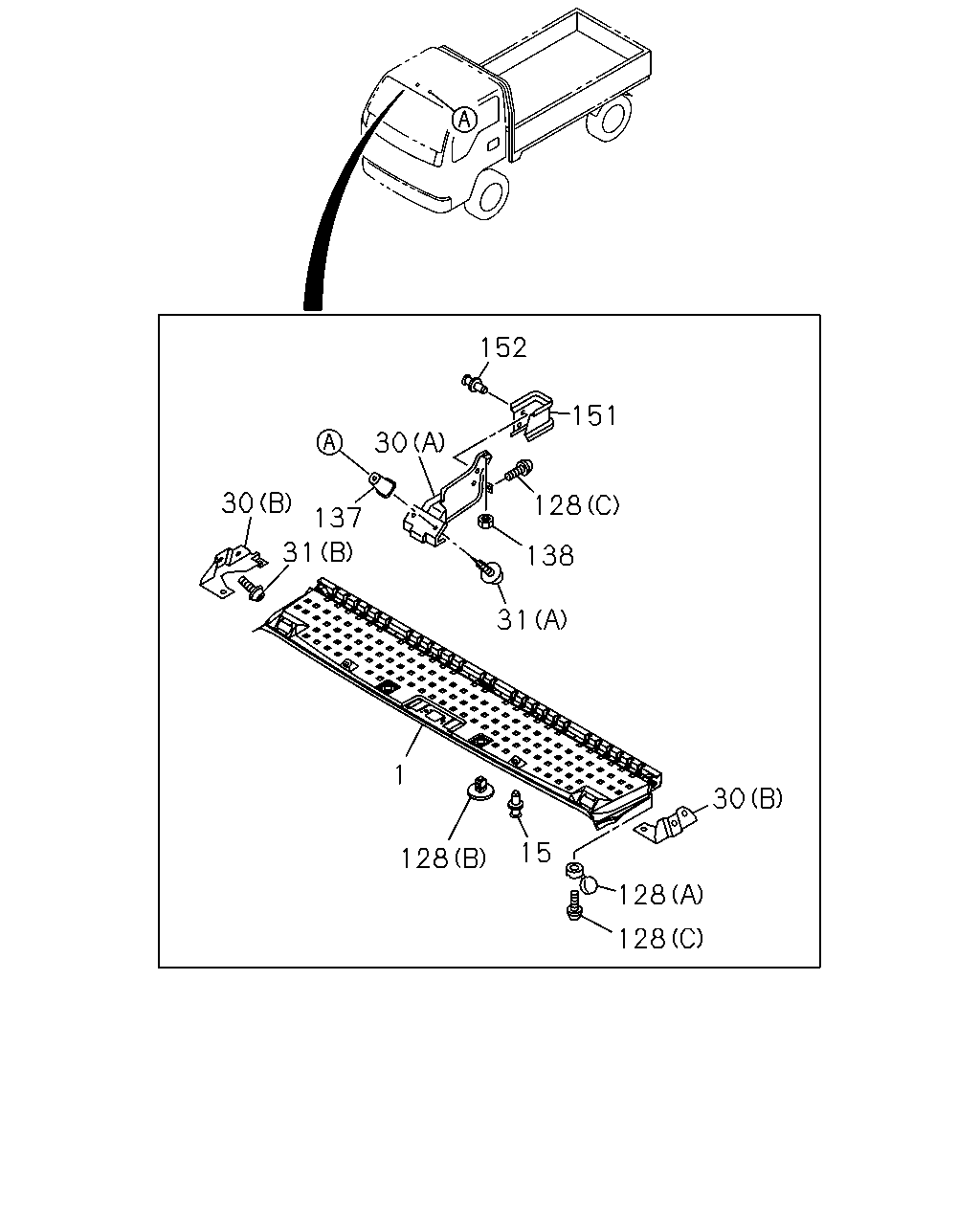

152 151 30 30 137 31 128 138 31 1 128 15 30 128 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97994-818-1	01	1	0303-
15	FASTENER; HEADER SHELF BOARD TRAY ROOF HEAD<7EJ> LIGHT GRAY, D8X15 PUSH RIVET	8-97892-693-0	02	1	0303-
30	BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (B)	8-97856-797-3	01	1	0303-
30	BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (B)	8-97856-798-3	01	1	0303-
30	BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (A)	8-97859-388-4	01	1	0303-
31	SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> (A) M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0303-0405
31	SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> (A) M5X16 SOU	8-94279-341-0	02	1	0406-0612
31	SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> (B) M6X16	0-38050-616-0	04	1	0701-
31	SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> (B) M6X20 W/LK&PL WASHER SOU	8-94279-403-0	04	1	0303-0612
31	SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> (A) M5X16 W/TORQUES	8-98061-741-0	02	1	0701-0702
31	SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> (A) M5X16 SOU	8-94279-341-0	02	1	0703-
128	FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> (A) LIGHT GRAY	8-97892-153-2	02	1	0303-
128	FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> (C)	8-97892-737-0	03	1	0303-0612
128	FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> (C) M6X16 W/TORQUES	8-98064-273-0	03	1	0701-
128	FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> (B) LIGHT GRAY	8-97892-151-0	01	1	0303-
137	GROMMET; SCREW,HEADER SHELF TRAY ROOF HEAD<7EJ>	8-94279-039-0	01	1	0303-0405
138	NUT; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> M8 FLANGE SOU	0-91150-108-0	01	1	0303-0602
138	NUT; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> M8 FLANGE SOU	0-91180-108-0	01	1	0603-
151	COVER; BRKT TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> LIGHT GRAY	8-97867-250-0	01	1	0303-
152	CLIP; BRKT TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> LIGHT GRAY	8-97867-185-0	02	1	0303-
