2-25A — SPEEDOMETER DRIVEN GEAR (#4415) — 25 parça

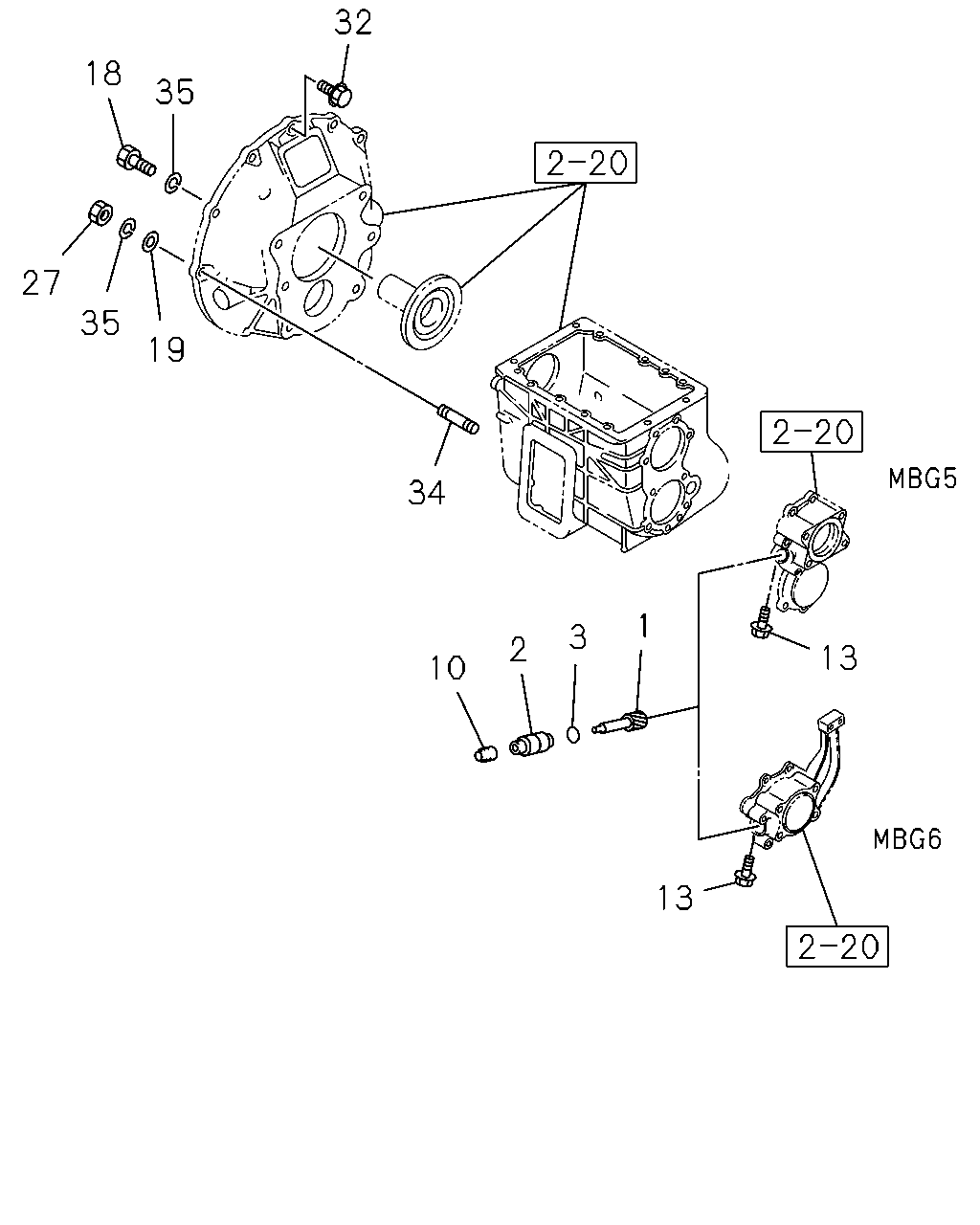

çizim 36867
32 18 35 27 35 19 34 1 3 2 13 10 13
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 GEAR; DRIVEN,SPD
FINAL GEAR 39/6 15.5" HYPOID(W1T) TIRE 8.25R-20-14 RIB(05R),TIRE 8.25-20-14 RIB(90S) Z=20 		1-33372-123-2 01 1 9101-9504 ● ● ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 39/7 15.5" HYPOID(W3K) TIRE 10.00-20-14 RIB(30T),TIRE 10.00R20-14 RIB(45R),TIRE 11.00R-22.5-16 RIB(55N) Z=16 		1-33372-119-2 01 1 9101-9504 ● ● ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 43/7 15.5" HYPOID(W1R) TIRE 10.00-20-14 RIB(30T),TIRE 10.00R20-14 RIB(45R),TIRE 11.00R-22.5-16 RIB(55N) Z=17 		1-33372-120-2 01 1 9101-9504 ● ● ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 39/7 15.5" HYPOID(W3K) TIRE 9.00-20-12 RIB(00T),TIRE 9.00-20-14 RIB(10T),TIRE 9.00R-20-14 RIB(25R) Z=17 		1-33372-120-2 01 1 9101-9504 ● ● ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 43/7 15.5" HYPOID(W1R) TIRE 10.00-20-14 RIB(30T),TIRE 10.00R20-14 RIB(45R),TIRE 11.00R-22.5-16 RIB(55N) Z=18 		1-33372-121-2 01 1 9101-9504 ● ● ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 39/7 15.5" HYPOID(W3K) TIRE 8.25R-20-14 RIB(05R),TIRE 8.25-20-14 RIB(90S) Z=18 		1-33372-121-2 01 1 9101-9504 ● ● ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 43/7 15.5" HYPOID(W1R) EXC. TIRE 10.00-20-14 RIB(30T),TIRE 10.00R20-14 RIB(45R),TIRE 11.00R-22.5-16 RIB(55N) Z=19 		1-33372-122-2 01 1 9101-9504 ● ● ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 39/6 15.5" HYPOID(W1T) EXC. TIRE 8.25R-20-14 RIB(05R),TIRE 8.25-20-14 RIB(90S) Z=19 		1-33372-122-2 01 1 9101-9504 ● ● ●
1 GEAR; DRIVEN,SPD
Z=19 		1-33372-122-2 01 1 9101-9504 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 1-33373-039-1 01 1 9101-9504 ● ● ● ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 		1-09623-370-0 01 1 9101-9504 ● ● ● ●
10 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		1-09625-510-0 01 1 9101-9201 ● ● ● ●
10 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		1-09625-510-0 01 1 9202-9304 ● ● ● ●
10 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		1-09625-510-0 01 1 9305-9504 ● ● ● ●
13 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		1-09044-063-0 01 1 9101-9201 ● ● ● ●
13 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		1-09044-063-0 01 1 9202-9304 ● ● ● ●
13 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		1-09044-063-0 01 1 9305-9504 ● ● ● ●
18 BOLT; CLU HSG TO TRANS
M14X40 		0-23801-440-0 05 1 9101-9203 ● ● ● ●
18 BOLT; CLU HSG TO TRANS
M14X40 W/LK&PL WASHER 		0-50151-440-0 05 1 9204-9504 ● ● ● ●
19 WASHER; PL,CLU HSG TO TRANS
ID=15 		9-09160-514-0 01 1 9204-9504 ● ● ● ●
27 NUT; CLU HSG TO TRANS
M14 		9-99110-514-0 01 1 9101-9504 ● ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
M10X30 W/LK WASHER 		0-50051-030-0 12 1 9101-9504 ● ● ● ●
34 STUD; CLU HSG 1-09302-024-2 01 1 9101-9504 ● ● ● ●
35 WASHER; LK,CLU HSG TO TRANS
ID=14.2 		9-09150-514-0 06 1 9101-9203 ● ● ● ●
35 WASHER; LK,CLU HSG TO TRANS
ID=14.2 		9-09150-514-0 01 1 9204-9504 ● ● ● ●
