7-40 — INSTRUMENT PANEL AND BOX (#44148) — 86 parça

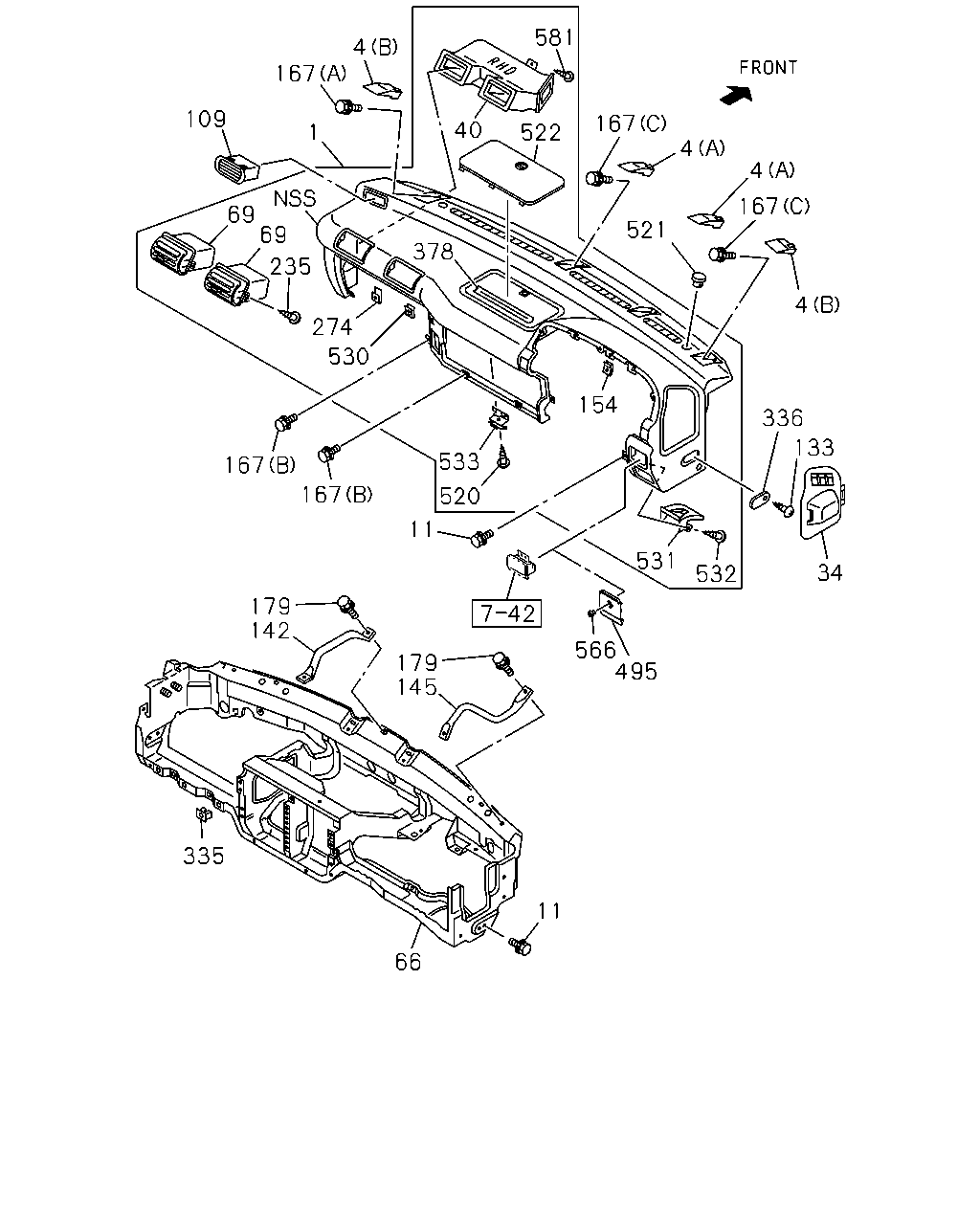

çizim 12974
109 1 167 4 40 522 581 167 4 521 4 167 4 336 133 34 532 531 154 378 69 69 235 274 530 533 520 11 167 167 179 142 335 66 11 145 179 566 495
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
DARK GRAY 		8-97195-958-1 01 1 0303-0511
1 PANEL; INST
DARK GRAY 		8-97582-211-1 01 1 0512-
4 COVER; INST PNL
(A) DARK GRAY SOU 		8-97857-523-3 02 1 0303-0511
4 COVER; INST PNL
(A) DARK GRAY 		8-97582-215-3 02 1 0512-
4 COVER; INST PNL
(B) DARK GRAY SOU 		8-97857-524-3 01 1 0303-0511
4 COVER; INST PNL
(B) DARK GRAY 		8-97582-216-3 01 1 0512-
4 COVER; INST PNL
(B) DARK GRAY SOU 		8-97857-525-3 01 1 0303-0511
4 COVER; INST PNL
(B) DARK GRAY 		8-97582-217-3 01 1 0512-
11 BOLT; INST PNL
M8X23 FLANGE SOU 		8-97264-766-0 04 1 0303-
34 LID; OIL TANK
DARK GRAY SOU 		8-97859-800-7 01 1 0303-0511
34 LID; OIL TANK
DARK GRAY 		8-97582-207-7 01 1 0512-
40 DUCT; VENT,SIDE CLUSTER BEZEL
SOU 		8-97262-688-0 01 1 0303-
66 REINFORCEMENT; INST PANEL
SOU 		8-97898-461-4 01 1 0303-0505
66 REINFORCEMENT; INST PANEL 8-98013-756-1 01 1 0506-
69 GRILLE; SIDE,AIR OUTLET
DARK GRAY SOU 		8-97890-631-0 02 1 0303-0511
69 GRILLE; SIDE,AIR OUTLET
DARK GRAY 		8-97582-612-0 02 1 0512-
109 GRILLE; INST PNL SIDE,UPR
DARK GRAY SOU 		8-97859-795-0 01 1 0303-0511
109 GRILLE; INST PNL SIDE,UPR
DARK GRAY 		8-97582-222-0 01 1 0512-
133 SCREW; COVER,INST PNL
M5X20 TAPPING W/PL WASHER 		0-74110-520-0 02 1 0303-0604
133 SCREW; COVER,INST PNL
M5X20 TAPPING W/PL WASHER 		0-74160-520-0 02 1 0605-0612
133 SCREW; COVER,INST PNL
M5X20 TAPPING 		0-72180-520-0 02 1 0701-
142 STAY; INST PANEL
SOU 		8-97853-637-2 01 1 0303-
145 STAY; INST PANEL SIDE
SOU 		8-97853-638-3 01 1 0303-
154 NUT
M6 SPIRE NUT SOU 		8-97210-973-1 01 1 0303-0511
154 NUT
M6 SPIRE NUT SOU 		8-97210-973-1 04 1 0512-
154 NUT
M6 SPIRE NUT SOU 		8-97210-973-1 03 1 0303-0511
167 BOLT; REINF TO INST
(B) M6X19.5 W/LK&PL WASHER SOU 		8-94279-201-0 06 1 0303-
167 BOLT; REINF TO INST
(C) M6X25 SOU 		8-94279-204-0 02 1 0303-
167 BOLT; REINF TO INST
(A) M6X24 FLANGE SOU 		8-94279-231-1 02 1 0303-
179 BOLT; STAY,INST PANEL
M6X12 W/LK&PL WASHER SOU 		8-94279-200-0 02 1 0303-0307
179 BOLT; STAY,INST PANEL
M6X12 W/LK&PL WASHER 		0-50140-612-0 02 1 0308-0512
179 BOLT; STAY,INST PANEL
M6X12 W/LK&PL WASHER 		0-50640-612-0 02 1 0601-
235 SCREW; GRILLE
M5X14 SOU 		8-94279-325-0 04 1 0303-
274 NUT; GLOVE BOX
M5 SPIRE NUT SOU 		8-94279-051-0 02 1 0303-
335 GROMMET; GLOVE BOX LK
D=8X8 L=7.5 M5 SOU 		8-94279-078-0 02 1 0303-
336 COVER; INST PANEL SIDE
DARK GRAY SOU 		8-97857-528-4 02 1 0303-0511
336 COVER; INST PANEL SIDE
DARK GRAY 		8-97582-218-4 02 1 0512-
378 SEAL; INST PANEL
SOU 		8-97209-399-0 01 1 0303-
495 BEZEL; SW
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY SOU 		8-97857-548-4 01 1 0303-0511
495 BEZEL; SW
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97582-214-4 01 1 0512-
520 SCREW; CLIP,SPRING
M5X14 SOU 		8-94279-325-0 02 1 0303-
521 COVER; SUN SENSOR
DARK GRAY SOU 		8-97857-529-2 01 1 0303-0511
521 COVER; SUN SENSOR
DARK GRAY 		8-97582-334-2 01 1 0512-
522 LID; RELAY BOX
DARK GRAY 		8-97857-520-6 01 1 0303-0511
522 LID; RELAY BOX
DARK GRAY 		8-97582-494-6 01 1 0512-
530 CLIP; GLOVE BOX
SOU 		8-97856-135-0 01 1 0303-
531 CASE; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> SOU 		8-97853-130-0 01 1 0303-
532 SCREW; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> M5X14 SOU 		8-94279-325-0 02 1 0303-0612
532 SCREW; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> M5X14 TAPPING W/TORQUES 		8-98061-856-0 02 1 0701-
533 CLIP; SPRING,CTR CLUSTER
SOU 		8-97853-170-5 02 1 0303-
566 PLUG; HOLE
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY SOU 		8-97868-413-0 01 1 0303-0511
566 PLUG; HOLE
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97582-247-0 01 1 0512-
581 SCREW
M5X14 SOU 		8-94279-325-0 02 1 0303-

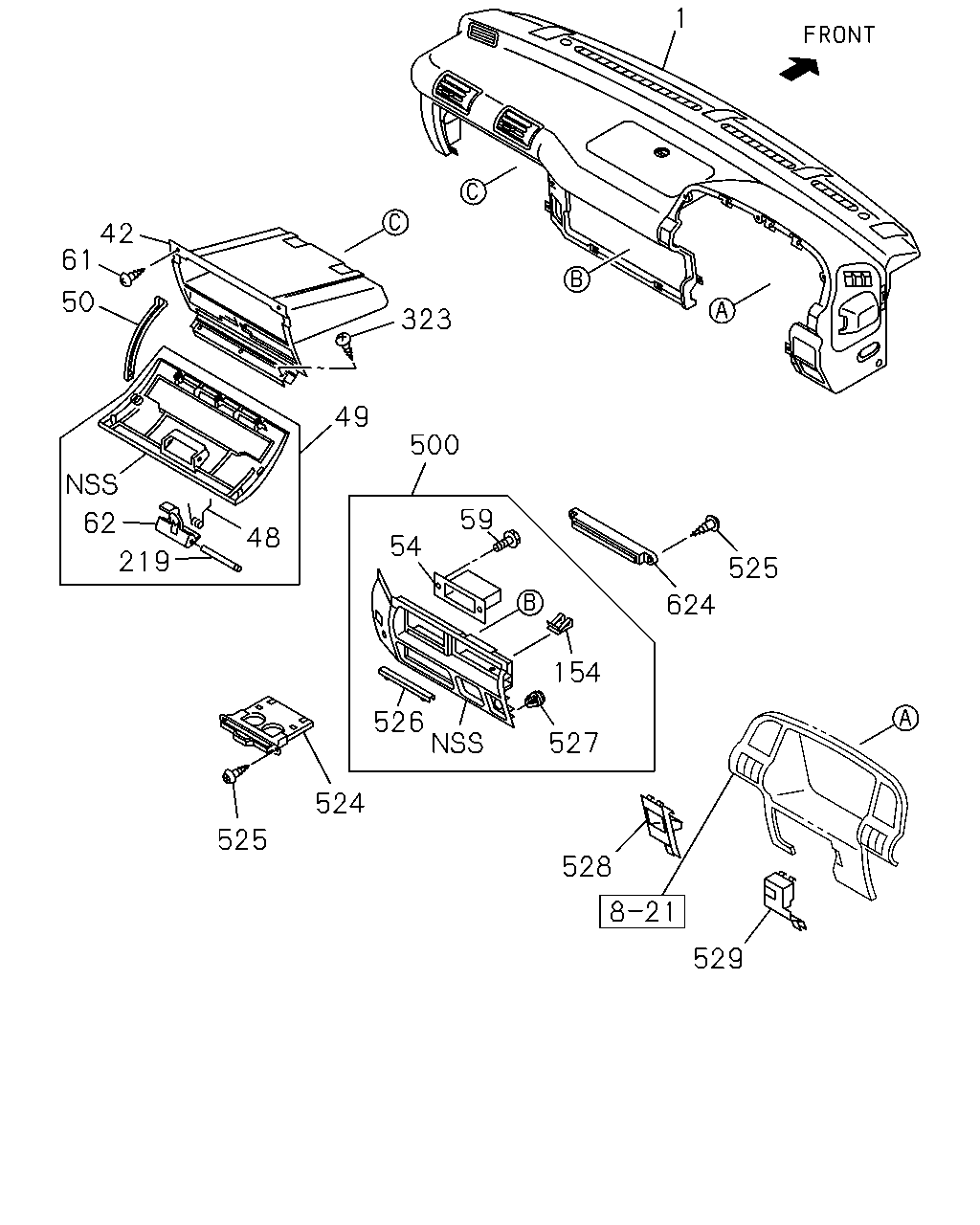

çizim 54372
1 323 42 61 50 62 219 48 49 500 54 59 525 624 154 527 528 529 526 524 525
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
DARK GRAY 		8-97195-958-1 01 1 0303-0511
1 PANEL; INST
DARK GRAY 		8-97582-211-1 01 1 0512-
42 BOX; GLOVE,INST PNL
SOU 		8-97853-150-5 01 1 0303-
48 SPRING; GLOVE BOX LID
SOU 		8-97853-750-1 01 1 0303-
49 LID; GLOVE BOX
DARK GRAY SOU 		8-97859-798-5 01 1 0303-0511
49 LID; GLOVE BOX
DARK GRAY 		8-97582-199-5 01 1 0512-
50 STOPPER; LID,GLOVE BOX,INST CLUSTER
SOU 		8-97853-152-0 02 1 0303-
54 POCKET; CENTER CLUSTER
DARK GRAY SOU 		8-97196-294-2 01 1 0303-0511
54 POCKET; CENTER CLUSTER
DARK GRAY 		8-97582-491-2 01 1 0512-
59 SCREW; CLUSTER POCKET
M5X14 SOU 		8-94148-576-1 02 1 0303-0401
59 SCREW; CLUSTER POCKET
M5X14 SOU 		8-94279-325-0 02 1 0402-
61 SCREW; GLOVE BOX
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 0303-0604
61 SCREW; GLOVE BOX
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 0605-0612
61 SCREW; GLOVE BOX
M5X16 TAPPING 		0-72180-516-0 04 1 0701-
62 KNOB; GLOVE BOX LID
DARK GRAY SOU 		8-97857-498-1 01 1 0303-0511
62 KNOB; GLOVE BOX LID
DARK GRAY 		8-97582-487-1 01 1 0512-
154 NUT
M6 SPIRE NUT SOU 		8-97210-973-1 01 1 0303-0511
154 NUT
M6 SPIRE NUT SOU 		8-97210-973-1 04 1 0512-
154 NUT
M6 SPIRE NUT SOU 		8-97210-973-1 03 1 0303-0511
219 SHAFT; GLOVE BOX LID
SOU 		5-72547-059-1 01 1 0303-
323 SCREW; GLOVE BOX LK
M5X14 SOU 		8-94279-325-0 03 1 0303-0612
323 SCREW; GLOVE BOX LK
M5X14 TAPPING W/TORQUES 		8-98061-856-0 03 1 0701-
500 CLUSTER; INST CENTER
DARK GRAY SOU 		8-97892-187-5 01 1 0303-0511
500 CLUSTER; INST CENTER
DARK GRAY 		8-97582-208-5 01 1 0512-
524 STAND ASM; CUP,INST
CUP HOLDER<7KZ> SOU 		8-97853-172-8 01 1 0303-
525 SCREW; CUP STAND
M5X14 SOU 		8-94279-325-0 02 1 0303-0612
525 SCREW; CUP STAND
M5X16 TAPPING 		0-72180-516-0 02 1 0701-
526 GUIDE; POCKET,INST CLUSTER
DARK GRAY SOU 		8-97857-503-1 01 1 0303-0511
526 GUIDE; POCKET,INST CLUSTER
DARK GRAY 		8-97582-490-1 01 1 0512-
527 CLIP; INST CLUSTER
SOU 		8-97853-169-0 04 1 0303-
528 COVER; PTO LEVER
PTO TRANSMISSION SIDE(V66) BLACK SOU 		8-97867-071-5 01 1 0303-
529 POCKET; COIN
EXC. PTO TRANSMISSION SIDE(V66) BLACK SOU 		8-97867-074-5 01 1 0303-
624 COVER; CUP STAND
EXC. CUP HOLDER<7KZ> SOU 		1-72438-139-1 01 1 0303-
