◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50953 - NKR(SOUTH AFRICA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#44145) — 22 parça

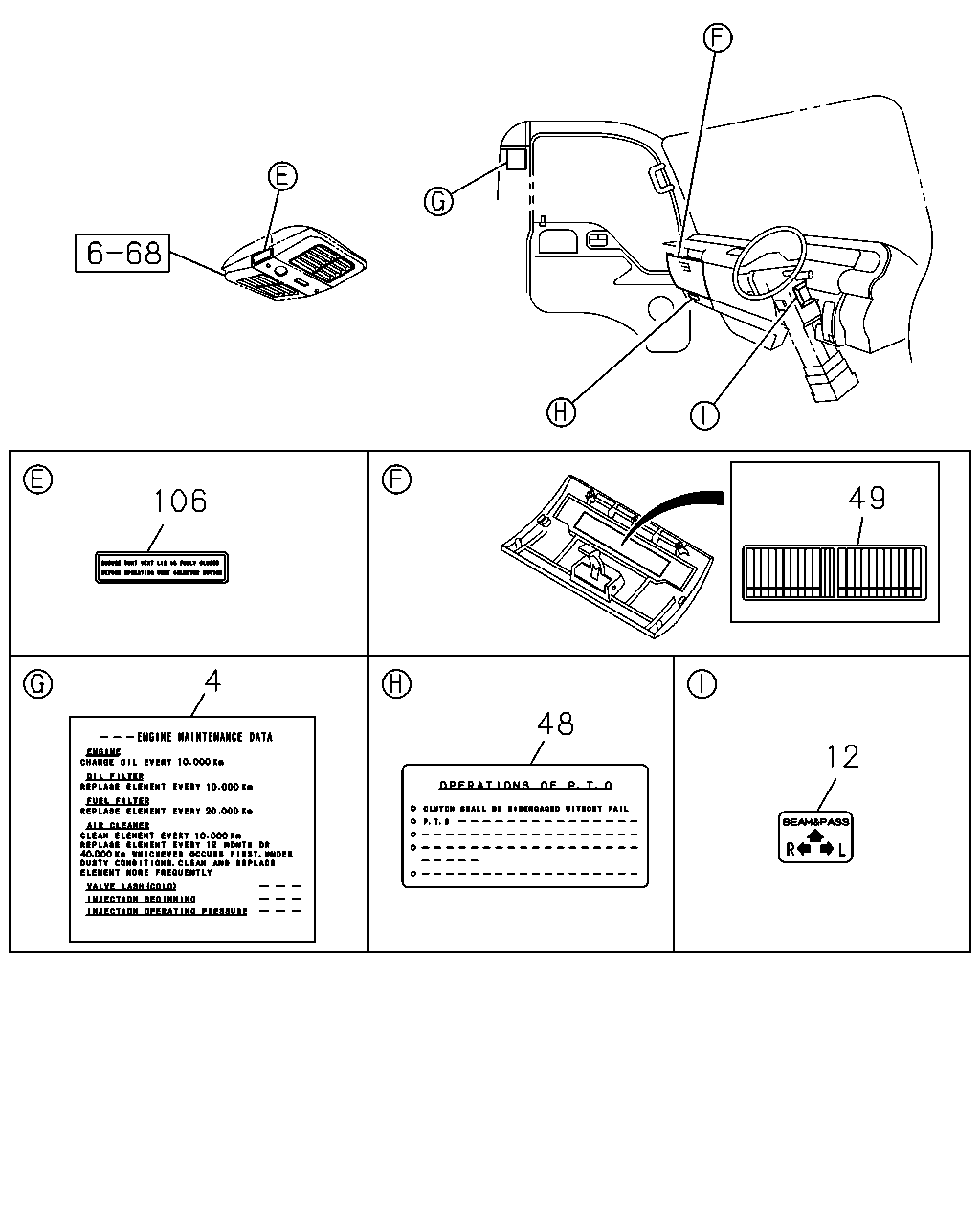

çizim 55444
106 49 12 48 4
BalonParca AdiParca NoAdetTipApplied Date
4 LABEL; ENG MAINTENANCE
4JB1 ENG(RLF) CAUTION SPANISH<YN1> SOU 		8-97218-365-0 01 1 0303-0511
4 LABEL; ENG MAINTENANCE
4HF1 ENG(RLS) CAUTION SPANISH<YN1> SOU 		8-97189-399-0 01 1 0512-
4 LABEL; ENG MAINTENANCE
4JB1 ENG(RLF) EXC. CAUTION SPANISH<YN1> SOU 		8-97189-415-0 01 1 0303-0511
4 LABEL; ENG MAINTENANCE
4HF1 ENG(RLS) EXC. CAUTION SPANISH<YN1> SOU 		8-97189-398-0 01 1 0512-
12 LABEL; TURN
SOU 		8-94273-445-0 01 1 0303-
48 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> SOU 		8-94313-054-0 01 1 0303-
48 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) EXC. CAUTION SPANISH<YN1> SOU 		8-94469-277-0 01 1 0303-
49 PLATE; CAUTION,FUSE BOX
4JB1 ENG(RLF) SOU 		8-97182-190-0 01 1 0303-0511
49 PLATE; CAUTION,FUSE BOX
4HF1 ENG(RLS) 		8-97377-715-0 01 1 0512-
106 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> CAUTION SPANISH<YN1> 		8-97580-590-0 01 1 0303-
106 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> EXC. CAUTION SPANISH<YN1> 		8-97580-589-0 01 1 0303-
çizim 55765
35 35 9 96
BalonParca AdiParca NoAdetTipApplied Date
9 PLATE; NAME,SPD RANGE
4JB1 ENG(RLF) CAUTION SPANISH<YN1> EXC. TACHOMETER<U16> 		8-94158-938-0 01 1 0303-0511
9 PLATE; NAME,SPD RANGE
4HF1 ENG(RLS) M/T MYY5T(RSM) CAUTION SPANISH<YN1> EXC. TACHOMETER<U16> 		8-94158-942-0 01 1 0512-
9 PLATE; NAME,SPD RANGE
4JB1 ENG(RLF) EXC. TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-936-0 01 1 0303-0511
9 PLATE; NAME,SPD RANGE
4HF1 ENG(RLS) M/T MYY5T(RSM) EXC. TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-940-0 01 1 0512-
35 PLATE; CAUTION,CAB
CAUTION SPANISH<YN1> (A) 		8-97857-419-0 01 1 0303-0511
35 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> (A) 		8-97857-419-1 01 1 0512-
35 PLATE; CAUTION,CAB
EXC. CAUTION SPANISH<YN1> (B) 		5-85881-328-1 01 1 0303-0511
35 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (B) 		5-85881-328-1 01 1 0512-
35 PLATE; CAUTION,CAB
EXC. CAUTION SPANISH<YN1> (A) 		8-97856-228-0 01 1 0303-0511
35 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (A) 		8-97856-228-0 01 1 0512-
96 PLATE; CAUTION,ENGINE OIL
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 		8-97066-479-1 01 1 0303-0511
