Isuzu WW
▶
TRUCKS
▶
NKR
▶
50953 - NKR(SOUTH AFRICA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

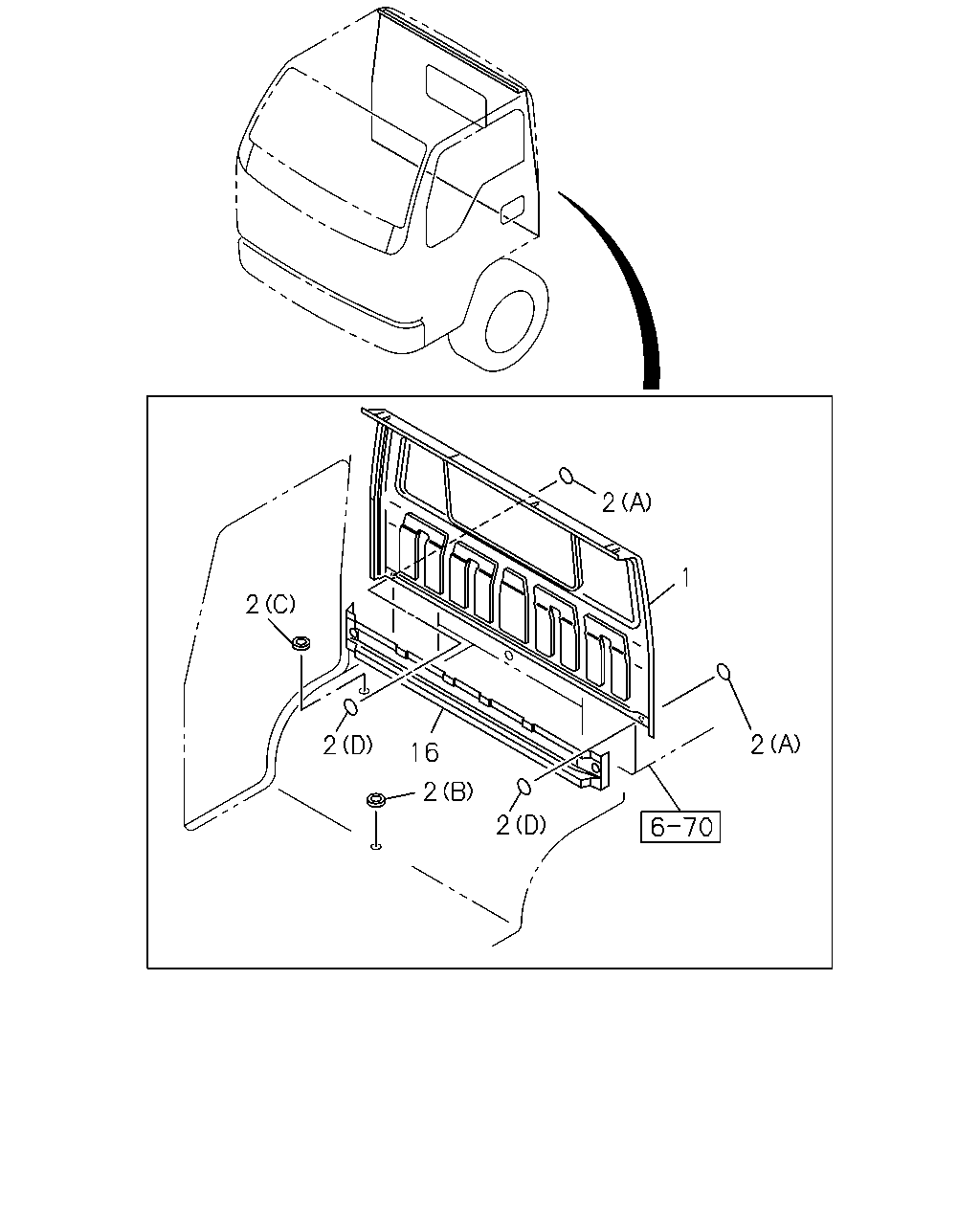

6-80 - BACK PANEL
▶
6-80 — BACK PANEL
(#44140) — 10 parça
2
1
2
2
2
16
2
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PANEL; BACK OUTER
4HF1 ENG(RLS) SOU
8-97851-352-2
02
1
0512-
1
PANEL; BACK OUTER
4JB1 ENG(RLF) SOU
8-97851-352-2
01
1
0303-0511
2
GROMMET; LOCATION HOLE,BACK PANEL
(A) OD=25 BLACK SOU
1-76798-019-0
04
1
0303-
2
GROMMET; LOCATION HOLE,BACK PANEL
(D) OD=36 T=0.05 BLACK SOU
5-76777-035-0
02
1
0303-0710
2
GROMMET; LOCATION HOLE,BACK PANEL
(D) OD=32 BLACK
8-98031-126-0
02
1
0711-
2
GROMMET; LOCATION HOLE,BACK PANEL
(B) OD=28.5
8-94279-711-0
02
1
0303-
2
GROMMET; LOCATION HOLE,BACK PANEL
(C) OD=16.2
8-94492-493-0
02
1
0303-0512
2
GROMMET; LOCATION HOLE,BACK PANEL
(C) OD=15.0 SOU
8-94279-040-0
02
1
0601-
16
REINFORCEMENT; BACK OUTER PNL
4JB1 ENG(RLF)
8-97867-215-0
01
1
0303-0511
16
REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS)
8-97867-215-0
01
1
0512-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
