Isuzu WW
▶
TRUCKS
▶
NKR
▶
50953 - NKR(SOUTH AFRICA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-75 - MAT AND CARPET
▶

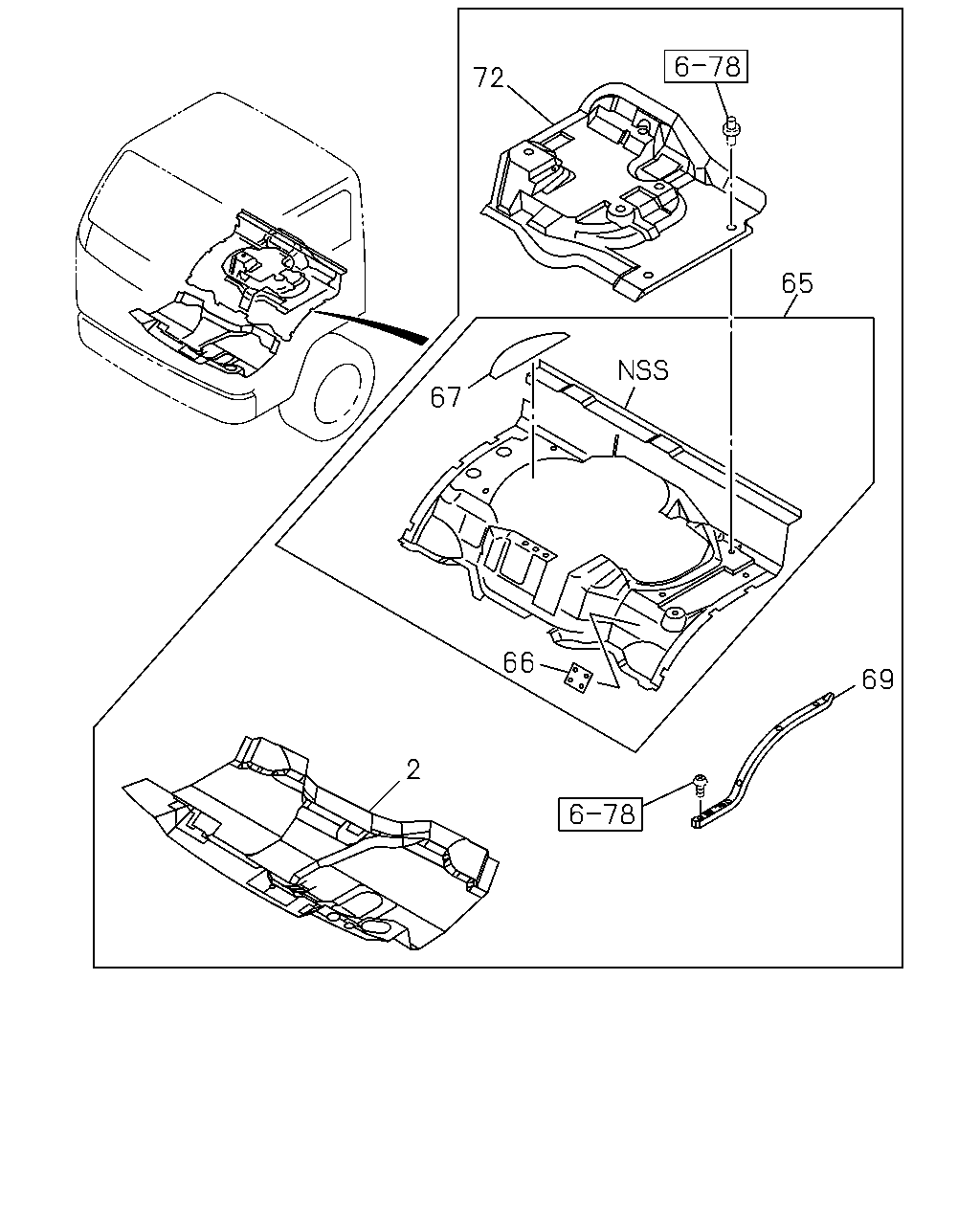

6-75 — MAT AND CARPET
(#44137) — 16 parça
72
65
67
66
2
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MAT; FLOOR
DARK GRAY
8-97996-650-2
01
1
0303-0511
2
MAT; FLOOR
GRAY
8-97582-919-4
01
1
0512-
65
MAT ASM; SILENCER,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> GRAY
8-97587-470-1
01
1
0512-
65
MAT ASM; SILENCER,CAB FLOOR
DARK GRAY SOU
8-97996-694-0
01
1
0303-0511
65
MAT ASM; SILENCER,CAB FLOOR
MANUAL TILT CAB<RWZ> GRAY
8-97588-864-1
01
1
0512-
66
HOOK; COVER
DARK GRAY SOU
8-97997-582-0
02
1
0303-0511
66
HOOK; COVER
GRAY
8-97583-948-0
02
1
0512-
67
LID; COVER
EXC. MANUAL TILT CAB<RWZ> GRAY
8-97583-947-0
01
1
0512-
69
COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK GRAY
8-97857-551-1
01
1
0303-0511
69
COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97582-228-1
01
1
0512-0702
69
COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97409-478-0
01
1
0703-
69
COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK GRAY
8-97857-552-1
01
1
0303-0511
69
COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97582-229-1
01
1
0512-0702
69
COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97409-479-0
01
1
0703-
72
MAT; SILENCER,ENG COVER
DARK GRAY SOU
8-97996-720-0
01
1
0303-0511
72
MAT; SILENCER,ENG COVER
GRAY
8-97587-473-1
01
1
0512-
