◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50953 - NKR(SOUTH AFRICA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#44126) — 116 parça

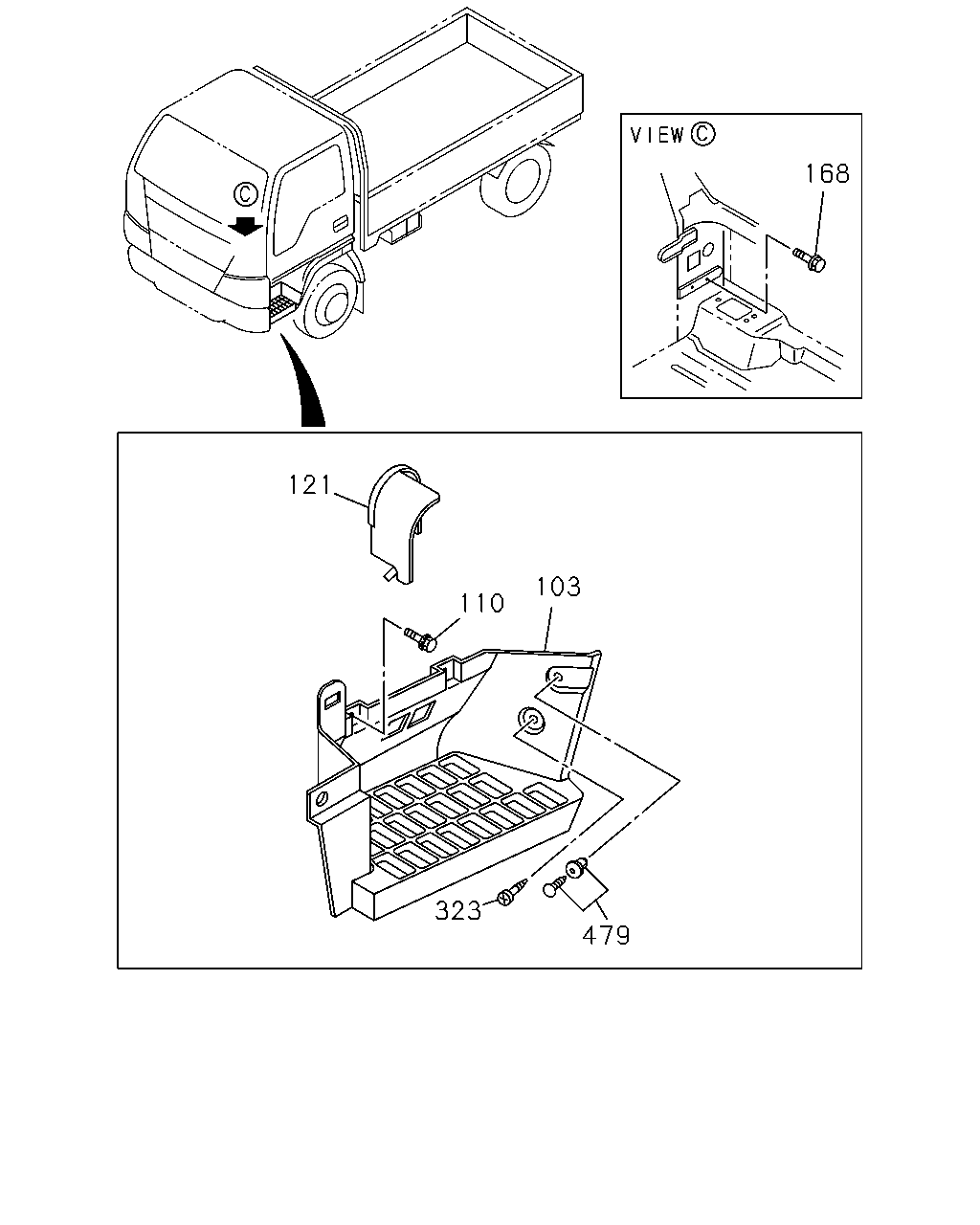

çizim 11836
168 121 110 103 323 479
BalonParca AdiParca NoAdetTipApplied Date
103 PLATE; STEP 8-97997-853-0 01 1 0512-
103 PLATE; STEP 8-97997-854-0 01 1 0512-
103 PLATE; STEP 8-97867-968-1 01 1 0303-0511
103 PLATE; STEP 8-97867-969-1 01 1 0303-0511
110 BOLT; 1ST STEP PLATE
M8X24.5 W/LK&PL WASHER SOU 		8-94279-208-0 06 1 0303-
121 COVER; STEP PLATE 8-97997-855-0 01 1 0512-
121 COVER; STEP PLATE 8-97997-856-0 01 1 0512-
168 BOLT; BODY SIDE PANEL
M6X16 W/LK&PL WASHER SOU 		8-94139-963-0 04 1 0303-
323 SCREW; SET
M8X14 		8-94279-386-1 04 1 0303-
479 RIVET; STEP PLATE
OD=8 SOU 		1-09983-125-0 02 1 0303-

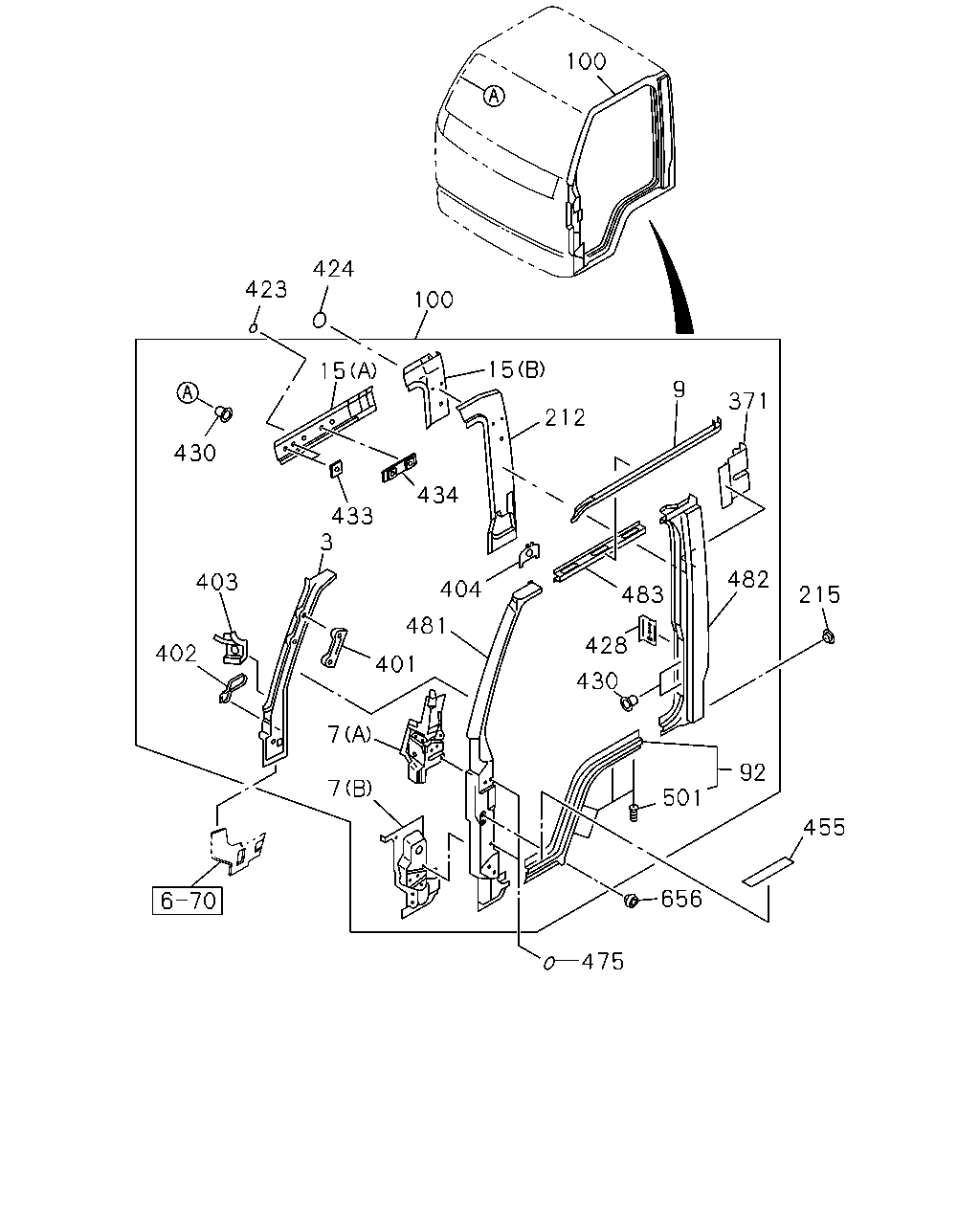

çizim 54352
100 424 423 100 15 430 15 212 9 371 482 215 483 428 430 92 501 455 656 475 7 7 401 481 404 434 433 3 403 402
BalonParca AdiParca NoAdetTipApplied Date
3 PANEL; CLOSING,FRT PILLAR
4JB1 ENG(RLF) 		8-97851-023-8 01 1 0303-0511
3 PANEL; CLOSING,FRT PILLAR
4HF1 ENG(RLS) 		8-97851-023-8 01 1 0512-
3 PANEL; CLOSING,FRT PILLAR
4JB1 ENG(RLF) 		8-97851-024-8 01 1 0303-0511
3 PANEL; CLOSING,FRT PILLAR
4HF1 ENG(RLS) 		8-97851-024-8 01 1 0512-
7 REINFORCEMENT; HINGE
4JB1 ENG(RLF) (A) UPPER 		8-97851-072-3 01 1 0303-0511
7 REINFORCEMENT; HINGE
4HF1 ENG(RLS) (A) UPPER 		8-97851-072-4 01 1 0512-
7 REINFORCEMENT; HINGE
4JB1 ENG(RLF) (A) UPPER 		8-97851-071-3 01 1 0303-0511
7 REINFORCEMENT; HINGE
4HF1 ENG(RLS) (A) UPPER 		8-97851-071-4 01 1 0512-
7 REINFORCEMENT; HINGE
4JB1 ENG(RLF) (B) LOWER 		8-97851-074-5 01 1 0303-0511
7 REINFORCEMENT; HINGE
4HF1 ENG(RLS) (B) LOWER 		8-97851-074-5 01 1 0512-
7 REINFORCEMENT; HINGE
4JB1 ENG(RLF) (B) LOWER 		8-97851-073-5 01 1 0303-0511
7 REINFORCEMENT; HINGE
4HF1 ENG(RLS) (B) LOWER 		8-97851-073-5 01 1 0512-
9 MOLDING; DRIP,CAB SIDE
4JB1 ENG(RLF) 		8-97851-020-9 01 1 0303-0511
9 MOLDING; DRIP,CAB SIDE
4HF1 ENG(RLS) 		8-97851-020-9 01 1 0512-
9 MOLDING; DRIP,CAB SIDE
4JB1 ENG(RLF) 		8-97851-019-9 01 1 0303-0511
9 MOLDING; DRIP,CAB SIDE
4HF1 ENG(RLS) 		8-97851-019-9 01 1 0512-
15 PANEL; CANT RAIL SIDE
4JB1 ENG(RLF) (A) 		8-97851-335-4 01 1 0303-0511
15 PANEL; CANT RAIL SIDE
4HF1 ENG(RLS) (A) 		8-97851-335-4 01 1 0512-
15 PANEL; CANT RAIL SIDE
4JB1 ENG(RLF) (A) 		8-97851-334-4 01 1 0303-0511
15 PANEL; CANT RAIL SIDE
4HF1 ENG(RLS) (A) 		8-97851-334-4 01 1 0512-
15 PANEL; CANT RAIL SIDE
4JB1 ENG(RLF) (B) 		8-97851-337-5 01 1 0303-0511
15 PANEL; CANT RAIL SIDE
4HF1 ENG(RLS) (B) 		8-97851-337-5 01 1 0512-
15 PANEL; CANT RAIL SIDE
4JB1 ENG(RLF) (B) 		8-97851-336-5 01 1 0303-0511
15 PANEL; CANT RAIL SIDE
4HF1 ENG(RLS) (B) 		8-97851-336-5 01 1 0512-
92 PANEL; SIDE SILL,CAB 8-97851-530-0 01 1 0303-
92 PANEL; SIDE SILL,CAB 8-97851-531-0 01 1 0303-
100 PANEL ASM; BODY SIDE
4JB1 ENG(RLF) 		8-97890-284-1 01 1 0303-0511
100 PANEL ASM; BODY SIDE
4HF1 ENG(RLS) 		8-97890-393-1 01 1 0512-
100 PANEL ASM; BODY SIDE
4JB1 ENG(RLF) 		8-97890-401-1 01 1 0303-0511
100 PANEL ASM; BODY SIDE
4HF1 ENG(RLS) 		8-97890-288-1 01 1 0512-
212 CLOSING; PILLAR
4JB1 ENG(RLF) 		8-97890-453-3 01 1 0303-0511
212 CLOSING; PILLAR
4HF1 ENG(RLS) 		8-97890-453-4 01 1 0512-
212 CLOSING; PILLAR
4JB1 ENG(RLF) 		8-97890-452-3 01 1 0303-0511
212 CLOSING; PILLAR
4HF1 ENG(RLS) 		8-97890-452-4 01 1 0512-
215 GROMMET; RR PILLAR
OD=35 		8-94122-971-0 01 1 0303-
371 PATCH; SEAT BELT
4JB1 ENG(RLF) 		8-97851-049-1 01 1 0303-0511
371 PATCH; SEAT BELT
4HF1 ENG(RLS) 		8-97851-049-1 01 1 0512-
371 PATCH; SEAT BELT
4JB1 ENG(RLF) 		8-97851-048-1 01 1 0303-0511
371 PATCH; SEAT BELT
4HF1 ENG(RLS) 		8-97851-048-1 01 1 0512-
401 PATCH; CLOSING,FRT PILLAR
4JB1 ENG(RLF) 		8-97851-301-1 01 1 0303-0511
401 PATCH; CLOSING,FRT PILLAR
4JB1 ENG(RLF) 		8-97851-301-1 01 1 0303-0511
401 PATCH; CLOSING,FRT PILLAR
4HF1 ENG(RLS) 		8-97851-301-1 01 1 0512-
401 PATCH; CLOSING,FRT PILLAR
4HF1 ENG(RLS) 		8-97851-301-1 01 1 0512-
402 BRACKET; SUPPORT
4JB1 ENG(RLF) 		8-97851-086-1 01 1 0303-0511
402 BRACKET; SUPPORT
4HF1 ENG(RLS) 		8-97851-086-1 01 1 0512-
402 BRACKET; SUPPORT
4JB1 ENG(RLF) 		8-97851-085-1 01 1 0303-0511
402 BRACKET; SUPPORT
4HF1 ENG(RLS) 		8-97851-085-1 01 1 0512-
403 BRACKET; REINFORCEMENT,FRT PANEL
4JB1 ENG(RLF) 		8-97851-070-0 01 1 0303-0511
403 BRACKET; REINFORCEMENT,FRT PANEL
4HF1 ENG(RLS) 		8-97851-070-0 01 1 0512-
403 BRACKET; REINFORCEMENT,FRT PANEL
4JB1 ENG(RLF) 		8-97851-069-0 01 1 0303-0511
403 BRACKET; REINFORCEMENT,FRT PANEL
4HF1 ENG(RLS) 		8-97851-069-0 01 1 0512-
404 BRACKET
4JB1 ENG(RLF) 		8-97890-317-1 01 1 0303-0511
404 BRACKET
4JB1 ENG(RLF) 		8-97890-317-1 01 1 0303-0511
404 BRACKET
4HF1 ENG(RLS) 		8-97890-317-1 01 1 0512-
404 BRACKET
4HF1 ENG(RLS) 		8-97890-317-1 01 1 0512-
423 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-2 06 1 0303-0610
423 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 06 1 0611-
423 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 WHITE 		8-97856-832-2 02 1 0303-0610
423 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0611-
423 SEAL; CANTRAIL SIDE
BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 0303-
423 SEAL; CANTRAIL SIDE
BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0303-
424 SEAL; CLOSING
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-2 04 1 0303-0610
424 SEAL; CLOSING
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0611-
424 SEAL; CLOSING
BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0303-
428 REINFORCEMENT; DOOR STRIKER
4JB1 ENG(RLF) 		8-97851-446-1 01 1 0303-0511
428 REINFORCEMENT; DOOR STRIKER
4HF1 ENG(RLS) 		8-97851-446-1 01 1 0512-
428 REINFORCEMENT; DOOR STRIKER
4JB1 ENG(RLF) 		8-97851-445-1 01 1 0303-0511
428 REINFORCEMENT; DOOR STRIKER
4HF1 ENG(RLS) 		8-97851-445-1 01 1 0512-
430 NUT; PANEL
4JB1 ENG(RLF) M6 POP NUT 		8-94279-537-0 01 1 0303-0511
430 NUT; PANEL
4HF1 ENG(RLS) M6 POP NUT 		8-94279-537-0 01 1 0512-0805
430 NUT; PANEL
4HF1 ENG(RLS) M6 POP NUT 		8-98013-752-0 01 1 0806-
430 NUT; PANEL
4JB1 ENG(RLF) M8 POP NUT SOU 		8-94279-538-0 02 1 0303-0511
430 NUT; PANEL
4HF1 ENG(RLS) M8 POP NUT SOU 		8-94279-538-0 02 1 0512-0805
430 NUT; PANEL
4HF1 ENG(RLS) M8 POP NUT 		8-98021-404-0 02 1 0806-
433 NUT; HEADER SHELF
4JB1 ENG(RLF) M6 		9-09114-086-0 02 1 0303-0511
433 NUT; HEADER SHELF
4JB1 ENG(RLF) M6 		9-09114-086-0 02 1 0303-0511
433 NUT; HEADER SHELF
4HF1 ENG(RLS) M6 		9-09114-086-0 02 1 0512-
433 NUT; HEADER SHELF
4HF1 ENG(RLS) M6 		9-09114-086-0 02 1 0512-
434 PATCH; ASSIST GRIP
4JB1 ENG(RLF) 		8-94267-191-1 01 1 0303-0511
434 PATCH; ASSIST GRIP
4HF1 ENG(RLS) 		8-94267-191-1 01 1 0512-
455 PROTECTOR; STEP 8-97852-863-0 02 1 0303-0511
455 PROTECTOR; STEP 8-98027-816-0 02 1 0512-
475 GROMMET; CTR PILLAR
OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0603-0603
475 GROMMET; CTR PILLAR
OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0304-0511
481 PANEL; SIDE FRT PILLAR 8-97859-060-2 01 1 0303-
481 PANEL; SIDE FRT PILLAR 8-97851-520-5 01 1 0303-
482 PANEL; SIDE RR PILLAR 8-97851-521-4 01 1 0303-
482 PANEL; SIDE RR PILLAR 8-97851-522-4 01 1 0303-
483 PANEL; SIDE CANTRAIL 8-97851-524-2 01 1 0303-
483 PANEL; SIDE CANTRAIL 8-97851-525-2 01 1 0303-
501 PIN; STUD
4JB1 ENG(RLF) M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0303-0511
501 PIN; STUD
4JB1 ENG(RLF) M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0303-0511
501 PIN; STUD
4HF1 ENG(RLS) M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0512-
501 PIN; STUD
4HF1 ENG(RLS) M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0512-
656 GROMMET; SIDE PANEL
OD=15.0 SOU 		8-94279-040-0 02 1 0603-0603

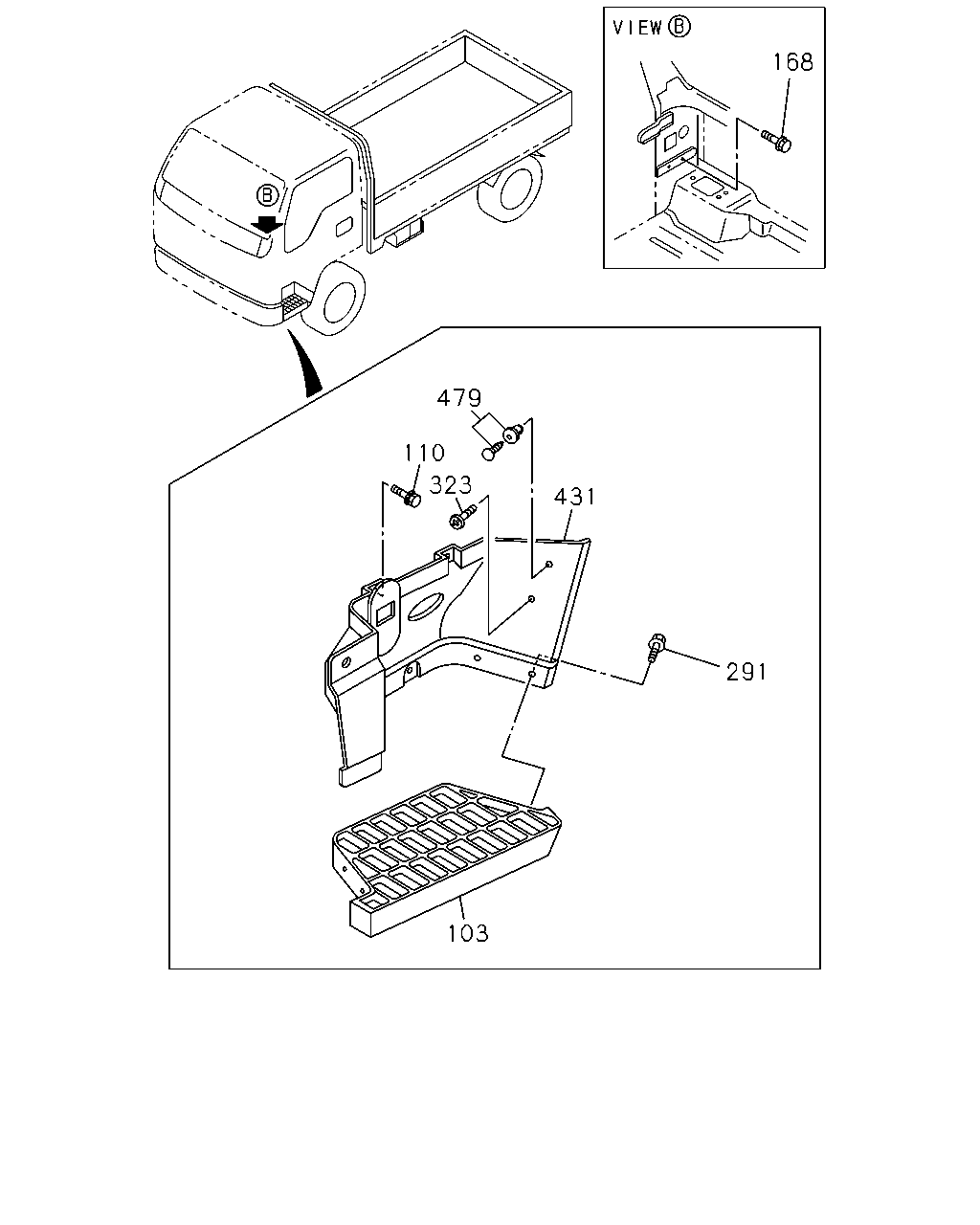

çizim 56759
168 479 110 323 431 291 103
BalonParca AdiParca NoAdetTipApplied Date
103 PLATE; STEP 8-97997-853-0 01 1 0512-
103 PLATE; STEP 8-97997-854-0 01 1 0512-
103 PLATE; STEP 8-97867-968-1 01 1 0303-0511
103 PLATE; STEP 8-97867-969-1 01 1 0303-0511
110 BOLT; 1ST STEP PLATE
M8X24.5 W/LK&PL WASHER SOU 		8-94279-208-0 06 1 0303-
168 BOLT; BODY SIDE PANEL
M6X16 W/LK&PL WASHER SOU 		8-94139-963-0 04 1 0303-
291 BOLT; STEP PLATE
M8X24.5 W/LK&PL WASHER SOU 		8-94279-208-0 10 1 0303-0511
323 SCREW; SET
M8X14 		8-94279-386-1 04 1 0303-
431 SUPPORT ASM; STEP 8-97892-965-1 01 1 0303-0511
431 SUPPORT ASM; STEP 8-97892-966-1 01 1 0303-0511
479 RIVET; STEP PLATE
OD=8 SOU 		1-09983-125-0 02 1 0303-
