6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP (#44125) — 32 parça

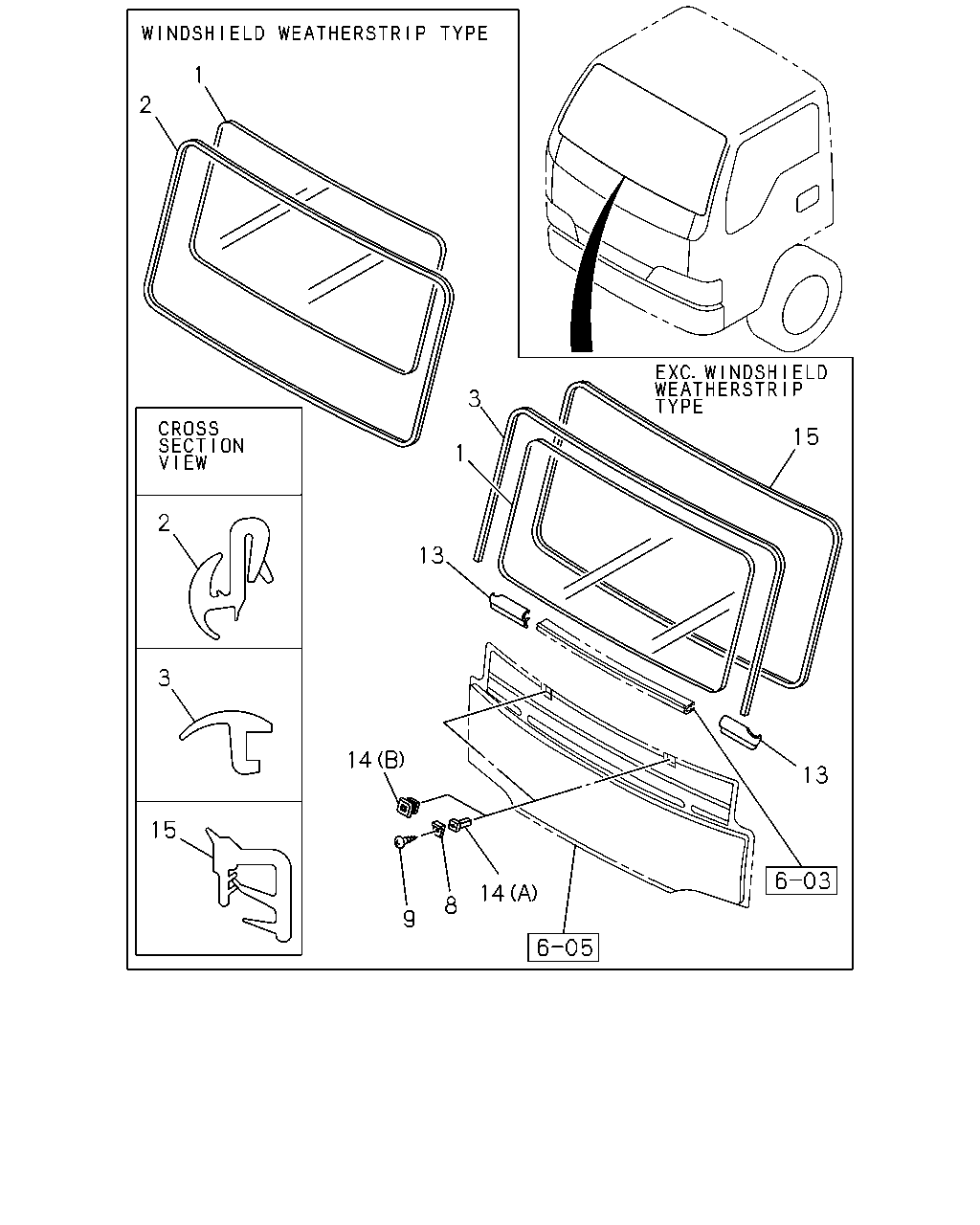

1 2 3 1 14 14 13 9 8 13 2 3 15 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GLASS; WINDSHIELD SOU	8-97869-124-0	01	1	0303-0805
1	GLASS; WINDSHIELD	8-97997-944-1	01	1	0806-
2	WEATHERSTRIP; WINDSHIELD GLASS WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97856-351-4	01	1	0303-
3	MOLDING; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97890-214-2	01	1	0303-0511
3	MOLDING; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-678-3	01	1	0512-
8	STOPPER; WINDSHIELD GLASS EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97859-215-0	02	1	0303-0305
8	STOPPER; WINDSHIELD GLASS EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-733-1	02	1	0306-
9	SCREW; STOPPER EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> M5X14 SOU	8-94279-325-0	02	1	0303-
13	MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> SOU	8-97853-786-3	01	1	0303-0511
13	MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-617-4	01	1	0512-
13	MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> SOU	8-97853-787-4	01	1	0303-0511
13	MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-618-3	01	1	0512-
14	GROMMET; SCREW,STOPPER EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	0306-
14	GROMMET; SCREW,STOPPER WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) 14.5X14.5 BLACK SOU	8-94279-714-0	04	1	0303-
15	FINISHER; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> DARK GRAY	8-97859-856-6	01	1	0303-0511
15	FINISHER; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> GRAY	8-97582-226-7	01	1	0512-

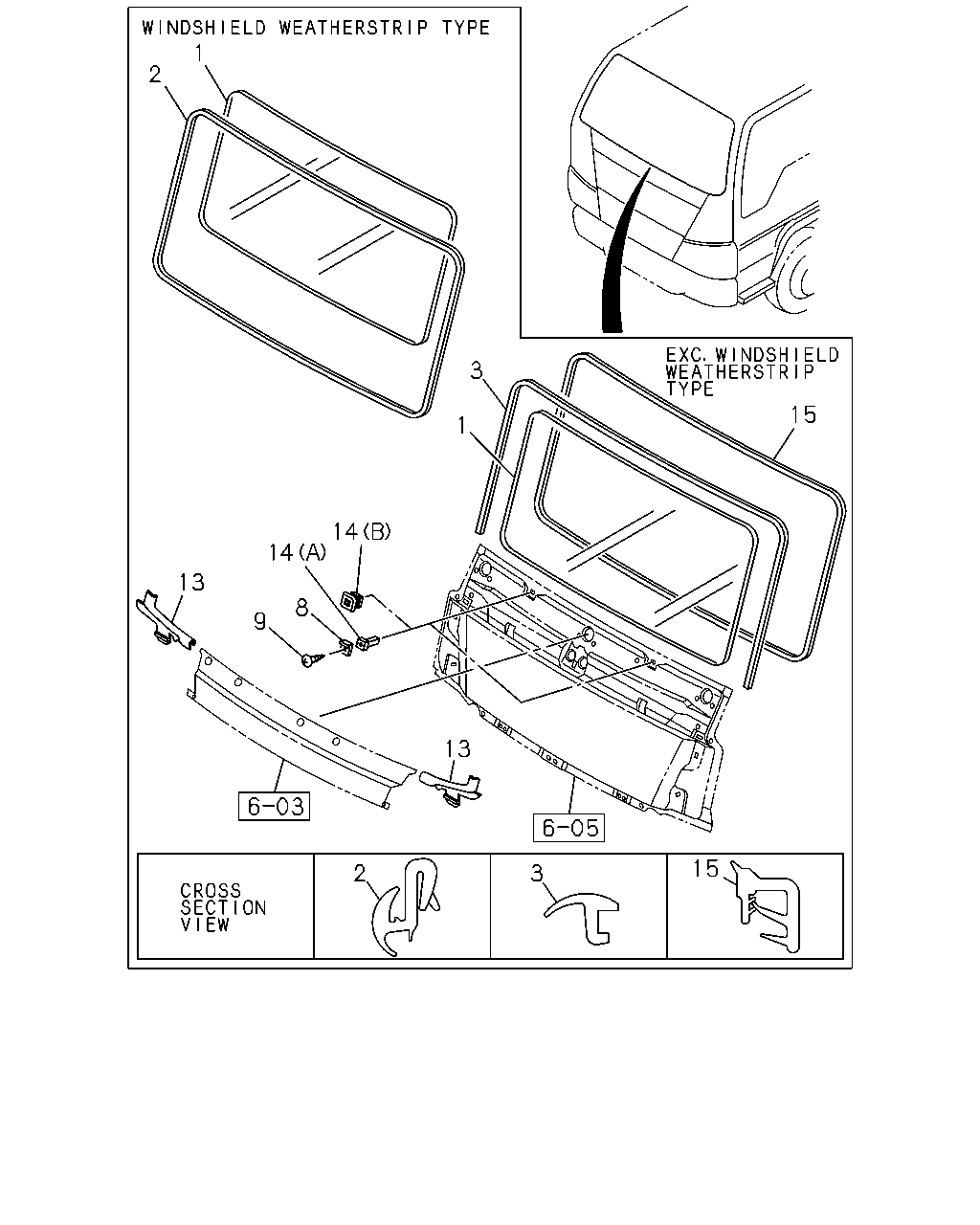

1 2 2 3 15 9 8 14 14 13 1 3 15 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GLASS; WINDSHIELD SOU	8-97869-124-0	01	1	0303-0805
1	GLASS; WINDSHIELD	8-97997-944-1	01	1	0806-
2	WEATHERSTRIP; WINDSHIELD GLASS WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97856-351-4	01	1	0303-
3	MOLDING; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97890-214-2	01	1	0303-0511
3	MOLDING; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-678-3	01	1	0512-
8	STOPPER; WINDSHIELD GLASS EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97859-215-0	02	1	0303-0305
8	STOPPER; WINDSHIELD GLASS EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-733-1	02	1	0306-
9	SCREW; STOPPER EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> M5X14 SOU	8-94279-325-0	02	1	0303-
13	MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> SOU	8-97853-786-3	01	1	0303-0511
13	MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-617-4	01	1	0512-
13	MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> SOU	8-97853-787-4	01	1	0303-0511
13	MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-618-3	01	1	0512-
14	GROMMET; SCREW,STOPPER EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	0306-
14	GROMMET; SCREW,STOPPER WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) 14.5X14.5 BLACK SOU	8-94279-714-0	04	1	0303-
15	FINISHER; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> DARK GRAY	8-97859-856-6	01	1	0303-0511
15	FINISHER; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> GRAY	8-97582-226-7	01	1	0512-
