6-05 — FRONT PANEL (#44124) — 75 parça

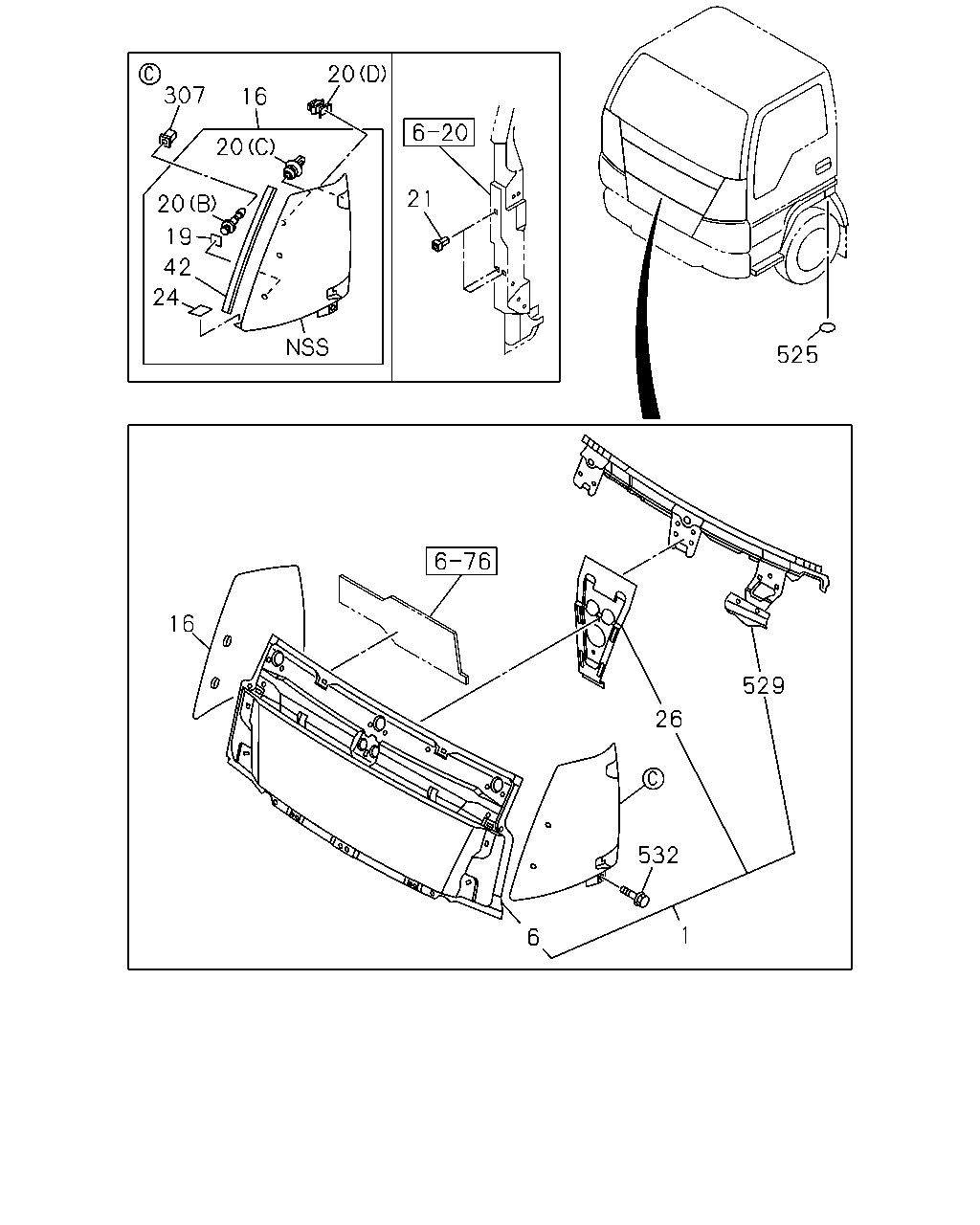

çizim 53366
20 16 307 20 20 19 42 24 21 525 16 529 26 532 1 6
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT 8-97859-424-0 01 1 0303-0511
1 PANEL ASM; FRT 8-97581-815-0 01 1 0512-
6 PANEL; FRONT 8-97859-423-3 01 1 0303-0511
6 PANEL; FRONT 8-97581-637-3 01 1 0512-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WINDSHIELD WEATHERSTRIP TYPE<7EL> WHITE 		8-97402-785-1 01 1 0512-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WINDSHIELD WEATHERSTRIP TYPE<7EL> WHITE 		8-97402-788-1 01 1 0512-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) WINDSHIELD WEATHERSTRIP TYPE<7EL> SILVER 		8-97402-787-1 01 1 0512-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) WINDSHIELD WEATHERSTRIP TYPE<7EL> SILVER 		8-97402-790-1 01 1 0512-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> SILVER 		8-97587-710-4 01 1 0512-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> SILVER 		8-97587-711-4 01 1 0512-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) WINDSHIELD WEATHERSTRIP TYPE<7EL> BLUE 		8-97402-786-1 01 1 0512-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) WINDSHIELD WEATHERSTRIP TYPE<7EL> BLUE 		8-97402-789-1 01 1 0512-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> BLUE 		8-97585-429-4 01 1 0512-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> BLUE 		8-97585-431-4 01 1 0512-
16 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97896-653-0 01 1 0303-0511
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WHITE 		8-97585-428-4 01 1 0512-
16 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97896-654-0 01 1 0303-0511
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WHITE 		8-97585-430-4 01 1 0512-
19 SEAL; FRT SIDE PANEL 8-97581-676-0 04 1 0512-
20 CLIP; FRT PANEL SIDE
(B) D4.2X13 		1-09983-161-0 04 1 0512-
20 CLIP; FRT PANEL SIDE
(C) 		8-98013-823-0 02 1 0512-
20 CLIP; FRT PANEL SIDE
(A) SOU 		8-94279-814-0 04 1 0303-0511
20 CLIP; FRT PANEL SIDE
(D) 		8-97581-632-1 04 1 0512-
21 GROMMET; SCREW,FRT SIDE PANEL
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 06 1 0303-
24 SEAL; FRT PANEL LWR 8-97583-672-0 02 1 0512-
26 PANEL; REINF,FRT PANEL CENTER,INNER 8-97851-038-1 01 1 0303-
42 FINISHER; FRT PANEL,SIDE
WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-613-3 01 1 0512-
42 FINISHER; FRT PANEL,SIDE
WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-614-3 01 1 0512-
42 FINISHER; FRT PANEL,SIDE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97411-043-0 01 1 0512-
42 FINISHER; FRT PANEL,SIDE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97411-044-0 01 1 0512-
42 FINISHER; FRT PANEL,SIDE
SOU 		8-97857-413-0 02 1 0303-0511
307 GROMMET; FRT PANEL 8-97583-397-0 04 1 0512-
525 SEAL; FENDER
EXC. MANUAL TILT CAB<RWZ> OD=25 BLACK SOU 		1-76798-019-0 06 1 0512-
525 SEAL; FENDER
OD=25 BLACK SOU 		1-76798-019-0 03 1 0305-0511
525 SEAL; FENDER
MANUAL TILT CAB<RWZ> OD=25 BLACK SOU 		1-76798-019-0 03 1 0512-
529 REINFORCEMENT; PANEL 8-97851-044-3 01 1 0303-
532 BOLT; FRT PANEL
M6X16 W/PL WASHER 		8-97803-781-0 02 1 0512-

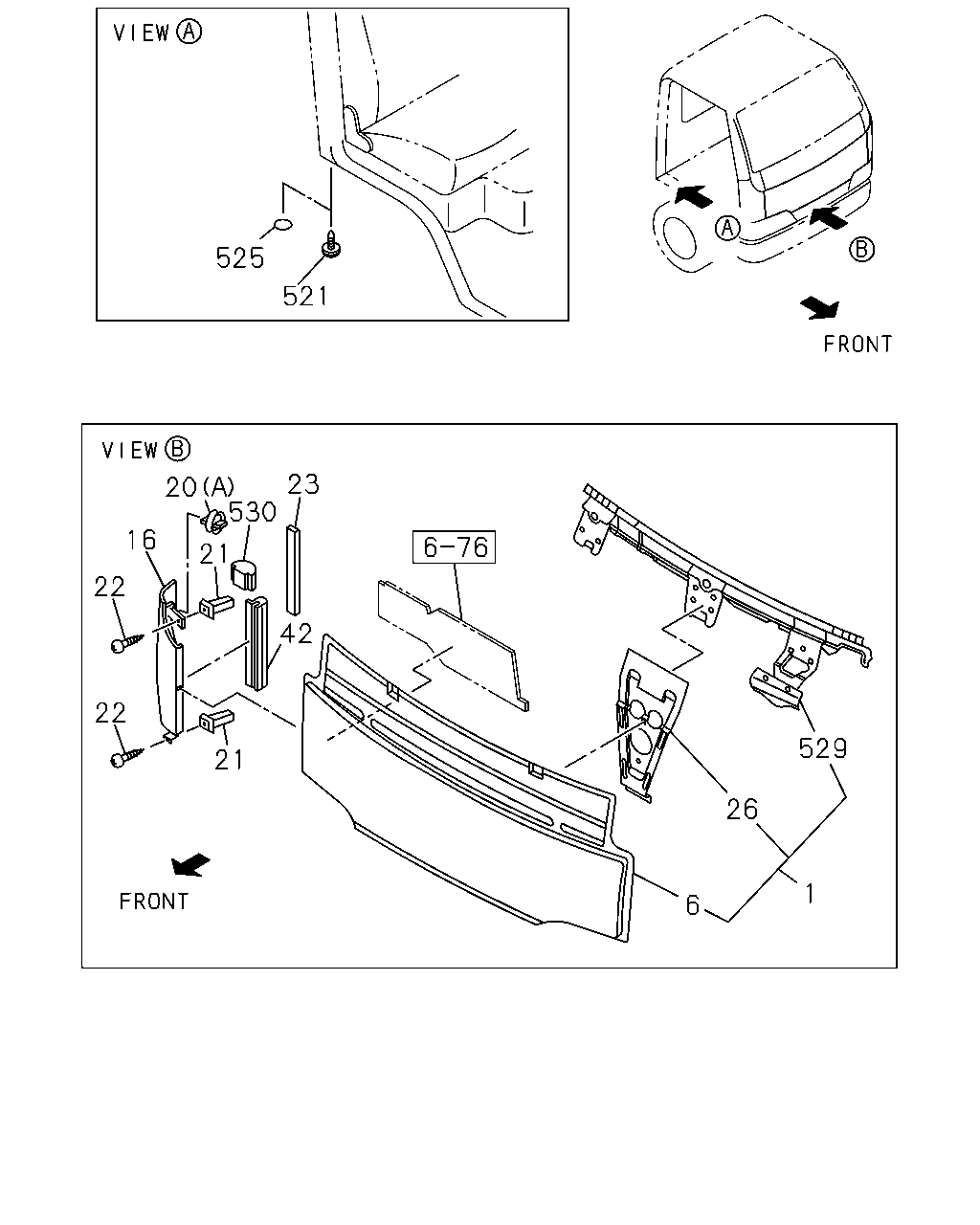

çizim 53417
525 521 23 530 20 21 16 22 22 21 42 529 26 1 6
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT 8-97859-424-0 01 1 0303-0511
1 PANEL ASM; FRT 8-97581-815-0 01 1 0512-
6 PANEL; FRONT 8-97859-423-3 01 1 0303-0511
6 PANEL; FRONT 8-97581-637-3 01 1 0512-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WINDSHIELD WEATHERSTRIP TYPE<7EL> WHITE 		8-97402-785-1 01 1 0512-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WINDSHIELD WEATHERSTRIP TYPE<7EL> WHITE 		8-97402-788-1 01 1 0512-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) WINDSHIELD WEATHERSTRIP TYPE<7EL> SILVER 		8-97402-787-1 01 1 0512-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) WINDSHIELD WEATHERSTRIP TYPE<7EL> SILVER 		8-97402-790-1 01 1 0512-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> SILVER 		8-97587-710-4 01 1 0512-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> SILVER 		8-97587-711-4 01 1 0512-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) WINDSHIELD WEATHERSTRIP TYPE<7EL> BLUE 		8-97402-786-1 01 1 0512-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) WINDSHIELD WEATHERSTRIP TYPE<7EL> BLUE 		8-97402-789-1 01 1 0512-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> BLUE 		8-97585-429-4 01 1 0512-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> BLUE 		8-97585-431-4 01 1 0512-
16 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97896-653-0 01 1 0303-0511
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WHITE 		8-97585-428-4 01 1 0512-
16 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97896-654-0 01 1 0303-0511
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WHITE 		8-97585-430-4 01 1 0512-
20 CLIP; FRT PANEL SIDE
(B) D4.2X13 		1-09983-161-0 04 1 0512-
20 CLIP; FRT PANEL SIDE
(C) 		8-98013-823-0 02 1 0512-
20 CLIP; FRT PANEL SIDE
(A) SOU 		8-94279-814-0 04 1 0303-0511
20 CLIP; FRT PANEL SIDE
(D) 		8-97581-632-1 04 1 0512-
21 GROMMET; SCREW,FRT SIDE PANEL
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 06 1 0303-
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING SOU 		8-94279-123-0 06 1 0303-0511
23 PIECE; DIST,FRT PANEL SIDE
H=10 L=55 SOU 		8-97857-444-0 02 1 0303-0410
23 PIECE; DIST,FRT PANEL SIDE
H=10 L=55 		8-97410-832-0 02 1 0411-0511
26 PANEL; REINF,FRT PANEL CENTER,INNER 8-97851-038-1 01 1 0303-
42 FINISHER; FRT PANEL,SIDE
WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-613-3 01 1 0512-
42 FINISHER; FRT PANEL,SIDE
WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-614-3 01 1 0512-
42 FINISHER; FRT PANEL,SIDE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97411-043-0 01 1 0512-
42 FINISHER; FRT PANEL,SIDE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97411-044-0 01 1 0512-
42 FINISHER; FRT PANEL,SIDE
SOU 		8-97857-413-0 02 1 0303-0511
521 PLUG; HOLE,FENDER
OD=15 L=14.5 SOU 		1-76378-157-0 03 1 0303-0304
525 SEAL; FENDER
EXC. MANUAL TILT CAB<RWZ> OD=25 BLACK SOU 		1-76798-019-0 06 1 0512-
525 SEAL; FENDER
OD=25 BLACK SOU 		1-76798-019-0 03 1 0305-0511
525 SEAL; FENDER
MANUAL TILT CAB<RWZ> OD=25 BLACK SOU 		1-76798-019-0 03 1 0512-
529 REINFORCEMENT; PANEL 8-97851-044-3 01 1 0303-
530 STOPPER; FRT PANEL,SIDE
SOU 		8-97856-589-0 02 1 0303-0511
