◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50953 - NKR(SOUTH AFRICA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#44122) — 61 parça

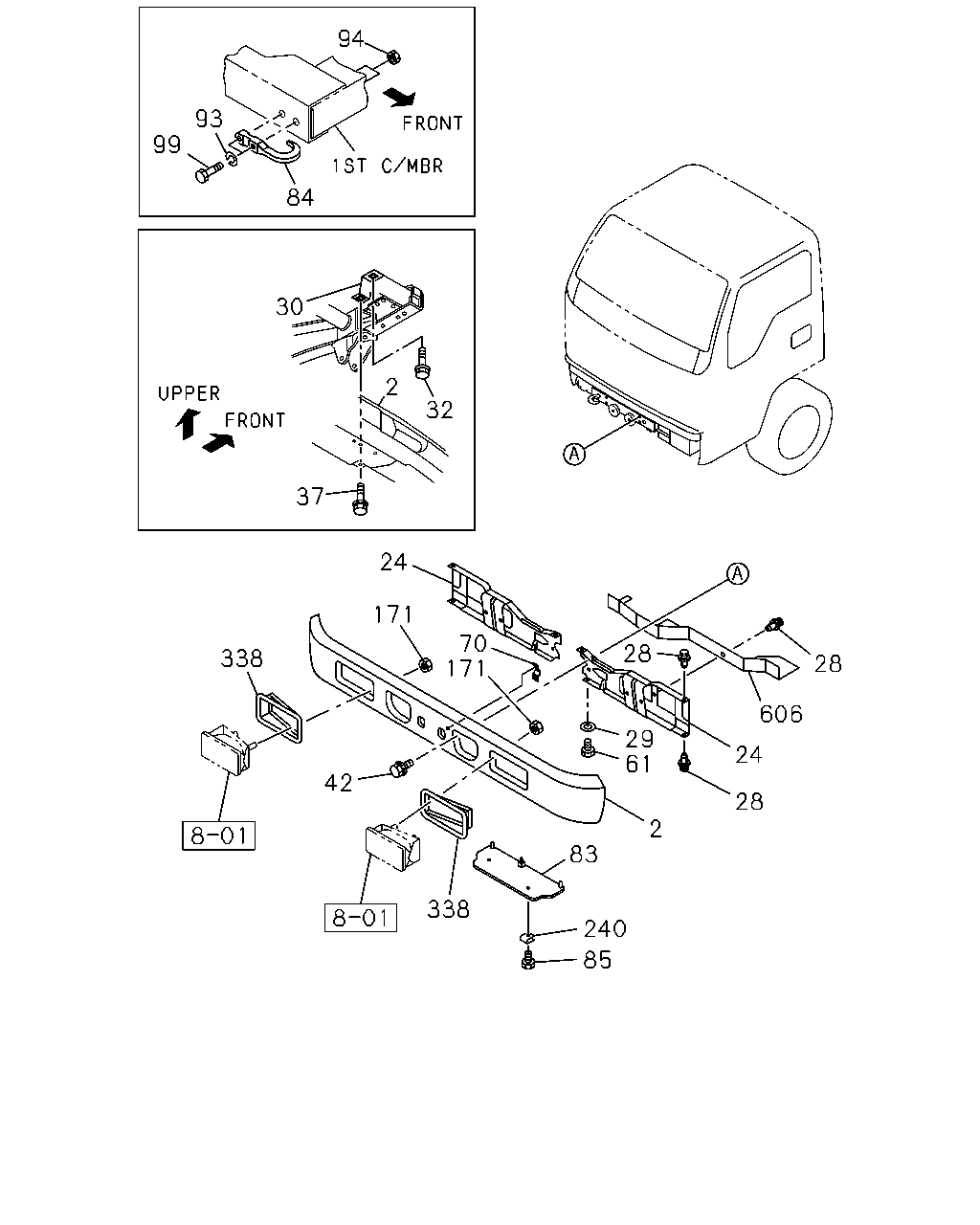

çizim 55427
94 93 99 84 30 2 32 37 24 171 70 171 338 42 338 85 240 83 2 61 29 28 28 24 606 28
BalonParca AdiParca NoAdetTipApplied Date
2 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> WHITE 		8-97999-024-0 01 1 0303-0304
2 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> WHITE 		8-97582-635-0 01 1 0305-0511
2 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> WHITE 		8-97582-635-0 01 1 0512-
2 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) COLOR KEYED BUMPER<S4H> EXC. FOG LAMP<T96> WHITE 		8-97999-004-0 01 1 0303-0304
2 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) COLOR KEYED BUMPER<S4H> EXC. FOG LAMP<T96> WHITE 		8-97582-423-0 01 1 0305-0511
2 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96> WHITE 		8-97582-423-0 01 1 0512-
2 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> BLUE 		8-97999-022-0 01 1 0303-0304
2 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> BLUE 		8-97582-633-0 01 1 0305-0511
2 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> BLUE 		8-97582-633-0 01 1 0512-
2 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) COLOR KEYED BUMPER<S4H> EXC. FOG LAMP<T96> PRIMER 		8-97998-069-0 01 1 0303-0304
2 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) COLOR KEYED BUMPER<S4H> EXC. FOG LAMP<T96> PRIMER 		8-97581-871-0 01 1 0305-0511
2 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96> PRIMER 		8-97581-871-0 01 1 0512-
2 BUMPER; FRT,CENTER
FOG LAMP<T96> EXC. COLOR KEYED BUMPER<S4H> DARK GRAY 		8-97999-023-0 01 1 0303-0304
2 BUMPER; FRT,CENTER
FOG LAMP<T96> EXC. COLOR KEYED BUMPER<S4H> DARK GRAY 		8-97582-634-0 01 1 0305-0511
2 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FRT BUMPER DARK GRAY<EQ9> FOG LAMP<T96> DARK GRAY 		8-97585-462-0 01 1 0512-
2 BUMPER; FRT,CENTER
BODY COLOR POLAR SILVER MET(845) FOG LAMP<T96> DARK GRAY 		8-97585-462-0 01 1 0512-
2 BUMPER; FRT,CENTER
EXC. COLOR KEYED BUMPER<S4H>,FOG LAMP<T96> DARK GRAY 		8-97999-003-0 01 1 0303-0304
2 BUMPER; FRT,CENTER
EXC. COLOR KEYED BUMPER<S4H>,FOG LAMP<T96> DARK GRAY 		8-97582-631-0 01 1 0305-0511
2 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FRT BUMPER DARK GRAY<EQ9> EXC. FOG LAMP<T96> DARK GRAY 		8-97582-422-0 01 1 0512-
2 BUMPER; FRT,CENTER
BODY COLOR POLAR SILVER MET(845) EXC. FOG LAMP<T96> DARK GRAY 		8-97582-422-0 01 1 0512-
24 BAR; FRT BUMPER
FOG LAMP<T96> 		8-97070-817-4 01 1 0303-
24 BAR; FRT BUMPER
FOG LAMP<T96> 		8-97070-818-4 01 1 0303-
24 BAR; FRT BUMPER
EXC. FOG LAMP<T96> 		8-97035-751-6 01 1 0303-
24 BAR; FRT BUMPER
EXC. FOG LAMP<T96> 		8-97035-752-6 01 1 0303-
28 FASTENER; BACK BAR
FOG LAMP<T96> D5.8 SCREW & GROMMET NYLON SOU 		8-94242-150-0 12 1 0303-
28 FASTENER; BACK BAR
EXC. FOG LAMP<T96> D5.8 SCREW & GROMMET NYLON SOU 		8-94242-150-0 08 1 0303-
29 WASHER; FRT BUMPER
ID=8.5 		8-94167-476-0 06 1 0303-
30 BRACKET; FRT BUMPER 8-97093-639-3 02 1 0303-
32 BOLT; BRKT,BUMPER
M8X25 FLANGE 		0-28680-825-0 02 1 0303-0512
32 BOLT; BRKT,BUMPER
M8X25 FLANGE SOU 		0-28650-825-0 02 1 0601-
37 BOLT; BRKT TO BUMPER LWR
M8X22 W/LK&PL WASHER SOU 		8-94279-148-1 02 1 0303-
42 BOLT; BUMPER
M10X35 W/LK&PL WASHER 		8-97101-865-0 04 1 0303-
61 BOLT; BACK BAR
M8X18 W/LK WASHER 		0-50040-818-0 06 1 0303-
70 BRACKET; LICENSE PLATE,FRT 8-94151-164-1 02 1 0303-
83 GUIDE; AIR,FRT BUMPER 8-97076-832-2 01 1 0303-
84 HOOK
SOU 		8-94249-270-2 01 1 0303-
85 BOLT; AIR GUIDE,FRT BUMPER
M6X22 W/PL WASHER 		8-97012-072-0 03 1 0303-
93 WASHER; LK,HOOK
ID=14.2 		9-09150-814-0 02 1 0303-0603
93 WASHER; LK,HOOK
ID=14.2 SOU 		0-91510-814-0 02 1 0604-
94 NUT; HOOK
M14 		9-99110-514-0 02 1 0303-0512
94 NUT; HOOK
M14 SOU 		0-91110-514-0 02 1 0601-
99 BOLT; HOOK
M14X50 		0-10806-450-0 02 1 0303-0512
99 BOLT; HOOK
M14X50 SOU 		0-10856-450-0 02 1 0601-
171 NUT; BACK BAR
FOG LAMP<T96> M8 FLANGE 		1-09464-018-1 04 1 0303-
240 NUT; AIR GUIDE,FRT BUMPER
M6 SPIRE NUT SOU 		8-97210-973-1 03 1 0303-
338 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> WHITE 		8-97097-861-0 01 1 0303-0511
338 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> WHITE 		8-97097-861-0 01 1 0512-
338 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> WHITE 		8-97097-865-0 01 1 0303-0511
338 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> WHITE 		8-97097-865-0 01 1 0512-
338 BEZEL; FOG LAMP
BODY COLOR MARINE BLUE(890) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> BLUE 		8-97097-859-0 01 1 0303-0511
338 BEZEL; FOG LAMP
BODY COLOR MARINE BLUE(890) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> BLUE 		8-97097-859-0 01 1 0512-
338 BEZEL; FOG LAMP
BODY COLOR MARINE BLUE(890) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> BLUE 		8-97097-863-0 01 1 0303-0511
338 BEZEL; FOG LAMP
BODY COLOR MARINE BLUE(890) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> BLUE 		8-97097-863-0 01 1 0512-
338 BEZEL; FOG LAMP
FOG LAMP<T96> EXC. COLOR KEYED BUMPER<S4H> DARK GRAY 		8-97866-835-0 01 1 0303-0511
338 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FRT BUMPER DARK GRAY<EQ9> FOG LAMP<T96> DARK GRAY 		8-97585-463-0 01 1 0512-
338 BEZEL; FOG LAMP
BODY COLOR POLAR SILVER MET(845) FOG LAMP<T96> DARK GRAY 		8-97585-463-0 01 1 0512-
338 BEZEL; FOG LAMP
FOG LAMP<T96> EXC. COLOR KEYED BUMPER<S4H> DARK GRAY 		8-97866-836-0 01 1 0303-0511
338 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FRT BUMPER DARK GRAY<EQ9> FOG LAMP<T96> DARK GRAY 		8-97585-464-0 01 1 0512-
338 BEZEL; FOG LAMP
BODY COLOR POLAR SILVER MET(845) FOG LAMP<T96> DARK GRAY 		8-97585-464-0 01 1 0512-
606 SEAL; BACK BAR
FOG LAMP<T96> 		8-97867-844-0 02 1 0303-
606 SEAL; BACK BAR
EXC. FOG LAMP<T96> 		8-97867-844-0 01 1 0303-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
