5-20 — BATTERY CARRIER (#44120) — 58 parça

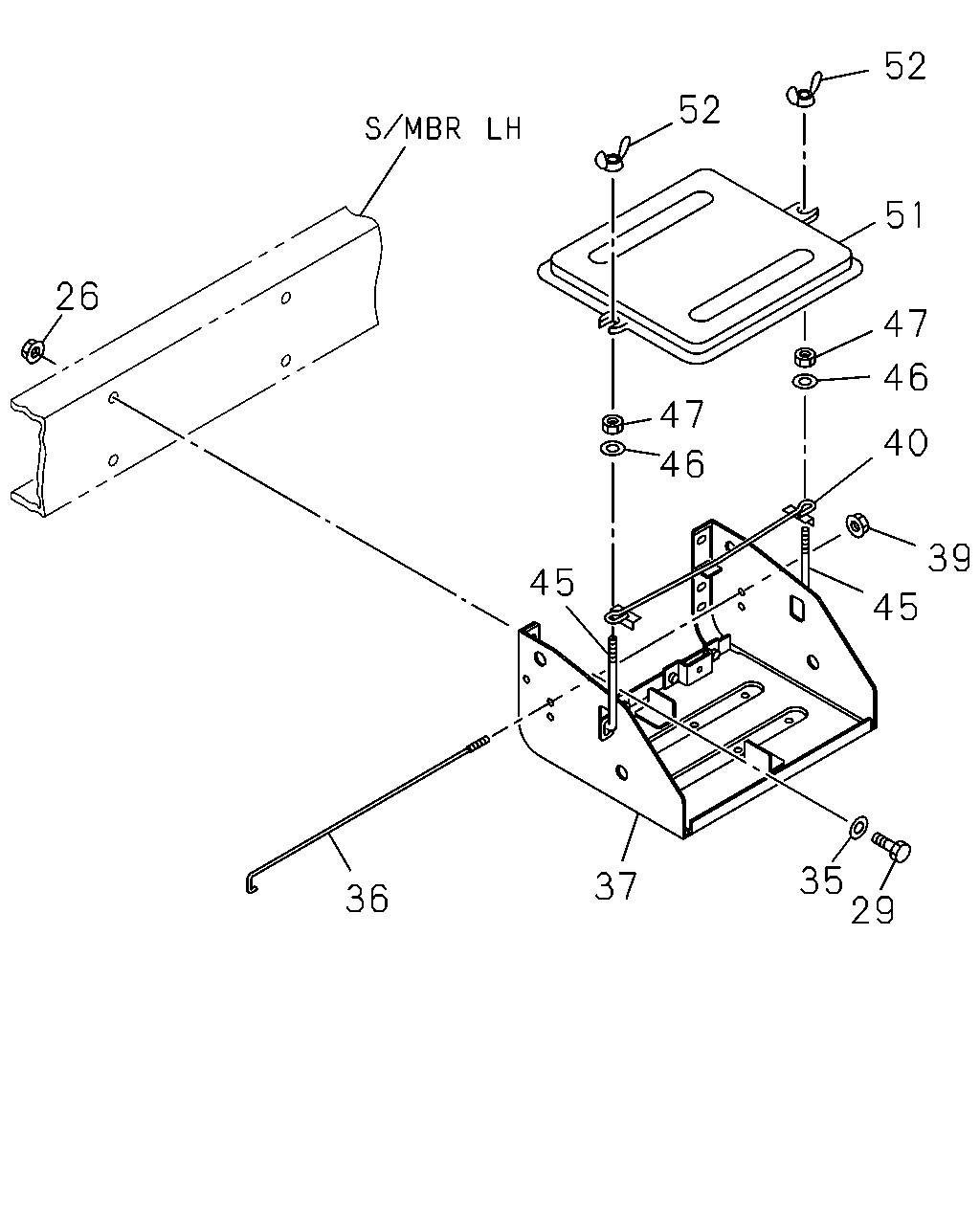

çizim 54271
26 52 52 51 47 46 40 39 45 47 46 45 36 37 35 29
BalonParca AdiParca NoAdetTipApplied Date
26 NUT; BRKT
4JB1 ENG(RLF) BATTERY NX200-10<S9C> M10 FLANGE 		0-91150-210-0 01 1 0303-0511
26 NUT; BRKT
4HF1 ENG(RLS) M10 FLANGE 		0-91150-210-0 04 1 0512-0602
26 NUT; BRKT
4HF1 ENG(RLS) M10 FLANGE SOU 		0-91180-210-0 02 1 0603-
26 NUT; BRKT
4JB1 ENG(RLF) M10 FLANGE 		0-91150-210-0 04 1 0303-0511
26 NUT; BRKT
4HF1 ENG(RLS) M10 FLANGE 		0-91150-210-0 02 1 0512-0602
26 NUT; BRKT
4HF1 ENG(RLS) M10 FLANGE SOU 		0-91180-210-0 04 1 0603-
29 BOLT; BRKT TO FRAME
M10X30 W/LK WASHER 		0-50041-030-0 04 1 0303-0512
29 BOLT; BRKT TO FRAME
M10X30 W/LK WASHER 		0-50541-030-0 04 1 0601-
35 WASHER; PL,BATTERY CARRIER
ID=10.5 OD=22 		9-09160-610-0 04 1 0303-0605
35 WASHER; PL,BATTERY CARRIER
ID=10.5 OD=22 		0-91610-610-0 04 1 0606-
36 STOPPER; BATTERY
BATTERY 65D23R<7DQ> 		8-94145-894-0 01 1 0512-
37 BRACKET; BATTERY
BATTERY 80D26R<6KC>,BATTERY 65D23R<7DQ> 		8-97356-174-0 01 1 0512-0610
37 BRACKET; BATTERY
BATTERY 80D26R<6KC>,BATTERY 65D23R<7DQ> 		8-97384-068-2 01 1 0611-0612
37 BRACKET; BATTERY
BATTERY 80D26R<6KC>,BATTERY 65D23R<7DQ> 		8-97384-067-2 01 1 0701-
39 NUT; STOPPER,BATTERY
BATTERY 65D23R<7DQ> M6 FLANGE 		0-91150-106-0 01 1 0512-0602
39 NUT; STOPPER,BATTERY
BATTERY 65D23R<7DQ> M6 FLANGE SOU 		0-91180-106-0 01 1 0603-
40 CLAMP; BATTERY
4HF1 ENG(RLS) 		5-53615-004-1 01 1 0512-
45 ROD; TENSION,BATTERY
SOU 		9-53616-615-0 02 1 0303-
46 WASHER; PL,BATTERY TO CARRIER
BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> ID=8.4 		9-09160-508-0 02 1 0303-0511
46 WASHER; PL,BATTERY TO CARRIER
4HF1 ENG(RLS) ID=8.4 OD=22 		9-09164-708-0 02 1 0512-0605
46 WASHER; PL,BATTERY TO CARRIER
4HF1 ENG(RLS) ID=8.4 OD=22 		0-91614-708-0 02 1 0606-
47 NUT; BRKT
BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> M8 		9-09110-408-0 04 1 0303-0511
47 NUT; BRKT
4HF1 ENG(RLS) M8 FLANGE SOU 		0-91150-108-0 02 1 0512-0602
47 NUT; BRKT
4HF1 ENG(RLS) M8 FLANGE SOU 		0-91180-108-0 02 1 0603-
51 COVER; BATTERY
BATTERY NX200-10<S9C> 		9-53612-046-2 01 1 0303-0511
51 COVER; BATTERY
4HF1 ENG(RLS) 		8-97120-747-0 01 1 0512-
51 COVER; BATTERY
BATTERY 95D31R<6DN> 		8-97313-780-0 01 1 0303-0511
52 NUT; WING,COVER FIX
BATTERY NX200-10<S9C> M5 WING NUT 		9-99118-405-0 02 1 0303-0511
52 NUT; WING,COVER FIX
4HF1 ENG(RLS) M8 WING NUT 		9-09118-408-0 02 1 0512-0512
52 NUT; WING,COVER FIX
4HF1 ENG(RLS) M8 WING NUT 		0-91118-408-0 02 1 0601-

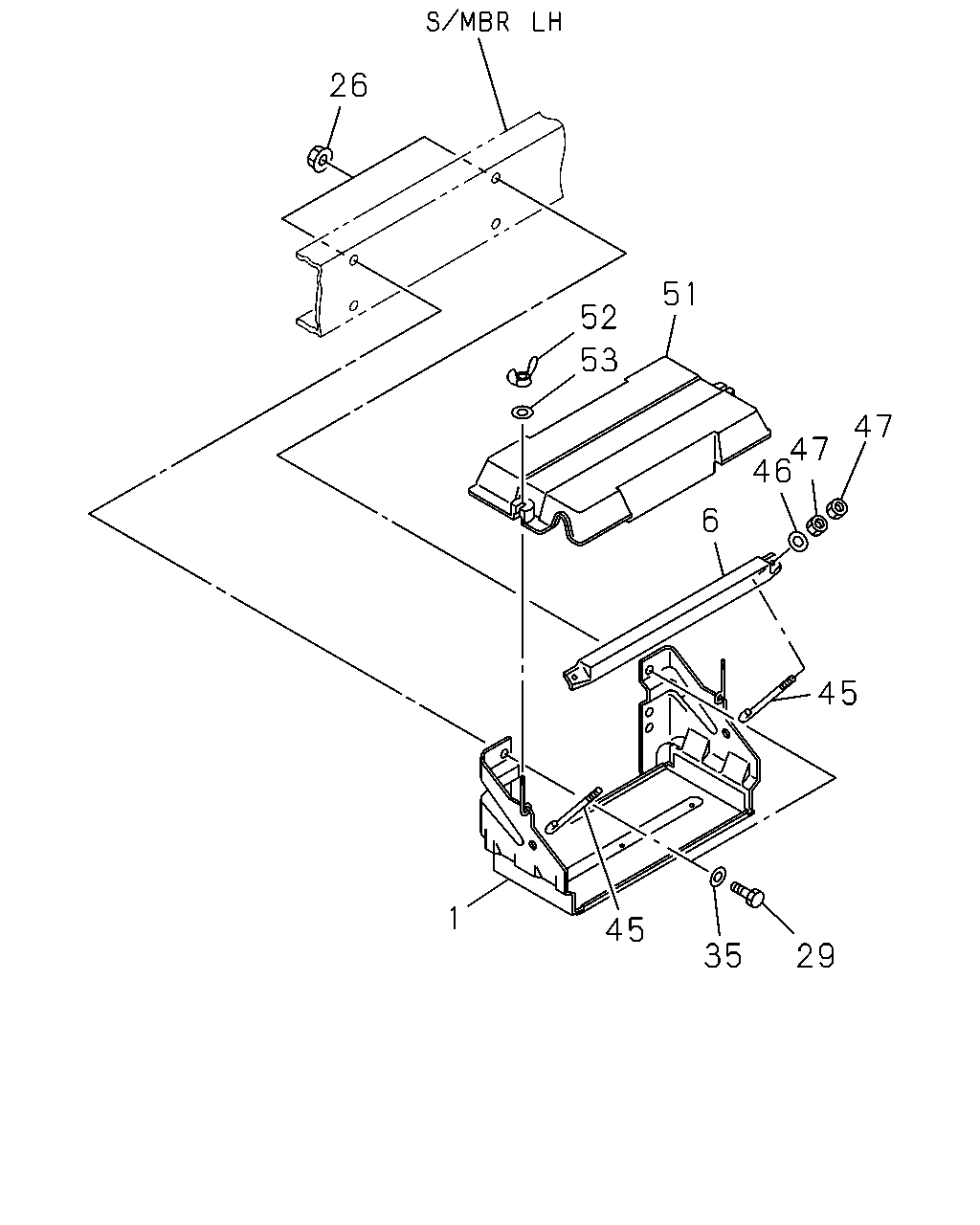

çizim 54774
26 51 52 53 47 47 46 6 45 29 35 45 1
BalonParca AdiParca NoAdetTipApplied Date
1 CARRIER; BATTERY
BATTERY NX200-10<S9C> 		5-53613-024-3 01 1 0303-0511
1 CARRIER; BATTERY
BATTERY 95D31R<6DN> 		8-97072-544-0 01 1 0303-0511
6 BRACKET; BATTERY CARRIER
BATTERY NX200-10<S9C> 		9-53616-153-0 01 1 0303-0511
6 BRACKET; BATTERY CARRIER
BATTERY 95D31R<6DN> 		8-94108-314-0 01 1 0303-0511
26 NUT; BRKT
4JB1 ENG(RLF) BATTERY NX200-10<S9C> M10 FLANGE 		0-91150-210-0 01 1 0303-0511
26 NUT; BRKT
4HF1 ENG(RLS) M10 FLANGE 		0-91150-210-0 04 1 0512-0602
26 NUT; BRKT
4HF1 ENG(RLS) M10 FLANGE SOU 		0-91180-210-0 02 1 0603-
26 NUT; BRKT
4JB1 ENG(RLF) M10 FLANGE 		0-91150-210-0 04 1 0303-0511
26 NUT; BRKT
4HF1 ENG(RLS) M10 FLANGE 		0-91150-210-0 02 1 0512-0602
26 NUT; BRKT
4HF1 ENG(RLS) M10 FLANGE SOU 		0-91180-210-0 04 1 0603-
29 BOLT; BRKT TO FRAME
M10X30 W/LK WASHER 		0-50041-030-0 04 1 0303-0512
29 BOLT; BRKT TO FRAME
M10X30 W/LK WASHER 		0-50541-030-0 04 1 0601-
35 WASHER; PL,BATTERY CARRIER
ID=10.5 OD=22 		9-09160-610-0 04 1 0303-0605
35 WASHER; PL,BATTERY CARRIER
ID=10.5 OD=22 		0-91610-610-0 04 1 0606-
45 ROD; TENSION,BATTERY
SOU 		9-53616-615-0 02 1 0303-
46 WASHER; PL,BATTERY TO CARRIER
BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> ID=8.4 		9-09160-508-0 02 1 0303-0511
46 WASHER; PL,BATTERY TO CARRIER
4HF1 ENG(RLS) ID=8.4 OD=22 		9-09164-708-0 02 1 0512-0605
46 WASHER; PL,BATTERY TO CARRIER
4HF1 ENG(RLS) ID=8.4 OD=22 		0-91614-708-0 02 1 0606-
47 NUT; BRKT
BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> M8 		9-09110-408-0 04 1 0303-0511
47 NUT; BRKT
4HF1 ENG(RLS) M8 FLANGE SOU 		0-91150-108-0 02 1 0512-0602
47 NUT; BRKT
4HF1 ENG(RLS) M8 FLANGE SOU 		0-91180-108-0 02 1 0603-
51 COVER; BATTERY
BATTERY NX200-10<S9C> 		9-53612-046-2 01 1 0303-0511
51 COVER; BATTERY
4HF1 ENG(RLS) 		8-97120-747-0 01 1 0512-
51 COVER; BATTERY
BATTERY 95D31R<6DN> 		8-97313-780-0 01 1 0303-0511
52 NUT; WING,COVER FIX
BATTERY NX200-10<S9C> M5 WING NUT 		9-99118-405-0 02 1 0303-0511
52 NUT; WING,COVER FIX
4HF1 ENG(RLS) M8 WING NUT 		9-09118-408-0 02 1 0512-0512
52 NUT; WING,COVER FIX
4HF1 ENG(RLS) M8 WING NUT 		0-91118-408-0 02 1 0601-
53 WASHER; PL,COVER FIX
BATTERY NX200-10<S9C> ID=5.3 OD=16 		9-09164-705-0 02 1 0303-0511
