Sayfa 2-20B - Isuzu EPC

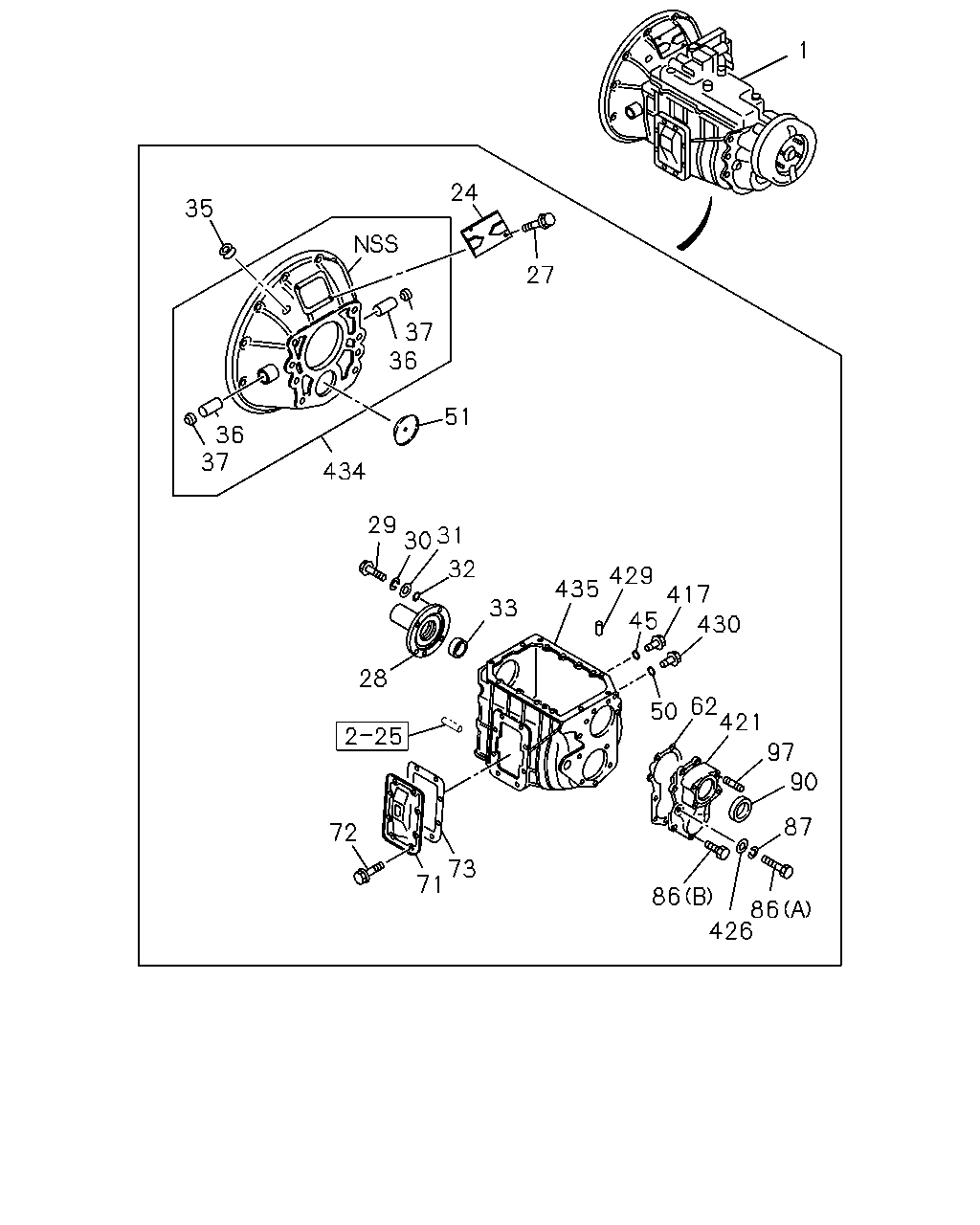

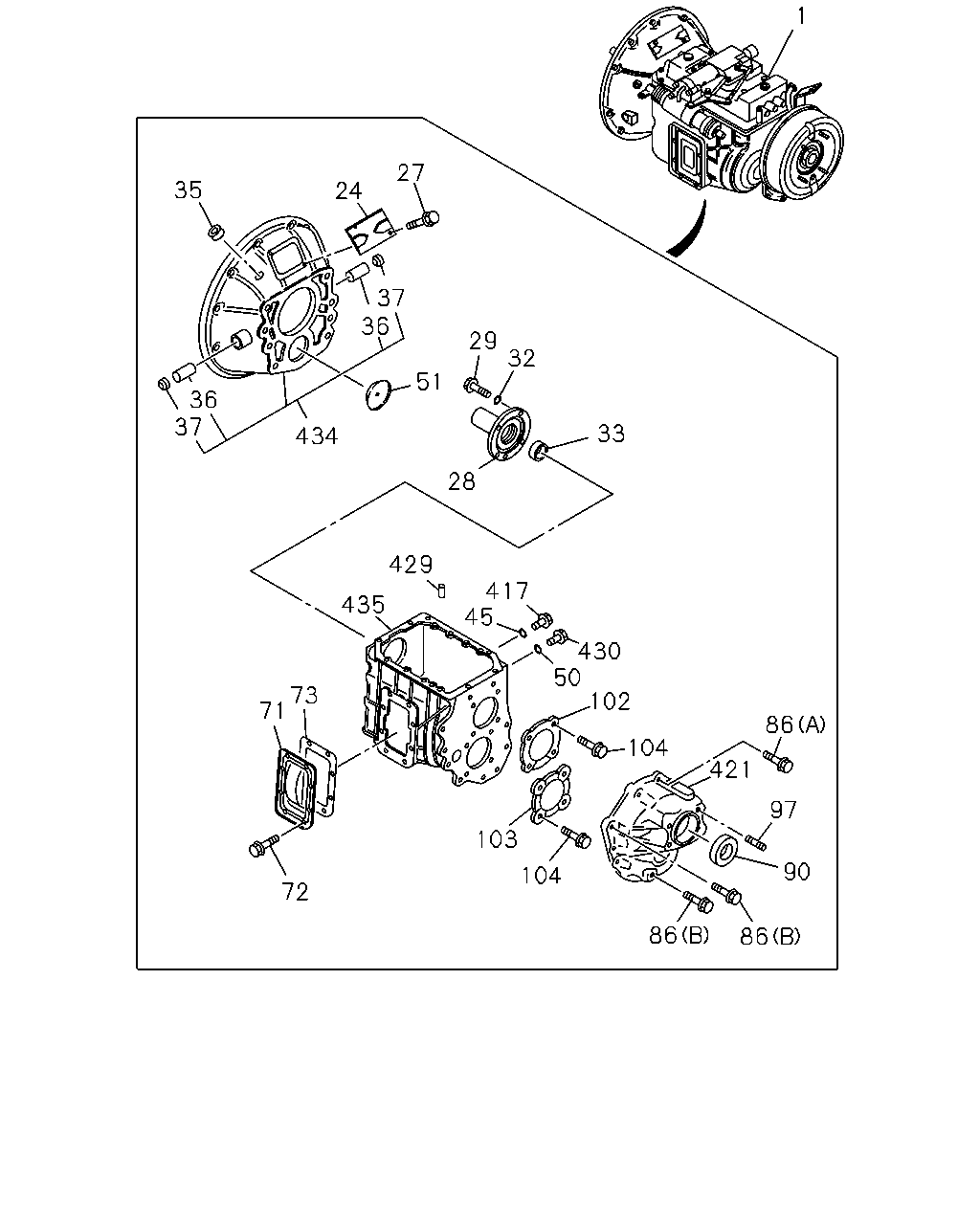

2-20B — MANUAL TRANSMISSION ASM AND CASE (#4412) — 439 parça

1 24 35 27 37 36 51 36 37 434 29 30 31 32 429 435 417 45 430 33 50 62 421 97 90 28 87 72 73 71 86 86 426

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	TRANSMISSION ASM; MANUAL	1-33017-100-0	01	1	9202-9202	●
1	TRANSMISSION ASM; MANUAL CLU SYSTEM MINIPACK(B1Z)	1-33037-256-0	01	1	9203-9504	●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) EXC. RETARDER BRK<RE2>	1-33040-495-0	01	1	9505-0203	●
1	TRANSMISSION ASM; MANUAL CLU SYSTEM MINIPACK(B1Z) EXC. RETARDER BRK<RE2>	1-33040-495-0	01	1	0204-	●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CLU SYSTEM MINIPACK(B1Z) RETARDER BRK<RE2>	1-33040-490-0	01	1	9505-0203	●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CLU SYSTEM MINIPACK(B1Z) EXC. RETARDER BRK<RE2>	1-33040-491-0	01	1	9505-0203	●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CLU SYSTEM MINIPACK(B1Z),RETARDER BRK<RE2>	1-33040-493-0	01	1	9505-0203	●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) RETARDER BRK<RE2> EXC. CLU SYSTEM MINIPACK(B1Z)	1-33040-492-0	01	1	9505-0203	●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) RETARDER BRK<RE2>	1-33040-494-0	01	1	9505-0203	●
1	TRANSMISSION ASM; MANUAL CLU SYSTEM MINIPACK(B1Z) RETARDER BRK<RE2>	1-33040-494-0	01	1	0204-	●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RETARDER BRK<RE2> EXC. CLU SYSTEM MINIPACK(B1Z)	1-33040-496-0	01	1	9505-0203	●
1	TRANSMISSION ASM; MANUAL RETARDER BRK<RE2> EXC. CLU SYSTEM MINIPACK(B1Z)	1-33040-496-0	01	1	0204-	●
1	TRANSMISSION ASM; MANUAL EXC. CLU SYSTEM MINIPACK(B1Z)	1-33037-269-0	01	1	9203-9504	●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CLU SYSTEM MINIPACK(B1Z),RETARDER BRK<RE2>	1-33040-497-0	01	1	9505-0203	●
1	TRANSMISSION ASM; MANUAL EXC. CLU SYSTEM MINIPACK(B1Z),RETARDER BRK<RE2>	1-33040-497-0	01	1	0204-	●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CLU SYSTEM MINIPACK(B1Z) EXC. RETARDER BRK<RE2>	1-33040-499-0	01	1	9505-0203		●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CLU SYSTEM MINIPACK(B1Z),RETARDER BRK<RE2>	1-33040-501-0	01	1	9505-0203		●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) RETARDER BRK<RE2> EXC. CLU SYSTEM MINIPACK(B1Z)	1-33040-500-0	01	1	9505-0203		●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) RETARDER BRK<RE2>	1-33040-502-0	01	1	9505-0203		●
1	TRANSMISSION ASM; MANUAL CLU SYSTEM MINIPACK(B1Z) RETARDER BRK<RE2>	1-33040-502-0	01	1	0204-		●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) EXC. RETARDER BRK<RE2>	1-33040-503-0	01	1	9505-0203		●
1	TRANSMISSION ASM; MANUAL CLU SYSTEM MINIPACK(B1Z) EXC. RETARDER BRK<RE2>	1-33040-503-0	01	1	0204-		●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RETARDER BRK<RE2> EXC. CLU SYSTEM MINIPACK(B1Z)	1-33040-504-0	01	1	9505-0203		●
1	TRANSMISSION ASM; MANUAL RETARDER BRK<RE2> EXC. CLU SYSTEM MINIPACK(B1Z)	1-33040-504-0	01	1	0204-		●
1	TRANSMISSION ASM; MANUAL CLU SYSTEM MINIPACK(B1Z)	1-33038-382-0	01	1	9305-9504		●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CLU SYSTEM MINIPACK(B1Z) RETARDER BRK<RE2>	1-33040-498-0	01	1	9505-0203		●
1	TRANSMISSION ASM; MANUAL EXC. CLU SYSTEM MINIPACK(B1Z)	1-33038-400-0	01	1	9305-9504		●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CLU SYSTEM MINIPACK(B1Z),RETARDER BRK<RE2>	1-33040-505-0	01	1	9505-0203		●
1	TRANSMISSION ASM; MANUAL EXC. CLU SYSTEM MINIPACK(B1Z),RETARDER BRK<RE2>	1-33040-505-0	01	1	0204-		●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CLU SYSTEM MINIPACK(B1Z) RETARDER BRK<RE2>	1-33040-506-0	01	1	9505-0203			●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CLU SYSTEM MINIPACK(B1Z) EXC. RETARDER BRK<RE2>	1-33040-507-0	01	1	9505-0203			●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CLU SYSTEM MINIPACK(B1Z),RETARDER BRK<RE2>	1-33040-509-0	01	1	9505-0203			●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) RETARDER BRK<RE2> EXC. CLU SYSTEM MINIPACK(B1Z)	1-33040-508-0	01	1	9505-0203			●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) RETARDER BRK<RE2>	1-33040-510-0	01	1	9505-0203			●
1	TRANSMISSION ASM; MANUAL CLU SYSTEM MINIPACK(B1Z) RETARDER BRK<RE2>	1-33040-510-0	01	1	0204-			●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RETARDER BRK<RE2> EXC. CLU SYSTEM MINIPACK(B1Z)	1-33040-512-0	01	1	9505-0203			●
1	TRANSMISSION ASM; MANUAL RETARDER BRK<RE2> EXC. CLU SYSTEM MINIPACK(B1Z)	1-33040-512-0	01	1	0204-			●
1	TRANSMISSION ASM; MANUAL CLU SYSTEM MINIPACK(B1Z)	1-33038-379-0	01	1	9305-9504			●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) EXC. RETARDER BRK<RE2>	1-33040-511-0	01	1	9505-0203			●
1	TRANSMISSION ASM; MANUAL CLU SYSTEM MINIPACK(B1Z) EXC. RETARDER BRK<RE2>	1-33040-511-0	01	1	0204-			●
1	TRANSMISSION ASM; MANUAL EXC. CLU SYSTEM MINIPACK(B1Z)	1-33038-394-0	01	1	9305-9504			●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CLU SYSTEM MINIPACK(B1Z),RETARDER BRK<RE2>	1-33040-513-0	01	1	9505-0203			●
1	TRANSMISSION ASM; MANUAL EXC. CLU SYSTEM MINIPACK(B1Z),RETARDER BRK<RE2>	1-33040-513-0	01	1	0204-			●
1	TRANSMISSION ASM; MANUAL CLU SYSTEM MINIPACK(B1Z) RETARDER BRK<RE2>	1-33041-472-0	01	1	9702-0203				●
1	TRANSMISSION ASM; MANUAL CLU SYSTEM MINIPACK(B1Z) RETARDER BRK<RE2>	1-33041-472-0	01	1	0204-				●
1	TRANSMISSION ASM; MANUAL CLU SYSTEM MINIPACK(B1Z) EXC. RETARDER BRK<RE2>	1-33041-474-0	01	1	9702-0203				●
1	TRANSMISSION ASM; MANUAL CLU SYSTEM MINIPACK(B1Z) EXC. RETARDER BRK<RE2>	1-33041-474-0	01	1	0204-				●
1	TRANSMISSION ASM; MANUAL EXC. CLU SYSTEM MINIPACK(B1Z),RETARDER BRK<RE2>	1-33041-475-0	01	1	9702-9805				●
1	TRANSMISSION ASM; MANUAL RETARDER BRK<RE2> EXC. CLU SYSTEM MINIPACK(B1Z)	1-33041-473-0	01	1	9702-9805				●
1	TRANSMISSION ASM; MANUAL EXC. CLU SYSTEM MINIPACK(B1Z),RETARDER BRK<RE2>	1-33041-475-0	01	1	9806-0203				●
1	TRANSMISSION ASM; MANUAL EXC. CLU SYSTEM MINIPACK(B1Z),RETARDER BRK<RE2>	1-33041-475-0	01	1	0204-				●
1	TRANSMISSION ASM; MANUAL RETARDER BRK<RE2> EXC. CLU SYSTEM MINIPACK(B1Z)	1-33041-473-0	01	1	9806-0203				●
1	TRANSMISSION ASM; MANUAL RETARDER BRK<RE2> EXC. CLU SYSTEM MINIPACK(B1Z)	1-33041-473-0	01	1	0204-				●
1	TRANSMISSION ASM; MANUAL	1-33042-422-0	01	1	9809-9809					●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) EXC. RETARDER BRK<RE2>	1-33042-422-0	01	1	9810-0203					●
1	TRANSMISSION ASM; MANUAL CLU SYSTEM MINIPACK(B1Z) EXC. RETARDER BRK<RE2>	1-33042-422-0	01	1	0204-					●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) RETARDER BRK<RE2>	1-33042-462-0	01	1	9810-0203					●
1	TRANSMISSION ASM; MANUAL CLU SYSTEM MINIPACK(B1Z) RETARDER BRK<RE2>	1-33042-462-0	01	1	0204-					●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CLU SYSTEM MINIPACK(B1Z),RETARDER BRK<RE2>	1-33042-464-0	01	1	9810-0203					●
1	TRANSMISSION ASM; MANUAL EXC. CLU SYSTEM MINIPACK(B1Z),RETARDER BRK<RE2>	1-33042-464-0	01	1	0204-					●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RETARDER BRK<RE2> EXC. CLU SYSTEM MINIPACK(B1Z)	1-33042-463-0	01	1	9810-0203					●
1	TRANSMISSION ASM; MANUAL RETARDER BRK<RE2> EXC. CLU SYSTEM MINIPACK(B1Z)	1-33042-463-0	01	1	0204-					●
24	COVER; CHECK HOLE,DUST	1-31131-027-0	01	1	9202-9304	●
24	COVER; CHECK HOLE,DUST	1-31131-027-0	01	1	9305-9504	●	●	●
24	COVER; CHECK HOLE,DUST	1-31131-027-0	01	1	9505-9701	●	●	●
24	COVER; CHECK HOLE,DUST	1-31131-027-0	01	1	9702-9807	●	●	●	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	9808-9808	●	●	●	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	9809-1410	●	●	●	●	●
24	COVER; CHECK HOLE,DUST	8-98284-107-0	01	1	1411-	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	9-01900-816-0	02	1	9202-9204	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9205	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9206-9304	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9305-9504	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9505-9701	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9702-9808	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9809-0104	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	02	1	0105-0512	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●	●	●	●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	9202-9701	●	●	●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	9702-9808	●	●	●	●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	9809-	●	●	●	●	●
29	BOLT; FRT COVER M10X32	1-09020-120-1	04	1	9202-9205	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-0	04	1	9206-9304	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-0	04	1	9305-9504	●	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-0	04	1	9505-9701	●	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-0	04	1	9702-9808	●	●	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	04	1	9809-0805	●	●	●	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	04	1	0806-	●	●	●	●	●
30	WASHER; LK,FRT COVER ID=10.2	9-09150-510-0	04	1	9202-9205	●
31	WASHER; PL,FRT COVER BOLT ID=10.5	9-09164-510-0	04	1	9202-9205	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9202-9304	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9305-9504	●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9505-9701	●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9702-9808	●	●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9809-	●	●	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	9202-9701	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	9702-9808	●	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	9809-	●	●	●	●	●
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	9202-9304	●
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	9305-9504	●	●	●
35	GROMMET; CLU HSG OD=31 OD=31	9-09575-796-0	01	1	9505-9701	●	●	●
35	GROMMET; CLU HSG OD=31 OD=31	9-09575-796-0	01	1	9702-9808	●	●	●	●
35	GROMMET; CLU HSG OD=31 OD=31	9-09575-796-0	01	1	9809-	●	●	●	●	●
35	GROMMET; CLU HSG OD=15 T=6.6	8-97037-246-0	01	1	9805-	●	●	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9202-9304	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9305-9504	●	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9505-9701	●	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9702-9808	●	●	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9809-	●	●	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9202-9304	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9305-9504	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9505-9701	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9702-9808	●	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9809-	●	●	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=24.5 OD=32.5	9-09920-392-0	01	1	9202-9304	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=24.5 OD=32.5	9-09920-392-0	01	1	9305-9405	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9406-9504	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9505-9701	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9702-9808	●	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9809-	●	●	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9202-9304	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9305-9808	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9809-	●	●	●		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	02	1	9702-				●
51	COVER; SEAL,COUNTER,FRT	1-33319-057-0	01	1	9202-9402	●	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-0	01	1	9403-9701	●	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-0	01	1	9702-9808	●	●	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-1	01	1	9809-	●	●	●	●	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	9202-9808	●	●	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	9809-	●	●	●		●
71	COVER; SIDE,TRANS CASE	1-33141-033-0	01	1	9202-9701	●	●	●
71	COVER; SIDE,TRANS CASE	1-33141-033-0	01	1	9702-9808	●	●	●	●
71	COVER; SIDE,TRANS CASE	1-33141-033-0	01	1	9809-	●	●	●	●	●
72	BOLT; SIDE COVER M10X20 W/LK WASHER	9-01921-020-0	08	1	9202-9204	●
72	BOLT; SIDE COVER M10X20 W/LK WASHER	0-50051-020-0	08	1	9205-9205	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	9206-9304	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	9305-9504	●	●	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	9505-9701	●	●	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	9702-9808	●	●	●	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	9809-0512	●	●	●	●	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28151-016-0	08	1	0601-	●	●	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-036-0	01	1	9202-9304	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-036-0	01	1	9305-9504	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-036-0	01	1	9505-9701	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-036-0	01	1	9702-9808	●	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-036-0	01	1	9809-	●	●	●	●	●
86	BOLT; RR COVER (A) M12X65	9-01656-265-0	01	1	9202-9205	●
86	BOLT; RR COVER (B) M17X35	1-09044-076-0	08	1	9206-9808	●	●	●
86	BOLT; RR COVER (B) M17X35	1-09044-076-0	08	1	9809-	●	●	●		●
86	BOLT; RR COVER (B) M12X40	9-01991-240-0	08	1	9202-9205	●
86	BOLT; RR COVER (A) M12X60	1-09044-084-0	01	1	9206-9808	●	●	●
86	BOLT; RR COVER (A) M12X60	1-09044-084-0	01	1	9809-	●	●	●		●
86	BOLT; RR COVER (A) M17X35	1-09044-076-0	09	1	9702-				●
86	BOLT; RR COVER (A) M12X50	1-09044-085-0	02	1	9702-				●
87	WASHER; LK,RR COVER ID=12.2	9-09150-512-0	01	1	9202-9205	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	9202-9701	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	9702-9808	●	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	9809-	●	●	●	●	●
97	STUD; PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) RETARDER BRK<RE2> M14X32 L=54	1-09302-155-0	04	1	9505-0203	●	●	●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-0	04	1	9202-9202	●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-0	01	1	9203-9504	●	●	●
97	STUD; PARKING BRK BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RETARDER BRK<RE2> M14X27 L=49	1-09302-099-0	01	1	9505-9701	●	●	●
97	STUD; PARKING BRK EXC. RETARDER BRK<RE2> M14X27 L=49	1-09302-099-0	01	1	9505-9701	●	●	●
97	STUD; PARKING BRK BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RETARDER BRK<RE2> M14X27 L=49	1-09302-099-1	01	1	9702-9805	●	●	●
97	STUD; PARKING BRK EXC. RETARDER BRK<RE2> M14X27 L=49	1-09302-099-1	01	1	9702-9805	●	●	●
97	STUD; PARKING BRK BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14X27 L=49	1-09302-099-1	01	1	9702-9805				●
97	STUD; PARKING BRK BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14X27 L=49	1-09302-099-1	01	1	9806-0203	●	●	●	●	●
97	STUD; PARKING BRK EXC. RETARDER BRK<RE2> M14X27 L=49	1-09302-099-1	01	1	9806-0203	●	●	●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-1	01	1	0204-0708	●	●	●	●	●
97	STUD; PARKING BRK EXC. RETARDER BRK<RE2> M14X27 L=49	1-09302-099-1	01	1	0709-	●	●	●	●	●
97	STUD; PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M14X27 L=49	1-09302-099-0	03	1	9305-9504	●	●	●
97	STUD; PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RETARDER BRK<RE2> M14X27 L=49	1-09302-099-0	03	1	9505-9701	●	●	●
97	STUD; PARKING BRK BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RETARDER BRK<RE2> M14X27 L=49	1-09302-099-0	03	1	9505-9701	●	●	●
97	STUD; PARKING BRK BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RETARDER BRK<RE2> M14X27 L=49	1-09302-099-1	03	1	9702-0002	●	●	●	●
97	STUD; PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RETARDER BRK<RE2> M14X27 L=49	1-09302-099-1	03	1	9702-0002	●	●	●
97	STUD; PARKING BRK BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RETARDER BRK<RE2> M14X27 L=49	1-09302-099-1	03	1	0003-0203	●	●	●	●	●
97	STUD; PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RETARDER BRK<RE2> M14X27 L=49	1-09302-099-1	03	1	0003-0203	●	●	●
97	STUD; PARKING BRK RETARDER BRK<RE2> M14X27 L=49	1-09302-099-1	03	1	0204-0708	●	●	●	●	●
97	STUD; PARKING BRK RETARDER BRK<RE2> M14X22 W/DRY-ROCK	8-98019-447-0	04	1	0709-	●	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-021-0	01	1	9202-9304	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-021-0	01	1	9305-9405	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	9406-9504	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	9505-9701	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	9702-9802	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-064-1	01	1	9803-9808	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-064-1	01	1	9809-0201	●	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0202-	●	●	●	●	●
421	COVER; RR,TRANS RETARDER BRK<RE2>	1-33131-142-2	01	1	9505-9604	●	●	●
421	COVER; RR,TRANS RETARDER BRK<RE2>	1-33131-178-1	01	1	9605-0002	●	●	●
421	COVER; RR,TRANS RETARDER BRK<RE2>	1-33131-178-1	01	1	0003-0203	●	●	●
421	COVER; RR,TRANS BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RETARDER BRK<RE2>	1-33131-178-1	01	1	0003-0203					●
421	COVER; RR,TRANS RETARDER BRK<RE2>	1-33131-178-1	01	1	0204-	●	●	●		●
421	COVER; RR,TRANS	1-33131-089-7	01	1	9202-9504	●	●	●
421	COVER; RR,TRANS EXC. RETARDER BRK<RE2>	1-33131-089-7	01	1	9505-9604	●	●	●
421	COVER; RR,TRANS EXC. RETARDER BRK<RE2>	1-33131-177-1	01	1	9605-9808	●	●	●
421	COVER; RR,TRANS EXC. RETARDER BRK<RE2>	1-33131-177-1	01	1	9809-0203	●	●	●
421	COVER; RR,TRANS CLU SYSTEM MINIPACK(B1Z) EXC. RETARDER BRK<RE2>	1-33131-177-1	01	1	9809-0203					●
421	COVER; RR,TRANS EXC. RETARDER BRK<RE2>	1-33131-177-1	01	1	0204-	●	●	●		●
421	COVER; RR,TRANS RETARDER BRK<RE2>	1-33131-215-0	01	1	9702-0203				●
421	COVER; RR,TRANS RETARDER BRK<RE2>	1-33131-215-0	01	1	0204-				●
421	COVER; RR,TRANS EXC. RETARDER BRK<RE2>	1-33131-087-4	01	1	9702-0203				●
421	COVER; RR,TRANS EXC. RETARDER BRK<RE2>	1-33131-087-4	01	1	0204-				●
426	WASHER; PL,RR COVER ID=12.5	9-09160-512-0	01	1	9202-9205	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9202-9701	●	●	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9702-9808	●	●	●	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9809-	●	●	●	●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9202-9304	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9305-9808	●	●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9809-	●	●	●		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	02	1	9702-				●
434	HOUSING; CLU	1-31110-092-2	01	1	9202-9504	●	●	●
434	HOUSING; CLU	1-31110-169-0	01	1	9505-9701	●	●	●
434	HOUSING; CLU	1-31110-169-0	01	1	9702-9808	●	●	●	●
434	HOUSING; CLU	1-31110-169-0	01	1	9809-	●	●	●	●	●
435	CASE; TRANS	1-33111-193-1	01	1	9202-9204	●	●	●
435	CASE; TRANS	1-33111-235-0	01	1	9205-9808	●	●	●
435	CASE; TRANS	1-33111-235-0	01	1	9809-0201	●	●	●		●
435	CASE; TRANS	1-33111-323-0	01	1	0202-0303	●	●	●		●
435	CASE; TRANS	1-33111-342-0	01	1	0304-0406	●	●	●		●
435	CASE; TRANS	8-97381-568-0	01	1	0407-0802	●	●	●		●
435	CASE; TRANS	1-33111-236-1	01	1	9702-				●

1 27 35 24 37 36 29 32 51 36 37 33 434 28 429 417 45 435 430 50 73 71 102 86 104 421 97 103 90 104 72 86 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	TRANSMISSION ASM; MANUAL	1-33017-100-0	01	1	9202-9202	●
1	TRANSMISSION ASM; MANUAL CLU SYSTEM MINIPACK(B1Z)	1-33037-256-0	01	1	9203-9504	●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) EXC. RETARDER BRK<RE2>	1-33040-495-0	01	1	9505-0203	●
1	TRANSMISSION ASM; MANUAL CLU SYSTEM MINIPACK(B1Z) EXC. RETARDER BRK<RE2>	1-33040-495-0	01	1	0204-	●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CLU SYSTEM MINIPACK(B1Z) RETARDER BRK<RE2>	1-33040-490-0	01	1	9505-0203	●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CLU SYSTEM MINIPACK(B1Z) EXC. RETARDER BRK<RE2>	1-33040-491-0	01	1	9505-0203	●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CLU SYSTEM MINIPACK(B1Z),RETARDER BRK<RE2>	1-33040-493-0	01	1	9505-0203	●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) RETARDER BRK<RE2> EXC. CLU SYSTEM MINIPACK(B1Z)	1-33040-492-0	01	1	9505-0203	●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) RETARDER BRK<RE2>	1-33040-494-0	01	1	9505-0203	●
1	TRANSMISSION ASM; MANUAL CLU SYSTEM MINIPACK(B1Z) RETARDER BRK<RE2>	1-33040-494-0	01	1	0204-	●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RETARDER BRK<RE2> EXC. CLU SYSTEM MINIPACK(B1Z)	1-33040-496-0	01	1	9505-0203	●
1	TRANSMISSION ASM; MANUAL RETARDER BRK<RE2> EXC. CLU SYSTEM MINIPACK(B1Z)	1-33040-496-0	01	1	0204-	●
1	TRANSMISSION ASM; MANUAL EXC. CLU SYSTEM MINIPACK(B1Z)	1-33037-269-0	01	1	9203-9504	●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CLU SYSTEM MINIPACK(B1Z),RETARDER BRK<RE2>	1-33040-497-0	01	1	9505-0203	●
1	TRANSMISSION ASM; MANUAL EXC. CLU SYSTEM MINIPACK(B1Z),RETARDER BRK<RE2>	1-33040-497-0	01	1	0204-	●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CLU SYSTEM MINIPACK(B1Z) EXC. RETARDER BRK<RE2>	1-33040-499-0	01	1	9505-0203		●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CLU SYSTEM MINIPACK(B1Z),RETARDER BRK<RE2>	1-33040-501-0	01	1	9505-0203		●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) RETARDER BRK<RE2> EXC. CLU SYSTEM MINIPACK(B1Z)	1-33040-500-0	01	1	9505-0203		●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) RETARDER BRK<RE2>	1-33040-502-0	01	1	9505-0203		●
1	TRANSMISSION ASM; MANUAL CLU SYSTEM MINIPACK(B1Z) RETARDER BRK<RE2>	1-33040-502-0	01	1	0204-		●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) EXC. RETARDER BRK<RE2>	1-33040-503-0	01	1	9505-0203		●
1	TRANSMISSION ASM; MANUAL CLU SYSTEM MINIPACK(B1Z) EXC. RETARDER BRK<RE2>	1-33040-503-0	01	1	0204-		●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RETARDER BRK<RE2> EXC. CLU SYSTEM MINIPACK(B1Z)	1-33040-504-0	01	1	9505-0203		●
1	TRANSMISSION ASM; MANUAL RETARDER BRK<RE2> EXC. CLU SYSTEM MINIPACK(B1Z)	1-33040-504-0	01	1	0204-		●
1	TRANSMISSION ASM; MANUAL CLU SYSTEM MINIPACK(B1Z)	1-33038-382-0	01	1	9305-9504		●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CLU SYSTEM MINIPACK(B1Z) RETARDER BRK<RE2>	1-33040-498-0	01	1	9505-0203		●
1	TRANSMISSION ASM; MANUAL EXC. CLU SYSTEM MINIPACK(B1Z)	1-33038-400-0	01	1	9305-9504		●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CLU SYSTEM MINIPACK(B1Z),RETARDER BRK<RE2>	1-33040-505-0	01	1	9505-0203		●
1	TRANSMISSION ASM; MANUAL EXC. CLU SYSTEM MINIPACK(B1Z),RETARDER BRK<RE2>	1-33040-505-0	01	1	0204-		●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CLU SYSTEM MINIPACK(B1Z) RETARDER BRK<RE2>	1-33040-506-0	01	1	9505-0203			●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CLU SYSTEM MINIPACK(B1Z) EXC. RETARDER BRK<RE2>	1-33040-507-0	01	1	9505-0203			●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CLU SYSTEM MINIPACK(B1Z),RETARDER BRK<RE2>	1-33040-509-0	01	1	9505-0203			●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) RETARDER BRK<RE2> EXC. CLU SYSTEM MINIPACK(B1Z)	1-33040-508-0	01	1	9505-0203			●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) RETARDER BRK<RE2>	1-33040-510-0	01	1	9505-0203			●
1	TRANSMISSION ASM; MANUAL CLU SYSTEM MINIPACK(B1Z) RETARDER BRK<RE2>	1-33040-510-0	01	1	0204-			●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RETARDER BRK<RE2> EXC. CLU SYSTEM MINIPACK(B1Z)	1-33040-512-0	01	1	9505-0203			●
1	TRANSMISSION ASM; MANUAL RETARDER BRK<RE2> EXC. CLU SYSTEM MINIPACK(B1Z)	1-33040-512-0	01	1	0204-			●
1	TRANSMISSION ASM; MANUAL CLU SYSTEM MINIPACK(B1Z)	1-33038-379-0	01	1	9305-9504			●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) EXC. RETARDER BRK<RE2>	1-33040-511-0	01	1	9505-0203			●
1	TRANSMISSION ASM; MANUAL CLU SYSTEM MINIPACK(B1Z) EXC. RETARDER BRK<RE2>	1-33040-511-0	01	1	0204-			●
1	TRANSMISSION ASM; MANUAL EXC. CLU SYSTEM MINIPACK(B1Z)	1-33038-394-0	01	1	9305-9504			●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CLU SYSTEM MINIPACK(B1Z),RETARDER BRK<RE2>	1-33040-513-0	01	1	9505-0203			●
1	TRANSMISSION ASM; MANUAL EXC. CLU SYSTEM MINIPACK(B1Z),RETARDER BRK<RE2>	1-33040-513-0	01	1	0204-			●
1	TRANSMISSION ASM; MANUAL CLU SYSTEM MINIPACK(B1Z) RETARDER BRK<RE2>	1-33041-472-0	01	1	9702-0203				●
1	TRANSMISSION ASM; MANUAL CLU SYSTEM MINIPACK(B1Z) RETARDER BRK<RE2>	1-33041-472-0	01	1	0204-				●
1	TRANSMISSION ASM; MANUAL CLU SYSTEM MINIPACK(B1Z) EXC. RETARDER BRK<RE2>	1-33041-474-0	01	1	9702-0203				●
1	TRANSMISSION ASM; MANUAL CLU SYSTEM MINIPACK(B1Z) EXC. RETARDER BRK<RE2>	1-33041-474-0	01	1	0204-				●
1	TRANSMISSION ASM; MANUAL EXC. CLU SYSTEM MINIPACK(B1Z),RETARDER BRK<RE2>	1-33041-475-0	01	1	9702-9805				●
1	TRANSMISSION ASM; MANUAL RETARDER BRK<RE2> EXC. CLU SYSTEM MINIPACK(B1Z)	1-33041-473-0	01	1	9702-9805				●
1	TRANSMISSION ASM; MANUAL EXC. CLU SYSTEM MINIPACK(B1Z),RETARDER BRK<RE2>	1-33041-475-0	01	1	9806-0203				●
1	TRANSMISSION ASM; MANUAL EXC. CLU SYSTEM MINIPACK(B1Z),RETARDER BRK<RE2>	1-33041-475-0	01	1	0204-				●
1	TRANSMISSION ASM; MANUAL RETARDER BRK<RE2> EXC. CLU SYSTEM MINIPACK(B1Z)	1-33041-473-0	01	1	9806-0203				●
1	TRANSMISSION ASM; MANUAL RETARDER BRK<RE2> EXC. CLU SYSTEM MINIPACK(B1Z)	1-33041-473-0	01	1	0204-				●
1	TRANSMISSION ASM; MANUAL	1-33042-422-0	01	1	9809-9809					●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) EXC. RETARDER BRK<RE2>	1-33042-422-0	01	1	9810-0203					●
1	TRANSMISSION ASM; MANUAL CLU SYSTEM MINIPACK(B1Z) EXC. RETARDER BRK<RE2>	1-33042-422-0	01	1	0204-					●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) RETARDER BRK<RE2>	1-33042-462-0	01	1	9810-0203					●
1	TRANSMISSION ASM; MANUAL CLU SYSTEM MINIPACK(B1Z) RETARDER BRK<RE2>	1-33042-462-0	01	1	0204-					●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CLU SYSTEM MINIPACK(B1Z),RETARDER BRK<RE2>	1-33042-464-0	01	1	9810-0203					●
1	TRANSMISSION ASM; MANUAL EXC. CLU SYSTEM MINIPACK(B1Z),RETARDER BRK<RE2>	1-33042-464-0	01	1	0204-					●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RETARDER BRK<RE2> EXC. CLU SYSTEM MINIPACK(B1Z)	1-33042-463-0	01	1	9810-0203					●
1	TRANSMISSION ASM; MANUAL RETARDER BRK<RE2> EXC. CLU SYSTEM MINIPACK(B1Z)	1-33042-463-0	01	1	0204-					●
24	COVER; CHECK HOLE,DUST	1-31131-027-0	01	1	9202-9304	●
24	COVER; CHECK HOLE,DUST	1-31131-027-0	01	1	9305-9504	●	●	●
24	COVER; CHECK HOLE,DUST	1-31131-027-0	01	1	9505-9701	●	●	●
24	COVER; CHECK HOLE,DUST	1-31131-027-0	01	1	9702-9807	●	●	●	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	9808-9808	●	●	●	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	9809-1410	●	●	●	●	●
24	COVER; CHECK HOLE,DUST	8-98284-107-0	01	1	1411-	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	9-01900-816-0	02	1	9202-9204	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9205	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9206-9304	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9305-9504	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9505-9701	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9702-9808	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9809-0104	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	02	1	0105-0512	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●	●	●	●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	9202-9701	●	●	●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	9702-9808	●	●	●	●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	9809-	●	●	●	●	●
29	BOLT; FRT COVER M10X32	1-09020-120-1	04	1	9202-9205	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-0	04	1	9206-9304	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-0	04	1	9305-9504	●	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-0	04	1	9505-9701	●	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-0	04	1	9702-9808	●	●	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	04	1	9809-0805	●	●	●	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	04	1	0806-	●	●	●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9202-9304	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9305-9504	●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9505-9701	●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9702-9808	●	●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9809-	●	●	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	9202-9701	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	9702-9808	●	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	9809-	●	●	●	●	●
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	9202-9304	●
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	9305-9504	●	●	●
35	GROMMET; CLU HSG OD=31 OD=31	9-09575-796-0	01	1	9505-9701	●	●	●
35	GROMMET; CLU HSG OD=31 OD=31	9-09575-796-0	01	1	9702-9808	●	●	●	●
35	GROMMET; CLU HSG OD=31 OD=31	9-09575-796-0	01	1	9809-	●	●	●	●	●
35	GROMMET; CLU HSG OD=15 T=6.6	8-97037-246-0	01	1	9805-	●	●	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9202-9304	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9305-9504	●	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9505-9701	●	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9702-9808	●	●	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9809-	●	●	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9202-9304	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9305-9504	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9505-9701	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9702-9808	●	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9809-	●	●	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=24.5 OD=32.5	9-09920-392-0	01	1	9202-9304	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=24.5 OD=32.5	9-09920-392-0	01	1	9305-9405	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9406-9504	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9505-9701	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9702-9808	●	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9809-	●	●	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9202-9304	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9305-9808	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9809-	●	●	●		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	02	1	9702-				●
51	COVER; SEAL,COUNTER,FRT	1-33319-057-0	01	1	9202-9402	●	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-0	01	1	9403-9701	●	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-0	01	1	9702-9808	●	●	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-1	01	1	9809-	●	●	●	●	●
71	COVER; SIDE,TRANS CASE	1-33141-033-0	01	1	9202-9701	●	●	●
71	COVER; SIDE,TRANS CASE	1-33141-033-0	01	1	9702-9808	●	●	●	●
71	COVER; SIDE,TRANS CASE	1-33141-033-0	01	1	9809-	●	●	●	●	●
72	BOLT; SIDE COVER M10X20 W/LK WASHER	9-01921-020-0	08	1	9202-9204	●
72	BOLT; SIDE COVER M10X20 W/LK WASHER	0-50051-020-0	08	1	9205-9205	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	9206-9304	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	9305-9504	●	●	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	9505-9701	●	●	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	9702-9808	●	●	●	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	9809-0512	●	●	●	●	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28151-016-0	08	1	0601-	●	●	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-036-0	01	1	9202-9304	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-036-0	01	1	9305-9504	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-036-0	01	1	9505-9701	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-036-0	01	1	9702-9808	●	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-036-0	01	1	9809-	●	●	●	●	●
86	BOLT; RR COVER (A) M12X65	9-01656-265-0	01	1	9202-9205	●
86	BOLT; RR COVER (B) M17X35	1-09044-076-0	08	1	9206-9808	●	●	●
86	BOLT; RR COVER (B) M17X35	1-09044-076-0	08	1	9809-	●	●	●		●
86	BOLT; RR COVER (B) M12X40	9-01991-240-0	08	1	9202-9205	●
86	BOLT; RR COVER (A) M12X60	1-09044-084-0	01	1	9206-9808	●	●	●
86	BOLT; RR COVER (A) M12X60	1-09044-084-0	01	1	9809-	●	●	●		●
86	BOLT; RR COVER (A) M17X35	1-09044-076-0	09	1	9702-				●
86	BOLT; RR COVER (A) M12X50	1-09044-085-0	02	1	9702-				●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	9202-9701	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	9702-9808	●	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	9809-	●	●	●	●	●
97	STUD; PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) RETARDER BRK<RE2> M14X32 L=54	1-09302-155-0	04	1	9505-0203	●	●	●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-0	04	1	9202-9202	●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-0	01	1	9203-9504	●	●	●
97	STUD; PARKING BRK BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RETARDER BRK<RE2> M14X27 L=49	1-09302-099-0	01	1	9505-9701	●	●	●
97	STUD; PARKING BRK EXC. RETARDER BRK<RE2> M14X27 L=49	1-09302-099-0	01	1	9505-9701	●	●	●
97	STUD; PARKING BRK BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RETARDER BRK<RE2> M14X27 L=49	1-09302-099-1	01	1	9702-9805	●	●	●
97	STUD; PARKING BRK EXC. RETARDER BRK<RE2> M14X27 L=49	1-09302-099-1	01	1	9702-9805	●	●	●
97	STUD; PARKING BRK BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14X27 L=49	1-09302-099-1	01	1	9702-9805				●
97	STUD; PARKING BRK BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14X27 L=49	1-09302-099-1	01	1	9806-0203	●	●	●	●	●
97	STUD; PARKING BRK EXC. RETARDER BRK<RE2> M14X27 L=49	1-09302-099-1	01	1	9806-0203	●	●	●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-1	01	1	0204-0708	●	●	●	●	●
97	STUD; PARKING BRK EXC. RETARDER BRK<RE2> M14X27 L=49	1-09302-099-1	01	1	0709-	●	●	●	●	●
97	STUD; PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M14X27 L=49	1-09302-099-0	03	1	9305-9504	●	●	●
97	STUD; PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RETARDER BRK<RE2> M14X27 L=49	1-09302-099-0	03	1	9505-9701	●	●	●
97	STUD; PARKING BRK BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RETARDER BRK<RE2> M14X27 L=49	1-09302-099-0	03	1	9505-9701	●	●	●
97	STUD; PARKING BRK BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RETARDER BRK<RE2> M14X27 L=49	1-09302-099-1	03	1	9702-0002	●	●	●	●
97	STUD; PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RETARDER BRK<RE2> M14X27 L=49	1-09302-099-1	03	1	9702-0002	●	●	●
97	STUD; PARKING BRK BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RETARDER BRK<RE2> M14X27 L=49	1-09302-099-1	03	1	0003-0203	●	●	●	●	●
97	STUD; PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RETARDER BRK<RE2> M14X27 L=49	1-09302-099-1	03	1	0003-0203	●	●	●
97	STUD; PARKING BRK RETARDER BRK<RE2> M14X27 L=49	1-09302-099-1	03	1	0204-0708	●	●	●	●	●
97	STUD; PARKING BRK RETARDER BRK<RE2> M14X22 W/DRY-ROCK	8-98019-447-0	04	1	0709-	●	●	●	●	●
102	RETAINER; BRG UPR,MAINSHAFT	1-33151-036-0	01	1	9702-				●
103	RETAINER; BRG	1-33151-037-0	01	1	9702-				●
104	BOLT; BRG RET M10X25	1-09049-006-1	08	1	9702-				●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-021-0	01	1	9202-9304	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-021-0	01	1	9305-9405	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	9406-9504	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	9505-9701	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	9702-9802	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-064-1	01	1	9803-9808	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-064-1	01	1	9809-0201	●	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0202-	●	●	●	●	●
421	COVER; RR,TRANS RETARDER BRK<RE2>	1-33131-142-2	01	1	9505-9604	●	●	●
421	COVER; RR,TRANS RETARDER BRK<RE2>	1-33131-178-1	01	1	9605-0002	●	●	●
421	COVER; RR,TRANS RETARDER BRK<RE2>	1-33131-178-1	01	1	0003-0203	●	●	●
421	COVER; RR,TRANS BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RETARDER BRK<RE2>	1-33131-178-1	01	1	0003-0203					●
421	COVER; RR,TRANS RETARDER BRK<RE2>	1-33131-178-1	01	1	0204-	●	●	●		●
421	COVER; RR,TRANS	1-33131-089-7	01	1	9202-9504	●	●	●
421	COVER; RR,TRANS EXC. RETARDER BRK<RE2>	1-33131-089-7	01	1	9505-9604	●	●	●
421	COVER; RR,TRANS EXC. RETARDER BRK<RE2>	1-33131-177-1	01	1	9605-9808	●	●	●
421	COVER; RR,TRANS EXC. RETARDER BRK<RE2>	1-33131-177-1	01	1	9809-0203	●	●	●
421	COVER; RR,TRANS CLU SYSTEM MINIPACK(B1Z) EXC. RETARDER BRK<RE2>	1-33131-177-1	01	1	9809-0203					●
421	COVER; RR,TRANS EXC. RETARDER BRK<RE2>	1-33131-177-1	01	1	0204-	●	●	●		●
421	COVER; RR,TRANS RETARDER BRK<RE2>	1-33131-215-0	01	1	9702-0203				●
421	COVER; RR,TRANS RETARDER BRK<RE2>	1-33131-215-0	01	1	0204-				●
421	COVER; RR,TRANS EXC. RETARDER BRK<RE2>	1-33131-087-4	01	1	9702-0203				●
421	COVER; RR,TRANS EXC. RETARDER BRK<RE2>	1-33131-087-4	01	1	0204-				●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9202-9701	●	●	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9702-9808	●	●	●	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9809-	●	●	●	●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9202-9304	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9305-9808	●	●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9809-	●	●	●		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	02	1	9702-				●
434	HOUSING; CLU	1-31110-092-2	01	1	9202-9504	●	●	●
434	HOUSING; CLU	1-31110-169-0	01	1	9505-9701	●	●	●
434	HOUSING; CLU	1-31110-169-0	01	1	9702-9808	●	●	●	●
434	HOUSING; CLU	1-31110-169-0	01	1	9809-	●	●	●	●	●
435	CASE; TRANS	1-33111-193-1	01	1	9202-9204	●	●	●
435	CASE; TRANS	1-33111-235-0	01	1	9205-9808	●	●	●
435	CASE; TRANS	1-33111-235-0	01	1	9809-0201	●	●	●		●
435	CASE; TRANS	1-33111-323-0	01	1	0202-0303	●	●	●		●
435	CASE; TRANS	1-33111-342-0	01	1	0304-0406	●	●	●		●
435	CASE; TRANS	8-97381-568-0	01	1	0407-0802	●	●	●		●
435	CASE; TRANS	1-33111-236-1	01	1	9702-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
