5-15 — CAB MOUNTING; CAB SIDE (#44119) — 87 parça

15 12 1 3 15 1 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LEVER; TORSION BAR EXC. MANUAL TILT CAB<RWZ>	8-97328-488-0	01	1	0512-
1	LEVER; TORSION BAR	8-97114-076-4	01	1	0303-0511
1	LEVER; TORSION BAR MANUAL TILT CAB<RWZ>	8-97114-076-4	01	1	0512-
3	BOLT; LEVER EXC. MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER	8-97326-378-0	04	1	0512-0611
3	BOLT; LEVER EXC. MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER SOU	8-97359-033-0	04	1	0612-
3	BOLT; LEVER M12X37 W/LK&PL WASHER	8-97326-378-0	06	1	0303-0511
3	BOLT; LEVER MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER	8-97326-378-0	06	1	0512-0611
3	BOLT; LEVER MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER SOU	8-97359-033-0	06	1	0612-
12	BAR; TORSION,UPR	8-97261-870-0	01	1	0303-0511
12	BAR; TORSION,UPR MANUAL TILT CAB<RWZ>	8-97261-870-0	01	1	0512-
15	RING; SNAP,TORSION BAR	8-94258-173-0	02	1	0303-0511
15	RING; SNAP,TORSION BAR MANUAL TILT CAB<RWZ>	8-94258-173-0	02	1	0512-0610
15	RING; SNAP,TORSION BAR MANUAL TILT CAB<RWZ>	8-97359-034-0	02	1	0611-

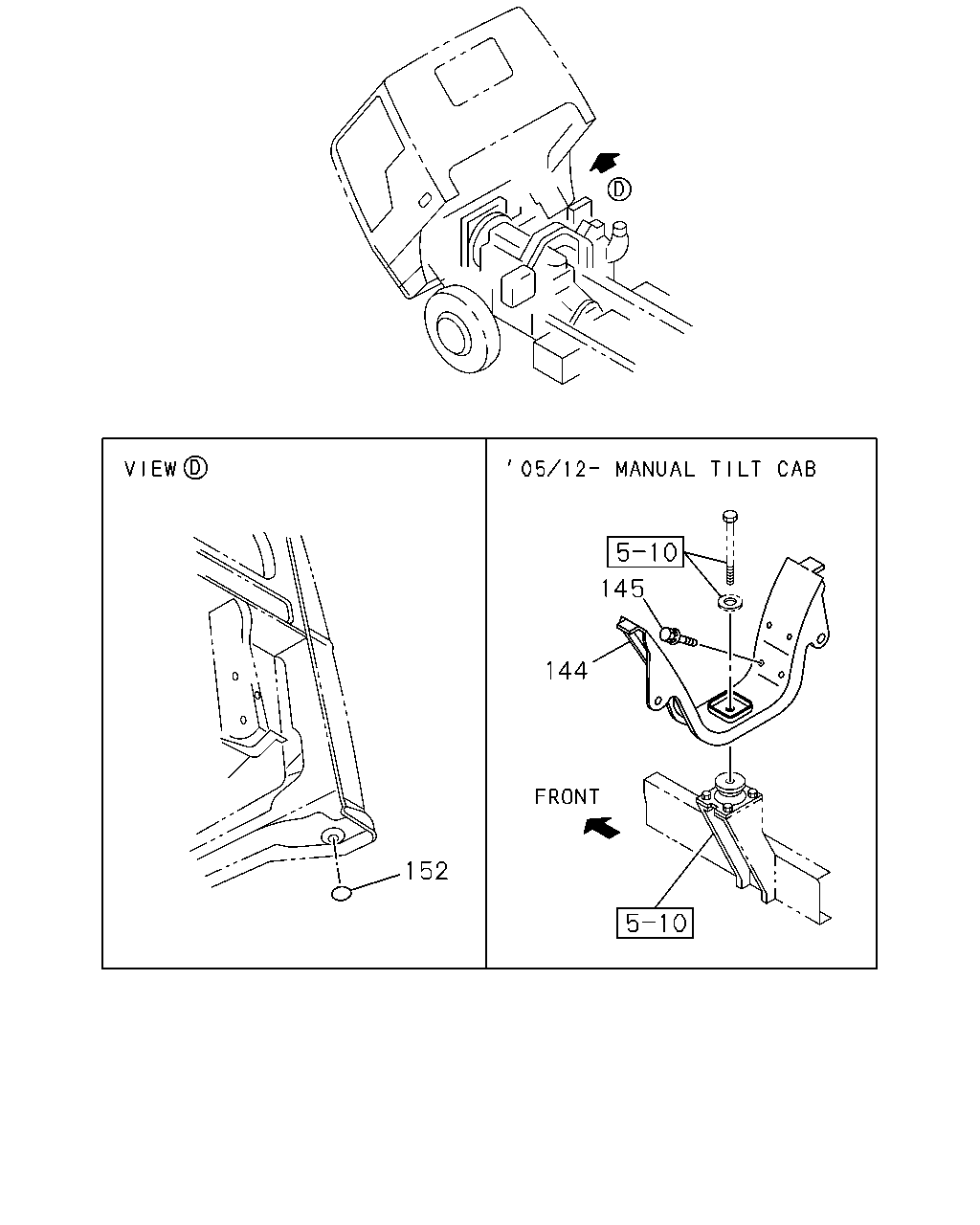

145 144 152

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
144	BRACKET ASM; CAB RR MTG EXC. MANUAL TILT CAB<RWZ>	8-97853-066-4	02	1	0512-
145	BOLT; CAB RR MTG BRKT EXC. MANUAL TILT CAB<RWZ> M8X24.5 W/LK&PL WASHER SOU	8-94279-208-0	12	1	0512-0808
145	BOLT; CAB RR MTG BRKT EXC. MANUAL TILT CAB<RWZ> M8X24.5 W/LK&PL WASHER	8-98051-939-0	12	1	0809-
152	GROMMET; DUMMY HOLE,CAB TILT LOCK OD=25 BLACK SOU	1-76798-019-0	02	1	0303-

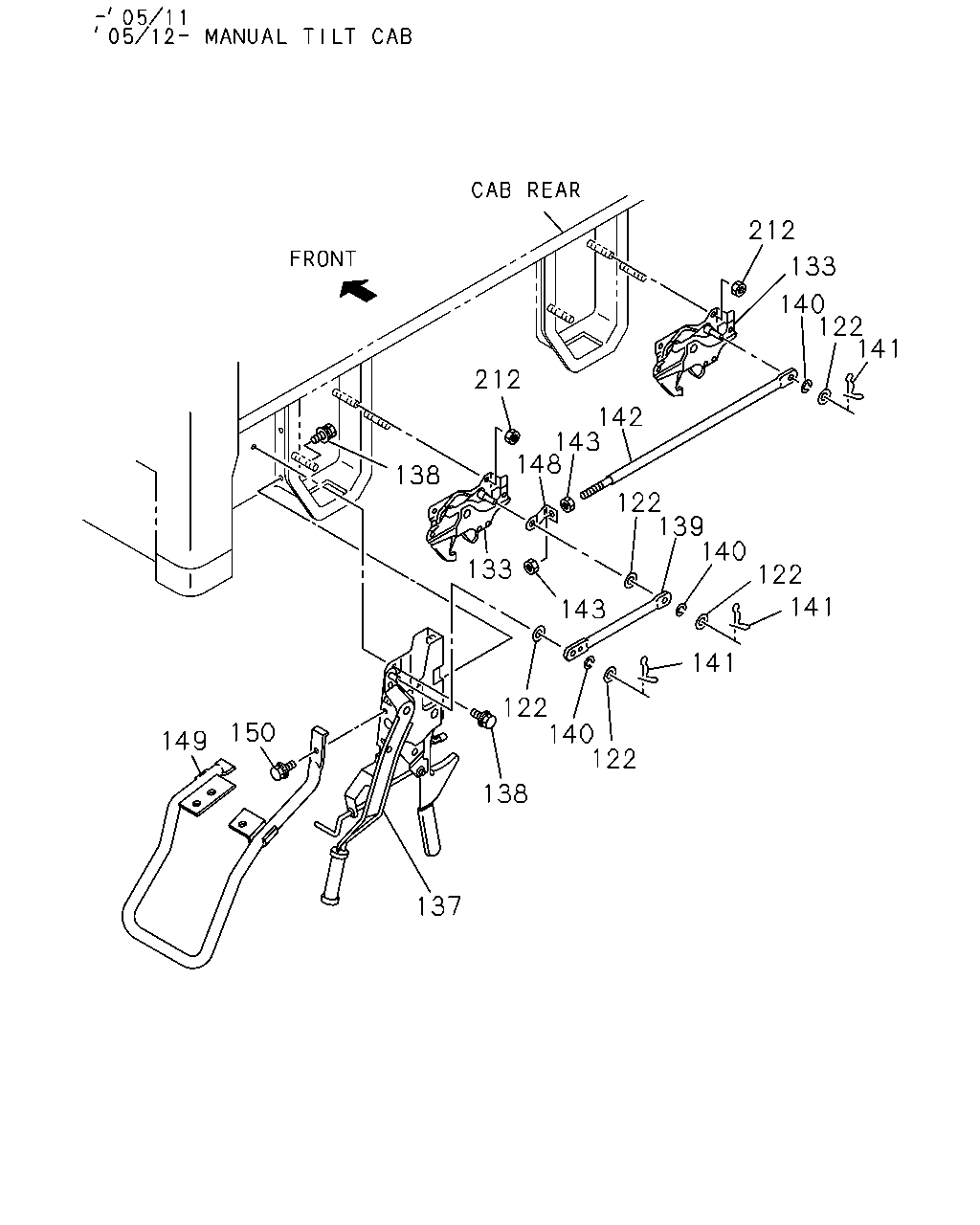

212 133 140 122 141 212 138 133 148 143 142 122 139 140 122 141 141 143 122 140 122 138 137 150 149

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
122	WASHER; PL,CAB LOCK ROD ID=12.5 OD=22 SOU	8-94279-627-0	05	1	0303-0511
122	WASHER; PL,CAB LOCK ROD MANUAL TILT CAB<RWZ> ID=12.5 OD=22 SOU	8-94279-627-0	05	1	0512-0707
122	WASHER; PL,CAB LOCK ROD MANUAL TILT CAB<RWZ> ID=12.5 OD=22	0-91610-512-0	05	1	0708-
133	LOCK ASM; CAB SOU	8-97853-055-7	01	1	0303-0511
133	LOCK ASM; CAB MANUAL TILT CAB<RWZ>	8-97853-055-9	01	1	0512-
133	LOCK ASM; CAB SOU	8-97853-056-6	01	1	0303-0511
133	LOCK ASM; CAB MANUAL TILT CAB<RWZ>	8-97853-056-8	01	1	0512-
137	CONTROL UNIT; CAB LOCK SOU	8-97853-051-8	01	1	0303-0511
137	CONTROL UNIT; CAB LOCK MANUAL TILT CAB<RWZ>	8-97853-051-9	01	1	0512-
138	BOLT; CAB LOCK CONT UNIT M8X20.5 W/LK&PL WASHER SOU	8-94279-207-0	03	1	0303-0511
138	BOLT; CAB LOCK CONT UNIT MANUAL TILT CAB<RWZ> M8X20.5 W/LK&PL WASHER SOU	8-94279-207-0	03	1	0512-
139	ROD; CAB LOCK,LEVER TO HOOK SOU	8-97853-053-1	01	1	0303-0303
139	ROD; CAB LOCK,LEVER TO HOOK	8-97997-597-0	01	1	0303-0511
139	ROD; CAB LOCK,LEVER TO HOOK MANUAL TILT CAB<RWZ>	8-97997-597-0	01	1	0512-
140	WASHER; LK,CAB LOCK ROD ID=13 OD=22 SOU	8-94279-629-0	03	1	0303-0511
140	WASHER; LK,CAB LOCK ROD MANUAL TILT CAB<RWZ> ID=13 OD=22 SOU	8-94279-629-0	03	1	0512-0611
140	WASHER; LK,CAB LOCK ROD MANUAL TILT CAB<RWZ> ID=13 OD=22	8-98060-839-0	03	1	0612-
141	PIN; SNAP,CAB LOCK ROD SOU	1-09987-158-1	03	1	0303-0511
141	PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> SOU	1-09987-158-1	03	1	0512-
142	ROD; HOOK TO HOOK SOU	8-97856-099-1	01	1	0303-0511
142	ROD; HOOK TO HOOK MANUAL TILT CAB<RWZ> SOU	8-97856-099-1	01	1	0512-
143	NUT; JAW JOINT,HOOK TO HOOK M10 SOU	1-09984-142-0	02	1	0303-0511
143	NUT; JAW JOINT,HOOK TO HOOK MANUAL TILT CAB<RWZ> M10 SOU	1-09984-142-0	02	1	0512-
148	JOINT; JAW,HOOK TO HOOK SOU	8-97856-106-0	01	1	0303-0511
148	JOINT; JAW,HOOK TO HOOK MANUAL TILT CAB<RWZ> SOU	8-97856-106-0	01	1	0512-
149	HANDLE; TILT SOU	8-97853-054-4	01	1	0303-0511
149	HANDLE; TILT MANUAL TILT CAB<RWZ> SOU	8-97853-054-4	01	1	0512-
150	BOLT; TILT HANDLE M8X25 FLANGE	0-28680-825-0	03	1	0303-0511
150	BOLT; TILT HANDLE MANUAL TILT CAB<RWZ> M8X25 FLANGE	0-28680-825-0	03	1	0512-0512
150	BOLT; TILT HANDLE MANUAL TILT CAB<RWZ> M8X25 FLANGE SOU	0-28650-825-0	03	1	0601-0610
150	BOLT; TILT HANDLE MANUAL TILT CAB<RWZ> M8X20 FLANGE	0-28650-820-0	03	1	0611-
212	NUT; BRKT,CAB LOCK M8 CUTTING NUT W/FLANGE SOU	1-09985-340-0	08	1	0303-0511
212	NUT; BRKT,CAB LOCK MANUAL TILT CAB<RWZ> M8 CUTTING NUT W/FLANGE SOU	1-09985-340-0	08	1	0512-

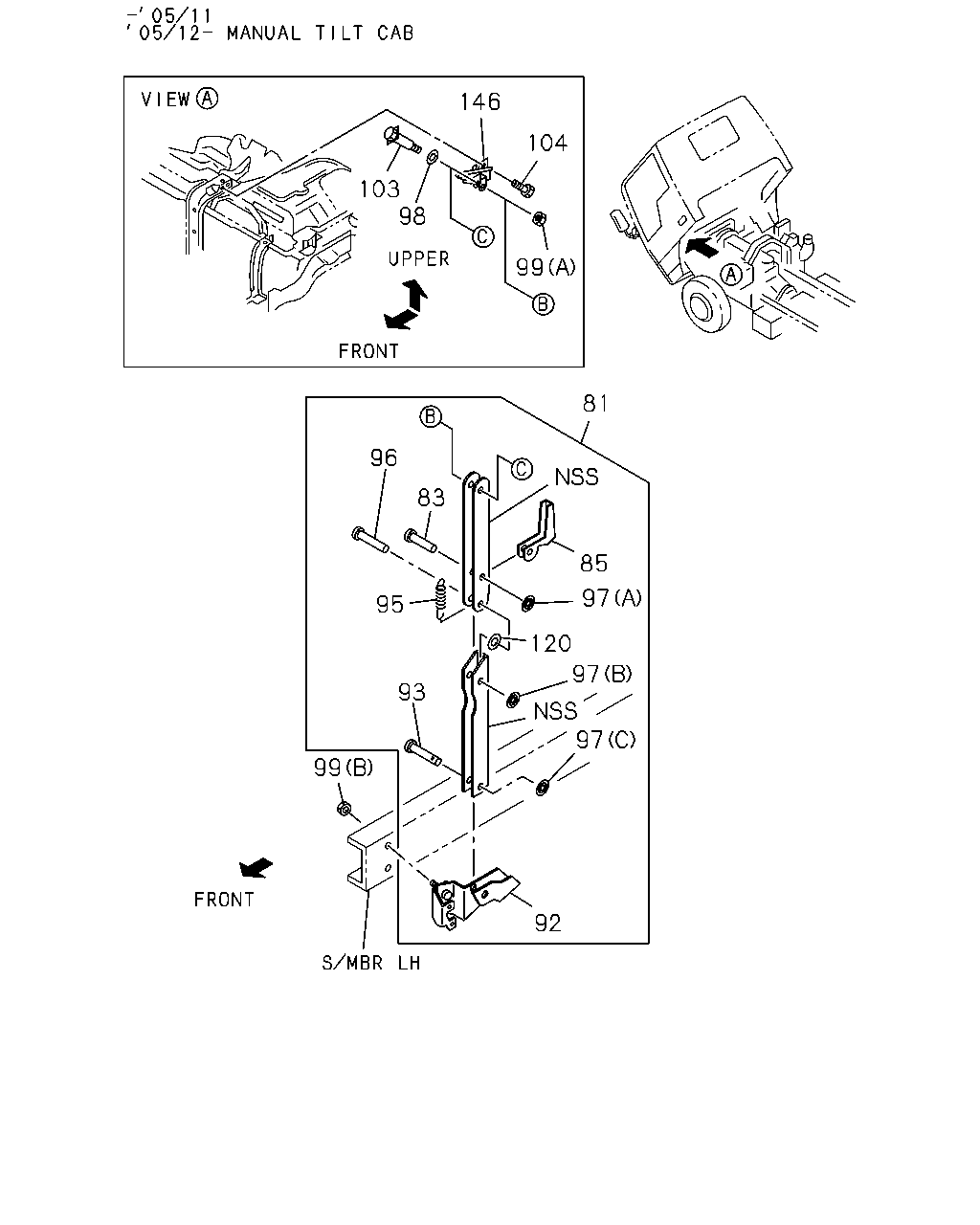

146 104 103 98 99 81 96 83 85 97 120 97 97 95 93 99 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
81	STAY ASM; CAB TILT	8-97120-940-0	01	1	0303-0511
81	STAY ASM; CAB TILT MANUAL TILT CAB<RWZ>	8-97120-940-0	01	1	0512-
83	PIN; JOINT,CAB STAY OD=8 L=32	8-97039-548-0	01	1	0303-0511
83	PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> OD=8 L=32	8-97039-548-0	01	1	0512-
85	LEVER; LOCK,CAB STAY	8-94331-481-0	01	1	0303-0511
85	LEVER; LOCK,CAB STAY MANUAL TILT CAB<RWZ>	8-94331-481-0	01	1	0512-
92	BRACKET; CAB STAY TO FRAME	8-97096-654-0	01	1	0303-0511
92	BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ>	8-97096-654-0	01	1	0512-
93	PIN; CAB STAY OD=12 L=53	8-97218-926-0	01	1	0303-0511
93	PIN; CAB STAY MANUAL TILT CAB<RWZ> OD=12 L=53	8-97218-926-0	01	1	0512-
95	SPRING; RETURN,CAB STAY	8-94160-167-2	01	1	0303-0511
95	SPRING; RETURN,CAB STAY MANUAL TILT CAB<RWZ>	8-94160-167-2	01	1	0512-
96	PIN; JOINT OD=10 L=36	8-97096-661-0	01	1	0303-0511
96	PIN; JOINT MANUAL TILT CAB<RWZ> OD=10 L=36	8-97096-661-0	01	1	0512-
97	NUT; CAB STAY PIN (A) ID=7.9 PUSH NUT SOU	8-97022-565-0	01	1	0303-0511
97	NUT; CAB STAY PIN MANUAL TILT CAB<RWZ> (A) ID=7.9 PUSH NUT SOU	8-97022-565-0	01	1	0512-
97	NUT; CAB STAY PIN (B) ID=9.9 PUSH NUT SOU	8-97022-566-0	01	1	0303-0511
97	NUT; CAB STAY PIN MANUAL TILT CAB<RWZ> (B) ID=9.9 PUSH NUT SOU	8-97022-566-0	01	1	0512-
97	NUT; CAB STAY PIN (C) ID=11.9 PUSH NUT	8-97022-567-0	01	1	0303-0511
97	NUT; CAB STAY PIN MANUAL TILT CAB<RWZ> (C) ID=11.9 PUSH NUT	8-97022-567-0	01	1	0512-
98	WASHER; CAB STAY ID=10.5 OD=28.0	8-97184-701-0	01	1	0303-0511
98	WASHER; CAB STAY MANUAL TILT CAB<RWZ> ID=10.5 OD=28.0	8-97184-701-0	01	1	0512-
99	NUT; CAB STAY (B) M10 FLANGE SOU	0-91150-110-0	02	1	0303-0511
99	NUT; CAB STAY MANUAL TILT CAB<RWZ> (B) M10 FLANGE SOU	0-91150-110-0	02	1	0512-0602
99	NUT; CAB STAY MANUAL TILT CAB<RWZ> (B) M10 FLANGE SOU	0-91180-110-0	02	1	0603-
99	NUT; CAB STAY (A) M10	8-97185-205-1	01	1	0303-0511
99	NUT; CAB STAY MANUAL TILT CAB<RWZ> (A) M10	8-97185-205-1	01	1	0512-
103	PIN; JOINT,CAB STAY M10X40	8-97184-683-0	01	1	0303-0511
103	PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> M10X40	8-97184-683-0	01	1	0512-0805
103	PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> M10X40	8-97359-151-0	01	1	0806-
104	BOLT; CAB STAY BRKT M8X20 FLANGE	0-28690-820-0	03	1	0303-0511
104	BOLT; CAB STAY BRKT MANUAL TILT CAB<RWZ> M8X20 FLANGE	0-28690-820-0	03	1	0512-0512
104	BOLT; CAB STAY BRKT MANUAL TILT CAB<RWZ> M8X20 FLANGE	0-28660-820-0	03	1	0601-
120	WASHER; NYLON ID=10 OD=20 SOU	8-97103-223-0	01	1	0303-0511
120	WASHER; NYLON MANUAL TILT CAB<RWZ> ID=10 OD=20 SOU	8-97103-223-0	01	1	0512-
146	BRACKET ASM; CAB STAY UPR SOU	8-97076-587-1	01	1	0303-0511
146	BRACKET ASM; CAB STAY UPR MANUAL TILT CAB<RWZ> SOU	8-97076-587-1	01	1	0512-
