5-01 — FRAME AND OTHER PARTS (#44117) — 100 parça

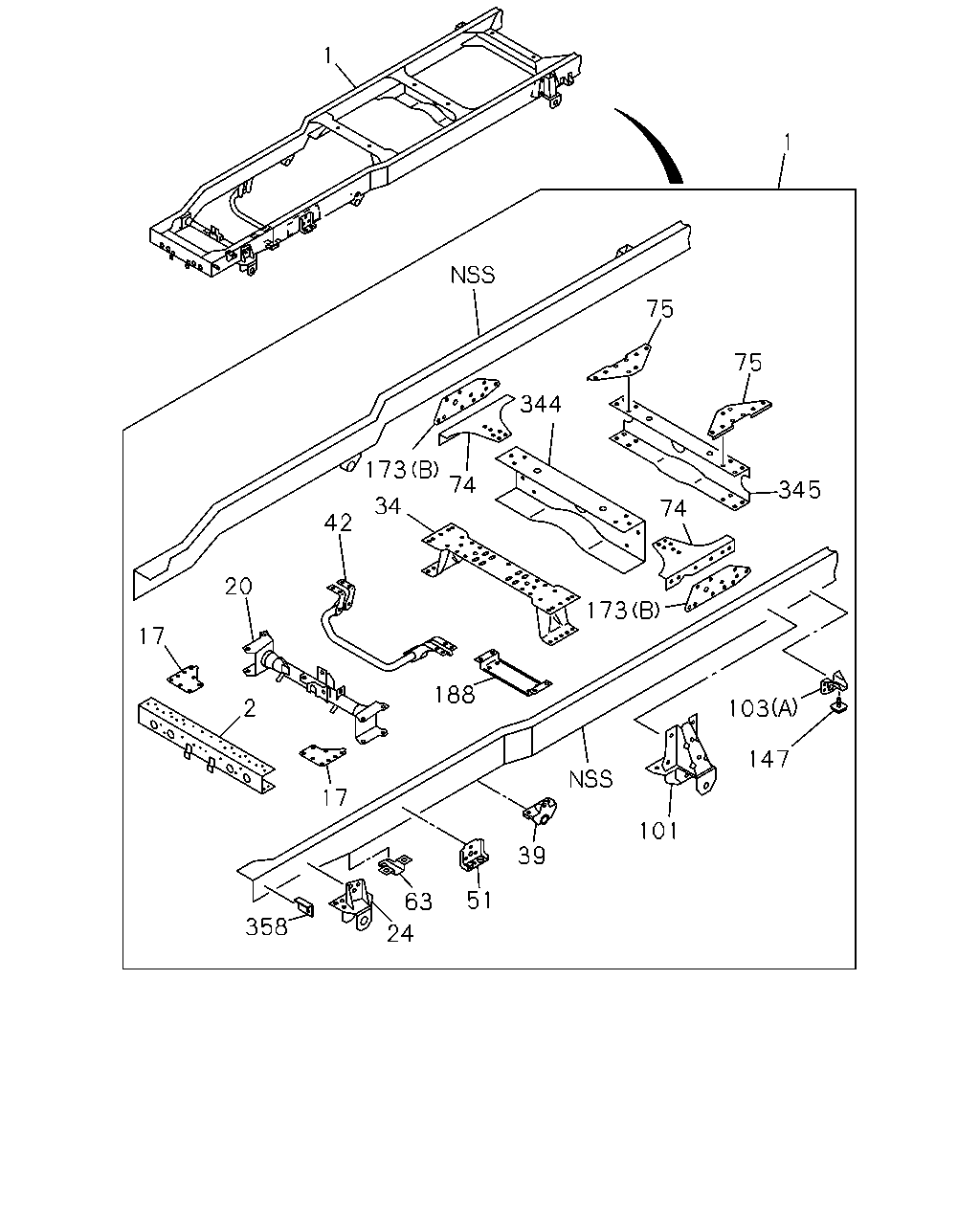

çizim 54252
1 1 75 75 345 74 344 74 173 34 42 20 17 2 17 188 173 103 147 101 39 51 63 24 358
BalonParca AdiParca NoAdetTipApplied Date
1 FRAME ASM
4JB1 ENG(RLF) SOU 		8-97307-675-1 01 1 0303-0511
1 FRAME ASM
4HF1 ENG(RLS) SOU 		8-98002-681-0 01 1 0512-
2 MEMBER; CROSS,1ST
4JB1 ENG(RLF) SOU 		8-97034-332-2 01 1 0303-0511
2 MEMBER; CROSS,1ST
4HF1 ENG(RLS) SOU 		8-97034-332-2 01 1 0512-
17 GUSSET; 1ST C/MBR
4JB1 ENG(RLF) SOU 		8-97088-205-1 02 1 0303-0511
17 GUSSET; 1ST C/MBR
4HF1 ENG(RLS) SOU 		8-97088-205-1 02 1 0512-
20 MEMBER; CROSS,2ND
4JB1 ENG(RLF) SOU 		8-97307-676-0 01 1 0303-0511
20 MEMBER; CROSS,2ND
4HF1 ENG(RLS) SOU 		8-97307-676-0 01 1 0512-
24 BRACKET; FRT SPR,FRT
4JB1 ENG(RLF) SOU 		8-94366-816-1 01 1 0303-0511
24 BRACKET; FRT SPR,FRT
4HF1 ENG(RLS) SOU 		8-94366-816-1 01 1 0512-
24 BRACKET; FRT SPR,FRT
4JB1 ENG(RLF) SOU 		8-97065-788-1 01 1 0303-0511
24 BRACKET; FRT SPR,FRT
4HF1 ENG(RLS) SOU 		8-97065-788-1 01 1 0512-
34 MEMBER; CROSS,3RD
4JB1 ENG(RLF) SOU 		8-97115-578-0 01 1 0303-0511
34 MEMBER; CROSS,3RD
4HF1 ENG(RLS) 		8-97039-671-1 01 1 0512-
39 BRACKET; FRT SPR,RR
4JB1 ENG(RLF) SOU 		8-94258-091-0 02 1 0303-0511
39 BRACKET; FRT SPR,RR
4HF1 ENG(RLS) SOU 		8-94258-091-0 02 1 0512-
42 MEMBER; CROSS,ENG MTG
4JB1 ENG(RLF) SOU 		8-94246-127-7 01 1 0303-0511
42 MEMBER; CROSS,ENG MTG
4HF1 ENG(RLS) 		8-97165-923-1 01 1 0512-
51 BRACKET; ENG SUPPORT,OUTER
4JB1 ENG(RLF) SOU 		8-94258-086-1 02 1 0303-0511
51 BRACKET; ENG SUPPORT,OUTER
4HF1 ENG(RLS) SOU 		8-94258-086-1 02 1 0512-
63 BRACKET; RAD MTG
4JB1 ENG(RLF) SOU 		8-94257-950-1 01 1 0303-0511
63 BRACKET; RAD MTG
4HF1 ENG(RLS) SOU 		8-94257-950-1 01 1 0512-
74 GUSSET; 4TH C/MBR
4JB1 ENG(RLF) RH-UPPER, LH-LOWER 		8-97101-837-1 02 1 0303-0511
74 GUSSET; 4TH C/MBR
4HF1 ENG(RLS) RH-UPPER, LH-LOWER 		8-97101-837-1 02 1 0512-
74 GUSSET; 4TH C/MBR
4JB1 ENG(RLF) RH-LOWER, LH-UPPER 		8-97101-838-1 02 1 0303-0511
74 GUSSET; 4TH C/MBR
4HF1 ENG(RLS) RH-LOWER, LH-UPPER 		8-97101-838-1 02 1 0512-
75 GUSSET; 5TH C/MBR
4JB1 ENG(RLF) RH-UPPER, LH-LOWER SOU 		8-97062-499-0 02 1 0303-0511
75 GUSSET; 5TH C/MBR
4HF1 ENG(RLS) RH-UPPER, LH-LOWER SOU 		8-97062-499-0 02 1 0512-
75 GUSSET; 5TH C/MBR
4JB1 ENG(RLF) RH-LOWER, LH-UPPER SOU 		8-97062-500-0 02 1 0303-0511
75 GUSSET; 5TH C/MBR
4HF1 ENG(RLS) RH-LOWER, LH-UPPER SOU 		8-97062-500-0 02 1 0512-
101 BRACKET; RR SPR,FRT
4JB1 ENG(RLF) SOU 		8-97034-156-1 02 1 0303-0511
101 BRACKET; RR SPR,FRT
4HF1 ENG(RLS) SOU 		8-97034-156-1 02 1 0512-
103 STOPPER; SUB SPR
4JB1 ENG(RLF) (A) SOU 		8-97223-748-0 02 1 0303-0511
103 STOPPER; SUB SPR
4HF1 ENG(RLS) (A) SOU 		8-97223-748-0 02 1 0512-
103 STOPPER; SUB SPR
4JB1 ENG(RLF) (B) SOU 		8-97223-750-0 02 1 0303-0511
103 STOPPER; SUB SPR
4HF1 ENG(RLS) (B) SOU 		8-97223-750-0 02 1 0512-
147 RUBBER; SUB SPRING
4JB1 ENG(RLF) SOU 		8-97254-387-0 04 1 0303-0511
147 RUBBER; SUB SPRING
4HF1 ENG(RLS) SOU 		8-97254-387-0 04 1 0512-
173 STIFFENER; RR SPRING
4HF1 ENG(RLS) (A) 		8-94372-324-1 02 1 0512-
173 STIFFENER; RR SPRING
4HF1 ENG(RLS) (B) 		8-97213-460-4 02 1 0512-
188 BRACKET; SUPPORT,CTR BRG
4JB1 ENG(RLF) SOU 		8-97078-869-1 01 1 0303-0511
188 BRACKET; SUPPORT,CTR BRG
4HF1 ENG(RLS) SOU 		8-97078-869-1 01 1 0512-
344 MEMBER; CROSS,4TH
4JB1 ENG(RLF) SOU 		8-97078-707-3 01 1 0303-0511
344 MEMBER; CROSS,4TH
4HF1 ENG(RLS) SOU 		8-97078-707-3 01 1 0512-
345 MEMBER; CROSS,5TH
4JB1 ENG(RLF) SOU 		8-97062-497-3 01 1 0303-0511
345 MEMBER; CROSS,5TH
4HF1 ENG(RLS) SOU 		8-97062-497-3 01 1 0512-
358 BRACKET; CAB EARTH
4JB1 ENG(RLF) SOU 		8-97065-790-3 01 1 0303-0310
358 BRACKET; CAB EARTH
4JB1 ENG(RLF) 		8-97210-488-0 01 1 0311-0511
358 BRACKET; CAB EARTH
4HF1 ENG(RLS) 		8-97210-488-0 01 1 0512-

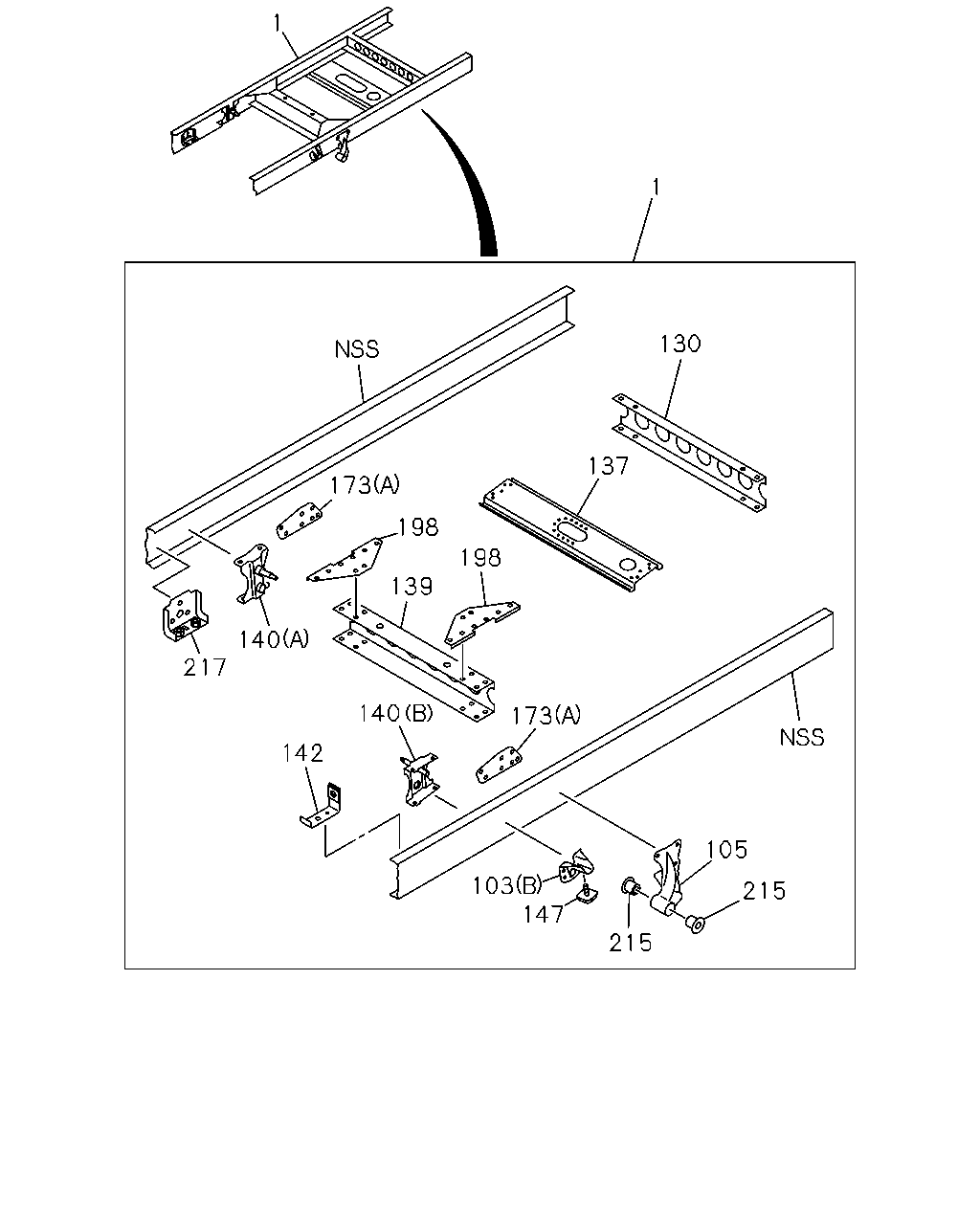

çizim 55352
1 1 130 137 198 198 173 139 140 217 142 140 173 103 147 215 215 105
BalonParca AdiParca NoAdetTipApplied Date
1 FRAME ASM
4JB1 ENG(RLF) SOU 		8-97307-675-1 01 1 0303-0511
1 FRAME ASM
4HF1 ENG(RLS) SOU 		8-98002-681-0 01 1 0512-
103 STOPPER; SUB SPR
4JB1 ENG(RLF) (A) SOU 		8-97223-748-0 02 1 0303-0511
103 STOPPER; SUB SPR
4HF1 ENG(RLS) (A) SOU 		8-97223-748-0 02 1 0512-
103 STOPPER; SUB SPR
4JB1 ENG(RLF) (B) SOU 		8-97223-750-0 02 1 0303-0511
103 STOPPER; SUB SPR
4HF1 ENG(RLS) (B) SOU 		8-97223-750-0 02 1 0512-
105 BRACKET; RR SPR,RR
4JB1 ENG(RLF) SOU 		8-94459-511-1 01 1 0303-0511
105 BRACKET; RR SPR,RR
4HF1 ENG(RLS) SOU 		8-94459-511-1 01 1 0512-
105 BRACKET; RR SPR,RR
4JB1 ENG(RLF) SOU 		8-94459-512-1 01 1 0303-0511
105 BRACKET; RR SPR,RR
4HF1 ENG(RLS) SOU 		8-94459-512-1 01 1 0512-
130 MEMBER; CROSS,END
4JB1 ENG(RLF) SOU 		8-94257-620-2 01 1 0303-0511
130 MEMBER; CROSS,END
4HF1 ENG(RLS) SOU 		8-94257-620-2 01 1 0512-
137 BRACKET; SPARE TIRE
4JB1 ENG(RLF) SOU 		8-97076-885-1 01 1 0303-0511
137 BRACKET; SPARE TIRE
4HF1 ENG(RLS) SOU 		8-97076-885-1 01 1 0512-
139 MEMBER; CROSS,6TH
4JB1 ENG(RLF) SOU 		8-97062-498-1 01 1 0303-0511
139 MEMBER; CROSS,6TH
4HF1 ENG(RLS) SOU 		8-97062-498-1 01 1 0512-
140 BRACKET; S/ABS,RR
4JB1 ENG(RLF) (A) SOU 		8-94101-303-0 01 1 0303-0511
140 BRACKET; S/ABS,RR
4HF1 ENG(RLS) (A) SOU 		8-94101-303-0 01 1 0512-
140 BRACKET; S/ABS,RR
4JB1 ENG(RLF) (B) SOU 		8-97012-285-0 01 1 0303-0511
140 BRACKET; S/ABS,RR
4HF1 ENG(RLS) (B) SOU 		8-97012-285-0 01 1 0512-
142 BRACKET; FLEX HOSE,BRAKE
4JB1 ENG(RLF) SOU 		8-97035-308-0 01 1 0303-0511
142 BRACKET; FLEX HOSE,BRAKE
4HF1 ENG(RLS) SOU 		8-97035-308-0 01 1 0512-
147 RUBBER; SUB SPRING
4JB1 ENG(RLF) SOU 		8-97254-387-0 04 1 0303-0511
147 RUBBER; SUB SPRING
4HF1 ENG(RLS) SOU 		8-97254-387-0 04 1 0512-
173 STIFFENER; RR SPRING
4HF1 ENG(RLS) (A) 		8-94372-324-1 02 1 0512-
173 STIFFENER; RR SPRING
4HF1 ENG(RLS) (B) 		8-97213-460-4 02 1 0512-
198 GUSSET; 6TH C/MBR
4JB1 ENG(RLF) RH-LOWER, LH-UPPER SOU 		8-97062-499-0 02 1 0303-0511
198 GUSSET; 6TH C/MBR
4HF1 ENG(RLS) RH-LOWER, LH-UPPER SOU 		8-97062-499-0 02 1 0512-
198 GUSSET; 6TH C/MBR
4JB1 ENG(RLF) RH-UPPER, LH-LOWER SOU 		8-97062-500-0 02 1 0303-0511
198 GUSSET; 6TH C/MBR
4HF1 ENG(RLS) RH-UPPER, LH-LOWER SOU 		8-97062-500-0 02 1 0512-
215 BUSHING; BRKT,RR SPRING
4JB1 ENG(RLF) SOU 		8-97184-699-1 04 1 0303-0511
215 BUSHING; BRKT,RR SPRING
4HF1 ENG(RLS) SOU 		8-97184-699-1 04 1 0512-
217 BRACKET; HELPER RUBBER,RR SPRING
4JB1 ENG(RLF) 		8-94258-963-0 02 1 0303-0511
217 BRACKET; HELPER RUBBER,RR SPRING
4HF1 ENG(RLS) 		8-94258-963-0 02 1 0512-
çizim 55389
376 376 376 376 376 376 376 376 376 376 376 176 118
BalonParca AdiParca NoAdetTipApplied Date
118 NUT; STOPPER
4JB1 ENG(RLF) M8 LOCK NUT 		9-09131-508-0 04 1 0303-0511
118 NUT; STOPPER
4HF1 ENG(RLS) M8 LOCK NUT 		9-09131-508-0 04 1 0512-0603
118 NUT; STOPPER
4HF1 ENG(RLS) M8 LOCK NUT SOU 		0-91370-008-0 04 1 0604-
176 BOLT; C/MBR,ENG MTG
4JB1 ENG(RLF) M10X25 FLANGE 		0-28081-025-0 08 1 0303-0511
176 BOLT; C/MBR,ENG MTG
4HF1 ENG(RLS) M10X25 FLANGE 		0-28081-025-0 08 1 0512-0512
176 BOLT; C/MBR,ENG MTG
4HF1 ENG(RLS) M10X25 FLANGE 		0-28051-025-0 08 1 0601-
376 RIVET; FRAME
(A) D8X22 TAPER END 		9-06750-822-0 AR 1 0303-
376 RIVET; FRAME
(B) D8X28 TAPER END 		9-06750-828-0 AR 1 0303-
376 RIVET; FRAME
(C) D10X24 TAPER END 		9-06751-024-0 AR 1 0303-
376 RIVET; FRAME
(D) D10X26 TAPER END 		9-06751-026-0 AR 1 0303-
376 RIVET; FRAME
(E) D10X28 TAPER END 		9-06751-028-0 AR 1 0303-
376 RIVET; FRAME
(F) D10X30 TAPER END 		9-06751-030-0 AR 1 0303-
376 RIVET; FRAME
(G) D10X32 TAPER END 		9-06751-032-0 AR 1 0303-
376 RIVET; FRAME
(H) D10X36 TAPER END 		9-06751-036-0 AR 1 0303-
376 RIVET; FRAME
(I) D12X30 TAPER END 		9-06751-230-0 AR 1 0303-
376 RIVET; FRAME
(J) D12X34 TAPER END 		9-06751-234-0 AR 1 0303-
376 RIVET; FRAME
(K) D12X38 TAPER END 		9-06751-238-0 AR 1 0303-
