Isuzu WW
▶
TRUCKS
▶
NKR
▶
50953 - NKR(SOUTH AFRICA)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-60 - REAR SUSPENSION
▶

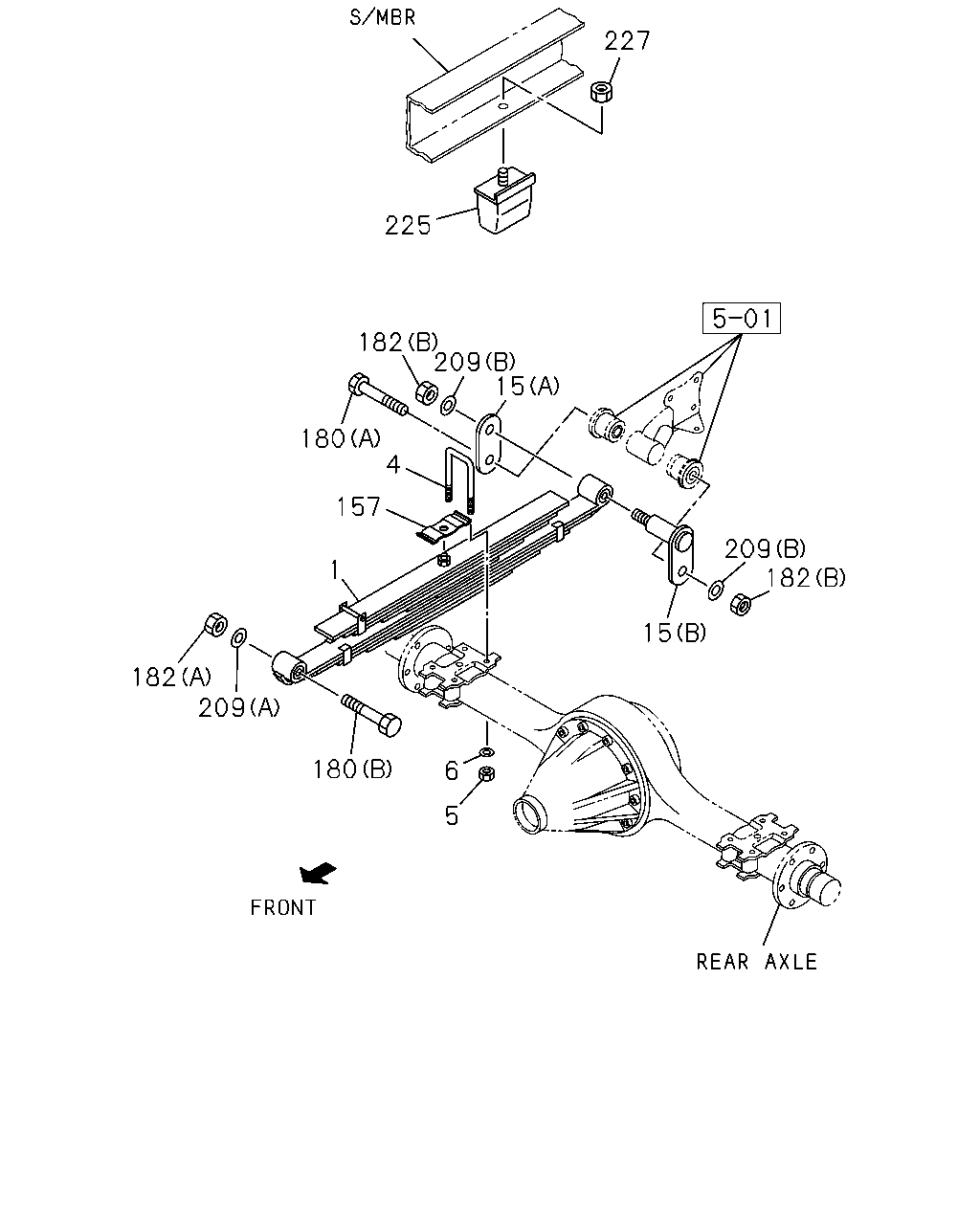

4-60 — REAR SUSPENSION
(#44113) — 31 parça
227
225
182
209
15
180
4
157
209
182
1
15
182
209
180
6
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 10-LEAF
8-97073-224-1
02
1
0303-
4
U-BOLT; RR SPR
L=265
8-94127-923-2
04
1
0303-
5
NUT; U-BOLT,RR SPR
M16
8-94107-767-0
08
1
0303-0611
5
NUT; U-BOLT,RR SPR
M16
8-97360-121-0
08
1
0612-
6
WASHER; PL,U-BOLT
ID=16.4
8-94137-482-1
08
1
0303-0610
6
WASHER; PL,U-BOLT
8-97360-118-0
08
1
0611-
15
SHACKLE; RR SPR
(A)
8-94118-511-3
02
1
0303-
15
SHACKLE; RR SPR
(B)
8-94118-512-4
02
1
0303-0611
15
SHACKLE; RR SPR
(B)
8-97360-011-0
02
1
0612-
157
CLAMP; UPR,RR SPR
L=130 T=4.5
8-94119-069-2
02
1
0303-
180
PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130
8-97033-967-0
02
1
0303-0611
180
PIN; RR SPR
KD PREPARATORY PACK<6HF> (A)
8-98011-487-0
02
1
0612-
180
PIN; RR SPR
KD PREPARATORY PACK<6HF> (A) M16X122
9-51361-602-2
02
1
0303-0611
180
PIN; RR SPR
KD PREPARATORY PACK<6HF> (B)
8-98011-488-0
02
1
0612-
180
PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE
8-97076-848-0
02
1
0303-0610
180
PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE
8-97360-110-0
02
1
0611-
180
PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE
8-97076-850-2
02
1
0303-0610
180
PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B)
8-97360-112-0
02
1
0611-
182
NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> (B) M16
9-99110-516-0
04
1
0303-0512
182
NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> (B) M16 SOU
0-91110-516-0
04
1
0601-
182
NUT; PIN,RR SPR
(A) M18
9-99110-518-0
02
1
0303-0512
182
NUT; PIN,RR SPR
(A) M18
0-91110-518-0
02
1
0601-
182
NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M16 FLANGE
8-97147-389-0
04
1
0303-0610
182
NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M16 FLANGE
8-97360-125-0
04
1
0611-
209
WASHER; PL
KD PREPARATORY PACK<6HF> (B) ID=16.5 SOU
8-97070-925-1
04
1
0303-0611
209
WASHER; PL
KD PREPARATORY PACK<6HF> (B)
8-98011-489-0
04
1
0612-
209
WASHER; PL
(A) ID=19 SOU
8-97073-435-1
02
1
0303-0611
209
WASHER; PL
(A)
8-97360-119-0
02
1
0612-
225
RUBBER; CUSHION,RR SPR
8-94118-510-5
02
1
0303-
227
NUT; CUSHION RUBBER
M12 FLANGE
0-91150-112-0
02
1
0303-0602
227
NUT; CUSHION RUBBER
M12 FLANGE
0-91180-112-0
02
1
0603-
