2-20A — MANUAL TRANSMISSION ASM AND CASE (#4411) — 196 parça

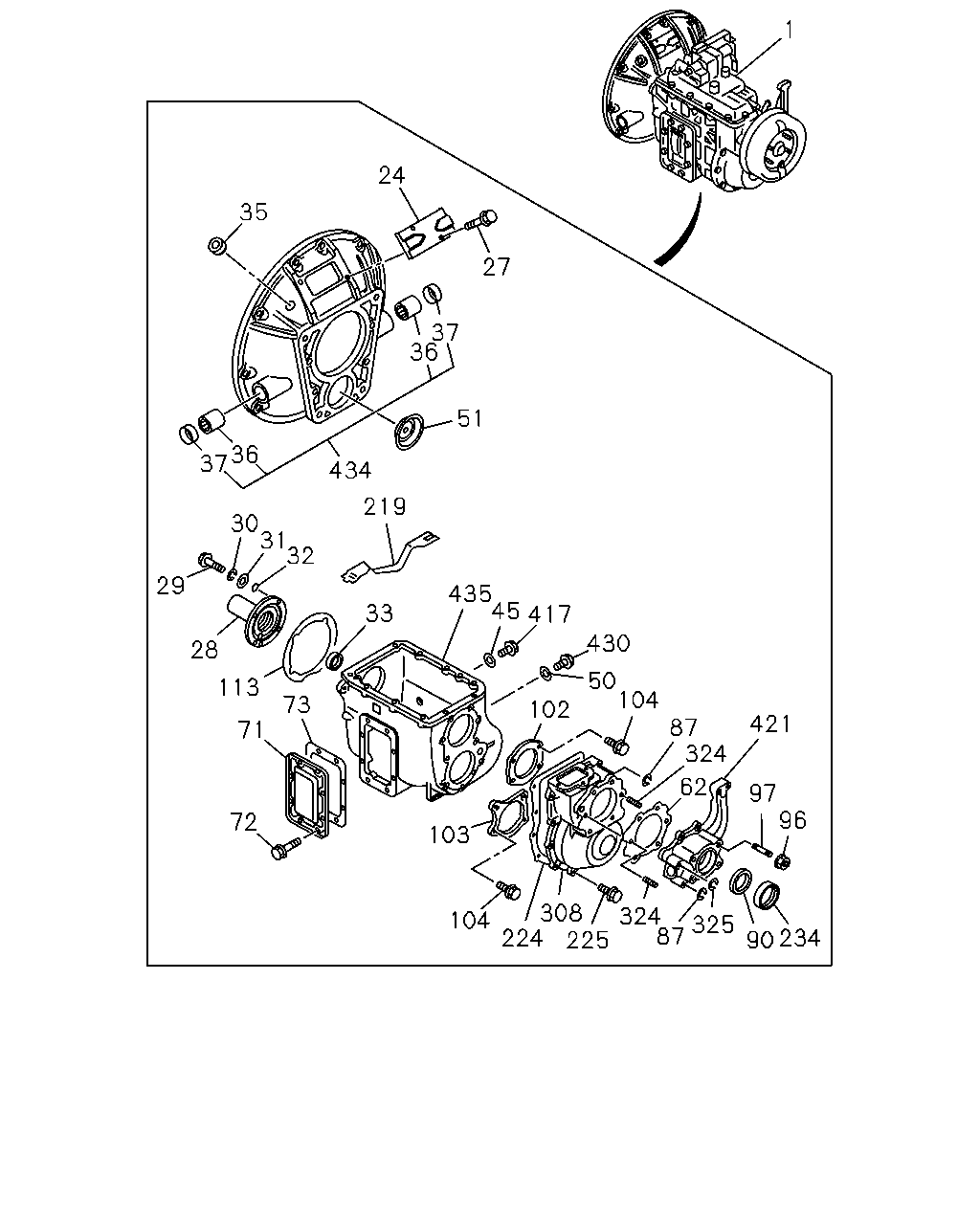

1 24 35 27 37 36 51 36 37 434 219 30 31 32 29 435 45 417 430 33 28 62 50 421 90 234 113 71 73 72 97 86 87 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z)	1-33015-435-0	01	1	9101-9504	●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CLU SYSTEM MINIPACK(B1Z) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>	1-33015-411-0	01	1	9101-9504	●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z)	1-33015-423-0	01	1	9101-9504	●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CLU SYSTEM MINIPACK(B1Z)	1-33015-479-0	01	1	9101-9504	●
1	TRANSMISSION ASM; MANUAL EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-33016-439-0	01	1	9101-9504	●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z)	1-33015-515-0	01	1	9101-9504		●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CLU SYSTEM MINIPACK(B1Z) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>	1-33015-491-0	01	1	9101-9504		●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z)	1-33015-505-0	01	1	9101-9504		●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CLU SYSTEM MINIPACK(B1Z)	1-33015-527-0	01	1	9101-9504		●
1	TRANSMISSION ASM; MANUAL EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-33016-463-0	01	1	9101-9504		●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z)	1-33030-445-0	01	1	9101-9504			●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CLU SYSTEM MINIPACK(B1Z) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>	1-33030-421-0	01	1	9101-9504			●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z)	1-33030-437-0	01	1	9101-9504			●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CLU SYSTEM MINIPACK(B1Z)	1-33030-457-0	01	1	9101-9504			●
1	TRANSMISSION ASM; MANUAL CLU SYSTEM MINIPACK(B1Z) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-33030-469-0	01	1	9101-9504			●
1	TRANSMISSION ASM; MANUAL EXC. CLU SYSTEM MINIPACK(B1Z),BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVYDUTY VAR4<C3B>	1-33030-481-0	01	1	9101-9504			●
1	TRANSMISSION ASM; MANUAL	1-33035-440-0	01	1	9107-9504				●
24	COVER; CHECK HOLE,DUST	1-31131-027-0	01	1	9101-9201	●	●	●	●
24	COVER; CHECK HOLE,DUST	1-31131-027-0	01	1	9202-9304	●	●	●	●
24	COVER; CHECK HOLE,DUST	1-31131-027-0	01	1	9305-9504	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	9-01900-816-0	02	1	9101-9201	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	9-01900-816-0	02	1	9202-9204	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9205	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9206-9304	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9305-9504	●	●	●	●
28	COVER; FRT,TRANS CASE	1-33121-036-3	01	1	9101-9312	●	●	●	●
28	COVER; FRT,TRANS CASE	1-33121-079-0	01	1	9401-9504	●	●	●	●
29	BOLT; FRT COVER M10X32	1-09020-120-1	04	1	9101-9201	●	●	●	●
29	BOLT; FRT COVER M10X32	1-09020-120-1	04	1	9202-9205	●	●	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-0	04	1	9206-9304	●	●	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-0	04	1	9305-9504	●	●	●	●
30	WASHER; LK,FRT COVER ID=10.2	9-09150-510-0	04	1	9101-9201	●	●	●	●
30	WASHER; LK,FRT COVER ID=10.2	9-09150-510-0	04	1	9202-9205	●	●	●	●
31	WASHER; PL,FRT COVER BOLT ID=10.5	9-09164-510-0	04	1	9101-9201	●	●	●	●
31	WASHER; PL,FRT COVER BOLT ID=10.5	9-09164-510-0	04	1	9202-9205	●	●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9101-9201	●	●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9202-9304	●	●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9305-9504	●	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-502-0	01	1	9101-9306	●	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-565-0	01	1	9307-9504	●	●	●	●
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	9101-9201	●	●	●	●
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	9202-9304	●	●	●	●
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	9305-9504	●	●	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9101-9201	●	●	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9202-9304	●	●	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9305-9504	●	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9101-9201	●	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9202-9304	●	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9305-9504	●	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=24.5 OD=32.5	9-09920-392-0	01	1	9101-9201	●	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=24.5 OD=32.5	9-09920-392-0	01	1	9202-9304	●	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=24.5 OD=32.5	9-09920-392-0	01	1	9305-9405	●	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9406-9504	●	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9101-9201	●	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9202-9304	●	●	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-056-0	01	1	9101-9504	●	●	●	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-027-2	01	1	9101-9504	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-025-2	01	1	9101-9504		●	●	●
71	COVER; SIDE,TRANS CASE	1-33141-028-0	01	1	9101-9504	●	●	●	●
72	BOLT; SIDE COVER M10X20 W/LK WASHER	9-01921-020-0	08	1	9101-9201	●	●	●	●
72	BOLT; SIDE COVER M10X20 W/LK WASHER	9-01921-020-0	08	1	9202-9204	●	●	●	●
72	BOLT; SIDE COVER M10X20 W/LK WASHER	0-50051-020-0	08	1	9205-9205	●	●	●	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	9206-9304	●	●	●	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	9305-9504	●	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-036-0	01	1	9101-9201	●	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-036-0	01	1	9202-9304	●	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-036-0	01	1	9305-9504	●	●	●	●
86	BOLT; RR COVER (A) M10X60	9-01656-060-0	02	1	9101-9205	●
86	BOLT; RR COVER (B) M10X25	1-09044-080-0	07	1	9206-9504	●
86	BOLT; RR COVER (B) M10X30	9-01931-030-0	07	1	9101-9205	●
86	BOLT; RR COVER (A) M10X55	1-09044-083-0	02	1	9206-9504	●
87	WASHER; LK,RR COVER ID=10.2	9-09150-510-0	02	1	9101-9205	●
87	WASHER; LK,RR COVER ID=10.2	9-09150-510-0	06	1	9101-9205		●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-505-0	01	1	9101-9504	●	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). KOYO	1-09625-522-0	01	1	9101-9504	●	●	●	●
97	STUD; PARKING BRK M14X22.5 L=42.5	1-09302-138-1	01	1	9101-9504	●	●	●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33122-008-0	01	1	9101-9312	●	●	●	●
219	PLATE; TRANS CASE & QUAD BOX	1-33119-073-1	01	1	9101-9504	●	●	●	●
234	COVER; OIL SEAL	1-33139-001-1	01	1	9101-9504	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-021-0	01	1	9101-9201	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-021-0	01	1	9202-9304	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-021-0	01	1	9305-9405	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	9406-9504	●	●	●	●
421	COVER; RR,TRANS BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-33131-058-5	01	1	9101-9504	●
421	COVER; RR,TRANS BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-33131-063-4	01	1	9101-9504	●
421	COVER; RR,TRANS BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-33131-059-2	01	1	9101-9504		●	●
421	COVER; RR,TRANS BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-33131-084-2	01	1	9101-9504		●	●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9101-9201	●	●	●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9202-9304	●	●	●	●
434	HOUSING; CLU	1-31110-085-2	01	1	9101-9504	●	●	●	●
435	CASE; TRANS	1-33111-157-3	01	1	9101-9504	●
435	CASE; TRANS	1-33111-158-4	01	1	9101-9504		●	●	●

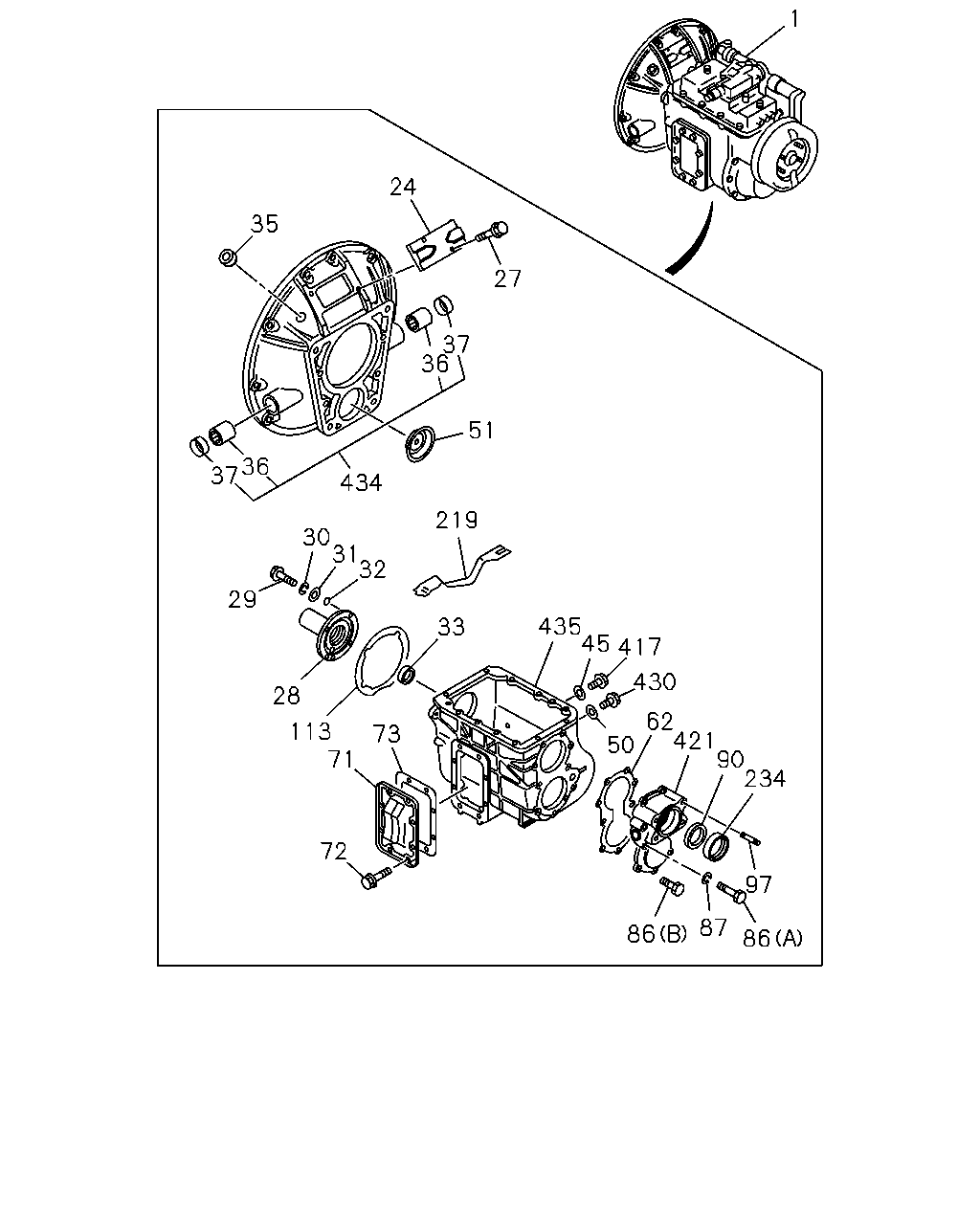

1 24 35 27 37 36 51 36 37 434 219 30 31 32 29 435 45 417 430 33 28 102 50 104 87 324 62 113 73 421 71 97 96 72 103 308 104 324 325 87 90 234 224 225

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z)	1-33015-435-0	01	1	9101-9504	●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CLU SYSTEM MINIPACK(B1Z) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>	1-33015-411-0	01	1	9101-9504	●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z)	1-33015-423-0	01	1	9101-9504	●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CLU SYSTEM MINIPACK(B1Z)	1-33015-479-0	01	1	9101-9504	●
1	TRANSMISSION ASM; MANUAL EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-33016-439-0	01	1	9101-9504	●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z)	1-33015-515-0	01	1	9101-9504		●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CLU SYSTEM MINIPACK(B1Z) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>	1-33015-491-0	01	1	9101-9504		●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z)	1-33015-505-0	01	1	9101-9504		●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CLU SYSTEM MINIPACK(B1Z)	1-33015-527-0	01	1	9101-9504		●
1	TRANSMISSION ASM; MANUAL EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-33016-463-0	01	1	9101-9504		●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> EXC. CLU SYSTEM MINIPACK(B1Z)	1-33030-445-0	01	1	9101-9504			●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CLU SYSTEM MINIPACK(B1Z) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>	1-33030-421-0	01	1	9101-9504			●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z)	1-33030-437-0	01	1	9101-9504			●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CLU SYSTEM MINIPACK(B1Z)	1-33030-457-0	01	1	9101-9504			●
1	TRANSMISSION ASM; MANUAL CLU SYSTEM MINIPACK(B1Z) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-33030-469-0	01	1	9101-9504			●
1	TRANSMISSION ASM; MANUAL EXC. CLU SYSTEM MINIPACK(B1Z),BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVYDUTY VAR4<C3B>	1-33030-481-0	01	1	9101-9504			●
1	TRANSMISSION ASM; MANUAL	1-33035-440-0	01	1	9107-9504				●
24	COVER; CHECK HOLE,DUST	1-31131-027-0	01	1	9101-9201	●	●	●	●
24	COVER; CHECK HOLE,DUST	1-31131-027-0	01	1	9202-9304	●	●	●	●
24	COVER; CHECK HOLE,DUST	1-31131-027-0	01	1	9305-9504	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	9-01900-816-0	02	1	9101-9201	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	9-01900-816-0	02	1	9202-9204	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9205	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9206-9304	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9305-9504	●	●	●	●
28	COVER; FRT,TRANS CASE	1-33121-036-3	01	1	9101-9312	●	●	●	●
28	COVER; FRT,TRANS CASE	1-33121-079-0	01	1	9401-9504	●	●	●	●
29	BOLT; FRT COVER M10X32	1-09020-120-1	04	1	9101-9201	●	●	●	●
29	BOLT; FRT COVER M10X32	1-09020-120-1	04	1	9202-9205	●	●	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-0	04	1	9206-9304	●	●	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-0	04	1	9305-9504	●	●	●	●
30	WASHER; LK,FRT COVER ID=10.2	9-09150-510-0	04	1	9101-9201	●	●	●	●
30	WASHER; LK,FRT COVER ID=10.2	9-09150-510-0	04	1	9202-9205	●	●	●	●
31	WASHER; PL,FRT COVER BOLT ID=10.5	9-09164-510-0	04	1	9101-9201	●	●	●	●
31	WASHER; PL,FRT COVER BOLT ID=10.5	9-09164-510-0	04	1	9202-9205	●	●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9101-9201	●	●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9202-9304	●	●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9305-9504	●	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-502-0	01	1	9101-9306	●	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-565-0	01	1	9307-9504	●	●	●	●
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	9101-9201	●	●	●	●
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	9202-9304	●	●	●	●
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	9305-9504	●	●	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9101-9201	●	●	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9202-9304	●	●	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9305-9504	●	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9101-9201	●	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9202-9304	●	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9305-9504	●	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=24.5 OD=32.5	9-09920-392-0	01	1	9101-9201	●	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=24.5 OD=32.5	9-09920-392-0	01	1	9202-9304	●	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=24.5 OD=32.5	9-09920-392-0	01	1	9305-9405	●	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9406-9504	●	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9101-9201	●	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9202-9304	●	●	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-056-0	01	1	9101-9504	●	●	●	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-027-2	01	1	9101-9504	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-025-2	01	1	9101-9504		●	●	●
71	COVER; SIDE,TRANS CASE	1-33141-028-0	01	1	9101-9504	●	●	●	●
72	BOLT; SIDE COVER M10X20 W/LK WASHER	9-01921-020-0	08	1	9101-9201	●	●	●	●
72	BOLT; SIDE COVER M10X20 W/LK WASHER	9-01921-020-0	08	1	9202-9204	●	●	●	●
72	BOLT; SIDE COVER M10X20 W/LK WASHER	0-50051-020-0	08	1	9205-9205	●	●	●	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	9206-9304	●	●	●	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	9305-9504	●	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-036-0	01	1	9101-9201	●	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-036-0	01	1	9202-9304	●	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-036-0	01	1	9305-9504	●	●	●	●
87	WASHER; LK,RR COVER ID=10.2	9-09150-510-0	02	1	9101-9205	●
87	WASHER; LK,RR COVER ID=10.2	9-09150-510-0	06	1	9101-9205		●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-505-0	01	1	9101-9504	●	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). KOYO	1-09625-522-0	01	1	9101-9504	●	●	●	●
96	NUT; RR COVER M10	9-09110-410-0	06	1	9101-9205		●	●	●
96	NUT; RR COVER M10 FLANGE	0-91150-210-0	06	1	9206-9504		●	●	●
97	STUD; PARKING BRK M14X22.5 L=42.5	1-09302-138-1	01	1	9101-9504	●	●	●
102	RETAINER; BRG UPR,MAINSHAFT	1-33151-005-0	01	1	9101-9504		●	●	●
103	RETAINER; BRG	1-33151-029-0	01	1	9101-9504		●	●	●
104	BOLT; BRG RET M10X30 W/LK WASHER	0-50051-030-0	04	1	9101-9205		●	●	●
104	BOLT; BRG RET M10X25	1-09049-006-1	04	1	9101-9205		●	●	●
104	BOLT; BRG RET M10X25	1-09049-006-1	08	1	9206-9504		●	●	●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33122-008-0	01	1	9101-9312	●	●	●	●
219	PLATE; TRANS CASE & QUAD BOX	1-33119-073-1	01	1	9101-9504	●	●	●	●
224	GASKET; CASE,OVERDRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T).	1-33112-014-1	01	1	9101-9504		●	●	●
225	BOLT; CASE,OVERDRIVE GEAR M10X50	1-09020-144-0	02	1	9101-9205		●	●	●
225	BOLT; CASE,OVERDRIVE GEAR M12X16	1-09044-082-0	02	1	9206-9504		●	●	●
225	BOLT; CASE,OVERDRIVE GEAR M10X30	9-01931-030-0	08	1	9101-9205		●	●	●
225	BOLT; CASE,OVERDRIVE GEAR M10X25	1-09044-080-0	08	1	9206-9504		●	●	●
234	COVER; OIL SEAL	1-33139-001-1	01	1	9101-9504	●	●	●
308	CASE; OVERDRIVE GEAR	1-33115-044-0	01	1	9101-9504		●	●	●
324	STUD; RR COVER M10X16.5 L=41	9-09831-154-0	04	1	9101-9504		●	●	●
324	STUD; RR COVER M10X16.5 L=68	9-09831-156-0	02	1	9101-9504		●	●	●
325	WASHER; LK,RR COVER ID=10.2	9-09150-510-0	02	1	9101-9205		●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-021-0	01	1	9101-9201	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-021-0	01	1	9202-9304	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-021-0	01	1	9305-9405	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	9406-9504	●	●	●	●
421	COVER; RR,TRANS BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-33131-058-5	01	1	9101-9504	●
421	COVER; RR,TRANS BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-33131-063-4	01	1	9101-9504	●
421	COVER; RR,TRANS BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-33131-059-2	01	1	9101-9504		●	●
421	COVER; RR,TRANS BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-33131-084-2	01	1	9101-9504		●	●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9101-9201	●	●	●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9202-9304	●	●	●	●
434	HOUSING; CLU	1-31110-085-2	01	1	9101-9504	●	●	●	●
435	CASE; TRANS	1-33111-157-3	01	1	9101-9504	●
435	CASE; TRANS	1-33111-158-4	01	1	9101-9504		●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
