4-36 — POWER STEERING CONTROL; ENGINE SIDE (#44108) — 35 parça

42 7 1 29 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JB1 ENG(RLF) POWER STEERING<N40>	8-97354-730-0	01	1	0303-0511
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4HF1 ENG(RLS) POWER STEERING<N40>	8-97388-650-1	01	1	0512-
7	BOLT; OIL PUMP,P/S 4HF1 ENG(RLS) POWER STEERING<N40> M10X28 FLANGE	0-28181-028-0	02	1	0512-0805
7	BOLT; OIL PUMP,P/S 4HF1 ENG(RLS) POWER STEERING<N40> M10X28 FLANGE	8-98044-944-0	02	1	0806-
29	BOLT; BRKT,POWER STRG 4JB1 ENG(RLF) POWER STEERING<N40> (D) M8X100 FLANGE	0-28080-800-0	01	1	0303-0511
29	BOLT; BRKT,POWER STRG 4HF1 ENG(RLS) POWER STEERING<N40> (F) M14X20 FLANGE	0-28881-420-0	01	1	0512-0512
29	BOLT; BRKT,POWER STRG 4HF1 ENG(RLS) POWER STEERING<N40> (F) M14X20 FLANGE	0-28851-420-0	01	1	0601-
29	BOLT; BRKT,POWER STRG 4JB1 ENG(RLF) POWER STEERING<N40> (A) M8X16 FLANGE	0-28080-816-0	03	1	0303-0511
29	BOLT; BRKT,POWER STRG 4JB1 ENG(RLF) POWER STEERING<N40> (E) M8X60 FLANGE	0-28080-860-0	01	1	0303-0511
29	BOLT; BRKT,POWER STRG 4JB1 ENG(RLF) POWER STEERING<N40> (C) M10X100 FLANGE	0-28081-000-0	01	1	0303-0511
29	BOLT; BRKT,POWER STRG 4JB1 ENG(RLF) POWER STEERING<N40> (B) M10X20 FLANGE	0-28681-020-0	05	1	0303-0511
36	BRACKET; PLATE,P/S PUMP 4HF1 ENG(RLS) POWER STEERING<N40>	8-97112-866-0	01	1	0512-
42	NUT; ADJ PLATE 4JB1 ENG(RLF) POWER STEERING<N40> M10 FLANGE SOU	0-91150-110-0	01	1	0303-0511
42	NUT; ADJ PLATE 4HF1 ENG(RLS) POWER STEERING<N40> M8 FLANGE SOU	0-91150-108-0	02	1	0512-0602
42	NUT; ADJ PLATE 4HF1 ENG(RLS) POWER STEERING<N40> M8 FLANGE SOU	0-91180-108-0	02	1	0603-

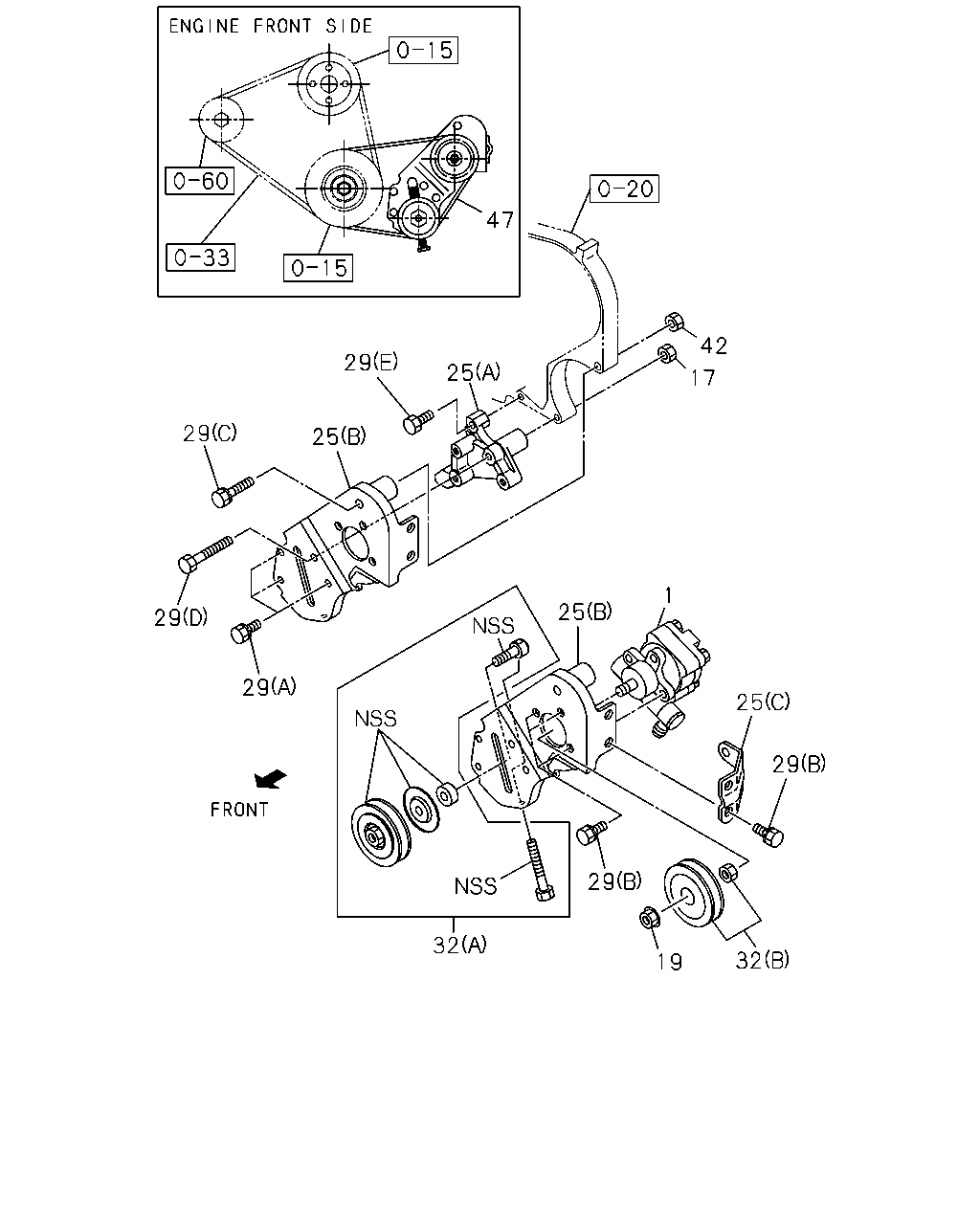

47 42 29 25 17 29 25 1 25 29 29 25 29 29 32 32 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JB1 ENG(RLF) POWER STEERING<N40>	8-97354-730-0	01	1	0303-0511
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4HF1 ENG(RLS) POWER STEERING<N40>	8-97388-650-1	01	1	0512-
17	NUT; POWER STRG PUMP 4JB1 ENG(RLF) POWER STEERING<N40> M8 FLANGE SOU	0-91150-108-0	01	1	0303-0511
19	NUT; PULLEY,OIL PUMP 4JB1 ENG(RLF) POWER STEERING<N40> M12	8-94139-015-0	01	1	0303-0511
25	BRACKET; P/S PUMP 4JB1 ENG(RLF) POWER STEERING<N40> (B)	8-97065-974-0	01	1	0303-0511
25	BRACKET; P/S PUMP 4JB1 ENG(RLF) POWER STEERING<N40> (A)	8-97107-869-0	01	1	0303-0511
25	BRACKET; P/S PUMP 4JB1 ENG(RLF) POWER STEERING<N40> (C)	8-97107-872-0	01	1	0303-0511
29	BOLT; BRKT,POWER STRG 4JB1 ENG(RLF) POWER STEERING<N40> (D) M8X100 FLANGE	0-28080-800-0	01	1	0303-0511
29	BOLT; BRKT,POWER STRG 4HF1 ENG(RLS) POWER STEERING<N40> (F) M14X20 FLANGE	0-28881-420-0	01	1	0512-0512
29	BOLT; BRKT,POWER STRG 4HF1 ENG(RLS) POWER STEERING<N40> (F) M14X20 FLANGE	0-28851-420-0	01	1	0601-
29	BOLT; BRKT,POWER STRG 4JB1 ENG(RLF) POWER STEERING<N40> (A) M8X16 FLANGE	0-28080-816-0	03	1	0303-0511
29	BOLT; BRKT,POWER STRG 4JB1 ENG(RLF) POWER STEERING<N40> (E) M8X60 FLANGE	0-28080-860-0	01	1	0303-0511
29	BOLT; BRKT,POWER STRG 4JB1 ENG(RLF) POWER STEERING<N40> (C) M10X100 FLANGE	0-28081-000-0	01	1	0303-0511
29	BOLT; BRKT,POWER STRG 4JB1 ENG(RLF) POWER STEERING<N40> (B) M10X20 FLANGE	0-28681-020-0	05	1	0303-0511
32	PULLEY; IDLER,P/S 4JB1 ENG(RLF) POWER STEERING<N40> (A)	8-94128-866-0	01	1	0303-0511
32	PULLEY; IDLER,P/S 4JB1 ENG(RLF) POWER STEERING<N40> (B)	8-97084-332-2	01	1	0303-0511
42	NUT; ADJ PLATE 4JB1 ENG(RLF) POWER STEERING<N40> M10 FLANGE SOU	0-91150-110-0	01	1	0303-0511
42	NUT; ADJ PLATE 4HF1 ENG(RLS) POWER STEERING<N40> M8 FLANGE SOU	0-91150-108-0	02	1	0512-0602
42	NUT; ADJ PLATE 4HF1 ENG(RLS) POWER STEERING<N40> M8 FLANGE SOU	0-91180-108-0	02	1	0603-
47	BELT; P/S PUMP 4JB1 ENG(RLF) POWER STEERING<N40>	8-97085-131-0	01	1	0303-0511
