Sayfa 4-35 - Isuzu EPC

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#44107) — 160 parça

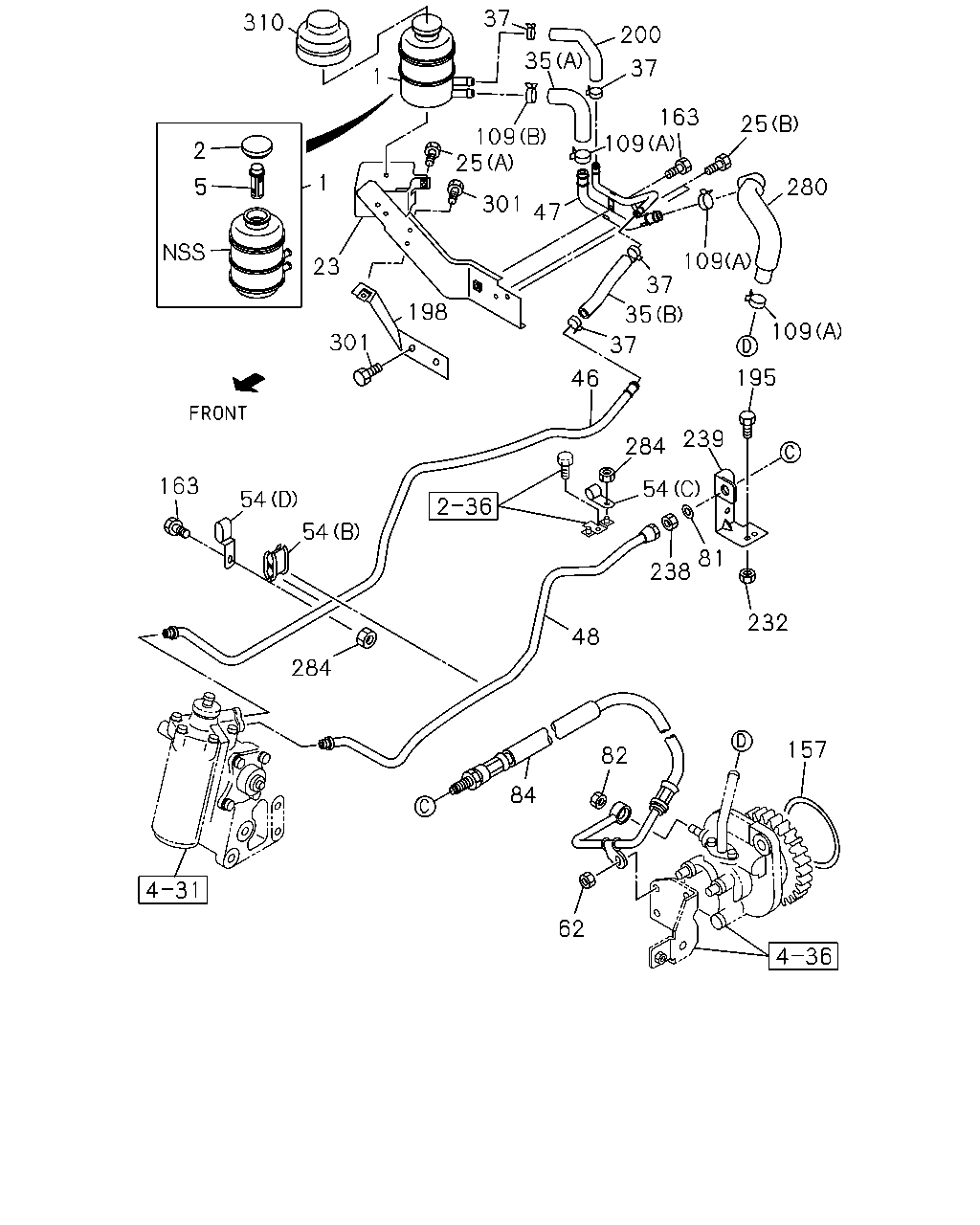

37 310 200 35 37 1 163 109 25 109 25 2 1 5 280 301 47 109 23 37 198 35 109 301 37 195 46 239 284 163 54 54 54 81 238 232 48 284 157 82 84 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S POWER STEERING<N40>	8-97107-987-0	01	1	0303-
2	CAP; OIL TANK,P/S POWER STEERING<N40>	8-94146-153-2	01	1	0303-
5	STRAINER; OIL TANK,P/S POWER STEERING<N40>	8-97094-732-0	01	1	0303-
23	BRACKET; OIL TANK,P/S 4JB1 ENG(RLF) POWER STEERING<N40>	8-97066-500-3	01	1	0303-0511
23	BRACKET; OIL TANK,P/S 4HF1 ENG(RLS) POWER STEERING<N40>	8-97101-040-1	01	1	0512-
25	BOLT; OIL TANK BRKT POWER STEERING<N40> (A) M6X20 FLANGE	0-28480-620-0	01	1	0303-0512
25	BOLT; OIL TANK BRKT POWER STEERING<N40> (A) M6X20 FLANGE	0-28450-620-0	01	1	0601-
25	BOLT; OIL TANK BRKT 4JB1 ENG(RLF) POWER STEERING<N40> (B) M8X25 FLANGE	0-28680-825-0	01	1	0303-0511
25	BOLT; OIL TANK BRKT 4HF1 ENG(RLS) POWER STEERING<N40> (B) M8X25 FLANGE	0-28680-825-0	02	1	0512-0512
25	BOLT; OIL TANK BRKT 4HF1 ENG(RLS) POWER STEERING<N40> (B) M8X25 FLANGE SOU	0-28650-825-0	02	1	0601-
35	HOSE; RETURN,P/S TANK 4HF1 ENG(RLS) POWER STEERING<N40> (A)	8-97080-108-1	01	1	0512-
35	HOSE; RETURN,P/S TANK 4JB1 ENG(RLF) POWER STEERING<N40> (C)	8-97081-444-3	01	1	0303-0511
35	HOSE; RETURN,P/S TANK 4HF1 ENG(RLS) POWER STEERING<N40> (B) L=150	0-09809-150-0	01	1	0512-0711
35	HOSE; RETURN,P/S TANK 4HF1 ENG(RLS) POWER STEERING<N40> (B) L=135	8-98103-321-0	01	1	0712-
37	CLIP; HOSE,P/S POWER STEERING<N40> ID=16 SOU	8-94238-568-0	02	1	0303-0511
37	CLIP; HOSE,P/S 4HF1 ENG(RLS) POWER STEERING<N40> ID=16 SOU	8-94238-568-0	02	1	0512-
37	CLIP; HOSE,P/S POWER STEERING<N40> ID=16 SOU	8-94238-568-0	02	1	0512-
46	PIPE; OIL,P/S UNIT TO OIL TANK 4JB1 ENG(RLF) POWER STEERING<N40>	8-97262-186-0	01	1	0303-0303
46	PIPE; OIL,P/S UNIT TO OIL TANK 4JB1 ENG(RLF) POWER STEERING<N40>	8-97364-358-0	01	1	0303-0511
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HF1 ENG(RLS) POWER STEERING<N40>	8-97364-360-0	01	1	0512-
47	PIPE; RETURN 4HF1 ENG(RLS) POWER STEERING<N40>	8-97046-041-1	01	1	0512-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 4JB1 ENG(RLF) POWER STEERING<N40>	8-97261-623-0	01	1	0303-0303
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 4JB1 ENG(RLF) POWER STEERING<N40>	8-97364-352-0	01	1	0303-0511
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 4HF1 ENG(RLS) POWER STEERING<N40>	8-97364-353-0	01	1	0512-
54	CLIP; OIL PIPE 4HF1 ENG(RLS) POWER STEERING<N40> (D) H=15 ID=14	1-09700-744-0	01	1	0512-
54	CLIP; OIL PIPE 4HF1 ENG(RLS) POWER STEERING<N40> (B) ID=10X2 H=22	8-94252-455-2	01	1	0512-
54	CLIP; OIL PIPE 4JB1 ENG(RLF) POWER STEERING<N40> (A) ID=11 L=40	8-94259-342-0	01	1	0303-0511
54	CLIP; OIL PIPE 4HF1 ENG(RLS) POWER STEERING<N40> (C) ID=11 L=20	9-09525-035-0	01	1	0512-0606
54	CLIP; OIL PIPE 4HF1 ENG(RLS) POWER STEERING<N40> (C) ID=11 L=20	0-95235-035-0	01	1	0607-
62	NUT; CLIP FIX 4HF1 ENG(RLS) POWER STEERING<N40> M8 FLANGE SOU	0-91150-108-0	01	1	0512-0602
62	NUT; CLIP FIX 4HF1 ENG(RLS) POWER STEERING<N40> M8 FLANGE SOU	0-91180-108-0	01	1	0603-
81	WASHER; LK,FLEX HOSE 4JB1 ENG(RLF) POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0303-0511
81	WASHER; LK,FLEX HOSE 4JB1 ENG(RLF) POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0303-0511
81	WASHER; LK,FLEX HOSE POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0512-0603
81	WASHER; LK,FLEX HOSE POWER STEERING<N40> ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0604-
82	NUT; FLEX HOSE,P/S 4JB1 ENG(RLF) POWER STEERING<N40> M16	8-94370-339-0	01	1	0303-0511
82	NUT; FLEX HOSE,P/S 4HF1 ENG(RLS) POWER STEERING<N40> M12 SELF LOCK	8-97028-390-1	01	1	0512-
84	HOSE; FLEX,P/S 4JB1 ENG(RLF) POWER STEERING<N40>	8-97358-326-0	01	1	0303-0511
84	HOSE; FLEX,P/S 4HF1 ENG(RLS) POWER STEERING<N40>	8-97358-331-2	01	1	0512-
109	CLIP; RUBBER HOSE 4HF1 ENG(RLS) POWER STEERING<N40> (A) ID=21	8-94242-034-0	02	1	0512-
109	CLIP; RUBBER HOSE POWER STEERING<N40> (A) ID=21	8-94242-034-0	01	1	0303-
109	CLIP; RUBBER HOSE POWER STEERING<N40> (B) ID=22 SOU	8-94382-401-0	01	1	0303-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 4HF1 ENG(RLS) POWER STEERING<N40>	8-97101-875-2	01	1	0512-
163	BOLT; OIL PIPE 4HF1 ENG(RLS) POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	02	1	0512-0512
163	BOLT; OIL PIPE 4HF1 ENG(RLS) POWER STEERING<N40> M8X25 FLANGE SOU	0-28650-825-0	01	1	0601-0702
163	BOLT; OIL PIPE 4HF1 ENG(RLS) POWER STEERING<N40> M8X25 FLANGE SOU	0-28650-825-0	01	1	0703-
163	BOLT; OIL PIPE 4HF1 ENG(RLS) POWER STEERING<N40> M8X25 FLANGE SOU	0-28650-825-0	01	1	0703-
163	BOLT; OIL PIPE 4JB1 ENG(RLF) POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	01	1	0303-0511
163	BOLT; OIL PIPE 4HF1 ENG(RLS) POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	01	1	0512-0512
163	BOLT; OIL PIPE 4HF1 ENG(RLS) POWER STEERING<N40> M8X25 FLANGE SOU	0-28650-825-0	02	1	0601-0702
195	BOLT; BRKT 4JB1 ENG(RLF) POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	02	1	0303-0511
195	BOLT; BRKT 4HF1 ENG(RLS) POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	02	1	0512-0512
195	BOLT; BRKT 4HF1 ENG(RLS) POWER STEERING<N40> M8X25 FLANGE SOU	0-28650-825-0	02	1	0601-0702
195	BOLT; BRKT 4HF1 ENG(RLS) POWER STEERING<N40> M8X25 FLANGE SOU	0-28650-825-0	01	1	0703-
198	STAY; OIL TANK,POWER STEERING 4HF1 ENG(RLS) POWER STEERING<N40>	8-97081-778-2	01	1	0512-
200	HOSE; RUBBER,RETURN 4HF1 ENG(RLS) POWER STEERING<N40>	8-97080-109-0	01	1	0512-
232	NUT; BRKT 4JB1 ENG(RLF) POWER STEERING<N40> M8 FLANGE SOU	0-91150-108-0	02	1	0303-0511
232	NUT; BRKT 4HF1 ENG(RLS) POWER STEERING<N40> M8 FLANGE SOU	0-91150-108-0	02	1	0512-0602
232	NUT; BRKT 4HF1 ENG(RLS) POWER STEERING<N40> M8 FLANGE SOU	0-91180-108-0	02	1	0603-0702
232	NUT; BRKT 4HF1 ENG(RLS) POWER STEERING<N40> M8 FLANGE SOU	0-91180-108-0	01	1	0703-
238	NUT; FLEX HOSE 4JB1 ENG(RLF) POWER STEERING<N40> M16	8-94370-339-0	01	1	0303-0511
238	NUT; FLEX HOSE POWER STEERING<N40> M16	8-94370-339-0	01	1	0512-
239	BRACKET; FLEX HOSE 4JB1 ENG(RLF) POWER STEERING<N40>	8-97089-879-0	01	1	0303-0511
239	BRACKET; FLEX HOSE 4HF1 ENG(RLS) POWER STEERING<N40>	8-97033-926-2	01	1	0512-
280	HOSE; P/S OIL PUMP,INL 4JB1 ENG(RLF) POWER STEERING<N40>	8-97062-797-1	01	1	0303-0511
280	HOSE; P/S OIL PUMP,INL 4HF1 ENG(RLS) POWER STEERING<N40>	8-97106-424-0	01	1	0512-
284	NUT; PIPE 4JB1 ENG(RLF) POWER STEERING<N40> M8 FLANGE SOU	0-91150-108-0	01	1	0303-0511
284	NUT; PIPE 4HF1 ENG(RLS) POWER STEERING<N40> M8 FLANGE SOU	0-91150-108-0	02	1	0512-0602
284	NUT; PIPE 4HF1 ENG(RLS) POWER STEERING<N40> M8 FLANGE SOU	0-91180-108-0	02	1	0603-0702
284	NUT; PIPE 4HF1 ENG(RLS) POWER STEERING<N40> M8 FLANGE SOU	0-91180-108-0	01	1	0703-
301	BOLT; STAY,OIL TANK 4HF1 ENG(RLS) POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	02	1	0512-0512
301	BOLT; STAY,OIL TANK 4HF1 ENG(RLS) POWER STEERING<N40> M8X25 FLANGE SOU	0-28650-825-0	02	1	0601-
310	COVER; OIL TANK 4HF1 ENG(RLS) POWER STEERING<N40>	8-97103-394-0	01	1	0512-

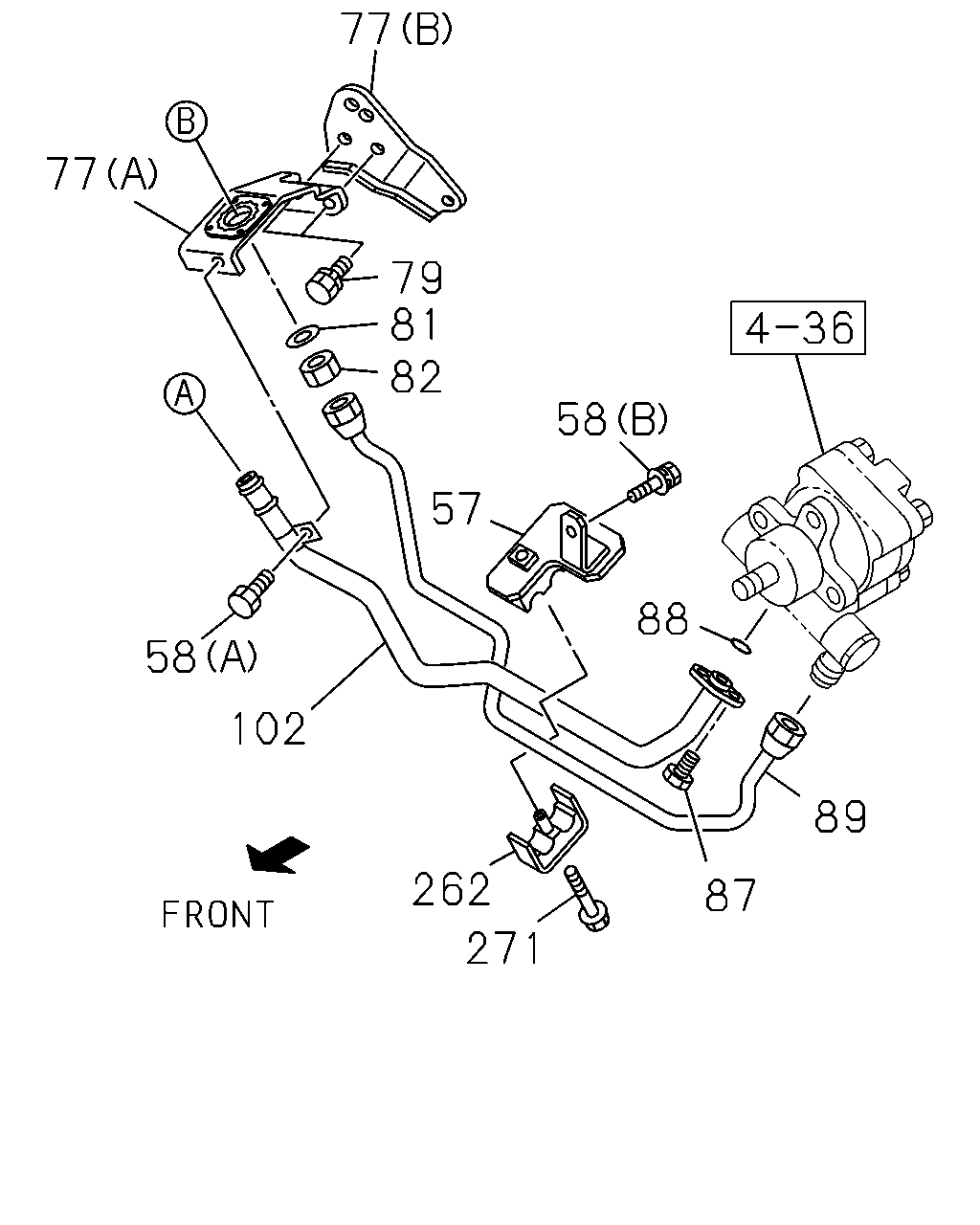

77 77 79 81 82 58 57 88 58 102 89 262 87 271

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
57	BRACKET; POWER STRG PIPE 4JB1 ENG(RLF) POWER STEERING<N40>	8-97312-558-1	01	1	0303-0511
58	BOLT; CLIP 4JB1 ENG(RLF) POWER STEERING<N40> (C) M6X16 FLANGE	0-28680-616-0	01	1	0303-0511
58	BOLT; CLIP 4JB1 ENG(RLF) POWER STEERING<N40> (A) M6X20	8-94279-112-0	01	1	0303-0511
58	BOLT; CLIP 4JB1 ENG(RLF) POWER STEERING<N40> (B) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0303-0511
77	BRACKET; POWER STEERING HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) POWER STEERING<N40> (B)	8-97075-615-0	01	1	0303-0511
77	BRACKET; POWER STEERING HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) POWER STEERING<N40> (A)	8-97208-424-0	01	1	0303-0511
79	BOLT; BRKT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) POWER STEERING<N40> M8X20 W/LK WASHER	0-50040-820-0	02	1	0303-0511
81	WASHER; LK,FLEX HOSE 4JB1 ENG(RLF) POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0303-0511
81	WASHER; LK,FLEX HOSE 4JB1 ENG(RLF) POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0303-0511
81	WASHER; LK,FLEX HOSE POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0512-0603
81	WASHER; LK,FLEX HOSE POWER STEERING<N40> ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0604-
82	NUT; FLEX HOSE,P/S 4JB1 ENG(RLF) POWER STEERING<N40> M16	8-94370-339-0	01	1	0303-0511
82	NUT; FLEX HOSE,P/S 4HF1 ENG(RLS) POWER STEERING<N40> M12 SELF LOCK	8-97028-390-1	01	1	0512-
87	BOLT; POWER STRG PIPE 4JB1 ENG(RLF) POWER STEERING<N40> M8X12 FLANGE	0-28080-812-0	02	1	0303-0511
88	RING; OIL PIPE 4JB1 ENG(RLF) POWER STEERING<N40> ID=11.0	9-09561-111-0	01	1	0303-0511
89	PIPE; OIL,P/S OIL PUMP TO FLEX HOSE 4JB1 ENG(RLF) POWER STEERING<N40>	8-97312-556-0	01	1	0303-0511
102	PIPE; SUCTION,P/S 4JB1 ENG(RLF) POWER STEERING<N40>	8-97312-557-1	01	1	0303-0511
262	CLIP; P/S PIPE 4JB1 ENG(RLF) POWER STEERING<N40>	8-97300-961-0	01	1	0303-0511
271	BOLT; P/S OIL PIPE FIX 4JB1 ENG(RLF) POWER STEERING<N40> M8X40 FLANGE	0-28680-840-0	01	1	0303-0511

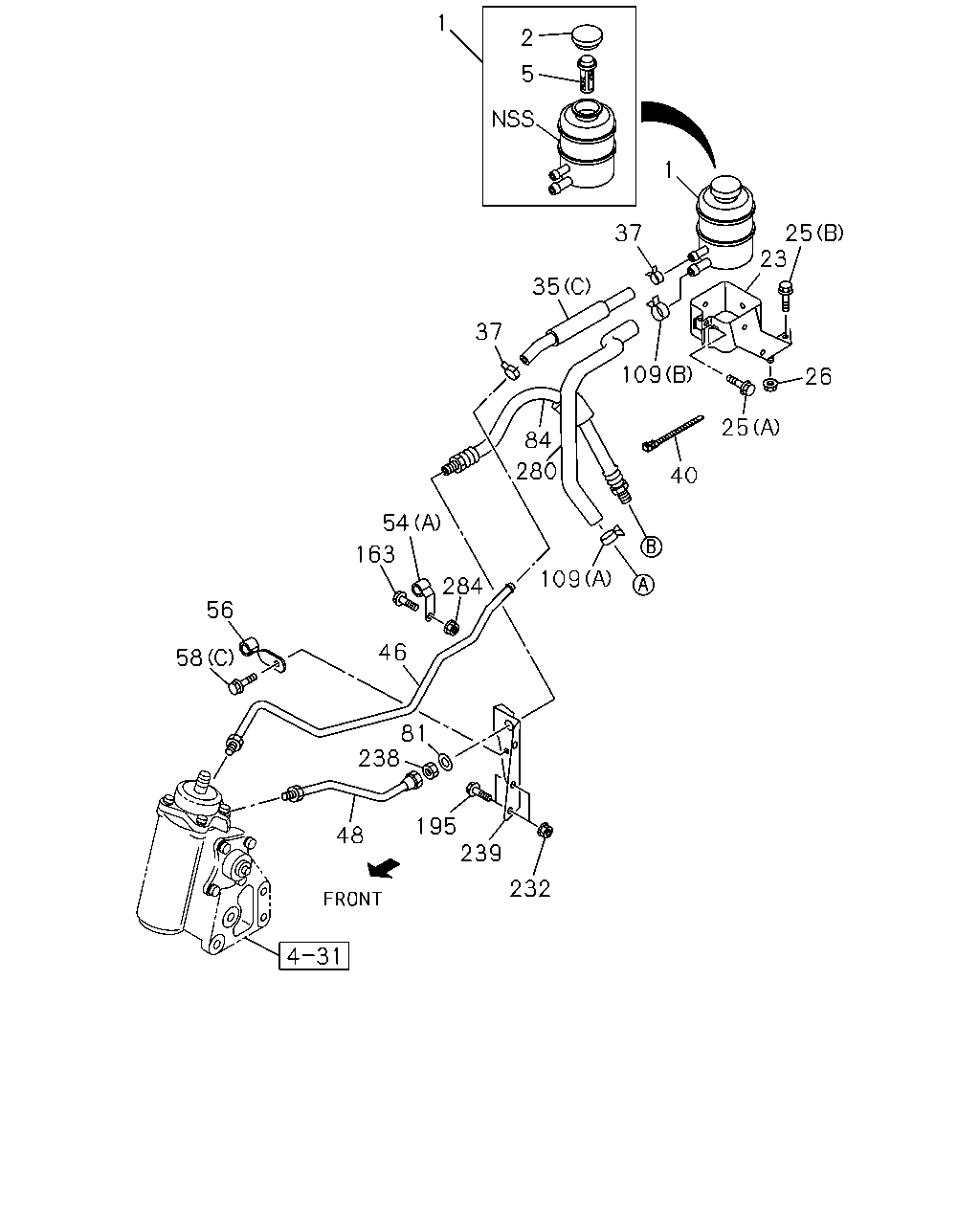

1 2 5 1 25 23 37 35 37 109 26 25 84 280 40 54 163 109 284 56 46 58 81 238 195 239 48 232

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S POWER STEERING<N40>	8-97107-987-0	01	1	0303-
2	CAP; OIL TANK,P/S POWER STEERING<N40>	8-94146-153-2	01	1	0303-
5	STRAINER; OIL TANK,P/S POWER STEERING<N40>	8-97094-732-0	01	1	0303-
23	BRACKET; OIL TANK,P/S 4JB1 ENG(RLF) POWER STEERING<N40>	8-97066-500-3	01	1	0303-0511
23	BRACKET; OIL TANK,P/S 4HF1 ENG(RLS) POWER STEERING<N40>	8-97101-040-1	01	1	0512-
25	BOLT; OIL TANK BRKT POWER STEERING<N40> (A) M6X20 FLANGE	0-28480-620-0	01	1	0303-0512
25	BOLT; OIL TANK BRKT POWER STEERING<N40> (A) M6X20 FLANGE	0-28450-620-0	01	1	0601-
25	BOLT; OIL TANK BRKT 4JB1 ENG(RLF) POWER STEERING<N40> (B) M8X25 FLANGE	0-28680-825-0	01	1	0303-0511
25	BOLT; OIL TANK BRKT 4HF1 ENG(RLS) POWER STEERING<N40> (B) M8X25 FLANGE	0-28680-825-0	02	1	0512-0512
25	BOLT; OIL TANK BRKT 4HF1 ENG(RLS) POWER STEERING<N40> (B) M8X25 FLANGE SOU	0-28650-825-0	02	1	0601-
26	NUT; OIL TANK TO BRKT 4JB1 ENG(RLF) POWER STEERING<N40> M8 FLANGE SOU	0-91150-108-0	01	1	0303-0511
35	HOSE; RETURN,P/S TANK 4HF1 ENG(RLS) POWER STEERING<N40> (A)	8-97080-108-1	01	1	0512-
35	HOSE; RETURN,P/S TANK 4JB1 ENG(RLF) POWER STEERING<N40> (C)	8-97081-444-3	01	1	0303-0511
35	HOSE; RETURN,P/S TANK 4HF1 ENG(RLS) POWER STEERING<N40> (B) L=150	0-09809-150-0	01	1	0512-0711
35	HOSE; RETURN,P/S TANK 4HF1 ENG(RLS) POWER STEERING<N40> (B) L=135	8-98103-321-0	01	1	0712-
37	CLIP; HOSE,P/S POWER STEERING<N40> ID=16 SOU	8-94238-568-0	02	1	0303-0511
37	CLIP; HOSE,P/S 4HF1 ENG(RLS) POWER STEERING<N40> ID=16 SOU	8-94238-568-0	02	1	0512-
37	CLIP; HOSE,P/S POWER STEERING<N40> ID=16 SOU	8-94238-568-0	02	1	0512-
40	CLIP; BAND 4JB1 ENG(RLF) POWER STEERING<N40> L=250 SOU	5-09707-030-1	01	1	0303-0511
46	PIPE; OIL,P/S UNIT TO OIL TANK 4JB1 ENG(RLF) POWER STEERING<N40>	8-97262-186-0	01	1	0303-0303
46	PIPE; OIL,P/S UNIT TO OIL TANK 4JB1 ENG(RLF) POWER STEERING<N40>	8-97364-358-0	01	1	0303-0511
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HF1 ENG(RLS) POWER STEERING<N40>	8-97364-360-0	01	1	0512-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 4JB1 ENG(RLF) POWER STEERING<N40>	8-97261-623-0	01	1	0303-0303
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 4JB1 ENG(RLF) POWER STEERING<N40>	8-97364-352-0	01	1	0303-0511
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 4HF1 ENG(RLS) POWER STEERING<N40>	8-97364-353-0	01	1	0512-
54	CLIP; OIL PIPE 4HF1 ENG(RLS) POWER STEERING<N40> (D) H=15 ID=14	1-09700-744-0	01	1	0512-
54	CLIP; OIL PIPE 4HF1 ENG(RLS) POWER STEERING<N40> (B) ID=10X2 H=22	8-94252-455-2	01	1	0512-
54	CLIP; OIL PIPE 4JB1 ENG(RLF) POWER STEERING<N40> (A) ID=11 L=40	8-94259-342-0	01	1	0303-0511
54	CLIP; OIL PIPE 4HF1 ENG(RLS) POWER STEERING<N40> (C) ID=11 L=20	9-09525-035-0	01	1	0512-0606
54	CLIP; OIL PIPE 4HF1 ENG(RLS) POWER STEERING<N40> (C) ID=11 L=20	0-95235-035-0	01	1	0607-
56	CLIP; OIL PIPE 4JB1 ENG(RLF) POWER STEERING<N40> ID=11 L=40	8-94123-171-1	01	1	0303-0511
58	BOLT; CLIP 4JB1 ENG(RLF) POWER STEERING<N40> (C) M6X16 FLANGE	0-28680-616-0	01	1	0303-0511
58	BOLT; CLIP 4JB1 ENG(RLF) POWER STEERING<N40> (A) M6X20	8-94279-112-0	01	1	0303-0511
58	BOLT; CLIP 4JB1 ENG(RLF) POWER STEERING<N40> (B) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0303-0511
81	WASHER; LK,FLEX HOSE 4JB1 ENG(RLF) POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0303-0511
81	WASHER; LK,FLEX HOSE 4JB1 ENG(RLF) POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0303-0511
81	WASHER; LK,FLEX HOSE POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0512-0603
81	WASHER; LK,FLEX HOSE POWER STEERING<N40> ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0604-
84	HOSE; FLEX,P/S 4JB1 ENG(RLF) POWER STEERING<N40>	8-97358-326-0	01	1	0303-0511
84	HOSE; FLEX,P/S 4HF1 ENG(RLS) POWER STEERING<N40>	8-97358-331-2	01	1	0512-
109	CLIP; RUBBER HOSE 4HF1 ENG(RLS) POWER STEERING<N40> (A) ID=21	8-94242-034-0	02	1	0512-
109	CLIP; RUBBER HOSE POWER STEERING<N40> (A) ID=21	8-94242-034-0	01	1	0303-
109	CLIP; RUBBER HOSE POWER STEERING<N40> (B) ID=22 SOU	8-94382-401-0	01	1	0303-
163	BOLT; OIL PIPE 4HF1 ENG(RLS) POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	02	1	0512-0512
163	BOLT; OIL PIPE 4HF1 ENG(RLS) POWER STEERING<N40> M8X25 FLANGE SOU	0-28650-825-0	01	1	0601-0702
163	BOLT; OIL PIPE 4HF1 ENG(RLS) POWER STEERING<N40> M8X25 FLANGE SOU	0-28650-825-0	01	1	0703-
163	BOLT; OIL PIPE 4HF1 ENG(RLS) POWER STEERING<N40> M8X25 FLANGE SOU	0-28650-825-0	01	1	0703-
163	BOLT; OIL PIPE 4JB1 ENG(RLF) POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	01	1	0303-0511
163	BOLT; OIL PIPE 4HF1 ENG(RLS) POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	01	1	0512-0512
163	BOLT; OIL PIPE 4HF1 ENG(RLS) POWER STEERING<N40> M8X25 FLANGE SOU	0-28650-825-0	02	1	0601-0702
195	BOLT; BRKT 4JB1 ENG(RLF) POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	02	1	0303-0511
195	BOLT; BRKT 4HF1 ENG(RLS) POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	02	1	0512-0512
195	BOLT; BRKT 4HF1 ENG(RLS) POWER STEERING<N40> M8X25 FLANGE SOU	0-28650-825-0	02	1	0601-0702
195	BOLT; BRKT 4HF1 ENG(RLS) POWER STEERING<N40> M8X25 FLANGE SOU	0-28650-825-0	01	1	0703-
232	NUT; BRKT 4JB1 ENG(RLF) POWER STEERING<N40> M8 FLANGE SOU	0-91150-108-0	02	1	0303-0511
232	NUT; BRKT 4HF1 ENG(RLS) POWER STEERING<N40> M8 FLANGE SOU	0-91150-108-0	02	1	0512-0602
232	NUT; BRKT 4HF1 ENG(RLS) POWER STEERING<N40> M8 FLANGE SOU	0-91180-108-0	02	1	0603-0702
232	NUT; BRKT 4HF1 ENG(RLS) POWER STEERING<N40> M8 FLANGE SOU	0-91180-108-0	01	1	0703-
238	NUT; FLEX HOSE 4JB1 ENG(RLF) POWER STEERING<N40> M16	8-94370-339-0	01	1	0303-0511
238	NUT; FLEX HOSE POWER STEERING<N40> M16	8-94370-339-0	01	1	0512-
239	BRACKET; FLEX HOSE 4JB1 ENG(RLF) POWER STEERING<N40>	8-97089-879-0	01	1	0303-0511
239	BRACKET; FLEX HOSE 4HF1 ENG(RLS) POWER STEERING<N40>	8-97033-926-2	01	1	0512-
280	HOSE; P/S OIL PUMP,INL 4JB1 ENG(RLF) POWER STEERING<N40>	8-97062-797-1	01	1	0303-0511
280	HOSE; P/S OIL PUMP,INL 4HF1 ENG(RLS) POWER STEERING<N40>	8-97106-424-0	01	1	0512-
284	NUT; PIPE 4JB1 ENG(RLF) POWER STEERING<N40> M8 FLANGE SOU	0-91150-108-0	01	1	0303-0511
284	NUT; PIPE 4HF1 ENG(RLS) POWER STEERING<N40> M8 FLANGE SOU	0-91150-108-0	02	1	0512-0602
284	NUT; PIPE 4HF1 ENG(RLS) POWER STEERING<N40> M8 FLANGE SOU	0-91180-108-0	02	1	0603-0702
284	NUT; PIPE 4HF1 ENG(RLS) POWER STEERING<N40> M8 FLANGE SOU	0-91180-108-0	01	1	0703-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
