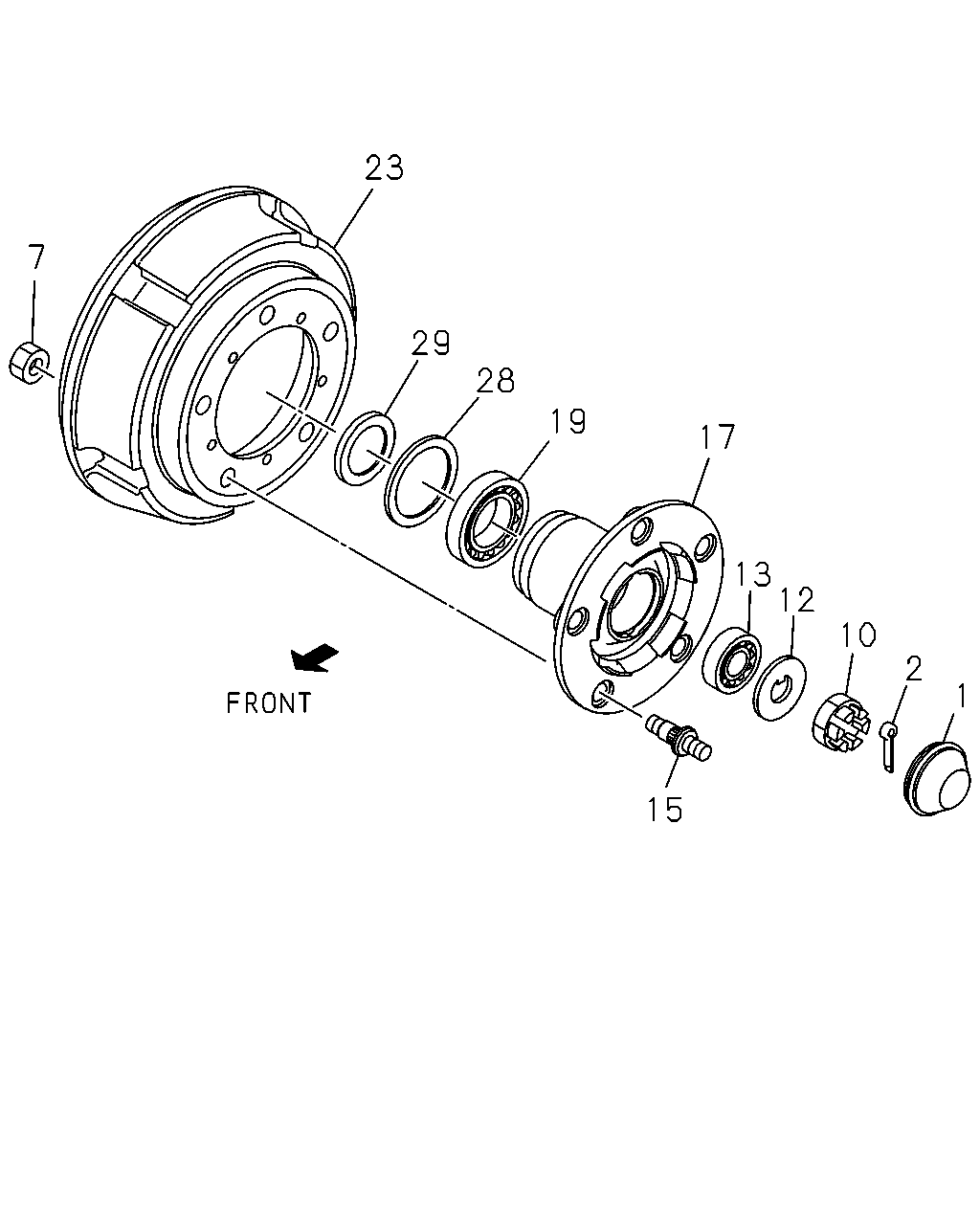

4-11 — FRONT HUB AND DRUM OR ROTOR (#44101) — 32 parça

23 7 29 28 19 17 13 12 10 2 1 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CAP; HUB,FRT AXLE FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H), FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT& RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H)	8-97012-619-0	02	1	0303-0511
1	CAP; HUB,FRT AXLE FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-1016X5.5F-115(07H)	8-97012-619-0	02	1	0512-0611
1	CAP; HUB,FRT AXLE FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-1016X5.5F-115(07H)	8-97360-101-0	02	1	0612-
2	PIN; SPLIT,HUB TO AXLE SHAFT FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H), FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT& RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) OD=4.6 L=40	9-08115-040-0	02	1	0303-0511
2	PIN; SPLIT,HUB TO AXLE SHAFT FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-1016X5.5F-115(07H) OD=4.6 L=40	9-08115-040-0	02	1	0512-0606
2	PIN; SPLIT,HUB TO AXLE SHAFT FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-1016X5.5F-115(07H) OD=4.6 L=40	0-81125-040-0	02	1	0607-
7	NUT; FRT HUB FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H), FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT& RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) M20	9-99110-520-0	10	1	0303-0511
7	NUT; FRT HUB FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-1016X5.5F-115(07H) M20	9-99110-520-0	10	1	0512-0512
7	NUT; FRT HUB FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-1016X5.5F-115(07H) M20	0-91110-520-0	10	1	0601-
10	NUT; FRT HUB BRG FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H), FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT& RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H)	8-94247-357-1	02	1	0303-0511
10	NUT; FRT HUB BRG FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-1016X5.5F-115(07H)	8-94247-357-1	02	1	0512-
12	WASHER; LK,FRT HUB BRG FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H), FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT& RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H)	8-94247-356-1	02	1	0303-0511
12	WASHER; LK,FRT HUB BRG FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-1016X5.5F-115(07H)	8-94247-356-1	02	1	0512-
13	BEARING; HUB OUTER,FRT AXLE FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H), FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT& RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) NSK	9-00093-172-0	02	1	0303-0511
13	BEARING; HUB OUTER,FRT AXLE FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-1016X5.5F-115(07H) NSK	9-00093-172-0	02	1	0512-
15	PIN; WHEEL,FRT AXLE FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H), FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT& RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) M18X29,M20X43.5 RH THREAD	8-94383-436-1	05	1	0303-0511
15	PIN; WHEEL,FRT AXLE FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-1016X5.5F-115(07H) M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	0512-
15	PIN; WHEEL,FRT AXLE FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H), FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT& RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-1	05	1	0303-0511
15	PIN; WHEEL,FRT AXLE FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-1016X5.5F-115(07H) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	0512-
17	HUB; FRT AXLE FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H), FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT& RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H)	8-94365-459-0	02	1	0303-0511
17	HUB; FRT AXLE FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-1016X5.5F-115(07H)	8-94365-459-0	02	1	0512-
19	BEARING; HUB INNER,FRT AXLE FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H), FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT& RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) KOYO	8-94248-088-2	02	1	0303-0511
19	BEARING; HUB INNER,FRT AXLE FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-1016X5.5F-115(07H) KOYO	8-94248-088-2	02	1	0512-
19	BEARING; HUB INNER,FRT AXLE FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H), FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT& RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) NSK	9-00093-149-0	02	1	0303-0511
19	BEARING; HUB INNER,FRT AXLE FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-1016X5.5F-115(07H) NSK	9-00093-149-0	02	1	0512-
23	DRUM; BRK,FRT FRT&RR 7R-16-10 16X5.5F-115(07H) SOU	8-94385-650-3	02	1	0512-
23	DRUM; BRK,FRT FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H), FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT& RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H)	8-97094-434-2	02	1	0303-0511
23	DRUM; BRK,FRT FRT&RR 195/85R16 16X5.5J-116.5(AZX)	8-97094-434-2	02	1	0512-
28	SEAL; OIL,FRT HUB FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H), FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT& RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H)	8-94248-117-1	02	1	0303-0511
28	SEAL; OIL,FRT HUB FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-1016X5.5F-115(07H)	8-94248-117-1	02	1	0512-
29	DISTANCE PIECE; HUB BRKT FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H), FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT& RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) NTN	8-97234-513-0	02	1	0303-0511
29	DISTANCE PIECE; HUB BRKT FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-1016X5.5F-115(07H) NTN	8-97234-513-0	02	1	0512-
