0-41B — FUEL FILTER AND BRACKET (#441) — 54 parça

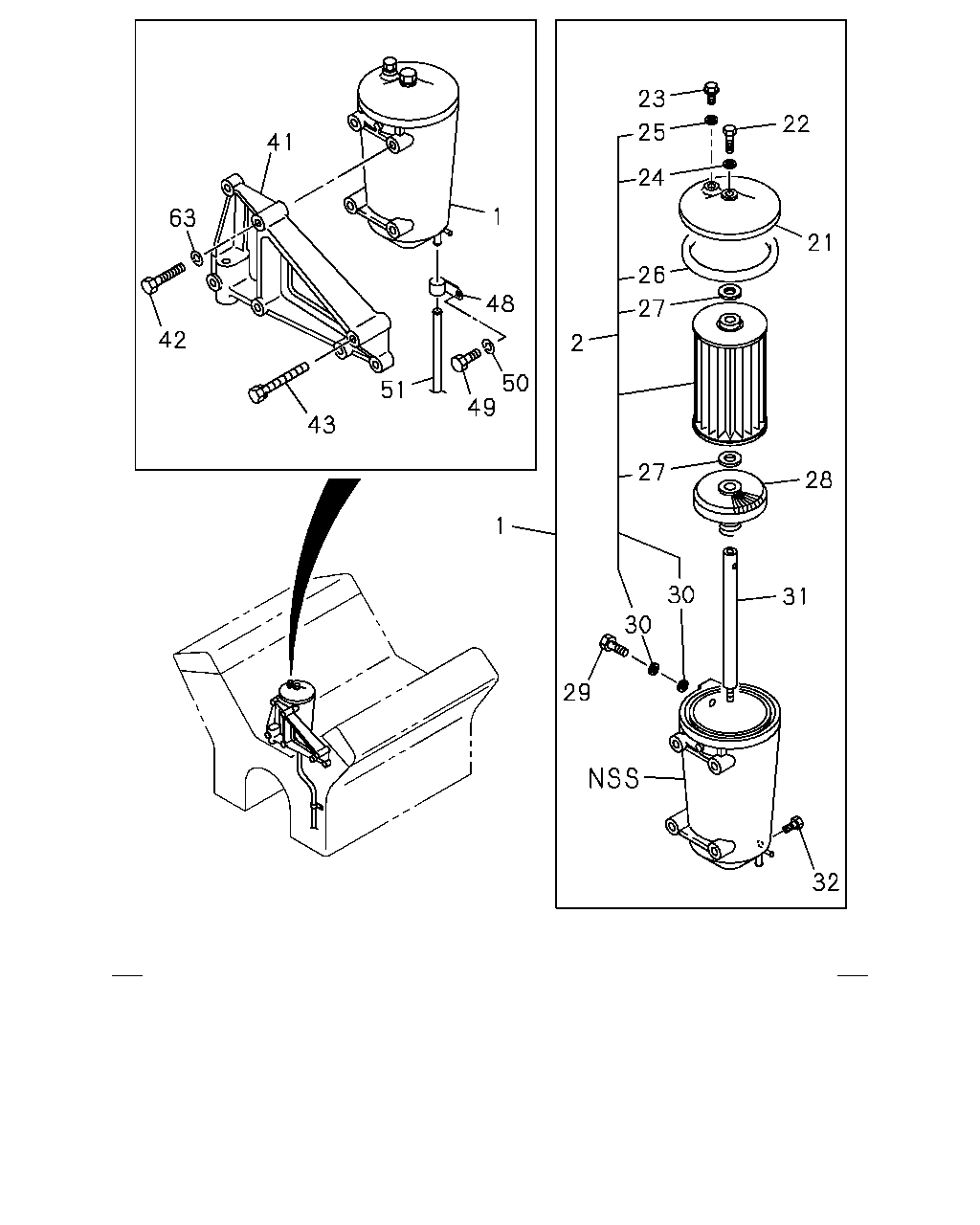

çizim 94243
41 63 42 43 51 1 48 50 49 23 22 25 24 21 26 27 28 2 27 31 30 1 30 29 32
BalonParca AdiParca NoAdetTipApplied Date A B
1 FILTER ASM; FUEL 1-13200-651-0 01 1 8712-9306 ● ●
1 FILTER ASM; FUEL 1-13200-627-2 01 1 9307- ●
2 ELEMENT KIT; FUEL FILTER 1-87810-207-0 01 1 8712-9001 ●
2 ELEMENT KIT; FUEL FILTER 1-87810-976-0 01 1 9002-9306 ●
2 ELEMENT KIT; FUEL FILTER 1-87810-976-0 01 1 9307- ●
21 COVER; UPR,FUEL FILTER 1-13212-049-1 01 1 8712-9306 ● ●
21 COVER; UPR,FUEL FILTER 1-13212-049-1 01 1 9307- ●
22 BOLT; CENTER TUBE,COVER 1-13219-045-0 01 1 8712-9306 ● ●
22 BOLT; CENTER TUBE,COVER 1-13219-045-0 01 1 9307- ●
23 PLUG; COVER 1-13219-074-0 01 1 8712-9306 ● ●
23 PLUG; COVER 1-13219-074-0 01 1 9307- ●
24 GASKET; CENTER TUBE BOLT
ID=10.2 OD=15.2 		1-09630-083-0 01 1 8712-9306 ● ●
24 GASKET; CENTER TUBE BOLT
ID=10.2 OD=15.2 		1-09630-083-0 01 1 9307- ●
25 GASKET; AIR DRAIN PLUG
ID=10.2 OD=15.2 		1-09630-083-0 01 1 8712-9306 ● ●
25 GASKET; AIR DRAIN PLUG
ID=10.2 OD=15.2 		1-09630-083-0 01 1 9307- ●
26 GASKET; COVER TO BODY 9-09720-797-0 01 1 8712-9306 ● ●
26 GASKET; COVER TO BODY 9-09720-797-0 01 1 9307- ●
27 GASKET; ELEMENT 1-09630-007-0 02 1 8712-9306 ● ●
27 GASKET; ELEMENT 1-09630-007-0 02 1 9307- ●
28 STRAINER; WATER,FUEL FILTER 1-13251-001-0 01 1 8712-9306 ● ●
28 STRAINER; WATER,FUEL FILTER 1-13251-001-0 01 1 9307- ●
29 VALVE; OVERFLOW 1-13260-035-0 01 1 8712-9106 ● ●
29 VALVE; OVERFLOW 1-13260-065-0 01 1 9107- ●
30 GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=16.2 		1-09630-086-0 02 1 8712-9001 ●
30 GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9002- ●
31 TUBE; CENTER BOLT 1-13231-026-0 01 1 8712-9306 ● ●
31 TUBE; CENTER BOLT 1-13231-026-0 01 1 9307- ●
32 BOLT; DRAIN,FUEL FILTER 1-13219-030-0 01 1 8712-9306 ● ●
32 BOLT; DRAIN,FUEL FILTER 1-13219-030-0 01 1 9307- ●
41 BRACKET; FUEL FILTER 1-19755-076-1 01 1 8712-9001 ●
41 BRACKET; FUEL FILTER 1-19755-090-0 01 1 9002- ●
42 BOLT; FUEL FILTER
M10X60 		9-01056-060-0 03 1 8712-9001 ●
42 BOLT; FUEL FILTER
M10X30 W/LK WASHER 		9-01911-030-0 01 1 8712-9001 ●
42 BOLT; FUEL FILTER
M10X30 W/LK WASHER 		9-01911-030-0 01 1 8712-9002 ● ●
42 BOLT; FUEL FILTER
M10X30 W/LK WASHER 		0-50041-030-0 01 1 9003-9306 ●
42 BOLT; FUEL FILTER
M10X28 		0-28021-028-0 03 1 9002-9002 ●
42 BOLT; FUEL FILTER
M10X28 		0-28081-028-0 03 1 9003-9306 ●
42 BOLT; FUEL FILTER
M10X60 		0-10806-060-0 03 1 9307- ●
42 BOLT; FUEL FILTER
M10X28 		0-28081-028-0 01 1 9307- ●
43 BOLT; BRKT
M10X75 		9-01656-075-0 02 1 8712-9001 ●
43 BOLT; BRKT
M10X35 W/LK WASHER 		9-01931-035-0 01 1 8712-9001 ●
43 BOLT; BRKT
M10X40 		0-28121-040-0 02 1 9002-9002 ●
43 BOLT; BRKT
M10X40 FLANGE 		0-28181-040-0 02 1 9003- ●
43 BOLT; BRKT
M10X75 FLANGE 		8-94399-669-1 02 1 9002- ●
48 CLIP; VINYL PIPE 9-09915-274-1 01 1 8712- ● ●
49 BOLT; CLIP
M10X14 		9-02341-014-0 02 1 8712-9001 ●
49 BOLT; CLIP
M10X14 		9-02341-014-0 01 1 9002-9204 ●
49 BOLT; CLIP
M10X14 		0-23801-014-0 01 1 9205-9306 ●
49 BOLT; CLIP
M10X16 W/LK WASHER 		1-09033-012-0 01 1 9307- ●
50 WASHER; LK,CLIP
ID=10.2 		9-09150-510-0 01 1 8712-9306 ● ●
51 PIPE; VINYL
L=750 SERVICED BY L=10000 		9-09914-909-0 02 1 8712-9001 ●
51 PIPE; VINYL
L=750 SERVICED BY L=10000 		9-09914-909-0 01 1 9002-9306 ●
51 PIPE; VINYL
L=750 SERVICED BY L=10000 		9-09914-909-0 01 1 9307- ●
63 WASHER; LK,FUEL FILTER
ID=10.2 		9-09150-510-0 03 1 8712- ● ●
