4-01 — PROPELLER SHAFT (#44099) — 125 parça

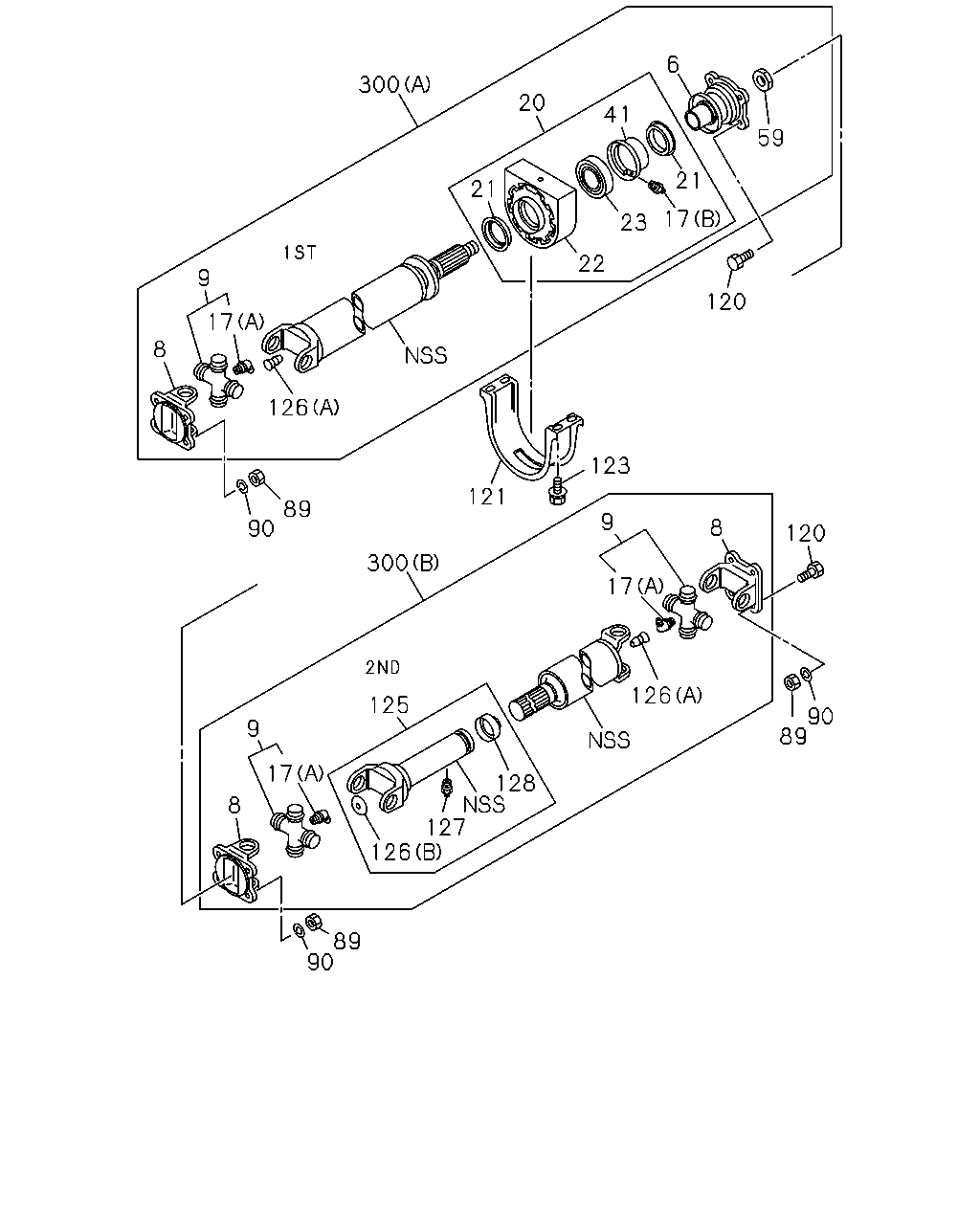

6 300 20 41 59 21 21 17 23 22 9 120 17 8 126 123 121 89 90 9 8 120 300 17 126 125 90 89 9 17 128 127 126 8 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	COUPLING ASM; DRIVER,PROP SHAFT 4JB1 ENG(RLF) M/T MSB5M(RM5)	8-94258-907-1	01	1	0303-0511
6	COUPLING ASM; DRIVER,PROP SHAFT 4HF1 ENG(RLS) M/T MYY5T(RSM)	8-97036-123-0	01	1	0512-
8	YOKE; FLANGE,PROP SHAFT 4JB1 ENG(RLF) M/T MSB5M(RM5) SOU	8-97211-116-0	01	1	0303-0511
8	YOKE; FLANGE,PROP SHAFT 4HF1 ENG(RLS) M/T MYY5T(RSM)	8-97322-663-0	01	1	0512-
8	YOKE; FLANGE,PROP SHAFT 4JB1 ENG(RLF) SOU	8-97211-116-0	02	1	0303-0511
8	YOKE; FLANGE,PROP SHAFT 4HF1 ENG(RLS)	8-97322-663-0	02	1	0512-
9	JOURNAL ASM; PROP SHAFT 4JB1 ENG(RLF) M/T MSB5M(RM5) SOU	8-97211-135-0	01	1	0303-0511
9	JOURNAL ASM; PROP SHAFT 4HF1 ENG(RLS) M/T MYY5T(RSM)	8-97322-749-0	01	1	0512-0612
9	JOURNAL ASM; PROP SHAFT 4HF1 ENG(RLS) M/T MYY5T(RSM)	8-98033-605-0	01	1	0701-
9	JOURNAL ASM; PROP SHAFT 4JB1 ENG(RLF) SOU	8-97211-135-0	02	1	0303-0511
9	JOURNAL ASM; PROP SHAFT 4HF1 ENG(RLS)	8-97322-749-0	02	1	0512-0612
9	JOURNAL ASM; PROP SHAFT 4HF1 ENG(RLS)	8-98033-605-0	02	1	0701-
17	NIPPLE; GREASE,PROP SHAFT 4HF1 ENG(RLS) (A) PT1/8 ELBOW	9-09031-210-0	02	1	0512-0512
17	NIPPLE; GREASE,PROP SHAFT 4HF1 ENG(RLS) (A) PT1/8 ELBOW	0-90301-610-0	02	1	0601-
17	NIPPLE; GREASE,PROP SHAFT 4HF1 ENG(RLS) M/T MYY5T(RSM) (A) PT1/8 ELBOW	9-09031-210-0	01	1	0512-0512
17	NIPPLE; GREASE,PROP SHAFT 4HF1 ENG(RLS) M/T MYY5T(RSM) (A) PT1/8 ELBOW	0-90301-610-0	01	1	0601-
17	NIPPLE; GREASE,PROP SHAFT 4JB1 ENG(RLF) M/T MSB5M(RM5) (B) M6 STRAIGHT	9-09031-006-0	02	1	0303-0511
17	NIPPLE; GREASE,PROP SHAFT 4JB1 ENG(RLF) (B) M6 STRAIGHT	9-09031-006-0	02	1	0303-0511
17	NIPPLE; GREASE,PROP SHAFT 4HF1 ENG(RLS) M/T MYY5T(RSM) (B) M6 STRAIGHT	9-09031-006-0	01	1	0512-0607
17	NIPPLE; GREASE,PROP SHAFT 4HF1 ENG(RLS) M/T MYY5T(RSM) (B) M6 STRAIGHT SOU	0-90301-406-0	01	1	0608-
20	BEARING ASM; CTR,PROP SHAFT 4JB1 ENG(RLF) M/T MSB5M(RM5) W/NIPPLE;GREASE DOWN SIDE	5-37510-008-0	01	1	0303-0511
20	BEARING ASM; CTR,PROP SHAFT 4HF1 ENG(RLS) M/T MYY5T(RSM) W/NIPPLE;GREASE DOWN SIDE	5-37510-007-1	01	1	0512-0702
20	BEARING ASM; CTR,PROP SHAFT 4HF1 ENG(RLS) M/T MYY5T(RSM)	8-98020-880-0	01	1	0703-
21	SEAL; OIL,CENTER BRG 4JB1 ENG(RLF) M/T MSB5M(RM5) ID=39	5-09625-063-0	02	1	0303-0511
21	SEAL; OIL,CENTER BRG 4HF1 ENG(RLS) M/T MYY5T(RSM) ID=49	5-09625-067-1	02	1	0512-
22	RUBBER; CUSHION,CENTER BRG,1ST 4JB1 ENG(RLF) M/T MSB5M(RM5)	5-37516-006-1	01	1	0303-0511
22	RUBBER; CUSHION,CENTER BRG,1ST 4HF1 ENG(RLS) M/T MYY5T(RSM)	5-37516-005-2	01	1	0512-0612
22	RUBBER; CUSHION,CENTER BRG,1ST 4HF1 ENG(RLS) M/T MYY5T(RSM)	8-98020-875-0	01	1	0701-
23	BEARING; CENTER,PROP SHAFT 4JB1 ENG(RLF) M/T MSB5M(RM5) D=75	5-09800-067-0	01	1	0303-0511
23	BEARING; CENTER,PROP SHAFT 4HF1 ENG(RLS) M/T MYY5T(RSM) OD=80	5-09800-068-0	01	1	0512-
41	COVER; CENTER BRG,PROP SHAFT 4JB1 ENG(RLF) M/T MSB5M(RM5)	5-37512-005-0	01	1	0303-0511
41	COVER; CENTER BRG,PROP SHAFT 4HF1 ENG(RLS) M/T MYY5T(RSM)	5-37512-004-0	01	1	0512-0612
41	COVER; CENTER BRG,PROP SHAFT 4HF1 ENG(RLS) M/T MYY5T(RSM)	8-98020-795-0	01	1	0701-
59	NUT; RET TO SUPPORT 4JB1 ENG(RLF) M/T MSB5M(RM5) ID=20	9-09841-038-0	01	1	0303-0511
59	NUT; RET TO SUPPORT 4HF1 ENG(RLS) M/T MYY5T(RSM) M27 H=25	8-97253-126-0	01	1	0512-0612
59	NUT; RET TO SUPPORT 4HF1 ENG(RLS) M/T MYY5T(RSM) M27 H=25	8-97360-410-0	01	1	0701-
89	NUT; YOKE TO RR AXLE 4JB1 ENG(RLF) M10	8-94159-009-1	12	1	0303-0511
89	NUT; YOKE TO RR AXLE 4HF1 ENG(RLS) M12	8-94477-841-0	12	1	0512-0610
89	NUT; YOKE TO RR AXLE 4HF1 ENG(RLS) M12	8-97365-450-0	12	1	0611-
90	WASHER; LK,YOKE TO RR AXLE 4JB1 ENG(RLF) ID=10.2	9-09150-610-0	12	1	0303-0511
90	WASHER; LK,YOKE TO RR AXLE 4HF1 ENG(RLS) ID=12.2	9-09150-812-0	12	1	0512-0603
90	WASHER; LK,YOKE TO RR AXLE 4HF1 ENG(RLS) ID=12.2	0-91510-812-0	12	1	0604-
120	BOLT; YOKE TO RR AXLE 4JB1 ENG(RLF) M10X29	8-97168-458-1	08	1	0303-0511
120	BOLT; YOKE TO RR AXLE 4HF1 ENG(RLS) M12X35	8-94477-842-0	08	1	0512-0610
120	BOLT; YOKE TO RR AXLE 4HF1 ENG(RLS) M12X35	8-97365-451-0	08	1	0611-
121	RETAINER; CUSHION RUBBER	8-97035-623-1	01	1	0303-
123	BOLT; RET M10X25 W/LK&PL WASHER	0-50141-025-0	04	1	0303-0512
123	BOLT; RET M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	0601-
125	YOKE ASM; SPLINED,PROP SHAFT 4JB1 ENG(RLF) L=177 SOU	8-97211-131-0	01	1	0303-0511
125	YOKE ASM; SPLINED,PROP SHAFT 4HF1 ENG(RLS) L=183	8-97327-979-1	01	1	0512-
126	PLUG; SPLINED YOKE 4HF1 ENG(RLS) (B)	8-94366-900-0	01	1	0512-
126	PLUG; SPLINED YOKE 4HF1 ENG(RLS) (A)	1-09600-023-0	01	1	0512-
126	PLUG; SPLINED YOKE 4HF1 ENG(RLS) M/T MYY5T(RSM) (A)	1-09600-023-0	01	1	0512-
127	NIPPLE; GREASE,SPLINED YOKE 4JB1 ENG(RLF) M6 STRAIGHT	9-09031-006-0	01	1	0303-0511
127	NIPPLE; GREASE,SPLINED YOKE 4HF1 ENG(RLS) M6 STRAIGHT	9-09031-006-0	01	1	0512-0607
127	NIPPLE; GREASE,SPLINED YOKE 4HF1 ENG(RLS) M6 STRAIGHT SOU	0-90301-406-0	01	1	0608-
128	SEAL; SLEEVE 4JB1 ENG(RLF) SOU	8-97020-597-1	01	1	0303-0511
128	SEAL; SLEEVE 4HF1 ENG(RLS)	8-97145-746-0	01	1	0512-
300	SHAFT ASM; PROP,RR 4JB1 ENG(RLF) M/T MSB5M(RM5) (A) L=914	8-97211-669-0	01	1	0303-0511
300	SHAFT ASM; PROP,RR 4HF1 ENG(RLS) M/T MYY5T(RSM) (A) L=802	8-97308-048-3	01	1	0512-
300	SHAFT ASM; PROP,RR 4JB1 ENG(RLF) (B) L=1044 SOU	8-97211-672-0	01	1	0303-0411
300	SHAFT ASM; PROP,RR 4JB1 ENG(RLF) (B) L=1044	8-98002-488-0	01	1	0412-0511
300	SHAFT ASM; PROP,RR 4HF1 ENG(RLS) (B) L=1090	8-97364-108-2	01	1	0512-

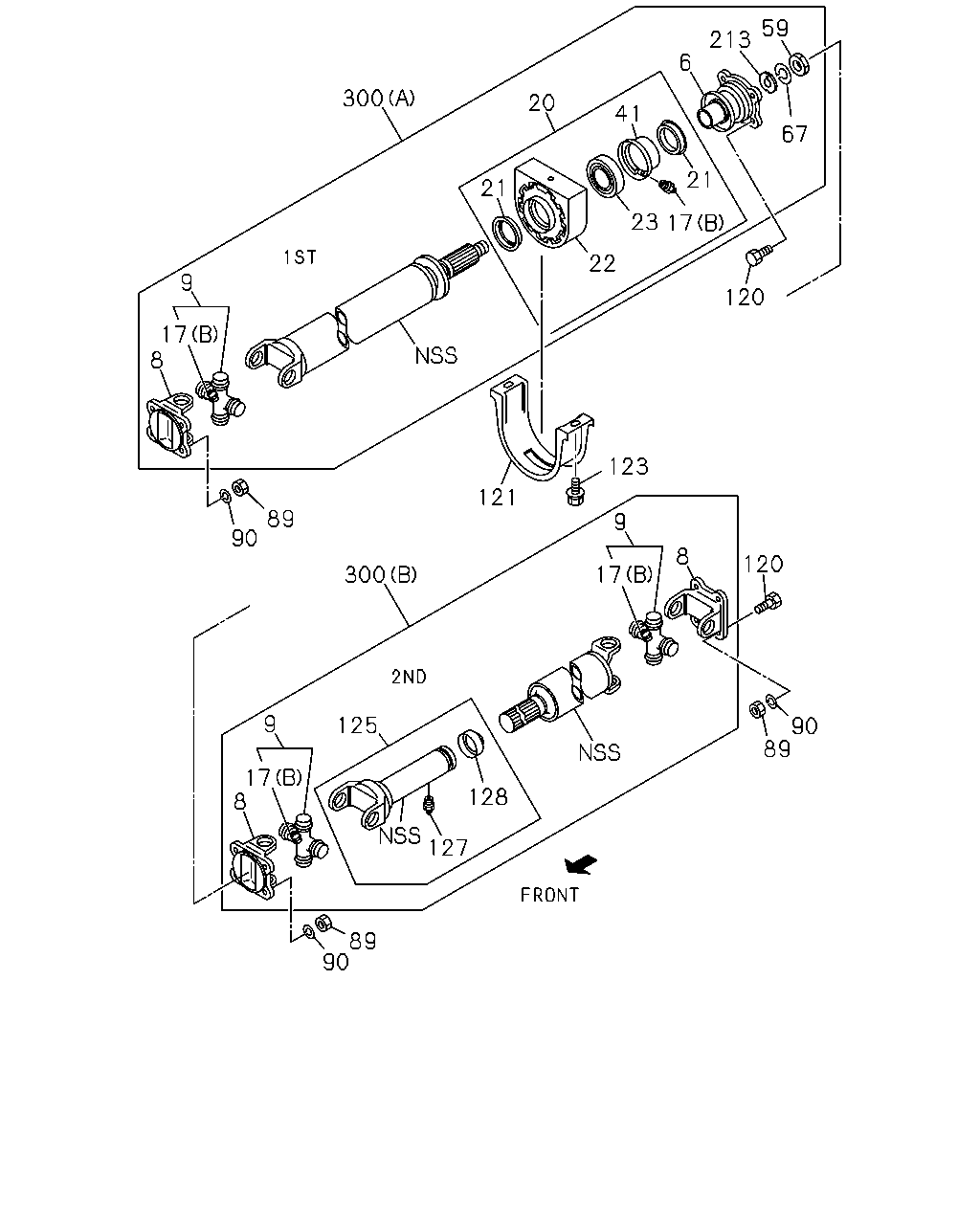

59 213 6 300 20 41 67 21 21 23 17 22 9 120 17 8 123 121 89 90 9 8 120 17 300 9 125 90 89 17 8 128 127 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	COUPLING ASM; DRIVER,PROP SHAFT 4JB1 ENG(RLF) M/T MSB5M(RM5)	8-94258-907-1	01	1	0303-0511
6	COUPLING ASM; DRIVER,PROP SHAFT 4HF1 ENG(RLS) M/T MYY5T(RSM)	8-97036-123-0	01	1	0512-
8	YOKE; FLANGE,PROP SHAFT 4JB1 ENG(RLF) M/T MSB5M(RM5) SOU	8-97211-116-0	01	1	0303-0511
8	YOKE; FLANGE,PROP SHAFT 4HF1 ENG(RLS) M/T MYY5T(RSM)	8-97322-663-0	01	1	0512-
8	YOKE; FLANGE,PROP SHAFT 4JB1 ENG(RLF) SOU	8-97211-116-0	02	1	0303-0511
8	YOKE; FLANGE,PROP SHAFT 4HF1 ENG(RLS)	8-97322-663-0	02	1	0512-
9	JOURNAL ASM; PROP SHAFT 4JB1 ENG(RLF) M/T MSB5M(RM5) SOU	8-97211-135-0	01	1	0303-0511
9	JOURNAL ASM; PROP SHAFT 4HF1 ENG(RLS) M/T MYY5T(RSM)	8-97322-749-0	01	1	0512-0612
9	JOURNAL ASM; PROP SHAFT 4HF1 ENG(RLS) M/T MYY5T(RSM)	8-98033-605-0	01	1	0701-
9	JOURNAL ASM; PROP SHAFT 4JB1 ENG(RLF) SOU	8-97211-135-0	02	1	0303-0511
9	JOURNAL ASM; PROP SHAFT 4HF1 ENG(RLS)	8-97322-749-0	02	1	0512-0612
9	JOURNAL ASM; PROP SHAFT 4HF1 ENG(RLS)	8-98033-605-0	02	1	0701-
17	NIPPLE; GREASE,PROP SHAFT 4HF1 ENG(RLS) (A) PT1/8 ELBOW	9-09031-210-0	02	1	0512-0512
17	NIPPLE; GREASE,PROP SHAFT 4HF1 ENG(RLS) (A) PT1/8 ELBOW	0-90301-610-0	02	1	0601-
17	NIPPLE; GREASE,PROP SHAFT 4HF1 ENG(RLS) M/T MYY5T(RSM) (A) PT1/8 ELBOW	9-09031-210-0	01	1	0512-0512
17	NIPPLE; GREASE,PROP SHAFT 4HF1 ENG(RLS) M/T MYY5T(RSM) (A) PT1/8 ELBOW	0-90301-610-0	01	1	0601-
17	NIPPLE; GREASE,PROP SHAFT 4JB1 ENG(RLF) M/T MSB5M(RM5) (B) M6 STRAIGHT	9-09031-006-0	02	1	0303-0511
17	NIPPLE; GREASE,PROP SHAFT 4JB1 ENG(RLF) (B) M6 STRAIGHT	9-09031-006-0	02	1	0303-0511
17	NIPPLE; GREASE,PROP SHAFT 4HF1 ENG(RLS) M/T MYY5T(RSM) (B) M6 STRAIGHT	9-09031-006-0	01	1	0512-0607
17	NIPPLE; GREASE,PROP SHAFT 4HF1 ENG(RLS) M/T MYY5T(RSM) (B) M6 STRAIGHT SOU	0-90301-406-0	01	1	0608-
20	BEARING ASM; CTR,PROP SHAFT 4JB1 ENG(RLF) M/T MSB5M(RM5) W/NIPPLE;GREASE DOWN SIDE	5-37510-008-0	01	1	0303-0511
20	BEARING ASM; CTR,PROP SHAFT 4HF1 ENG(RLS) M/T MYY5T(RSM) W/NIPPLE;GREASE DOWN SIDE	5-37510-007-1	01	1	0512-0702
20	BEARING ASM; CTR,PROP SHAFT 4HF1 ENG(RLS) M/T MYY5T(RSM)	8-98020-880-0	01	1	0703-
21	SEAL; OIL,CENTER BRG 4JB1 ENG(RLF) M/T MSB5M(RM5) ID=39	5-09625-063-0	02	1	0303-0511
21	SEAL; OIL,CENTER BRG 4HF1 ENG(RLS) M/T MYY5T(RSM) ID=49	5-09625-067-1	02	1	0512-
22	RUBBER; CUSHION,CENTER BRG,1ST 4JB1 ENG(RLF) M/T MSB5M(RM5)	5-37516-006-1	01	1	0303-0511
22	RUBBER; CUSHION,CENTER BRG,1ST 4HF1 ENG(RLS) M/T MYY5T(RSM)	5-37516-005-2	01	1	0512-0612
22	RUBBER; CUSHION,CENTER BRG,1ST 4HF1 ENG(RLS) M/T MYY5T(RSM)	8-98020-875-0	01	1	0701-
23	BEARING; CENTER,PROP SHAFT 4JB1 ENG(RLF) M/T MSB5M(RM5) D=75	5-09800-067-0	01	1	0303-0511
23	BEARING; CENTER,PROP SHAFT 4HF1 ENG(RLS) M/T MYY5T(RSM) OD=80	5-09800-068-0	01	1	0512-
41	COVER; CENTER BRG,PROP SHAFT 4JB1 ENG(RLF) M/T MSB5M(RM5)	5-37512-005-0	01	1	0303-0511
41	COVER; CENTER BRG,PROP SHAFT 4HF1 ENG(RLS) M/T MYY5T(RSM)	5-37512-004-0	01	1	0512-0612
41	COVER; CENTER BRG,PROP SHAFT 4HF1 ENG(RLS) M/T MYY5T(RSM)	8-98020-795-0	01	1	0701-
59	NUT; RET TO SUPPORT 4JB1 ENG(RLF) M/T MSB5M(RM5) ID=20	9-09841-038-0	01	1	0303-0511
59	NUT; RET TO SUPPORT 4HF1 ENG(RLS) M/T MYY5T(RSM) M27 H=25	8-97253-126-0	01	1	0512-0612
59	NUT; RET TO SUPPORT 4HF1 ENG(RLS) M/T MYY5T(RSM) M27 H=25	8-97360-410-0	01	1	0701-
67	WASHER; PROP SHAFT TO COUPLING DRIVER 4JB1 ENG(RLF) M/T MSB5M(RM5) ID=20.5 OD=47 T=1.2	9-09855-214-0	01	1	0303-0511
89	NUT; YOKE TO RR AXLE 4JB1 ENG(RLF) M10	8-94159-009-1	12	1	0303-0511
89	NUT; YOKE TO RR AXLE 4HF1 ENG(RLS) M12	8-94477-841-0	12	1	0512-0610
89	NUT; YOKE TO RR AXLE 4HF1 ENG(RLS) M12	8-97365-450-0	12	1	0611-
90	WASHER; LK,YOKE TO RR AXLE 4JB1 ENG(RLF) ID=10.2	9-09150-610-0	12	1	0303-0511
90	WASHER; LK,YOKE TO RR AXLE 4HF1 ENG(RLS) ID=12.2	9-09150-812-0	12	1	0512-0603
90	WASHER; LK,YOKE TO RR AXLE 4HF1 ENG(RLS) ID=12.2	0-91510-812-0	12	1	0604-
120	BOLT; YOKE TO RR AXLE 4JB1 ENG(RLF) M10X29	8-97168-458-1	08	1	0303-0511
120	BOLT; YOKE TO RR AXLE 4HF1 ENG(RLS) M12X35	8-94477-842-0	08	1	0512-0610
120	BOLT; YOKE TO RR AXLE 4HF1 ENG(RLS) M12X35	8-97365-451-0	08	1	0611-
121	RETAINER; CUSHION RUBBER	8-97035-623-1	01	1	0303-
123	BOLT; RET M10X25 W/LK&PL WASHER	0-50141-025-0	04	1	0303-0512
123	BOLT; RET M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	0601-
125	YOKE ASM; SPLINED,PROP SHAFT 4JB1 ENG(RLF) L=177 SOU	8-97211-131-0	01	1	0303-0511
125	YOKE ASM; SPLINED,PROP SHAFT 4HF1 ENG(RLS) L=183	8-97327-979-1	01	1	0512-
127	NIPPLE; GREASE,SPLINED YOKE 4JB1 ENG(RLF) M6 STRAIGHT	9-09031-006-0	01	1	0303-0511
127	NIPPLE; GREASE,SPLINED YOKE 4HF1 ENG(RLS) M6 STRAIGHT	9-09031-006-0	01	1	0512-0607
127	NIPPLE; GREASE,SPLINED YOKE 4HF1 ENG(RLS) M6 STRAIGHT SOU	0-90301-406-0	01	1	0608-
128	SEAL; SLEEVE 4JB1 ENG(RLF) SOU	8-97020-597-1	01	1	0303-0511
128	SEAL; SLEEVE 4HF1 ENG(RLS)	8-97145-746-0	01	1	0512-
213	WASHER ASM; PROP SHAFT TO COUPLING 4JB1 ENG(RLF) M/T MSB5M(RM5)	9-09855-212-0	01	1	0303-0511
300	SHAFT ASM; PROP,RR 4JB1 ENG(RLF) M/T MSB5M(RM5) (A) L=914	8-97211-669-0	01	1	0303-0511
300	SHAFT ASM; PROP,RR 4HF1 ENG(RLS) M/T MYY5T(RSM) (A) L=802	8-97308-048-3	01	1	0512-
300	SHAFT ASM; PROP,RR 4JB1 ENG(RLF) (B) L=1044 SOU	8-97211-672-0	01	1	0303-0411
300	SHAFT ASM; PROP,RR 4JB1 ENG(RLF) (B) L=1044	8-98002-488-0	01	1	0412-0511
300	SHAFT ASM; PROP,RR 4HF1 ENG(RLS) (B) L=1090	8-97364-108-2	01	1	0512-
