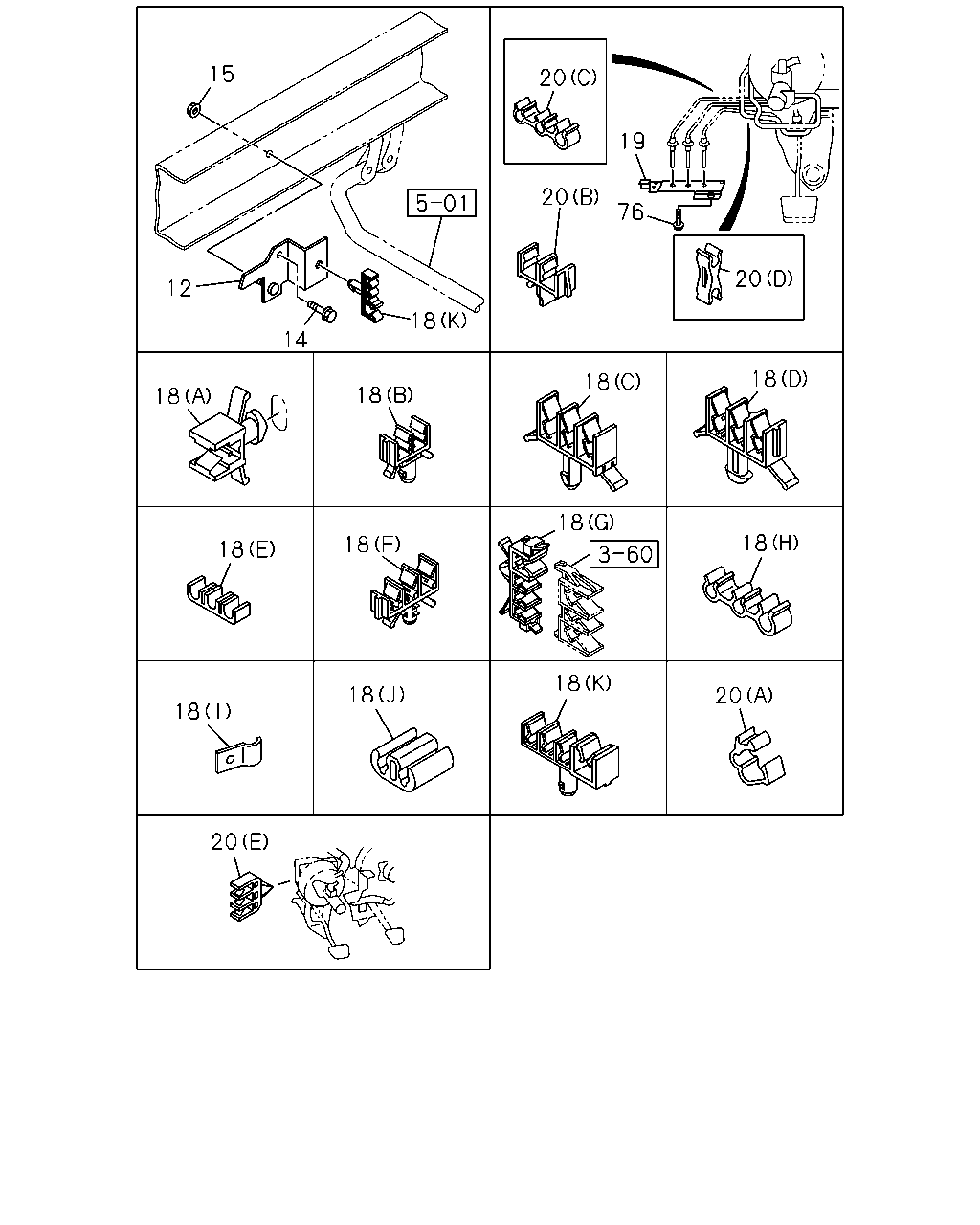

3-58 — FIXING PARTS; OIL PIPING (#44097) — 36 parça

15 20 19 20 76 20 12 18 14 18 18 18 18 18 18 18 18 18 18 20 18 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	BRACKET; OIL PIPE 4HF1 ENG(RLS)	8-97349-917-0	01	1	0512-
14	BOLT; CLIP,OIL PIPE 4HF1 ENG(RLS) M8X20 FLANGE	0-28680-820-0	02	1	0512-0512
14	BOLT; CLIP,OIL PIPE 4HF1 ENG(RLS) M8X20 FLANGE	0-28650-820-0	02	1	0601-
15	NUT; CLIP,OIL PIPE 4HF1 ENG(RLS) M8 FLANGE SOU	0-91150-108-0	02	1	0512-0602
15	NUT; CLIP,OIL PIPE 4HF1 ENG(RLS) M8 FLANGE SOU	0-91180-108-0	02	1	0603-
18	CLIP; BRK PIPE 4HF1 ENG(RLS) (G) ID=10 & 4.76X3	8-97326-158-1	05	1	0512-
18	CLIP; BRK PIPE 4JB1 ENG(RLF) (E) ID=4.76X3	8-94122-333-0	01	1	0303-0511
18	CLIP; BRK PIPE 4HF1 ENG(RLS) (H) ID=6.4 & 4.8X2 SOU	8-94146-043-0	02	1	0512-
18	CLIP; BRK PIPE 4JB1 ENG(RLF) (A) ID=4.8 H=26	8-94249-685-0	02	1	0303-0511
18	CLIP; BRK PIPE 4HF1 ENG(RLS) (I) B=18 L=20	1-09700-372-0	02	1	0512-
18	CLIP; BRK PIPE (D) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	0303-
18	CLIP; BRK PIPE 4JB1 ENG(RLF) (F) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0303-0511
18	CLIP; BRK PIPE 4HF1 ENG(RLS) (F) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	0512-
18	CLIP; BRK PIPE 4JB1 ENG(RLF) (F) ID=10 & 6.4 & 4.8	8-97064-484-1	03	1	0303-0511
18	CLIP; BRK PIPE 4HF1 ENG(RLS) (J) ID=4.8X2 SOU	8-94389-060-0	01	1	0512-
18	CLIP; BRK PIPE 4JB1 ENG(RLF) (C) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0303-0511
18	CLIP; BRK PIPE 4JB1 ENG(RLF) (C) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0303-0511
18	CLIP; BRK PIPE 4HF1 ENG(RLS) (K) ID=10 & 4.76X3	8-97168-819-0	02	1	0512-
18	CLIP; BRK PIPE 4HF1 ENG(RLS) (K) ID=10 & 4.76X3	8-97168-819-0	02	1	0512-
18	CLIP; BRK PIPE 4JB1 ENG(RLF) (B) ID=4.8X2	8-94316-410-0	01	1	0303-0511
18	CLIP; BRK PIPE 4JB1 ENG(RLF) (B) ID=4.8X2	8-94316-410-0	01	1	0303-0511
18	CLIP; BRK PIPE 4HF1 ENG(RLS) (G) ID=10 & 4.76X3	8-97326-158-1	01	1	0512-
18	CLIP; BRK PIPE 4HF1 ENG(RLS) (G) ID=10 & 4.76X3	8-97326-158-1	01	1	0512-
18	CLIP; BRK PIPE 4JB1 ENG(RLF) (A) ID=4.8 H=26	8-94249-685-0	01	1	0303-0511
18	CLIP; BRK PIPE 4JB1 ENG(RLF) (A) ID=4.8 H=26	8-94249-685-0	01	1	0303-0511
18	CLIP; BRK PIPE 4JB1 ENG(RLF) (A) ID=4.8 H=26	8-94249-685-0	01	1	0303-0511
18	CLIP; BRK PIPE 4JB1 ENG(RLF) (A) ID=4.8 H=26	8-94249-685-0	01	1	0303-0511
18	CLIP; BRK PIPE 4HF1 ENG(RLS) (G) ID=10 & 4.76X3	8-97326-158-1	03	1	0512-
19	BRACKET; OIL PIPE SOU	8-97042-258-4	01	1	0303-
20	CLIP; BRK PIPE (A) ID=6.35 & 4.76X2 SOU	8-94107-732-1	01	1	0303-
20	CLIP; BRK PIPE (B) ID=4.8X2	8-94113-470-0	01	1	0303-
20	CLIP; BRK PIPE (C) ID=6.4 & 4.8X2 SOU	8-94146-043-0	01	1	0303-
20	CLIP; BRK PIPE (D) ID=4.6X2 SOU	8-94241-454-0	01	1	0303-
20	CLIP; BRK PIPE (E) ID=6.35 & 4.76X2 SOU	8-94250-923-2	01	1	0303-
76	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0303-0512
76	BOLT; BRKT,OIL PIPE M8X25 FLANGE SOU	0-28650-825-0	02	1	0601-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
