◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50953 - NKR(SOUTH AFRICA) ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#44095) — 54 parça

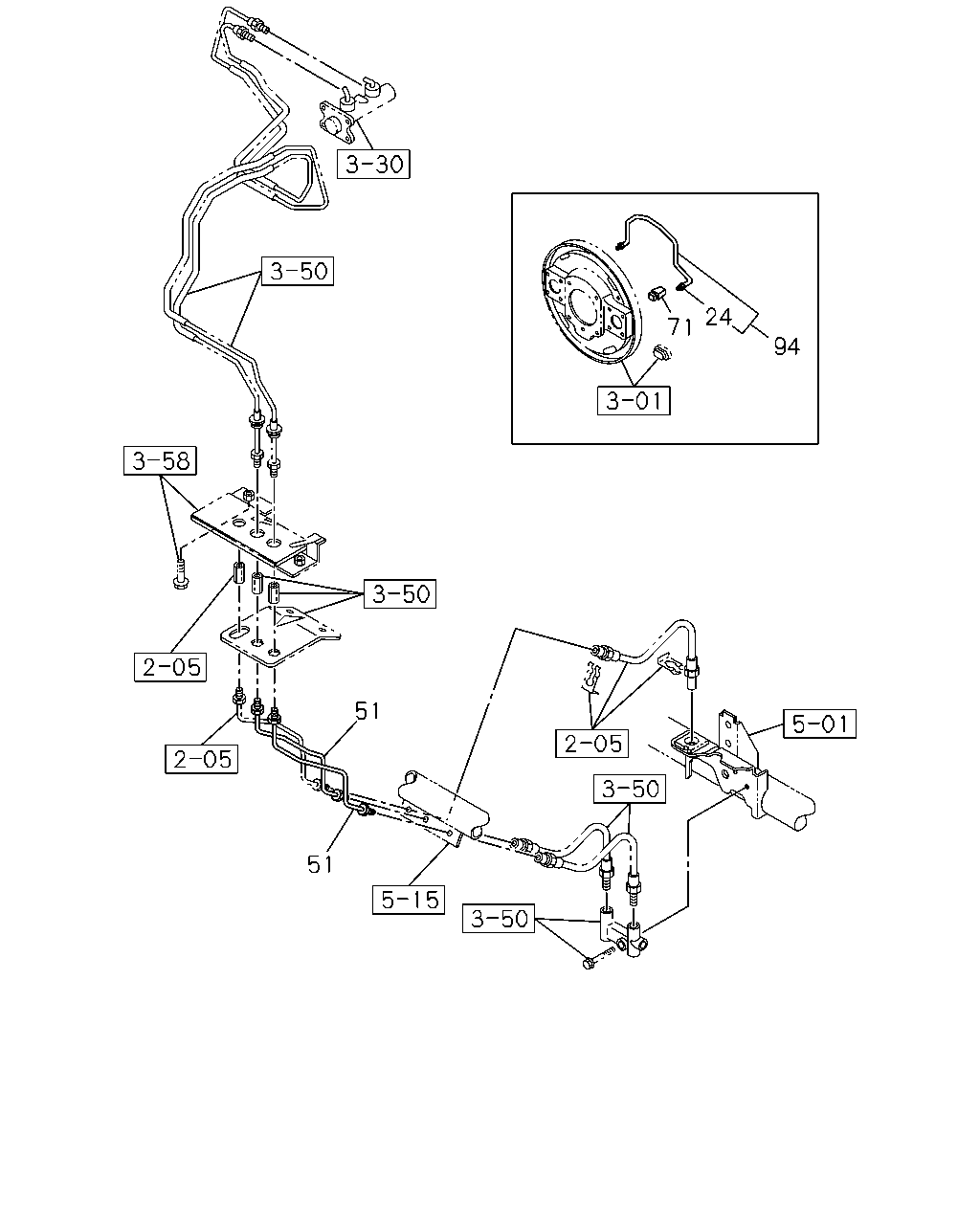

çizim 54251
24 71 94 51 51
BalonParca AdiParca NoAdetTipApplied Date
24 NUT; UNION,OIL PIPE
FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H), FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT& RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) 		9-09217-625-0 02 1 0303-0511
24 NUT; UNION,OIL PIPE
FRT&RR 195/85R16 16X5.5J-116.5(AZX) 		9-09217-625-0 02 1 0512-0607
24 NUT; UNION,OIL PIPE
FRT&RR 195/85R16 16X5.5J-116.5(AZX) 		0-92107-605-0 02 1 0608-
51 PIPE; BRK 8-97035-978-0 02 1 0303-
71 GROMMET; OIL PIPE
FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H), FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT& RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) 		9-09756-034-0 02 1 0303-0511
71 GROMMET; OIL PIPE
FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-1016X5.5F-115(07H) 		9-09756-034-0 02 1 0512-
94 PIPE; BRK,W/C TO W/C
FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H), FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT& RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) 		8-97019-222-0 01 1 0303-0511
94 PIPE; BRK,W/C TO W/C
FRT&RR 195/85R16 16X5.5J-116.5(AZX) 		8-97019-222-0 01 1 0512-
94 PIPE; BRK,W/C TO W/C
FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H), FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT& RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) 		8-97019-223-0 01 1 0303-0511
94 PIPE; BRK,W/C TO W/C
FRT&RR 195/85R16 16X5.5J-116.5(AZX) 		8-97019-223-0 01 1 0512-
çizim 54273
9 1 99 9 96 1 96 29 31 28 27
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,FRT BRK
FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H), FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT& RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) 		8-97035-063-0 02 1 0303-0511
1 HOSE; FLEX,FRT BRK
FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-1016X5.5F-115(07H) 		8-97035-063-1 02 1 0512-
9 CLIP; FLEX HOSE,FRT BRK 8-94137-662-0 02 1 0303-0511
9 CLIP; FLEX HOSE,FRT BRK
FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H), FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT& RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) 		8-94137-662-0 02 1 0303-0511
9 CLIP; FLEX HOSE,FRT BRK 8-94137-662-0 02 1 0512-0610
9 CLIP; FLEX HOSE,FRT BRK
FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-1016X5.5F-115(07H) 		8-94137-662-0 02 1 0512-0610
9 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0611-
9 CLIP; FLEX HOSE,FRT BRK
FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-1016X5.5F-115(07H) 		8-97360-054-0 02 1 0611-
27 UNION; BRK PIPE
4JB1 ENG(RLF) M10 STRAIGHT 		9-09227-005-0 01 1 0303-0511
27 UNION; BRK PIPE
4HF1 ENG(RLS) 		8-97259-943-1 01 1 0512-
28 BOLT; UNION CLIP
4JB1 ENG(RLF) M6X25 FLANGE 		0-28680-625-0 01 1 0303-0511
29 CLIP; UNION
4JB1 ENG(RLF) ID=16 L=20 		9-09525-532-0 01 1 0303-0511
31 NUT; UNION CLIP
4JB1 ENG(RLF) M6 FLANGE 		0-91150-106-0 01 1 0303-0511
31 NUT; UNION CLIP
M6 FLANGE 		0-91150-106-0 01 1 0512-0602
31 NUT; UNION CLIP
M6 FLANGE SOU 		0-91180-106-0 01 1 0603-
96 PIPE ASM; 6 WAY
4JB1 ENG(RLF) L=918 		8-94249-679-4 01 1 0303-0511
96 PIPE ASM; 6 WAY
4HF1 ENG(RLS) 		8-97325-915-1 01 1 0512-
96 PIPE ASM; 6 WAY
4JB1 ENG(RLF) 		8-97100-833-3 01 1 0303-0511
96 PIPE ASM; 6 WAY
4HF1 ENG(RLS) 		8-97325-919-1 01 1 0512-
99 PIPE ASM; 4/5/6 WAY
4HF1 ENG(RLS) (A) REAR 		8-97363-974-0 01 1 0512-
99 PIPE ASM; 4/5/6 WAY
4JB1 ENG(RLF) (A) REAR 		8-97173-706-0 01 1 0303-0511
99 PIPE ASM; 4/5/6 WAY
4HF1 ENG(RLS) (B) FRONT 		8-97363-950-0 01 1 0512-

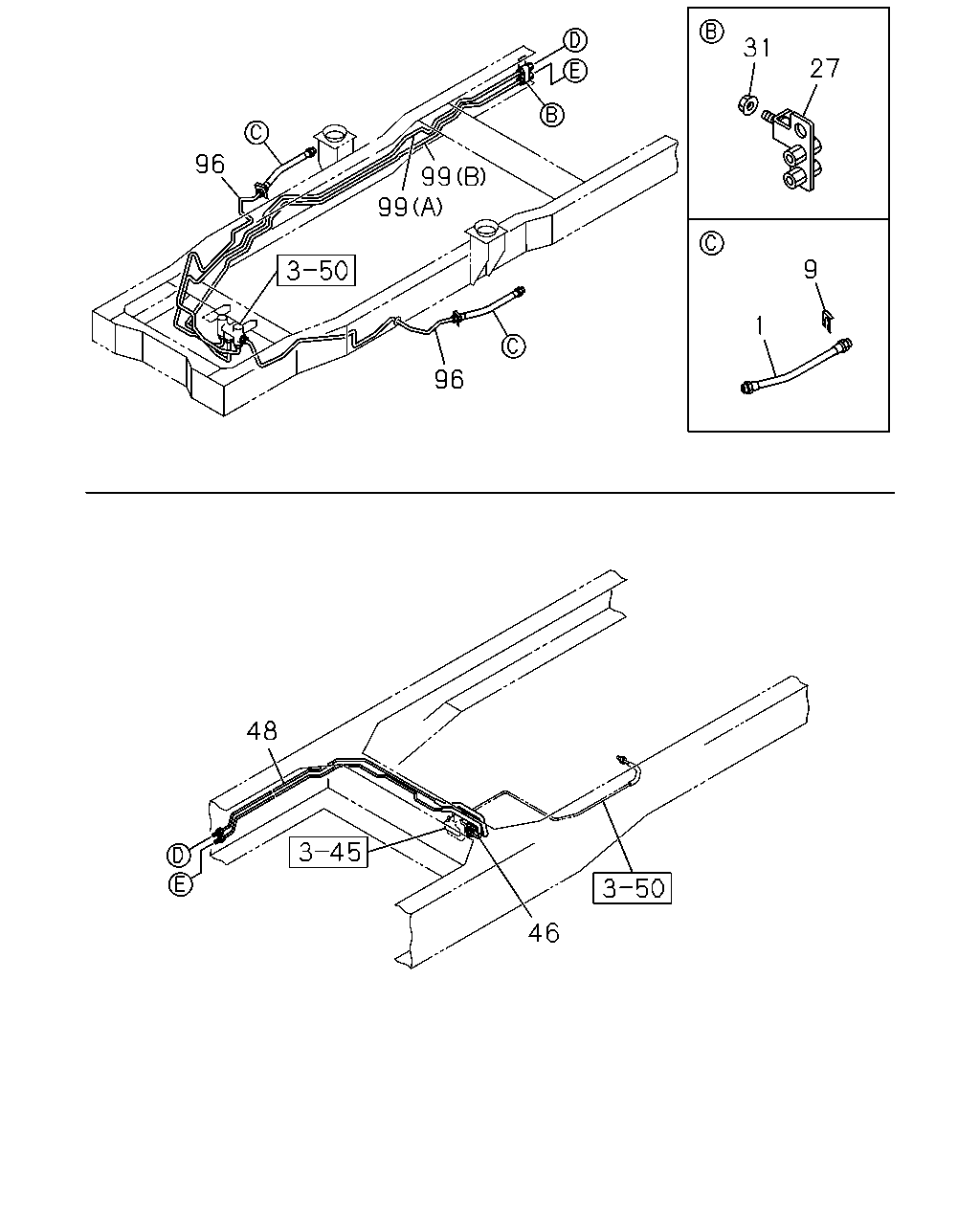

çizim 55736
31 27 99 99 96 9 1 96 48 46
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,FRT BRK
FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H), FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT& RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) 		8-97035-063-0 02 1 0303-0511
1 HOSE; FLEX,FRT BRK
FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-1016X5.5F-115(07H) 		8-97035-063-1 02 1 0512-
9 CLIP; FLEX HOSE,FRT BRK 8-94137-662-0 02 1 0303-0511
9 CLIP; FLEX HOSE,FRT BRK
FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H), FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT& RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) 		8-94137-662-0 02 1 0303-0511
9 CLIP; FLEX HOSE,FRT BRK 8-94137-662-0 02 1 0512-0610
9 CLIP; FLEX HOSE,FRT BRK
FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-1016X5.5F-115(07H) 		8-94137-662-0 02 1 0512-0610
9 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0611-
9 CLIP; FLEX HOSE,FRT BRK
FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-1016X5.5F-115(07H) 		8-97360-054-0 02 1 0611-
27 UNION; BRK PIPE
4JB1 ENG(RLF) M10 STRAIGHT 		9-09227-005-0 01 1 0303-0511
27 UNION; BRK PIPE
4HF1 ENG(RLS) 		8-97259-943-1 01 1 0512-
31 NUT; UNION CLIP
4JB1 ENG(RLF) M6 FLANGE 		0-91150-106-0 01 1 0303-0511
31 NUT; UNION CLIP
M6 FLANGE 		0-91150-106-0 01 1 0512-0602
31 NUT; UNION CLIP
M6 FLANGE SOU 		0-91180-106-0 01 1 0603-
46 PIPE; BRK,JOINT TO VLV
4HF1 ENG(RLS) FRONT 		8-97325-939-0 01 1 0512-
48 PIPE; BRK,BYPASS VLV TO CONN
4HF1 ENG(RLS) REAR 		8-97325-945-0 01 1 0512-
96 PIPE ASM; 6 WAY
4JB1 ENG(RLF) L=918 		8-94249-679-4 01 1 0303-0511
96 PIPE ASM; 6 WAY
4HF1 ENG(RLS) 		8-97325-915-1 01 1 0512-
96 PIPE ASM; 6 WAY
4JB1 ENG(RLF) 		8-97100-833-3 01 1 0303-0511
96 PIPE ASM; 6 WAY
4HF1 ENG(RLS) 		8-97325-919-1 01 1 0512-
99 PIPE ASM; 4/5/6 WAY
4HF1 ENG(RLS) (A) REAR 		8-97363-974-0 01 1 0512-
99 PIPE ASM; 4/5/6 WAY
4JB1 ENG(RLF) (A) REAR 		8-97173-706-0 01 1 0303-0511
99 PIPE ASM; 4/5/6 WAY
4HF1 ENG(RLS) (B) FRONT 		8-97363-950-0 01 1 0512-
