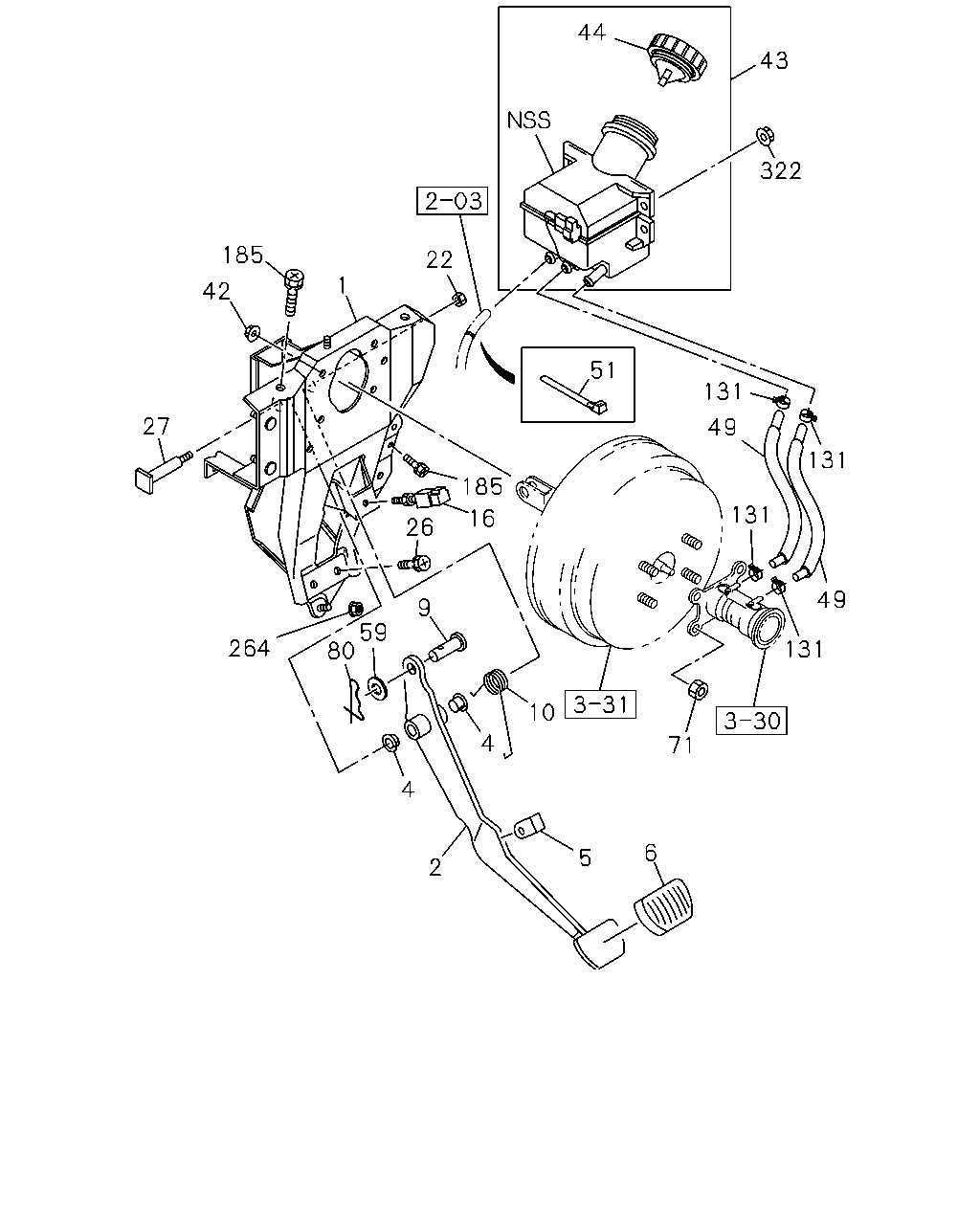

1 |
BRACKET ASM; PEDAL
4JB1 ENG(RLF)
SOU
|
8-97896-968-3 |
01 |
1 |
0303-0511 |
| |
1 |
BRACKET ASM; PEDAL
4HF1 ENG(RLS)
SOU
|
8-97896-968-5 |
01 |
1 |
0512- |
| |
2 |
PEDAL; BRK
4JB1 ENG(RLF)
SOU
|
8-97853-210-3 |
01 |
1 |
0303-0511 |
| |
2 |
PEDAL; BRK
4HF1 ENG(RLS)
SOU
|
8-97853-210-3 |
01 |
1 |
0512- |
| |
4 |
BUSHING; BRK PEDAL
4JB1 ENG(RLF)
SOU
|
8-94238-596-0 |
02 |
1 |
0303-0511 |
| |
4 |
BUSHING; BRK PEDAL
4HF1 ENG(RLS)
SOU
|
8-94238-596-0 |
02 |
1 |
0512- |
| |
5 |
STOPPER; BRK PEDAL
4JB1 ENG(RLF)
SOU
|
8-97853-602-1 |
01 |
1 |
0303-0511 |
| |
5 |
STOPPER; BRK PEDAL
4HF1 ENG(RLS)
SOU
|
8-97853-602-1 |
01 |
1 |
0512- |
| |
6 |
COVER; BRK PEDAL
4JB1 ENG(RLF)
SOU
|
8-97853-413-2 |
01 |
1 |
0303-0511 |
| |
6 |
COVER; BRK PEDAL
4HF1 ENG(RLS)
SOU
|
8-97853-413-2 |
01 |
1 |
0512- |
| |
9 |
PIN; JAW JOINT
SOU
|
8-94410-276-0 |
01 |
1 |
0303- |
| |
10 |
SPRING; RETURN,BRK PEDAL
4JB1 ENG(RLF)
SOU
|
8-97853-212-1 |
01 |
1 |
0303-0511 |
| |
10 |
SPRING; RETURN,BRK PEDAL
4HF1 ENG(RLS)
SOU
|
8-97853-212-1 |
01 |
1 |
0512- |
| |
16 |
SWITCH; STOP LAMP
4JB1 ENG(RLF)
SOU
|
8-97855-187-0 |
01 |
1 |
0303-0511 |
| |
16 |
SWITCH; STOP LAMP
4HF1 ENG(RLS)
SOU
|
8-97855-187-0 |
01 |
1 |
0512- |
| |
22 |
NUT; SHAFT
4JB1 ENG(RLF)
M10 FLANGE
SOU
|
1-09440-022-0 |
01 |
1 |
0303-0511 |
| |
22 |
NUT; SHAFT
4HF1 ENG(RLS)
M10 FLANGE
SOU
|
1-09440-022-0 |
01 |
1 |
0512- |
| |
26 |
BOLT; PEDAL
M10X22 W/PL WASHER
SOU
|
8-97313-188-0 |
02 |
1 |
0303- |
| |
27 |
SHAFT; BRK PEDAL
4JB1 ENG(RLF)
SOU
|
8-97866-667-0 |
01 |
1 |
0303-0511 |
| |
27 |
SHAFT; BRK PEDAL
4HF1 ENG(RLS)
SOU
|
8-97866-667-0 |
01 |
1 |
0512- |
| |
42 |
NUT; BRK PEDAL
M8 W/LK WASHER
SOU
|
8-94279-050-0 |
04 |
1 |
0303- |
| |
43 |
TANK ASM; OIL
SOU
|
8-97179-813-1 |
01 |
1 |
0303- |
| |
44 |
CAP; OIL TANK
SOU
|
8-97178-291-1 |
01 |
1 |
0303- |
| |
49 |
HOSE; OIL TANK TO BRK M/CYL
SOU
|
8-97129-582-0 |
02 |
1 |
0303- |
| |
51 |
CLIP; HOSE,OIL TANK
L=140
SOU
|
5-09707-031-1 |
01 |
1 |
0303- |
| |
59 |
WASHER; PL,JAW JOINT
ID=15
|
9-09160-514-0 |
01 |
1 |
0303-0605 |
| |
59 |
WASHER; PL,JAW JOINT
ID=15
|
0-91610-514-0 |
01 |
1 |
0606- |
| |
71 |
NUT; BRK M/CYL
M8 W/LK WASHER
SOU
|
8-94279-050-0 |
04 |
1 |
0303- |
| |
80 |
PIN; SNAP,BRK PEDAL
SOU
|
8-94279-912-0 |
01 |
1 |
0303- |
| |
131 |
CLIP; RUBBER HOSE,OIL TANK TO BRK M/CY
SOU
|
8-97130-480-0 |
04 |
1 |
0303- |
| |
185 |
BOLT; BRKT
M10X25 FLANGE
|
0-28691-025-0 |
02 |
1 |
0303-0512 |
| |
185 |
BOLT; BRKT
M10X25 FLANGE
|
0-28661-025-0 |
02 |
1 |
0601- |
| |
264 |
NUT; BRKT,COLUMN SUPT TO B.PDL
M8 FLANGE
SOU
|
8-97046-127-0 |
01 |
1 |
0303-0610 |
| |
264 |
NUT; BRKT,COLUMN SUPT TO B.PDL
M8 W/DISHED WASHER
|
8-97329-625-0 |
01 |
1 |
0611- |
| |
322 |
NUT; OIL TANK
M6 FLANGE
|
0-91150-106-0 |
02 |
1 |
0303-0602 |
| |
322 |
NUT; OIL TANK
M6 FLANGE
SOU
|
0-91180-106-0 |
02 |
1 |
0603- |
