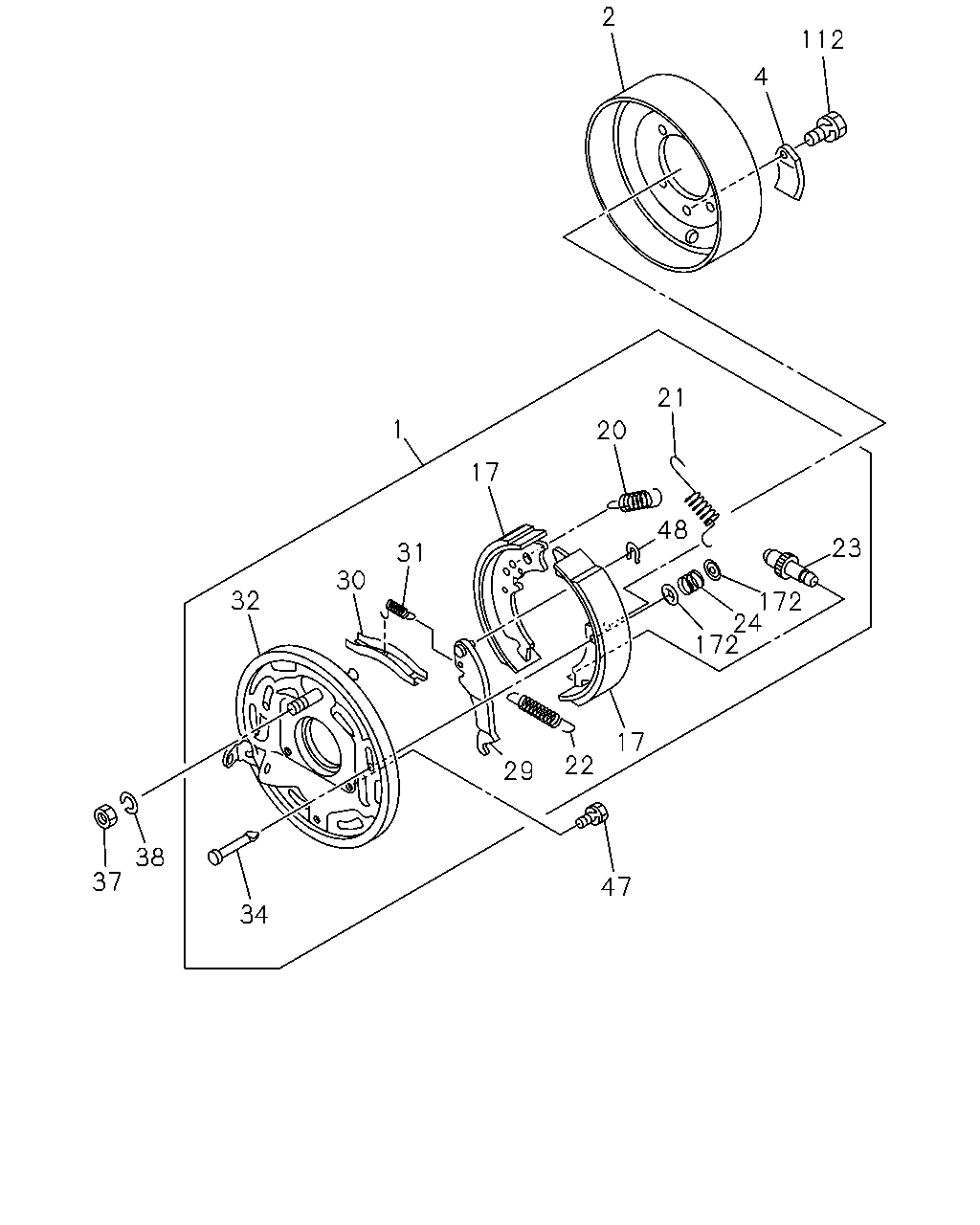

3-08 — PARKING BRAKE (#44087) — 96 parça

112 2 4 21 1 21 17 26 48 23 172 24 172 31 32 30 25 17 22 29 37 34 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRAKE ASM; CENTER,PARKING 4JB1 ENG(RLF)	8-97034-553-2	01	1	0303-0511
1	BRAKE ASM; CENTER,PARKING 4HF1 ENG(RLS)	8-97308-175-0	01	1	0512-0611
1	BRAKE ASM; CENTER,PARKING 4HF1 ENG(RLS)	8-98029-922-0	01	1	0612-
2	DRUM; PARKING BRK 4JB1 ENG(RLF)	5-46210-005-3	01	1	0303-0511
2	DRUM; PARKING BRK 4HF1 ENG(RLS)	8-97033-989-1	01	1	0512-
4	COVER; ADJ HOLE 4JB1 ENG(RLF)	5-42319-003-0	01	1	0303-0511
4	COVER; ADJ HOLE 4HF1 ENG(RLS)	5-46219-001-0	01	1	0512-0604
4	COVER; ADJ HOLE 4HF1 ENG(RLS)	8-98029-820-0	01	1	0605-
17	SHOE; PARKING BRK 4JB1 ENG(RLF)	8-97042-933-1	02	1	0303-0511
17	SHOE; PARKING BRK 4HF1 ENG(RLS)	8-97020-250-2	02	1	0512-
21	SPRING; RETURN,PARKING BRK SHOE 4JB1 ENG(RLF)	9-09942-552-1	01	1	0303-0511
21	SPRING; RETURN,PARKING BRK SHOE 4HF1 ENG(RLS)	8-94132-157-0	02	1	0512-
22	SPRING; ADJ SCREW,PARKING BRK 4JB1 ENG(RLF)	9-09942-340-1	01	1	0303-0511
22	SPRING; ADJ SCREW,PARKING BRK 4HF1 ENG(RLS)	8-94107-618-0	01	1	0512-
23	SCREW; ADJ,PARKING BRK SHOE 4JB1 ENG(RLF)	5-47165-025-0	01	1	0303-0511
23	SCREW; ADJ,PARKING BRK SHOE 4HF1 ENG(RLS)	5-47165-025-0	01	1	0512-0611
23	SCREW; ADJ,PARKING BRK SHOE 4HF1 ENG(RLS)	8-98043-954-0	01	1	0612-
24	SPRING; BRK SHOE 4JB1 ENG(RLF)	9-09941-062-1	02	1	0303-0511
24	SPRING; BRK SHOE 4HF1 ENG(RLS)	8-94132-155-1	02	1	0512-
25	SPRING; SHOE ALIGNMENT 4HF1 ENG(RLS)	8-94132-156-0	01	1	0512-
26	PLATE; SHOE GUIDE 4HF1 ENG(RLS)	9-09851-986-0	01	1	0512-0611
26	PLATE; SHOE GUIDE 4HF1 ENG(RLS)	8-98043-959-0	01	1	0612-
29	LEVER; PARKING BRK 4JB1 ENG(RLF)	8-94128-765-0	01	1	0303-0511
29	LEVER; PARKING BRK 4HF1 ENG(RLS)	8-97027-125-0	01	1	0512-0611
29	LEVER; PARKING BRK 4HF1 ENG(RLS)	8-98043-949-0	01	1	0612-
30	STRUT; PARKING BRK 4JB1 ENG(RLF)	5-46251-007-0	01	1	0303-0511
30	STRUT; PARKING BRK 4HF1 ENG(RLS)	8-94311-779-0	01	1	0512-0611
30	STRUT; PARKING BRK 4HF1 ENG(RLS)	8-98043-953-0	01	1	0612-
31	SPRING; SHOE TO STRUT 4JB1 ENG(RLF)	9-09942-521-1	01	1	0303-0511
31	SPRING; SHOE TO STRUT 4HF1 ENG(RLS)	8-94132-158-0	01	1	0512-
32	PLATE; SUPPORT,PARKING BRK 4JB1 ENG(RLF)	9-46213-601-2	01	1	0303-0511
32	PLATE; SUPPORT,PARKING BRK 4HF1 ENG(RLS)	8-97308-176-0	01	1	0512-
34	PIN; BRK SHOE 4JB1 ENG(RLF)	9-47162-034-0	02	1	0303-0511
34	PIN; BRK SHOE 4HF1 ENG(RLS)	8-94132-159-0	02	1	0512-0611
34	PIN; BRK SHOE 4HF1 ENG(RLS)	8-98043-955-0	02	1	0612-
37	NUT; SUPPORT PLATE 4JB1 ENG(RLF) M12	8-97033-122-0	01	1	0303-0511
37	NUT; SUPPORT PLATE 4HF1 ENG(RLS) M12 LOCK NUT	8-97248-173-0	04	1	0512-0604
37	NUT; SUPPORT PLATE 4HF1 ENG(RLS) M12 LOCK NUT	8-98029-927-0	04	1	0605-
48	RETAINER; PIN,PARKING BRK 4JB1 ENG(RLF) SOU	9-46349-005-1	01	1	0303-0511
48	RETAINER; PIN,PARKING BRK 4HF1 ENG(RLS) SOU	9-46349-005-1	01	1	0512-0611
48	RETAINER; PIN,PARKING BRK 4HF1 ENG(RLS)	8-98043-958-0	01	1	0612-
112	BOLT; COVER TO BRK DRUM 4JB1 ENG(RLF) M6X16 W/LK WASHER	0-50040-616-0	01	1	0303-0511
112	BOLT; COVER TO BRK DRUM 4HF1 ENG(RLS) M6X16 W/LK WASHER	0-50040-616-0	01	1	0512-0512
112	BOLT; COVER TO BRK DRUM 4HF1 ENG(RLS) M6X16 W/LK WASHER SOU	0-50540-616-0	01	1	0601-
114	STUD; SUPPORT PLATE 4HF1 ENG(RLS)	8-97289-280-0	04	1	0512-0604
114	STUD; SUPPORT PLATE 4HF1 ENG(RLS)	8-98029-929-0	04	1	0605-
172	CUP; SHOE HOLD 4JB1 ENG(RLF)	8-94378-404-0	04	1	0303-0511
172	CUP; SHOE HOLD 4HF1 ENG(RLS) SOU	9-47162-033-0	04	1	0512-0611
172	CUP; SHOE HOLD 4HF1 ENG(RLS)	8-98043-956-0	04	1	0612-

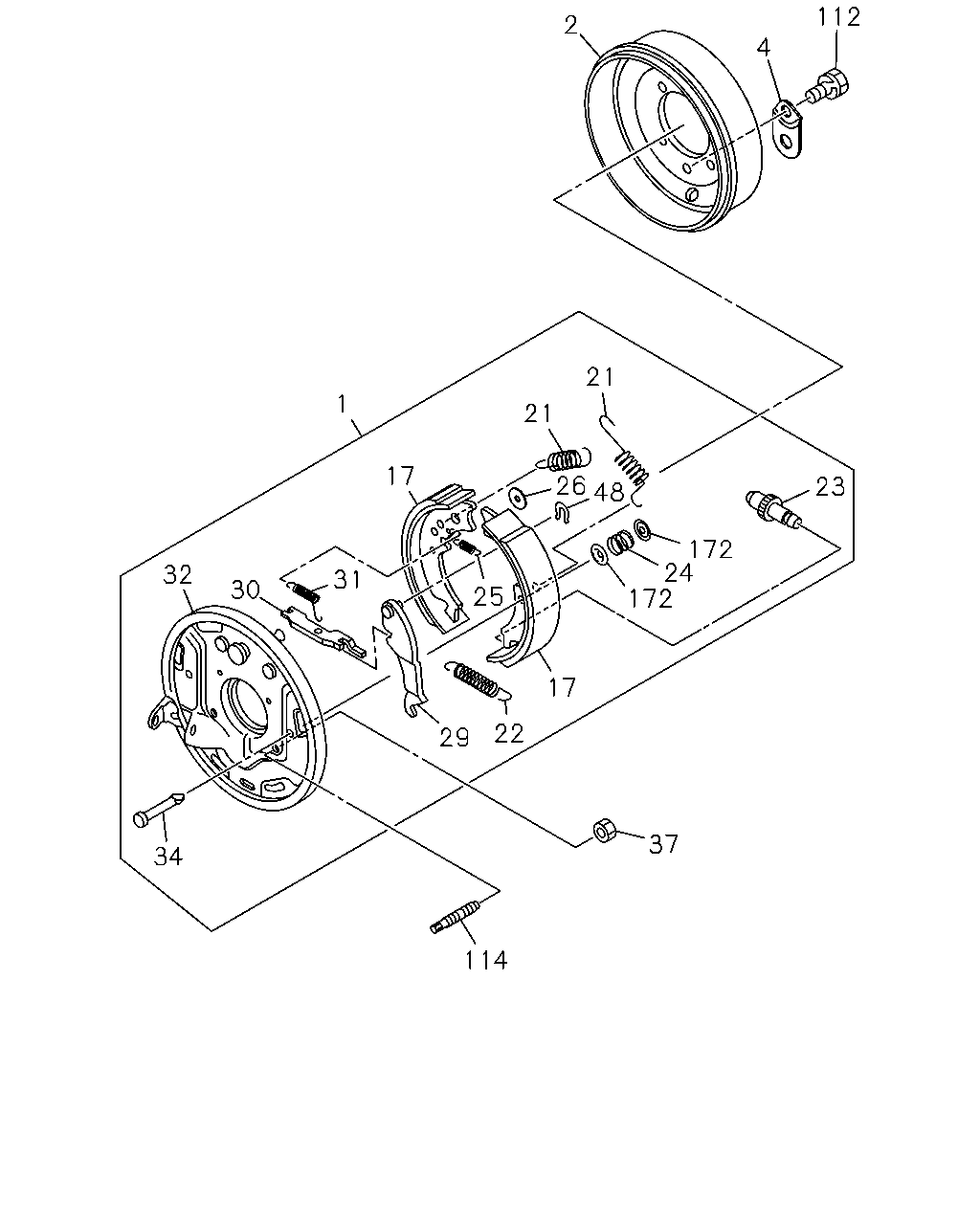

2 112 4 21 1 20 17 48 23 31 30 32 172 24 172 17 22 29 38 37 47 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRAKE ASM; CENTER,PARKING 4JB1 ENG(RLF)	8-97034-553-2	01	1	0303-0511
1	BRAKE ASM; CENTER,PARKING 4HF1 ENG(RLS)	8-97308-175-0	01	1	0512-0611
1	BRAKE ASM; CENTER,PARKING 4HF1 ENG(RLS)	8-98029-922-0	01	1	0612-
2	DRUM; PARKING BRK 4JB1 ENG(RLF)	5-46210-005-3	01	1	0303-0511
2	DRUM; PARKING BRK 4HF1 ENG(RLS)	8-97033-989-1	01	1	0512-
4	COVER; ADJ HOLE 4JB1 ENG(RLF)	5-42319-003-0	01	1	0303-0511
4	COVER; ADJ HOLE 4HF1 ENG(RLS)	5-46219-001-0	01	1	0512-0604
4	COVER; ADJ HOLE 4HF1 ENG(RLS)	8-98029-820-0	01	1	0605-
17	SHOE; PARKING BRK 4JB1 ENG(RLF)	8-97042-933-1	02	1	0303-0511
17	SHOE; PARKING BRK 4HF1 ENG(RLS)	8-97020-250-2	02	1	0512-
20	SPRING; RETURN,SECONDARY,PARKING BRK 4JB1 ENG(RLF)	9-09942-553-1	01	1	0303-0511
21	SPRING; RETURN,PARKING BRK SHOE 4JB1 ENG(RLF)	9-09942-552-1	01	1	0303-0511
21	SPRING; RETURN,PARKING BRK SHOE 4HF1 ENG(RLS)	8-94132-157-0	02	1	0512-
22	SPRING; ADJ SCREW,PARKING BRK 4JB1 ENG(RLF)	9-09942-340-1	01	1	0303-0511
22	SPRING; ADJ SCREW,PARKING BRK 4HF1 ENG(RLS)	8-94107-618-0	01	1	0512-
23	SCREW; ADJ,PARKING BRK SHOE 4JB1 ENG(RLF)	5-47165-025-0	01	1	0303-0511
23	SCREW; ADJ,PARKING BRK SHOE 4HF1 ENG(RLS)	5-47165-025-0	01	1	0512-0611
23	SCREW; ADJ,PARKING BRK SHOE 4HF1 ENG(RLS)	8-98043-954-0	01	1	0612-
24	SPRING; BRK SHOE 4JB1 ENG(RLF)	9-09941-062-1	02	1	0303-0511
24	SPRING; BRK SHOE 4HF1 ENG(RLS)	8-94132-155-1	02	1	0512-
29	LEVER; PARKING BRK 4JB1 ENG(RLF)	8-94128-765-0	01	1	0303-0511
29	LEVER; PARKING BRK 4HF1 ENG(RLS)	8-97027-125-0	01	1	0512-0611
29	LEVER; PARKING BRK 4HF1 ENG(RLS)	8-98043-949-0	01	1	0612-
30	STRUT; PARKING BRK 4JB1 ENG(RLF)	5-46251-007-0	01	1	0303-0511
30	STRUT; PARKING BRK 4HF1 ENG(RLS)	8-94311-779-0	01	1	0512-0611
30	STRUT; PARKING BRK 4HF1 ENG(RLS)	8-98043-953-0	01	1	0612-
31	SPRING; SHOE TO STRUT 4JB1 ENG(RLF)	9-09942-521-1	01	1	0303-0511
31	SPRING; SHOE TO STRUT 4HF1 ENG(RLS)	8-94132-158-0	01	1	0512-
32	PLATE; SUPPORT,PARKING BRK 4JB1 ENG(RLF)	9-46213-601-2	01	1	0303-0511
32	PLATE; SUPPORT,PARKING BRK 4HF1 ENG(RLS)	8-97308-176-0	01	1	0512-
34	PIN; BRK SHOE 4JB1 ENG(RLF)	9-47162-034-0	02	1	0303-0511
34	PIN; BRK SHOE 4HF1 ENG(RLS)	8-94132-159-0	02	1	0512-0611
34	PIN; BRK SHOE 4HF1 ENG(RLS)	8-98043-955-0	02	1	0612-
37	NUT; SUPPORT PLATE 4JB1 ENG(RLF) M12	8-97033-122-0	01	1	0303-0511
37	NUT; SUPPORT PLATE 4HF1 ENG(RLS) M12 LOCK NUT	8-97248-173-0	04	1	0512-0604
37	NUT; SUPPORT PLATE 4HF1 ENG(RLS) M12 LOCK NUT	8-98029-927-0	04	1	0605-
38	WASHER; LK,SUPPORT PLATE 4JB1 ENG(RLF) ID=8.2	9-09150-808-0	02	1	0303-0511
47	BOLT; SUPPORT PLATE 4JB1 ENG(RLF)	9-02060-814-0	02	1	0303-0511
48	RETAINER; PIN,PARKING BRK 4JB1 ENG(RLF) SOU	9-46349-005-1	01	1	0303-0511
48	RETAINER; PIN,PARKING BRK 4HF1 ENG(RLS) SOU	9-46349-005-1	01	1	0512-0611
48	RETAINER; PIN,PARKING BRK 4HF1 ENG(RLS)	8-98043-958-0	01	1	0612-
112	BOLT; COVER TO BRK DRUM 4JB1 ENG(RLF) M6X16 W/LK WASHER	0-50040-616-0	01	1	0303-0511
112	BOLT; COVER TO BRK DRUM 4HF1 ENG(RLS) M6X16 W/LK WASHER	0-50040-616-0	01	1	0512-0512
112	BOLT; COVER TO BRK DRUM 4HF1 ENG(RLS) M6X16 W/LK WASHER SOU	0-50540-616-0	01	1	0601-
172	CUP; SHOE HOLD 4JB1 ENG(RLF)	8-94378-404-0	04	1	0303-0511
172	CUP; SHOE HOLD 4HF1 ENG(RLS) SOU	9-47162-033-0	04	1	0512-0611
172	CUP; SHOE HOLD 4HF1 ENG(RLS)	8-98043-956-0	04	1	0612-
