1 |

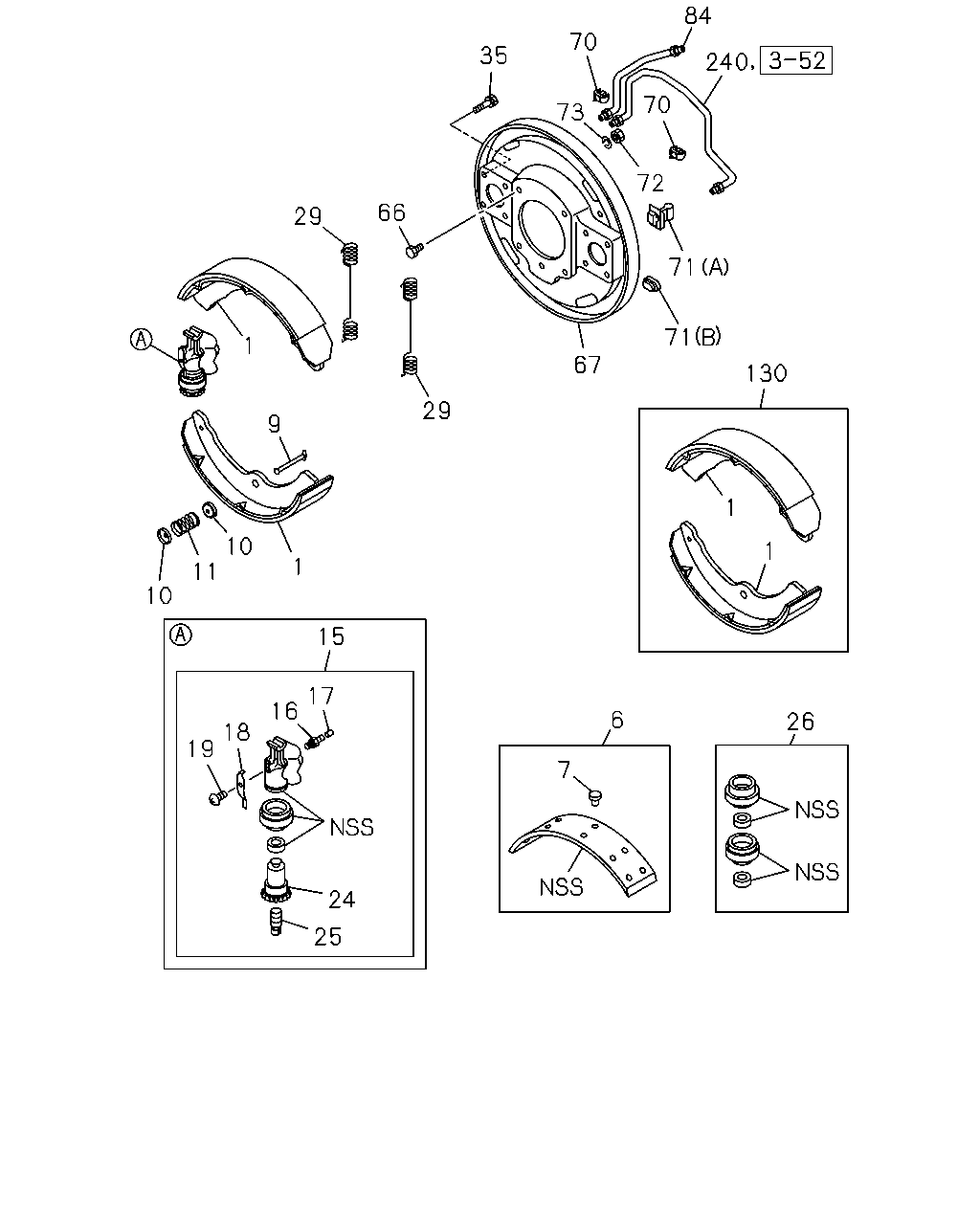

SHOE; BRK,FRT
FRT&RR 7R-16-10 16X5.5F-115(07H)
SOU
|
8-97287-778-0 |
04 |
1 |
0512- |
| |
1 |
SHOE; BRK,FRT
FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H),
FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10
5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR
7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8
16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&
RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H)
|
8-97035-085-1 |
04 |
1 |
0303-0511 |
| |
1 |
SHOE; BRK,FRT
FRT&RR 195/85R16 16X5.5J-116.5(AZX)
|
8-97035-085-1 |
04 |
1 |
0512- |
| |
6 |
LINING KIT; FRT BRK
FRT&RR 7R-16-10 16X5.5F-115(07H)
SOU
|
5-87831-801-0 |
01 |
1 |
0512- |
| |
7 |
RIVET; LINING,FRT BRK
FRT&RR 7R-16-10 16X5.5F-115(07H)
SOU
|
1-09732-029-0 |
40 |
1 |
0512- |
| |
9 |
PIN; SHOE HOLDER
FRT&RR 7R-16-10 16X5.5F-115(07H)
SOU
|
5-47162-001-0 |
04 |
1 |
0512- |
| |
9 |
PIN; SHOE HOLDER
FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H),
FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10
5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR
7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8
16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&
RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H)
|
8-97019-207-0 |
04 |
1 |
0303-0511 |
| |
9 |
PIN; SHOE HOLDER
FRT&RR 195/85R16 16X5.5J-116.5(AZX)
|
8-97019-207-0 |
04 |
1 |
0512- |
| |
10 |
CUP; SHOE HOLDING
FRT&RR 7R-16-10 16X5.5F-115(07H)
SOU
|
9-47165-096-0 |
08 |
1 |
0512- |
| |
10 |
CUP; SHOE HOLDING
FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H),
FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10
5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR
7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8
16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&
RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H)
SOU
|
9-47162-033-0 |
08 |
1 |
0303-0511 |
| |
10 |
CUP; SHOE HOLDING
FRT&RR 195/85R16 16X5.5J-116.5(AZX)
SOU
|
9-47162-033-0 |
08 |
1 |
0512- |
| |
11 |
SPRING; SHOE HOLDING
FRT&RR 7R-16-10 16X5.5F-115(07H)
SOU
|
5-09580-101-1 |
04 |
1 |
0512- |
| |
11 |
SPRING; SHOE HOLDING
FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H),
FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10
5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR
7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8
16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&
RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H)
|
9-09940-989-1 |
04 |
1 |
0303-0511 |
| |
11 |
SPRING; SHOE HOLDING
FRT&RR 195/85R16 16X5.5J-116.5(AZX)
|
9-09940-989-1 |
04 |
1 |
0512- |
| |
15 |
CYLINDER; WHEEL,FRT BRK
FRT&RR 7R-16-10 16X5.5F-115(07H)
FRONT
SOU
|
8-97170-950-0 |
01 |
1 |
0512- |
| |
15 |
CYLINDER; WHEEL,FRT BRK
FRT&RR 7R-16-10 16X5.5F-115(07H)
FRONT
SOU
|
8-97170-951-0 |
01 |
1 |
0512- |
| |
15 |
CYLINDER; WHEEL,FRT BRK
FRT&RR 7R-16-10 16X5.5F-115(07H)
REAR
SOU
|
8-97170-952-0 |
01 |
1 |
0512- |
| |
15 |
CYLINDER; WHEEL,FRT BRK
FRT&RR 7R-16-10 16X5.5F-115(07H)
REAR
SOU
|
8-97170-953-0 |
01 |
1 |
0512- |
| |
15 |
CYLINDER; WHEEL,FRT BRK
FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H),
FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10
5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR
7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8
16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&
RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H)
REAR
|
8-97179-357-0 |
01 |
1 |
0303-0511 |
| |
15 |
CYLINDER; WHEEL,FRT BRK
FRT&RR 195/85R16 16X5.5J-116.5(AZX)
REAR
|
8-97179-357-0 |
01 |
1 |
0512- |
| |
15 |
CYLINDER; WHEEL,FRT BRK
FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H),
FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10
5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR
7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8
16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&
RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H)
REAR
|
8-97179-358-0 |
01 |
1 |
0303-0511 |
| |
15 |
CYLINDER; WHEEL,FRT BRK
FRT&RR 195/85R16 16X5.5J-116.5(AZX)
REAR
|
8-97179-358-0 |
01 |
1 |
0512- |
| |
15 |
CYLINDER; WHEEL,FRT BRK
FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H),
FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10
5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR
7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8
16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&
RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H)
FRONT
|
8-97179-359-0 |
01 |
1 |
0303-0511 |
| |
15 |
CYLINDER; WHEEL,FRT BRK
FRT&RR 195/85R16 16X5.5J-116.5(AZX)
FRONT
|
8-97179-359-0 |
01 |
1 |
0512- |
| |
15 |
CYLINDER; WHEEL,FRT BRK
FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H),
FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10
5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR
7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8
16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&
RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H)
FRONT
|
8-97179-360-0 |
01 |
1 |
0303-0511 |
| |
15 |
CYLINDER; WHEEL,FRT BRK
FRT&RR 195/85R16 16X5.5J-116.5(AZX)
FRONT
|
8-97179-360-0 |
01 |
1 |
0512- |
| |
16 |
SCREW; BLEEDER,FRT BRK
FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H),
FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10
5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR
7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8
16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&
RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H)
SOU
|
9-47615-027-0 |
02 |
1 |
0303-0511 |
| |
16 |
SCREW; BLEEDER,FRT BRK
FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR
7R-16-1016X5.5F-115(07H)
SOU
|
9-47615-027-0 |
02 |
1 |
0512-0711 |
| |
16 |
SCREW; BLEEDER,FRT BRK
FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR
7R-16-1016X5.5F-115(07H)
SOU
|
8-98050-476-0 |
02 |
1 |
0712- |
| |
17 |
CAP; BLEEDER,FRT WHEEL CYL
FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H),
FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10
5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR
7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8
16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&
RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H)
SOU
|
1-47619-009-0 |
02 |
1 |
0303-0511 |
| |
17 |
CAP; BLEEDER,FRT WHEEL CYL
FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR
7R-16-1016X5.5F-115(07H)
SOU
|
1-47619-009-0 |
02 |
1 |
0512-0711 |
| |
17 |
CAP; BLEEDER,FRT WHEEL CYL
FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR
7R-16-1016X5.5F-115(07H)
SOU
|
8-98050-479-0 |
02 |
1 |
0712- |
| |
18 |
STOPPER; ADJ SCREW
FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H),
FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10
5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR
7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8
16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&
RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H)
|
8-94128-486-0 |
04 |
1 |
0303-0511 |
| |
18 |
STOPPER; ADJ SCREW
FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR
7R-16-1016X5.5F-115(07H)
|
8-94128-486-0 |
04 |
1 |
0512- |
| |
19 |
SCREW; STOPPER SETTING
FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H),
FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10
5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR
7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8
16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&
RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H)
|
8-94128-727-0 |
04 |
1 |
0303-0511 |
| |
19 |
SCREW; STOPPER SETTING
FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR
7R-16-1016X5.5F-115(07H)
|
8-94128-727-0 |
04 |
1 |
0512- |
| |
24 |
PISTON; FRT WHEEL CYL
FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H),
FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10
5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR
7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8
16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&
RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H)
|
8-97078-621-0 |
04 |
1 |
0303-0511 |
| |
24 |
PISTON; FRT WHEEL CYL
FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR
7R-16-1016X5.5F-115(07H)
|
8-97078-621-0 |
04 |
1 |
0512- |
| |
25 |
SCREW; ADJ,FRT WHEEL CYL
FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H),
FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10
5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR
7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8
16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&
RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H)
|
8-97078-623-0 |
04 |
1 |
0303-0511 |
| |
25 |
SCREW; ADJ,FRT WHEEL CYL
FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR
7R-16-1016X5.5F-115(07H)
|
8-97078-623-0 |
04 |
1 |
0512- |
| |
26 |
CUP SET; FRT WHEEL CYL
FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H),
FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10
5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR
7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8
16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&
RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H)
|
5-87831-602-0 |
01 |
1 |
0303-0511 |
| |
26 |
CUP SET; FRT WHEEL CYL
FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR
7R-16-1016X5.5F-115(07H)
|
5-87831-602-0 |
01 |
1 |
0512- |
| |
29 |
SPRING; RETURN,FRT BRK SHOE
FRT&RR 7R-16-10 16X5.5F-115(07H)
SOU
|
5-09583-118-0 |
04 |
1 |
0512- |
| |
29 |
SPRING; RETURN,FRT BRK SHOE
FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H),
FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10
5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR
7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8
16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&
RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H)
|
8-97078-739-0 |
04 |
1 |
0303-0511 |
| |
29 |
SPRING; RETURN,FRT BRK SHOE
FRT&RR 195/85R16 16X5.5J-116.5(AZX)
|
8-97078-739-0 |
04 |
1 |
0512- |
| |
35 |
BOLT; FRT WHEEL CYL
FRT&RR 7R-16-10 16X5.5F-115(07H)
SOU
|
5-09030-016-1 |
16 |
1 |
0512- |
| |
35 |
BOLT; FRT WHEEL CYL
FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H),
FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10
5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR
7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8
16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&
RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H)
|
8-97025-734-0 |
16 |
1 |
0303-0511 |
| |
35 |
BOLT; FRT WHEEL CYL
FRT&RR 195/85R16 16X5.5J-116.5(AZX)
|
8-97025-734-0 |
16 |
1 |
0512- |
| |
66 |
BOLT; OIL SHIELD COVER
FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H),
FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10
5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR
7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8
16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&
RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H)
M12X33
|
9-09600-043-3 |
08 |
1 |
0303-0511 |
| |
66 |
BOLT; OIL SHIELD COVER
FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR
7R-16-1016X5.5F-115(07H)
M12X33
|
9-09600-043-3 |
08 |
1 |
0512-0611 |
| |
66 |
BOLT; OIL SHIELD COVER
FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR
7R-16-1016X5.5F-115(07H)
|
8-98009-493-2 |
08 |
1 |
0612- |
| |
67 |
PLATE; BACK,FRT BRK
FRT&RR 7R-16-10 16X5.5F-115(07H)
SOU
|
8-97302-588-0 |
01 |
1 |
0512- |
| |
67 |
PLATE; BACK,FRT BRK
FRT&RR 7R-16-10 16X5.5F-115(07H)
SOU
|
8-97302-589-0 |
01 |
1 |
0512- |
| |
67 |
PLATE; BACK,FRT BRK
FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H),
FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10
5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR
7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8
16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&
RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H)
|
8-97302-586-0 |
01 |
1 |
0303-0511 |
| |
67 |
PLATE; BACK,FRT BRK
FRT&RR 195/85R16 16X5.5J-116.5(AZX)
|
8-97302-586-0 |
01 |
1 |
0512- |
| |
67 |
PLATE; BACK,FRT BRK
FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H),
FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10
5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR
7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8
16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&
RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H)
|
8-97302-587-0 |
01 |
1 |
0303-0511 |
| |
67 |
PLATE; BACK,FRT BRK
FRT&RR 195/85R16 16X5.5J-116.5(AZX)
|
8-97302-587-0 |
01 |
1 |
0512- |
| |
70 |
CLIP; PIPE HOLD
FRT&RR 7R-16-10 16X5.5F-115(07H)
|
8-94128-306-0 |
02 |
1 |
0512- |
| |
70 |
CLIP; PIPE HOLD
FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H),
FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10
5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR
7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8
16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&
RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H)
|
8-94128-306-0 |
04 |
1 |
0303-0511 |
| |
70 |
CLIP; PIPE HOLD
FRT&RR 195/85R16 16X5.5J-116.5(AZX)
|
8-94128-306-0 |
04 |
1 |
0512- |
| |
71 |
GROMMET; CHECK HOLE
FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H),
FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10
5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR
7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8
16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&
RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H)
(B)
|
8-94171-287-0 |
02 |
1 |
0303-0511 |
| |
71 |
GROMMET; CHECK HOLE
FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR
7R-16-1016X5.5F-115(07H)
(B)
|
8-94171-287-0 |
02 |
1 |
0512- |
| |
71 |
GROMMET; CHECK HOLE
FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H),
FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10
5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR
7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8
16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&
RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H)
(A)
|
9-09756-034-0 |
02 |
1 |
0303-0511 |
| |
71 |
GROMMET; CHECK HOLE
FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR
7R-16-1016X5.5F-115(07H)
(A)
|
9-09756-034-0 |
02 |
1 |
0512- |
| |
72 |
NUT; OIL SHIELD COVER
FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H),
FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10
5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR
7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8
16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&
RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H)
M12
|
9-99110-512-0 |
08 |
1 |
0303-0511 |
| |
72 |
NUT; OIL SHIELD COVER
FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR
7R-16-1016X5.5F-115(07H)
M12
|
9-99110-512-0 |
08 |
1 |
0512-0512 |
| |
72 |
NUT; OIL SHIELD COVER
FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR
7R-16-1016X5.5F-115(07H)
M12
SOU
|
0-91110-512-0 |
08 |
1 |
0601- |
| |
73 |
WASHER; LK,OIL SHIELD COVER
FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H),
FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10
5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR
7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8
16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&
RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H)
ID=12.2
|
9-09150-612-0 |
08 |
1 |
0303-0511 |
| |
73 |
WASHER; LK,OIL SHIELD COVER
FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR
7R-16-1016X5.5F-115(07H)
ID=12.2
|
9-09150-612-0 |
08 |
1 |
0512-0603 |
| |
73 |
WASHER; LK,OIL SHIELD COVER
FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR
7R-16-1016X5.5F-115(07H)
ID=12.2
|
0-91510-612-0 |
08 |
1 |
0604-0611 |
| |
73 |
WASHER; LK,OIL SHIELD COVER
FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR
7R-16-1016X5.5F-115(07H)
ID=12.2
|
0-91510-812-0 |
08 |
1 |
0612- |
| |
84 |
PIPE; BRK,WHEEL CYL TO HOSE
FRT&RR 7R-16-10 16X5.5F-115(07H)
SOU
|
8-94154-917-0 |
01 |
1 |
0512- |
| |
84 |
PIPE; BRK,WHEEL CYL TO HOSE
FRT&RR 7R-16-10 16X5.5F-115(07H)
SOU
|
8-94154-918-0 |
01 |
1 |
0512- |
| |
84 |
PIPE; BRK,WHEEL CYL TO HOSE
FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H),
FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10
5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR
7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8
16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&
RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H)
SOU
|
8-97019-224-0 |
01 |
1 |
0303-0511 |
| |
84 |
PIPE; BRK,WHEEL CYL TO HOSE
FRT&RR 195/85R16 16X5.5J-116.5(AZX)
SOU
|
8-97019-224-0 |
01 |
1 |
0512- |
| |
84 |
PIPE; BRK,WHEEL CYL TO HOSE
FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H),
FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10
5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR
7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8
16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&
RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H)
SOU
|
8-97019-225-0 |
01 |
1 |
0303-0511 |
| |
84 |
PIPE; BRK,WHEEL CYL TO HOSE
FRT&RR 195/85R16 16X5.5J-116.5(AZX)
SOU
|
8-97019-225-0 |
01 |
1 |
0512- |
| |
130 |
SHOE KIT; BRK,FRT
FRT&RR 7R-16-10 16X5.5F-115(07H)
SOU
|
5-87832-047-0 |
01 |
1 |
0512- |
| |
130 |
SHOE KIT; BRK,FRT
FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H),
FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10
5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR
7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8
16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&
RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H)
|
5-87832-045-0 |
01 |
1 |
0303-0511 |
| |
130 |
SHOE KIT; BRK,FRT
FRT&RR 195/85R16 16X5.5J-116.5(AZX)
|
5-87832-045-0 |
01 |
1 |
0512- |
| |
240 |
PIPE; OIL,FRT BRK
FRT&RR 7R-16-10 16X5.5F-115(07H)
SOU
|
8-94154-916-0 |
02 |
1 |
0512- |
