Sayfa 2-85 - Isuzu EPC

2-85 — POWER TAKE OFF CONTROL (#44084) — 182 parça

195 172 195 24 195 172 195 173 172

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CABLE; PTO CONT 4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) L=2690 SOU	8-97142-482-0	01	1	0303-0511	●
24	CABLE; PTO CONT 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) L=2760	8-97351-942-1	01	1	0512-		●
172	BOLT; BRKT PTO TRANSMISSION SIDE(V66) (C) M8X16 FLANGE	0-28080-816-0	01	1	0303-0512	●
172	BOLT; BRKT PTO TRANSMISSION SIDE(V66) (C) M8X16 FLANGE SOU	0-28050-816-0	01	1	0601-		●
172	BOLT; BRKT PTO TRANSMISSION SIDE(V66) (D) M8X25 FLANGE	0-28680-825-0	02	1	0303-0511	●
172	BOLT; BRKT PTO TRANSMISSION SIDE(V66) (D) M8X25 FLANGE	0-28680-825-0	02	1	0512-0512		●
172	BOLT; BRKT PTO TRANSMISSION SIDE(V66) (D) M8X25 FLANGE SOU	0-28650-825-0	02	1	0601-	●
172	BOLT; BRKT PTO TRANSMISSION SIDE(V66) (A) M8X16 W/LK WASHER	0-50040-816-0	02	1	0303-0511	●
172	BOLT; BRKT PTO TRANSMISSION SIDE(V66) (A) M8X16 W/LK WASHER	0-50040-816-0	02	1	0512-0512		●
172	BOLT; BRKT PTO TRANSMISSION SIDE(V66) (A) M8X16 W/LK WASHER	0-50540-816-0	02	1	0601-	●
172	BOLT; BRKT PTO TRANSMISSION SIDE(V66) (B) M6X12 W/LK&PL WASHER	9-03920-612-0	01	1	0303-0511	●
172	BOLT; BRKT PTO TRANSMISSION SIDE(V66) (B) M6X12 W/LK&PL WASHER	9-03920-612-0	01	1	0512-0604		●
172	BOLT; BRKT PTO TRANSMISSION SIDE(V66) (B) M6X12 W/LK&PL WASHER	0-36230-612-0	01	1	0605-	●
173	NUT; BRKT PTO TRANSMISSION SIDE(V66) M8 FLANGE SOU	0-91150-108-0	01	1	0303-0511	●
173	NUT; BRKT PTO TRANSMISSION SIDE(V66) M8 FLANGE SOU	0-91150-108-0	01	1	0512-0602		●
173	NUT; BRKT PTO TRANSMISSION SIDE(V66) M8 FLANGE SOU	0-91180-108-0	01	1	0603-		●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (A)	8-97076-429-6	01	1	0303-0511	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (A)	8-97076-429-6	01	1	0512-		●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (D)	8-97079-557-3	01	1	0303-0511	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (D)	8-97079-557-3	01	1	0512-		●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (E)	8-97079-558-3	01	1	0303-0511	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (E)	8-97079-558-3	01	1	0512-		●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (B)	8-97085-695-3	01	1	0303-0511	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (B)	8-97085-695-3	01	1	0512-		●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (C) SOU	8-97088-407-1	01	1	0303-0511	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (C) SOU	8-97088-407-1	01	1	0512-		●

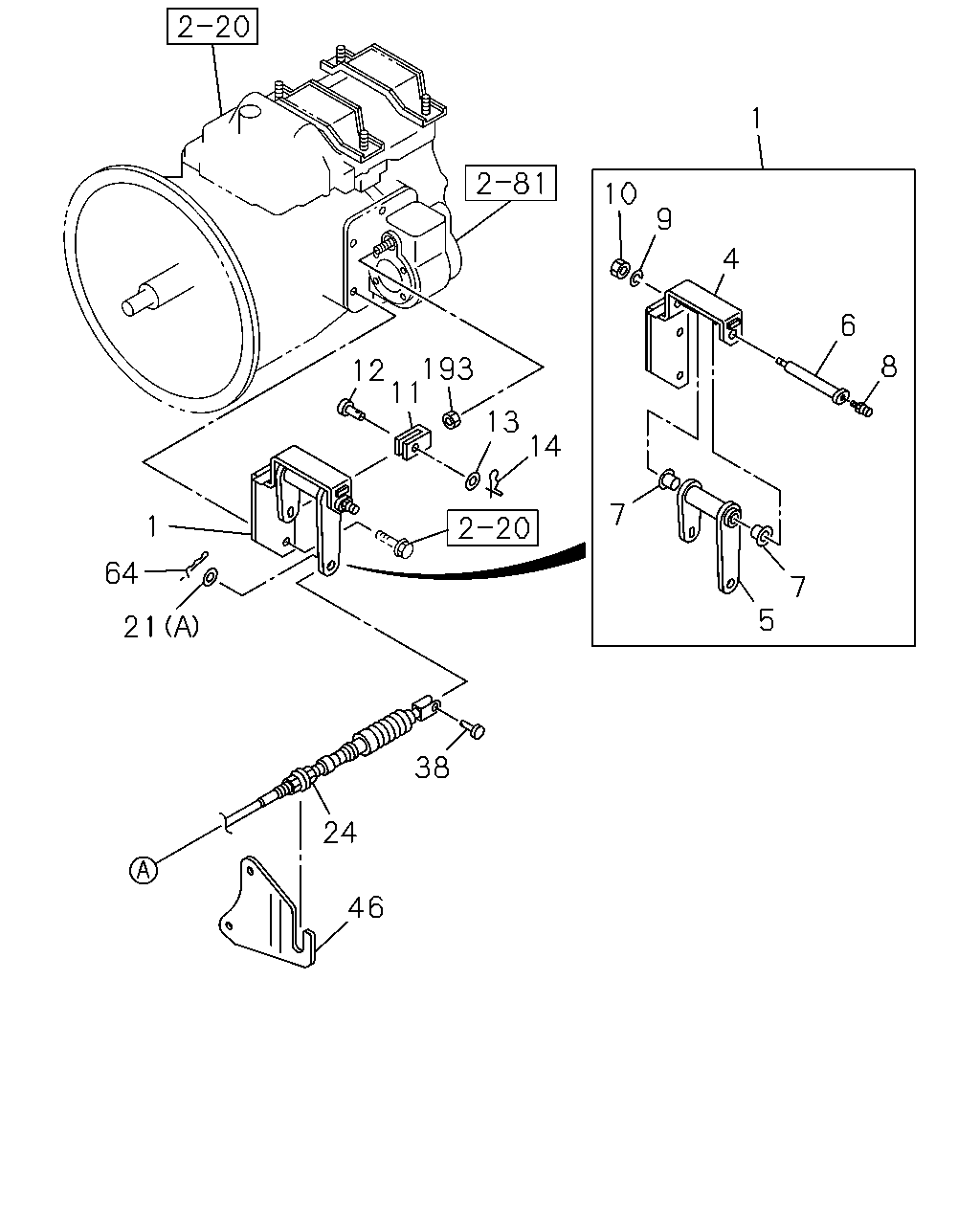

1 10 9 4 6 12 193 11 8 13 14 7 1 64 7 5 21 38 24 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66)	8-94169-638-3	01	1	0303-0511	●
1	LEVER ASM; PTO & DUMP CONT 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-97310-741-0	01	1	0512-		●
4	BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66)	8-94169-639-0	01	1	0303-0511	●
4	BRACKET; PTO CONT 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-97310-740-0	01	1	0512-		●
5	LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66)	8-94147-828-0	01	1	0303-0511	●
5	LEVER; PTO SHIFT CONT 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-97310-747-0	01	1	0512-		●
6	SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66)	8-94147-829-1	01	1	0303-0511	●
6	SHAFT; PTO CONT 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-97204-596-0	01	1	0512-		●
7	BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66)	5-33659-053-0	02	1	0303-0511	●
7	BUSHING; LEVER,PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	5-33659-053-0	02	1	0512-		●
8	NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) M6 STRAIGHT	9-09031-006-0	01	1	0303-0511	●
8	NIPPLE; GREASE 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) M6 STRAIGHT	9-09031-006-0	01	1	0512-0607		●
8	NIPPLE; GREASE 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) M6 STRAIGHT SOU	0-90301-406-0	01	1	0608-		●
9	WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) ID=8.2	9-09150-508-0	01	1	0303-0511	●
9	WASHER; LK,SHAFT,PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) ID=8.2	9-09150-508-0	01	1	0512-0603		●
9	WASHER; LK,SHAFT,PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) ID=8.2 SOU	0-91510-508-0	01	1	0604-		●
10	NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) M8	9-09110-408-0	01	1	0303-0511	●
10	NUT; SHAFT,PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) M8	9-09110-408-0	01	1	0512-0512		●
10	NUT; SHAFT,PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) M8 SOU	0-91110-508-0	01	1	0601-		●
11	JOINT; JAW,YOKE PTO TRANSMISSION SIDE(V66)	8-94342-085-0	01	1	0303-0511	●
12	JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66)	8-94174-099-0	01	1	0303-0511	●
12	JOINT; PIN,YOKE 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-94174-099-0	01	1	0512-0610		●
12	JOINT; PIN,YOKE 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-98031-692-0	01	1	0611-		●
13	WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) ID=12.5	9-09160-512-0	01	1	0303-0511	●
13	WASHER; PL,YOKE 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) ID=12.5	9-09160-512-0	01	1	0512-0605		●
13	WASHER; PL,YOKE 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) ID=12.5 OD=22	0-91610-512-0	01	1	0606-		●
14	PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) SOU	1-09987-158-1	01	1	0303-0511	●
14	PIN; SPLIT,YOKE 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) SOU	1-09987-158-1	01	1	0512-0805		●
14	PIN; SPLIT,YOKE 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-97581-216-0	01	1	0806-		●
21	WASHER; PL,CONT LEVER 4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) (A) ID=8.4	9-09160-508-0	01	1	0303-0511	●
21	WASHER; PL,CONT LEVER 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) (A) ID=8.4 OD=22	9-09164-708-0	01	1	0512-0605		●
21	WASHER; PL,CONT LEVER 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) (A) ID=8.4 OD=22	0-91614-708-0	01	1	0606-		●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) (B) ID=8.4 OD=22	9-09160-708-0	01	1	0303-0511	●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) (B) ID=8.4 OD=22	9-09160-708-0	01	1	0512-0605		●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) (B) ID=8.4 OD=22 SOU	0-91610-708-0	01	1	0606-		●
24	CABLE; PTO CONT 4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) L=2690 SOU	8-97142-482-0	01	1	0303-0511	●
24	CABLE; PTO CONT 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) L=2760	8-97351-942-1	01	1	0512-		●
38	PIN; JOINT,CABLE TO LEVER 4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66)	8-94153-035-0	01	1	0303-0511	●
46	BRACKET; PTO,TRANS SIDE 4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66)	8-94157-541-0	01	1	0303-0511	●
46	BRACKET; PTO,TRANS SIDE 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-97264-954-1	01	1	0512-		●
64	PIN; SNAP,CONT CABLE JOINT PTO TRANSMISSION SIDE(V66) L=27.7 SOU	8-94111-137-0	01	1	0303-0511	●
64	PIN; SNAP,CONT CABLE JOINT PTO TRANSMISSION SIDE(V66) L=27.7 SOU	8-94111-137-0	01	1	0512-		●
193	NUT PTO TRANSMISSION SIDE(V66) M12	9-99111-412-0	01	1	0303-0511	●
193	NUT 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) M12	9-99111-412-0	01	1	0512-0512		●
193	NUT 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) M12	0-91111-512-0	01	1	0601-		●

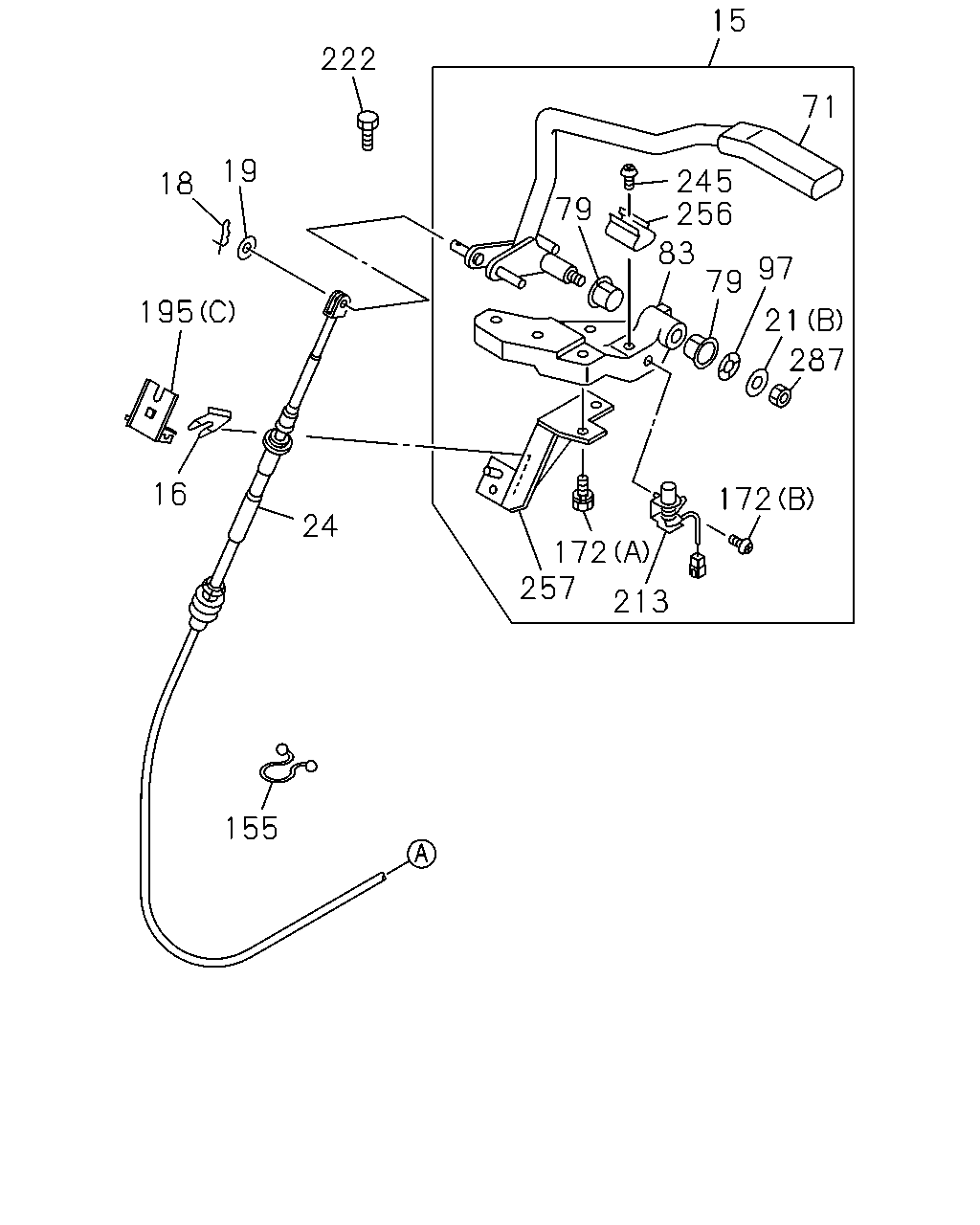

15 222 71 19 245 256 18 79 83 79 97 195 21 287 16 172 24 172 257 213 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	LEVER ASM; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97177-805-3	01	1	0303-0511	●
15	LEVER ASM; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97177-805-3	01	1	0512-		●
16	CLIP; CABLE,PTO PTO TRANSMISSION SIDE(V66) SOU	8-94152-900-0	01	1	0303-0511	●
16	CLIP; CABLE,PTO PTO TRANSMISSION SIDE(V66) SOU	8-94152-900-0	01	1	0512-		●
18	PIN; SNAP,PTO CABLE PTO TRANSMISSION SIDE(V66) L=27.7 SOU	8-94111-137-0	01	1	0303-0511	●
18	PIN; SNAP,PTO CABLE PTO TRANSMISSION SIDE(V66) L=27.7 SOU	8-94111-137-0	01	1	0512-		●
19	WASHER; PL,PTO CABLE PTO TRANSMISSION SIDE(V66) ID=8.4	9-09160-508-0	01	1	0303-0511	●
19	WASHER; PL,PTO CABLE PTO TRANSMISSION SIDE(V66) ID=8.4	9-09160-508-0	01	1	0512-0605		●
19	WASHER; PL,PTO CABLE PTO TRANSMISSION SIDE(V66) ID=8.4 OD=16 SOU	0-91610-508-0	01	1	0606-		●
21	WASHER; PL,CONT LEVER 4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) (A) ID=8.4	9-09160-508-0	01	1	0303-0511	●
21	WASHER; PL,CONT LEVER 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) (A) ID=8.4 OD=22	9-09164-708-0	01	1	0512-0605		●
21	WASHER; PL,CONT LEVER 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) (A) ID=8.4 OD=22	0-91614-708-0	01	1	0606-		●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) (B) ID=8.4 OD=22	9-09160-708-0	01	1	0303-0511	●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) (B) ID=8.4 OD=22	9-09160-708-0	01	1	0512-0605		●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) (B) ID=8.4 OD=22 SOU	0-91610-708-0	01	1	0606-		●
24	CABLE; PTO CONT 4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) L=2690 SOU	8-97142-482-0	01	1	0303-0511	●
24	CABLE; PTO CONT 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) L=2760	8-97351-942-1	01	1	0512-		●
71	LEVER; PTO CONT PTO TRANSMISSION SIDE(V66) SOU	8-97177-806-1	01	1	0303-0511	●
71	LEVER; PTO CONT PTO TRANSMISSION SIDE(V66) SOU	8-97177-806-1	01	1	0512-		●
79	BUSHING; CONT LEVER PTO TRANSMISSION SIDE(V66) SOU	8-94238-596-0	02	1	0303-0511	●
79	BUSHING; CONT LEVER PTO TRANSMISSION SIDE(V66) SOU	8-94238-596-0	02	1	0512-		●
83	BRACKET; CONT LEVER PTO TRANSMISSION SIDE(V66) SOU	8-97117-352-0	01	1	0303-0511	●
83	BRACKET; CONT LEVER PTO TRANSMISSION SIDE(V66) SOU	8-97117-352-0	01	1	0512-		●
97	WASHER; LK PTO TRANSMISSION SIDE(V66) ID=15 OD=25 SOU	8-11053-111-0	01	1	0303-0511	●
97	WASHER; LK PTO TRANSMISSION SIDE(V66) ID=15 OD=25 SOU	8-11053-111-0	01	1	0512-		●
155	CLIP; CABLE PTO TRANSMISSION SIDE(V66) ID=15 SOU	1-09709-003-0	01	1	0303-0511	●
155	CLIP; CABLE PTO TRANSMISSION SIDE(V66) ID=15 SOU	1-09709-003-0	01	1	0512-		●
172	BOLT; BRKT PTO TRANSMISSION SIDE(V66) (C) M8X16 FLANGE	0-28080-816-0	01	1	0303-0512	●
172	BOLT; BRKT PTO TRANSMISSION SIDE(V66) (C) M8X16 FLANGE SOU	0-28050-816-0	01	1	0601-		●
172	BOLT; BRKT PTO TRANSMISSION SIDE(V66) (D) M8X25 FLANGE	0-28680-825-0	02	1	0303-0511	●
172	BOLT; BRKT PTO TRANSMISSION SIDE(V66) (D) M8X25 FLANGE	0-28680-825-0	02	1	0512-0512		●
172	BOLT; BRKT PTO TRANSMISSION SIDE(V66) (D) M8X25 FLANGE SOU	0-28650-825-0	02	1	0601-	●
172	BOLT; BRKT PTO TRANSMISSION SIDE(V66) (A) M8X16 W/LK WASHER	0-50040-816-0	02	1	0303-0511	●
172	BOLT; BRKT PTO TRANSMISSION SIDE(V66) (A) M8X16 W/LK WASHER	0-50040-816-0	02	1	0512-0512		●
172	BOLT; BRKT PTO TRANSMISSION SIDE(V66) (A) M8X16 W/LK WASHER	0-50540-816-0	02	1	0601-	●
172	BOLT; BRKT PTO TRANSMISSION SIDE(V66) (B) M6X12 W/LK&PL WASHER	9-03920-612-0	01	1	0303-0511	●
172	BOLT; BRKT PTO TRANSMISSION SIDE(V66) (B) M6X12 W/LK&PL WASHER	9-03920-612-0	01	1	0512-0604		●
172	BOLT; BRKT PTO TRANSMISSION SIDE(V66) (B) M6X12 W/LK&PL WASHER	0-36230-612-0	01	1	0605-	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (A)	8-97076-429-6	01	1	0303-0511	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (A)	8-97076-429-6	01	1	0512-		●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (D)	8-97079-557-3	01	1	0303-0511	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (D)	8-97079-557-3	01	1	0512-		●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (E)	8-97079-558-3	01	1	0303-0511	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (E)	8-97079-558-3	01	1	0512-		●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (B)	8-97085-695-3	01	1	0303-0511	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (B)	8-97085-695-3	01	1	0512-		●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (C) SOU	8-97088-407-1	01	1	0303-0511	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (C) SOU	8-97088-407-1	01	1	0512-		●
213	SWITCH; PTO CONT PTO TRANSMISSION SIDE(V66) SOU	8-97041-412-1	01	1	0303-0308	●
213	SWITCH; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97370-568-0	01	1	0309-0511	●
213	SWITCH; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97370-568-0	01	1	0512-		●
222	BOLT; LEVER PTO TRANSMISSION SIDE(V66) M8X14 FLANGE	0-28080-814-0	04	1	0303-0511	●
222	BOLT; LEVER PTO TRANSMISSION SIDE(V66) M8X14 FLANGE	0-28080-814-0	04	1	0512-		●
245	SCREW; COVER,CONT LEVER BRKT PTO TRANSMISSION SIDE(V66) M4X10 W/LK&PL WASHER	9-03920-410-0	01	1	0303-0511	●
245	SCREW; COVER,CONT LEVER BRKT PTO TRANSMISSION SIDE(V66) M4X10 W/LK&PL WASHER	9-03920-410-0	01	1	0512-0604		●
245	SCREW; COVER,CONT LEVER BRKT PTO TRANSMISSION SIDE(V66) M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	0605-		●
256	PLATE; LOCK PTO TRANSMISSION SIDE(V66) SOU	8-97117-351-0	01	1	0303-0511	●
256	PLATE; LOCK PTO TRANSMISSION SIDE(V66) SOU	8-97117-351-0	01	1	0512-		●
257	REINFORCEMENT; PTO PTO TRANSMISSION SIDE(V66) SOU	8-97088-406-3	01	1	0303-0511	●
257	REINFORCEMENT; PTO PTO TRANSMISSION SIDE(V66) SOU	8-97088-406-3	01	1	0512-		●
287	NUT; SWITCH,CONT LEVER PTO TRANSMISSION SIDE(V66) M8 W/LK WASHER SOU	8-94279-050-0	01	1	0303-0511	●
287	NUT; SWITCH,CONT LEVER PTO TRANSMISSION SIDE(V66) M8 W/LK WASHER SOU	8-94279-050-0	01	1	0512-		●

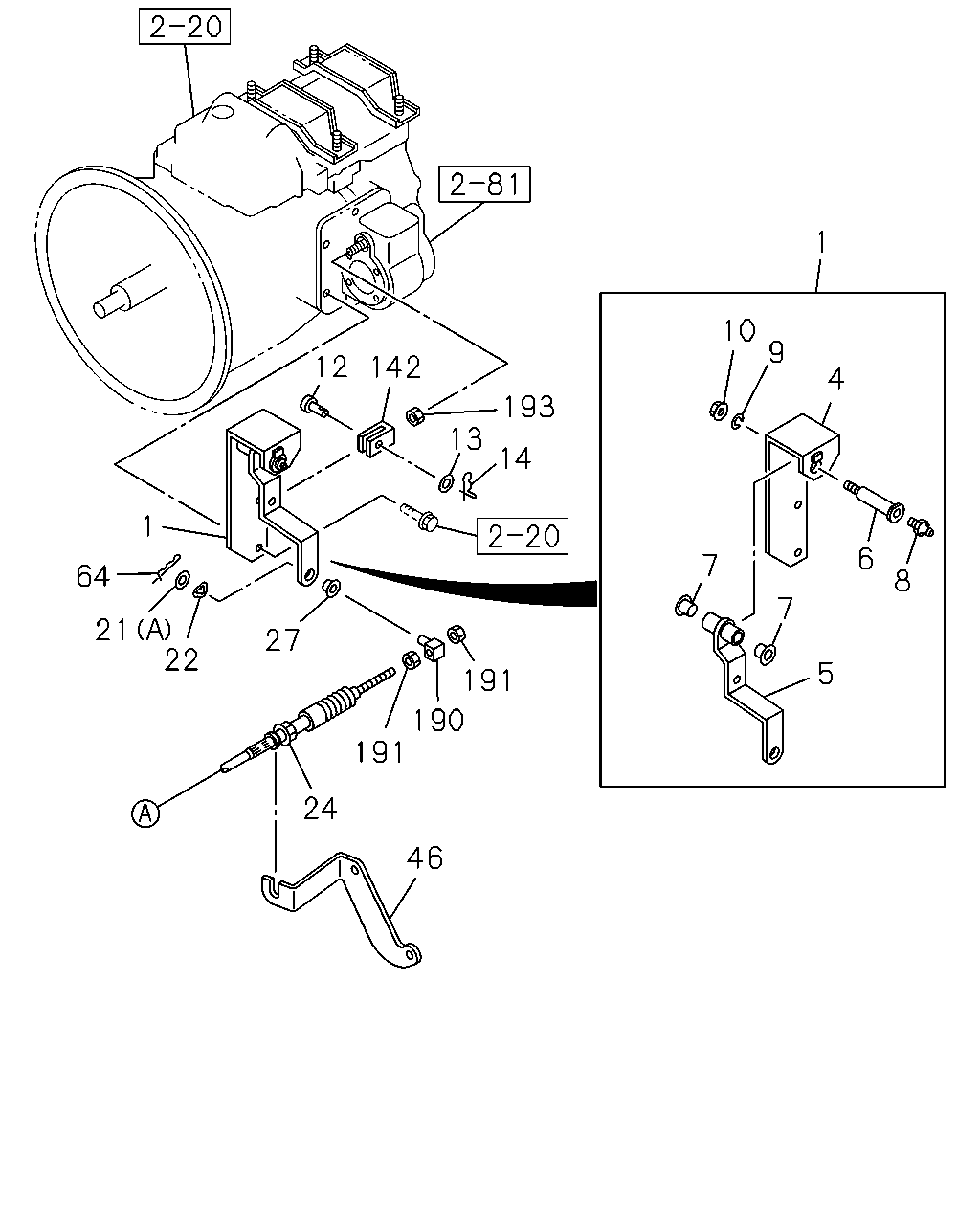

1 10 9 12 142 4 193 13 14 1 6 7 64 8 7 21 22 27 5 191 190 191 24 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66)	8-94169-638-3	01	1	0303-0511	●
1	LEVER ASM; PTO & DUMP CONT 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-97310-741-0	01	1	0512-		●
4	BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66)	8-94169-639-0	01	1	0303-0511	●
4	BRACKET; PTO CONT 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-97310-740-0	01	1	0512-		●
5	LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66)	8-94147-828-0	01	1	0303-0511	●
5	LEVER; PTO SHIFT CONT 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-97310-747-0	01	1	0512-		●
6	SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66)	8-94147-829-1	01	1	0303-0511	●
6	SHAFT; PTO CONT 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-97204-596-0	01	1	0512-		●
7	BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66)	5-33659-053-0	02	1	0303-0511	●
7	BUSHING; LEVER,PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	5-33659-053-0	02	1	0512-		●
8	NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) M6 STRAIGHT	9-09031-006-0	01	1	0303-0511	●
8	NIPPLE; GREASE 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) M6 STRAIGHT	9-09031-006-0	01	1	0512-0607		●
8	NIPPLE; GREASE 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) M6 STRAIGHT SOU	0-90301-406-0	01	1	0608-		●
9	WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) ID=8.2	9-09150-508-0	01	1	0303-0511	●
9	WASHER; LK,SHAFT,PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) ID=8.2	9-09150-508-0	01	1	0512-0603		●
9	WASHER; LK,SHAFT,PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) ID=8.2 SOU	0-91510-508-0	01	1	0604-		●
10	NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) M8	9-09110-408-0	01	1	0303-0511	●
10	NUT; SHAFT,PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) M8	9-09110-408-0	01	1	0512-0512		●
10	NUT; SHAFT,PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) M8 SOU	0-91110-508-0	01	1	0601-		●
12	JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66)	8-94174-099-0	01	1	0303-0511	●
12	JOINT; PIN,YOKE 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-94174-099-0	01	1	0512-0610		●
12	JOINT; PIN,YOKE 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-98031-692-0	01	1	0611-		●
13	WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) ID=12.5	9-09160-512-0	01	1	0303-0511	●
13	WASHER; PL,YOKE 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) ID=12.5	9-09160-512-0	01	1	0512-0605		●
13	WASHER; PL,YOKE 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) ID=12.5 OD=22	0-91610-512-0	01	1	0606-		●
14	PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) SOU	1-09987-158-1	01	1	0303-0511	●
14	PIN; SPLIT,YOKE 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) SOU	1-09987-158-1	01	1	0512-0805		●
14	PIN; SPLIT,YOKE 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-97581-216-0	01	1	0806-		●
21	WASHER; PL,CONT LEVER 4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) (A) ID=8.4	9-09160-508-0	01	1	0303-0511	●
21	WASHER; PL,CONT LEVER 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) (A) ID=8.4 OD=22	9-09164-708-0	01	1	0512-0605		●
21	WASHER; PL,CONT LEVER 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) (A) ID=8.4 OD=22	0-91614-708-0	01	1	0606-		●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) (B) ID=8.4 OD=22	9-09160-708-0	01	1	0303-0511	●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) (B) ID=8.4 OD=22	9-09160-708-0	01	1	0512-0605		●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) (B) ID=8.4 OD=22 SOU	0-91610-708-0	01	1	0606-		●
22	WASHER; LK,LEVER 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) ID=8.5 T=0.3	5-09509-001-0	01	1	0512-		●
24	CABLE; PTO CONT 4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) L=2690 SOU	8-97142-482-0	01	1	0303-0511	●
24	CABLE; PTO CONT 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) L=2760	8-97351-942-1	01	1	0512-		●
27	BUSHING; LEVER,PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-94367-367-0	01	1	0512-		●
46	BRACKET; PTO,TRANS SIDE 4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66)	8-94157-541-0	01	1	0303-0511	●
46	BRACKET; PTO,TRANS SIDE 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-97264-954-1	01	1	0512-		●
64	PIN; SNAP,CONT CABLE JOINT PTO TRANSMISSION SIDE(V66) L=27.7 SOU	8-94111-137-0	01	1	0303-0511	●
64	PIN; SNAP,CONT CABLE JOINT PTO TRANSMISSION SIDE(V66) L=27.7 SOU	8-94111-137-0	01	1	0512-		●
142	CLEVIS; CONT BOX 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-97327-588-0	01	1	0512-		●
190	BOSS; LEVER,PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-94366-842-2	01	1	0512-		●
191	NUT; BOSS 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) M6	9-09110-506-0	02	1	0512-0512		●
191	NUT; BOSS 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) M6 SOU	0-91110-506-0	02	1	0601-		●
193	NUT PTO TRANSMISSION SIDE(V66) M12	9-99111-412-0	01	1	0303-0511	●
193	NUT 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) M12	9-99111-412-0	01	1	0512-0512		●
193	NUT 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) M12	0-91111-512-0	01	1	0601-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
