Sayfa 2-81 - Isuzu EPC

2-81 — POWER TAKE OFF; TRANSMISSION SIDE (#44083) — 167 parça

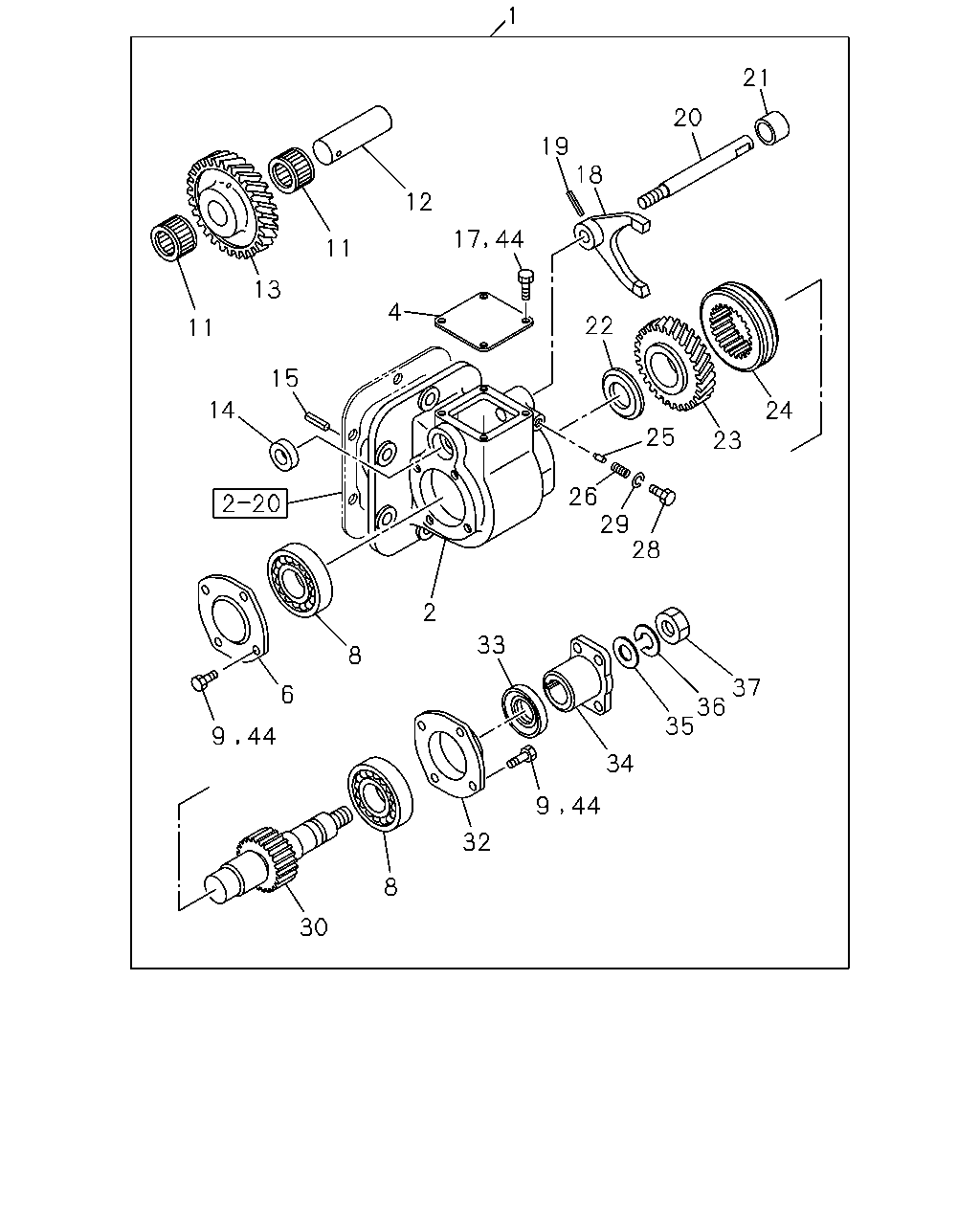

1 21 20 19 18 12 11 13 4 22 11 15 14 24 25 23 26 29 28 2 33 8 37 36 35 6 9 44 34 9 44 32 8 30 17 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) IDENTIFICATION=H	8-94343-025-3	01	1	0303-0506	●
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) IDENTIFICATION=B	8-97313-682-1	01	1	0507-0511	●
1	POWER TAKE OFF ASM; TRANS SIDE 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) IDENTIFICATION=YG	8-97286-908-7	01	1	0512-		●
2	CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97076-703-1	02	1	0303-0506	●
2	CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97319-357-0	01	1	0507-0511	●
2	CASE; GEAR,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-97308-689-2	01	1	0512-		●
4	COVER; UPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97106-718-1	01	1	0303-0511	●
4	COVER; UPR,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-97106-718-1	01	1	0512-0512		●
4	COVER; UPR,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-98046-613-0	01	1	0512-		●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38151-604-0	01	1	0303-0311	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97333-347-0	01	1	0312-0511	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-97333-347-0	01	1	0512-0512		●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-98046-612-0	01	1	0512-		●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) ID=25 OD=62	8-94343-031-1	02	1	0303-0511	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) ID=25 OD=62	8-94343-031-1	02	1	0512-		●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) M8X25 FLANGE	0-28680-825-0	08	1	0512-0512		●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) M8X20 FLANGE	0-28050-820-0	08	1	0512-		●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) M8X16 FLANGE	0-28080-816-0	08	1	0303-0506	●
11	BEARING; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-00096-646-0	02	1	0303-0511	●
11	BEARING; IDLE GEAR,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) NSK	8-97106-734-0	02	1	0512-		●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38211-606-0	01	1	0303-0511	●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	9-38211-606-0	01	1	0512-		●
13	GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=34	9-38241-614-1	01	1	0303-0511	●
13	GEAR; IDLE,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) Z=31	8-97308-700-0	01	1	0512-		●
14	SEAL; OIL,GEAR CASE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-09724-015-0	01	1	0303-0510	●
14	SEAL; OIL,GEAR CASE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98028-789-0	01	1	0511-0511	●
14	SEAL; OIL,GEAR CASE,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-98028-789-0	01	1	0512-		●
15	PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=16	9-09878-613-0	01	1	0303-0511	●
15	PIN; SPR,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) L=16	9-09878-613-0	01	1	0512-		●
17	BOLT; UPR COVER,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) M8X25 FLANGE	0-28680-825-0	04	1	0512-0512		●
17	BOLT; UPR COVER,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) M8X20 FLANGE	0-28050-820-0	04	1	0512-		●
17	BOLT; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) M8X16 FLANGE	0-28080-816-0	04	1	0303-0506	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97027-045-0	01	1	0303-0511	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-97224-702-0	01	1	0512-		●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=25 OD=5	8-94135-771-0	01	1	0303-0511	●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) L=25 OD=5	8-94135-771-0	01	1	0512-		●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97224-714-0	01	1	0303-0511	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-97308-707-0	01	1	0512-0512		●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-98046-623-0	01	1	0512-		●
21	COVER; SHIFTER ROD,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-33545-602-0	01	1	0303-0511	●
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	9-38245-603-0	01	1	0303-0511	●
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	9-38245-603-1	01	1	0512-		●
23	GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=22	9-38241-612-0	01	1	0303-0511	●
23	GEAR; OUTPUT,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) Z=27	8-97308-714-0	01	1	0512-0805		●
23	GEAR; OUTPUT,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) Z=27	8-98120-609-0	01	1	0806-		●
24	SLEEVE; DOG CLU,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97231-316-0	01	1	0507-0511	●
24	SLEEVE; DOG CLU,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-97231-316-1	01	1	0512-		●
24	SLEEVE; DOG CLU,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97231-316-0	01	1	0303-0506	●
25	PIN; LK,SIDE PTO PTO TRANSMISSION SIDE(V66)	8-94169-071-0	01	1	0303-0511	●
25	PIN; LK,SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-94169-071-0	01	1	0512-		●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-09940-380-0	01	1	0303-0511	●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	9-09940-380-0	01	1	0512-		●
28	BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97318-428-0	01	1	0303-0506	●
28	BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97318-428-0	01	1	0507-0511	●
28	BOLT; SPRING,SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-97318-428-0	01	1	0512-0512		●
28	BOLT; SPRING,SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) M8X1.25	8-98038-424-0	01	1	0512-		●
29	WASHER; LK,SPRING,SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) ID=8.2	9-09150-508-0	01	1	0512-0512		●
29	WASHER; LK,SPRING,SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) ID=8.2 SOU	0-91510-808-0	01	1	0512-		●
29	WASHER; LK,SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) ID=8.2	9-09150-508-0	01	1	0303-0511	●
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97118-183-1	01	1	0303-0511	●
30	SHAFT; OUTPUT,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-97118-183-1	01	1	0512-		●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	1-38152-024-0	01	1	0303-0511	●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-97350-757-3	01	1	0512-0512		●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-97305-794-0	01	1	0512-		●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	1-38159-007-0	01	1	0303-0511	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	1-38159-007-0	01	1	0512-		●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97118-184-0	01	1	0303-0511	●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-97350-755-0	01	1	0512-0512		●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-98046-624-0	01	1	0512-		●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) ID=15	9-09160-514-0	01	1	0303-0511	●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) ID=15	9-09160-514-0	01	1	0512-0512		●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) ID=15	0-91610-514-0	01	1	0512-		●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) ID=14.2	9-09150-514-0	01	1	0303-0511	●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) ID=14.2	9-09150-514-0	01	1	0512-0512		●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) ID=14.2 SOU	0-91510-814-0	01	1	0512-		●
37	NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) M14	9-99111-414-0	02	1	0303-0506	●
37	NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) M14	9-99111-414-0	01	1	0507-0511	●
37	NUT; FLANGE FIX,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) M14	9-99111-414-0	01	1	0512-0512		●
37	NUT; FLANGE FIX,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) M14 SOU	0-91111-514-0	01	1	0512-		●
44	BOLT; COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) M8X16	0-20800-816-0	12	1	0507-0511	●

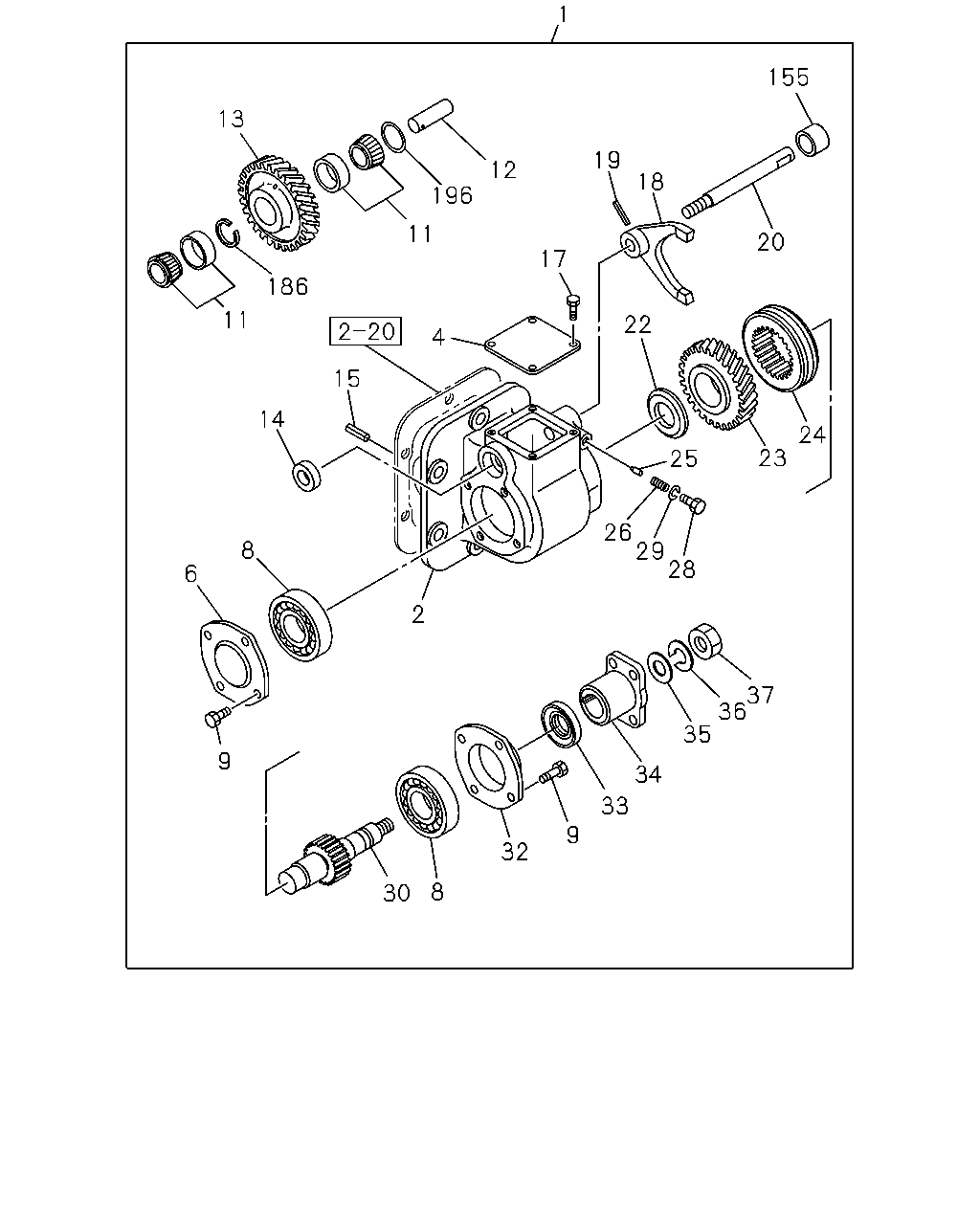

1 155 13 19 12 18 196 11 20 17 186 11 22 4 15 14 24 23 25 26 29 28 8 6 2 37 36 35 9 34 33 9 32 8 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) IDENTIFICATION=H	8-94343-025-3	01	1	0303-0506	●
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) IDENTIFICATION=B	8-97313-682-1	01	1	0507-0511	●
1	POWER TAKE OFF ASM; TRANS SIDE 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) IDENTIFICATION=YG	8-97286-908-7	01	1	0512-		●
2	CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97076-703-1	02	1	0303-0506	●
2	CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97319-357-0	01	1	0507-0511	●
2	CASE; GEAR,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-97308-689-2	01	1	0512-		●
4	COVER; UPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97106-718-1	01	1	0303-0511	●
4	COVER; UPR,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-97106-718-1	01	1	0512-0512		●
4	COVER; UPR,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-98046-613-0	01	1	0512-		●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38151-604-0	01	1	0303-0311	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97333-347-0	01	1	0312-0511	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-97333-347-0	01	1	0512-0512		●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-98046-612-0	01	1	0512-		●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) ID=25 OD=62	8-94343-031-1	02	1	0303-0511	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) ID=25 OD=62	8-94343-031-1	02	1	0512-		●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) M8X25 FLANGE	0-28680-825-0	08	1	0512-0512		●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) M8X20 FLANGE	0-28050-820-0	08	1	0512-		●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) M8X16 FLANGE	0-28080-816-0	08	1	0303-0506	●
11	BEARING; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-00096-646-0	02	1	0303-0511	●
11	BEARING; IDLE GEAR,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) NSK	8-97106-734-0	02	1	0512-		●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38211-606-0	01	1	0303-0511	●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	9-38211-606-0	01	1	0512-		●
13	GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=34	9-38241-614-1	01	1	0303-0511	●
13	GEAR; IDLE,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) Z=31	8-97308-700-0	01	1	0512-		●
14	SEAL; OIL,GEAR CASE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-09724-015-0	01	1	0303-0510	●
14	SEAL; OIL,GEAR CASE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98028-789-0	01	1	0511-0511	●
14	SEAL; OIL,GEAR CASE,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-98028-789-0	01	1	0512-		●
15	PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=16	9-09878-613-0	01	1	0303-0511	●
15	PIN; SPR,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) L=16	9-09878-613-0	01	1	0512-		●
17	BOLT; UPR COVER,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) M8X25 FLANGE	0-28680-825-0	04	1	0512-0512		●
17	BOLT; UPR COVER,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) M8X20 FLANGE	0-28050-820-0	04	1	0512-		●
17	BOLT; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) M8X16 FLANGE	0-28080-816-0	04	1	0303-0506	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97027-045-0	01	1	0303-0511	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-97224-702-0	01	1	0512-		●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=25 OD=5	8-94135-771-0	01	1	0303-0511	●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) L=25 OD=5	8-94135-771-0	01	1	0512-		●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97224-714-0	01	1	0303-0511	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-97308-707-0	01	1	0512-0512		●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-98046-623-0	01	1	0512-		●
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	9-38245-603-0	01	1	0303-0511	●
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	9-38245-603-1	01	1	0512-		●
23	GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=22	9-38241-612-0	01	1	0303-0511	●
23	GEAR; OUTPUT,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) Z=27	8-97308-714-0	01	1	0512-0805		●
23	GEAR; OUTPUT,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) Z=27	8-98120-609-0	01	1	0806-		●
24	SLEEVE; DOG CLU,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97231-316-0	01	1	0507-0511	●
24	SLEEVE; DOG CLU,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-97231-316-1	01	1	0512-		●
24	SLEEVE; DOG CLU,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97231-316-0	01	1	0303-0506	●
25	PIN; LK,SIDE PTO PTO TRANSMISSION SIDE(V66)	8-94169-071-0	01	1	0303-0511	●
25	PIN; LK,SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-94169-071-0	01	1	0512-		●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-09940-380-0	01	1	0303-0511	●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	9-09940-380-0	01	1	0512-		●
28	BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97318-428-0	01	1	0303-0506	●
28	BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97318-428-0	01	1	0507-0511	●
28	BOLT; SPRING,SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-97318-428-0	01	1	0512-0512		●
28	BOLT; SPRING,SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) M8X1.25	8-98038-424-0	01	1	0512-		●
29	WASHER; LK,SPRING,SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) ID=8.2	9-09150-508-0	01	1	0512-0512		●
29	WASHER; LK,SPRING,SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) ID=8.2 SOU	0-91510-808-0	01	1	0512-		●
29	WASHER; LK,SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) ID=8.2	9-09150-508-0	01	1	0303-0511	●
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97118-183-1	01	1	0303-0511	●
30	SHAFT; OUTPUT,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-97118-183-1	01	1	0512-		●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	1-38152-024-0	01	1	0303-0511	●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-97350-757-3	01	1	0512-0512		●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-97305-794-0	01	1	0512-		●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	1-38159-007-0	01	1	0303-0511	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	1-38159-007-0	01	1	0512-		●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97118-184-0	01	1	0303-0511	●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-97350-755-0	01	1	0512-0512		●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-98046-624-0	01	1	0512-		●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) ID=15	9-09160-514-0	01	1	0303-0511	●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) ID=15	9-09160-514-0	01	1	0512-0512		●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) ID=15	0-91610-514-0	01	1	0512-		●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) ID=14.2	9-09150-514-0	01	1	0303-0511	●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) ID=14.2	9-09150-514-0	01	1	0512-0512		●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) ID=14.2 SOU	0-91510-814-0	01	1	0512-		●
37	NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) M14	9-99111-414-0	02	1	0303-0506	●
37	NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) M14	9-99111-414-0	01	1	0507-0511	●
37	NUT; FLANGE FIX,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) M14	9-99111-414-0	01	1	0512-0512		●
37	NUT; FLANGE FIX,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) M14 SOU	0-91111-514-0	01	1	0512-		●
155	PLUG; SHIFTER ROD 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-97374-349-0	01	1	0512-0512		●
155	PLUG; SHIFTER ROD 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-98037-770-0	01	1	0512-		●
186	RING; SNAP,IDLE GEAR,TRANS SIDE PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-97106-730-0	01	1	0512-		●
196	PIECE; THRUST 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) T=1.50	8-97106-724-0	02	1	0512-		●
196	PIECE; THRUST 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) T=1.60	8-97106-725-0	02	1	0512-		●
196	PIECE; THRUST 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) T=1.65	8-97106-726-0	02	1	0512-		●
196	PIECE; THRUST 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) T=1.70	8-97106-727-0	02	1	0512-		●
196	PIECE; THRUST 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) T=1.80	8-97106-728-0	02	1	0512-		●
196	PIECE; THRUST 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) T=1.85	8-97106-729-0	02	1	0512-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
