Sayfa 2-36 - Isuzu EPC

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#44081) — 247 parça

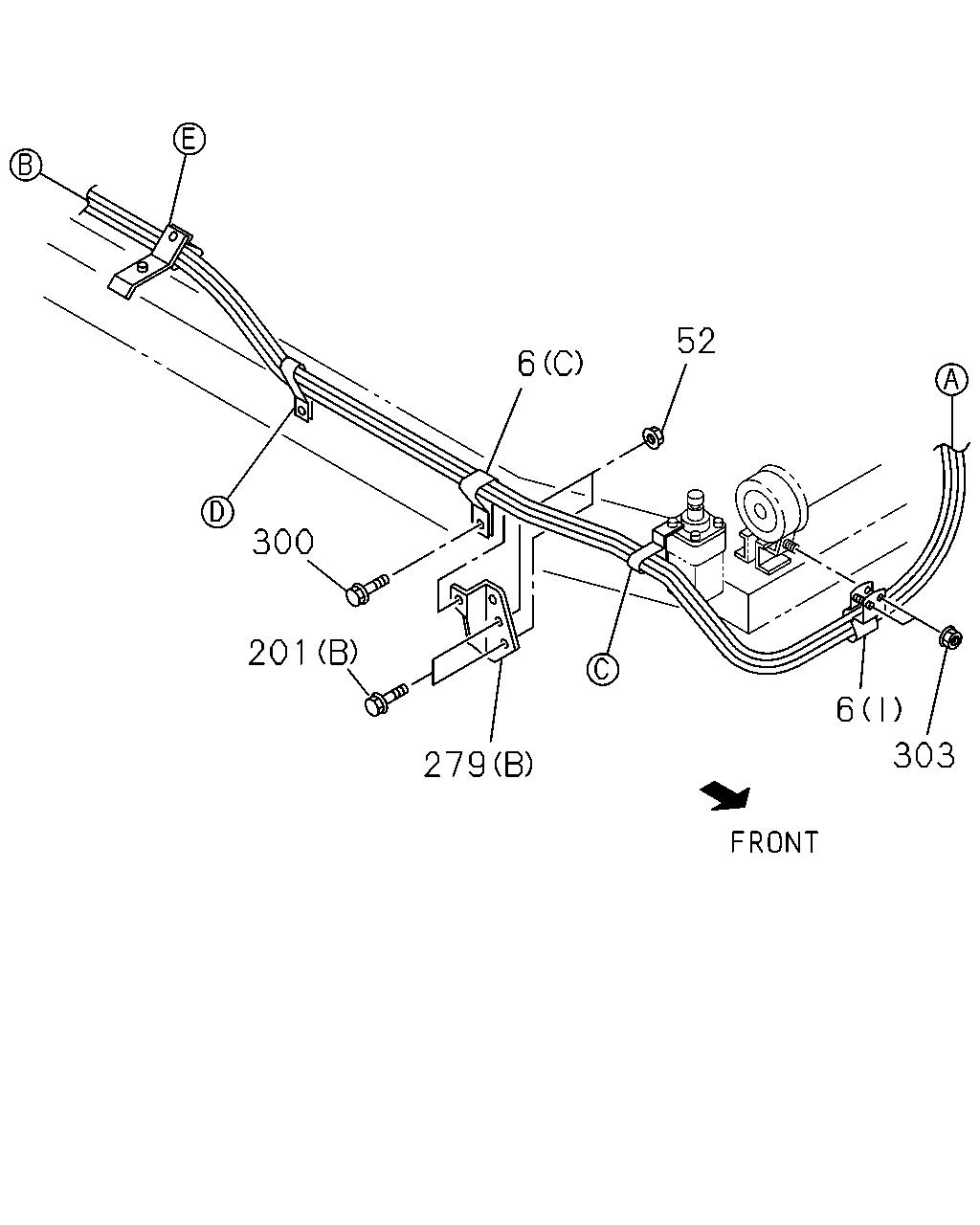

52 6 300 201 6 303 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	CLIP; CABLE (J) ID=22.2	1-09701-209-1	01	1	0512-	●
6	CLIP; CABLE POWER STEERING<N40> (H)	8-97036-334-2	01	1	0303-0511		●
6	CLIP; CABLE POWER STEERING<N40> (H)	8-97036-334-2	01	1	0512-	●
6	CLIP; CABLE (B)	8-97011-448-0	02	1	0303-0511		●
6	CLIP; CABLE (B)	8-97011-448-0	02	1	0512-	●
6	CLIP; CABLE 4JB1 ENG(RLF) (D)	8-97036-329-2	01	1	0303-0511		●
6	CLIP; CABLE 4HF1 ENG(RLS) (F)	8-97036-331-1	01	1	0512-	●
6	CLIP; CABLE 4JB1 ENG(RLF) (G)	8-97036-332-1	01	1	0303-0511		●
6	CLIP; CABLE 4HF1 ENG(RLS) (E)	8-97039-295-0	01	1	0512-	●
6	CLIP; CABLE (I)	8-97147-985-0	01	1	0303-0511		●
6	CLIP; CABLE (I)	8-97147-985-0	01	1	0512-	●
6	CLIP; CABLE (A) ID=19.2	8-97211-011-0	02	1	0303-0511		●
6	CLIP; CABLE (A) ID=19.2	8-97211-011-0	01	1	0512-	●
6	CLIP; CABLE EXC. POWER STEERING<N40> (C)	8-97036-333-1	01	1	0303-0511		●
6	CLIP; CABLE (C)	8-97036-333-1	01	1	0303-0511		●
6	CLIP; CABLE EXC. POWER STEERING<N40> (C)	8-97036-333-1	01	1	0512-	●
6	CLIP; CABLE (C)	8-97036-333-1	01	1	0512-	●
52	NUT; BRKT 4JB1 ENG(RLF) EXC. POWER STEERING<N40> M8 FLANGE SOU	0-91150-108-0	02	1	0303-0511		●
52	NUT; BRKT 4HF1 ENG(RLS) M8 FLANGE SOU	0-91150-108-0	02	1	0512-0602	●
52	NUT; BRKT 4HF1 ENG(RLS) M8 FLANGE SOU	0-91180-108-0	02	1	0603-	●
201	BOLT; BRKT 4JB1 ENG(RLF) EXC. POWER STEERING<N40> (A) M8X25 FLANGE	0-28680-825-0	01	1	0303-0511		●
201	BOLT; BRKT 4HF1 ENG(RLS) (A) M8X25 FLANGE	0-28680-825-0	01	1	0512-0512	●
201	BOLT; BRKT 4HF1 ENG(RLS) (A) M8X25 FLANGE SOU	0-28650-825-0	01	1	0601-	●
201	BOLT; BRKT 4JB1 ENG(RLF) EXC. POWER STEERING<N40> (B) M8X25 FLANGE	0-28680-825-0	02	1	0303-0511		●
201	BOLT; BRKT 4HF1 ENG(RLS) (B) M8X25 FLANGE	0-28680-825-0	02	1	0512-0512	●
201	BOLT; BRKT 4HF1 ENG(RLS) (B) M8X25 FLANGE SOU	0-28650-825-0	02	1	0601-	●
279	BRACKET; CABLE TO FRAME 4JB1 ENG(RLF) EXC. POWER STEERING<N40> (B)	8-97047-898-0	01	1	0303-0511		●
279	BRACKET; CABLE TO FRAME 4HF1 ENG(RLS) (B)	8-97047-898-0	01	1	0512-	●
279	BRACKET; CABLE TO FRAME 4JB1 ENG(RLF) EXC. POWER STEERING<N40> (A)	8-97103-234-0	01	1	0303-0511		●
279	BRACKET; CABLE TO FRAME 4HF1 ENG(RLS) (C)	8-97028-496-1	01	1	0512-	●
300	BOLT; CLIP 4JB1 ENG(RLF) M8X25 FLANGE	0-28680-825-0	01	1	0303-0511		●
300	BOLT; CLIP 4JB1 ENG(RLF) M8X25 FLANGE	0-28680-825-0	01	1	0303-0511		●
300	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	0303-0511		●
300	BOLT; CLIP 4HF1 ENG(RLS) M8X25 FLANGE	0-28680-825-0	01	1	0512-0512	●
300	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	0512-0512	●
300	BOLT; CLIP 4HF1 ENG(RLS) M8X25 FLANGE SOU	0-28650-825-0	01	1	0601-0606	●
300	BOLT; CLIP M8X25 FLANGE SOU	0-28650-825-0	01	1	0601-0606	●
300	BOLT; CLIP 4HF1 ENG(RLS) M8X25 FLANGE SOU	0-28650-825-0	01	1	0607-	●
300	BOLT; CLIP 4HF1 ENG(RLS) M8X25 FLANGE SOU	0-28650-825-0	01	1	0607-	●
300	BOLT; CLIP EXC. POWER STEERING<N40> M8X16 FLANGE	0-28080-816-0	01	1	0303-0511		●
300	BOLT; CLIP EXC. POWER STEERING<N40> M8X16 FLANGE	0-28080-816-0	01	1	0512-0512	●
300	BOLT; CLIP EXC. POWER STEERING<N40> M8X16 FLANGE SOU	0-28050-816-0	01	1	0601-	●
303	NUT; CLIP M8 FLANGE SOU	0-91150-108-0	01	1	0303-0511		●
303	NUT; CLIP POWER STEERING<N40> M8 FLANGE SOU	0-91150-108-0	01	1	0303-0511		●
303	NUT; CLIP M8 FLANGE SOU	0-91150-108-0	01	1	0512-0602	●
303	NUT; CLIP POWER STEERING<N40> M8 FLANGE SOU	0-91150-108-0	01	1	0512-0602	●
303	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	01	1	0603-	●
303	NUT; CLIP POWER STEERING<N40> M8 FLANGE SOU	0-91180-108-0	01	1	0603-	●
303	NUT; CLIP M8 FLANGE SOU	0-91150-108-0	02	1	0303-0511		●
303	NUT; CLIP M8 FLANGE SOU	0-91150-108-0	02	1	0512-0602	●
303	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	02	1	0603-	●

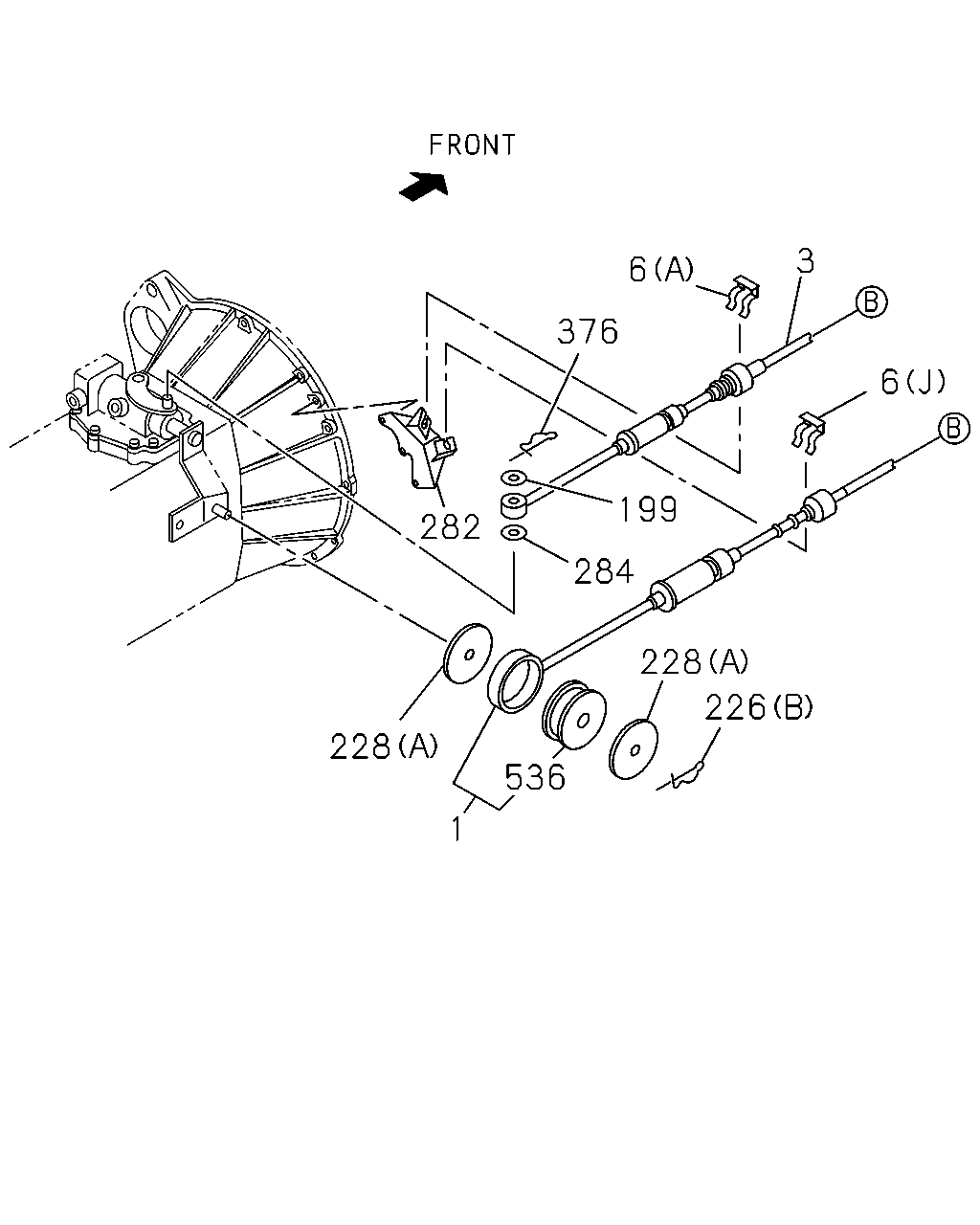

3 6 376 6 199 282 284 228 226 228 536 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT L=2643	8-97176-466-1	01	1	0303-0511		●
1	CABLE; SHIFT,TRANS CONT L=2805	8-97351-820-1	01	1	0512-0606	●
1	CABLE; SHIFT,TRANS CONT 4HF1 ENG(RLS) L=2805	8-97351-820-1	01	1	0607-	●
3	CABLE; SELECT,TRANS CONT L=2810	8-97176-474-0	01	1	0303-0511		●
3	CABLE; SELECT,TRANS CONT 4HF1 ENG(RLS) L=2882	8-97351-821-0	01	1	0512-	●
6	CLIP; CABLE (J) ID=22.2	1-09701-209-1	01	1	0512-	●
6	CLIP; CABLE POWER STEERING<N40> (H)	8-97036-334-2	01	1	0303-0511		●
6	CLIP; CABLE POWER STEERING<N40> (H)	8-97036-334-2	01	1	0512-	●
6	CLIP; CABLE (B)	8-97011-448-0	02	1	0303-0511		●
6	CLIP; CABLE (B)	8-97011-448-0	02	1	0512-	●
6	CLIP; CABLE 4JB1 ENG(RLF) (D)	8-97036-329-2	01	1	0303-0511		●
6	CLIP; CABLE 4HF1 ENG(RLS) (F)	8-97036-331-1	01	1	0512-	●
6	CLIP; CABLE 4JB1 ENG(RLF) (G)	8-97036-332-1	01	1	0303-0511		●
6	CLIP; CABLE 4HF1 ENG(RLS) (E)	8-97039-295-0	01	1	0512-	●
6	CLIP; CABLE (I)	8-97147-985-0	01	1	0303-0511		●
6	CLIP; CABLE (I)	8-97147-985-0	01	1	0512-	●
6	CLIP; CABLE (A) ID=19.2	8-97211-011-0	02	1	0303-0511		●
6	CLIP; CABLE (A) ID=19.2	8-97211-011-0	01	1	0512-	●
6	CLIP; CABLE EXC. POWER STEERING<N40> (C)	8-97036-333-1	01	1	0303-0511		●
6	CLIP; CABLE (C)	8-97036-333-1	01	1	0303-0511		●
6	CLIP; CABLE EXC. POWER STEERING<N40> (C)	8-97036-333-1	01	1	0512-	●
6	CLIP; CABLE (C)	8-97036-333-1	01	1	0512-	●
199	WASHER; PL,SELECT ID=8.4	9-09160-508-0	01	1	0303-0511		●
199	WASHER; PL,SELECT ID=8.4	9-09160-508-0	01	1	0512-0605	●
199	WASHER; PL,SELECT ID=8.4 OD=16 SOU	0-91610-508-0	01	1	0606-	●
226	PIN; SHIFT CABLE (A) L=27.7 SOU	8-94111-137-0	01	1	0303-0511		●
226	PIN; SHIFT CABLE (A) L=27.7 SOU	8-94111-137-0	01	1	0512-	●
226	PIN; SHIFT CABLE (B) L=23	8-94170-378-0	01	1	0303-0511		●
226	PIN; SHIFT CABLE (B) L=23	8-94170-378-0	01	1	0512-	●
228	WASHER; PL,SHIFT CABLE (A) ID=8.2 OD=40	8-97182-975-0	02	1	0303-0511		●
228	WASHER; PL,SHIFT CABLE (A) ID=8.2 OD=40	8-97182-975-0	02	1	0512-	●
228	WASHER; PL,SHIFT CABLE (B) ID=8.4	9-09164-508-0	01	1	0303-0511		●
228	WASHER; PL,SHIFT CABLE (B) ID=8.4	9-09164-508-0	01	1	0512-0605	●
228	WASHER; PL,SHIFT CABLE (B) ID=8.4 OD=16 SOU	0-91614-508-0	01	1	0606-	●
282	BRACKET; TRANS SIDE SOU	8-97034-142-1	01	1	0303-0511		●
282	BRACKET; TRANS SIDE 4HF1 ENG(RLS)	8-97311-441-1	01	1	0512-	●
284	WASHER; WAVE,SELECT CABLE,CAB ID=8.4 OD=14	5-09550-002-0	01	1	0303-0511		●
284	WASHER; WAVE,SELECT CABLE,CAB ID=8.4 OD=14	5-09550-002-0	01	1	0512-	●
376	PIN; SNAP,SELECT CABLE L=23	8-94170-378-0	01	1	0303-0511		●
376	PIN; SNAP,SELECT CABLE L=23	8-94170-378-0	01	1	0512-	●
536	DAMPER; CABLE 4HF1 ENG(RLS)	8-98097-681-0	01	1	0711-	●

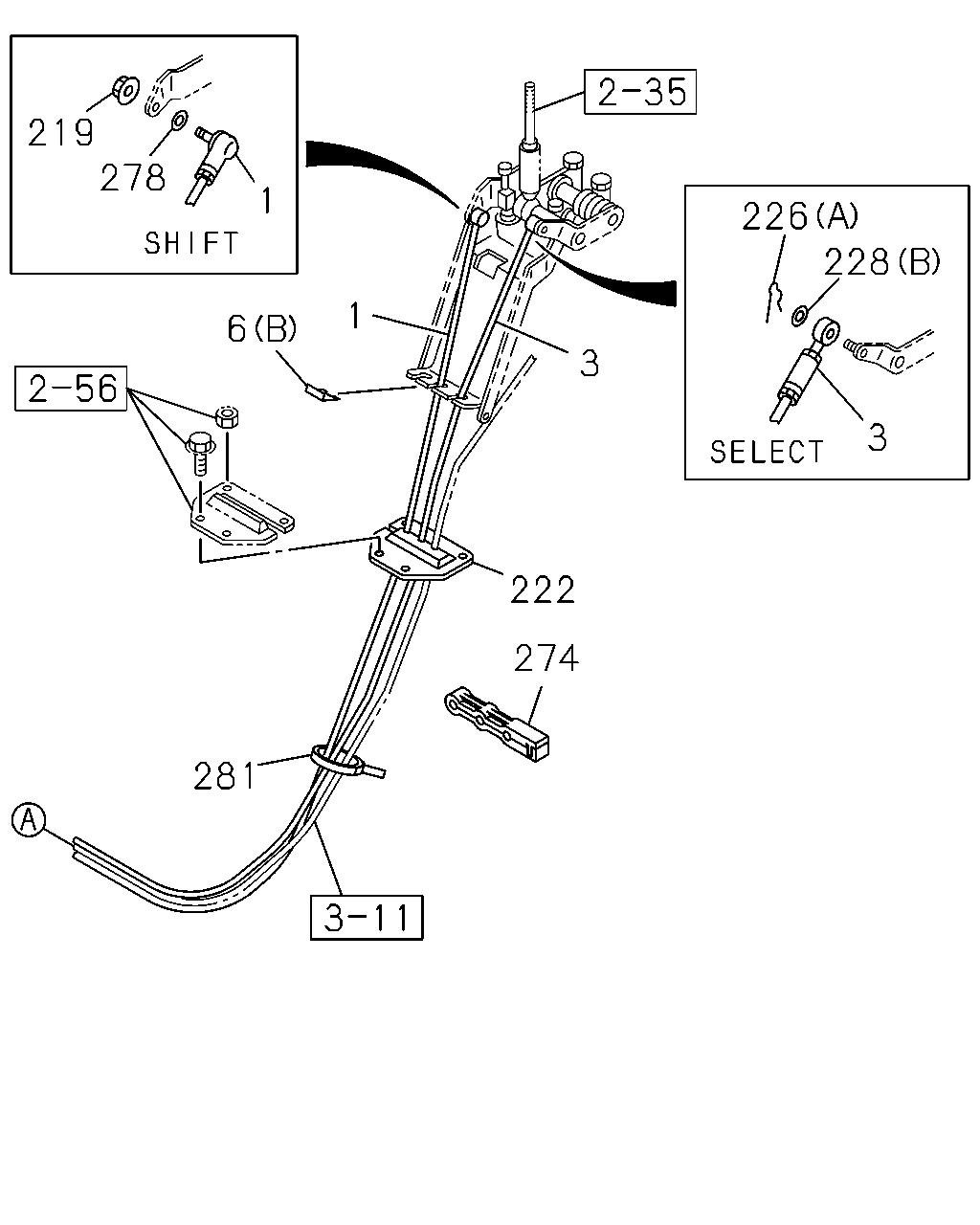

219 278 1 226 228 1 6 3 3 222 274 281

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT L=2643	8-97176-466-1	01	1	0303-0511		●
1	CABLE; SHIFT,TRANS CONT L=2805	8-97351-820-1	01	1	0512-0606	●
1	CABLE; SHIFT,TRANS CONT 4HF1 ENG(RLS) L=2805	8-97351-820-1	01	1	0607-	●
3	CABLE; SELECT,TRANS CONT L=2810	8-97176-474-0	01	1	0303-0511		●
3	CABLE; SELECT,TRANS CONT 4HF1 ENG(RLS) L=2882	8-97351-821-0	01	1	0512-	●
6	CLIP; CABLE (J) ID=22.2	1-09701-209-1	01	1	0512-	●
6	CLIP; CABLE POWER STEERING<N40> (H)	8-97036-334-2	01	1	0303-0511		●
6	CLIP; CABLE POWER STEERING<N40> (H)	8-97036-334-2	01	1	0512-	●
6	CLIP; CABLE (B)	8-97011-448-0	02	1	0303-0511		●
6	CLIP; CABLE (B)	8-97011-448-0	02	1	0512-	●
6	CLIP; CABLE 4JB1 ENG(RLF) (D)	8-97036-329-2	01	1	0303-0511		●
6	CLIP; CABLE 4HF1 ENG(RLS) (F)	8-97036-331-1	01	1	0512-	●
6	CLIP; CABLE 4JB1 ENG(RLF) (G)	8-97036-332-1	01	1	0303-0511		●
6	CLIP; CABLE 4HF1 ENG(RLS) (E)	8-97039-295-0	01	1	0512-	●
6	CLIP; CABLE (I)	8-97147-985-0	01	1	0303-0511		●
6	CLIP; CABLE (I)	8-97147-985-0	01	1	0512-	●
6	CLIP; CABLE (A) ID=19.2	8-97211-011-0	02	1	0303-0511		●
6	CLIP; CABLE (A) ID=19.2	8-97211-011-0	01	1	0512-	●
6	CLIP; CABLE EXC. POWER STEERING<N40> (C)	8-97036-333-1	01	1	0303-0511		●
6	CLIP; CABLE (C)	8-97036-333-1	01	1	0303-0511		●
6	CLIP; CABLE EXC. POWER STEERING<N40> (C)	8-97036-333-1	01	1	0512-	●
6	CLIP; CABLE (C)	8-97036-333-1	01	1	0512-	●
219	NUT; FLANGE,SHAFT CABLE M8 T=8.0 SOU	8-94363-045-0	01	1	0303-0511		●
219	NUT; FLANGE,SHAFT CABLE M8 T=8.0 SOU	8-94363-045-0	01	1	0512-	●
222	GROMMET; CABLE	8-97061-403-2	01	1	0303-0511		●
222	GROMMET; CABLE	8-97061-403-2	01	1	0512-	●
226	PIN; SHIFT CABLE (A) L=27.7 SOU	8-94111-137-0	01	1	0303-0511		●
226	PIN; SHIFT CABLE (A) L=27.7 SOU	8-94111-137-0	01	1	0512-	●
226	PIN; SHIFT CABLE (B) L=23	8-94170-378-0	01	1	0303-0511		●
226	PIN; SHIFT CABLE (B) L=23	8-94170-378-0	01	1	0512-	●
228	WASHER; PL,SHIFT CABLE (A) ID=8.2 OD=40	8-97182-975-0	02	1	0303-0511		●
228	WASHER; PL,SHIFT CABLE (A) ID=8.2 OD=40	8-97182-975-0	02	1	0512-	●
228	WASHER; PL,SHIFT CABLE (B) ID=8.4	9-09164-508-0	01	1	0303-0511		●
228	WASHER; PL,SHIFT CABLE (B) ID=8.4	9-09164-508-0	01	1	0512-0605	●
228	WASHER; PL,SHIFT CABLE (B) ID=8.4 OD=16 SOU	0-91614-508-0	01	1	0606-	●
274	CLIP; CONT CABLE EXC. MANUAL TILT CAB<RWZ>	8-97093-491-1	01	1	0512-	●
278	WASHER; LK,SHIFT WIRE ID=8.4 TOOTH LK INT	9-09151-208-0	01	1	0303-0511		●
278	WASHER; LK,SHIFT WIRE ID=8.4 TOOTH LK INT	9-09151-208-0	01	1	0512-0604	●
278	WASHER; LK,SHIFT WIRE ID=8.4 TOOTH LK INT	0-91541-208-0	01	1	0605-	●
281	CLIP; BAND L=140 SOU	5-09707-031-1	01	1	0303-0511		●
281	CLIP; BAND L=140 SOU	5-09707-031-1	01	1	0512-	●

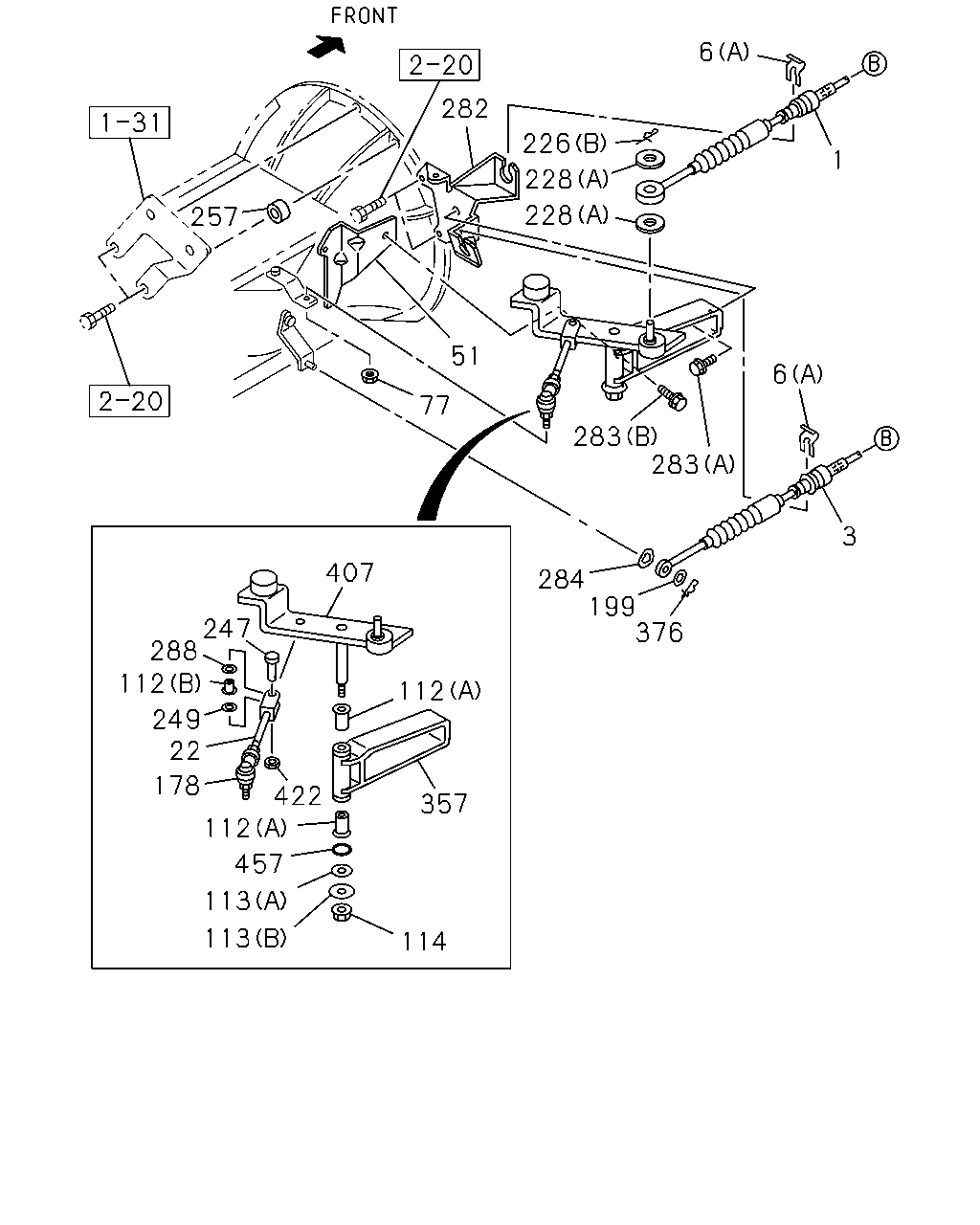

6 282 226 1 228 228 257 51 6 77 283 283 3 407 284 199 376 247 288 112 112 249 22 178 422 112 357 457 113 113 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT L=2643	8-97176-466-1	01	1	0303-0511		●
1	CABLE; SHIFT,TRANS CONT L=2805	8-97351-820-1	01	1	0512-0606	●
1	CABLE; SHIFT,TRANS CONT 4HF1 ENG(RLS) L=2805	8-97351-820-1	01	1	0607-	●
3	CABLE; SELECT,TRANS CONT L=2810	8-97176-474-0	01	1	0303-0511		●
3	CABLE; SELECT,TRANS CONT 4HF1 ENG(RLS) L=2882	8-97351-821-0	01	1	0512-	●
6	CLIP; CABLE (J) ID=22.2	1-09701-209-1	01	1	0512-	●
6	CLIP; CABLE POWER STEERING<N40> (H)	8-97036-334-2	01	1	0303-0511		●
6	CLIP; CABLE POWER STEERING<N40> (H)	8-97036-334-2	01	1	0512-	●
6	CLIP; CABLE (B)	8-97011-448-0	02	1	0303-0511		●
6	CLIP; CABLE (B)	8-97011-448-0	02	1	0512-	●
6	CLIP; CABLE 4JB1 ENG(RLF) (D)	8-97036-329-2	01	1	0303-0511		●
6	CLIP; CABLE 4HF1 ENG(RLS) (F)	8-97036-331-1	01	1	0512-	●
6	CLIP; CABLE 4JB1 ENG(RLF) (G)	8-97036-332-1	01	1	0303-0511		●
6	CLIP; CABLE 4HF1 ENG(RLS) (E)	8-97039-295-0	01	1	0512-	●
6	CLIP; CABLE (I)	8-97147-985-0	01	1	0303-0511		●
6	CLIP; CABLE (I)	8-97147-985-0	01	1	0512-	●
6	CLIP; CABLE (A) ID=19.2	8-97211-011-0	02	1	0303-0511		●
6	CLIP; CABLE (A) ID=19.2	8-97211-011-0	01	1	0512-	●
6	CLIP; CABLE EXC. POWER STEERING<N40> (C)	8-97036-333-1	01	1	0303-0511		●
6	CLIP; CABLE (C)	8-97036-333-1	01	1	0303-0511		●
6	CLIP; CABLE EXC. POWER STEERING<N40> (C)	8-97036-333-1	01	1	0512-	●
6	CLIP; CABLE (C)	8-97036-333-1	01	1	0512-	●
22	ROD; CONT,SHIFT	8-97174-058-0	01	1	0303-0307		●
22	ROD; CONT,SHIFT	8-97134-286-1	01	1	0308-0511		●
51	BRACKET; GEAR CONT 4JB1 ENG(RLF)	8-97029-286-0	01	1	0303-0511		●
77	NUT; LK,BALL JOINT,CONT ROD M8 T=8.0 SOU	8-94363-045-0	01	1	0303-0511		●
112	BUSHING; RELAY LEVER (B)	8-97174-060-0	01	1	0303-0307		●
112	BUSHING; RELAY LEVER (B)	8-97085-157-0	01	1	0308-0511		●
112	BUSHING; RELAY LEVER (A)	8-97174-057-0	02	1	0303-0511		●
113	WASHER; RELAY LEVER (B) ID=15 OD=36	9-09164-714-0	01	1	0303-0307		●
113	WASHER; RELAY LEVER (A) ID=10.5 OD=22	9-09160-610-0	02	1	0303-0307		●
113	WASHER; RELAY LEVER (A) ID=10.5 OD=22	9-09160-610-0	01	1	0308-0511		●
114	NUT; RELAY LEVER M10 FLANGE SOU	0-91150-110-0	01	1	0303-0511		●
178	JOINT; BALL,LINK ROD L=45.5	1-09760-118-1	01	1	0404-0511		●
199	WASHER; PL,SELECT ID=8.4	9-09160-508-0	01	1	0303-0511		●
199	WASHER; PL,SELECT ID=8.4	9-09160-508-0	01	1	0512-0605	●
199	WASHER; PL,SELECT ID=8.4 OD=16 SOU	0-91610-508-0	01	1	0606-	●
226	PIN; SHIFT CABLE (A) L=27.7 SOU	8-94111-137-0	01	1	0303-0511		●
226	PIN; SHIFT CABLE (A) L=27.7 SOU	8-94111-137-0	01	1	0512-	●
226	PIN; SHIFT CABLE (B) L=23	8-94170-378-0	01	1	0303-0511		●
226	PIN; SHIFT CABLE (B) L=23	8-94170-378-0	01	1	0512-	●
228	WASHER; PL,SHIFT CABLE (A) ID=8.2 OD=40	8-97182-975-0	02	1	0303-0511		●
228	WASHER; PL,SHIFT CABLE (A) ID=8.2 OD=40	8-97182-975-0	02	1	0512-	●
228	WASHER; PL,SHIFT CABLE (B) ID=8.4	9-09164-508-0	01	1	0303-0511		●
228	WASHER; PL,SHIFT CABLE (B) ID=8.4	9-09164-508-0	01	1	0512-0605	●
228	WASHER; PL,SHIFT CABLE (B) ID=8.4 OD=16 SOU	0-91614-508-0	01	1	0606-	●
247	PIN; CONT ROD TO LEVER	9-09876-059-1	01	1	0303-0307		●
247	PIN; CONT ROD TO LEVER	8-97373-728-0	01	1	0404-0511		●
249	WASHER; RUBBER,CONT ROD TO LEVER ID=8.5 T=1.5	9-09851-889-0	01	1	0303-0511		●
257	PIECE; DIST,RELAY LEVER 4JB1 ENG(RLF)	8-94369-173-0	01	1	0303-0511		●
282	BRACKET; TRANS SIDE SOU	8-97034-142-1	01	1	0303-0511		●
282	BRACKET; TRANS SIDE 4HF1 ENG(RLS)	8-97311-441-1	01	1	0512-	●
283	BOLT; RELAY LEVER (A) M10X25 FLANGE	0-28681-025-0	01	1	0303-0511		●
283	BOLT; RELAY LEVER (B) M10X35 FLANGE	0-28681-035-0	01	1	0303-0511		●
284	WASHER; WAVE,SELECT CABLE,CAB ID=8.4 OD=14	5-09550-002-0	01	1	0303-0511		●
284	WASHER; WAVE,SELECT CABLE,CAB ID=8.4 OD=14	5-09550-002-0	01	1	0512-	●
288	WASHER; CABLE TO RELAY LEVER	8-97373-819-0	01	1	0404-0511		●
357	BRACKET; RELAY LEVER	8-97182-166-0	01	1	0303-0511		●
376	PIN; SNAP,SELECT CABLE L=23	8-94170-378-0	01	1	0303-0511		●
376	PIN; SNAP,SELECT CABLE L=23	8-94170-378-0	01	1	0512-	●
407	LEVER; RELAY,SHIFT	8-97174-055-2	01	1	0303-0511		●
422	NUT; CONT ROD TO LEVER	8-97373-729-0	01	1	0404-0511		●
457	GASKET ID=13.8	9-09561-114-0	02	1	0303-0511		●

6 303 6 300 6 6 300 300 303 303 203 6 6 300 203 279 279 201 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	CLIP; CABLE (J) ID=22.2	1-09701-209-1	01	1	0512-	●
6	CLIP; CABLE POWER STEERING<N40> (H)	8-97036-334-2	01	1	0303-0511		●
6	CLIP; CABLE POWER STEERING<N40> (H)	8-97036-334-2	01	1	0512-	●
6	CLIP; CABLE (B)	8-97011-448-0	02	1	0303-0511		●
6	CLIP; CABLE (B)	8-97011-448-0	02	1	0512-	●
6	CLIP; CABLE 4JB1 ENG(RLF) (D)	8-97036-329-2	01	1	0303-0511		●
6	CLIP; CABLE 4HF1 ENG(RLS) (F)	8-97036-331-1	01	1	0512-	●
6	CLIP; CABLE 4JB1 ENG(RLF) (G)	8-97036-332-1	01	1	0303-0511		●
6	CLIP; CABLE 4HF1 ENG(RLS) (E)	8-97039-295-0	01	1	0512-	●
6	CLIP; CABLE (I)	8-97147-985-0	01	1	0303-0511		●
6	CLIP; CABLE (I)	8-97147-985-0	01	1	0512-	●
6	CLIP; CABLE (A) ID=19.2	8-97211-011-0	02	1	0303-0511		●
6	CLIP; CABLE (A) ID=19.2	8-97211-011-0	01	1	0512-	●
6	CLIP; CABLE EXC. POWER STEERING<N40> (C)	8-97036-333-1	01	1	0303-0511		●
6	CLIP; CABLE (C)	8-97036-333-1	01	1	0303-0511		●
6	CLIP; CABLE EXC. POWER STEERING<N40> (C)	8-97036-333-1	01	1	0512-	●
6	CLIP; CABLE (C)	8-97036-333-1	01	1	0512-	●
201	BOLT; BRKT 4JB1 ENG(RLF) EXC. POWER STEERING<N40> (A) M8X25 FLANGE	0-28680-825-0	01	1	0303-0511		●
201	BOLT; BRKT 4HF1 ENG(RLS) (A) M8X25 FLANGE	0-28680-825-0	01	1	0512-0512	●
201	BOLT; BRKT 4HF1 ENG(RLS) (A) M8X25 FLANGE SOU	0-28650-825-0	01	1	0601-	●
201	BOLT; BRKT 4JB1 ENG(RLF) EXC. POWER STEERING<N40> (B) M8X25 FLANGE	0-28680-825-0	02	1	0303-0511		●
201	BOLT; BRKT 4HF1 ENG(RLS) (B) M8X25 FLANGE	0-28680-825-0	02	1	0512-0512	●
201	BOLT; BRKT 4HF1 ENG(RLS) (B) M8X25 FLANGE SOU	0-28650-825-0	02	1	0601-	●
203	NUT; BRKT FIX 4JB1 ENG(RLF) EXC. POWER STEERING<N40> M8 FLANGE SOU	0-91150-108-0	01	1	0303-0511		●
203	NUT; BRKT FIX 4HF1 ENG(RLS) M8 FLANGE SOU	0-91150-108-0	01	1	0512-0602	●
203	NUT; BRKT FIX 4HF1 ENG(RLS) M8 FLANGE SOU	0-91180-108-0	01	1	0603-	●
279	BRACKET; CABLE TO FRAME 4JB1 ENG(RLF) EXC. POWER STEERING<N40> (B)	8-97047-898-0	01	1	0303-0511		●
279	BRACKET; CABLE TO FRAME 4HF1 ENG(RLS) (B)	8-97047-898-0	01	1	0512-	●
279	BRACKET; CABLE TO FRAME 4JB1 ENG(RLF) EXC. POWER STEERING<N40> (A)	8-97103-234-0	01	1	0303-0511		●
279	BRACKET; CABLE TO FRAME 4HF1 ENG(RLS) (C)	8-97028-496-1	01	1	0512-	●
300	BOLT; CLIP 4JB1 ENG(RLF) M8X25 FLANGE	0-28680-825-0	01	1	0303-0511		●
300	BOLT; CLIP 4JB1 ENG(RLF) M8X25 FLANGE	0-28680-825-0	01	1	0303-0511		●
300	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	0303-0511		●
300	BOLT; CLIP 4HF1 ENG(RLS) M8X25 FLANGE	0-28680-825-0	01	1	0512-0512	●
300	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	0512-0512	●
300	BOLT; CLIP 4HF1 ENG(RLS) M8X25 FLANGE SOU	0-28650-825-0	01	1	0601-0606	●
300	BOLT; CLIP M8X25 FLANGE SOU	0-28650-825-0	01	1	0601-0606	●
300	BOLT; CLIP 4HF1 ENG(RLS) M8X25 FLANGE SOU	0-28650-825-0	01	1	0607-	●
300	BOLT; CLIP 4HF1 ENG(RLS) M8X25 FLANGE SOU	0-28650-825-0	01	1	0607-	●
300	BOLT; CLIP EXC. POWER STEERING<N40> M8X16 FLANGE	0-28080-816-0	01	1	0303-0511		●
300	BOLT; CLIP EXC. POWER STEERING<N40> M8X16 FLANGE	0-28080-816-0	01	1	0512-0512	●
300	BOLT; CLIP EXC. POWER STEERING<N40> M8X16 FLANGE SOU	0-28050-816-0	01	1	0601-	●
303	NUT; CLIP M8 FLANGE SOU	0-91150-108-0	01	1	0303-0511		●
303	NUT; CLIP POWER STEERING<N40> M8 FLANGE SOU	0-91150-108-0	01	1	0303-0511		●
303	NUT; CLIP M8 FLANGE SOU	0-91150-108-0	01	1	0512-0602	●
303	NUT; CLIP POWER STEERING<N40> M8 FLANGE SOU	0-91150-108-0	01	1	0512-0602	●
303	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	01	1	0603-	●
303	NUT; CLIP POWER STEERING<N40> M8 FLANGE SOU	0-91180-108-0	01	1	0603-	●
303	NUT; CLIP M8 FLANGE SOU	0-91150-108-0	02	1	0303-0511		●
303	NUT; CLIP M8 FLANGE SOU	0-91150-108-0	02	1	0512-0602	●
303	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	02	1	0603-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
