Isuzu WW
▶
TRUCKS
▶
NP
▶
50915 - NP/NQ BUS LHDEXC.EU4
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-35 - CHARGE AIR COOLER
▶

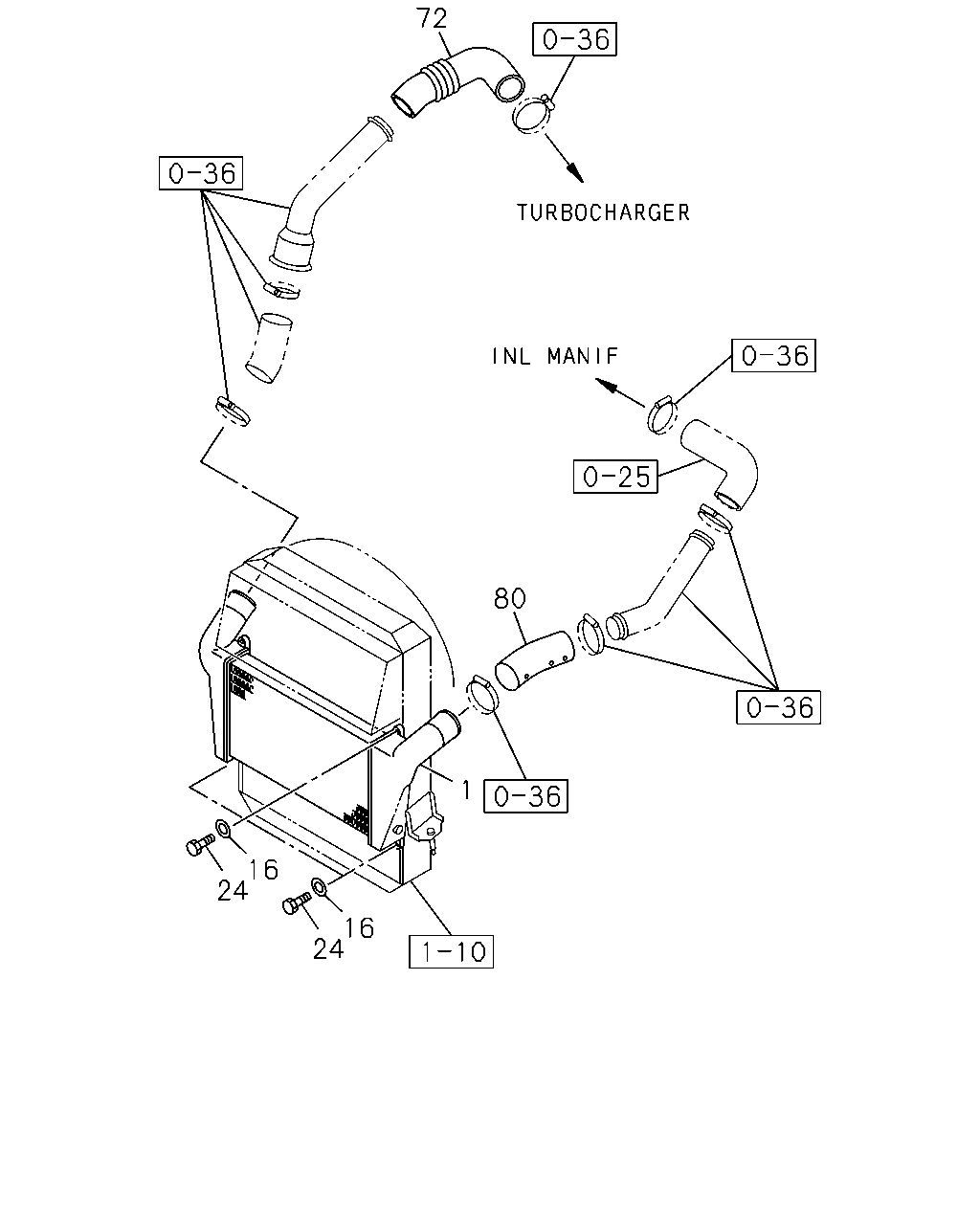

1-35 — CHARGE AIR COOLER
(#44080) — 15 parça
72
80
1
16
24
16
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
03.374 COOLER; CHARGE AIR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>
8-97218-394-2
01
1
0102-0301
1
03.374 COOLER; CHARGE AIR
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>
8-97218-394-4
01
1
0302-0501
1
03.374 COOLER; CHARGE AIR
4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11>
8-97218-394-4
01
1
0502-
16
03.374 WASHER; PL,CHARGE AIR COOLER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 16.674 ID=8.4
9-09160-508-0
04
1
0204-0301
16
03.374 WASHER; PL,CHARGE AIR COOLER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 16.674 ID=8.4
9-09160-508-0
04
1
0302-0501
16
03.374 WASHER; PL,CHARGE AIR COOLER
4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> 16.674 ID=8.4
9-09160-508-0
04
1
0502-1103
16
03.374 WASHER; PL,CHARGE AIR COOLER
4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> 03.417 ID=8.4 OD=16
0-91610-508-0
04
1
1104-
24
03.374 BOLT; COOLER TO RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.531 M8X25 FLANGE
0-28080-825-0
04
1
0102-0203
24
03.374 BOLT; COOLER TO RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> M8X26
8-97173-439-0
04
1
0204-0301
24
03.374 BOLT; COOLER TO RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> M8X26
8-97173-439-0
04
1
0302-0501
24
03.374 BOLT; COOLER TO RAD
4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> 01.531 M8X25 FLANGE
0-28080-825-0
04
1
0502-
72
01.540 HOSE; CONN,INL PIPE TO DUCT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>
8-97203-993-1
01
1
0102-0501
72
01.540 HOSE; CONN,INL PIPE TO DUCT
4HE1-TCS ENG(RDS)
8-97203-993-2
01
1
0502-
80
01.540 HOSE; CONN,CHARGE AIR COOLER TO
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>
8-97233-792-0
01
1
0102-0501
80
01.540 HOSE; CONN,CHARGE AIR COOLER TO
4HE1-TCS ENG(RDS)
8-97233-792-1
01
1
0502-
