◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 10676 - LT 111,112,132,133 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08C - CLUTCH MASTER CYLINDER ▶
2-08C — CLUTCH MASTER CYLINDER (#4408) — 11 parça

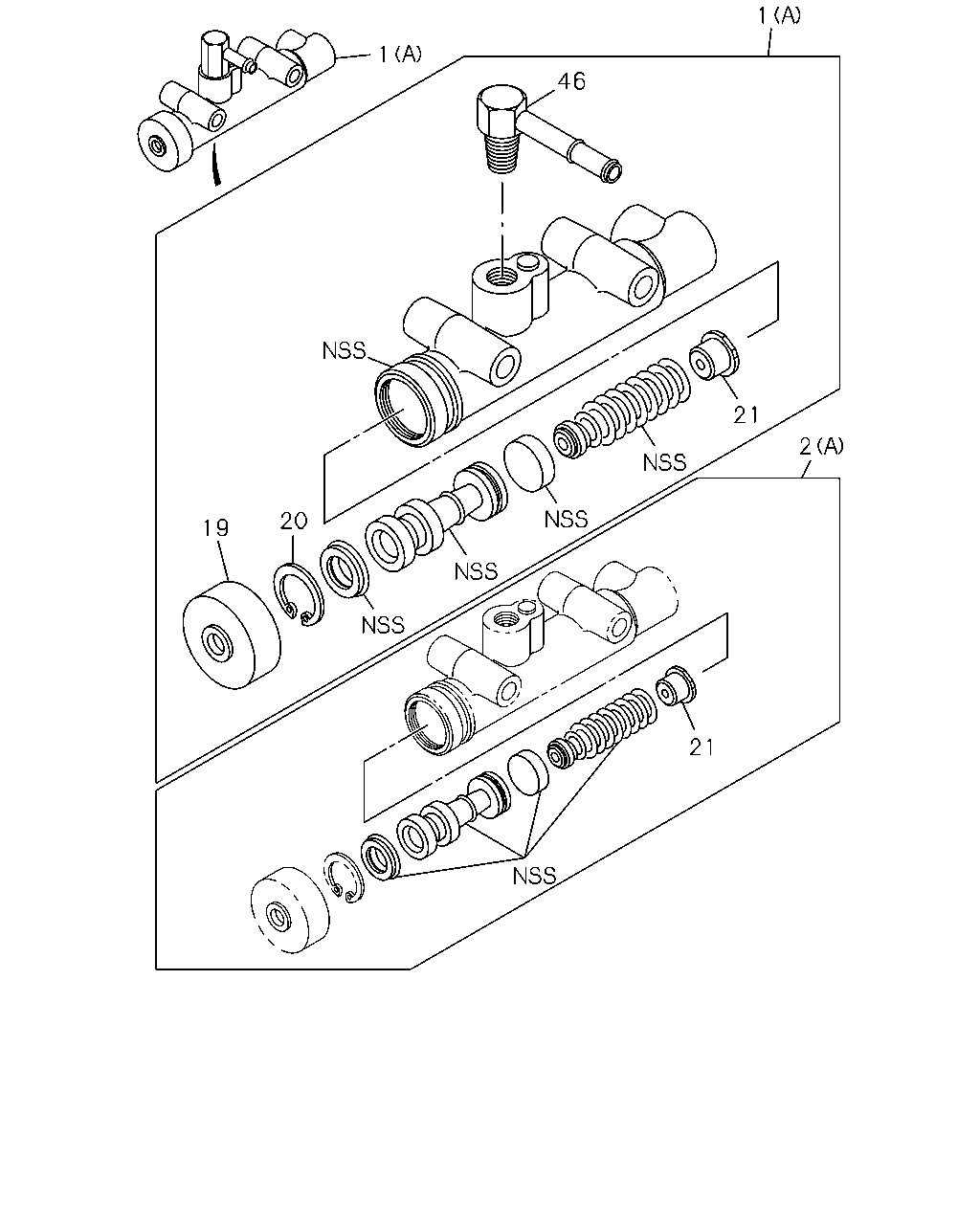

çizim 37102
1 1 46 21 2 20 19 21
BalonParca AdiParca NoAdetTipApplied Date
1 CYLINDER ASM; CLUTCH MASTER
EXC. CLU SYSTEM MINIPACK(B1Z) (A) 		1-47500-255-0 01 1 1210-
1 CYLINDER ASM; CLUTCH MASTER
(A) 		1-47500-232-2 01 1 9806-1209
1 CYLINDER ASM; CLUTCH MASTER
CLU SYSTEM MINIPACK(B1Z) (A) 		1-47500-232-2 01 1 1210-
2 REPAIR KIT; CLU M/CYL
EXC. CLU SYSTEM MINIPACK(B1Z) (A) 		1-85576-418-0 01 1 1210-
2 REPAIR KIT; CLU M/CYL
(A) 		1-85576-114-0 01 1 9806-1209
2 REPAIR KIT; CLU M/CYL
CLU SYSTEM MINIPACK(B1Z) (A) 		1-85576-114-0 01 1 1210-
19 BOOT; CLU M/CYL 9-47545-032-0 01 1 9806-
20 RING; SNAP,BODY
OD=26.9 		9-09180-125-0 01 1 9806-
21 VALVE; CHECK 1-47565-004-0 01 1 9806-1209
21 VALVE; CHECK
CLU SYSTEM MINIPACK(B1Z) 		1-47565-004-0 01 1 1210-
46 CONNECTOR; PIPE 1-47517-004-0 01 1 9806-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
