1-31 — AIR DUCT (#44079) — 114 parça

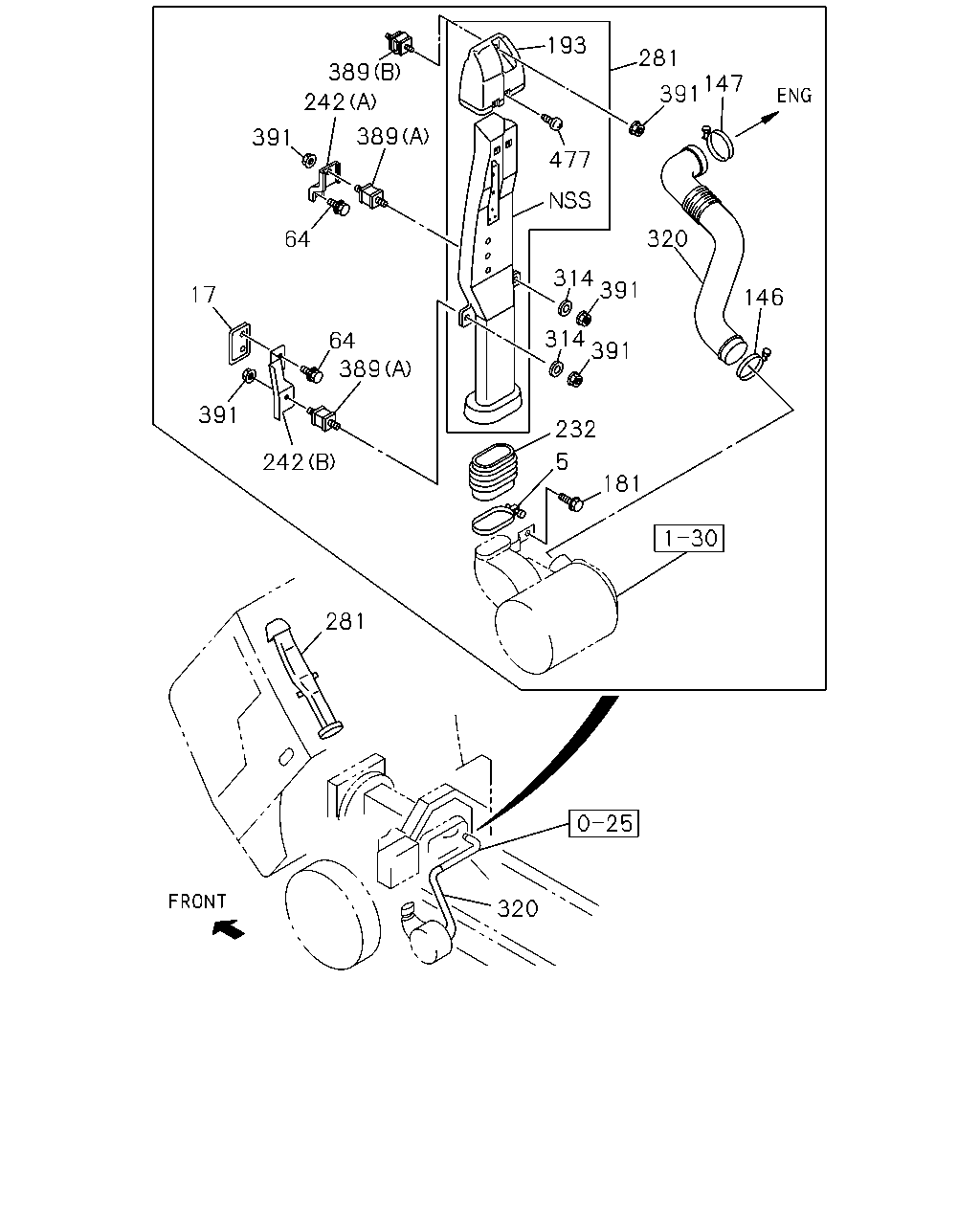

193 389 281 147 391 242 389 391 477 320 64 314 391 17 146 314 391 64 389 391 232 5 242 181 281 320

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	03.407 CLIP; AIR DUCT 4HE1-TCS ENG(RDS) EXC. IDENTIFICATION LABEL FOR KD<6UT> ID=70-90	8-98122-372-0	01	1	1002-
5	03.407 CLIP; AIR DUCT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> ID=58-79	1-09707-136-0	01	1	0102-0501
5	03.407 CLIP; AIR DUCT 4HE1-TCS ENG(RDS) ID=58-79	1-09707-136-0	01	1	0502-0504
5	03.407 CLIP; AIR DUCT 4HE1-TCS ENG(RDS) ID=68-85	1-09707-202-0	01	1	0505-0810
5	03.407 CLIP; AIR DUCT 4HE1-TCS ENG(RDS) ID=65-85	8-98133-350-0	01	1	0811-1001
5	03.407 CLIP; AIR DUCT 4HE1-TCS ENG(RDS) IDENTIFICATION LABEL FOR KD<6UT> ID=65-85	8-98133-350-0	01	1	1002-
5	03.407 CLIP; AIR DUCT 4HF1 ENG(RLS) D=101.6	9-09915-502-1	01	1	0201-0501
5	03.407 CLIP; AIR DUCT 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> D=101.6	9-09915-502-1	01	1	0201-0501
5	03.407 CLIP; AIR DUCT 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) D=101.6	9-09915-502-1	01	1	0502-0504
5	03.407 CLIP; AIR DUCT 4HF1 ENG(RLS) D=101.6	9-09915-502-1	01	1	0505-
17	03.403 GASKET; AIR DUCT 4HF1 ENG(RLS)	8-97853-699-2	01	1	0201-0501
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97853-699-2	01	1	0201-0501
17	03.403 GASKET; AIR DUCT 4HF1 ENG(RLS)	8-97853-699-2	01	1	0502-
64	03.417 BOLT; BRKT,AIR DUCT 4HF1 ENG(RLS) 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0201-0501
64	03.417 BOLT; BRKT,AIR DUCT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0201-0501
64	03.417 BOLT; BRKT,AIR DUCT 4HF1 ENG(RLS) 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0502-
146	03.417 CLIP; HOSE,ACL 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.407 ID=112	9-09915-074-1	01	1	0102-0501
146	03.417 CLIP; HOSE,ACL 4HE1-TCS ENG(RDS) 03.407 ID=112	9-09915-074-1	01	1	0502-
146	03.417 CLIP; HOSE,ACL 4HF1 ENG(RLS) EXC. TURBOCHARGER(K51) 03.008 ID=95	9-09915-733-1	01	1	0201-0501
146	03.417 CLIP; HOSE,ACL 4HF1 ENG(RLS) 03.008 ID=95	9-09915-733-1	01	1	0502-
147	03.417 CLIP; HOSE TO ENG 4HF1 ENG(RLS) 03.008 ID=95	9-09915-733-1	01	1	0201-0504
147	03.417 CLIP; HOSE TO ENG 4HF1 ENG(RLS) 03.008 ID=95	9-09915-733-1	01	1	0505-0809
147	03.417 CLIP; HOSE TO ENG 4HF1 ENG(RLS) 03.008 ID=95	9-09915-733-1	01	1	0505-0809
147	03.417 CLIP; HOSE TO ENG 4HF1 ENG(RLS) 03.008 ID=95	9-09915-733-1	01	1	0810-
181	03.407 BOLT; AIR DUCT TO RAD EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0201-0301
181	03.407 BOLT; AIR DUCT TO RAD 4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0302-0501
181	03.407 BOLT; AIR DUCT TO RAD 4HF1 ENG(RLS) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512
181	03.407 BOLT; AIR DUCT TO RAD 4HF1 ENG(RLS) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-
193	03.417 COVER; DUCT,AIR INT 4HF1 ENG(RLS) EXC. TURBOCHARGER(K51)	8-97138-604-0	01	1	0201-0501
193	03.417 COVER; DUCT,AIR INT 4HF1 ENG(RLS)	8-97138-604-1	01	1	0502-
232	03.417 HOSE; CONN 4HF1 ENG(RLS)	8-97109-423-0	01	1	0201-0501
232	03.417 HOSE; CONN 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>	8-97109-423-0	01	1	0201-0501
232	03.417 HOSE; CONN 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-97109-423-0	01	1	0502-0504
232	03.417 HOSE; CONN 4HF1 ENG(RLS)	8-97109-423-0	01	1	0505-0802
232	03.417 HOSE; CONN 4HF1 ENG(RLS) 03.407	8-98115-594-0	01	1	0803-
242	03.417 BRACKET; AIR DUCT EXC. CHARGE AIR COOLER<6PL> (A)	8-97853-633-1	01	1	0201-0301
242	03.417 BRACKET; AIR DUCT 4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A)	8-97853-633-1	01	1	0302-0501
242	03.417 BRACKET; AIR DUCT 4HF1 ENG(RLS) (A)	8-97853-633-2	01	1	0502-
242	03.417 BRACKET; AIR DUCT EXC. CHARGE AIR COOLER<6PL> (B)	8-97857-844-0	01	1	0201-0301
242	03.417 BRACKET; AIR DUCT 4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (B)	8-97857-844-0	01	1	0302-0501
242	03.417 BRACKET; AIR DUCT 4HF1 ENG(RLS) (B)	8-97857-844-1	01	1	0502-
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-97180-995-0	01	1	0102-0501
281	03.417 DUCT; AIR,VERTICAL INT 4HE1-TCS ENG(RDS)	8-97180-995-0	01	1	0502-
281	03.417 DUCT; AIR,VERTICAL INT 4HF1 ENG(RLS) EXC. TURBOCHARGER(K51)	8-97161-847-1	01	1	0201-0501
281	03.417 DUCT; AIR,VERTICAL INT 4HF1 ENG(RLS)	8-97161-847-2	01	1	0502-
314	03.417 WASHER; PL,AIR INT DUCT 4HF1 ENG(RLS) 16.335 ID=10.2 T=3.2	8-94279-642-0	02	1	0201-1204
314	03.417 WASHER; PL,AIR INT DUCT 4HF1 ENG(RLS) 00.002 ID=10.5 OD=32	0-91614-810-0	02	1	1205-
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-97209-707-0	01	1	0102-0501
320	03.417 HOSE; CONN,ACL 4HE1-TCS ENG(RDS)	8-97209-707-0	01	1	0502-
320	03.417 HOSE; CONN,ACL 4HF1 ENG(RLS) EXC. TURBOCHARGER(K51)	8-97103-346-2	01	1	0201-0501
320	03.417 HOSE; CONN,ACL 4HF1 ENG(RLS)	8-97103-346-3	01	1	0502-
389	03.317 RUBBER; SUPPORT,AIR INT UPR EXC. CHARGE AIR COOLER<6PL> 03.417 (A)	8-97081-886-0	02	1	0201-0301
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.417 (A)	8-97081-886-0	02	1	0302-0501
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HF1 ENG(RLS) 03.417 (A)	8-97081-886-0	02	1	0502-
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HF1 ENG(RLS) 03.417 (B)	8-97080-149-0	01	1	0502-
391	03.417 NUT; SUPPORT RUBBER,UPR 4HF1 ENG(RLS) M8 FLANGE	8-94279-517-0	05	1	0201-0910
391	03.417 NUT; SUPPORT RUBBER,UPR 4HF1 ENG(RLS) M8 W/LK WASHER	8-97581-234-0	05	1	0911-
477	03.417 SCREW; COVER 4HF1 ENG(RLS) EXC. TURBOCHARGER(K51) 16.802 M5X16 TAPPING W/PL WASHER	0-74110-516-0	04	1	0201-0501
477	03.417 SCREW; COVER 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 16.802 M5X16 TAPPING W/PL WASHER	0-74110-516-0	04	1	0201-0501
477	03.417 SCREW; COVER 4HF1 ENG(RLS) 16.802 M5X16 TAPPING W/PL WASHER	0-74110-516-0	04	1	0502-0604
477	03.417 SCREW; COVER 4HF1 ENG(RLS) 02.895 M5X16 TAPPING W/PL WASHER	0-74160-516-0	04	1	0605-

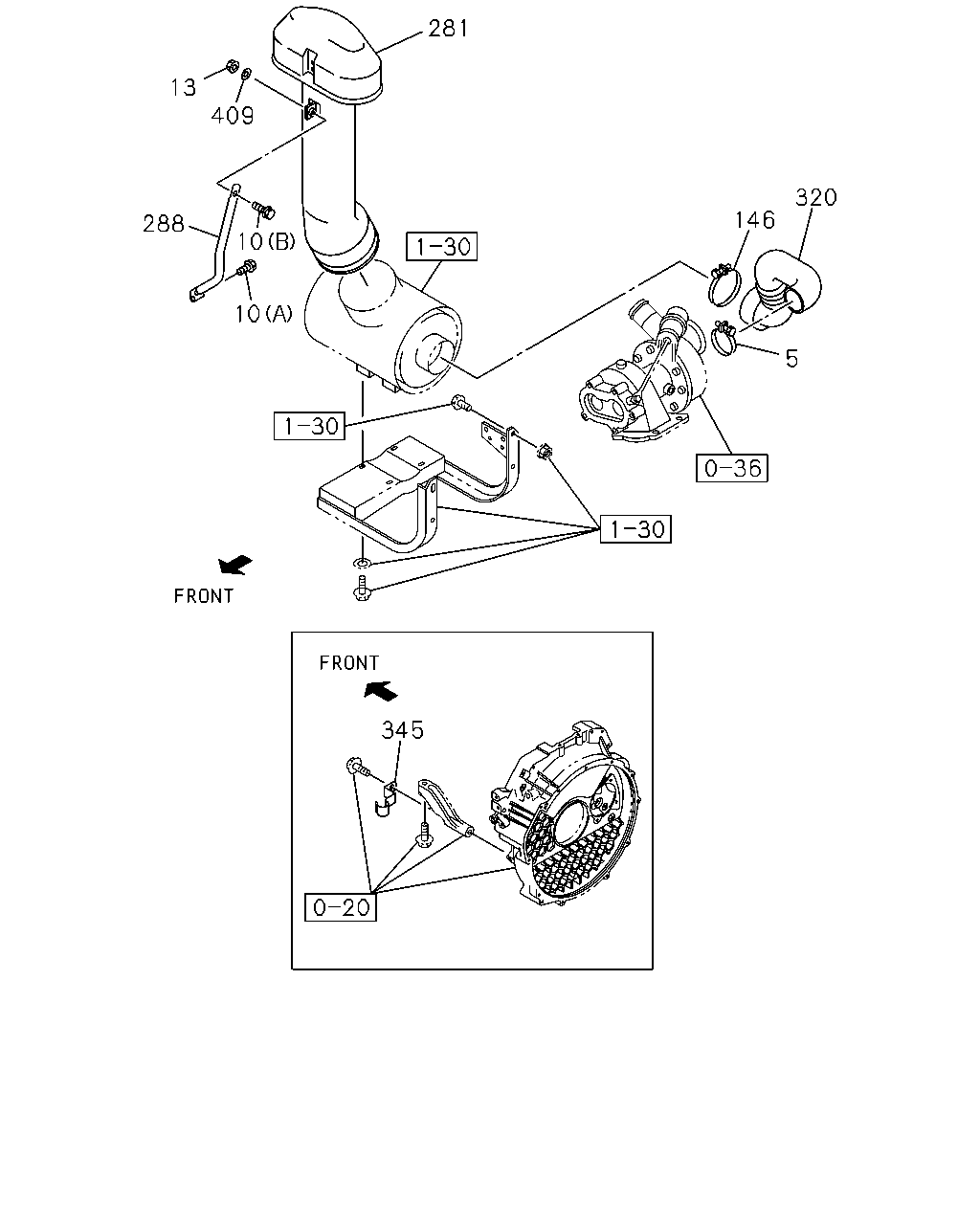

281 13 409 320 146 288 10 10 5 345

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	03.407 CLIP; AIR DUCT 4HE1-TCS ENG(RDS) EXC. IDENTIFICATION LABEL FOR KD<6UT> ID=70-90	8-98122-372-0	01	1	1002-
5	03.407 CLIP; AIR DUCT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> ID=58-79	1-09707-136-0	01	1	0102-0501
5	03.407 CLIP; AIR DUCT 4HE1-TCS ENG(RDS) ID=58-79	1-09707-136-0	01	1	0502-0504
5	03.407 CLIP; AIR DUCT 4HE1-TCS ENG(RDS) ID=68-85	1-09707-202-0	01	1	0505-0810
5	03.407 CLIP; AIR DUCT 4HE1-TCS ENG(RDS) ID=65-85	8-98133-350-0	01	1	0811-1001
5	03.407 CLIP; AIR DUCT 4HE1-TCS ENG(RDS) IDENTIFICATION LABEL FOR KD<6UT> ID=65-85	8-98133-350-0	01	1	1002-
5	03.407 CLIP; AIR DUCT 4HF1 ENG(RLS) D=101.6	9-09915-502-1	01	1	0201-0501
5	03.407 CLIP; AIR DUCT 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> D=101.6	9-09915-502-1	01	1	0201-0501
5	03.407 CLIP; AIR DUCT 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) D=101.6	9-09915-502-1	01	1	0502-0504
5	03.407 CLIP; AIR DUCT 4HF1 ENG(RLS) D=101.6	9-09915-502-1	01	1	0505-
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0102-0501
10	03.417 BOLT; BRKT FIX 4HE1-TCS ENG(RDS) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0502-0512
10	03.417 BOLT; BRKT FIX 4HE1-TCS ENG(RDS) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.183 (B) M8X35 FLANGE	0-28680-835-0	01	1	0102-0501
10	03.417 BOLT; BRKT FIX 4HE1-TCS ENG(RDS) 02.183 (B) M8X35 FLANGE	0-28680-835-0	01	1	0502-0512
10	03.417 BOLT; BRKT FIX 4HE1-TCS ENG(RDS) 01.060 (B) M8X35 FLANGE	0-28650-835-0	01	1	0601-
13	03.417 NUT; BRKT FIX 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	0102-0501
13	03.417 NUT; BRKT FIX 4HE1-TCS ENG(RDS) 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602
13	03.417 NUT; BRKT FIX 4HE1-TCS ENG(RDS) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-
146	03.417 CLIP; HOSE,ACL 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.407 ID=112	9-09915-074-1	01	1	0102-0501
146	03.417 CLIP; HOSE,ACL 4HE1-TCS ENG(RDS) 03.407 ID=112	9-09915-074-1	01	1	0502-
146	03.417 CLIP; HOSE,ACL 4HF1 ENG(RLS) EXC. TURBOCHARGER(K51) 03.008 ID=95	9-09915-733-1	01	1	0201-0501
146	03.417 CLIP; HOSE,ACL 4HF1 ENG(RLS) 03.008 ID=95	9-09915-733-1	01	1	0502-
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-97180-995-0	01	1	0102-0501
281	03.417 DUCT; AIR,VERTICAL INT 4HE1-TCS ENG(RDS)	8-97180-995-0	01	1	0502-
281	03.417 DUCT; AIR,VERTICAL INT 4HF1 ENG(RLS) EXC. TURBOCHARGER(K51)	8-97161-847-1	01	1	0201-0501
281	03.417 DUCT; AIR,VERTICAL INT 4HF1 ENG(RLS)	8-97161-847-2	01	1	0502-
288	03.417 BRACKET; DUCT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-97183-041-2	01	1	0102-0501
288	03.417 BRACKET; DUCT 4HE1-TCS ENG(RDS)	8-97183-041-2	01	1	0502-
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-97209-707-0	01	1	0102-0501
320	03.417 HOSE; CONN,ACL 4HE1-TCS ENG(RDS)	8-97209-707-0	01	1	0502-
320	03.417 HOSE; CONN,ACL 4HF1 ENG(RLS) EXC. TURBOCHARGER(K51)	8-97103-346-2	01	1	0201-0501
320	03.417 HOSE; CONN,ACL 4HF1 ENG(RLS)	8-97103-346-3	01	1	0502-
345	03.417 CLIP; PCV HOSE 4HE1 ENG(RLY)	8-97066-710-1	01	1	0102-0307
345	03.417 CLIP; PCV HOSE 4HE1 ENG(RLY)	8-97369-959-0	01	1	0308-0501
345	03.417 CLIP; PCV HOSE 4HE1-TCS ENG(RDS)	8-97369-959-0	01	1	0502-
409	03.417 WASHER; PL,BRKT 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	0102-0501
409	03.417 WASHER; PL,BRKT 4HE1-TCS ENG(RDS) 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	0502-0605
409	03.417 WASHER; PL,BRKT 4HE1-TCS ENG(RDS) 04.595 ID=8.4 OD=22	0-91610-708-0	01	1	0606-

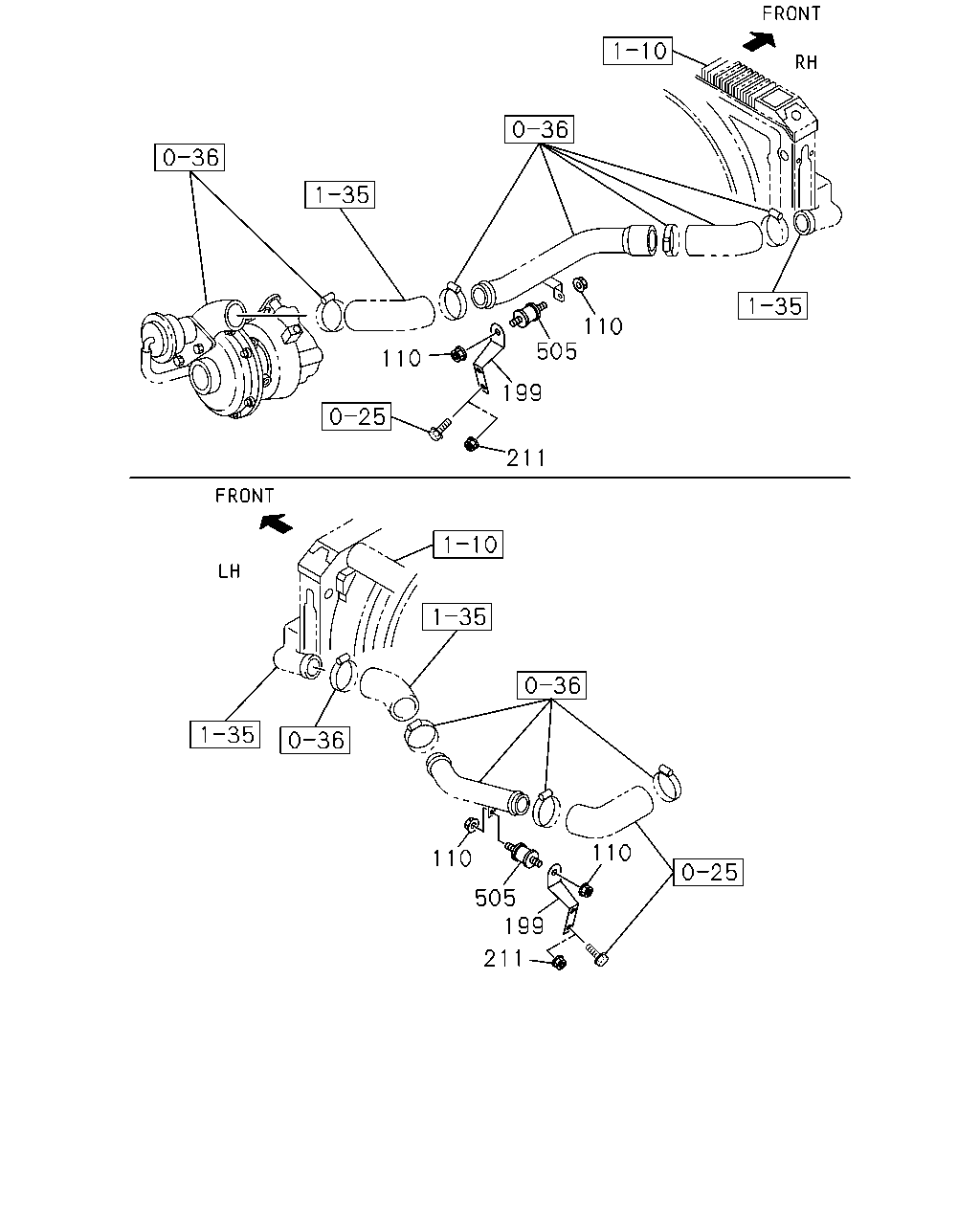

110 505 110 199 211 110 110 505 199 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
110	03.403 NUT; RUBBER MTG 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	04	1	0102-0501
110	03.403 NUT; RUBBER MTG 4HE1-TCS ENG(RDS) 07.633 M8 FLANGE	0-91150-108-0	04	1	0502-0602
110	03.403 NUT; RUBBER MTG 4HE1-TCS ENG(RDS) 01.062 M8 FLANGE	0-91180-108-0	04	1	0603-
199	03.417 BRACKET; PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97189-604-0	01	1	0102-0501
199	03.417 BRACKET; PIPE 4HE1-TCS ENG(RDS)	8-97189-604-0	01	1	0502-0502
199	03.417 BRACKET; PIPE 4HE1-TCS ENG(RDS)	8-98011-753-1	01	1	0502-
199	03.417 BRACKET; PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97189-603-1	01	1	0102-0501
199	03.417 BRACKET; PIPE 4HE1-TCS ENG(RDS)	8-97189-603-1	01	1	0502-0502
199	03.417 BRACKET; PIPE 4HE1-TCS ENG(RDS)	8-98011-752-1	01	1	0502-
211	03.405 NUT; BRKT 4HE1-TCS ENG(RDS) 04.010 M8 FLANGE	8-97046-127-0	02	1	0502-0610
211	03.405 NUT; BRKT 4HE1-TCS ENG(RDS) 01.840 M8 W/DISHED WASHER	8-97329-625-0	02	1	0611-
505	03.406 RUBBER; MTG 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.405	8-94158-155-1	02	1	0102-0501
505	03.406 RUBBER; MTG 4HE1-TCS ENG(RDS) 03.405	8-94158-155-1	02	1	0502-0611
505	03.406 RUBBER; MTG 4HE1-TCS ENG(RDS) 03.417	8-98036-826-0	02	1	0612-
