8-50 — AIR CONDITIONING SYSTEM; FRONT (#44077) — 269 parça

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H

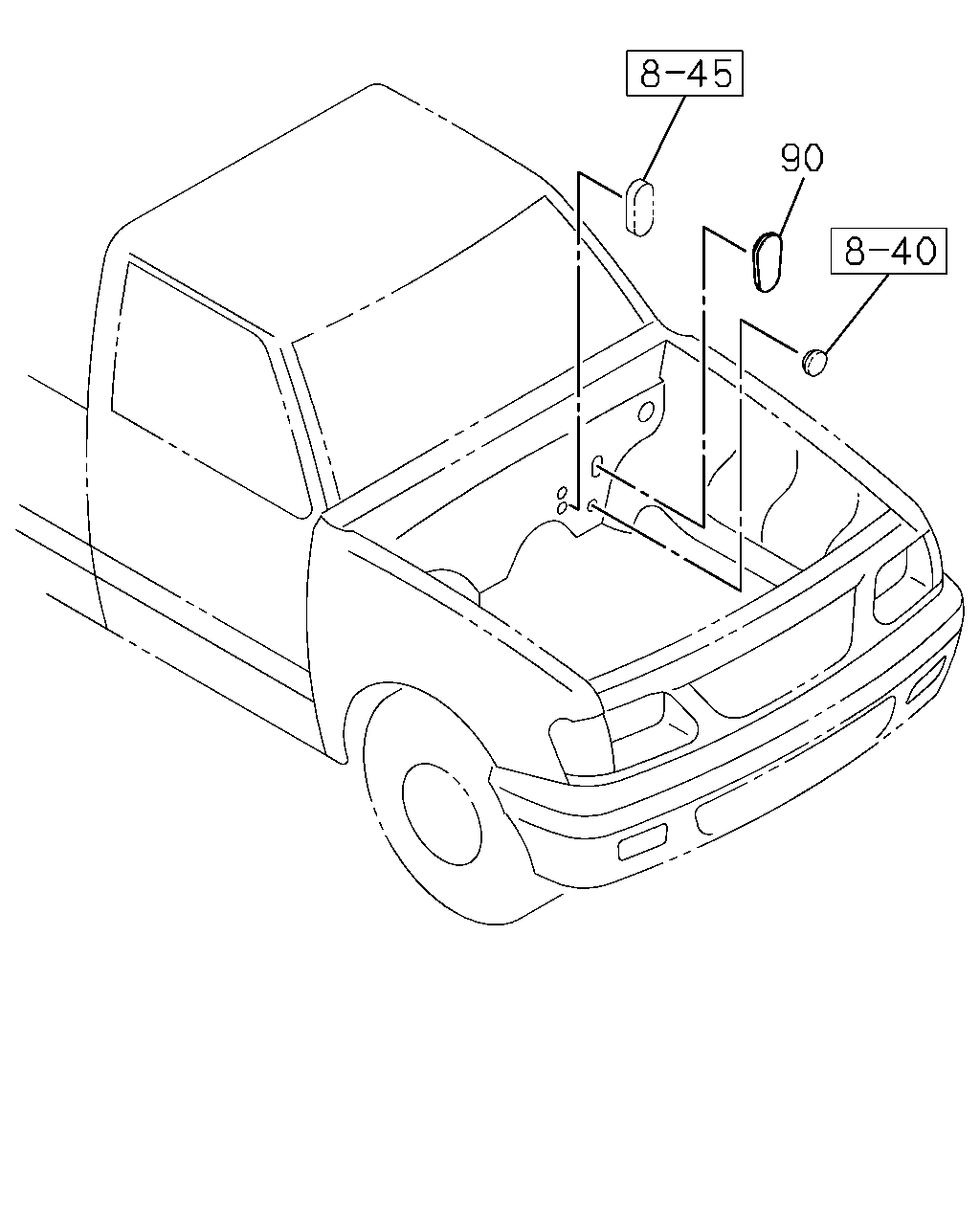

	90	PLUG; PIPE HOLE EXC. COOLER WO/HEATER<YL1>	8-94222-310-1	01	1	0009-	●	●	●	●	●	●	●	●

4 8 8 4 46 25 32 37 37 25 26 34 27 39 31 30 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H

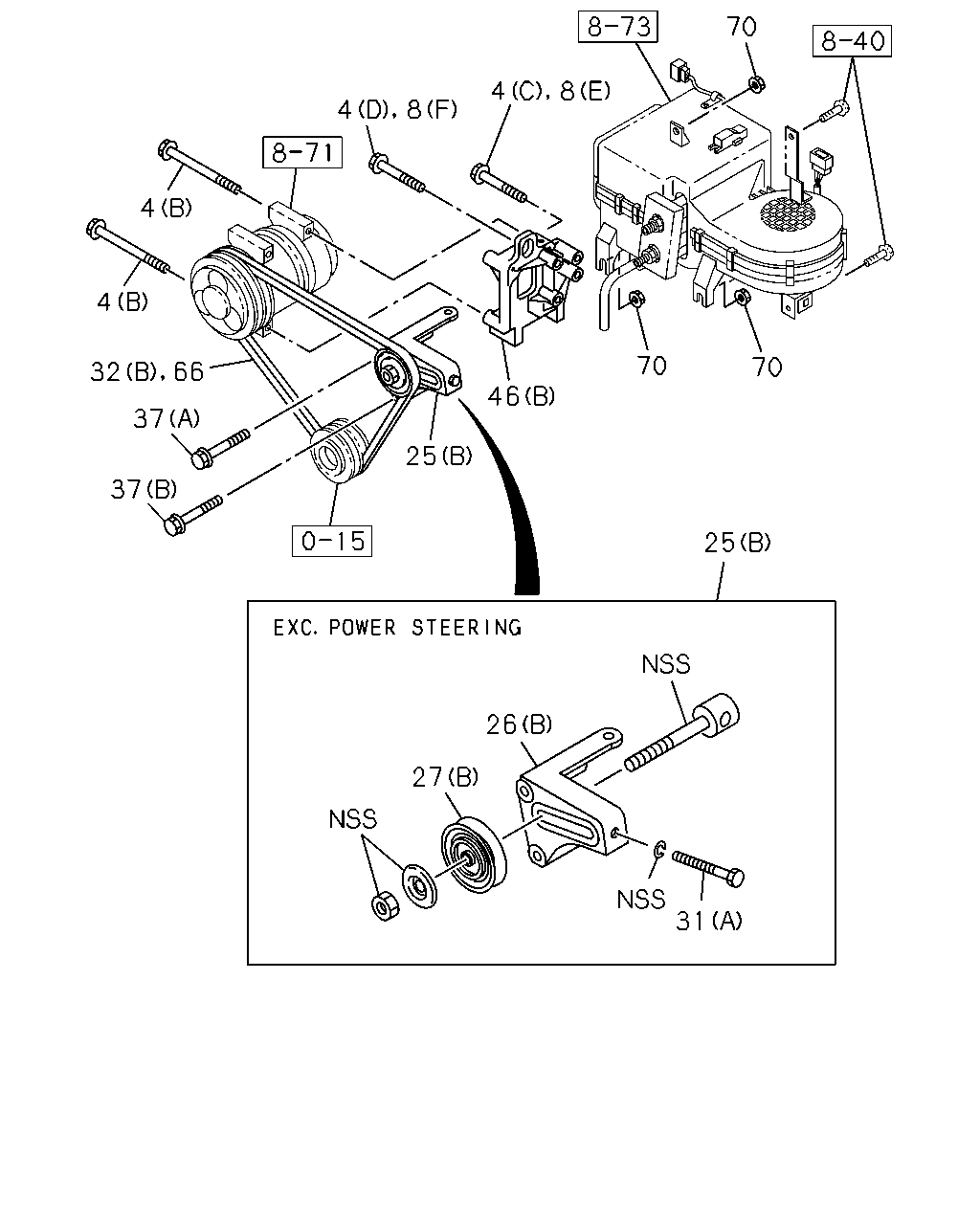

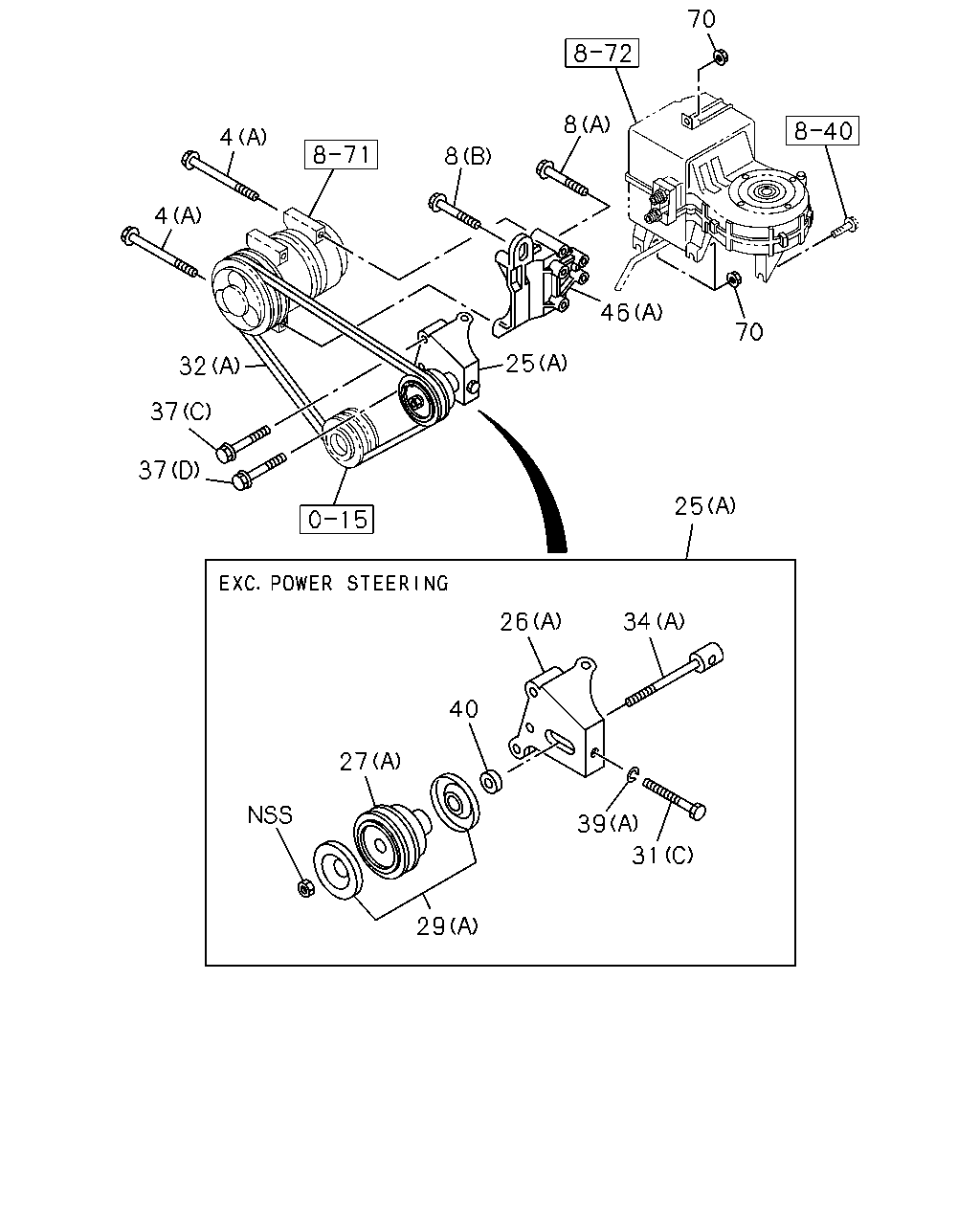

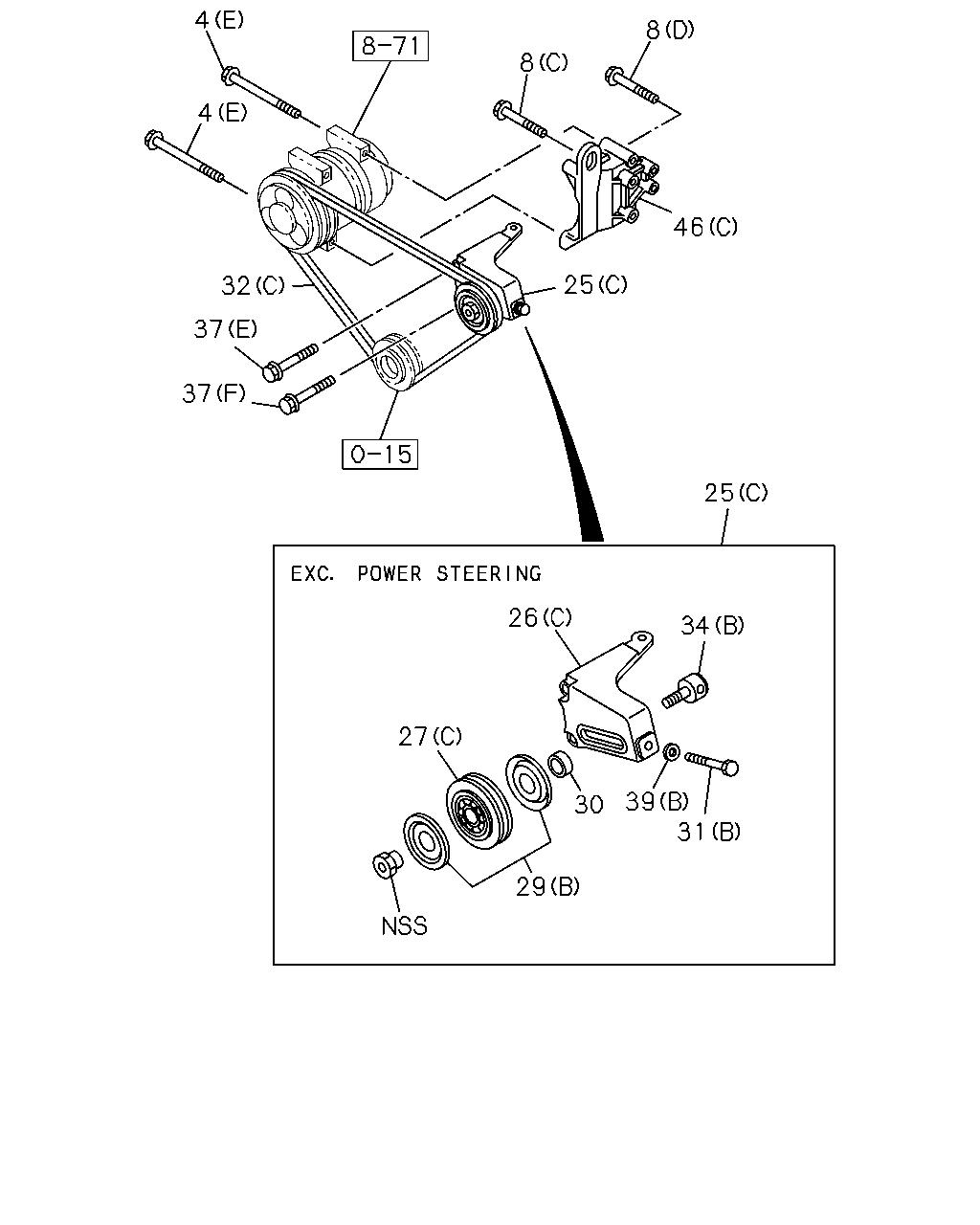

4	BOLT; A/C CMPR BRKT COOLER WO/HEATER<YL1> SCAL M10X45 THA	8-97919-260-0	02	1	0105-			●
4	BOLT; A/C CMPR BRKT COOLER WO/HEATER<YL1> SCAL M8X40 THA	8-97919-262-0	02	1	0105-			●
4	BOLT; A/C CMPR BRKT COOLER WO/HEATER<YL1> (B) SDTI M10X60 THA	8-97910-873-0	04	1	0009-0104	●	●	●	●		●	●
4	BOLT; A/C CMPR BRKT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SDTI M10X60 THA	8-97910-873-0	04	1	0105-	●			●
4	BOLT; A/C CMPR BRKT 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> SDTI M10X60 THA	8-97910-873-0	04	1	0105-	●					●
4	BOLT; A/C CMPR BRKT 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (E) SCAL THA	8-97919-263-0	04	1	0009-0104	●					●
4	BOLT; A/C CMPR BRKT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (E) SCAL THA	8-97919-263-0	04	1	0009-0104	●
4	BOLT; A/C CMPR BRKT COOLER WO/HEATER<YL1> (E) SCAL THA	8-97919-263-0	04	1	0009-0104				●
4	BOLT; A/C CMPR BRKT 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> SCAL THA	8-97919-263-0	04	1	0105-	●
4	BOLT; A/C CMPR BRKT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SCAL THA	8-97919-263-0	04	1	0105-	●
4	BOLT; A/C CMPR BRKT COOLER WO/HEATER<YL1> SCAL THA	8-97919-263-0	04	1	0105-		●	●	●			●
4	BOLT; A/C CMPR BRKT POWER STEERING<N40> COOLER WO/HEATER<YL1> SCAL THA	8-97919-263-0	04	1	0105-						●
4	BOLT; A/C CMPR BRKT 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SZC THA	8-97910-905-1	04	1	0009-	●					●
4	BOLT; A/C CMPR BRKT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SZC THA	8-97910-905-1	04	1	0009-	●
4	BOLT; A/C CMPR BRKT COOLER WO/HEATER<YL1> (A) SZC THA	8-97910-905-1	04	1	0009-				●	●			●
4	BOLT; A/C CMPR BRKT COOLER WO/HEATER<YL1> (C) SDTI M8X60 THA	8-97910-872-0	02	1	0009-0104		●	●				●
4	BOLT; A/C CMPR BRKT COOLER WO/HEATER<YL1> SCAL M8X45 THA	8-97920-872-0	02	1	0105-		●					●
4	BOLT; A/C CMPR BRKT COOLER WO/HEATER<YL1> (D) SDTI M10X60 THA	8-97910-877-0	02	1	0009-0104		●	●				●
4	BOLT; A/C CMPR BRKT COOLER WO/HEATER<YL1> SCAL M8X50 THA	8-97920-873-0	02	1	0105-		●					●
8	BOLT; BRKT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SCAL M10X45 THA	8-97919-260-0	02	1	0009-	●
8	BOLT; BRKT COOLER WO/HEATER<YL1> (C) SCAL M10X45 THA	8-97919-260-0	02	1	0009-				●
8	BOLT; BRKT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (D) SCAL M8X40 THA	8-97919-262-0	02	1	0009-	●
8	BOLT; BRKT COOLER WO/HEATER<YL1> (D) SCAL M8X40 THA	8-97919-262-0	02	1	0009-				●
8	BOLT; BRKT 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (D) SCAL M8X45 THA	8-97920-872-0	02	1	0009-	●					●
8	BOLT; BRKT 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SCAL M8X50 THA	8-97920-873-0	02	1	0009-	●					●
8	BOLT; BRKT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (E) SDTI M8X60 THA	8-97910-872-0	02	1	0009-	●			●
8	BOLT; BRKT 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (E) SDTI M8X60 THA	8-97910-872-0	02	1	0009-	●					●
8	BOLT; BRKT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (F) SDTI M10X60 THA	8-97910-877-0	02	1	0009-	●			●
8	BOLT; BRKT 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (F) SDTI M10X60 THA	8-97910-877-0	02	1	0009-	●					●
8	BOLT; BRKT 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) M12X50 THA	8-97910-841-0	02	1	0009-	●					●
8	BOLT; BRKT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) M12X50 THA	8-97910-841-0	02	1	0009-	●
8	BOLT; BRKT COOLER WO/HEATER<YL1> (A) M12X50 THA	8-97910-841-0	02	1	0009-				●	●			●
8	BOLT; BRKT 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) M14X50 THA	8-97910-842-0	02	1	0009-	●					●
8	BOLT; BRKT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) M14X50 THA	8-97910-842-0	02	1	0009-	●
8	BOLT; BRKT COOLER WO/HEATER<YL1> (B) M14X50 THA	8-97910-842-0	02	1	0009-				●	●			●
25	PULLEY ASM; IDLER,CMPR 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (B) SDTI THA	8-97910-870-0	01	1	0009-	●			●
25	PULLEY ASM; IDLER,CMPR 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (A) SZC THA	8-97919-778-0	01	1	0009-	●			●
25	PULLEY ASM; IDLER,CMPR 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (C) SCAL THA	8-97920-396-0	01	1	0009-	●			●
26	BRACKET; IDLE PULLEY,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (B) SDTI THA	8-97911-133-0	01	1	0009-	●			●
26	BRACKET; IDLE PULLEY,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (A) SZC THA	8-97919-933-0	01	1	0009-	●			●
26	BRACKET; IDLE PULLEY,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (C) SCAL THA	8-97920-464-0	01	1	0009-	●			●
27	PULLEY; IDLE,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (B) SDTI THA	8-97911-134-0	01	1	0009-	●			●
27	PULLEY; IDLE,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (A) SZC THA	8-97919-934-0	01	1	0009-	●			●
27	PULLEY; IDLE,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (C) SCAL THA	8-97920-463-0	01	1	0009-	●			●
29	COVER; DUST,IDLE PULLEY 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (A) SZC THA	8-97919-935-0	01	1	0009-	●			●
29	COVER; DUST,IDLE PULLEY 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (B) SCAL THA	8-97920-462-0	01	1	0009-	●			●
30	COLLAR; IDLE PULLEY 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> SCAL THA	8-97920-412-0	01	1	0009-	●			●
31	BOLT; ADJ,IDLE PULLEY 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (A) SDTI THA	8-97911-135-0	01	1	0009-	●			●
31	BOLT; ADJ,IDLE PULLEY 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (C) SZC THA	8-97919-938-0	01	1	0009-	●			●
31	BOLT; ADJ,IDLE PULLEY 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (B) SCAL THA	8-97920-413-0	01	1	0009-	●			●
32	BELT; A/C CMPR 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-252-2	01	1	0009-	●					●
32	BELT; A/C CMPR 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> POWER STEERING<N40> (A) SZC THA	8-97910-849-1	01	1	0009-	●			●
32	BELT; A/C CMPR 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> POWER STEERING<N40> (B) SDTI THA	8-97910-868-0	01	1	0009-	●			●
32	BELT; A/C CMPR 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> POWER STEERING<N40> (C) SCAL THA	8-97919-251-2	01	1	0009-	●			●
32	BELT; A/C CMPR 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (A) SZC THA	8-97910-850-1	01	1	0009-	●			●
32	BELT; A/C CMPR 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (B) SDTI THA	8-97910-869-1	01	1	0009-	●			●
32	BELT; A/C CMPR 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (C) SCAL THA	8-97919-711-1	01	1	0009-	●			●
32	BELT; A/C CMPR 4JH1 ENG<RJX> A/T AISIN<RMD>,M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97910-867-0	01	1	0009-	●					●
32	BELT; A/C CMPR 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SZC THA	8-97910-840-1	01	1	0009-	●					●
32	BELT; A/C CMPR COOLER WO/HEATER<YL1> (A) SZC THA	8-97910-840-1	01	1	0009-					●			●
34	SHAFT; IDLE PULLEY 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (A) SZC THA	8-97919-937-0	01	1	0009-	●			●
34	SHAFT; IDLE PULLEY 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (B) SCAL THA	8-97920-414-0	01	1	0009-	●			●
37	BOLT; PULLEY BRKT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (B) SDTI M10X60 THA	8-97910-873-0	01	1	0009-	●			●
37	BOLT; PULLEY BRKT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (A) SDTI M10X90 THA	8-97910-875-0	01	1	0009-	●			●
37	BOLT; PULLEY BRKT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (E) SCAL THA	8-97919-729-1	01	1	0009-	●			●
37	BOLT; PULLEY BRKT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (F) M8X70 W/WASHER THA	8-97919-730-1	01	1	0009-	●			●
37	BOLT; PULLEY BRKT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (C) SZC M12X80 THA	8-97919-779-0	01	1	0009-	●			●
37	BOLT; PULLEY BRKT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (D) SZC M12X85 THA	8-97919-780-0	01	1	0009-	●			●
39	WASHER; LK,ADJ BOLT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (A) SZC THA	8-97919-939-0	01	1	0009-	●			●
39	WASHER; LK,ADJ BOLT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (B) SCAL THA	8-97919-999-0	01	1	0009-	●			●
46	BRACKET; CMPR 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SZC THA	8-97910-829-1	01	1	0009-	●
46	BRACKET; CMPR COOLER WO/HEATER<YL1> (A) SZC THA	8-97910-829-1	01	1	0009-				●
46	BRACKET; CMPR 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-250-0	01	1	0009-0104	●
46	BRACKET; CMPR COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-250-0	01	1	0009-0104				●
46	BRACKET; CMPR 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SDTI THA	8-97910-855-1	01	1	0105-	●
46	BRACKET; CMPR COOLER WO/HEATER<YL1> SDTI THA	8-97910-855-1	01	1	0105-				●
46	BRACKET; CMPR 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97920-583-0	01	1	0009-0104	●					●
46	BRACKET; CMPR 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> SCAL THA	8-97920-583-0	01	1	0105-	●
46	BRACKET; CMPR COOLER WO/HEATER<YL1> SCAL THA	8-97920-583-0	01	1	0105-		●					●
46	BRACKET; CMPR POWER STEERING<N40> COOLER WO/HEATER<YL1> SCAL THA	8-97920-583-0	01	1	0105-						●
46	BRACKET; CMPR 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97910-856-1	01	1	0009-0104	●
46	BRACKET; CMPR COOLER WO/HEATER<YL1> (B) SDTI THA	8-97910-856-1	01	1	0009-0104		●					●
46	BRACKET; CMPR 4JH1 ENG<RJX> A/T AISIN<RMD>,M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> SDTI THA	8-97910-856-1	01	1	0105-	●					●
46	BRACKET; CMPR 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97910-855-1	01	1	0009-0104	●		●	●
46	BRACKET; CMPR 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SCAL THA	8-97919-250-0	01	1	0105-	●		●	●
46	BRACKET; CMPR 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SZC THA	8-97910-848-1	01	1	0009-	●					●
46	BRACKET; CMPR COOLER WO/HEATER<YL1> (A) SZC THA	8-97910-848-1	01	1	0009-					●			●

70 8 4 8 4 46 70 25 32 37 37 25 26 34 40 27 39 31 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
4	BOLT; A/C CMPR BRKT COOLER WO/HEATER<YL1> SCAL M10X45 THA	8-97919-260-0	02	1	0105-			●
4	BOLT; A/C CMPR BRKT COOLER WO/HEATER<YL1> SCAL M8X40 THA	8-97919-262-0	02	1	0105-			●
4	BOLT; A/C CMPR BRKT COOLER WO/HEATER<YL1> (B) SDTI M10X60 THA	8-97910-873-0	04	1	0009-0104	●	●	●	●		●	●
4	BOLT; A/C CMPR BRKT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SDTI M10X60 THA	8-97910-873-0	04	1	0105-	●			●
4	BOLT; A/C CMPR BRKT 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> SDTI M10X60 THA	8-97910-873-0	04	1	0105-	●					●
4	BOLT; A/C CMPR BRKT 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (E) SCAL THA	8-97919-263-0	04	1	0009-0104	●					●
4	BOLT; A/C CMPR BRKT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (E) SCAL THA	8-97919-263-0	04	1	0009-0104	●
4	BOLT; A/C CMPR BRKT COOLER WO/HEATER<YL1> (E) SCAL THA	8-97919-263-0	04	1	0009-0104				●
4	BOLT; A/C CMPR BRKT 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> SCAL THA	8-97919-263-0	04	1	0105-	●
4	BOLT; A/C CMPR BRKT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SCAL THA	8-97919-263-0	04	1	0105-	●
4	BOLT; A/C CMPR BRKT COOLER WO/HEATER<YL1> SCAL THA	8-97919-263-0	04	1	0105-		●	●	●			●
4	BOLT; A/C CMPR BRKT POWER STEERING<N40> COOLER WO/HEATER<YL1> SCAL THA	8-97919-263-0	04	1	0105-						●
4	BOLT; A/C CMPR BRKT 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SZC THA	8-97910-905-1	04	1	0009-	●					●
4	BOLT; A/C CMPR BRKT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SZC THA	8-97910-905-1	04	1	0009-	●
4	BOLT; A/C CMPR BRKT COOLER WO/HEATER<YL1> (A) SZC THA	8-97910-905-1	04	1	0009-				●	●			●
4	BOLT; A/C CMPR BRKT COOLER WO/HEATER<YL1> (C) SDTI M8X60 THA	8-97910-872-0	02	1	0009-0104		●	●				●
4	BOLT; A/C CMPR BRKT COOLER WO/HEATER<YL1> SCAL M8X45 THA	8-97920-872-0	02	1	0105-		●					●
4	BOLT; A/C CMPR BRKT COOLER WO/HEATER<YL1> (D) SDTI M10X60 THA	8-97910-877-0	02	1	0009-0104		●	●				●
4	BOLT; A/C CMPR BRKT COOLER WO/HEATER<YL1> SCAL M8X50 THA	8-97920-873-0	02	1	0105-		●					●
8	BOLT; BRKT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SCAL M10X45 THA	8-97919-260-0	02	1	0009-	●
8	BOLT; BRKT COOLER WO/HEATER<YL1> (C) SCAL M10X45 THA	8-97919-260-0	02	1	0009-				●
8	BOLT; BRKT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (D) SCAL M8X40 THA	8-97919-262-0	02	1	0009-	●
8	BOLT; BRKT COOLER WO/HEATER<YL1> (D) SCAL M8X40 THA	8-97919-262-0	02	1	0009-				●
8	BOLT; BRKT 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (D) SCAL M8X45 THA	8-97920-872-0	02	1	0009-	●					●
8	BOLT; BRKT 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SCAL M8X50 THA	8-97920-873-0	02	1	0009-	●					●
8	BOLT; BRKT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (E) SDTI M8X60 THA	8-97910-872-0	02	1	0009-	●			●
8	BOLT; BRKT 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (E) SDTI M8X60 THA	8-97910-872-0	02	1	0009-	●					●
8	BOLT; BRKT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (F) SDTI M10X60 THA	8-97910-877-0	02	1	0009-	●			●
8	BOLT; BRKT 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (F) SDTI M10X60 THA	8-97910-877-0	02	1	0009-	●					●
8	BOLT; BRKT 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) M12X50 THA	8-97910-841-0	02	1	0009-	●					●
8	BOLT; BRKT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) M12X50 THA	8-97910-841-0	02	1	0009-	●
8	BOLT; BRKT COOLER WO/HEATER<YL1> (A) M12X50 THA	8-97910-841-0	02	1	0009-				●	●			●
8	BOLT; BRKT 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) M14X50 THA	8-97910-842-0	02	1	0009-	●					●
8	BOLT; BRKT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) M14X50 THA	8-97910-842-0	02	1	0009-	●
8	BOLT; BRKT COOLER WO/HEATER<YL1> (B) M14X50 THA	8-97910-842-0	02	1	0009-				●	●			●
25	PULLEY ASM; IDLER,CMPR 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (B) SDTI THA	8-97910-870-0	01	1	0009-	●			●
25	PULLEY ASM; IDLER,CMPR 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (A) SZC THA	8-97919-778-0	01	1	0009-	●			●
25	PULLEY ASM; IDLER,CMPR 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (C) SCAL THA	8-97920-396-0	01	1	0009-	●			●
26	BRACKET; IDLE PULLEY,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (B) SDTI THA	8-97911-133-0	01	1	0009-	●			●
26	BRACKET; IDLE PULLEY,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (A) SZC THA	8-97919-933-0	01	1	0009-	●			●
26	BRACKET; IDLE PULLEY,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (C) SCAL THA	8-97920-464-0	01	1	0009-	●			●
27	PULLEY; IDLE,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (B) SDTI THA	8-97911-134-0	01	1	0009-	●			●
27	PULLEY; IDLE,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (A) SZC THA	8-97919-934-0	01	1	0009-	●			●
27	PULLEY; IDLE,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (C) SCAL THA	8-97920-463-0	01	1	0009-	●			●
29	COVER; DUST,IDLE PULLEY 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (A) SZC THA	8-97919-935-0	01	1	0009-	●			●
29	COVER; DUST,IDLE PULLEY 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (B) SCAL THA	8-97920-462-0	01	1	0009-	●			●
31	BOLT; ADJ,IDLE PULLEY 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (A) SDTI THA	8-97911-135-0	01	1	0009-	●			●
31	BOLT; ADJ,IDLE PULLEY 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (C) SZC THA	8-97919-938-0	01	1	0009-	●			●
31	BOLT; ADJ,IDLE PULLEY 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (B) SCAL THA	8-97920-413-0	01	1	0009-	●			●
32	BELT; A/C CMPR 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-252-2	01	1	0009-	●					●
32	BELT; A/C CMPR 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> POWER STEERING<N40> (A) SZC THA	8-97910-849-1	01	1	0009-	●			●
32	BELT; A/C CMPR 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> POWER STEERING<N40> (B) SDTI THA	8-97910-868-0	01	1	0009-	●			●
32	BELT; A/C CMPR 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> POWER STEERING<N40> (C) SCAL THA	8-97919-251-2	01	1	0009-	●			●
32	BELT; A/C CMPR 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (A) SZC THA	8-97910-850-1	01	1	0009-	●			●
32	BELT; A/C CMPR 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (B) SDTI THA	8-97910-869-1	01	1	0009-	●			●
32	BELT; A/C CMPR 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (C) SCAL THA	8-97919-711-1	01	1	0009-	●			●
32	BELT; A/C CMPR 4JH1 ENG<RJX> A/T AISIN<RMD>,M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97910-867-0	01	1	0009-	●					●
32	BELT; A/C CMPR 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SZC THA	8-97910-840-1	01	1	0009-	●					●
32	BELT; A/C CMPR COOLER WO/HEATER<YL1> (A) SZC THA	8-97910-840-1	01	1	0009-					●			●
34	SHAFT; IDLE PULLEY 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (A) SZC THA	8-97919-937-0	01	1	0009-	●			●
34	SHAFT; IDLE PULLEY 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (B) SCAL THA	8-97920-414-0	01	1	0009-	●			●
37	BOLT; PULLEY BRKT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (B) SDTI M10X60 THA	8-97910-873-0	01	1	0009-	●			●
37	BOLT; PULLEY BRKT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (A) SDTI M10X90 THA	8-97910-875-0	01	1	0009-	●			●
37	BOLT; PULLEY BRKT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (E) SCAL THA	8-97919-729-1	01	1	0009-	●			●
37	BOLT; PULLEY BRKT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (F) M8X70 W/WASHER THA	8-97919-730-1	01	1	0009-	●			●
37	BOLT; PULLEY BRKT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (C) SZC M12X80 THA	8-97919-779-0	01	1	0009-	●			●
37	BOLT; PULLEY BRKT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (D) SZC M12X85 THA	8-97919-780-0	01	1	0009-	●			●
39	WASHER; LK,ADJ BOLT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (A) SZC THA	8-97919-939-0	01	1	0009-	●			●
39	WASHER; LK,ADJ BOLT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (B) SCAL THA	8-97919-999-0	01	1	0009-	●			●
40	BUSHING; IDLE PULLEY 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> SZC THA	8-97919-936-0	01	1	0009-	●			●
46	BRACKET; CMPR 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SZC THA	8-97910-829-1	01	1	0009-	●
46	BRACKET; CMPR COOLER WO/HEATER<YL1> (A) SZC THA	8-97910-829-1	01	1	0009-				●
46	BRACKET; CMPR 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-250-0	01	1	0009-0104	●
46	BRACKET; CMPR COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-250-0	01	1	0009-0104				●
46	BRACKET; CMPR 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SDTI THA	8-97910-855-1	01	1	0105-	●
46	BRACKET; CMPR COOLER WO/HEATER<YL1> SDTI THA	8-97910-855-1	01	1	0105-				●
46	BRACKET; CMPR 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97920-583-0	01	1	0009-0104	●					●
46	BRACKET; CMPR 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> SCAL THA	8-97920-583-0	01	1	0105-	●
46	BRACKET; CMPR COOLER WO/HEATER<YL1> SCAL THA	8-97920-583-0	01	1	0105-		●					●
46	BRACKET; CMPR POWER STEERING<N40> COOLER WO/HEATER<YL1> SCAL THA	8-97920-583-0	01	1	0105-						●
46	BRACKET; CMPR 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97910-856-1	01	1	0009-0104	●
46	BRACKET; CMPR COOLER WO/HEATER<YL1> (B) SDTI THA	8-97910-856-1	01	1	0009-0104		●					●
46	BRACKET; CMPR 4JH1 ENG<RJX> A/T AISIN<RMD>,M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> SDTI THA	8-97910-856-1	01	1	0105-	●					●
46	BRACKET; CMPR 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97910-855-1	01	1	0009-0104	●		●	●
46	BRACKET; CMPR 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SCAL THA	8-97919-250-0	01	1	0105-	●		●	●
46	BRACKET; CMPR 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SZC THA	8-97910-848-1	01	1	0009-	●					●
46	BRACKET; CMPR COOLER WO/HEATER<YL1> (A) SZC THA	8-97910-848-1	01	1	0009-					●			●
70	NUT; EVAP,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SDTI THA	8-97919-132-0	03	1	0009-	●			●
70	NUT; EVAP,A/C 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> SDTI THA	8-97919-132-0	03	1	0009-	●					●
70	NUT; EVAP,A/C 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> SZC THA	8-97920-320-0	03	1	0009-	●					●
70	NUT; EVAP,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SZC THA	8-97920-320-0	03	1	0009-	●
70	NUT; EVAP,A/C COOLER WO/HEATER<YL1> SZC THA	8-97920-320-0	03	1	0009-				●	●			●

70 4 4 70 70 46 37 25 37 25 26 27 31 32 66 4 8 4 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
4	BOLT; A/C CMPR BRKT COOLER WO/HEATER<YL1> SCAL M10X45 THA	8-97919-260-0	02	1	0105-			●
4	BOLT; A/C CMPR BRKT COOLER WO/HEATER<YL1> SCAL M8X40 THA	8-97919-262-0	02	1	0105-			●
4	BOLT; A/C CMPR BRKT COOLER WO/HEATER<YL1> (B) SDTI M10X60 THA	8-97910-873-0	04	1	0009-0104	●	●	●	●		●	●
4	BOLT; A/C CMPR BRKT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SDTI M10X60 THA	8-97910-873-0	04	1	0105-	●			●
4	BOLT; A/C CMPR BRKT 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> SDTI M10X60 THA	8-97910-873-0	04	1	0105-	●					●
4	BOLT; A/C CMPR BRKT 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (E) SCAL THA	8-97919-263-0	04	1	0009-0104	●					●
4	BOLT; A/C CMPR BRKT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (E) SCAL THA	8-97919-263-0	04	1	0009-0104	●
4	BOLT; A/C CMPR BRKT COOLER WO/HEATER<YL1> (E) SCAL THA	8-97919-263-0	04	1	0009-0104				●
4	BOLT; A/C CMPR BRKT 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> SCAL THA	8-97919-263-0	04	1	0105-	●
4	BOLT; A/C CMPR BRKT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SCAL THA	8-97919-263-0	04	1	0105-	●
4	BOLT; A/C CMPR BRKT COOLER WO/HEATER<YL1> SCAL THA	8-97919-263-0	04	1	0105-		●	●	●			●
4	BOLT; A/C CMPR BRKT POWER STEERING<N40> COOLER WO/HEATER<YL1> SCAL THA	8-97919-263-0	04	1	0105-						●
4	BOLT; A/C CMPR BRKT 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SZC THA	8-97910-905-1	04	1	0009-	●					●
4	BOLT; A/C CMPR BRKT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SZC THA	8-97910-905-1	04	1	0009-	●
4	BOLT; A/C CMPR BRKT COOLER WO/HEATER<YL1> (A) SZC THA	8-97910-905-1	04	1	0009-				●	●			●
4	BOLT; A/C CMPR BRKT COOLER WO/HEATER<YL1> (C) SDTI M8X60 THA	8-97910-872-0	02	1	0009-0104		●	●				●
4	BOLT; A/C CMPR BRKT COOLER WO/HEATER<YL1> SCAL M8X45 THA	8-97920-872-0	02	1	0105-		●					●
4	BOLT; A/C CMPR BRKT COOLER WO/HEATER<YL1> (D) SDTI M10X60 THA	8-97910-877-0	02	1	0009-0104		●	●				●
4	BOLT; A/C CMPR BRKT COOLER WO/HEATER<YL1> SCAL M8X50 THA	8-97920-873-0	02	1	0105-		●					●
8	BOLT; BRKT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SCAL M10X45 THA	8-97919-260-0	02	1	0009-	●
8	BOLT; BRKT COOLER WO/HEATER<YL1> (C) SCAL M10X45 THA	8-97919-260-0	02	1	0009-				●
8	BOLT; BRKT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (D) SCAL M8X40 THA	8-97919-262-0	02	1	0009-	●
8	BOLT; BRKT COOLER WO/HEATER<YL1> (D) SCAL M8X40 THA	8-97919-262-0	02	1	0009-				●
8	BOLT; BRKT 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (D) SCAL M8X45 THA	8-97920-872-0	02	1	0009-	●					●
8	BOLT; BRKT 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SCAL M8X50 THA	8-97920-873-0	02	1	0009-	●					●
8	BOLT; BRKT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (E) SDTI M8X60 THA	8-97910-872-0	02	1	0009-	●			●
8	BOLT; BRKT 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (E) SDTI M8X60 THA	8-97910-872-0	02	1	0009-	●					●
8	BOLT; BRKT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (F) SDTI M10X60 THA	8-97910-877-0	02	1	0009-	●			●
8	BOLT; BRKT 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (F) SDTI M10X60 THA	8-97910-877-0	02	1	0009-	●					●
8	BOLT; BRKT 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) M12X50 THA	8-97910-841-0	02	1	0009-	●					●
8	BOLT; BRKT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) M12X50 THA	8-97910-841-0	02	1	0009-	●
8	BOLT; BRKT COOLER WO/HEATER<YL1> (A) M12X50 THA	8-97910-841-0	02	1	0009-				●	●			●
8	BOLT; BRKT 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) M14X50 THA	8-97910-842-0	02	1	0009-	●					●
8	BOLT; BRKT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) M14X50 THA	8-97910-842-0	02	1	0009-	●
8	BOLT; BRKT COOLER WO/HEATER<YL1> (B) M14X50 THA	8-97910-842-0	02	1	0009-				●	●			●
25	PULLEY ASM; IDLER,CMPR 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (B) SDTI THA	8-97910-870-0	01	1	0009-	●			●
25	PULLEY ASM; IDLER,CMPR 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (A) SZC THA	8-97919-778-0	01	1	0009-	●			●
25	PULLEY ASM; IDLER,CMPR 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (C) SCAL THA	8-97920-396-0	01	1	0009-	●			●
26	BRACKET; IDLE PULLEY,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (B) SDTI THA	8-97911-133-0	01	1	0009-	●			●
26	BRACKET; IDLE PULLEY,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (A) SZC THA	8-97919-933-0	01	1	0009-	●			●
26	BRACKET; IDLE PULLEY,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (C) SCAL THA	8-97920-464-0	01	1	0009-	●			●
27	PULLEY; IDLE,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (B) SDTI THA	8-97911-134-0	01	1	0009-	●			●
27	PULLEY; IDLE,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (A) SZC THA	8-97919-934-0	01	1	0009-	●			●
27	PULLEY; IDLE,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (C) SCAL THA	8-97920-463-0	01	1	0009-	●			●
31	BOLT; ADJ,IDLE PULLEY 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (A) SDTI THA	8-97911-135-0	01	1	0009-	●			●
31	BOLT; ADJ,IDLE PULLEY 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (C) SZC THA	8-97919-938-0	01	1	0009-	●			●
31	BOLT; ADJ,IDLE PULLEY 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (B) SCAL THA	8-97920-413-0	01	1	0009-	●			●
32	BELT; A/C CMPR 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-252-2	01	1	0009-	●					●
32	BELT; A/C CMPR 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> POWER STEERING<N40> (A) SZC THA	8-97910-849-1	01	1	0009-	●			●
32	BELT; A/C CMPR 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> POWER STEERING<N40> (B) SDTI THA	8-97910-868-0	01	1	0009-	●			●
32	BELT; A/C CMPR 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> POWER STEERING<N40> (C) SCAL THA	8-97919-251-2	01	1	0009-	●			●
32	BELT; A/C CMPR 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (A) SZC THA	8-97910-850-1	01	1	0009-	●			●
32	BELT; A/C CMPR 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (B) SDTI THA	8-97910-869-1	01	1	0009-	●			●
32	BELT; A/C CMPR 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (C) SCAL THA	8-97919-711-1	01	1	0009-	●			●
32	BELT; A/C CMPR 4JH1 ENG<RJX> A/T AISIN<RMD>,M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97910-867-0	01	1	0009-	●					●
32	BELT; A/C CMPR 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SZC THA	8-97910-840-1	01	1	0009-	●					●
32	BELT; A/C CMPR COOLER WO/HEATER<YL1> (A) SZC THA	8-97910-840-1	01	1	0009-					●			●
37	BOLT; PULLEY BRKT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (B) SDTI M10X60 THA	8-97910-873-0	01	1	0009-	●			●
37	BOLT; PULLEY BRKT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (A) SDTI M10X90 THA	8-97910-875-0	01	1	0009-	●			●
37	BOLT; PULLEY BRKT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (E) SCAL THA	8-97919-729-1	01	1	0009-	●			●
37	BOLT; PULLEY BRKT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (F) M8X70 W/WASHER THA	8-97919-730-1	01	1	0009-	●			●
37	BOLT; PULLEY BRKT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (C) SZC M12X80 THA	8-97919-779-0	01	1	0009-	●			●
37	BOLT; PULLEY BRKT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (D) SZC M12X85 THA	8-97919-780-0	01	1	0009-	●			●
46	BRACKET; CMPR 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SZC THA	8-97910-829-1	01	1	0009-	●
46	BRACKET; CMPR COOLER WO/HEATER<YL1> (A) SZC THA	8-97910-829-1	01	1	0009-				●
46	BRACKET; CMPR 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-250-0	01	1	0009-0104	●
46	BRACKET; CMPR COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-250-0	01	1	0009-0104				●
46	BRACKET; CMPR 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SDTI THA	8-97910-855-1	01	1	0105-	●
46	BRACKET; CMPR COOLER WO/HEATER<YL1> SDTI THA	8-97910-855-1	01	1	0105-				●
46	BRACKET; CMPR 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97920-583-0	01	1	0009-0104	●					●
46	BRACKET; CMPR 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> SCAL THA	8-97920-583-0	01	1	0105-	●
46	BRACKET; CMPR COOLER WO/HEATER<YL1> SCAL THA	8-97920-583-0	01	1	0105-		●					●
46	BRACKET; CMPR POWER STEERING<N40> COOLER WO/HEATER<YL1> SCAL THA	8-97920-583-0	01	1	0105-						●
46	BRACKET; CMPR 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97910-856-1	01	1	0009-0104	●
46	BRACKET; CMPR COOLER WO/HEATER<YL1> (B) SDTI THA	8-97910-856-1	01	1	0009-0104		●					●
46	BRACKET; CMPR 4JH1 ENG<RJX> A/T AISIN<RMD>,M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> SDTI THA	8-97910-856-1	01	1	0105-	●					●
46	BRACKET; CMPR 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97910-855-1	01	1	0009-0104	●		●	●
46	BRACKET; CMPR 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SCAL THA	8-97919-250-0	01	1	0105-	●		●	●
46	BRACKET; CMPR 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SZC THA	8-97910-848-1	01	1	0009-	●					●
46	BRACKET; CMPR COOLER WO/HEATER<YL1> (A) SZC THA	8-97910-848-1	01	1	0009-					●			●
66	BELT; A/C CMPR COOLER WO/HEATER<YL1> SDTI THA	8-97910-867-0	01	1	0009-0104		●					●
66	BELT; A/C CMPR COOLER WO/HEATER<YL1> SCAL THA	8-97919-252-2	01	1	0105-		●					●
66	BELT; A/C CMPR COOLER WO/HEATER<YL1> SDTI THA	8-97910-868-0	01	1	0009-0104			●
66	BELT; A/C CMPR COOLER WO/HEATER<YL1> SCAL THA	8-97919-251-2	01	1	0105-			●
70	NUT; EVAP,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SDTI THA	8-97919-132-0	03	1	0009-	●			●
70	NUT; EVAP,A/C 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> SDTI THA	8-97919-132-0	03	1	0009-	●					●
70	NUT; EVAP,A/C 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> SZC THA	8-97920-320-0	03	1	0009-	●					●
70	NUT; EVAP,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SZC THA	8-97920-320-0	03	1	0009-	●
70	NUT; EVAP,A/C COOLER WO/HEATER<YL1> SZC THA	8-97920-320-0	03	1	0009-				●	●			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
