8-40 — HEATER SYSTEM (#44075) — 57 parça

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H

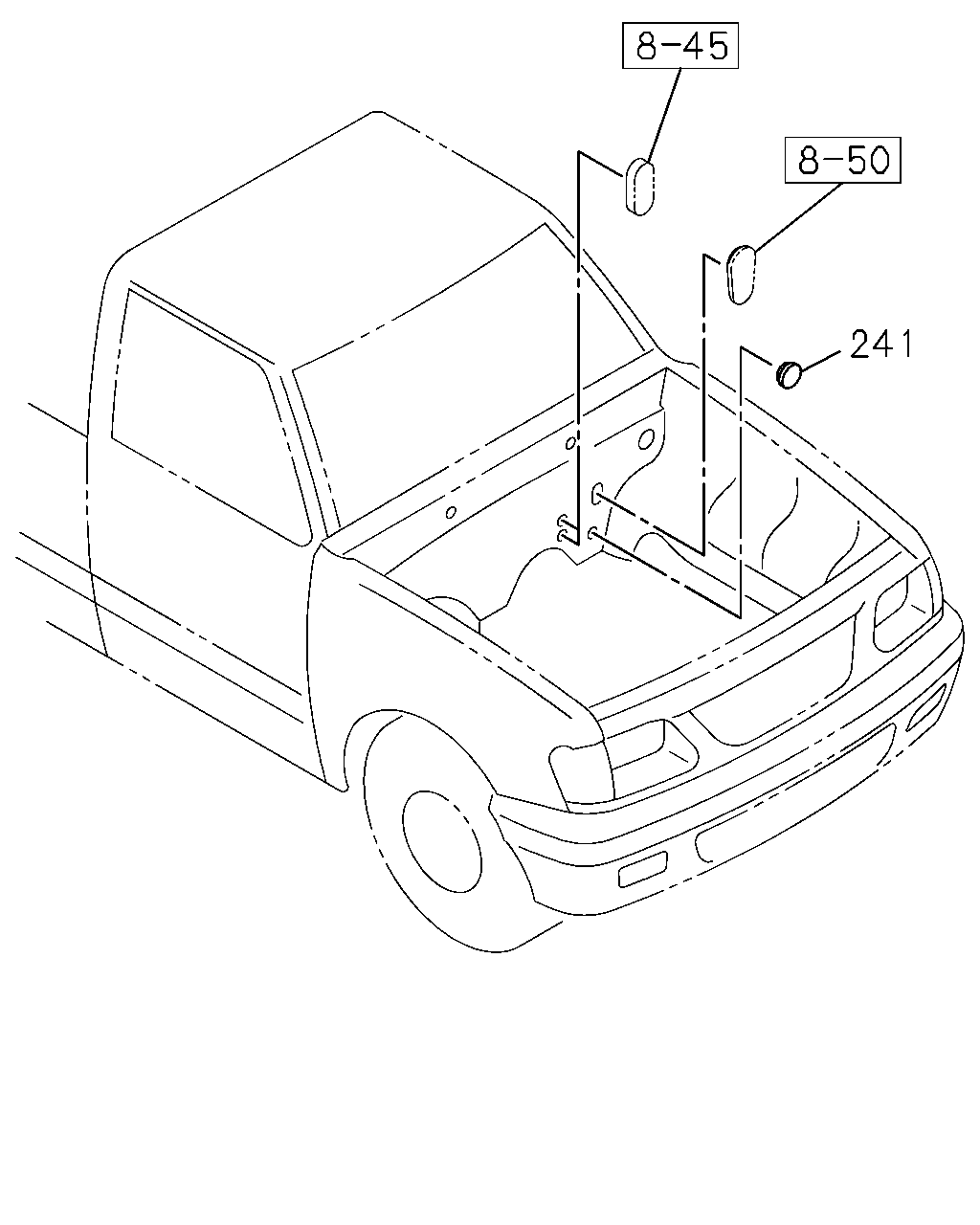

	241	PLUG; RUBBER,EVAP DRAIN HOLE EXC. COOLER WO/HEATER<YL1>	8-94222-309-1	01	1	0009-	●	●	●	●	●	●	●	●

194 83 194 83 222 25 222 222 185 222 222 280 65 169 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H

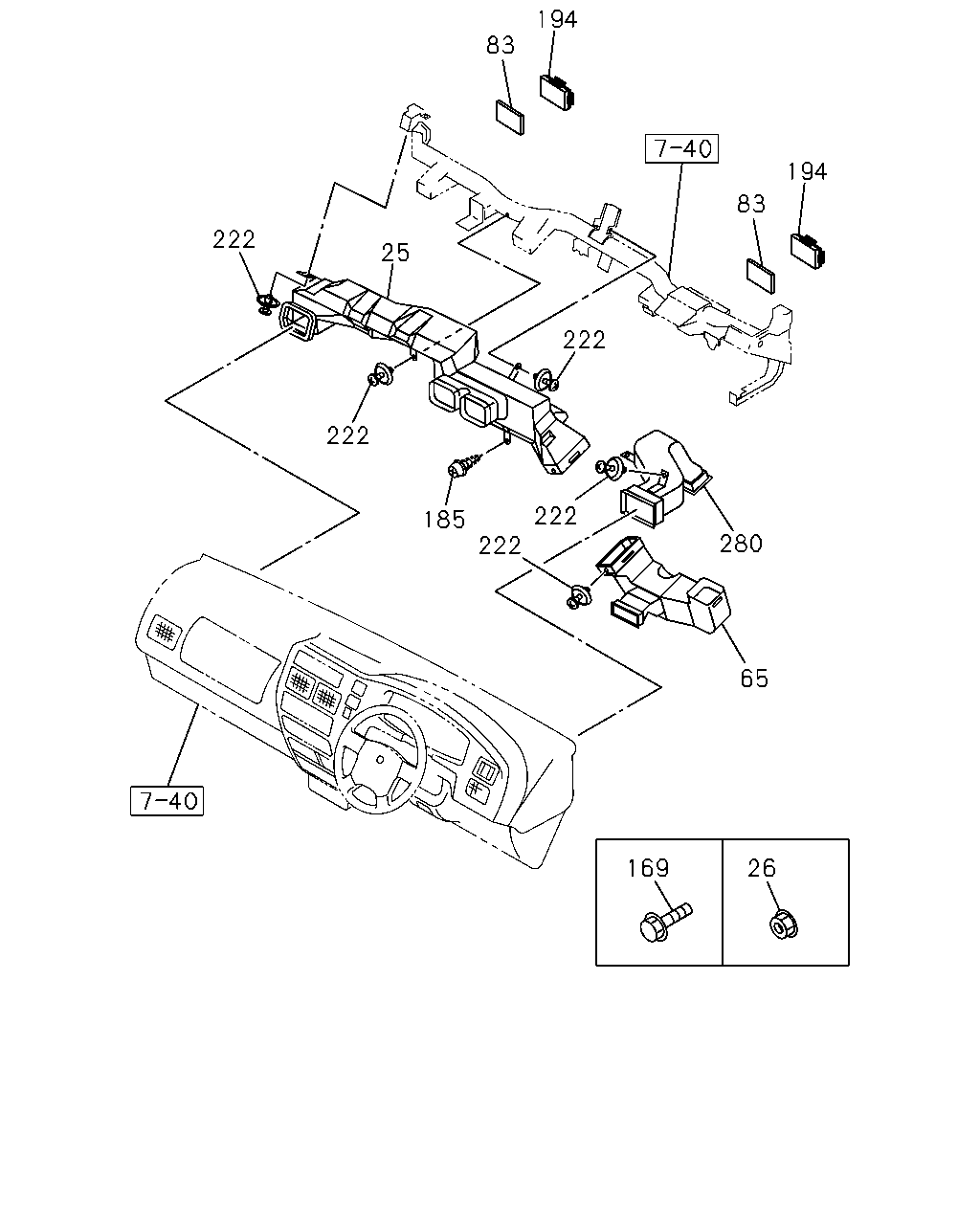

25	DUCT; CENTER COOLER WO/HEATER<YL1> CIC THA	8-97910-290-2	01	1	0009-	●	●	●	●	●	●	●	●
25	DUCT; CENTER COOLER WO/HEATER<YL1> TPT THA	8-97910-993-1	01	1	0009-	●	●	●	●	●	●	●	●
26	NUT; HTR A/T AISIN<RMD> THA	8-97914-617-0	01	1	0009-0107	●	●			●
26	NUT; HTR THA	8-97914-617-0	01	1	0009-0107				●
26	NUT; HTR A/T AISIN<RMD> THA	8-97914-617-0	01	1	0108-	●	●			●
26	NUT; HTR COOLER WO/HEATER<YL1> THA	8-97914-617-0	01	1	0108-				●
65	DUCT; VENT,DRIVER SIDE COOLER WO/HEATER<YL1> TPT THA	8-97910-994-0	01	1	0009-	●	●	●	●	●	●	●	●
65	DUCT; VENT,DRIVER SIDE COOLER WO/HEATER<YL1> IIT THA	8-97920-512-0	01	1	0009-	●	●	●	●	●	●	●	●
83	SEAL; COVER,HTR HOLE EXC. VENTILATION RAM AIR<6TN> THA	8-97919-359-0	02	1	0009-	●	●	●	●	●	●	●	●
169	BOLT; HTR COOLER WO/HEATER<YL1> THA	8-97912-443-0	01	1	0009-	●	●	●	●	●	●	●	●
185	SCREW; VENT DUCT COOLER WO/HEATER<YL1> THA	8-97910-318-0	01	1	0009-	●	●	●	●	●	●	●	●
194	COVER; HOLE,RAM AIR EXC. VENTILATION RAM AIR<6TN> THA	8-97918-454-1	02	1	0009-	●	●	●	●	●	●	●	●
222	FASTENER; DUCT COOLER WO/HEATER<YL1> THA	8-94243-190-0	02	1	0203-	●	●	●	●	●	●	●	●
222	FASTENER; DUCT COOLER WO/HEATER<YL1> THA	8-94243-190-0	05	1	0009-0112	●	●	●	●	●	●	●	●
222	FASTENER; DUCT COOLER WO/HEATER<YL1> THA	8-97326-594-0	05	1	0201-0202	●	●	●	●	●	●	●	●
222	FASTENER; DUCT COOLER WO/HEATER<YL1> THA	8-97326-594-0	03	1	0203-	●	●	●	●	●	●	●	●
222	FASTENER; DUCT VENTILATION RAM AIR<6TN> THA	8-94243-190-0	02	1	0009-0112	●	●	●	●	●	●	●	●
222	FASTENER; DUCT VENTILATION RAM AIR<6TN> THA	8-97326-594-0	02	1	0201-	●	●	●	●	●	●	●	●
280	DUCT; VENT,DRIVER SIDE COOLER WO/HEATER<YL1> CIC THA	8-97910-373-1	01	1	0009-	●	●	●	●	●	●	●	●
280	DUCT; VENT,DRIVER SIDE COOLER WO/HEATER<YL1> TPT THA	8-97910-992-0	01	1	0009-	●	●	●	●	●	●	●	●

321 454 321 72 321 72 454 321 72 321 46 142

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	D	E	F	H

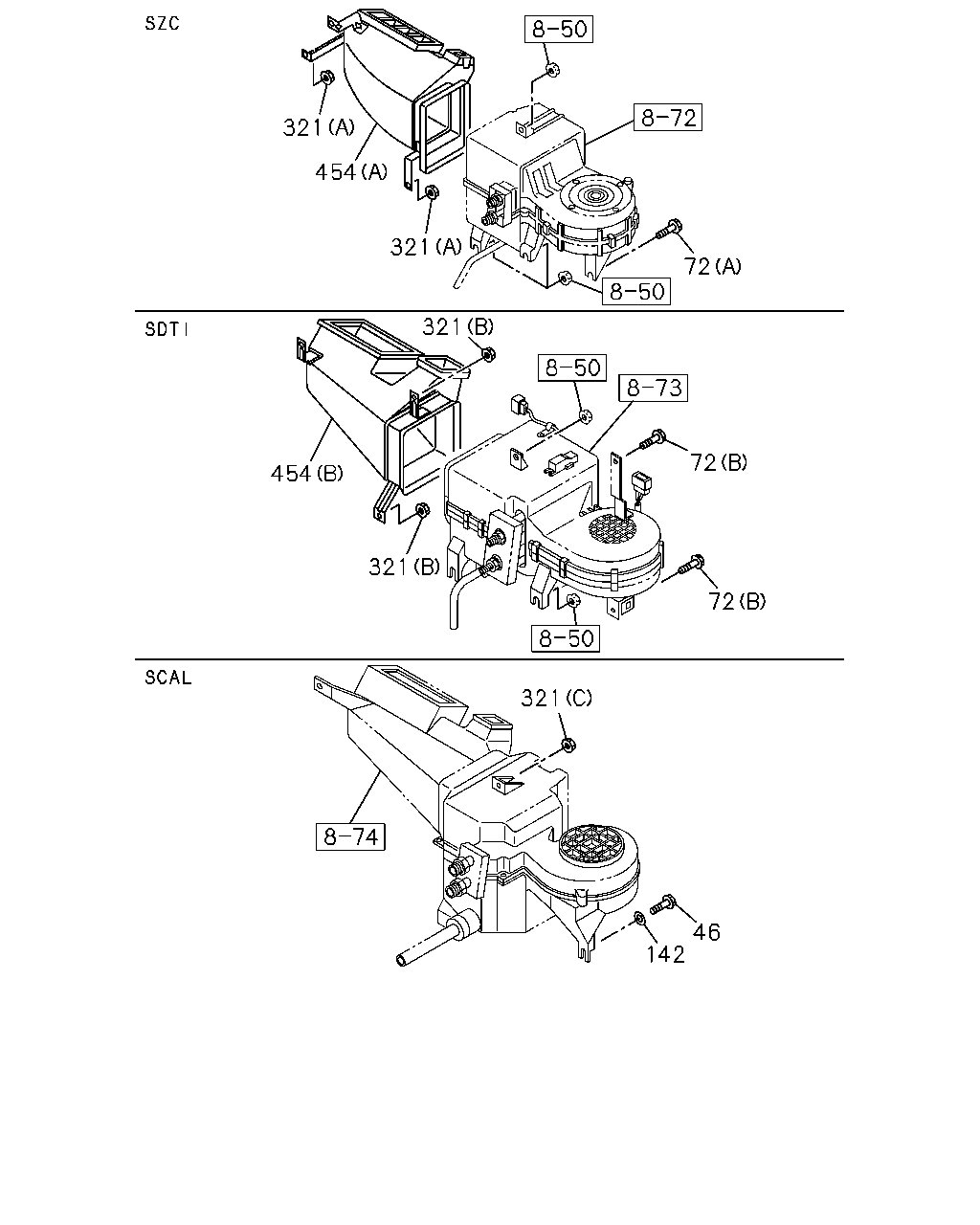

46	BOLT; EVAP 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> M6X16 THA	8-97919-791-1	01	1	0009-	●			●
46	BOLT; EVAP 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> M6X16 THA	8-97919-791-1	01	1	0009-	●
46	BOLT; EVAP COOLER WO/HEATER<YL1> M6X16 THA	8-97919-791-1	01	1	0009-		●
72	BOLT; BLOWER UNIT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97919-691-0	02	1	0009-	●	●
72	BOLT; BLOWER UNIT 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97919-691-0	02	1	0009-	●			●
72	BOLT; BLOWER UNIT 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SZC THA	8-97920-018-0	01	1	0009-	●			●
72	BOLT; BLOWER UNIT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SZC THA	8-97920-018-0	01	1	0009-	●
72	BOLT; BLOWER UNIT COOLER WO/HEATER<YL1> (A) SZC THA	8-97920-018-0	01	1	0009-		●	●		●
142	WASHER; PL,HTR 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> THA	8-97920-608-0	01	1	0009-	●			●
142	WASHER; PL,HTR 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> THA	8-97920-608-0	01	1	0009-	●
142	WASHER; PL,HTR COOLER WO/HEATER<YL1> THA	8-97920-608-0	01	1	0009-		●
321	NUT; DUCT FIX 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97921-399-0	02	1	0009-	●	●
321	NUT; DUCT FIX 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97921-399-0	02	1	0009-	●			●
321	NUT; DUCT FIX 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97920-411-0	02	1	0009-	●			●
321	NUT; DUCT FIX 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97920-411-0	02	1	0009-	●
321	NUT; DUCT FIX COOLER WO/HEATER<YL1> (C) SCAL THA	8-97920-411-0	02	1	0009-		●
321	NUT; DUCT FIX 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SZC THA	8-97920-019-0	02	1	0009-	●			●
321	NUT; DUCT FIX 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SZC THA	8-97920-019-0	02	1	0009-	●
321	NUT; DUCT FIX COOLER WO/HEATER<YL1> (A) SZC THA	8-97920-019-0	02	1	0009-		●	●		●
454	ADAPTER; A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97919-688-1	01	1	0009-	●	●
454	ADAPTER; A/C 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97919-688-1	01	1	0009-	●			●
454	ADAPTER; A/C 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SZC THA	8-97920-751-1	01	1	0009-	●			●
454	ADAPTER; A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SZC THA	8-97920-751-1	01	1	0009-	●
454	ADAPTER; A/C COOLER WO/HEATER<YL1> (A) SZC THA	8-97920-751-1	01	1	0009-		●	●		●

222 192 191 190 196 192 191 190 196 222

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H

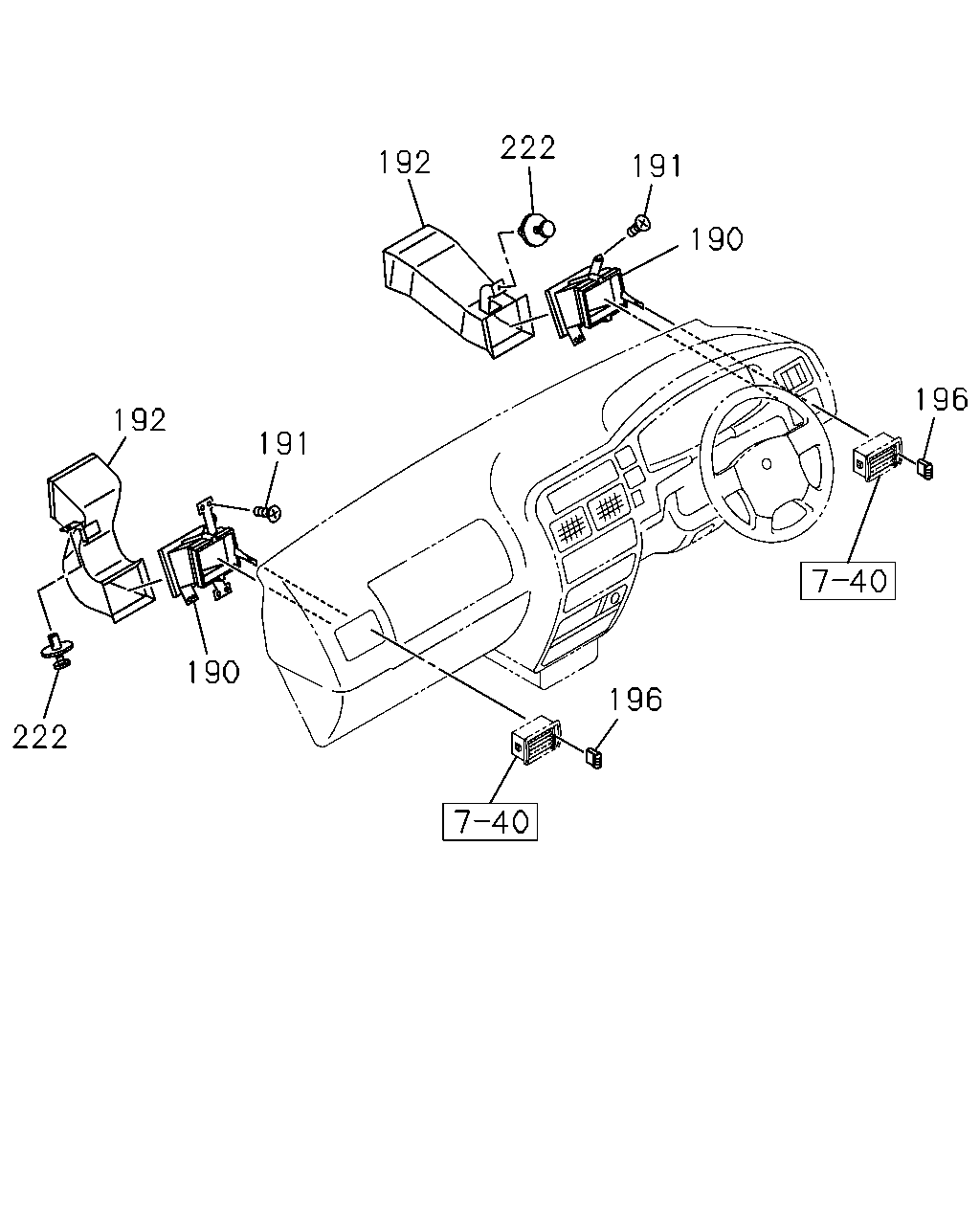

190	BOX; VENT,RAM AIR VENTILATION RAM AIR<6TN>	8-97145-176-2	01	1	0009-	●	●	●	●	●	●	●	●
190	BOX; VENT,RAM AIR VENTILATION RAM AIR<6TN>	8-97145-177-2	01	1	0009-	●	●	●	●	●	●	●	●
191	SCREW; VENT BOX VENTILATION RAM AIR<6TN> M5X16 TAPPING	9-09829-323-1	04	1	0009-	●	●	●	●	●	●	●	●
192	DUCT; RAM AIR VENTILATION RAM AIR<6TN>	8-97145-178-1	01	1	0009-	●	●	●	●	●	●	●	●
192	DUCT; RAM AIR VENTILATION RAM AIR<6TN>	8-97145-179-1	01	1	0009-	●	●	●	●	●	●	●	●
196	KNOB; VENT BOX VENTILATION RAM AIR<6TN> BLACK	8-97000-038-0	02	1	0009-	●	●	●	●	●	●	●	●
222	FASTENER; DUCT COOLER WO/HEATER<YL1> THA	8-94243-190-0	02	1	0203-	●	●	●	●	●	●	●	●
222	FASTENER; DUCT COOLER WO/HEATER<YL1> THA	8-94243-190-0	05	1	0009-0112	●	●	●	●	●	●	●	●
222	FASTENER; DUCT COOLER WO/HEATER<YL1> THA	8-97326-594-0	05	1	0201-0202	●	●	●	●	●	●	●	●
222	FASTENER; DUCT COOLER WO/HEATER<YL1> THA	8-97326-594-0	03	1	0203-	●	●	●	●	●	●	●	●
222	FASTENER; DUCT VENTILATION RAM AIR<6TN> THA	8-94243-190-0	02	1	0009-0112	●	●	●	●	●	●	●	●
222	FASTENER; DUCT VENTILATION RAM AIR<6TN> THA	8-97326-594-0	02	1	0201-	●	●	●	●	●	●	●	●
