◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50890 - TFR/S(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#44074) — 14 parça

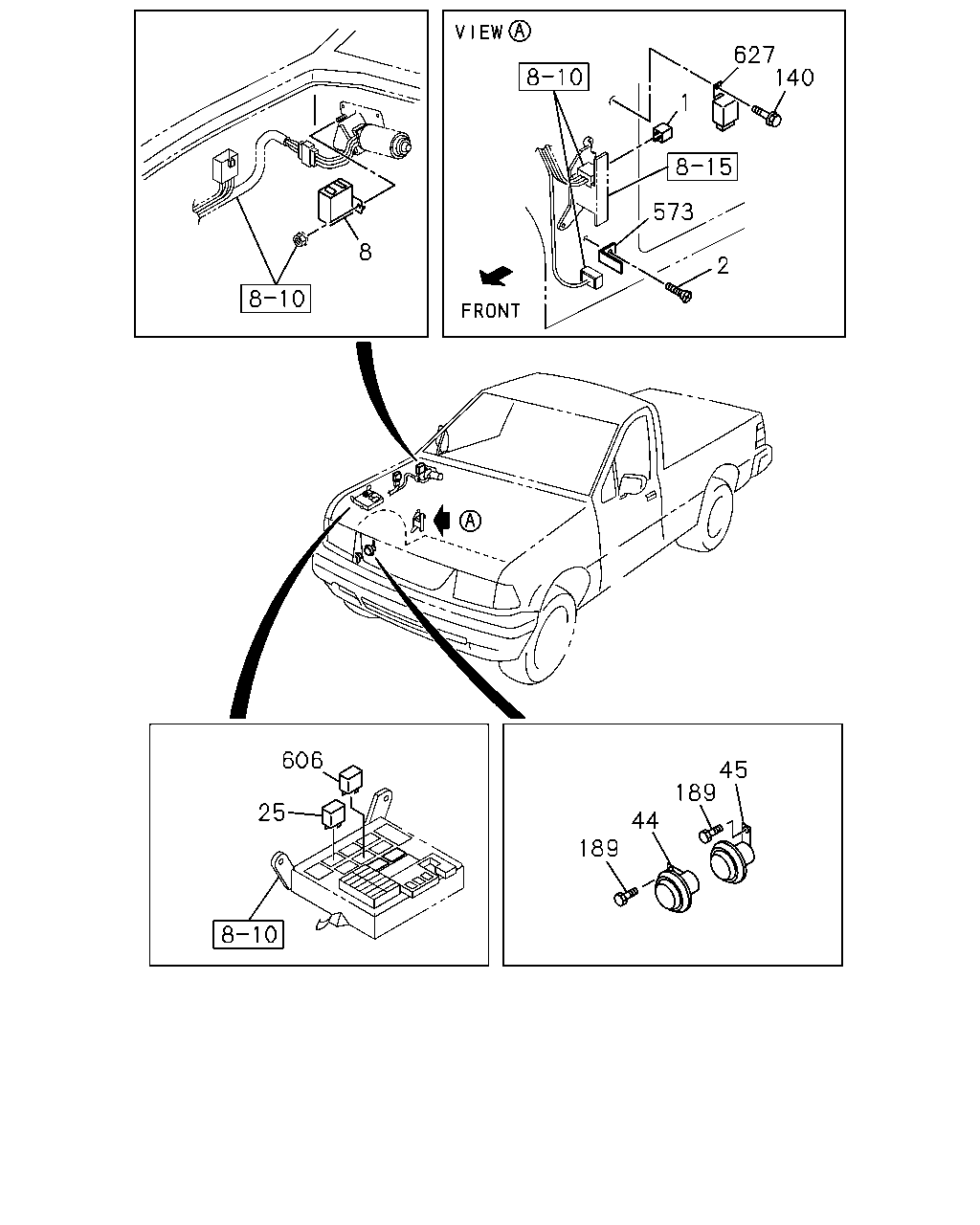

çizim 47814
627 140 1 573 8 2 606 45 189 25 44 189
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 UNIT; FLASHER
12V DENSO THA 		8-97912-779-0 01 1 0009- ● ● ● ● ● ● ● ●
2 BOLT; FLASHER UNIT
THA 		8-97912-108-0 01 1 0009- ● ● ● ● ● ● ● ●
8 RELAY; WIPER
THA 		8-97918-461-1 01 1 0009- ● ● ● ● ● ● ● ●
25 RELAY; TAIL LAMP
12V 20A THA 		8-97919-335-1 01 1 0009- ● ● ● ● ● ● ● ●
44 HORN; HIGH NOTE
THA 		8-97910-086-3 01 1 0009- ● ● ● ● ● ●
45 HORN; LOW NOTE
THA 		8-97910-087-4 01 1 0009- ● ● ● ● ● ● ● ●
140 BOLT; CONTROLLER
SHIFT ON THE FLY<7EX> M6X16 FLANGE 		0-28480-616-0 01 1 0009-0011 ● ● ●
140 BOLT; CONTROLLER
M6X16 FLANGE 		0-28480-616-0 01 1 0012- ● ● ●
189 BOLT; HORN
M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 0009- ● ● ● ● ● ●
189 BOLT; HORN
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0009- ● ●
573 BRACKET; FLASHER UNIT
THA 		8-97912-780-0 01 1 0009- ● ● ● ● ● ● ● ●
606 RELAY; SPILL VLV
4JH1 ENG<RJX> 12V 20A THA 		8-97919-335-1 01 1 0009- ● ● ● ● ● ●
627 CONTROLLER; SHIFT ON THE FLY
SHIFT ON THE FLY<7EX> 		8-97215-990-1 01 1 0009-0011 ● ● ●
627 CONTROLLER; SHIFT ON THE FLY 8-97215-990-1 01 1 0012- ● ● ●
