◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50890 - TFR/S(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#44073) — 18 parça

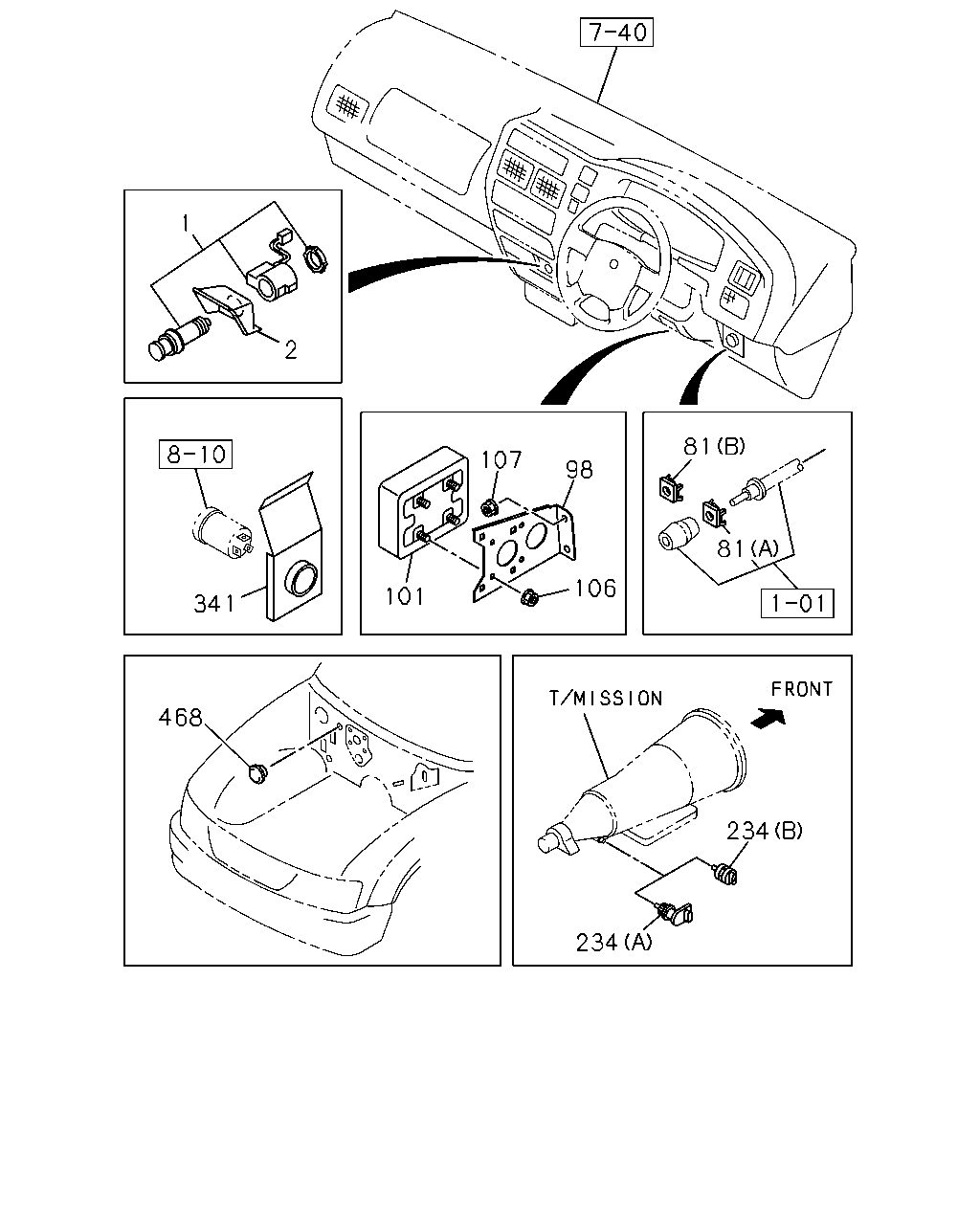

çizim 47887
1 2 81 107 98 81 106 101 341 468 234 234
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 LIGHTER; CIGAR 8-97100-029-0 01 1 0009- ● ● ● ● ● ● ● ●
2 BEZEL; CIGAR LIGHTER
BLACK 		8-94333-793-0 01 1 0009- ● ● ● ● ● ● ● ●
81 BEZEL; IDLE CONT
4JA1 ENG<RLE> (A) THA 		8-97918-299-1 01 1 0009- ●
81 BEZEL; IDLE CONT
(A) THA 		8-97918-299-1 01 1 0009- ● ●
81 BEZEL; IDLE CONT
4JH1 ENG<RJX> (B) 		8-97165-448-0 01 1 0009- ●
81 BEZEL; IDLE CONT
(B) 		8-97165-448-0 01 1 0009- ● ● ● ● ●
98 BRACKET; ELEC CONT UNIT,A/T
4JH1 ENG<RJX> A/T AISIN<RMD> 		8-97094-683-0 01 1 0009- ● ● ●
101 CONTROL UNIT; ELEC,A/T
4JH1 ENG<RJX> A/T AISIN<RMD> 		8-97254-431-0 01 1 0009- ● ● ●
106 NUT; ELEC CONT UNIT
4JH1 ENG<RJX> A/T AISIN<RMD> M6 FLANGE 		0-91150-106-0 03 1 0009- ● ● ●
107 NUT; BRKT,ELEC CONT UNIT
4JH1 ENG<RJX> A/T AISIN<RMD> M8 FLANGE 		0-91150-108-0 02 1 0009- ● ● ●
234 SENSOR; VEHICLE SPD
M/T MSG 5 SPEED<M75> (A) 		8-97129-727-0 01 1 0009- ●
234 SENSOR; VEHICLE SPD
(A) 		8-97129-727-0 01 1 0009- ● ●
234 SENSOR; VEHICLE SPD
A/T AISIN<RMD> (B) 		8-97129-705-0 01 1 0009- ● ● ●
234 SENSOR; VEHICLE SPD
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> (B) 4 PULSE PPS RESIN BLACK 		8-97129-704-0 01 1 0009- ● ● ●
234 SENSOR; VEHICLE SPD
(B) 4 PULSE PPS RESIN BLACK 		8-97129-704-0 01 1 0009- ● ● ●
341 COVER ASM
SPECIAL PACKAGE<7BB>,SPECIAL PACKAGE VAR.2<7TB> BLACK 		8-97293-933-0 01 1 0009- ● ●
341 COVER ASM
BLACK 		8-97293-933-0 01 1 0009- ● ● ● ● ●
468 GROMMET; HOLE,METER CABLE
OD=31.6 		8-94198-177-0 01 1 0009- ● ● ● ● ● ● ● ●
