◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50890 - TFR/S(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#44071) — 260 parça

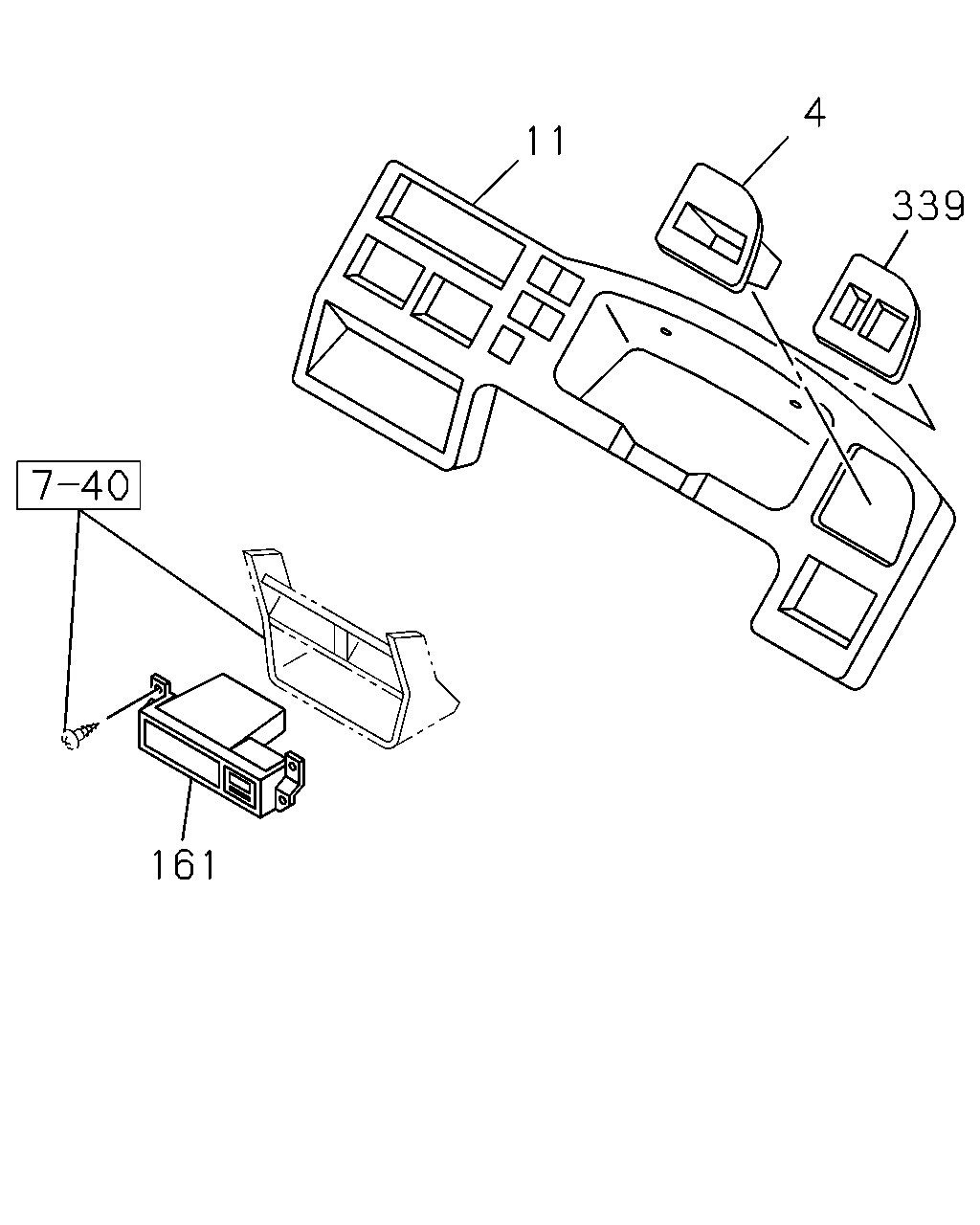

çizim 11524
4 11 339 161
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
4 CLUSTER
EXC. DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> THA 		8-97915-414-0 01 1 0009- ● ● ● ● ● ●
4 CLUSTER
THA 		8-97915-414-0 01 1 0009- ● ●
11 CLUSTER ASM; METER
EXC. SPECIAL PACKAGE<7BB>,SPECIAL PACKAGE VAR 2<7SB> THA 		8-97915-415-0 01 1 0105- ●
11 CLUSTER ASM; METER
THA 		8-97915-415-0 01 1 0105- ● ● ●
11 CLUSTER ASM; METER
EXC. POWER STEERING<N40> THA 		8-97915-415-0 01 1 0105- ●
11 CLUSTER ASM; METER
EXC. SPECIAL PACKAGE VAR.2<7TB> THA 		8-97915-415-0 01 1 0105- ●
11 CLUSTER ASM; METER
THA 		8-97915-415-0 01 1 0009-0101 ● ● ● ● ● ● ● ●
11 CLUSTER ASM; METER
THA 		8-97921-870-0 01 1 0102-0104 ● ● ● ● ● ● ● ●
11 CLUSTER ASM; METER
SPECIAL PACKAGE<7BB> SPECIAL PACKAGE VAR 2<7SB> THA 		8-97921-870-0 01 1 0105-0106 ●
11 CLUSTER ASM; METER
POWER STEERING<N40> THA 		8-97921-870-0 01 1 0105-0106 ●
11 CLUSTER ASM; METER
SPECIAL PACKAGE<7BB> SPECIAL PACKAGE VAR 2<7SB> THA 		8-97922-145-0 01 1 0107- ●
11 CLUSTER ASM; METER
POWER STEERING<N40> THA 		8-97922-145-0 01 1 0107- ●
138 BOLT
4JA1 ENG<RLE> M8X12 FLANGE 		0-28080-812-0 01 1 0009- ●
138 BOLT
M8X12 FLANGE 		0-28080-812-0 01 1 0009- ●
161 CLOCK; CLUSTER METER
THA 		8-97940-128-0 01 1 0009- ● ● ● ● ● ● ●
339 BEZEL; SW,CLUSTER METER
DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> 		8-97115-518-0 01 1 0009- ● ● ● ● ● ●
377 BRACKET; OIL PRESS CONN
4JA1 ENG<RLE> 		8-97170-948-0 01 1 0009- ●
377 BRACKET; OIL PRESS CONN 8-97170-948-0 01 1 0009- ●

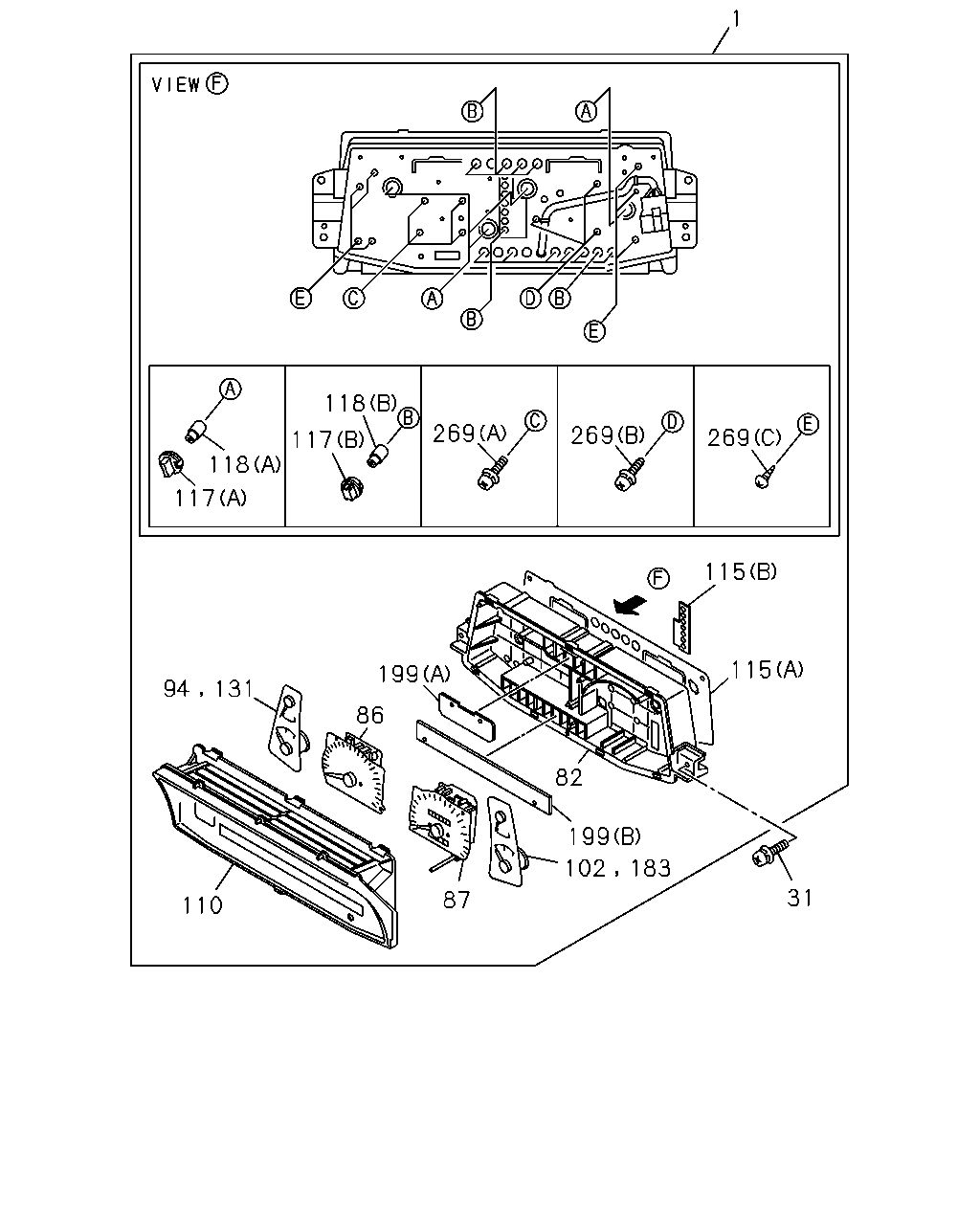

çizim 50681
1 118 269 269 269 117 118 117 115 115 199 94 131 86 82 199 102 183 31 87 110
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 METER COMPL; CLUSTER
4JH1 ENG<RJX> A/T AISIN<RMD> SPECIAL PACKAGE<7BB> THA 		8-97920-421-0 01 1 0009-0101 ●
1 METER COMPL; CLUSTER
A/T AISIN<RMD> THA 		8-97920-421-0 01 1 0009-0101 ● ●
1 METER COMPL; CLUSTER
4JH1 ENG<RJX> A/T AISIN<RMD> THA 		8-97920-421-0 01 1 0102- ● ● ●
1 METER COMPL; CLUSTER
4JH1 ENG<RJX> A/T AISIN<RMD> EXC. SPECIAL PACKAGE<7BB> THA 		8-97920-092-0 01 1 0009-0101 ●
1 METER COMPL; CLUSTER
4JH1 ENG<RJX> M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> SPECIAL PACKAGE<7BB> THA 		8-97920-422-0 01 1 0009-0101 ●
1 METER COMPL; CLUSTER
M/T MUA 5 SPEED<RMN> THA 		8-97920-422-0 01 1 0009-0101 ● ●
1 METER COMPL; CLUSTER
SPECIAL PACKAGE VAR.2<7TB> THA 		8-97920-422-0 01 1 0009-0101 ●
1 METER COMPL; CLUSTER
THA 		8-97920-422-0 01 1 0009-0101 ● ●
1 METER COMPL; CLUSTER
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> THA 		8-97920-422-0 01 1 0102- ● ● ●
1 METER COMPL; CLUSTER
THA 		8-97920-422-0 01 1 0102- ● ● ●
1 METER COMPL; CLUSTER
4JA1 ENG<RLE> THA 		8-97918-970-0 01 1 0009-0101 ● ●
1 METER COMPL; CLUSTER
4JA1 ENG<RLE> THA 		8-97921-895-0 01 1 0102- ● ●
1 METER COMPL; CLUSTER
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> EXC. SPECIAL PACKAGE<7BB>,SPECIAL PACKAGE VAR.2<7TB> THA 		8-97920-093-0 01 1 0009-0101 ● ●
1 METER COMPL; CLUSTER
THA 		8-97918-969-0 01 1 0009- ●
31 SCREW; METER,INST PANEL
M5X16 TAPPING W/PL WASHER 		0-74300-516-0 04 1 0009- ● ● ● ● ● ● ● ●
82 CASE ASM; CLUSTER METER
A/T AISIN<RMD> THA 		8-97913-112-0 01 1 0009- ● ● ●
82 CASE ASM; CLUSTER METER
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> THA 		8-97913-113-0 01 1 0009- ● ● ●
82 CASE ASM; CLUSTER METER
THA 		8-97913-113-0 01 1 0009- ● ● ● ●
82 CASE ASM; CLUSTER METER
THA 		8-97913-089-0 01 1 0009- ●
86 TACHOMETER; CLUSTER METER
4JA1 ENG<RLE> THA 		8-97913-101-0 01 1 0009- ●
86 TACHOMETER; CLUSTER METER
THA 		8-97913-101-0 01 1 0009- ●
86 TACHOMETER; CLUSTER METER
4JH1 ENG<RJX> SPECIAL PACKAGE<7BB> THA 		8-97920-530-0 01 1 0009-0101 ●
86 TACHOMETER; CLUSTER METER
A/T AISIN<RMD>,M/T MUA 5 SPEED<RMN> THA 		8-97920-530-0 01 1 0009-0101 ● ●
86 TACHOMETER; CLUSTER METER
SPECIAL PACKAGE VAR.2<7TB> THA 		8-97920-530-0 01 1 0009-0101 ●
86 TACHOMETER; CLUSTER METER
THA 		8-97920-530-0 01 1 0009-0101 ● ●
86 TACHOMETER; CLUSTER METER
4JH1 ENG<RJX> THA 		8-97920-530-0 01 1 0102- ● ● ● ● ● ●
86 TACHOMETER; CLUSTER METER
4JH1 ENG<RJX> EXC. SPECIAL PACKAGE<7BB> THA 		8-97920-525-0 01 1 0009-0101 ●
86 TACHOMETER; CLUSTER METER
EXC. SPECIAL PACKAGE VAR.2<7TB> THA 		8-97920-525-0 01 1 0009-0101 ●
87 SPEEDOMETER
4JA1 ENG<RLE> THA 		8-97913-100-0 01 1 0009- ●
87 SPEEDOMETER
THA 		8-97913-100-0 01 1 0009- ●
87 SPEEDOMETER
4JH1 ENG<RJX> SPECIAL PACKAGE<7BB> THA 		8-97921-575-0 01 1 0009-0101 ●
87 SPEEDOMETER
A/T AISIN<RMD>,M/T MUA 5 SPEED<RMN> THA 		8-97921-575-0 01 1 0009-0101 ● ●
87 SPEEDOMETER
SPECIAL PACKAGE VAR.2<7TB> THA 		8-97921-575-0 01 1 0009-0101 ●
87 SPEEDOMETER
THA 		8-97921-575-0 01 1 0009-0101 ● ●
87 SPEEDOMETER
4JH1 ENG<RJX> THA 		8-97921-575-0 01 1 0102- ● ● ● ● ● ●
87 SPEEDOMETER
4JH1 ENG<RJX> EXC. SPECIAL PACKAGE<7BB> THA 		8-97921-574-0 01 1 0009-0101 ●
87 SPEEDOMETER
EXC. SPECIAL PACKAGE VAR.2<7TB> THA 		8-97921-574-0 01 1 0009-0101 ●
87 SPEEDOMETER
THA 		8-97912-970-0 01 1 0009- ●
94 GAUGE; VOLT & THERMO,CLUSTER METER
4JH1 ENG<RJX> SPECIAL PACKAGE<7BB> THA 		8-97921-578-0 01 1 0009-0101 ●
94 GAUGE; VOLT & THERMO,CLUSTER METER
A/T AISIN<RMD>,M/T MUA 5 SPEED<RMN> THA 		8-97921-578-0 01 1 0009-0101 ● ●
94 GAUGE; VOLT & THERMO,CLUSTER METER
SPECIAL PACKAGE VAR.2<7TB> THA 		8-97921-578-0 01 1 0009-0101 ●
94 GAUGE; VOLT & THERMO,CLUSTER METER
THA 		8-97921-578-0 01 1 0009-0101 ● ●
94 GAUGE; VOLT & THERMO,CLUSTER METER
4JH1 ENG<RJX> THA 		8-97921-578-0 01 1 0102- ● ● ● ● ● ●
94 GAUGE; VOLT & THERMO,CLUSTER METER
4JH1 ENG<RJX> EXC. SPECIAL PACKAGE<7BB> THA 		8-97913-102-0 01 1 0009-0101 ●
94 GAUGE; VOLT & THERMO,CLUSTER METER
EXC. SPECIAL PACKAGE VAR.2<7TB> THA 		8-97913-102-0 01 1 0009-0101 ●
102 GAUGE; FUEL & OIL,CLUSTER METER
4JH1 ENG<RJX> SPECIAL PACKAGE<7BB> THA 		8-97921-579-0 01 1 0009-0101 ●
102 GAUGE; FUEL & OIL,CLUSTER METER
A/T AISIN<RMD>,M/T MUA 5 SPEED<RMN> THA 		8-97921-579-0 01 1 0009-0101 ● ●
102 GAUGE; FUEL & OIL,CLUSTER METER
SPECIAL PACKAGE VAR.2<7TB> THA 		8-97921-579-0 01 1 0009-0101 ●
102 GAUGE; FUEL & OIL,CLUSTER METER
THA 		8-97921-579-0 01 1 0009-0101 ● ●
102 GAUGE; FUEL & OIL,CLUSTER METER
4JH1 ENG<RJX> THA 		8-97921-579-0 01 1 0102- ● ● ● ● ● ●
102 GAUGE; FUEL & OIL,CLUSTER METER
4JH1 ENG<RJX> EXC. SPECIAL PACKAGE<7BB> THA 		8-97913-103-0 01 1 0009-0101 ●
102 GAUGE; FUEL & OIL,CLUSTER METER
EXC. SPECIAL PACKAGE VAR.2<7TB> THA 		8-97913-103-0 01 1 0009-0101 ●
110 GLASS; CLUSTER METER
4JA1 ENG<RLE> M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> THA 		8-97913-111-0 01 1 0009-0101 ●
110 GLASS; CLUSTER METER
4JH1 ENG<RJX> M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> EXC. SPECIAL PACKAGE<7BB> THA 		8-97913-111-0 01 1 0009-0101 ●
110 GLASS; CLUSTER METER
THA 		8-97913-111-0 01 1 0009-0101 ●
110 GLASS; CLUSTER METER
EXC. SPECIAL PACKAGE VAR.2<7TB> THA 		8-97913-111-0 01 1 0009-0101 ●
110 GLASS; CLUSTER METER
4JA1 ENG<RLE> THA 		8-97913-111-0 01 1 0102- ● ●
110 GLASS; CLUSTER METER
4JH1 ENG<RJX> A/T AISIN<RMD> SPECIAL PACKAGE<7BB> THA 		8-97921-580-0 01 1 0009-0101 ●
110 GLASS; CLUSTER METER
A/T AISIN<RMD> THA 		8-97921-580-0 01 1 0009-0101 ● ●
110 GLASS; CLUSTER METER
4JH1 ENG<RJX> A/T AISIN<RMD> THA 		8-97921-580-0 01 1 0102- ● ● ●
110 GLASS; CLUSTER METER
4JH1 ENG<RJX> A/T AISIN<RMD> EXC. SPECIAL PACKAGE<7BB> THA 		8-97913-110-0 01 1 0009-0101 ●
110 GLASS; CLUSTER METER
4JH1 ENG<RJX> M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> SPECIAL PACKAGE<7BB> THA 		8-97921-581-0 01 1 0009-0101 ●
110 GLASS; CLUSTER METER
M/T MUA 5 SPEED<RMN> THA 		8-97921-581-0 01 1 0009-0101 ● ●
110 GLASS; CLUSTER METER
SPECIAL PACKAGE VAR.2<7TB> THA 		8-97921-581-0 01 1 0009-0101 ●
110 GLASS; CLUSTER METER
THA 		8-97921-581-0 01 1 0009-0101 ● ●
110 GLASS; CLUSTER METER
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> THA 		8-97921-581-0 01 1 0102- ● ● ●
110 GLASS; CLUSTER METER
THA 		8-97921-581-0 01 1 0102- ● ● ●
110 GLASS; CLUSTER METER
THA 		8-97913-088-0 01 1 0009- ●
115 CIRCUIT; PRINTED,CLUSTER METER
A/T AISIN<RMD> (A) THA 		8-97913-104-0 01 1 0009- ● ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
A/T AISIN<RMD> (B) THA 		8-97913-106-0 01 1 0009- ● ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> (A) THA 		8-97913-105-0 01 1 0009- ● ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
(A) THA 		8-97913-105-0 01 1 0009- ● ● ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
(C) THA 		8-97920-268-0 01 1 0009- ●
117 SOCKET; BULB,GAUGE & CLOCK
4JA1 ENG<RLE> (A) 14V 3.4W BLACK THA 		8-97913-096-0 04 1 0009-0101 ●
117 SOCKET; BULB,GAUGE & CLOCK
4JH1 ENG<RJX> EXC. SPECIAL PACKAGE<7BB> (A) 14V 3.4W BLACK THA 		8-97913-096-0 04 1 0009-0101 ●
117 SOCKET; BULB,GAUGE & CLOCK
(A) 14V 3.4W BLACK THA 		8-97913-096-0 04 1 0009-0101 ● ●
117 SOCKET; BULB,GAUGE & CLOCK
EXC. SPECIAL PACKAGE VAR.2<7TB> (A) 14V 3.4W BLACK THA 		8-97913-096-0 04 1 0009-0101 ●
117 SOCKET; BULB,GAUGE & CLOCK
4JA1 ENG<RLE> 14V 3.4W BLACK THA 		8-97913-096-0 04 1 0102- ●
117 SOCKET; BULB,GAUGE & CLOCK
14V 3.4W BLACK THA 		8-97913-096-0 04 1 0102- ● ●
117 SOCKET; BULB,GAUGE & CLOCK
4JA1 ENG<RLE> A/T AISIN<RMD> (B) 14V 1.4W THA 		8-97913-097-0 12 1 0009- ●
117 SOCKET; BULB,GAUGE & CLOCK
4JH1 ENG<RJX> SPECIAL PACKAGE<7BB> (A) 1.4V 3.4W THA 		8-97921-577-0 04 1 0009-0101 ●
117 SOCKET; BULB,GAUGE & CLOCK
A/T AISIN<RMD>,M/T MUA 5 SPEED<RMN> (A) 1.4V 3.4W THA 		8-97921-577-0 04 1 0009-0101 ● ●
117 SOCKET; BULB,GAUGE & CLOCK
SPECIAL PACKAGE VAR.2<7TB> (A) 1.4V 3.4W THA 		8-97921-577-0 04 1 0009-0101 ●
117 SOCKET; BULB,GAUGE & CLOCK
(A) 1.4V 3.4W THA 		8-97921-577-0 04 1 0009-0101 ● ●
117 SOCKET; BULB,GAUGE & CLOCK
4JH1 ENG<RJX> 1.4V 3.4W THA 		8-97921-577-0 04 1 0102- ● ● ● ● ● ●
117 SOCKET; BULB,GAUGE & CLOCK
4JH1 ENG<RJX> A/T AISIN<RMD> (B) 14V 1.4W THA 		8-97913-097-0 13 1 0009- ● ● ●
117 SOCKET; BULB,GAUGE & CLOCK
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> (B) 14V 1.4W THA 		8-97913-097-0 10 1 0009- ● ● ●
117 SOCKET; BULB,GAUGE & CLOCK
(B) 14V 1.4W THA 		8-97913-097-0 10 1 0009- ● ● ●
117 SOCKET; BULB,GAUGE & CLOCK
4JA1 ENG<RLE> (B) 14V 1.4W THA 		8-97913-097-0 09 1 0009- ● ●
117 SOCKET; BULB,GAUGE & CLOCK
(B) 14V 1.4W THA 		8-97913-097-0 05 1 0009- ●
117 SOCKET; BULB,GAUGE & CLOCK
(A) 14V 3.4W GREEN THA 		8-97918-671-0 02 1 0009- ●
117 SOCKET; BULB,GAUGE & CLOCK
(C) 14V 3.0W THA 		8-97919-470-0 01 1 0009- ●
118 BULB; CLUSTER METER
4JA1 ENG<RLE> (A) 14V 3.4W THA 		8-97919-474-0 04 1 0009-0101 ●
118 BULB; CLUSTER METER
4JH1 ENG<RJX> EXC. SPECIAL PACKAGE<7BB> (A) 14V 3.4W THA 		8-97919-474-0 04 1 0009-0101 ●
118 BULB; CLUSTER METER
(A) 14V 3.4W THA 		8-97919-474-0 04 1 0009-0101 ●
118 BULB; CLUSTER METER
EXC. SPECIAL PACKAGE VAR.2<7TB> (A) 14V 3.4W THA 		8-97919-474-0 04 1 0009-0101 ●
118 BULB; CLUSTER METER
4JA1 ENG<RLE> 14V 3.4W THA 		8-97919-474-0 04 1 0102- ●
118 BULB; CLUSTER METER
14V 3.4W THA 		8-97919-474-0 04 1 0102- ●
118 BULB; CLUSTER METER
4JA1 ENG<RLE> A/T AISIN<RMD> (B) 14V 1.4W THA 		8-97913-095-0 12 1 0009- ●
118 BULB; CLUSTER METER
4JH1 ENG<RJX> SPECIAL PACKAGE<7BB> (A) 1.4V 3.4W W/CAP THA 		8-97921-576-0 04 1 0009-0101 ●
118 BULB; CLUSTER METER
A/T AISIN<RMD>,M/T MUA 5 SPEED<RMN> (A) 1.4V 3.4W W/CAP THA 		8-97921-576-0 04 1 0009-0101 ● ●
118 BULB; CLUSTER METER
SPECIAL PACKAGE VAR.2<7TB> (A) 1.4V 3.4W W/CAP THA 		8-97921-576-0 04 1 0009-0101 ●
118 BULB; CLUSTER METER
(A) 1.4V 3.4W W/CAP THA 		8-97921-576-0 04 1 0009-0101 ● ●
118 BULB; CLUSTER METER
4JH1 ENG<RJX> 1.4V 3.4W W/CAP THA 		8-97921-576-0 04 1 0102- ● ● ● ● ● ●
118 BULB; CLUSTER METER
4JH1 ENG<RJX> A/T AISIN<RMD> (B) 14V 1.4W THA 		8-97913-095-0 13 1 0009- ● ● ●
118 BULB; CLUSTER METER
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> (B) 14V 1.4W THA 		8-97913-095-0 10 1 0009- ● ● ●
118 BULB; CLUSTER METER
(B) 14V 1.4W THA 		8-97913-095-0 10 1 0009- ● ● ●
118 BULB; CLUSTER METER
4JA1 ENG<RLE> (B) 14V 1.4W THA 		8-97913-095-0 09 1 0009- ● ●
118 BULB; CLUSTER METER
(C) 14V 3.4W THA 		8-97913-093-0 04 1 0009- ●
118 BULB; CLUSTER METER
(A) 14V 3.4W W/CAP THA 		8-97913-094-0 02 1 0009- ●
118 BULB; CLUSTER METER
(B) 14V 1.4W THA 		8-97913-095-0 05 1 0009- ●
118 BULB; CLUSTER METER
(D) 14V 3.0W THA 		8-97919-469-0 01 1 0009- ●
131 GAUGE; TEMP,CLUSTER METER
4JA1 ENG<RLE> THA 		8-97913-102-0 01 1 0009- ●
131 GAUGE; TEMP,CLUSTER METER
THA 		8-97913-102-0 01 1 0009- ●
131 GAUGE; TEMP,CLUSTER METER
THA 		8-97913-083-0 01 1 0009- ●
138 BOLT
4JA1 ENG<RLE> M8X12 FLANGE 		0-28080-812-0 01 1 0009- ●
138 BOLT
M8X12 FLANGE 		0-28080-812-0 01 1 0009- ●
183 GAUGE; FUEL
4JA1 ENG<RLE> THA 		8-97913-103-0 01 1 0009- ●
183 GAUGE; FUEL
THA 		8-97913-103-0 01 1 0009- ●
183 GAUGE; FUEL
THA 		8-97913-082-0 01 1 0009- ●
199 LENS; WARNING LAMP
4JA1 ENG<RLE> (B) THA 		8-97913-109-0 01 1 0009- ●
199 LENS; WARNING LAMP
(B) THA 		8-97913-109-0 01 1 0009- ●
199 LENS; WARNING LAMP
(A) THA 		8-97913-107-0 01 1 0009- ● ● ● ● ● ● ●
199 LENS; WARNING LAMP
4JH1 ENG<RJX> (B) THA 		8-97921-524-0 01 1 0009- ● ● ● ● ● ●
199 LENS; WARNING LAMP
(C) THA 		8-97913-085-0 01 1 0009- ●
199 LENS; WARNING LAMP
(D) THA 		8-97913-086-0 01 1 0009- ●
269 SCREW; METER CLUSTER
(A) THA 		8-97913-098-0 04 1 0009- ● ● ● ● ● ● ● ●
269 SCREW; METER CLUSTER
(B) THA 		8-97919-472-0 03 1 0009- ● ● ● ● ● ● ●
269 SCREW; METER CLUSTER
(C) THA 		8-97919-473-0 07 1 0009- ● ● ● ● ● ● ●
269 SCREW; METER CLUSTER
(D) THA 		8-97913-099-0 06 1 0009- ●
377 BRACKET; OIL PRESS CONN
4JA1 ENG<RLE> 		8-97170-948-0 01 1 0009- ●
377 BRACKET; OIL PRESS CONN 8-97170-948-0 01 1 0009- ●

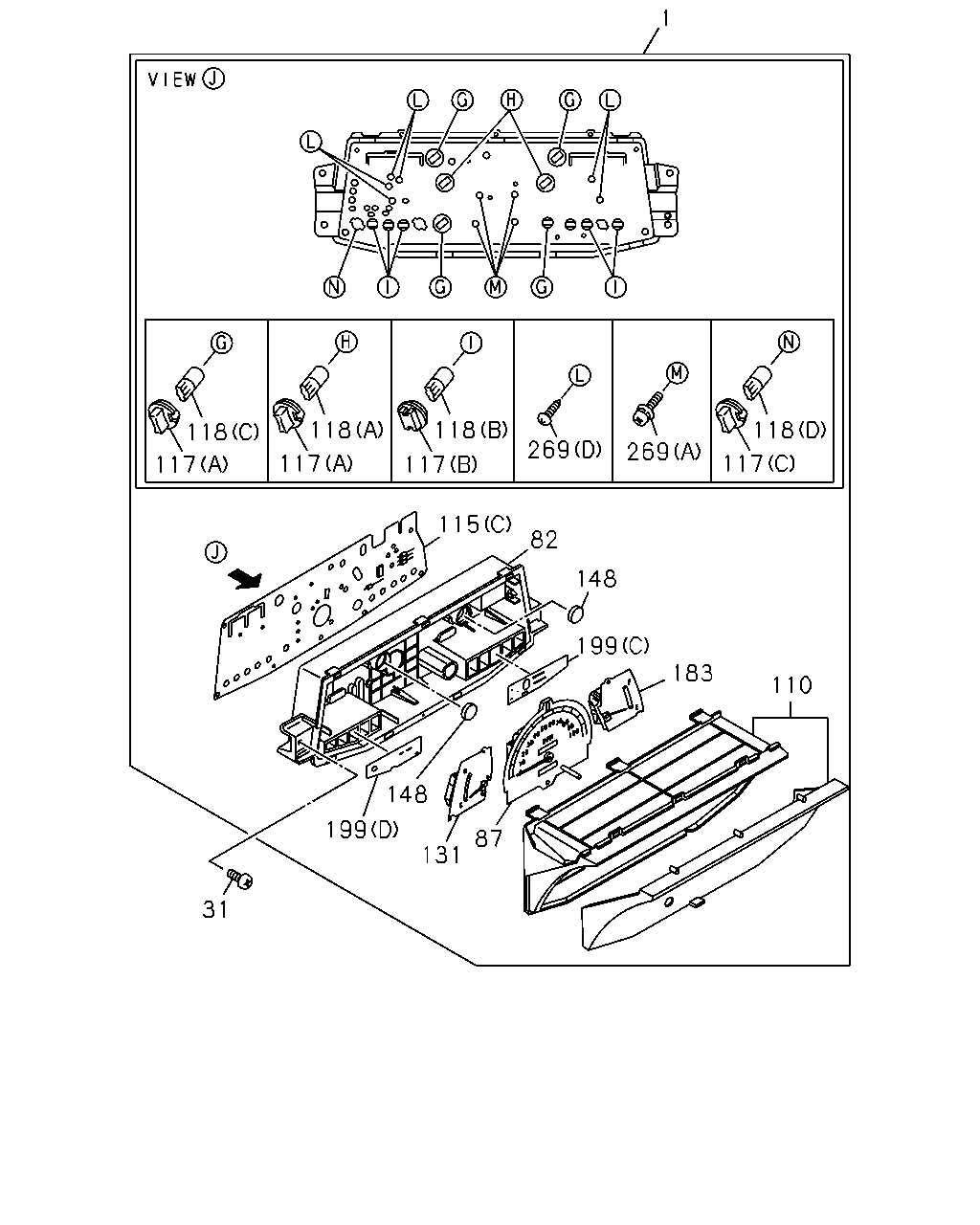

çizim 50682
1 118 117 118 117 118 117 118 117 269 269 115 82 148 199 183 110 148 199 87 131 31
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 METER COMPL; CLUSTER
4JH1 ENG<RJX> A/T AISIN<RMD> SPECIAL PACKAGE<7BB> THA 		8-97920-421-0 01 1 0009-0101 ●
1 METER COMPL; CLUSTER
A/T AISIN<RMD> THA 		8-97920-421-0 01 1 0009-0101 ● ●
1 METER COMPL; CLUSTER
4JH1 ENG<RJX> A/T AISIN<RMD> THA 		8-97920-421-0 01 1 0102- ● ● ●
1 METER COMPL; CLUSTER
4JH1 ENG<RJX> A/T AISIN<RMD> EXC. SPECIAL PACKAGE<7BB> THA 		8-97920-092-0 01 1 0009-0101 ●
1 METER COMPL; CLUSTER
4JH1 ENG<RJX> M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> SPECIAL PACKAGE<7BB> THA 		8-97920-422-0 01 1 0009-0101 ●
1 METER COMPL; CLUSTER
M/T MUA 5 SPEED<RMN> THA 		8-97920-422-0 01 1 0009-0101 ● ●
1 METER COMPL; CLUSTER
SPECIAL PACKAGE VAR.2<7TB> THA 		8-97920-422-0 01 1 0009-0101 ●
1 METER COMPL; CLUSTER
THA 		8-97920-422-0 01 1 0009-0101 ● ●
1 METER COMPL; CLUSTER
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> THA 		8-97920-422-0 01 1 0102- ● ● ●
1 METER COMPL; CLUSTER
THA 		8-97920-422-0 01 1 0102- ● ● ●
1 METER COMPL; CLUSTER
4JA1 ENG<RLE> THA 		8-97918-970-0 01 1 0009-0101 ● ●
1 METER COMPL; CLUSTER
4JA1 ENG<RLE> THA 		8-97921-895-0 01 1 0102- ● ●
1 METER COMPL; CLUSTER
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> EXC. SPECIAL PACKAGE<7BB>,SPECIAL PACKAGE VAR.2<7TB> THA 		8-97920-093-0 01 1 0009-0101 ● ●
1 METER COMPL; CLUSTER
THA 		8-97918-969-0 01 1 0009- ●
31 SCREW; METER,INST PANEL
M5X16 TAPPING W/PL WASHER 		0-74300-516-0 04 1 0009- ● ● ● ● ● ● ● ●
82 CASE ASM; CLUSTER METER
A/T AISIN<RMD> THA 		8-97913-112-0 01 1 0009- ● ● ●
82 CASE ASM; CLUSTER METER
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> THA 		8-97913-113-0 01 1 0009- ● ● ●
82 CASE ASM; CLUSTER METER
THA 		8-97913-113-0 01 1 0009- ● ● ● ●
82 CASE ASM; CLUSTER METER
THA 		8-97913-089-0 01 1 0009- ●
87 SPEEDOMETER
4JA1 ENG<RLE> THA 		8-97913-100-0 01 1 0009- ●
87 SPEEDOMETER
THA 		8-97913-100-0 01 1 0009- ●
87 SPEEDOMETER
4JH1 ENG<RJX> SPECIAL PACKAGE<7BB> THA 		8-97921-575-0 01 1 0009-0101 ●
87 SPEEDOMETER
A/T AISIN<RMD>,M/T MUA 5 SPEED<RMN> THA 		8-97921-575-0 01 1 0009-0101 ● ●
87 SPEEDOMETER
SPECIAL PACKAGE VAR.2<7TB> THA 		8-97921-575-0 01 1 0009-0101 ●
87 SPEEDOMETER
THA 		8-97921-575-0 01 1 0009-0101 ● ●
87 SPEEDOMETER
4JH1 ENG<RJX> THA 		8-97921-575-0 01 1 0102- ● ● ● ● ● ●
87 SPEEDOMETER
4JH1 ENG<RJX> EXC. SPECIAL PACKAGE<7BB> THA 		8-97921-574-0 01 1 0009-0101 ●
87 SPEEDOMETER
EXC. SPECIAL PACKAGE VAR.2<7TB> THA 		8-97921-574-0 01 1 0009-0101 ●
87 SPEEDOMETER
THA 		8-97912-970-0 01 1 0009- ●
110 GLASS; CLUSTER METER
4JA1 ENG<RLE> M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> THA 		8-97913-111-0 01 1 0009-0101 ●
110 GLASS; CLUSTER METER
4JH1 ENG<RJX> M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> EXC. SPECIAL PACKAGE<7BB> THA 		8-97913-111-0 01 1 0009-0101 ●
110 GLASS; CLUSTER METER
THA 		8-97913-111-0 01 1 0009-0101 ●
110 GLASS; CLUSTER METER
EXC. SPECIAL PACKAGE VAR.2<7TB> THA 		8-97913-111-0 01 1 0009-0101 ●
110 GLASS; CLUSTER METER
4JA1 ENG<RLE> THA 		8-97913-111-0 01 1 0102- ● ●
110 GLASS; CLUSTER METER
4JH1 ENG<RJX> A/T AISIN<RMD> SPECIAL PACKAGE<7BB> THA 		8-97921-580-0 01 1 0009-0101 ●
110 GLASS; CLUSTER METER
A/T AISIN<RMD> THA 		8-97921-580-0 01 1 0009-0101 ● ●
110 GLASS; CLUSTER METER
4JH1 ENG<RJX> A/T AISIN<RMD> THA 		8-97921-580-0 01 1 0102- ● ● ●
110 GLASS; CLUSTER METER
4JH1 ENG<RJX> A/T AISIN<RMD> EXC. SPECIAL PACKAGE<7BB> THA 		8-97913-110-0 01 1 0009-0101 ●
110 GLASS; CLUSTER METER
4JH1 ENG<RJX> M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> SPECIAL PACKAGE<7BB> THA 		8-97921-581-0 01 1 0009-0101 ●
110 GLASS; CLUSTER METER
M/T MUA 5 SPEED<RMN> THA 		8-97921-581-0 01 1 0009-0101 ● ●
110 GLASS; CLUSTER METER
SPECIAL PACKAGE VAR.2<7TB> THA 		8-97921-581-0 01 1 0009-0101 ●
110 GLASS; CLUSTER METER
THA 		8-97921-581-0 01 1 0009-0101 ● ●
110 GLASS; CLUSTER METER
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> THA 		8-97921-581-0 01 1 0102- ● ● ●
110 GLASS; CLUSTER METER
THA 		8-97921-581-0 01 1 0102- ● ● ●
110 GLASS; CLUSTER METER
THA 		8-97913-088-0 01 1 0009- ●
115 CIRCUIT; PRINTED,CLUSTER METER
A/T AISIN<RMD> (A) THA 		8-97913-104-0 01 1 0009- ● ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
A/T AISIN<RMD> (B) THA 		8-97913-106-0 01 1 0009- ● ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> (A) THA 		8-97913-105-0 01 1 0009- ● ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
(A) THA 		8-97913-105-0 01 1 0009- ● ● ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
(C) THA 		8-97920-268-0 01 1 0009- ●
117 SOCKET; BULB,GAUGE & CLOCK
4JA1 ENG<RLE> (A) 14V 3.4W BLACK THA 		8-97913-096-0 04 1 0009-0101 ●
117 SOCKET; BULB,GAUGE & CLOCK
4JH1 ENG<RJX> EXC. SPECIAL PACKAGE<7BB> (A) 14V 3.4W BLACK THA 		8-97913-096-0 04 1 0009-0101 ●
117 SOCKET; BULB,GAUGE & CLOCK
(A) 14V 3.4W BLACK THA 		8-97913-096-0 04 1 0009-0101 ● ●
117 SOCKET; BULB,GAUGE & CLOCK
EXC. SPECIAL PACKAGE VAR.2<7TB> (A) 14V 3.4W BLACK THA 		8-97913-096-0 04 1 0009-0101 ●
117 SOCKET; BULB,GAUGE & CLOCK
4JA1 ENG<RLE> 14V 3.4W BLACK THA 		8-97913-096-0 04 1 0102- ●
117 SOCKET; BULB,GAUGE & CLOCK
14V 3.4W BLACK THA 		8-97913-096-0 04 1 0102- ● ●
117 SOCKET; BULB,GAUGE & CLOCK
4JA1 ENG<RLE> A/T AISIN<RMD> (B) 14V 1.4W THA 		8-97913-097-0 12 1 0009- ●
117 SOCKET; BULB,GAUGE & CLOCK
4JH1 ENG<RJX> SPECIAL PACKAGE<7BB> (A) 1.4V 3.4W THA 		8-97921-577-0 04 1 0009-0101 ●
117 SOCKET; BULB,GAUGE & CLOCK
A/T AISIN<RMD>,M/T MUA 5 SPEED<RMN> (A) 1.4V 3.4W THA 		8-97921-577-0 04 1 0009-0101 ● ●
117 SOCKET; BULB,GAUGE & CLOCK
SPECIAL PACKAGE VAR.2<7TB> (A) 1.4V 3.4W THA 		8-97921-577-0 04 1 0009-0101 ●
117 SOCKET; BULB,GAUGE & CLOCK
(A) 1.4V 3.4W THA 		8-97921-577-0 04 1 0009-0101 ● ●
117 SOCKET; BULB,GAUGE & CLOCK
4JH1 ENG<RJX> 1.4V 3.4W THA 		8-97921-577-0 04 1 0102- ● ● ● ● ● ●
117 SOCKET; BULB,GAUGE & CLOCK
4JH1 ENG<RJX> A/T AISIN<RMD> (B) 14V 1.4W THA 		8-97913-097-0 13 1 0009- ● ● ●
117 SOCKET; BULB,GAUGE & CLOCK
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> (B) 14V 1.4W THA 		8-97913-097-0 10 1 0009- ● ● ●
117 SOCKET; BULB,GAUGE & CLOCK
(B) 14V 1.4W THA 		8-97913-097-0 10 1 0009- ● ● ●
117 SOCKET; BULB,GAUGE & CLOCK
4JA1 ENG<RLE> (B) 14V 1.4W THA 		8-97913-097-0 09 1 0009- ● ●
117 SOCKET; BULB,GAUGE & CLOCK
(B) 14V 1.4W THA 		8-97913-097-0 05 1 0009- ●
117 SOCKET; BULB,GAUGE & CLOCK
(A) 14V 3.4W GREEN THA 		8-97918-671-0 02 1 0009- ●
117 SOCKET; BULB,GAUGE & CLOCK
(C) 14V 3.0W THA 		8-97919-470-0 01 1 0009- ●
118 BULB; CLUSTER METER
4JA1 ENG<RLE> (A) 14V 3.4W THA 		8-97919-474-0 04 1 0009-0101 ●
118 BULB; CLUSTER METER
4JH1 ENG<RJX> EXC. SPECIAL PACKAGE<7BB> (A) 14V 3.4W THA 		8-97919-474-0 04 1 0009-0101 ●
118 BULB; CLUSTER METER
(A) 14V 3.4W THA 		8-97919-474-0 04 1 0009-0101 ●
118 BULB; CLUSTER METER
EXC. SPECIAL PACKAGE VAR.2<7TB> (A) 14V 3.4W THA 		8-97919-474-0 04 1 0009-0101 ●
118 BULB; CLUSTER METER
4JA1 ENG<RLE> 14V 3.4W THA 		8-97919-474-0 04 1 0102- ●
118 BULB; CLUSTER METER
14V 3.4W THA 		8-97919-474-0 04 1 0102- ●
118 BULB; CLUSTER METER
4JA1 ENG<RLE> A/T AISIN<RMD> (B) 14V 1.4W THA 		8-97913-095-0 12 1 0009- ●
118 BULB; CLUSTER METER
4JH1 ENG<RJX> SPECIAL PACKAGE<7BB> (A) 1.4V 3.4W W/CAP THA 		8-97921-576-0 04 1 0009-0101 ●
118 BULB; CLUSTER METER
A/T AISIN<RMD>,M/T MUA 5 SPEED<RMN> (A) 1.4V 3.4W W/CAP THA 		8-97921-576-0 04 1 0009-0101 ● ●
118 BULB; CLUSTER METER
SPECIAL PACKAGE VAR.2<7TB> (A) 1.4V 3.4W W/CAP THA 		8-97921-576-0 04 1 0009-0101 ●
118 BULB; CLUSTER METER
(A) 1.4V 3.4W W/CAP THA 		8-97921-576-0 04 1 0009-0101 ● ●
118 BULB; CLUSTER METER
4JH1 ENG<RJX> 1.4V 3.4W W/CAP THA 		8-97921-576-0 04 1 0102- ● ● ● ● ● ●
118 BULB; CLUSTER METER
4JH1 ENG<RJX> A/T AISIN<RMD> (B) 14V 1.4W THA 		8-97913-095-0 13 1 0009- ● ● ●
118 BULB; CLUSTER METER
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> (B) 14V 1.4W THA 		8-97913-095-0 10 1 0009- ● ● ●
118 BULB; CLUSTER METER
(B) 14V 1.4W THA 		8-97913-095-0 10 1 0009- ● ● ●
118 BULB; CLUSTER METER
4JA1 ENG<RLE> (B) 14V 1.4W THA 		8-97913-095-0 09 1 0009- ● ●
118 BULB; CLUSTER METER
(C) 14V 3.4W THA 		8-97913-093-0 04 1 0009- ●
118 BULB; CLUSTER METER
(A) 14V 3.4W W/CAP THA 		8-97913-094-0 02 1 0009- ●
118 BULB; CLUSTER METER
(B) 14V 1.4W THA 		8-97913-095-0 05 1 0009- ●
118 BULB; CLUSTER METER
(D) 14V 3.0W THA 		8-97919-469-0 01 1 0009- ●
131 GAUGE; TEMP,CLUSTER METER
4JA1 ENG<RLE> THA 		8-97913-102-0 01 1 0009- ●
131 GAUGE; TEMP,CLUSTER METER
THA 		8-97913-102-0 01 1 0009- ●
131 GAUGE; TEMP,CLUSTER METER
THA 		8-97913-083-0 01 1 0009- ●
138 BOLT
4JA1 ENG<RLE> M8X12 FLANGE 		0-28080-812-0 01 1 0009- ●
138 BOLT
M8X12 FLANGE 		0-28080-812-0 01 1 0009- ●
148 LENS; PILOT,TURN SIGNAL,CLUSTER METER
THA 		8-97913-087-0 02 1 0009- ●
183 GAUGE; FUEL
4JA1 ENG<RLE> THA 		8-97913-103-0 01 1 0009- ●
183 GAUGE; FUEL
THA 		8-97913-103-0 01 1 0009- ●
183 GAUGE; FUEL
THA 		8-97913-082-0 01 1 0009- ●
199 LENS; WARNING LAMP
4JA1 ENG<RLE> (B) THA 		8-97913-109-0 01 1 0009- ●
199 LENS; WARNING LAMP
(B) THA 		8-97913-109-0 01 1 0009- ●
199 LENS; WARNING LAMP
(A) THA 		8-97913-107-0 01 1 0009- ● ● ● ● ● ● ●
199 LENS; WARNING LAMP
4JH1 ENG<RJX> (B) THA 		8-97921-524-0 01 1 0009- ● ● ● ● ● ●
199 LENS; WARNING LAMP
(C) THA 		8-97913-085-0 01 1 0009- ●
199 LENS; WARNING LAMP
(D) THA 		8-97913-086-0 01 1 0009- ●
269 SCREW; METER CLUSTER
(A) THA 		8-97913-098-0 04 1 0009- ● ● ● ● ● ● ● ●
269 SCREW; METER CLUSTER
(B) THA 		8-97919-472-0 03 1 0009- ● ● ● ● ● ● ●
269 SCREW; METER CLUSTER
(C) THA 		8-97919-473-0 07 1 0009- ● ● ● ● ● ● ●
269 SCREW; METER CLUSTER
(D) THA 		8-97913-099-0 06 1 0009- ●
377 BRACKET; OIL PRESS CONN
4JA1 ENG<RLE> 		8-97170-948-0 01 1 0009- ●
377 BRACKET; OIL PRESS CONN 8-97170-948-0 01 1 0009- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
