◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50890 - TFR/S(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#44070) — 200 parça

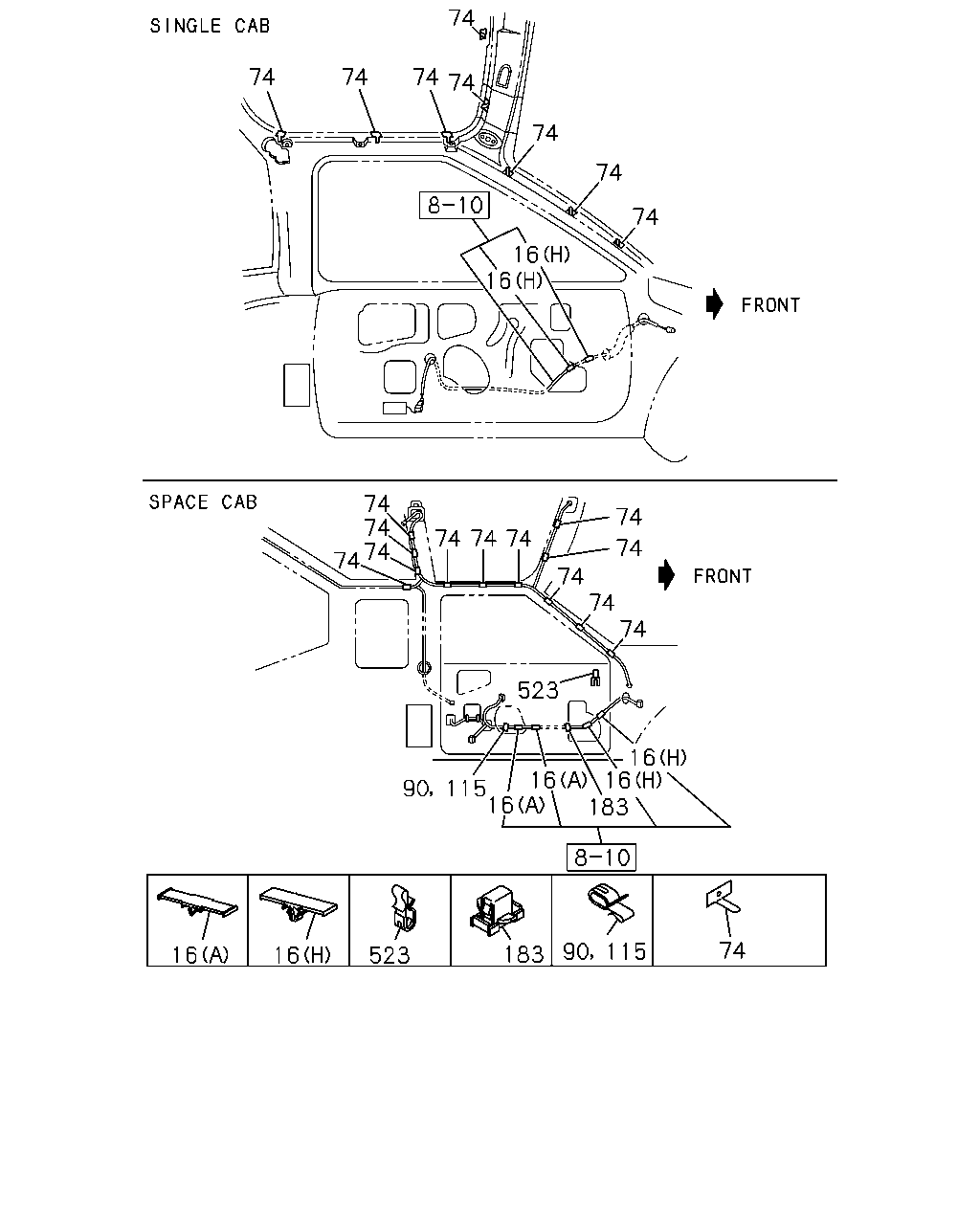

çizim 11207
74 74 74 74 74 74 74 74 16 16 74 74 74 74 74 74 74 74 74 523 16 16 16 115 16 183 90 74 90 115 183 16 16 523 74 74 74
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
16 CLIP; HARNESS
A/T AISIN<RMD> (D) THA 		8-97916-641-0 01 1 0009- ● ● ●
16 CLIP; HARNESS
COOLER WO/HEATER<YL1> (D) THA 		8-97916-641-0 01 1 0009- ●
16 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 0009- ● ● ● ● ● ●
16 CLIP; HARNESS
(B) L=140 THA 		8-97920-656-0 01 1 0009-0101 ● ● ●
16 CLIP; HARNESS
(G) ID=8.5 THA 		8-97912-612-0 03 1 0009- ● ● ●
16 CLIP; HARNESS
EXC. COOLER WO/HEATER<YL1> (E) L=135 		8-94473-399-0 01 1 0009- ● ● ● ● ●
16 CLIP; HARNESS
(E) L=135 		8-94473-399-0 01 1 0009- ● ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 THA 		8-94449-752-0 04 1 0009- ● ●
16 CLIP; HARNESS
(A) L=60 THA 		8-94449-752-0 04 1 0009- ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (H) L=60 THA 		8-94457-053-0 04 1 0009- ● ●
16 CLIP; HARNESS
(H) L=60 THA 		8-94457-053-0 04 1 0009- ● ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (H) L=60 THA 		8-94457-053-0 02 1 0009-0009 ● ●
16 CLIP; HARNESS
(H) L=60 THA 		8-94457-053-0 02 1 0009-0009 ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> L=60 THA 		8-94457-053-0 02 1 0009- ● ●
16 CLIP; HARNESS
COOLER WO/HEATER<YL1> AM/FM W/CASSETTE ALL AREA BAND 2SPEAKERS<7ND> L=60 THA 		8-94457-053-0 02 1 0009- ●
16 CLIP; HARNESS
EXC. COOLER WO/HEATER<YL1> (D) THA 		8-97916-641-0 02 1 0009- ●
74 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> 		8-94138-987-0 11 1 0009- ● ●
74 CLIP; ROOM LAMP HARNESS
EXC. MAP LAMP<UF3> 		8-94138-987-0 09 1 0009- ● ●
74 CLIP; ROOM LAMP HARNESS 8-94138-987-0 09 1 0009- ● ● ●
74 CLIP; ROOM LAMP HARNESS 8-94138-987-0 06 1 0009- ●
74 CLIP; ROOM LAMP HARNESS 8-94138-987-0 17 1 0009- ● ●
90 CLIP; HARNESS,DOOR LOCK
POWER WINDOW<A30> ID=12 		8-94423-045-0 04 1 0009- ● ●
90 CLIP; HARNESS,DOOR LOCK
ID=12 		8-94423-045-0 04 1 0009- ● ●
90 CLIP; HARNESS,DOOR LOCK
ID=12 		8-94423-045-0 02 1 0009- ● ●
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> ID=12 		8-94423-045-0 02 1 0009- ● ●
115 CLIP; DOOR HARNESS
ID=12 		8-94423-045-0 02 1 0009- ● ●
183 CLIP; CONNECTOR
POWER WINDOW<A30> THA 		8-97920-083-0 02 1 0009- ● ●
183 CLIP; CONNECTOR
THA 		8-97920-083-0 02 1 0009- ● ●
523 CLIP; HARNESS,WINDOW REG
DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> ID=9 		8-94177-914-0 02 1 0009- ● ● ● ●
523 CLIP; HARNESS,WINDOW REG
POWER WINDOW<A30> EXC. DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> ID=9 		8-94177-914-0 02 1 0009- ● ●
523 CLIP; HARNESS,WINDOW REG
ID=9 		8-94177-914-0 02 1 0009- ● ●

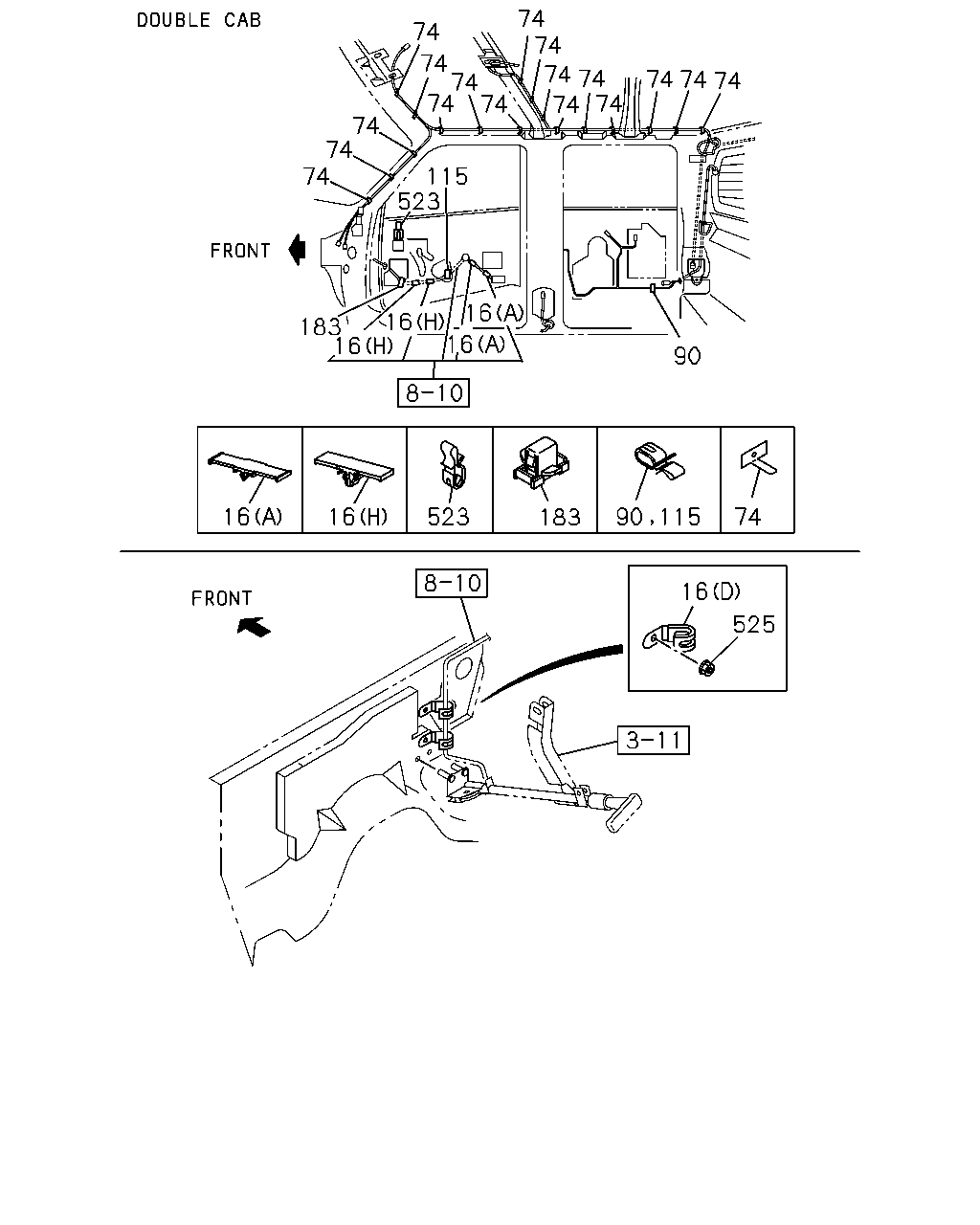

çizim 11208
74 74 74 74 74 74 74 74 74 74 115 523 16 183 16 16 16 90 16 16 523 115 90 74 183 16 525 74 74 74 74 74 74 74
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
16 CLIP; HARNESS
A/T AISIN<RMD> (D) THA 		8-97916-641-0 01 1 0009- ● ● ●
16 CLIP; HARNESS
COOLER WO/HEATER<YL1> (D) THA 		8-97916-641-0 01 1 0009- ●
16 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 0009- ● ● ● ● ● ●
16 CLIP; HARNESS
(B) L=140 THA 		8-97920-656-0 01 1 0009-0101 ● ● ●
16 CLIP; HARNESS
(G) ID=8.5 THA 		8-97912-612-0 03 1 0009- ● ● ●
16 CLIP; HARNESS
EXC. COOLER WO/HEATER<YL1> (E) L=135 		8-94473-399-0 01 1 0009- ● ● ● ● ●
16 CLIP; HARNESS
(E) L=135 		8-94473-399-0 01 1 0009- ● ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 THA 		8-94449-752-0 04 1 0009- ● ●
16 CLIP; HARNESS
(A) L=60 THA 		8-94449-752-0 04 1 0009- ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (H) L=60 THA 		8-94457-053-0 04 1 0009- ● ●
16 CLIP; HARNESS
(H) L=60 THA 		8-94457-053-0 04 1 0009- ● ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (H) L=60 THA 		8-94457-053-0 02 1 0009-0009 ● ●
16 CLIP; HARNESS
(H) L=60 THA 		8-94457-053-0 02 1 0009-0009 ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> L=60 THA 		8-94457-053-0 02 1 0009- ● ●
16 CLIP; HARNESS
COOLER WO/HEATER<YL1> AM/FM W/CASSETTE ALL AREA BAND 2SPEAKERS<7ND> L=60 THA 		8-94457-053-0 02 1 0009- ●
16 CLIP; HARNESS
EXC. COOLER WO/HEATER<YL1> (D) THA 		8-97916-641-0 02 1 0009- ●
74 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> 		8-94138-987-0 11 1 0009- ● ●
74 CLIP; ROOM LAMP HARNESS
EXC. MAP LAMP<UF3> 		8-94138-987-0 09 1 0009- ● ●
74 CLIP; ROOM LAMP HARNESS 8-94138-987-0 09 1 0009- ● ● ●
74 CLIP; ROOM LAMP HARNESS 8-94138-987-0 06 1 0009- ●
74 CLIP; ROOM LAMP HARNESS 8-94138-987-0 17 1 0009- ● ●
90 CLIP; HARNESS,DOOR LOCK
POWER WINDOW<A30> ID=12 		8-94423-045-0 04 1 0009- ● ●
90 CLIP; HARNESS,DOOR LOCK
ID=12 		8-94423-045-0 04 1 0009- ● ●
90 CLIP; HARNESS,DOOR LOCK
ID=12 		8-94423-045-0 02 1 0009- ● ●
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> ID=12 		8-94423-045-0 02 1 0009- ● ●
115 CLIP; DOOR HARNESS
ID=12 		8-94423-045-0 02 1 0009- ● ●
183 CLIP; CONNECTOR
POWER WINDOW<A30> THA 		8-97920-083-0 02 1 0009- ● ●
183 CLIP; CONNECTOR
THA 		8-97920-083-0 02 1 0009- ● ●
523 CLIP; HARNESS,WINDOW REG
DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> ID=9 		8-94177-914-0 02 1 0009- ● ● ● ●
523 CLIP; HARNESS,WINDOW REG
POWER WINDOW<A30> EXC. DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> ID=9 		8-94177-914-0 02 1 0009- ● ●
523 CLIP; HARNESS,WINDOW REG
ID=9 		8-94177-914-0 02 1 0009- ● ●
525 NUT; CLIP
M6 FLANGE 		8-97063-399-0 02 1 0009-0108 ● ●
525 NUT; CLIP
EXC. COOLER WO/HEATER<YL1> M6 FLANGE 		8-97063-399-0 02 1 0009-0108 ●
525 NUT; CLIP
EXC. COOLER WO/HEATER<YL1> M6 FLANGE 		8-97063-399-0 02 1 0109- ●

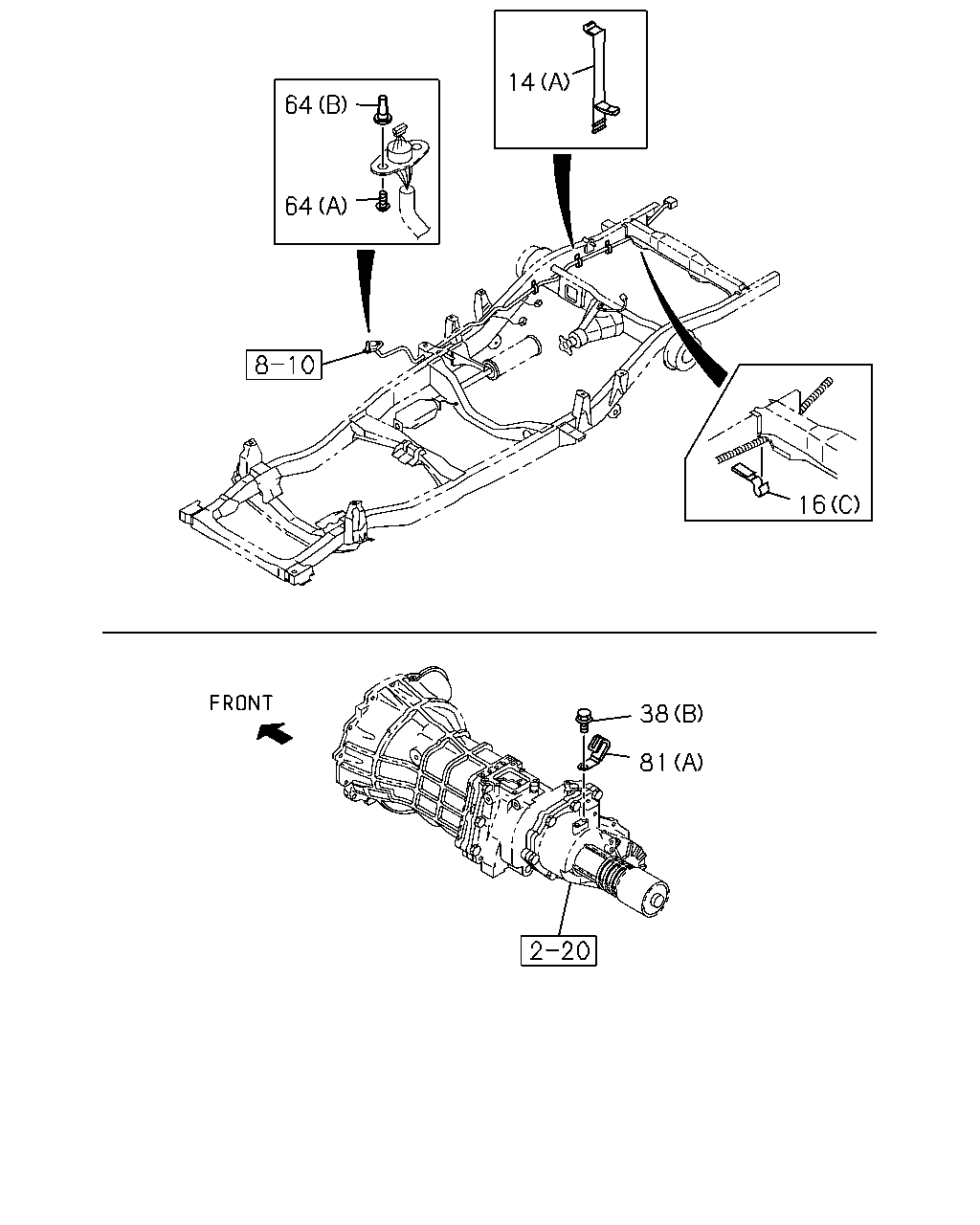

çizim 11522
14 64 64 16 38 81
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
14 CLIP; BAND,HARNESS
4JH1 ENG<RJX> A/T AISIN<RMD>,M/T MUA 5 SPEED<RMN> (B) L=140 THA 		8-97920-656-0 02 1 0009- ● ● ●
14 CLIP; BAND,HARNESS
(B) L=140 THA 		8-97920-656-0 02 1 0009- ● ● ●
14 CLIP; BAND,HARNESS
(A) L=55 		8-94473-398-0 11 1 0009- ● ● ● ●
14 CLIP; BAND,HARNESS
(A) L=55 		8-94473-398-0 10 1 0009- ● ● ● ●
16 CLIP; HARNESS
A/T AISIN<RMD> (D) THA 		8-97916-641-0 01 1 0009- ● ● ●
16 CLIP; HARNESS
COOLER WO/HEATER<YL1> (D) THA 		8-97916-641-0 01 1 0009- ●
16 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 0009- ● ● ● ● ● ●
16 CLIP; HARNESS
(B) L=140 THA 		8-97920-656-0 01 1 0009-0101 ● ● ●
16 CLIP; HARNESS
(G) ID=8.5 THA 		8-97912-612-0 03 1 0009- ● ● ●
16 CLIP; HARNESS
EXC. COOLER WO/HEATER<YL1> (E) L=135 		8-94473-399-0 01 1 0009- ● ● ● ● ●
16 CLIP; HARNESS
(E) L=135 		8-94473-399-0 01 1 0009- ● ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 THA 		8-94449-752-0 04 1 0009- ● ●
16 CLIP; HARNESS
(A) L=60 THA 		8-94449-752-0 04 1 0009- ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (H) L=60 THA 		8-94457-053-0 04 1 0009- ● ●
16 CLIP; HARNESS
(H) L=60 THA 		8-94457-053-0 04 1 0009- ● ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (H) L=60 THA 		8-94457-053-0 02 1 0009-0009 ● ●
16 CLIP; HARNESS
(H) L=60 THA 		8-94457-053-0 02 1 0009-0009 ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> L=60 THA 		8-94457-053-0 02 1 0009- ● ●
16 CLIP; HARNESS
COOLER WO/HEATER<YL1> AM/FM W/CASSETTE ALL AREA BAND 2SPEAKERS<7ND> L=60 THA 		8-94457-053-0 02 1 0009- ●
16 CLIP; HARNESS
EXC. COOLER WO/HEATER<YL1> (D) THA 		8-97916-641-0 02 1 0009- ●
38 BOLT; CLIP,HARNESS
(A) M6X12 W/LK WASHER 		0-50040-612-0 01 1 0009- ● ● ● ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(C) M5X14 		8-94120-095-0 01 1 0009- ● ● ● ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(D) M6X20 		8-94412-422-0 02 1 0009- ● ● ● ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X12 FLANGE 		0-28080-812-0 03 1 0009- ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X12 FLANGE 		0-28080-812-0 01 1 0009- ● ● ●
64 SCREW; CLIP
(A) M5X14 		8-94120-095-0 02 1 0009- ● ● ● ● ● ● ● ●
64 SCREW; CLIP
(B) D=7.9X7.9 L=20 M5 THA 		8-97918-103-0 02 1 0009- ● ● ● ● ● ● ● ●
81 CLIP; HARNESS 8-94138-987-0 02 1 0011- ● ● ● ● ● ● ● ●
81 CLIP; HARNESS
4JH1 ENG<RJX> A/T AISIN<RMD> L=140 THA 		8-97920-656-0 01 1 0011- ●
81 CLIP; HARNESS
A/T AISIN<RMD> L=140 THA 		8-97920-656-0 01 1 0011- ● ●
81 CLIP; HARNESS
(B) ID=21 & 21 		8-97136-392-0 01 1 0009- ● ● ● ● ● ● ● ●
81 CLIP; HARNESS
(A) ID=12 B=14 ID=8.5 THA 		5-09700-350-0 01 1 0009- ● ● ●

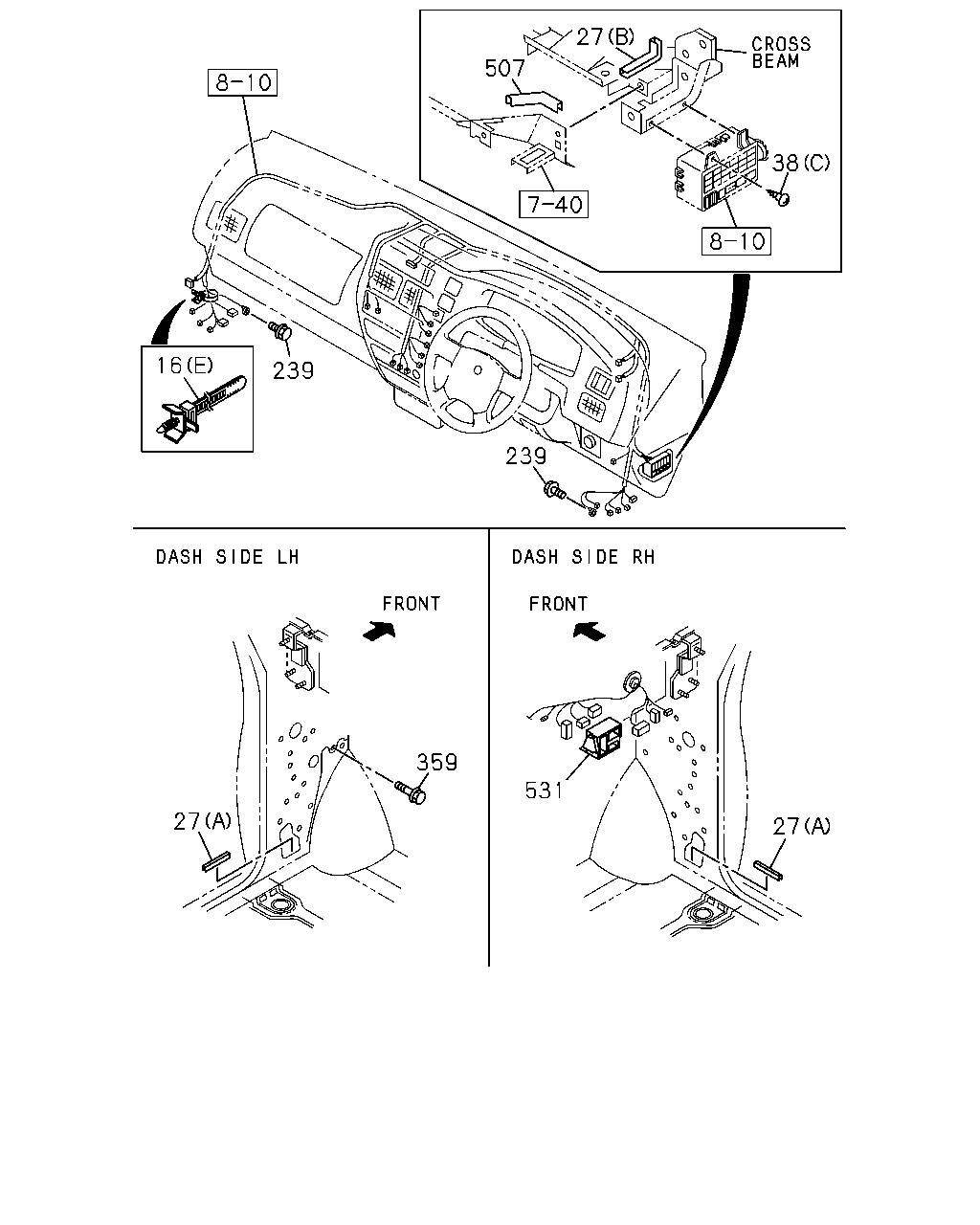

çizim 46924
27 38 507 16 239 239 359 531 27 27
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
16 CLIP; HARNESS
A/T AISIN<RMD> (D) THA 		8-97916-641-0 01 1 0009- ● ● ●
16 CLIP; HARNESS
COOLER WO/HEATER<YL1> (D) THA 		8-97916-641-0 01 1 0009- ●
16 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 0009- ● ● ● ● ● ●
16 CLIP; HARNESS
(B) L=140 THA 		8-97920-656-0 01 1 0009-0101 ● ● ●
16 CLIP; HARNESS
(G) ID=8.5 THA 		8-97912-612-0 03 1 0009- ● ● ●
16 CLIP; HARNESS
EXC. COOLER WO/HEATER<YL1> (E) L=135 		8-94473-399-0 01 1 0009- ● ● ● ● ●
16 CLIP; HARNESS
(E) L=135 		8-94473-399-0 01 1 0009- ● ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 THA 		8-94449-752-0 04 1 0009- ● ●
16 CLIP; HARNESS
(A) L=60 THA 		8-94449-752-0 04 1 0009- ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (H) L=60 THA 		8-94457-053-0 04 1 0009- ● ●
16 CLIP; HARNESS
(H) L=60 THA 		8-94457-053-0 04 1 0009- ● ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (H) L=60 THA 		8-94457-053-0 02 1 0009-0009 ● ●
16 CLIP; HARNESS
(H) L=60 THA 		8-94457-053-0 02 1 0009-0009 ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> L=60 THA 		8-94457-053-0 02 1 0009- ● ●
16 CLIP; HARNESS
COOLER WO/HEATER<YL1> AM/FM W/CASSETTE ALL AREA BAND 2SPEAKERS<7ND> L=60 THA 		8-94457-053-0 02 1 0009- ●
16 CLIP; HARNESS
EXC. COOLER WO/HEATER<YL1> (D) THA 		8-97916-641-0 02 1 0009- ●
27 PROTECTOR; EDGE
(B) L=88 		8-97069-335-0 01 1 0009- ● ● ● ● ● ● ● ●
27 PROTECTOR; EDGE
POWER WINDOW<A30> (A) L=250 SERVICED BY L=2040 		1-71997-513-1 02 1 0009- ● ●
27 PROTECTOR; EDGE
(A) L=250 SERVICED BY L=2040 		1-71997-513-1 02 1 0009- ● ●
27 PROTECTOR; EDGE
EXC. POWER WINDOW<A30> (A) L=250 SERVICED BY L=2040 		1-71997-513-1 01 1 0009- ● ●
27 PROTECTOR; EDGE
(A) L=250 SERVICED BY L=2040 		1-71997-513-1 01 1 0009- ● ● ● ●
38 BOLT; CLIP,HARNESS
(A) M6X12 W/LK WASHER 		0-50040-612-0 01 1 0009- ● ● ● ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(C) M5X14 		8-94120-095-0 01 1 0009- ● ● ● ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(D) M6X20 		8-94412-422-0 02 1 0009- ● ● ● ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X12 FLANGE 		0-28080-812-0 03 1 0009- ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X12 FLANGE 		0-28080-812-0 01 1 0009- ● ● ●
239 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 0010- ● ●
239 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 04 1 0009- ● ● ● ● ● ● ● ●
359 BOLT; HOLDER
M6X16 		8-97012-496-0 01 1 0009- ● ● ● ● ● ● ● ●
507 FINISHER
L=80 		5-71997-133-0 01 1 0009- ● ● ● ● ● ● ● ●
531 HOLDER
THA 		8-97940-008-1 01 1 0009- ● ● ● ● ● ● ● ●

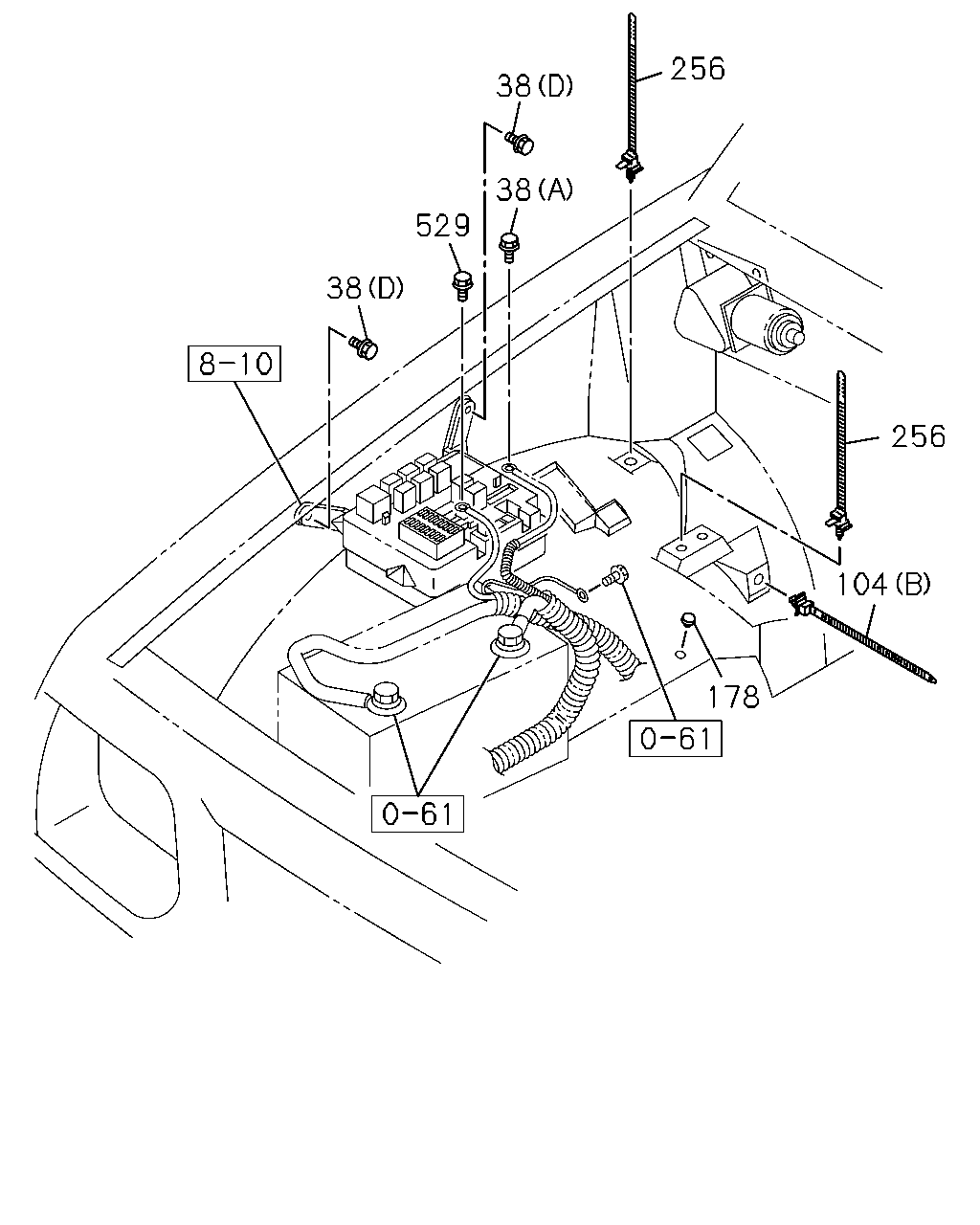

çizim 46925
256 38 38 529 38 256 104 178
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
38 BOLT; CLIP,HARNESS
(A) M6X12 W/LK WASHER 		0-50040-612-0 01 1 0009- ● ● ● ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(C) M5X14 		8-94120-095-0 01 1 0009- ● ● ● ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(D) M6X20 		8-94412-422-0 02 1 0009- ● ● ● ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X12 FLANGE 		0-28080-812-0 03 1 0009- ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X12 FLANGE 		0-28080-812-0 01 1 0009- ● ● ●
104 CLIP; HEADLAMP HARNESS
(A) L=112 		8-94232-618-0 01 1 0009- ● ● ● ● ● ● ● ●
104 CLIP; HEADLAMP HARNESS
(B) L=172 THA 		8-94232-620-0 02 1 0009- ● ● ● ● ● ● ● ●
178 GROMMET; HARNESS
OD=12 THA 		9-09956-122-0 01 1 0009- ● ● ● ● ● ● ● ●
256 CLIP; FENDER SKIRT HARNESS
L=135 		8-94473-399-0 01 1 0009- ● ● ● ● ● ● ● ●
256 CLIP; FENDER SKIRT HARNESS
L=135 		8-94473-399-0 01 1 0009- ● ● ● ● ● ● ● ●
529 BOLT; RELAY BOX
M6X12 W/LK WASHER 		0-50040-612-0 01 1 0009- ● ● ● ● ● ● ● ●
çizim 50060
81 401 294 219 104 46
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
46 WASHER; LK,GEN TERMINAL
M/T MUA 5 SPEED<RMN> ID=8.2 THA 		9-09150-508-0 01 1 0009- ● ● ●
46 WASHER; LK,GEN TERMINAL
ID=8.2 THA 		9-09150-508-0 01 1 0009- ● ● ●
46 WASHER; LK,GEN TERMINAL
4JH1 ENG<RJX> A/T AISIN<RMD> ID=5.1 		9-09150-505-0 01 1 0009- ● ● ●
46 WASHER; LK,GEN TERMINAL
4JA1 ENG<RLE> ID=5.1 		9-09150-505-0 01 1 0009- ● ● ●
81 CLIP; HARNESS 8-94138-987-0 02 1 0011- ● ● ● ● ● ● ● ●
81 CLIP; HARNESS
4JH1 ENG<RJX> A/T AISIN<RMD> L=140 THA 		8-97920-656-0 01 1 0011- ●
81 CLIP; HARNESS
A/T AISIN<RMD> L=140 THA 		8-97920-656-0 01 1 0011- ● ●
81 CLIP; HARNESS
(B) ID=21 & 21 		8-97136-392-0 01 1 0009- ● ● ● ● ● ● ● ●
81 CLIP; HARNESS
(A) ID=12 B=14 ID=8.5 THA 		5-09700-350-0 01 1 0009- ● ● ●
104 CLIP; HEADLAMP HARNESS
(A) L=112 		8-94232-618-0 01 1 0009- ● ● ● ● ● ● ● ●
104 CLIP; HEADLAMP HARNESS
(B) L=172 THA 		8-94232-620-0 02 1 0009- ● ● ● ● ● ● ● ●
219 NUT
4JH1 ENG<RJX> A/T AISIN<RMD> M5 		9-99110-405-0 01 1 0009- ● ● ●
219 NUT
4JA1 ENG<RLE> M5 		9-99110-405-0 01 1 0009- ● ● ●
219 NUT
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> M8 		9-09110-408-0 01 1 0009- ● ● ● ● ● ●
219 NUT
4JH1 ENG<RJX> M8 		9-09110-408-0 01 1 0009- ●
219 NUT
M8 		9-09110-408-0 01 1 0009- ● ● ● ● ●
294 NUT
M6 FLANGE 		5-09440-004-0 02 1 0009- ● ● ● ● ● ● ● ●
401 BRACKET; HARNESS,GEN
THA 		8-97918-823-0 01 1 0009-0009 ● ● ● ● ● ● ● ●
401 BRACKET; HARNESS,GEN
THA 		8-97921-684-1 01 1 0010- ● ● ● ● ● ● ● ●

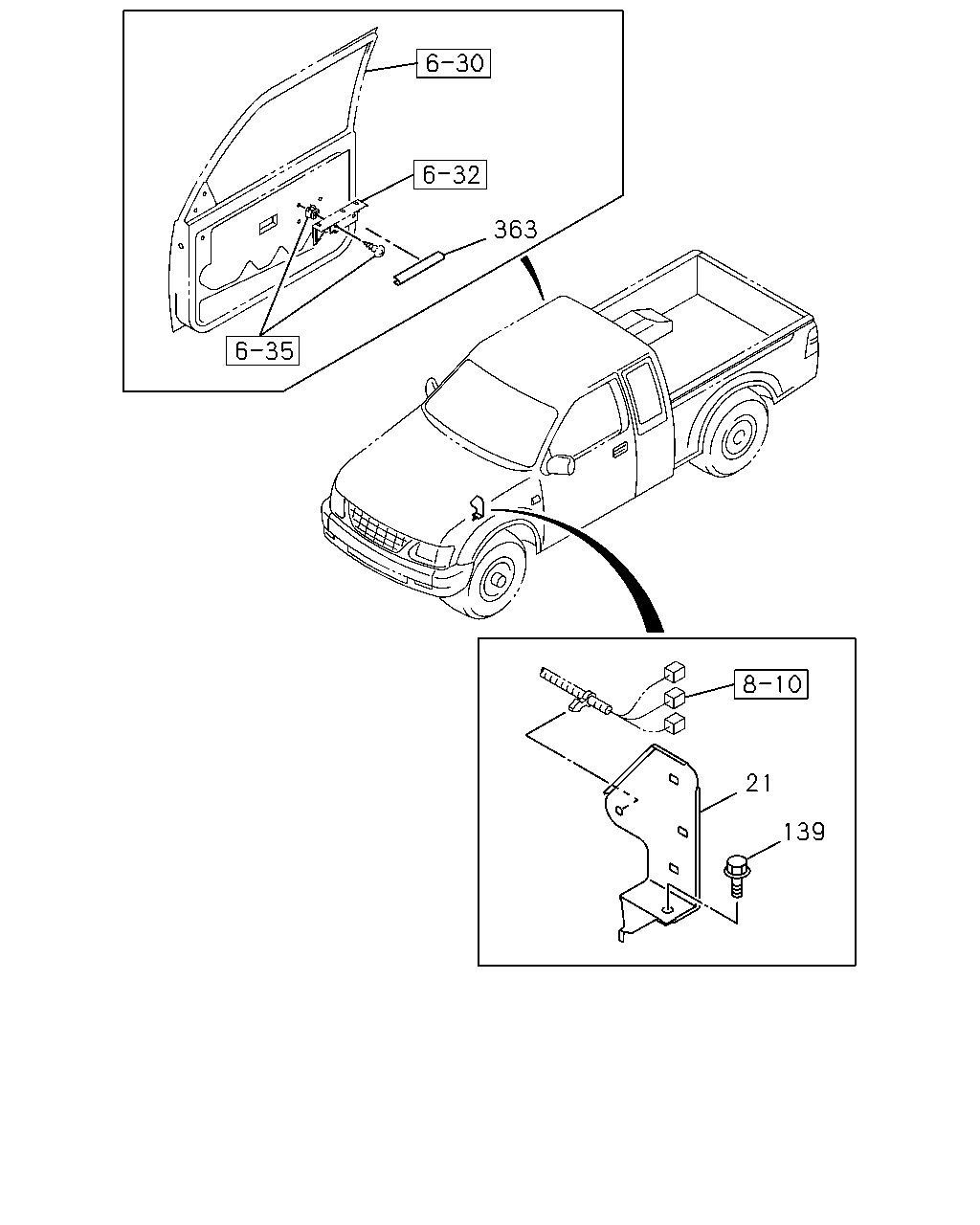

çizim 50137
363 21 139
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
21 BRACKET; ENG HARNESS
4JH1 ENG<RJX> THA 		8-97920-870-1 01 1 0009- ●
21 BRACKET; ENG HARNESS
THA 		8-97920-870-1 01 1 0009- ● ● ● ● ●
139 BOLT; BRKT
4JH1 ENG<RJX> ATC THA 		8-97912-442-0 01 1 0009- ●
139 BOLT; BRKT
ATC THA 		8-97912-442-0 01 1 0009- ● ● ● ● ●
363 FINISHER; PROTECTOR
POWER WINDOW<A30> SERVICED BY L=190 		1-71998-300-0 02 1 0009- ● ●
363 FINISHER; PROTECTOR
SERVICED BY L=190 		1-71998-300-0 02 1 0009- ● ●
çizim 51954
104 16 408 483 14 16 128 226 16 38 16 38 194 206
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
14 CLIP; BAND,HARNESS
4JH1 ENG<RJX> A/T AISIN<RMD>,M/T MUA 5 SPEED<RMN> (B) L=140 THA 		8-97920-656-0 02 1 0009- ● ● ●
14 CLIP; BAND,HARNESS
(B) L=140 THA 		8-97920-656-0 02 1 0009- ● ● ●
14 CLIP; BAND,HARNESS
(A) L=55 		8-94473-398-0 11 1 0009- ● ● ● ●
14 CLIP; BAND,HARNESS
(A) L=55 		8-94473-398-0 10 1 0009- ● ● ● ●
16 CLIP; HARNESS
A/T AISIN<RMD> (D) THA 		8-97916-641-0 01 1 0009- ● ● ●
16 CLIP; HARNESS
COOLER WO/HEATER<YL1> (D) THA 		8-97916-641-0 01 1 0009- ●
16 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 0009- ● ● ● ● ● ●
16 CLIP; HARNESS
(B) L=140 THA 		8-97920-656-0 01 1 0009-0101 ● ● ●
16 CLIP; HARNESS
(G) ID=8.5 THA 		8-97912-612-0 03 1 0009- ● ● ●
16 CLIP; HARNESS
EXC. COOLER WO/HEATER<YL1> (E) L=135 		8-94473-399-0 01 1 0009- ● ● ● ● ●
16 CLIP; HARNESS
(E) L=135 		8-94473-399-0 01 1 0009- ● ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 THA 		8-94449-752-0 04 1 0009- ● ●
16 CLIP; HARNESS
(A) L=60 THA 		8-94449-752-0 04 1 0009- ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (H) L=60 THA 		8-94457-053-0 04 1 0009- ● ●
16 CLIP; HARNESS
(H) L=60 THA 		8-94457-053-0 04 1 0009- ● ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (H) L=60 THA 		8-94457-053-0 02 1 0009-0009 ● ●
16 CLIP; HARNESS
(H) L=60 THA 		8-94457-053-0 02 1 0009-0009 ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> L=60 THA 		8-94457-053-0 02 1 0009- ● ●
16 CLIP; HARNESS
COOLER WO/HEATER<YL1> AM/FM W/CASSETTE ALL AREA BAND 2SPEAKERS<7ND> L=60 THA 		8-94457-053-0 02 1 0009- ●
16 CLIP; HARNESS
EXC. COOLER WO/HEATER<YL1> (D) THA 		8-97916-641-0 02 1 0009- ●
38 BOLT; CLIP,HARNESS
(A) M6X12 W/LK WASHER 		0-50040-612-0 01 1 0009- ● ● ● ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(C) M5X14 		8-94120-095-0 01 1 0009- ● ● ● ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(D) M6X20 		8-94412-422-0 02 1 0009- ● ● ● ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X12 FLANGE 		0-28080-812-0 03 1 0009- ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X12 FLANGE 		0-28080-812-0 01 1 0009- ● ● ●
104 CLIP; HEADLAMP HARNESS
(A) L=112 		8-94232-618-0 01 1 0009- ● ● ● ● ● ● ● ●
104 CLIP; HEADLAMP HARNESS
(B) L=172 THA 		8-94232-620-0 02 1 0009- ● ● ● ● ● ● ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
L=250 THA 		5-09707-030-1 01 1 0009- ● ● ● ● ● ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
EXC. RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> L=250 THA 		5-09707-030-1 01 1 0009- ●
194 CLIP; BAND
EXC. COOLER WO/HEATER<YL1> L=140 THA 		5-09707-031-1 01 1 0009- ● ● ● ● ● ● ● ●
206 CLIP; FUEL TANK HARNESS
L=140 THA 		5-09707-031-1 01 1 0009- ● ● ● ● ● ● ● ●
226 CLIP; RAD HARNESS
4JA1 ENG<RLE> ID=18 L=44 THA 		8-94225-185-0 01 1 0009- ●
226 CLIP; RAD HARNESS
ID=18 L=44 THA 		8-94225-185-0 01 1 0009- ● ●
408 CLIP; TRANS HARNESS
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> ID=12 B=14 ID=8.5 THA 		5-09700-350-0 04 1 0009- ● ● ● ● ● ●
483 CLIP; ENG HARNESS
4JA1 ENG<RLE> THA 		8-97914-898-0 01 1 0009- ●
483 CLIP; ENG HARNESS
THA 		8-97914-898-0 01 1 0009- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
