2-08B — CLUTCH MASTER CYLINDER (#4407) — 23 parça

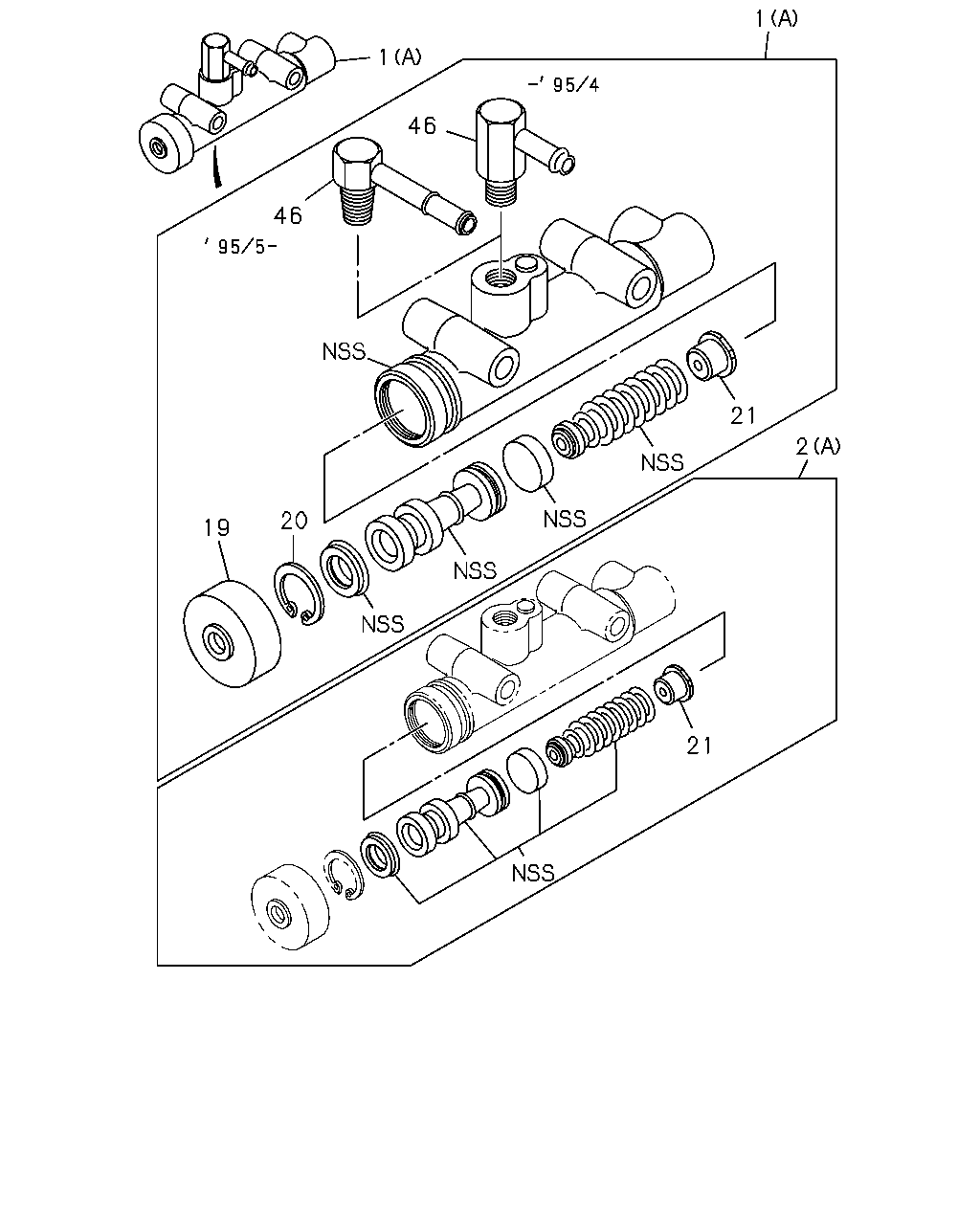

çizim 36585
1 1 46 46 21 2 20 19 21
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 CYLINDER ASM; CLUTCH MASTER
EXC. CLU SYSTEM MINIPACK(B1Z) (A) 		1-47500-255-0 01 1 1210- ● ● ● ● ●
1 CYLINDER ASM; CLUTCH MASTER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-47500-222-0 01 1 9101-9504 ● ● ●
1 CYLINDER ASM; CLUTCH MASTER
(A) 		1-47500-232-1 01 1 9505-9805 ● ● ●
1 CYLINDER ASM; CLUTCH MASTER
(A) 		1-47500-232-2 01 1 9806-1209 ● ● ● ● ●
1 CYLINDER ASM; CLUTCH MASTER
CLU SYSTEM MINIPACK(B1Z) (A) 		1-47500-232-2 01 1 1210- ● ● ● ● ●
2 REPAIR KIT; CLU M/CYL
EXC. CLU SYSTEM MINIPACK(B1Z) (A) 		1-85576-418-0 01 1 1210- ● ● ● ● ●
2 REPAIR KIT; CLU M/CYL
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-87830-370-1 01 1 9101-9504 ● ● ●
2 REPAIR KIT; CLU M/CYL
(A) 		1-85576-114-0 01 1 9505-9805 ● ● ●
2 REPAIR KIT; CLU M/CYL
(A) 		1-85576-114-0 01 1 9806-1209 ● ● ● ● ●
2 REPAIR KIT; CLU M/CYL
CLU SYSTEM MINIPACK(B1Z) (A) 		1-85576-114-0 01 1 1210- ● ● ● ● ●
19 BOOT; CLU M/CYL
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		9-47545-032-0 01 1 9101-9504 ● ● ●
19 BOOT; CLU M/CYL 9-47545-032-0 01 1 9505-9805 ● ● ●
19 BOOT; CLU M/CYL 9-47545-032-0 01 1 9806- ● ● ● ● ●
20 RING; SNAP,BODY
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> OD=26.9 		9-09180-125-0 01 1 9101-9504 ● ● ●
20 RING; SNAP,BODY
OD=26.9 		9-09180-125-0 01 1 9505-9805 ● ● ●
20 RING; SNAP,BODY
OD=26.9 		9-09180-125-0 01 1 9806- ● ● ● ● ●
21 VALVE; CHECK
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-47565-004-0 01 1 9101-9504 ● ● ●
21 VALVE; CHECK 1-47565-004-0 01 1 9505-9805 ● ● ●
21 VALVE; CHECK 1-47565-004-0 01 1 9806-1209 ● ● ● ● ●
21 VALVE; CHECK
CLU SYSTEM MINIPACK(B1Z) 		1-47565-004-0 01 1 1210- ● ● ● ● ●
46 CONNECTOR; PIPE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-47559-016-0 01 1 9101-9504 ● ● ●
46 CONNECTOR; PIPE 1-47517-004-0 01 1 9505-9805 ● ● ●
46 CONNECTOR; PIPE 1-47517-004-0 01 1 9806- ● ● ● ● ●
