◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50890 - TFR/S(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#44069) — 85 parça

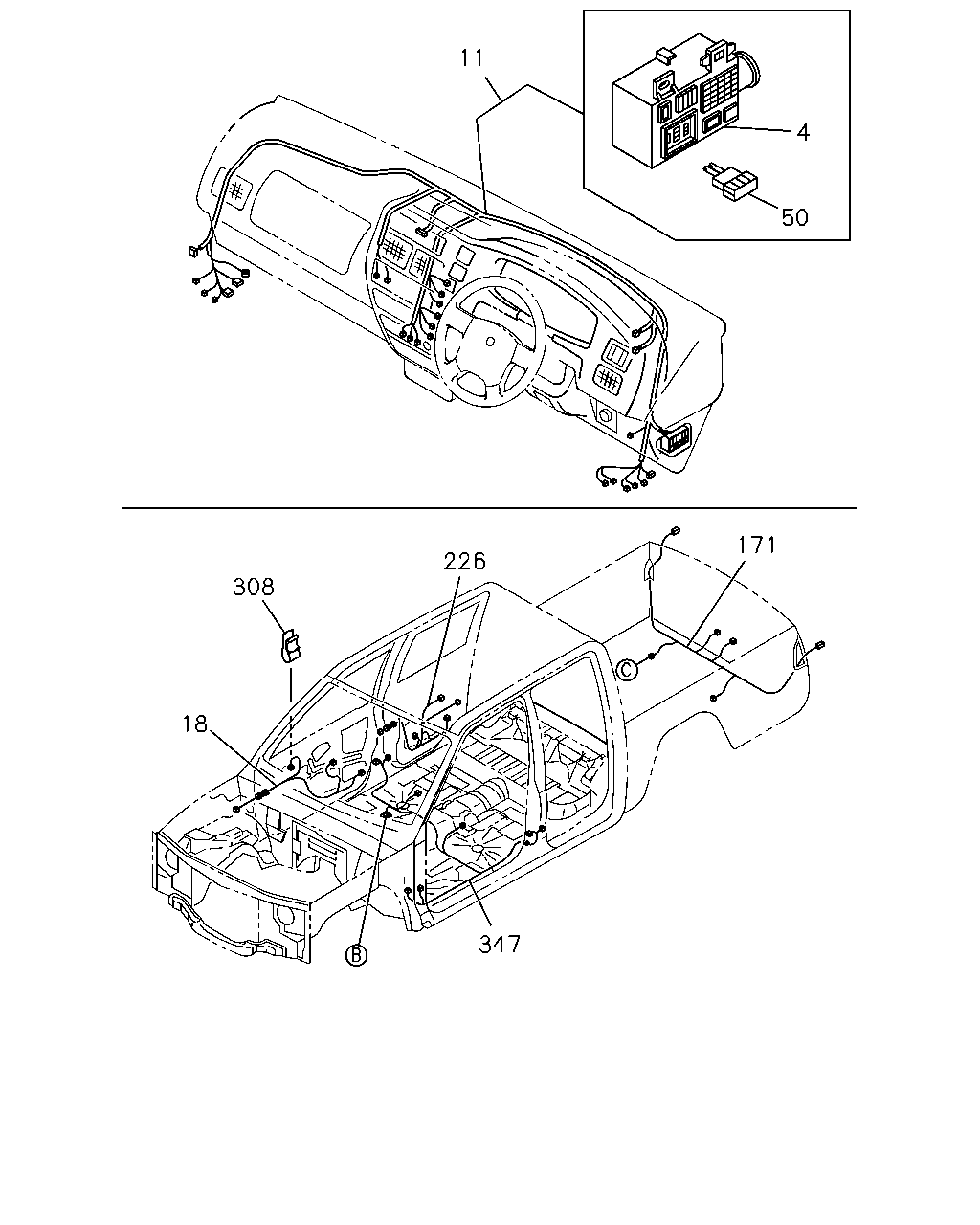

çizim 11141
11 4 50 171 226 308 18 347
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
4 BOX ASM; FUSE,HARNESS
THA 		8-97940-003-1 01 1 0009- ● ● ● ● ● ● ● ●
11 HARNESS; BODY
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> EXC. POWER WINDOW<A30> THA 		8-97920-544-5 01 1 0009- ●
11 HARNESS; BODY
M/T MUA 5 SPEED<RMN> THA 		8-97920-544-5 01 1 0009- ●
11 HARNESS; BODY
THA 		8-97920-544-5 01 1 0009- ● ●
11 HARNESS; BODY
EXC. POWER WINDOW<A30> THA 		8-97920-544-5 01 1 0009- ●
11 HARNESS; BODY
4JH1 ENG<RJX> A/T AISIN<RMD> POWER WINDOW<A30> THA 		8-97920-545-4 01 1 0009- ●
11 HARNESS; BODY
4JH1 ENG<RJX> A/T AISIN<RMD> EXC. POWER WINDOW<A30> THA 		8-97920-546-4 01 1 0009- ●
11 HARNESS; BODY
A/T AISIN<RMD> THA 		8-97920-546-4 01 1 0009- ●
11 HARNESS; BODY
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> POWER WINDOW<A30> THA 		8-97920-543-4 01 1 0009- ● ●
11 HARNESS; BODY
COOLER WO/HEATER<YL1> THA 		8-97918-957-4 01 1 0009-0009 ●
11 HARNESS; BODY
THA 		8-97918-957-4 01 1 0010- ●
11 HARNESS; BODY
EXC. COOLER WO/HEATER<YL1> THA 		8-97920-542-4 01 1 0009-0009 ●
11 HARNESS; BODY
A/T AISIN<RMD> THA 		8-97921-314-2 01 1 0009- ●
11 HARNESS; BODY
M/T MUA 5 SPEED<RMN> THA 		8-97921-313-2 01 1 0009- ●
11 HARNESS; BODY
THA 		8-97921-313-2 01 1 0009- ●
18 HARNESS; DOOR
POWER WINDOW<A30> THA 		8-97913-601-5 02 1 0009-0011 ● ●
18 HARNESS; DOOR
EXC. POWER WINDOW<A30> THA 		8-97913-600-2 02 1 0009-0009 ● ●
18 HARNESS; DOOR
THA 		8-97913-600-2 02 1 0009-0009 ●
18 HARNESS; DOOR
EXC. POWER WINDOW<A30> THA 		8-97913-600-3 02 1 0009- ● ●
18 HARNESS; DOOR
COOLER WO/HEATER<YL1> AM/FM W/CASSETTE ALL AREA BAND 2SPEAKERS<7ND> THA 		8-97913-600-3 02 1 0009- ●
18 HARNESS; DOOR
AM/FM W/CASSETTE ALL AREA BAND 2SPEAKERS<7ND> THA 		8-97132-568-0 02 1 0009- ● ● ●
18 HARNESS; DOOR
THA 		8-97913-601-6 01 1 0009- ● ●
18 HARNESS; DOOR
THA 		8-97913-854-3 01 1 0009- ● ●
50 FUSE; BODY HARNESS
10A RED THA 		8-97912-975-0 AR 1 0009- ● ● ● ● ● ● ● ●
50 FUSE; BODY HARNESS
15A BLUE THA 		8-97912-976-0 AR 1 0009- ● ● ● ● ● ● ● ●
50 FUSE; BODY HARNESS
20A YELLOW THA 		8-97912-977-0 AR 1 0009- ● ● ● ● ● ● ● ●
171 HARNESS; CABLE,TAIL LAMP
THA 		8-97921-595-1 01 1 0009- ● ● ●
171 HARNESS; CABLE,TAIL LAMP
EXC. RR COMB LAMP VERTICAL<T98> THA 		8-97921-595-1 01 1 0009- ● ●
171 HARNESS; CABLE,TAIL LAMP
THA 		8-97912-649-3 01 1 0009- ● ● ●
171 HARNESS; CABLE,TAIL LAMP
RR COMB LAMP VERTICAL<T98> THA 		8-97912-649-3 01 1 0009- ● ●
226 HARNESS; RR DOOR
THA 		8-97921-335-4 02 1 0009- ● ●
308 BRACKET; CONNECTOR
POWER WINDOW<A30> 		8-97102-552-0 02 1 0009- ● ●
308 BRACKET; CONNECTOR 8-97102-552-0 02 1 0009- ● ●
347 HARNESS; CABLE,RR BODY
THA 		8-97918-963-3 01 1 0009- ● ●
347 HARNESS; CABLE,RR BODY
THA 		8-97920-374-3 01 1 0009- ● ● ●
347 HARNESS; CABLE,RR BODY
THA 		8-97918-964-3 01 1 0009- ●
347 HARNESS; CABLE,RR BODY
THA 		8-97921-312-4 01 1 0009- ● ●

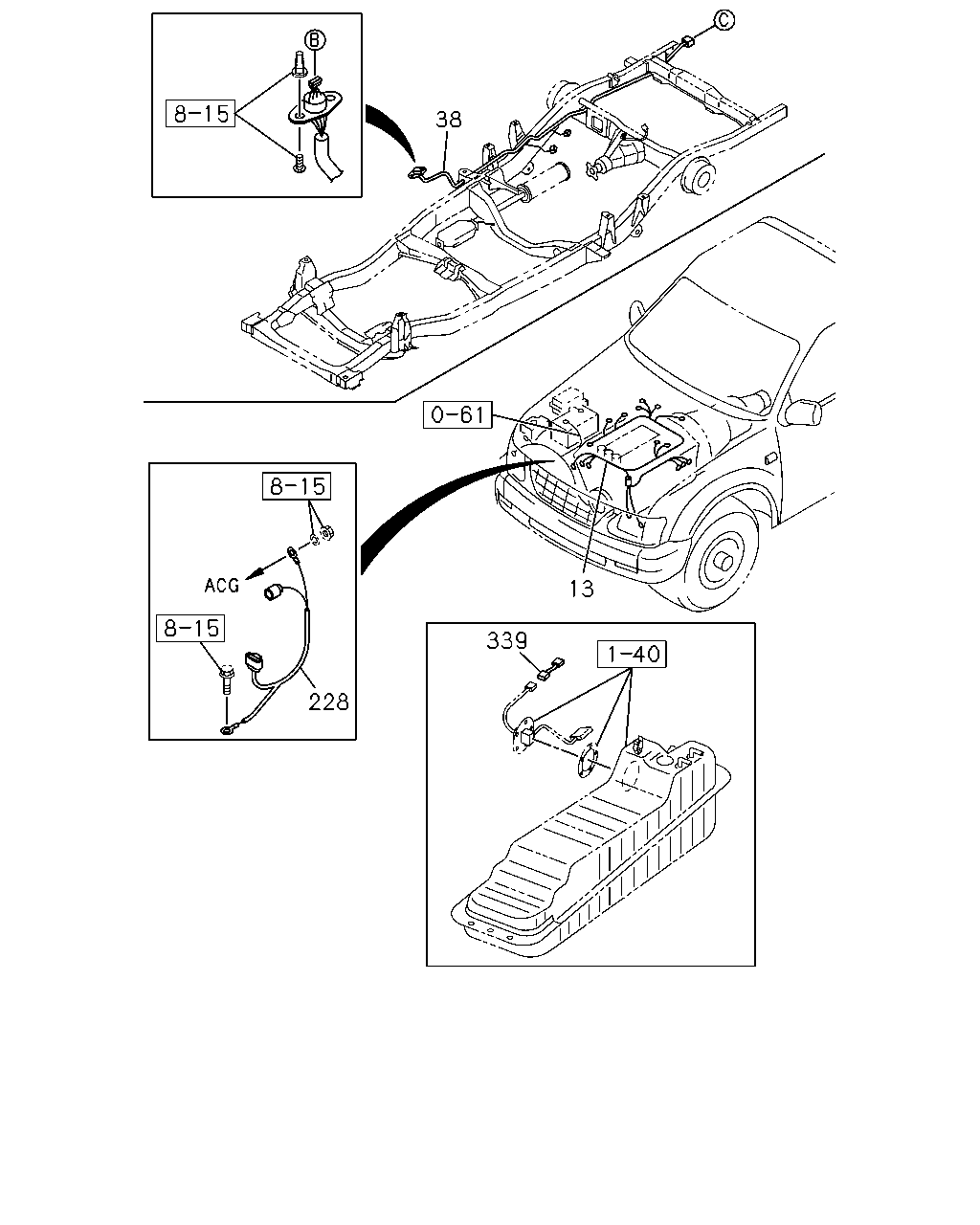

çizim 11443
38 13 339 228
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
13 HARNESS; ENG
4JH1 ENG<RJX> A/T AISIN<RMD> THA 		8-97920-595-7 01 1 0009- ● ● ●
13 HARNESS; ENG
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> THA 		8-97920-616-7 01 1 0009- ● ● ● ● ● ●
13 HARNESS; ENG
4JA1 ENG<RLE> THA 		8-97920-681-1 01 1 0009- ● ●
13 HARNESS; ENG
4JA1 ENG<RLE> THA 		8-97920-680-1 01 1 0009- ●
38 HARNESS; CHAS
THA 		8-97918-953-1 01 1 0009- ● ● ● ● ● ● ● ●
228 HARNESS; GEN
M/T MSG 5 SPEED<M75>,A/T AISIN<RMD> THA 		8-97920-630-3 01 1 0009- ● ● ● ● ●
228 HARNESS; GEN
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> THA 		8-97920-536-5 01 1 0009- ● ● ● ● ● ●
339 HARNESS; EXT,FUEL
THA 		8-97912-121-0 01 1 0009- ● ● ●

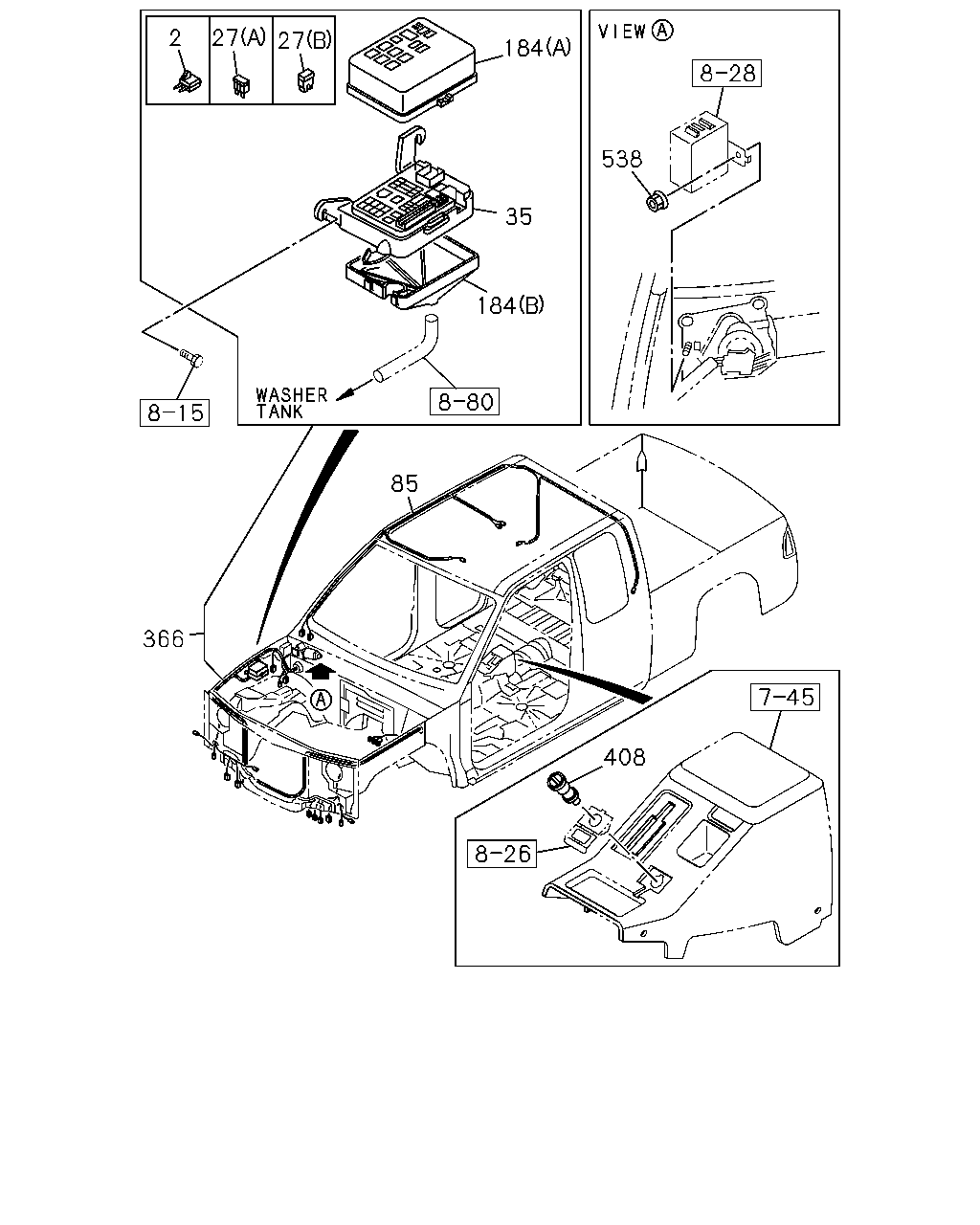

çizim 48855
27 27 2 184 538 35 184 85 366 408
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 DIODE; CABLE HARNESS
BLACK 2P-1.5A THA 		8-94422-639-1 AR 1 0009- ● ● ● ● ● ● ● ●
2 DIODE; CABLE HARNESS
BLACK 3P-1.5A THA 		8-94422-640-1 AR 1 0009- ● ● ● ● ● ● ● ●
27 FUSE UNIT
(B) 20A THA 		8-94468-660-0 AR 1 0009- ● ● ● ● ● ● ● ●
27 FUSE UNIT
(B) 40A GREEN THA 		8-94468-662-0 AR 1 0009- ● ● ● ● ● ● ● ●
27 FUSE UNIT
(A) 10A MINI RED 		8-97062-022-0 AR 1 0009- ● ● ● ● ● ● ● ●
27 FUSE UNIT
(A) 15A MINI BLUE 		8-97062-023-0 AR 1 0009- ● ● ● ● ● ● ● ●
27 FUSE UNIT
(A) 20A MINI YELLOW 		8-97062-024-0 AR 1 0009- ● ● ● ● ● ● ● ●
27 FUSE UNIT
40A GREEN THA 		8-94388-301-0 AR 1 0009- ● ● ● ● ● ● ● ●
27 FUSE UNIT
80A BLACK THA 		8-94388-305-0 AR 1 0009- ● ● ● ● ● ● ● ●
27 FUSE UNIT
40A GREEN THA 		8-97183-644-0 AR 1 0009- ● ● ● ● ● ● ● ●
35 BOX; RELAY & FUSE
THA 		8-97940-316-0 01 1 0009- ● ● ● ● ● ● ● ●
85 HARNESS; ROOM LAMP
MAP LAMP<UF3> THA 		8-97919-360-1 01 1 0009- ● ●
85 HARNESS; ROOM LAMP
THA 		8-97919-360-1 01 1 0009- ● ●
85 HARNESS; ROOM LAMP
EXC. MAP LAMP<UF3> THA 		8-97912-648-1 01 1 0009- ● ●
85 HARNESS; ROOM LAMP
THA 		8-97912-648-1 01 1 0009- ● ●
85 HARNESS; ROOM LAMP
THA 		8-97921-311-0 01 1 0009- ● ●
184 COVER; RELAY & FUSE BOX
(A) THA 		8-97104-114-0 01 1 0009- ● ● ● ● ● ● ● ●
184 COVER; RELAY & FUSE BOX
(B) THA 		8-97104-115-1 01 1 0009- ● ● ● ● ● ● ● ●
366 HARNESS; CABLE,ENG ROOM
4JA1 ENG<RLE> FOG LAMP<T96> EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<TGR> THA 		8-97921-172-2 01 1 0009- ●
366 HARNESS; CABLE,ENG ROOM
4JA1 ENG<RLE> EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<TGR>,FOG LAMP<T96> THA 		8-97921-180-2 01 1 0009- ●
366 HARNESS; CABLE,ENG ROOM
THA 		8-97921-180-2 01 1 0009- ●
366 HARNESS; CABLE,ENG ROOM
4JA1 ENG<RLE> M/T MSG 5 SPEED<M75> HIGH INTENSITY DISCHARGE HEAD LAMPS<TGR> THA 		8-97921-167-2 01 1 0009- ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> A/T AISIN<RMD> FOG LAMP<T96> EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<TGR> THA 		8-97921-168-5 01 1 0009- ●
366 HARNESS; CABLE,ENG ROOM
A/T AISIN<RMD> EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<TGR> THA 		8-97921-168-5 01 1 0009- ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> A/T AISIN<RMD> EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<TGR>,FOG LAMP<T96> THA 		8-97921-178-5 01 1 0009- ●
366 HARNESS; CABLE,ENG ROOM
A/T AISIN<RMD> EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<TGR> THA 		8-97921-178-5 01 1 0009- ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> FOG LAMP<T96> EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<TGR> THA 		8-97921-169-5 01 1 0009- ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED<RMN> EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<TGR> THA 		8-97921-169-5 01 1 0009- ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> A/T AISIN<RMD> HIGH INTENSITY DISCHARGE HEAD LAMPS<TGR> THA 		8-97921-166-5 01 1 0009- ● ● ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> HIGH INTENSITY DISCHARGE HEAD LAMPS<TGR> EXC. SHIFT ON THE FLY<7EX> THA 		8-97921-165-5 01 1 0009-0011 ● ● ● ● ● ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> HIGH INTENSITY DISCHARGE HEAD LAMPS<TGR> THA 		8-97921-165-5 01 1 0012- ● ● ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<TGR>,FOG LAMP<T96> THA 		8-97921-179-6 01 1 0009- ● ● ● ● ●
366 HARNESS; CABLE,ENG ROOM
THA 		8-97921-171-2 01 1 0009- ●
366 HARNESS; CABLE,ENG ROOM
HIGH INTENSITY DISCHARGE HEAD LAMPS<TGR> SHIFT ON THE FLY<7EX> THA 		8-97921-163-6 01 1 0009-0011 ● ● ●
366 HARNESS; CABLE,ENG ROOM
HIGH INTENSITY DISCHARGE HEAD LAMPS<TGR> THA 		8-97921-163-6 01 1 0012- ● ● ●
366 HARNESS; CABLE,ENG ROOM
SHIFT ON THE FLY<7EX> EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<TGR> THA 		8-97921-170-6 01 1 0009-0011 ● ● ●
366 HARNESS; CABLE,ENG ROOM
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<TGR> THA 		8-97921-170-6 01 1 0012- ● ● ●
408 SOCKET ASM; ACCESSORY
SPECIAL PACKAGE<7BB>,SPECIAL PACKAGE VAR.2<7TB> 		8-94382-451-1 01 1 0009- ● ●
408 SOCKET ASM; ACCESSORY 8-94382-451-1 01 1 0009- ● ● ● ● ●
538 NUT
M6 W/DISHED WASHER 		8-94423-325-0 01 1 0009- ● ● ● ● ● ● ● ●
