8-05 — INTERIOR LAMP (#44068) — 22 parça

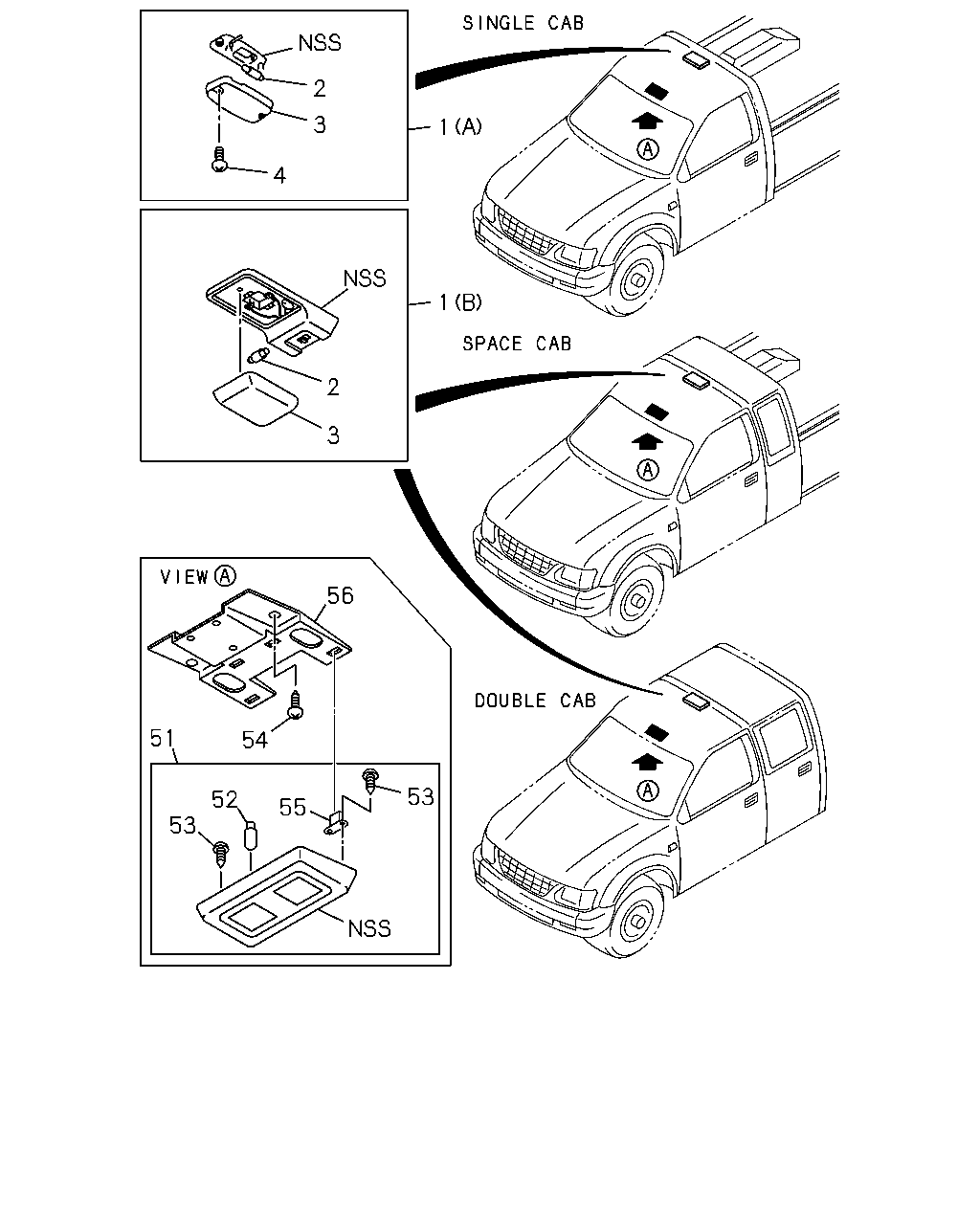

çizim 51432
2 3 1 4 1 2 3 56 51 54 53 52 53 55
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 LAMP ASM; ROOM
(B) THA 		8-97911-383-3 01 1 0009- ● ● ● ●
1 LAMP ASM; ROOM
(A) THA 		8-97911-384-0 01 1 0009- ●
2 BULB; ROOM LAMP
12V 10W THA 		8-97913-044-0 01 1 0009- ● ● ● ●
2 BULB; ROOM LAMP
12V 10W THA 		5-82194-015-0 01 1 0009- ●
3 LENS; ROOM LAMP
THA 		8-97913-045-0 01 1 0009- ● ● ● ●
3 LENS; ROOM LAMP
THA 		8-94289-167-1 01 1 0009- ●
4 SCREW; ROOM LAMP
THA 		8-94334-545-0 02 1 0009- ●
51 LAMP ASM; SPOT
MAP LAMP<UF3> THA 		8-97918-341-3 01 1 0009- ● ●
51 LAMP ASM; SPOT
THA 		8-97918-341-3 01 1 0009- ● ● ● ●
52 BULB; SPOT LAMP
MAP LAMP<UF3> 12V 5W THA 		8-97920-167-0 02 1 0009- ● ●
52 BULB; SPOT LAMP
12V 5W THA 		8-97920-167-0 02 1 0009- ● ● ● ●
53 SCREW; SPRING,SPOT LAMP
MAP LAMP<UF3> THA 		8-97920-166-0 10 1 0009- ● ●
53 SCREW; SPRING,SPOT LAMP
THA 		8-97920-166-0 10 1 0009- ● ● ● ●
54 SCREW; TAP,SPOT LAMP BRKT
MAP LAMP<UF3> M5X12 		8-94120-094-0 02 1 0009- ● ●
54 SCREW; TAP,SPOT LAMP BRKT
M5X12 		8-94120-094-0 02 1 0009- ● ● ● ●
55 SPRING; SPOT LAMP
MAP LAMP<UF3> THA 		8-97920-168-1 04 1 0009- ● ●
55 SPRING; SPOT LAMP
THA 		8-97920-168-1 04 1 0009- ● ● ● ●
56 BRACKET; LAMP
MAP LAMP<UF3> THA 		8-97921-769-0 01 1 0011- ● ●
56 BRACKET; LAMP
THA 		8-97921-769-0 01 1 0011- ● ●
56 BRACKET; LAMP
MAP LAMP<UF3> THA 		8-97918-342-0 01 1 0009-0010 ● ●
56 BRACKET; LAMP
THA 		8-97918-342-0 01 1 0009-0010 ● ● ● ●
56 BRACKET; LAMP
THA 		8-97918-342-1 01 1 0011- ● ●
