◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50890 - TFR/S(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-03 - LAMP; REAR AND REAR SIDE ▶
8-03 — LAMP; REAR AND REAR SIDE (#44067) — 38 parça

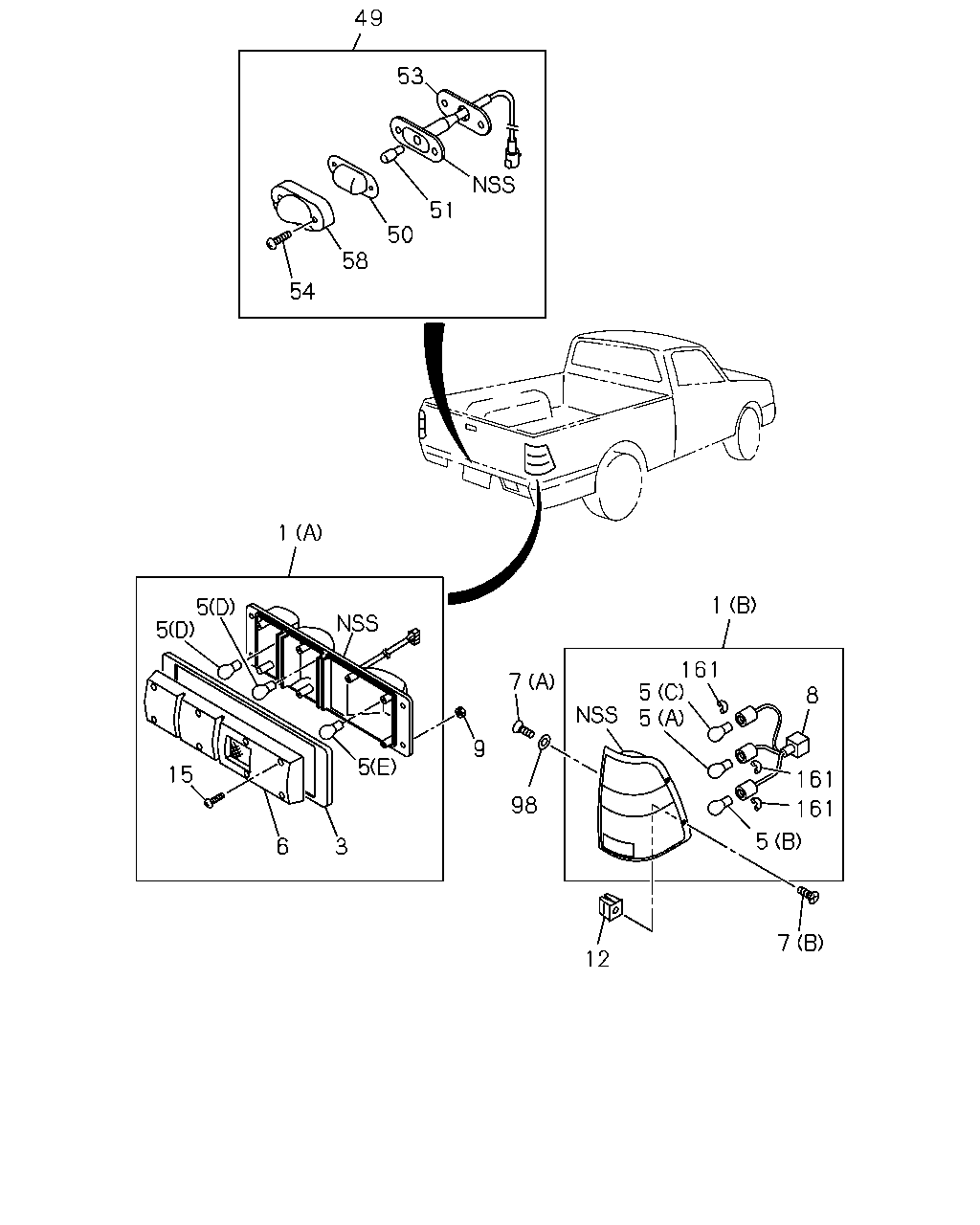

çizim 48818
49 53 51 50 58 54 1 1 50 50 161 5 5 7 8 5 9 15 161 161 5 98 6 3 7 12
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 LAMP ASM; RR COMB
(B) THA 		8-97918-505-2 01 1 0009- ● ● ● ● ● ●
1 LAMP ASM; RR COMB
RR COMB LAMP VERTICAL<T98> (B) THA 		8-97918-505-2 01 1 0009- ● ●
1 LAMP ASM; RR COMB
(B) THA 		8-97918-504-2 01 1 0009- ● ● ● ● ● ●
1 LAMP ASM; RR COMB
RR COMB LAMP VERTICAL<T98> (B) THA 		8-97918-504-2 01 1 0009- ● ●
1 LAMP ASM; RR COMB
EXC. RR COMB LAMP VERTICAL<T98> (A) 		8-97137-732-0 01 1 0009- ● ●
1 LAMP ASM; RR COMB
EXC. RR COMB LAMP VERTICAL<T98> (A) 		8-97137-731-0 01 1 0009- ● ●
3 GASKET; RR COMB LAMP
EXC. RR COMB LAMP VERTICAL<T98> 		5-82236-002-0 01 1 0009- ● ●
3 GASKET; RR COMB LAMP
EXC. RR COMB LAMP VERTICAL<T98> 		5-82236-001-0 01 1 0009- ● ●
5 BULB; RR COMB LAMP
(B) 12V 21/5W THA 		8-97913-051-0 02 1 0009- ● ● ● ● ● ●
5 BULB; RR COMB LAMP
RR COMB LAMP VERTICAL<T98> (B) 12V 21/5W THA 		8-97913-051-0 02 1 0009- ● ●
5 BULB; RR COMB LAMP
(A) 12V 21W THA 		8-97913-052-0 02 1 0009- ● ● ● ● ● ●
5 BULB; RR COMB LAMP
RR COMB LAMP VERTICAL<T98> (A) 12V 21W THA 		8-97913-052-0 02 1 0009- ● ●
5 BULB; RR COMB LAMP
(C) 12V 21W THA 		8-97920-252-0 02 1 0009- ● ● ● ● ● ●
5 BULB; RR COMB LAMP
RR COMB LAMP VERTICAL<T98> (C) 12V 21W THA 		8-97920-252-0 02 1 0009- ● ●
5 BULB; RR COMB LAMP
EXC. RR COMB LAMP VERTICAL<T98> (D) 12V 21W THA 		8-94124-074-0 04 1 0009- ● ●
5 BULB; RR COMB LAMP
EXC. RR COMB LAMP VERTICAL<T98> (E) 12V 21/5W THA 		8-94125-959-0 02 1 0009- ● ●
6 LENS; RR COMB LAMP
EXC. RR COMB LAMP VERTICAL<T98> 		5-82235-002-0 01 1 0009- ● ●
6 LENS; RR COMB LAMP
EXC. RR COMB LAMP VERTICAL<T98> 		5-82235-001-0 01 1 0009- ● ●
7 SCREW; RR COMB LAMP
(A) M5X14 TAPPING 		1-72548-072-0 04 1 0009- ● ● ● ● ● ●
7 SCREW; RR COMB LAMP
RR COMB LAMP VERTICAL<T98> (A) M5X14 TAPPING 		1-72548-072-0 04 1 0009- ● ●
7 SCREW; RR COMB LAMP
(B) M5X20 		8-97811-082-0 04 1 0009- ● ● ● ● ● ●
7 SCREW; RR COMB LAMP
RR COMB LAMP VERTICAL<T98> (B) M5X20 		8-97811-082-0 04 1 0009- ● ●
8 HARNESS; RR COMB LAMP
THA 		8-97913-327-0 02 1 0009- ● ● ● ● ● ●
8 HARNESS; RR COMB LAMP
RR COMB LAMP VERTICAL<T98> THA 		8-97913-327-0 02 1 0009- ● ●
9 NUT; LAMP,RR COMB
EXC. RR COMB LAMP VERTICAL<T98> M5 FLANGE THA 		5-09440-003-0 08 1 0009- ● ●
12 GROMMET; RR COMB LAMP
D=7X7 L=7.5 THA 		5-09983-007-0 04 1 0009- ● ● ● ● ● ●
12 GROMMET; RR COMB LAMP
RR COMB LAMP VERTICAL<T98> D=7X7 L=7.5 THA 		5-09983-007-0 04 1 0009- ● ●
15 SCREW; RR COMB LAMP
EXC. RR COMB LAMP VERTICAL<T98> M4X20 TAPPING STAINLESS 		0-71090-420-0 16 1 0009- ● ●
49 LAMP; LICENSE PLATE
THA 		8-97910-608-4 01 1 0009- ● ● ● ● ● ●
50 LENS; LICENSE PLATE LAMP
THA 		8-97913-002-0 01 1 0009- ● ● ● ● ● ●
51 BULB; LICENSE PLATE LAMP
12V 5W THA 		8-97913-001-0 01 1 0009- ● ● ● ● ● ●
53 GASKET; LICENSE LAMP
THA 		8-97913-295-0 01 1 0009- ● ● ● ● ● ●
54 SCREW; LICENSE PLATE LAMP
THA 		8-97913-004-0 02 1 0009- ● ● ● ● ● ●
58 COVER; LICENSE PLATE LAMP
THA 		8-97913-003-0 01 1 0009- ● ● ● ● ● ●
98 WASHER
D=16 THA 		8-94427-941-0 04 1 0009- ● ● ● ● ● ●
98 WASHER
RR COMB LAMP VERTICAL<T98> D=16 THA 		8-94427-941-0 04 1 0009- ● ●
161 TUBE; RR COMB LAMP
THA 		8-97913-050-0 06 1 0009- ● ● ● ● ● ●
161 TUBE; RR COMB LAMP
RR COMB LAMP VERTICAL<T98> THA 		8-97913-050-0 06 1 0009- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
