8-01 — LAMP; FRONT AND FRONT SIDE (#44066) — 140 parça

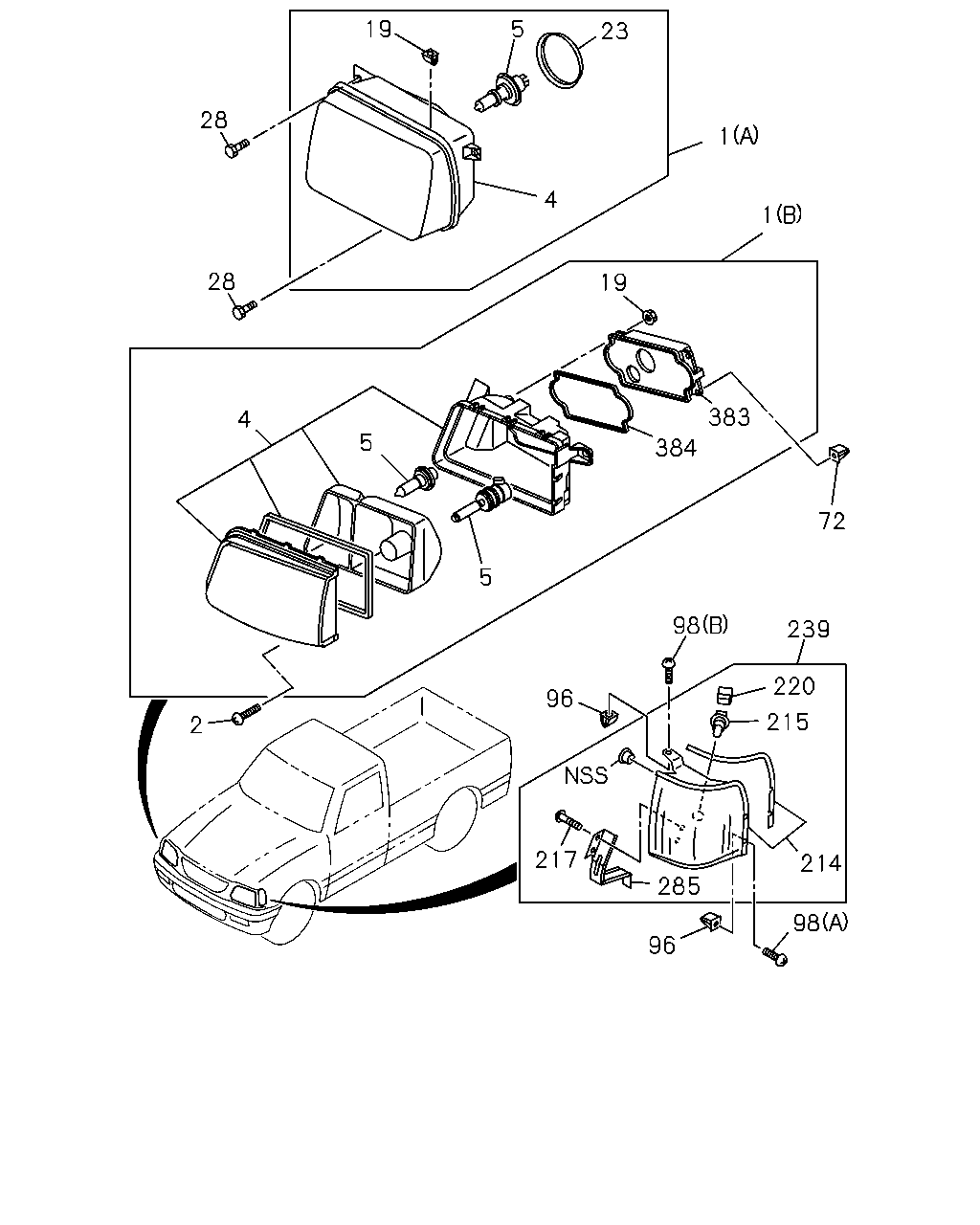

çizim 48270
19 5 23 28 1 4 1 28 19 383 384 4 5 72 5 98 239 220 96 215 2 217 214 285 98 96
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 LAMP ASM; HEAD
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> EXC. SPECIAL PACKAGE<7BB>,SPECIAL PACKAGE VAR.2<7TB> (A) THA 		8-97920-684-0 01 1 0009-0104 ● ● ● ● ● ● ●
1 LAMP ASM; HEAD
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> THA 		8-97920-684-1 01 1 0105- ● ● ● ● ● ● ●
1 LAMP ASM; HEAD
THA 		8-97920-684-1 01 1 0105- ●
1 LAMP ASM; HEAD
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> EXC. SPECIAL PACKAGE<7BB>,SPECIAL PACKAGE VAR.2<7TB> (A) THA 		8-97920-683-0 01 1 0009-0104 ● ● ● ● ● ● ●
1 LAMP ASM; HEAD
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> THA 		8-97920-683-1 01 1 0105- ● ● ● ● ● ● ●
1 LAMP ASM; HEAD
THA 		8-97920-683-1 01 1 0105- ●
1 LAMP ASM; HEAD
HIGH INTENSITY DISCHARGE HEAD LAMPS<TGR> (B) THA 		8-97918-225-5 01 1 0009- ● ● ● ● ● ●
1 LAMP ASM; HEAD
HIGH INTENSITY DISCHARGE HEAD LAMPS<TGR> (B) THA 		8-97918-224-4 01 1 0009- ● ● ● ● ● ●
1 LAMP ASM; HEAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) THA 		8-97910-308-1 01 1 0009- ● ● ●
1 LAMP ASM; HEAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) THA 		8-97910-307-1 01 1 0009- ● ● ●
1 LAMP ASM; HEAD
SPECIAL PACKAGE<7BB>,SPECIAL PACKAGE VAR.2<7TB> HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (A) THA 		8-97917-420-1 01 1 0009-0104 ● ● ● ●
1 LAMP ASM; HEAD
SPECIAL PACKAGE<7BB>,SPECIAL PACKAGE VAR.2<7TB> HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (A) THA 		8-97917-419-1 01 1 0009-0104 ● ● ● ●
2 SCREW; BRKT,HEADLAMP
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<TGR>,HALOGEN HEAD LAMP RECTANGULAR<TR4>, HALOGENHEAD LAMPS MULTI REFLECTOR<7YW> M5X16 TAPPING 		9-07076-516-0 06 1 0009- ● ● ● ● ● ●
4 HEADLAMP UNIT
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> EXC. SPECIAL PACKAGE<7BB>,SPECIAL PACKAGE VAR.2<7TB> THA 		8-97921-158-0 01 1 0009-0104 ● ● ● ● ● ● ●
4 HEADLAMP UNIT
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> THA 		8-97921-158-0 01 1 0105- ● ● ● ● ● ● ●
4 HEADLAMP UNIT
THA 		8-97921-158-0 01 1 0105- ●
4 HEADLAMP UNIT
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> EXC. SPECIAL PACKAGE<7BB>,SPECIAL PACKAGE VAR.2<7TB> THA 		8-97921-157-0 01 1 0009-0104 ● ● ● ● ● ● ●
4 HEADLAMP UNIT
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> THA 		8-97921-157-0 01 1 0105- ● ● ● ● ● ● ●
4 HEADLAMP UNIT
THA 		8-97921-157-0 01 1 0105- ●
4 HEADLAMP UNIT
HIGH INTENSITY DISCHARGE HEAD LAMPS<TGR> THA 		8-97920-256-0 01 1 0009- ● ● ● ● ● ●
4 HEADLAMP UNIT
HIGH INTENSITY DISCHARGE HEAD LAMPS<TGR> THA 		8-97920-255-0 01 1 0009- ● ● ● ● ● ●
4 HEADLAMP UNIT
HALOGEN HEAD LAMP RECTANGULAR<TR4> THA 		8-97914-645-0 01 1 0009- ● ● ●
4 HEADLAMP UNIT
HALOGEN HEAD LAMP RECTANGULAR<TR4> THA 		8-97914-324-0 01 1 0009- ● ● ●
4 HEADLAMP UNIT
SPECIAL PACKAGE<7BB>,SPECIAL PACKAGE VAR.2<7TB> HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> THA 		8-97918-203-0 01 1 0009-0104 ● ● ● ●
4 HEADLAMP UNIT
SPECIAL PACKAGE<7BB>,SPECIAL PACKAGE VAR.2<7TB> HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> THA 		8-97918-202-0 01 1 0009-0104 ● ● ● ●
5 BULB; HEADLAMP
HIGH INTENSITY DISCHARGE HEAD LAMPS<TGR> 12V 35W THA 		8-97921-486-0 02 1 0009- ● ● ● ● ● ●
5 BULB; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 12V 60/55W THA 		8-97914-323-0 02 1 0009- ● ● ● ● ● ● ●
5 BULB; HEADLAMP
12V 60/55W THA 		8-97914-323-0 02 1 0009- ●
5 BULB; HEADLAMP
HIGH INTENSITY DISCHARGE HEAD LAMPS<TGR> 12V 60W THA 		8-97920-253-0 02 1 0009- ● ● ● ● ● ●
19 NUT; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> THA 		8-97913-042-0 02 1 0009- ● ● ● ● ● ● ●
19 NUT; HEADLAMP
THA 		8-97913-042-0 02 1 0009- ●
19 NUT; HEADLAMP
HIGH INTENSITY DISCHARGE HEAD LAMPS<TGR> THA 		8-97920-258-0 08 1 0009- ● ● ● ● ● ●
23 COVER; BULB,HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> THA 		8-97913-043-0 02 1 0009- ● ● ● ● ● ● ●
23 COVER; BULB,HEADLAMP
THA 		8-97913-043-0 02 1 0009- ●
28 BOLT; HEADLAMP
HIGH INTENSITY DISCHARGE HEAD LAMPS<TGR>, HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN HEADLAMPS MULTI REFLECTOR<7YW> THA 		8-97916-317-0 08 1 0009- ● ● ● ● ● ● ● ●
72 GROMMET; SCREW,HEADLAMP
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<TGR>,HALOGEN HEAD LAMP RECTANGULAR<TR4>, HALOGENHEAD LAMPS MULTI REFLECTOR<7YW> D=7X7 L=7.5 THA 		8-94291-927-0 06 1 0009- ● ● ● ● ● ●
96 GROMMET; SCREW,SIDE COMB LAMP
M4 THA 		5-09470-002-0 04 1 0009- ● ● ● ● ● ● ● ●
98 SCREW; SIDE COMB LAMP
(A) M4X25 		8-97165-952-0 04 1 0009- ● ● ● ● ● ● ● ●
98 SCREW; SIDE COMB LAMP
(B) M4X16 W/WASHER 		8-97809-122-0 02 1 0009- ● ● ● ● ● ● ● ●
214 UNIT; CLEARANCE LAMP
HIGH INTENSITY DISCHARGE HEAD LAMPS<TGR>, HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> THA 		8-97918-664-0 01 1 0009- ● ● ● ● ● ● ● ●
214 UNIT; CLEARANCE LAMP
HIGH INTENSITY DISCHARGE HEAD LAMPS<TGR>, HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> THA 		8-97918-663-0 01 1 0009- ● ● ● ● ● ● ● ●
214 UNIT; CLEARANCE LAMP
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<TGR>,HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> THA 		8-97914-697-0 01 1 0009- ● ● ● ● ● ●
214 UNIT; CLEARANCE LAMP
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<TGR>,HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> THA 		8-97914-696-0 01 1 0009- ● ● ● ● ● ●
215 BULB; FRT CLEARANCE LAMP
HIGH INTENSITY DISCHARGE HEAD LAMPS<TGR>, HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 12V 5W THA 		8-97913-001-0 02 1 0009- ● ● ● ● ● ● ● ●
215 BULB; FRT CLEARANCE LAMP
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<TGR>,HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 12V 5W 		5-82194-006-0 02 1 0009- ● ● ● ● ● ●
217 SCREW; FRT CLEARANCE LAMP
THA 		8-97914-700-0 04 1 0009- ● ● ● ● ● ● ● ●
220 SOCKET; CLEARANCE LAMP
THA 		8-97914-327-0 02 1 0009- ● ● ● ● ● ● ● ●
239 LAMP; FRT,CLEARANCE & PARKING
HIGH INTENSITY DISCHARGE HEAD LAMPS<TGR>, HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> THA 		8-97918-052-2 01 1 0009- ● ● ● ● ● ● ● ●
239 LAMP; FRT,CLEARANCE & PARKING
HIGH INTENSITY DISCHARGE HEAD LAMPS<TGR>, HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> THA 		8-97913-910-2 01 1 0009- ● ● ● ● ● ● ● ●
239 LAMP; FRT,CLEARANCE & PARKING
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<TGR>,HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> THA 		8-97910-310-6 01 1 0009- ● ● ● ● ● ●
239 LAMP; FRT,CLEARANCE & PARKING
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<TGR>,HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> THA 		8-97910-309-6 01 1 0009- ● ● ● ● ● ●
285 BRACKET; FRT CLEARANCE LAMP
THA 		8-97914-699-0 01 1 0009- ● ● ● ● ● ● ● ●
285 BRACKET; FRT CLEARANCE LAMP
THA 		8-97914-698-0 01 1 0009- ● ● ● ● ● ● ● ●
383 STARTER ASM; DISCHARGE,HEADLAMP
HIGH INTENSITY DISCHARGE HEAD LAMPS<TGR> THA 		8-97920-257-0 02 1 0009- ● ● ● ● ● ●
384 GASKET; DISCHARGE,HEADLAMP
HIGH INTENSITY DISCHARGE HEAD LAMPS<TGR> THA 		8-97920-269-0 02 1 0009- ● ● ● ● ● ●

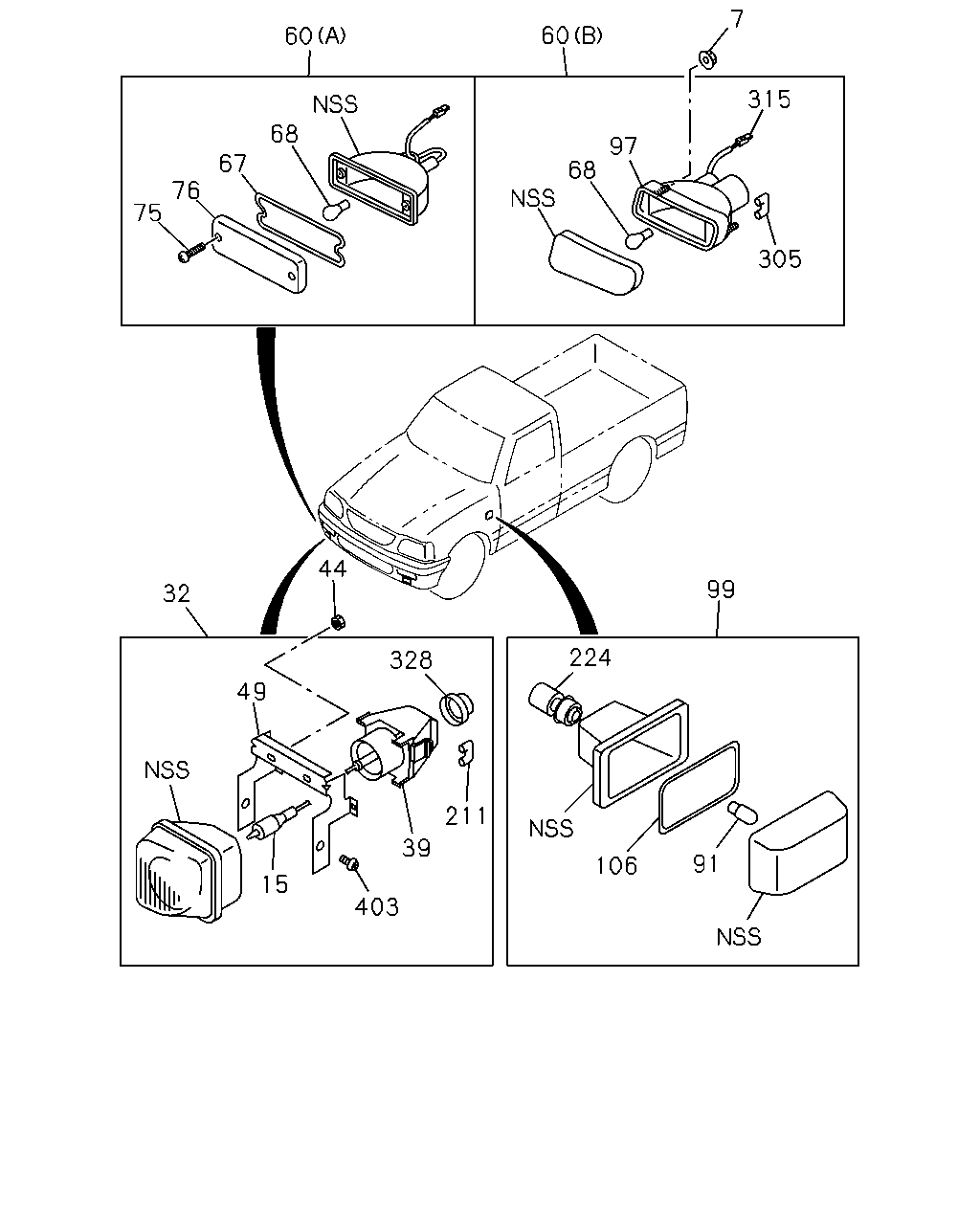

çizim 48777
7 60 60 315 68 97 68 67 76 75 305 44 99 32 224 328 49 211 39 91 106 15 403
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
7 NUT; FRT COMB LAMP
FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> M5 FLANGE 		8-97068-819-0 04 1 0009-0105 ● ● ●
7 NUT; FRT COMB LAMP
M5 FLANGE 		8-97068-819-0 04 1 0009-0105 ● ● ● ●
7 NUT; FRT COMB LAMP
FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> M5 FLANGE 		8-97068-819-0 04 1 0106- ● ● ● ●
7 NUT; FRT COMB LAMP
M5 FLANGE 		8-97068-819-0 04 1 0106- ● ● ● ●
15 BULB; FOG LAMP
FOG LAMP<T96> THA 		8-97920-260-0 02 1 0009- ●
15 BULB; FOG LAMP
THA 		8-97920-260-0 02 1 0009- ●
32 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-97918-517-1 01 1 0009- ●
32 LAMP ASM; FOG
THA 		8-97918-517-1 01 1 0009- ●
32 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-97918-516-1 01 1 0009- ●
32 LAMP ASM; FOG
THA 		8-97918-516-1 01 1 0009- ●
39 UNIT; FOG LAMP
FOG LAMP<T96> THA 		8-97920-265-0 01 1 0009- ●
39 UNIT; FOG LAMP
THA 		8-97920-265-0 01 1 0009- ●
39 UNIT; FOG LAMP
FOG LAMP<T96> THA 		8-97920-264-0 01 1 0009- ●
39 UNIT; FOG LAMP
THA 		8-97920-264-0 01 1 0009- ●
44 NUT; FOG LAMP
FOG LAMP<T96> M6 FLANGE 		0-91150-106-0 04 1 0009- ●
44 NUT; FOG LAMP
M6 FLANGE 		0-91150-106-0 04 1 0009- ●
49 BRACKET; LAMP
FOG LAMP<T96> THA 		8-97920-262-0 02 1 0009- ●
49 BRACKET; LAMP
THA 		8-97920-262-0 02 1 0009- ●
60 LAMP ASM; FRT COMB
(B) THA 		8-97918-502-0 01 1 0009-0108 ● ● ● ● ● ●
60 LAMP ASM; FRT COMB
SPECIAL PACKAGE VAR.2<7TB> (B) THA 		8-97918-502-0 01 1 0009-0108 ●
60 LAMP ASM; FRT COMB
THA 		8-97918-502-0 01 1 0109- ● ● ● ● ● ●
60 LAMP ASM; FRT COMB
POWER STEERING<N40> THA 		8-97918-502-0 01 1 0109- ●
60 LAMP ASM; FRT COMB
SPECIAL PACKAGE VAR.2<7TB> THA 		8-97918-502-0 01 1 0109- ●
60 LAMP ASM; FRT COMB
(B) THA 		8-97918-501-0 01 1 0009-0108 ● ● ● ● ● ●
60 LAMP ASM; FRT COMB
SPECIAL PACKAGE VAR.2<7TB> (B) THA 		8-97918-501-0 01 1 0009-0108 ●
60 LAMP ASM; FRT COMB
THA 		8-97918-501-0 01 1 0109- ● ● ● ● ● ●
60 LAMP ASM; FRT COMB
POWER STEERING<N40> THA 		8-97918-501-0 01 1 0109- ●
60 LAMP ASM; FRT COMB
SPECIAL PACKAGE VAR.2<7TB> THA 		8-97918-501-0 01 1 0109- ●
60 LAMP ASM; FRT COMB
(A) THA 		8-97919-749-0 01 1 0009-0108 ●
60 LAMP ASM; FRT COMB
EXC. SPECIAL PACKAGE VAR.2<7TB> (A) THA 		8-97919-749-0 01 1 0009-0108 ●
60 LAMP ASM; FRT COMB
EXC. POWER STEERING<N40> THA 		8-97919-749-0 01 1 0109- ●
60 LAMP ASM; FRT COMB
EXC. SPECIAL PACKAGE VAR.2<7TB> THA 		8-97919-749-0 01 1 0109- ●
60 LAMP ASM; FRT COMB
(A) THA 		8-97919-748-0 01 1 0009-0108 ●
60 LAMP ASM; FRT COMB
EXC. SPECIAL PACKAGE VAR.2<7TB> (A) THA 		8-97919-748-0 01 1 0009-0108 ●
60 LAMP ASM; FRT COMB
EXC. POWER STEERING<N40> THA 		8-97919-748-0 01 1 0109- ●
60 LAMP ASM; FRT COMB
EXC. SPECIAL PACKAGE VAR.2<7TB> THA 		8-97919-748-0 01 1 0109- ●
67 GASKET; FRT COMB LAMP
THA 		8-97913-005-0 02 1 0009-0108 ●
67 GASKET; FRT COMB LAMP
EXC. SPECIAL PACKAGE VAR.2<7TB> THA 		8-97913-005-0 02 1 0009-0108 ●
67 GASKET; FRT COMB LAMP
EXC. POWER STEERING<N40> THA 		8-97913-005-0 02 1 0109- ●
67 GASKET; FRT COMB LAMP
EXC. SPECIAL PACKAGE VAR.2<7TB> THA 		8-97913-005-0 02 1 0109- ●
68 BULB; FRT COMB LAMP
12V 21W THA 		8-97920-169-0 02 1 0009- ● ● ● ● ● ● ● ●
75 SCREW; FRT COMB LAMP
THA 		8-97913-008-0 04 1 0009-0108 ●
75 SCREW; FRT COMB LAMP
EXC. SPECIAL PACKAGE VAR.2<7TB> THA 		8-97913-008-0 04 1 0009-0108 ●
75 SCREW; FRT COMB LAMP
EXC. POWER STEERING<N40> THA 		8-97913-008-0 04 1 0109- ●
75 SCREW; FRT COMB LAMP
EXC. SPECIAL PACKAGE VAR.2<7TB> THA 		8-97913-008-0 04 1 0109- ●
76 LENS; FRT COMB LAMP
THA 		8-97920-175-0 01 1 0009-0108 ●
76 LENS; FRT COMB LAMP
EXC. SPECIAL PACKAGE VAR.2<7TB> THA 		8-97920-175-0 01 1 0009-0108 ●
76 LENS; FRT COMB LAMP
EXC. POWER STEERING<N40> THA 		8-97920-175-0 01 1 0109- ●
76 LENS; FRT COMB LAMP
EXC. SPECIAL PACKAGE VAR.2<7TB> THA 		8-97920-175-0 01 1 0109- ●
76 LENS; FRT COMB LAMP
THA 		8-97920-174-0 01 1 0009-0108 ●
76 LENS; FRT COMB LAMP
EXC. SPECIAL PACKAGE VAR.2<7TB> THA 		8-97920-174-0 01 1 0009-0108 ●
76 LENS; FRT COMB LAMP
EXC. POWER STEERING<N40> THA 		8-97920-174-0 01 1 0109- ●
76 LENS; FRT COMB LAMP
EXC. SPECIAL PACKAGE VAR.2<7TB> THA 		8-97920-174-0 01 1 0109- ●
91 BULB; SIDE TURN SIGNAL
12V 5W THA 		8-97913-001-0 02 1 0009- ● ● ● ● ● ● ● ●
97 LAMP UNIT; COMB
THA 		8-97920-173-0 01 1 0009-0108 ● ● ● ● ● ●
97 LAMP UNIT; COMB
SPECIAL PACKAGE VAR.2<7TB> THA 		8-97920-173-0 01 1 0009-0108 ●
97 LAMP UNIT; COMB
THA 		8-97920-173-0 01 1 0109- ● ● ● ● ● ●
97 LAMP UNIT; COMB
POWER STEERING<N40> THA 		8-97920-173-0 01 1 0109- ●
97 LAMP UNIT; COMB
SPECIAL PACKAGE VAR.2<7TB> THA 		8-97920-173-0 01 1 0109- ●
97 LAMP UNIT; COMB
THA 		8-97920-172-0 01 1 0009-0108 ● ● ● ● ● ●
97 LAMP UNIT; COMB
SPECIAL PACKAGE VAR.2<7TB> THA 		8-97920-172-0 01 1 0009-0108 ●
97 LAMP UNIT; COMB
THA 		8-97920-172-0 01 1 0109- ● ● ● ● ● ●
97 LAMP UNIT; COMB
POWER STEERING<N40> THA 		8-97920-172-0 01 1 0109- ●
97 LAMP UNIT; COMB
SPECIAL PACKAGE VAR.2<7TB> THA 		8-97920-172-0 01 1 0109- ●
99 LAMP; SIDE FLASHER
THA 		8-97918-503-1 02 1 0009- ● ● ● ● ● ● ● ●
106 GASKET; SIDE TURN SIGNAL
THA 		8-97920-196-0 02 1 0009- ● ● ● ● ● ● ● ●
211 TUBE; HEADLAMP
FOG LAMP<T96> THA 		8-97920-266-0 02 1 0009- ●
211 TUBE; HEADLAMP
THA 		8-97920-266-0 02 1 0009- ●
224 SOCKET; SIDE FLASHER LAMP
THA 		8-97920-187-0 02 1 0009- ● ● ● ● ● ● ● ●
305 COVER; FRT COMB LAMP
THA 		8-97920-171-0 02 1 0009-0108 ● ● ● ● ● ●
305 COVER; FRT COMB LAMP
SPECIAL PACKAGE VAR.2<7TB> THA 		8-97920-171-0 02 1 0009-0108 ●
305 COVER; FRT COMB LAMP
THA 		8-97920-171-0 02 1 0109- ● ● ● ● ● ●
305 COVER; FRT COMB LAMP
POWER STEERING<N40> THA 		8-97920-171-0 02 1 0109- ●
305 COVER; FRT COMB LAMP
SPECIAL PACKAGE VAR.2<7TB> THA 		8-97920-171-0 02 1 0109- ●
315 HARNESS; FRT COMB LAMP
THA 		8-97920-170-0 02 1 0009-0108 ● ● ● ● ● ●
315 HARNESS; FRT COMB LAMP
SPECIAL PACKAGE VAR.2<7TB> THA 		8-97920-170-0 02 1 0009-0108 ●
315 HARNESS; FRT COMB LAMP
THA 		8-97920-170-0 02 1 0109- ● ● ● ● ● ●
315 HARNESS; FRT COMB LAMP
POWER STEERING<N40> THA 		8-97920-170-0 02 1 0109- ●
315 HARNESS; FRT COMB LAMP
SPECIAL PACKAGE VAR.2<7TB> THA 		8-97920-170-0 02 1 0109- ●
328 COVER; LAMP
FOG LAMP<T96> THA 		8-97920-259-0 02 1 0009- ●
328 COVER; LAMP
THA 		8-97920-259-0 02 1 0009- ●
403 SCREW; BRKT,FOG LAMP
FOG LAMP<T96> THA 		8-97920-261-0 06 1 0009-0111 ●
403 SCREW; BRKT,FOG LAMP
THA 		8-97920-261-0 06 1 0009-0111 ●
403 SCREW; BRKT,FOG LAMP
FOG LAMP<T96> THA 		8-97920-261-0 04 1 0112- ●
403 SCREW; BRKT,FOG LAMP
THA 		8-97920-261-0 04 1 0112- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
