◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50890 - TFR/S(THAILAND) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-55 - REAR SEAT ▶
7-55 — REAR SEAT (#44064) — 23 parça

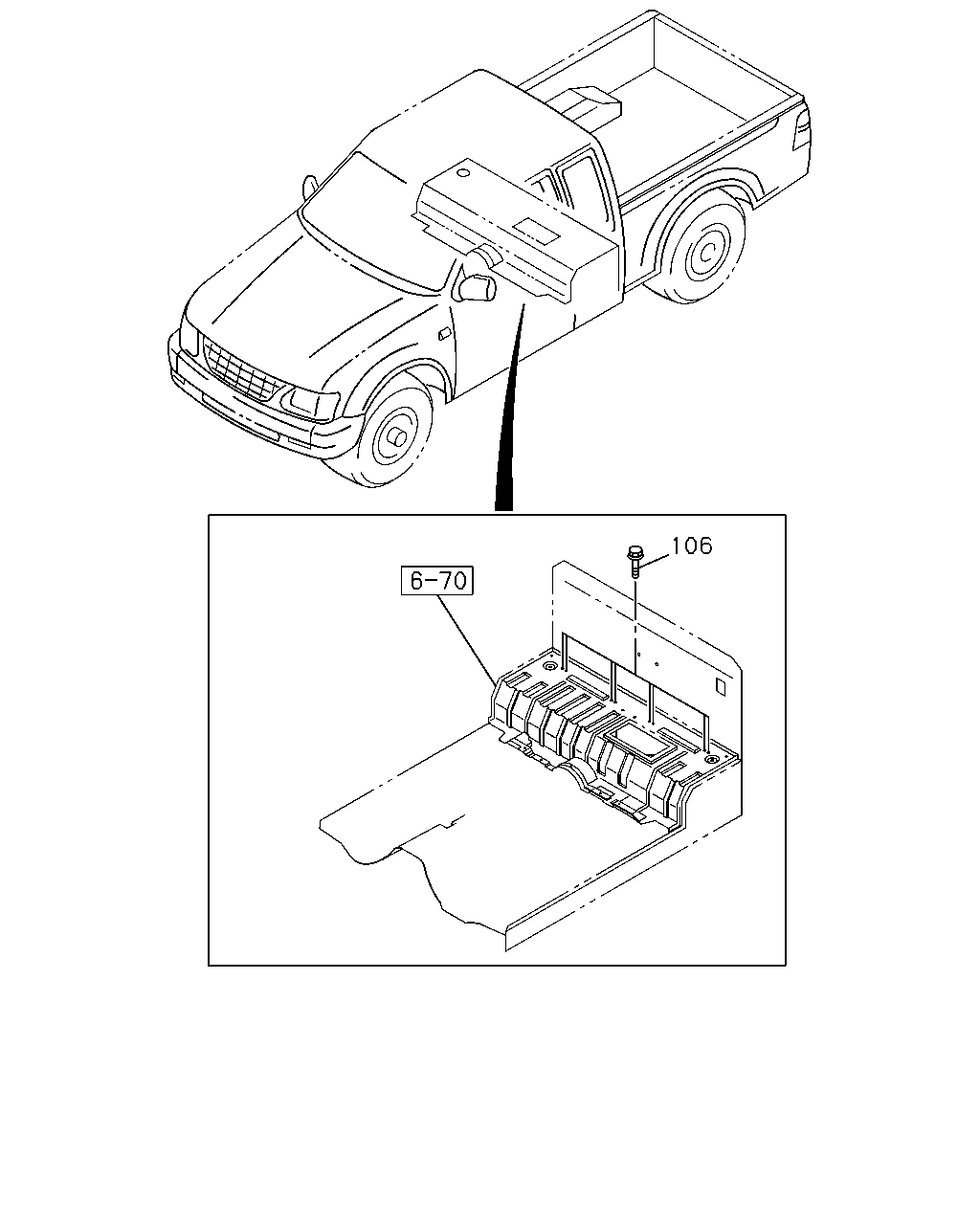

çizim 48089
106
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
106 BOLT; JUMP SEAT
M8X25 W/PL WASHER THA 		8-94175-938-1 06 1 0009- ● ● ● ● ●
106 BOLT; JUMP SEAT
M8X25 W/PL WASHER THA 		8-94175-938-1 02 1 0009- ● ●

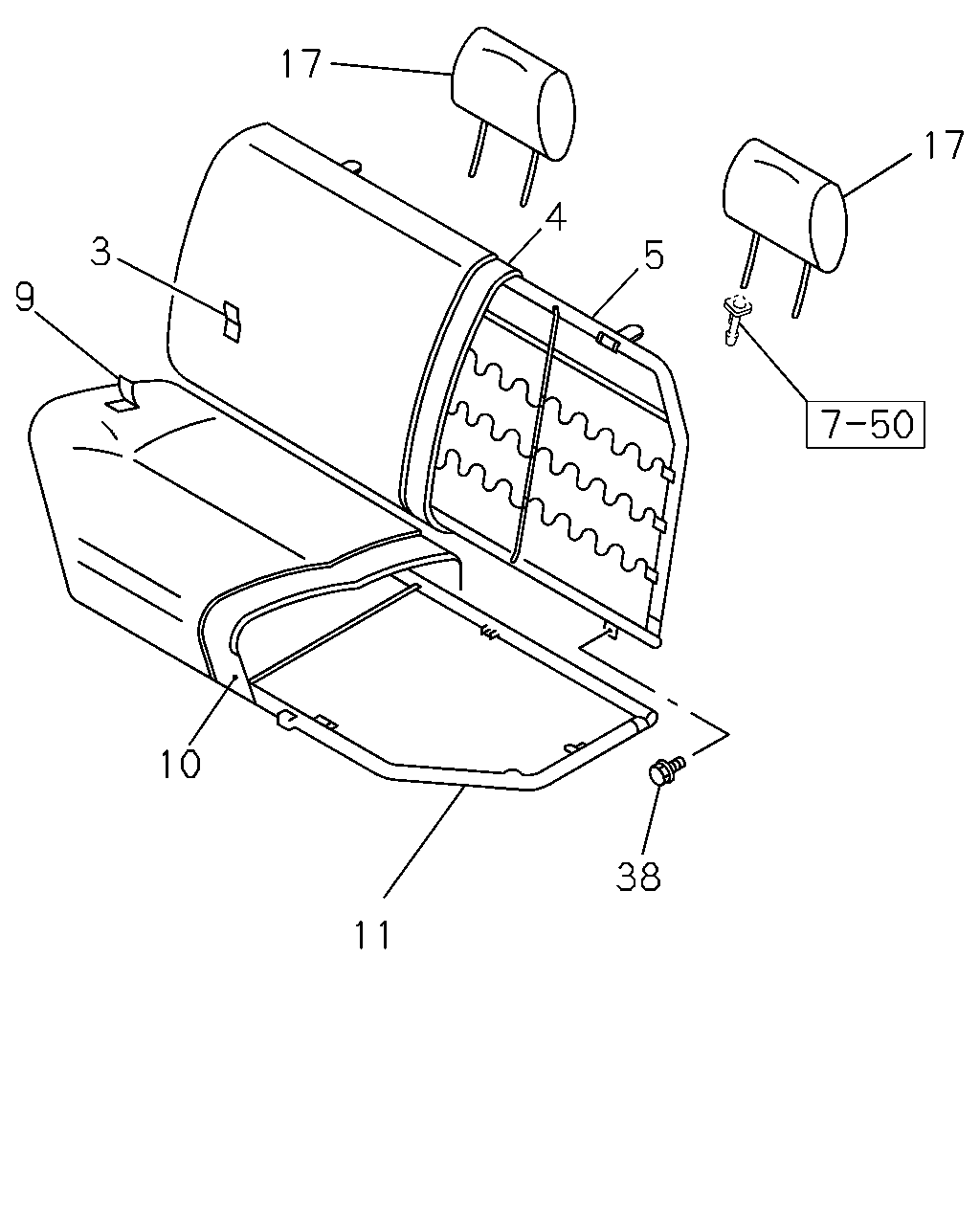

çizim 51869
17 17 4 3 5 9 10 38 11
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
3 COVER; TRIM,RR SEAT BACK
THA 		8-97922-049-0 01 1 0102- ●
3 COVER; TRIM,RR SEAT BACK
THA 		8-97922-043-0 01 1 0102- ●
3 COVER; TRIM,RR SEAT BACK
THA 		8-97921-422-0 01 1 0009-0101 ●
3 COVER; TRIM,RR SEAT BACK
THA 		8-97921-421-0 01 1 0009-0101 ●
4 PAD; RR,SEAT BACK
THA 		8-97921-420-0 01 1 0102- ● ●
4 PAD; RR,SEAT BACK
THA 		8-97921-420-0 01 1 0009-0101 ● ●
5 FRAME ASM; RR SEAT BACK
THA 		8-97921-419-0 01 1 0102- ● ●
5 FRAME ASM; RR SEAT BACK
THA 		8-97921-419-0 01 1 0009-0101 ● ●
9 COVER ASM; TRIM,RR,CUSHION
THA 		8-97922-053-0 01 1 0102- ●
9 COVER ASM; TRIM,RR,CUSHION
THA 		8-97922-047-0 01 1 0102- ●
9 COVER ASM; TRIM,RR,CUSHION
THA 		8-97921-434-0 01 1 0009-0101 ●
9 COVER ASM; TRIM,RR,CUSHION
THA 		8-97921-435-0 01 1 0009-0101 ●
10 PAD; CUSHION,RR SEAT
THA 		8-97921-433-0 01 1 0102- ● ●
10 PAD; CUSHION,RR SEAT
THA 		8-97921-433-0 01 1 0009-0101 ● ●
11 FRAME ASM; CUSHION,RR SEAT
THA 		8-97921-432-1 01 1 0102- ● ●
11 FRAME ASM; CUSHION,RR SEAT
THA 		8-97921-432-0 01 1 0009-0101 ● ●
17 REST; HD,RR SEAT
THA 		8-97922-050-0 02 1 0102- ●
17 REST; HD,RR SEAT
THA 		8-97922-044-0 02 1 0102- ●
17 REST; HD,RR SEAT
THA 		8-97921-426-0 02 1 0009-0101 ●
17 REST; HD,RR SEAT
THA 		8-97921-425-0 02 1 0009-0101 ●
38 BOLT; SEAT TO FLOOR
M10X25 		8-97178-440-2 04 1 0009- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
