◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50890 - TFR/S(THAILAND) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-43 - SUN VISOR AND ASSIST GRIP ▶
7-43 — SUN VISOR AND ASSIST GRIP (#44061) — 35 parça

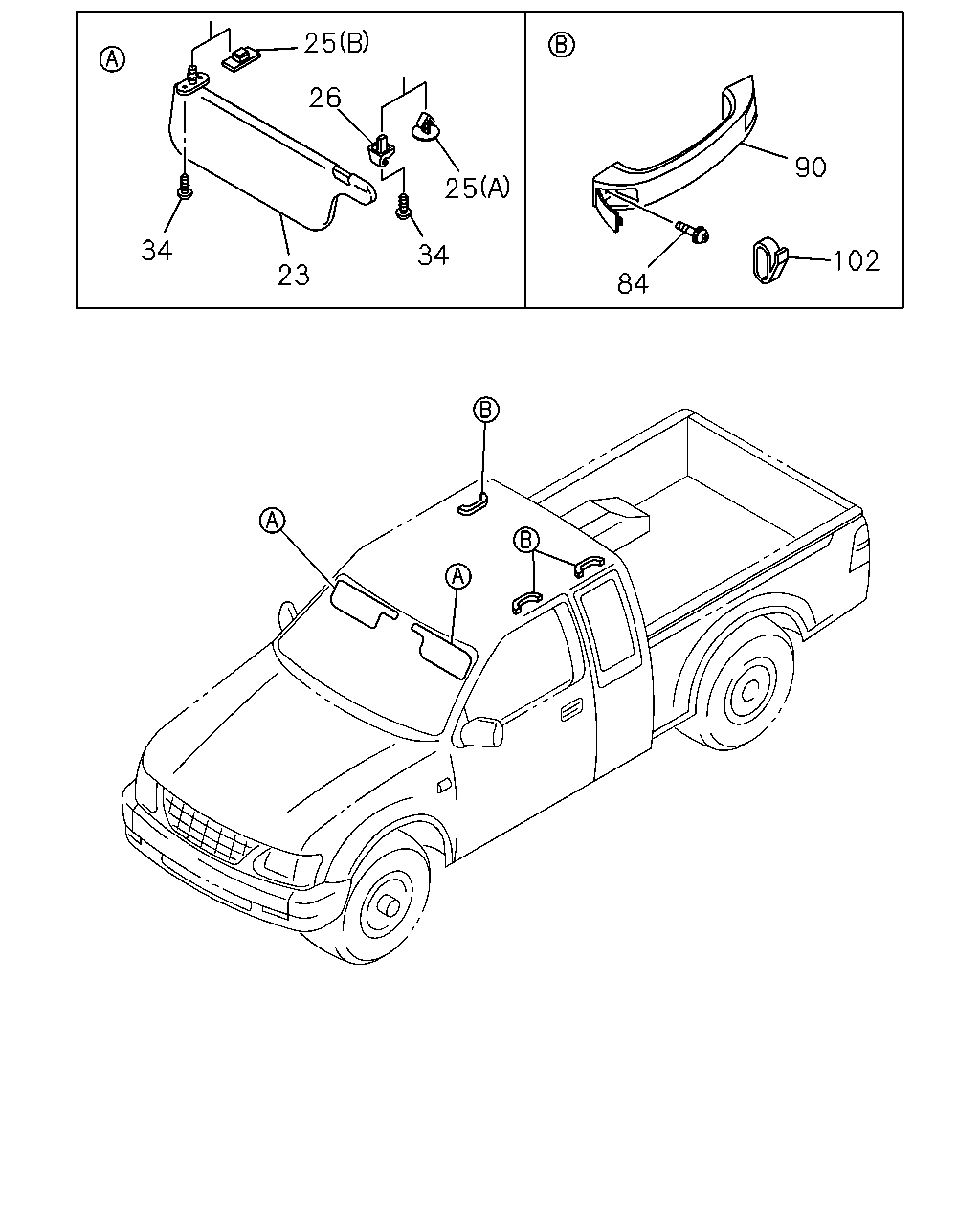

çizim 48774
25 26 90 25 34 34 102 23 84
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
23 SUN VISOR
NHK THA 		8-97913-993-1 01 1 0009- ● ●
23 SUN VISOR
NHK THA 		8-97913-994-1 01 1 0009- ● ●
23 SUN VISOR
NHK THA 		8-97910-007-2 01 1 0009-0102 ● ● ● ● ● ●
23 SUN VISOR
NHK THA 		8-97921-892-0 01 1 0103- ● ● ● ● ● ●
23 SUN VISOR
SAS THA 		8-97914-619-1 01 1 0009-0012 ● ● ● ● ● ●
23 SUN VISOR
SAS THA 		8-97921-817-0 01 1 0101- ● ● ● ● ● ●
23 SUN VISOR
SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> NHK THA 		8-97910-008-2 01 1 0009-0102 ● ●
23 SUN VISOR
NHK THA 		8-97910-008-2 01 1 0009-0102 ● ● ● ●
23 SUN VISOR
SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> NHK THA 		8-97921-893-0 01 1 0103- ● ●
23 SUN VISOR
NHK THA 		8-97921-893-0 01 1 0103- ● ● ● ●
23 SUN VISOR
SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> SAS THA 		8-97914-620-1 01 1 0009-0012 ● ●
23 SUN VISOR
SAS THA 		8-97914-620-1 01 1 0009-0012 ● ● ● ●
23 SUN VISOR
SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> SAS THA 		8-97921-819-0 01 1 0101- ● ●
23 SUN VISOR
SAS THA 		8-97921-819-0 01 1 0101- ● ● ● ●
23 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> NSK THA 		8-97910-825-2 01 1 0009-0102 ● ●
23 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> NHK THA 		8-97921-894-0 01 1 0103- ● ●
23 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> SAS THA 		8-97914-621-1 01 1 0009-0012 ● ●
23 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> SAS THA 		8-97921-818-0 01 1 0101-0102 ● ●
23 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> SAS THA 		8-97921-818-0 02 1 0103- ● ●
25 COVER; HOLE,SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>,SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> (B) LIGHT GRAY 		8-97154-618-0 01 1 0009- ●
25 COVER; HOLE,SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>,SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> (A) LIGHT GRAY 		8-97154-619-0 01 1 0009- ●
26 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20>,SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> LIGHT GRAY 		8-97153-244-2 02 1 0009- ● ●
26 HOLDER; SUN VISOR
LIGHT GRAY 		8-97153-244-2 02 1 0009- ● ● ● ● ● ●
26 HOLDER; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>,SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> LIGHT GRAY 		8-97153-244-2 01 1 0009- ●
34 SCREW; SUN VISOR
SUNVISOR PASSENGER SIDE<D20>,SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> M4X16 TAPPING OVAL-HEAD 		0-70580-416-0 06 1 0009- ● ●
34 SCREW; SUN VISOR
M4X16 TAPPING OVAL-HEAD 		0-70580-416-0 06 1 0009- ● ● ● ● ● ●
34 SCREW; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>,SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> M4X16 TAPPING OVAL-HEAD 		0-70580-416-0 03 1 0009- ●
84 SCREW; ASSIST GRIP
FRONT ASSIST GRIP M6X20 		9-03910-620-0 02 1 0009- ● ● ● ● ● ● ●
84 SCREW; ASSIST GRIP
ASSIST GRIP PASSENGER<EG5> FRONT ASSIST GRIP M6X20 		9-03910-620-0 02 1 0009- ●
84 SCREW; ASSIST GRIP
REAR ASSIST GRIP M6X20 W/LK&PL WASHER 		1-09981-073-0 04 1 0009-0104 ● ●
84 SCREW; ASSIST GRIP
M6X32 		8-97811-323-0 04 1 0105- ● ●
90 GRIP; ASSIST,ROOF
THA 		8-97910-154-0 01 1 0009- ● ● ● ● ● ● ●
90 GRIP; ASSIST,ROOF
ASSIST GRIP PASSENGER<EG5> THA 		8-97910-154-0 01 1 0009- ●
90 GRIP; ASSIST,ROOF
THA 		8-97910-154-0 02 1 0009- ● ●
102 HOOK; COAT HANGER
GRAY 		8-97150-620-1 02 1 0009- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
